Protect your 2004-2007 LV series industrial engine from costly downtime with the right factory data. All 112 pages of this Yanmar L100V Operator Manual PDF (OEM #0ALV00-U0000) focus on operating procedures, fluid capacities, and maintenance schedules for the L48V, L70V, and L100V models. Inside, you get a full breakdown of dashboard indicators, safe starting operations, and a complete periodic maintenance schedule. Packed with clear charts, it guides your hands through everything from basic daily checks to long-term storage preparation. Swap the outlet fuel filter every 200 hours and verify the air intake restriction limit stays at or below 0.10 psi on the L48V. Guessing at service intervals ruins engines. Grab this bookmarked file, pull it up on your tablet in the shop, and get the maintenance done right.
What's Inside This Yanmar L48V, L70V, L100V Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 5-6 | Record of Ownership |
| Yanmar Warranties | 7-12 | Yanmar Limited Warranty (What Is Covered by This Warranty?, How Long Is the Warranty Period?, What the Engine Owner Must Do:, To Locate an Authorized Yanmar Industrial Engine Dealer or Distributor:, What Yanmar Will Do:, What Is Not Covered by This Warranty?, Warranty Limitations:, Warranty Modifications:, Questions:, Retail Purchaser Registration) |
| Safety | 17-30 | Safety Statements, Safety Precautions (Before You Operate, During Operation and Maintenance) |

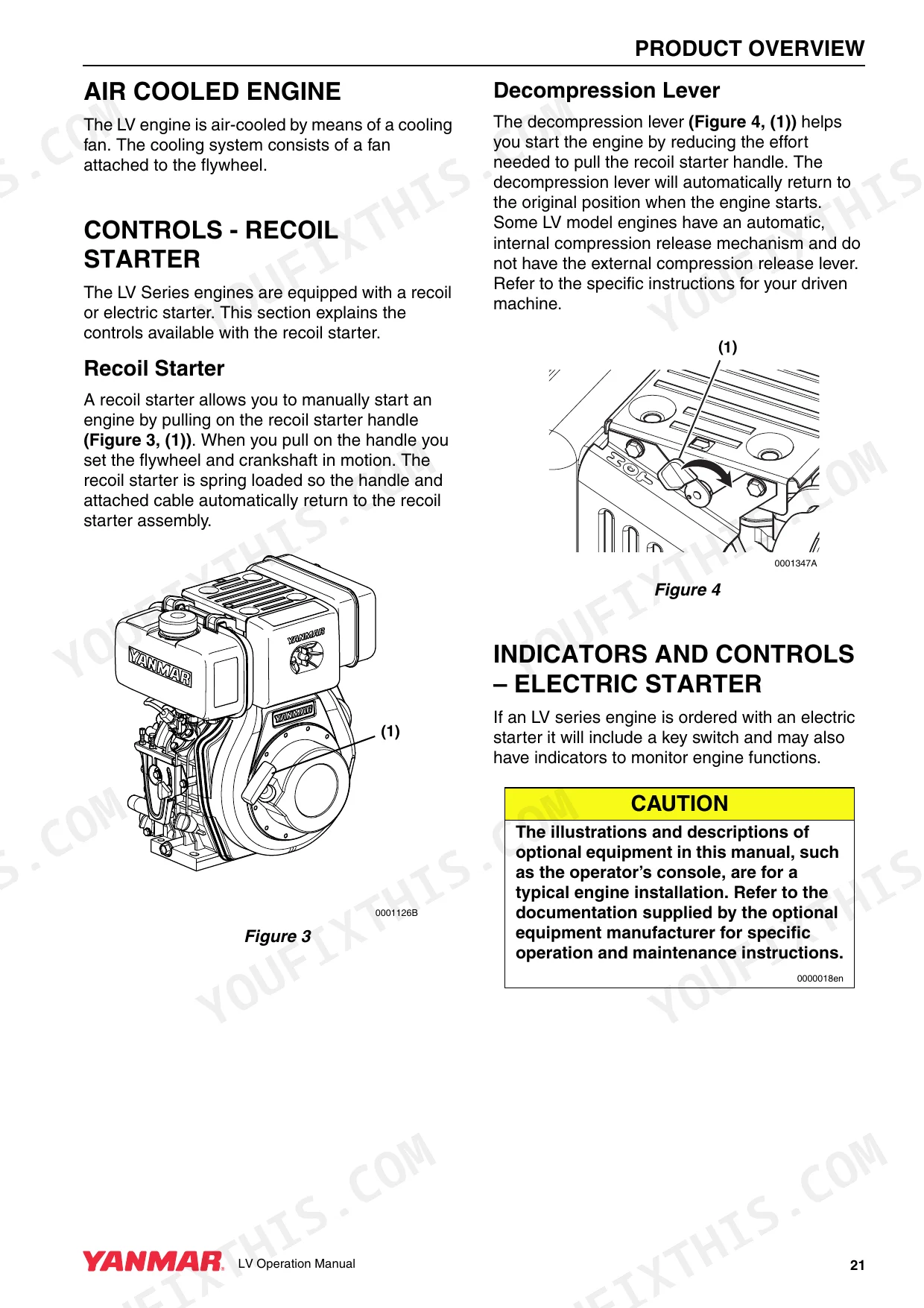

| Product Overview | 31-40 | Yanmar Lv Series Engine Features and Applications, Component Identification, Location of Labels, Epa / Arb Emission Control Regulations - Usa Only |

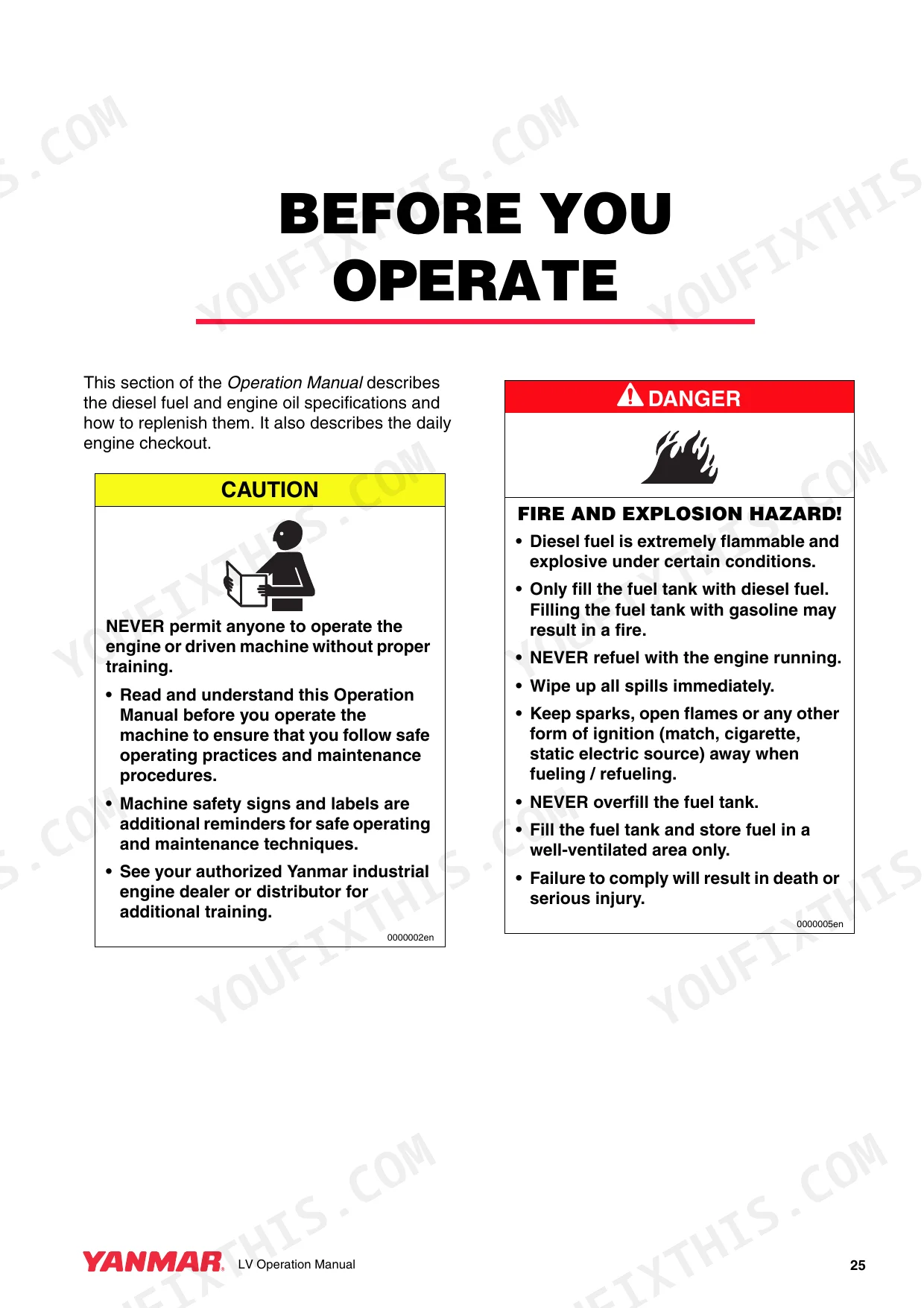

| Before You Operate | 41-52 | Diesel Fuel, Diesel Fuel Specifications, Filling the Fuel Tank, Engine Oil, Engine Oil Specifications, Engine Oil Viscosity, Checking Engine Oil, Adding Engine Oil |
| Engine Operation | 53-68 | Starting the Engine (Recoil Start, Electric Start), Check the Engine During Operation, Adjust Engine Speed |
| Periodic Maintenance | 69-100 | Precautions (Importance of Periodic Maintenance, Performing Periodic Maintenance, Importance of Daily Checks, Keep a Log of Engine Hours and Daily Checks, Yanmar Replacement Parts, Tools Required, Ask Your Authorized Yanmar Industrial Engine Dealer or Distributor for Help, Required Epa / Arb Maintenance - Usa Only, Epa / Arb Installation Requirements - Usa Only, Tightening Fasteners) |
| Troubleshooting | 101-104 | Troubleshooting Chart, Troubleshooting Information |
| Long Term Storage | 105-108 | Before You Place the Engine in Long Term Storage, Returning the Engine to Service |
| Specifications | 109-112 | General (Model Number, Engine Speed Specifications, Engine General Specifications), Principal Engine Specifications, Engine Specifications |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||

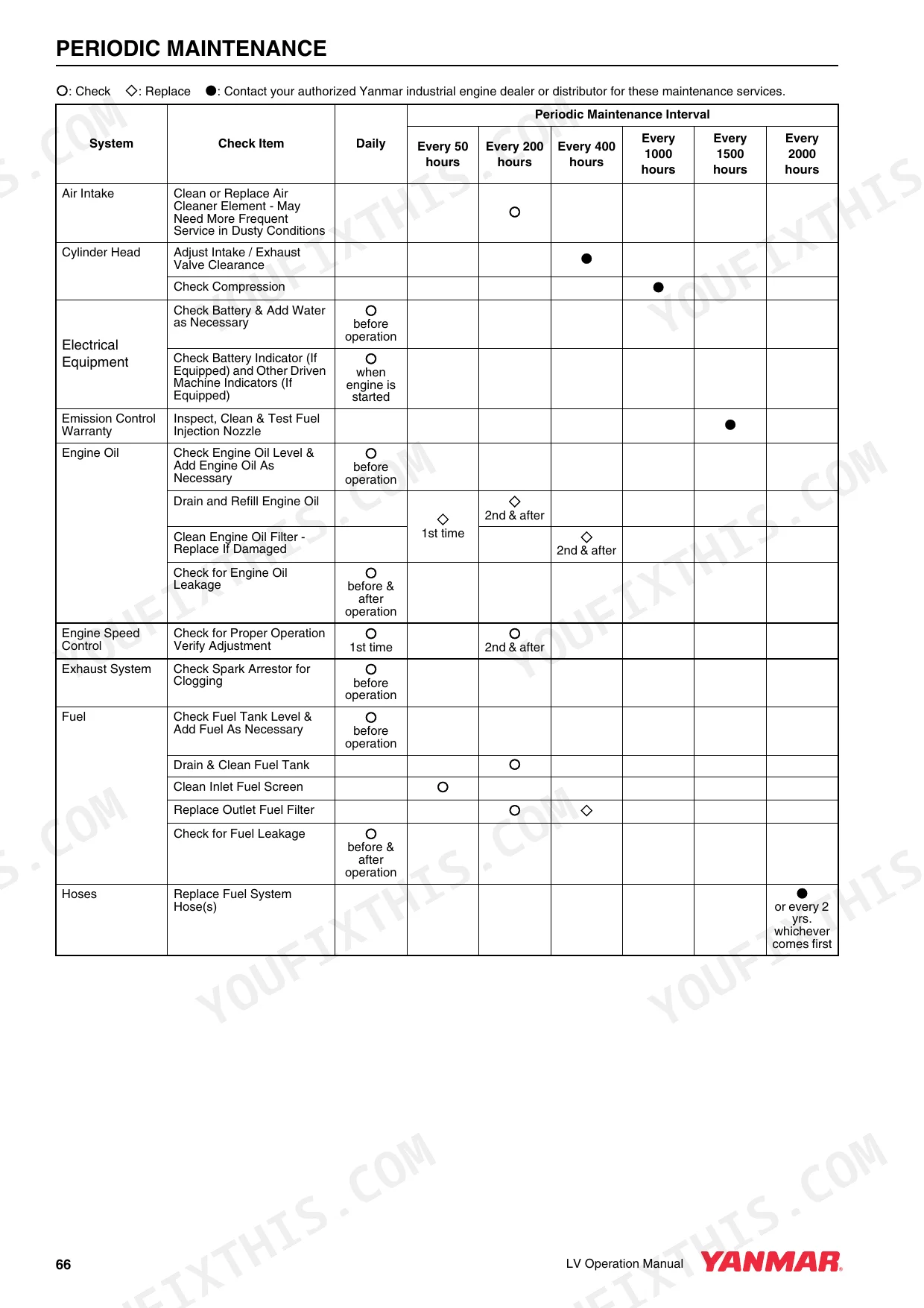

| Outlet Fuel Filter Replacement Interval | Every 200 hours | p. 82 |
| Outlet Fuel Filter Part Number | 114250-55121 | p. 96 |
| Air Cleaner Element Cleaning/Replacement Interval | Every 50 hours (more frequent in dusty conditions) | p. 82 |
| Engine Oil Filter Cleaning/Replacement Interval | 1st time (Every 50 hours), 2nd & after (Every 200 hours) | p. 82 |
| Engine Oil Filter Part Number | 114250-35070 | p. 91 |
| Fuel Injection Nozzle Inspection/Cleaning/Testing Interval | Every 1500 hours | p. 98 |

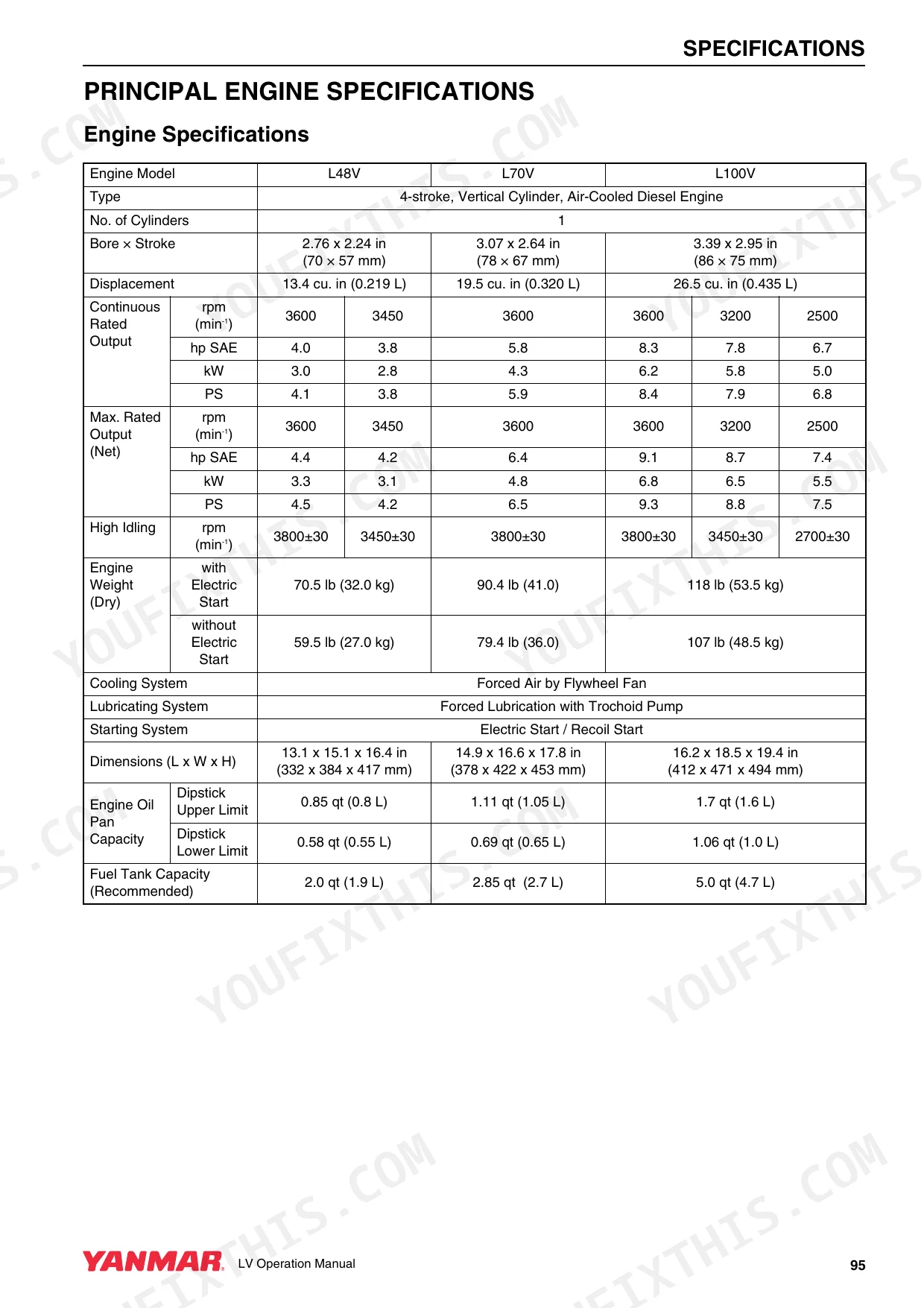

| Number of Cylinders | 1 | p. 111 |
| L48V | ||
| Air Intake Restriction Limit | 0.10 psi (0.69 kPa; 70 mm Aq) or less | p. 78 |
| L48V Displacement | 13.4 cu. in (0.219 L) | p. 111 |
| L48V Engine Oil Pan Capacity (Upper Limit) | 0.85 qt (0.8 L) | p. 111 |
| L70V | ||
| L70V Displacement | 19.5 cu. in (0.320 L) | p. 111 |
| L100V | ||
| L100V Displacement | 26.5 cu. in (0.435 L) | p. 111 |
Yanmar L48V, L70V, L100V Common Problems This Manual Covers

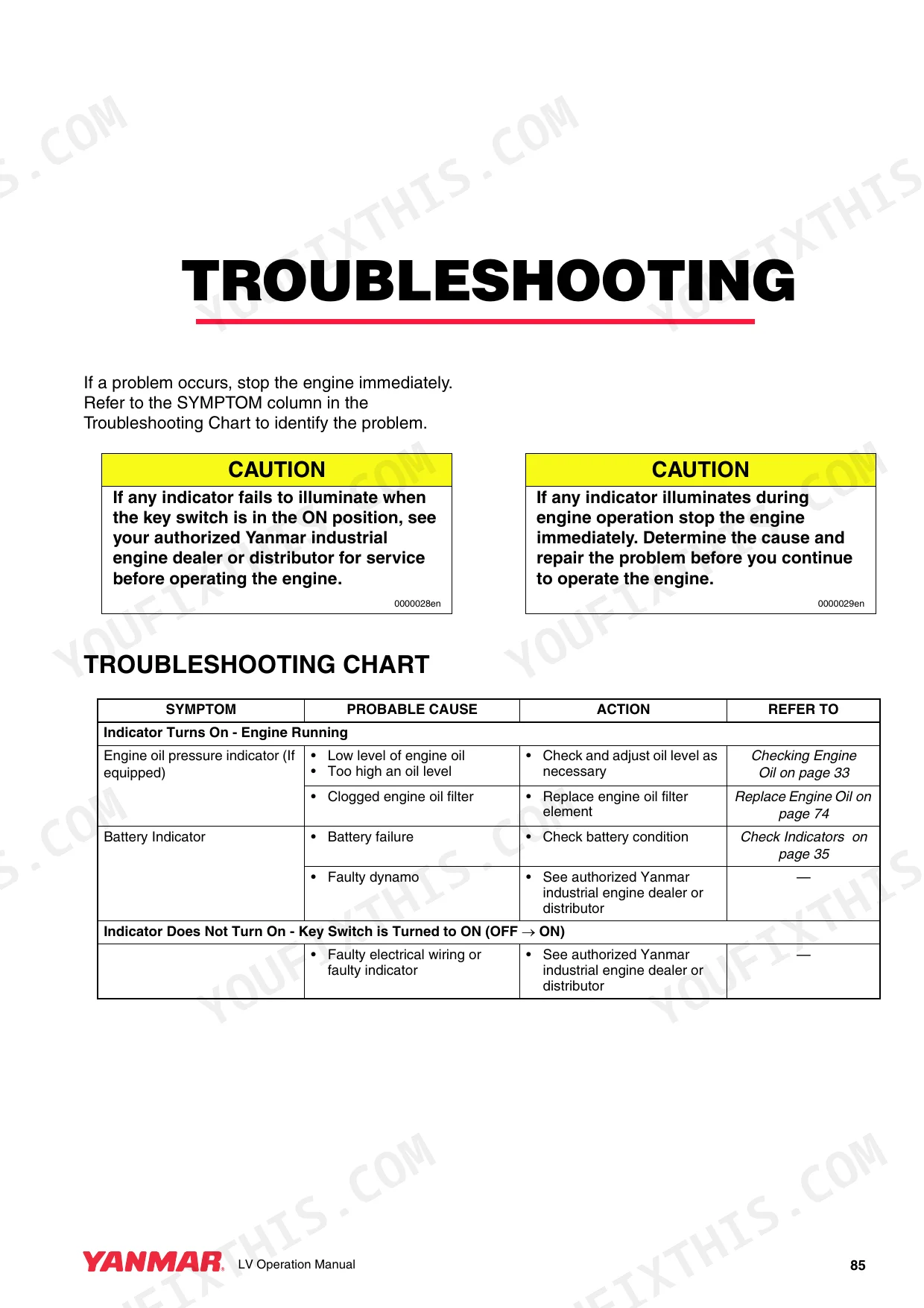

Yanmar L48V engine cranks normally but will not start or starts briefly and immediately dies p. 101
Check the troubleshooting chart on page 101. Inspect the fuel system for air leaks and verify the outlet fuel filter is clean. Replace the fuel filter every 200 hours as indicated on page 82. Verify the fuel tank has sufficient diesel before attempting to restart.
Manual Section: TroubleshootingEngine loses power, runs rough, or surges erratically when operating under heavy load p. 94
Inspect the air cleaner element for dirt or blockages. Clean the element using compressed air regulated to 42-71 psi (0.29−0.49MPa, 3.0−5.0kgf/cm2) as specified on page 94. Replace the filter immediately if damaged to restore proper engine speed and power output.
Manual Section: Periodic MaintenanceExcessive white or black exhaust smoke blowing from the muffler during normal operation p. 98
Verify the engine is not overloaded and check the air cleaner element. Inspect the fuel injection nozzle spray pattern and timing. Test and clean the fuel injection nozzle every 1500 hours as detailed on page 98. Drain and replace improper diesel fuel if necessary.
Manual Section: TroubleshootingEngine oil pressure indicator light stays on after startup or oil level drops rapidly p. 111
Stop the engine immediately. Check the engine oil level and inspect for external leaks. Ensure the L70V engine oil pan capacity does not exceed the 1.11 qt (1.05 L) upper limit, as shown on page 111. Clean or replace the oil filter if clogged.
Manual Section: TroubleshootingFrequently Asked Questions
What are the torque specs for general bolts on YANMAR L48V/L70V/L100V engines?
The manual provides a standard torque chart for various bolt sizes. For example, an M10x1.5 bolt should be tightened to 36.0 ± 4.0 ft lbs (49.0 ± 4.9 N·m). For bolts not listed, apply 60% of the standard torque, and 80% if tightened to aluminum alloy, as detailed in the Standard Torque Chart on page 64.
What do the warning indicators mean on YANMAR L48V/L70V/L100V engines?
The battery indicator comes on if there is a problem in the charging system, but does not indicate if the battery is discharged. If equipped with an inlet air heater, a heat indicator lights when the heater is activated. For detailed troubleshooting, refer to the Troubleshooting Chart on page 85.
Why won’t my YANMAR L100V start, and what are the common troubleshooting steps?
Common reasons for the engine not starting include no diesel fuel, improper diesel fuel, or a clogged fuel filter. If the starter motor operates too slowly, the battery may need charging or the terminals may be faulty. For specific actions, such as refueling the fuel system (page 30) or replacing the fuel filter (page 79), consult the Troubleshooting Chart on page 102.
What are the replacement specifications for the fuel filter on YANMAR L48V/L70V/L100V engines?
The outlet fuel filter is a replaceable cartridge located at the outlet of the fuel tank. It should be replaced every 200 hours of operation. The applicable part number for the L48V, L70V, and L100V models is 114250-55121.
What are the replacement specifications for the air filter element on YANMAR L48V/L70V/L100V engines?
The air cleaner element should be cleaned or replaced every 200 hours, or more frequently in dusty conditions. The part number for the L48V air cleaner element is 114250-12581, while for the L70V and L100V models, it is 114210-12590.
How quickly can I access this manual after?
Immediate download of the complete 112-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this Yanmar L48V, L70V, L100V, LV series?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Document Quality
This document is a native digital PDF, allowing you to search and copy text throughout. The text is consistently crisp and easy to read on every page. Diagrams and illustrations are primarily high-resolution raster images, with all labels remaining clear and perfectly readable. The pages are clean, free from any scan artifacts, stains, marks, or skewed content. You will find several "This Page Intentionally Left Blank" pages interspersed within the manual.
