All 30 pages of this Yanmar L100V Parts Catalog (OEM #0CC50-M02630) are built around one job: finding the exact part number for your L100V1NJ1F2CAAN diesel engine without second-guessing yourself. Inside, exploded-view sections walk you through every assembly on this engine , cylinder block, crankshaft, flywheel, piston and connecting rod, camshaft, fuel injection pump, fuel tank, recoil starter, starter motor, electric parts, dynamo, and a full gasket set. Cross-reference the Parts No. Index up front to jump straight to the component you need. Compatible with Ammann equipment running this engine family. No more ordering the wrong gasket or hunting down a balancer shaft bearing with nothing but a blurry photo and a forum post. Bookmarked by section, so you tap the assembly, confirm the part number, and place your order. Download now and pull it up right on your phone next to the machine.
What's Inside This Yanmar L100V, YANMAR L100V, L100V1NJ1F2CAAN Parts Manual
| System | Pages | Key Topics |
|---|---|---|

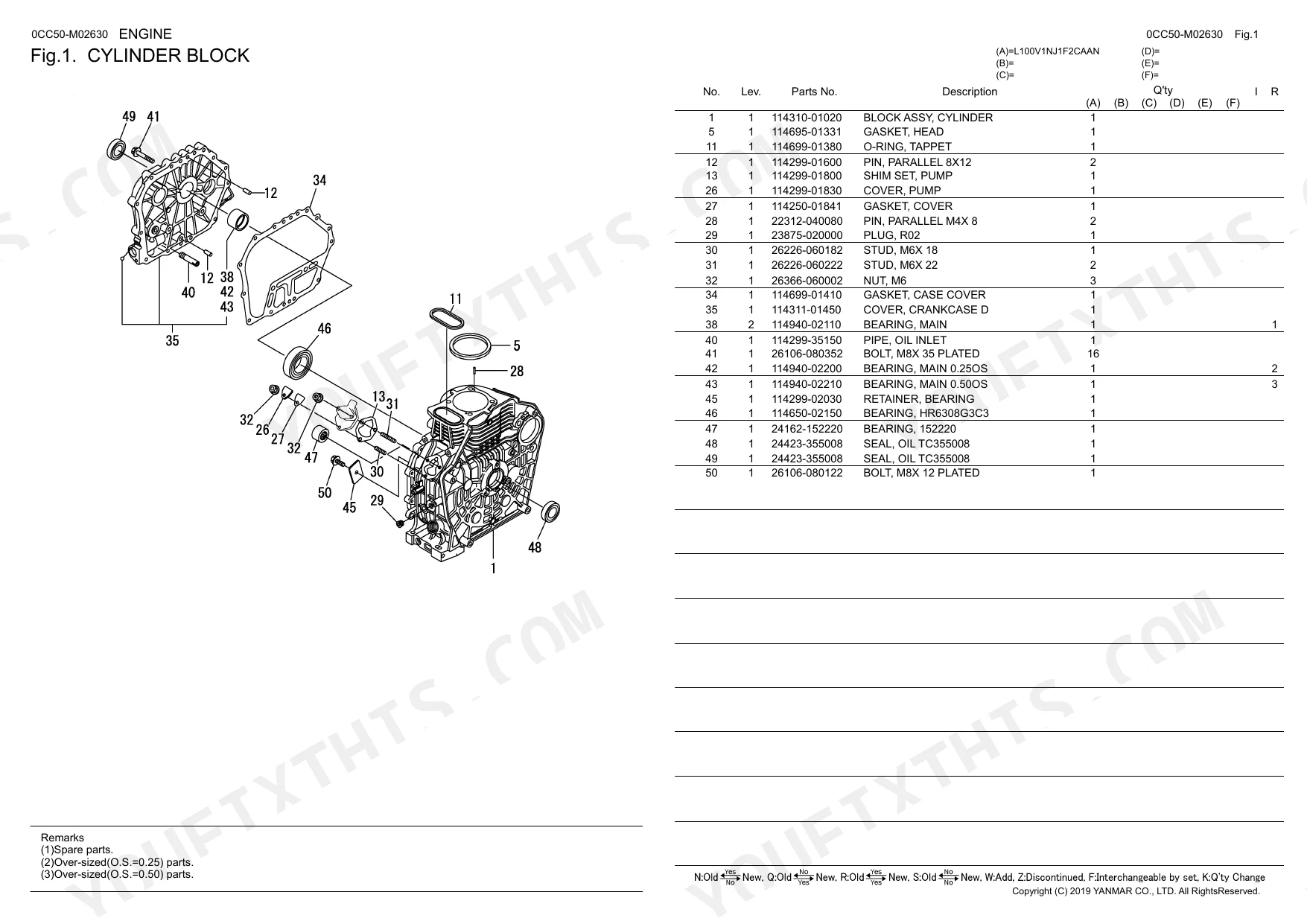

| Cylinder Block | 4 | Cylinder Block Assy, Head Gasket, Pump Shim Set, Pump Cover, Cover Gasket, Case Cover Gasket, Crankcase D Cover, Main Bearing |
| Drain Plug | 5 | Oil Supply Cap Assy, Drain Nipple, Plug, O-Ring |
| Label | 6 | Caution Label, Yanmar Mark A Label, How To Start Label, Yanmar Mark B Label, Diesel Label, Hot Surface Label, Control Label |

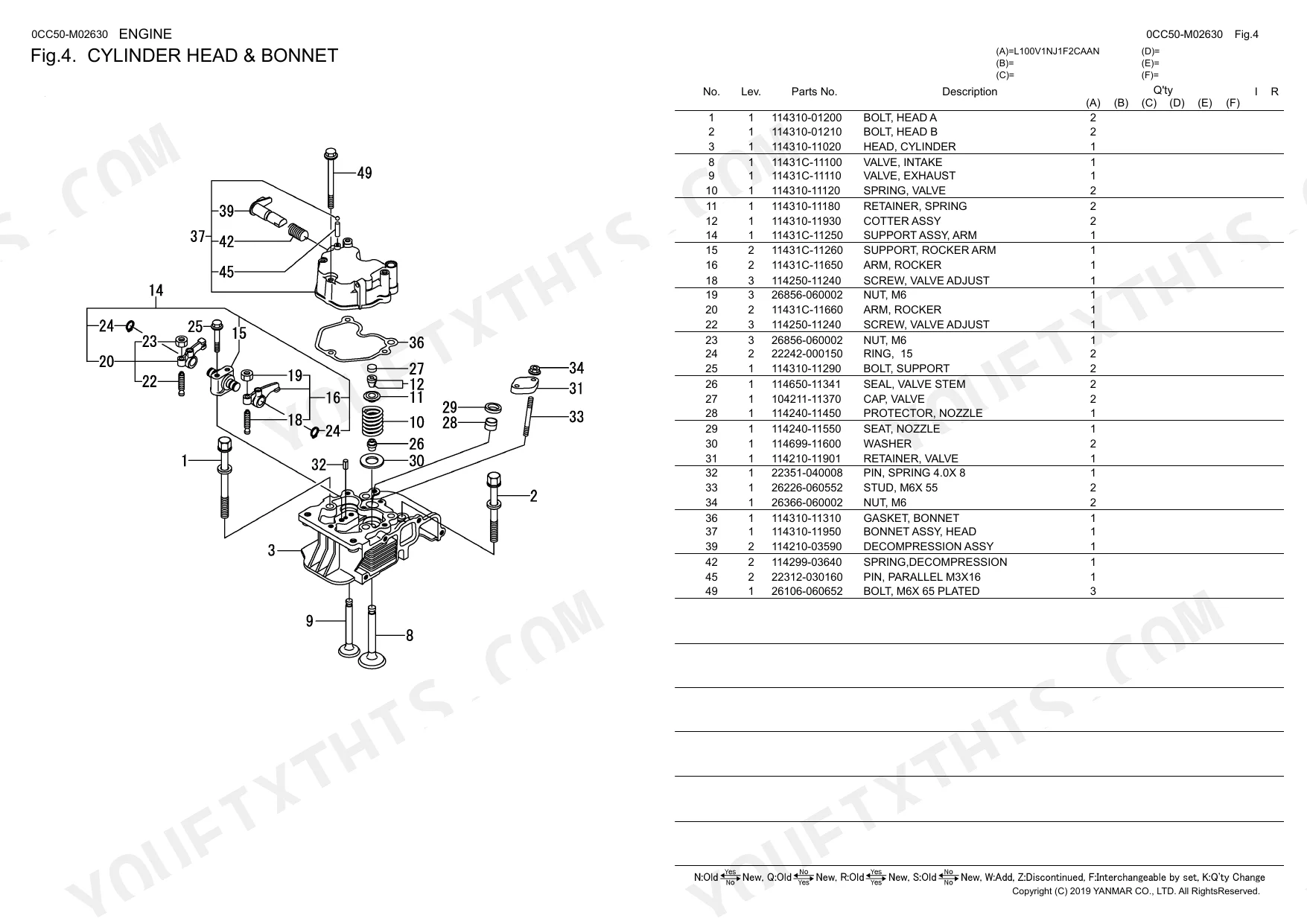

| Cylinder Head & Bonnet | 7 | Cylinder Head, Valve Spring, Spring Retainer, Ring, Valve Stem Seal, Valve Cap, Nozzle Protector, Nozzle Seat |
| Air Cleaner | 8 | Air Cleaner Gasket, Air Cleaner Assy, Cleaner Body Assy, Cleaner Cover Assy, Element Assy, Knob |
| Exhaust Muffler | 9 | Muffler Gasket, Muffler Assy, Devsa Muffler, Muffler A Cover, Muffler B Cover, Muffler C Cover |
| Camshaft | 10 | Tappet, Roller Tappet Assy, Push Rod Assy, Camshaft Assy |

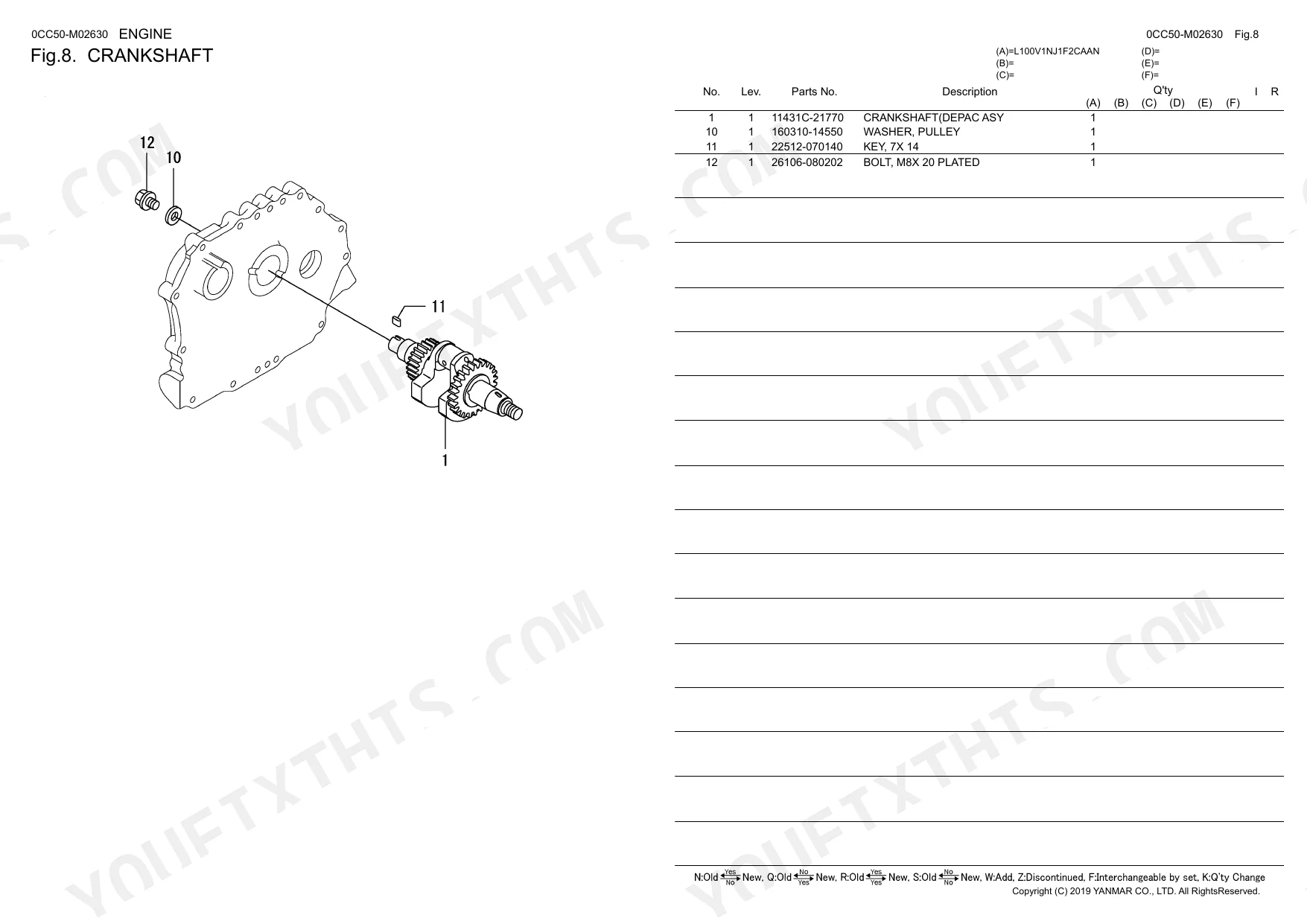

| Crankshaft | 11 | CRANKSHAFT(DEPAC Asy), Washer, Pulley, Key, Bolt |
| Flywheel | 12 | De Flywheel Assy, Ring Gear, Nut, Washer |
| Piston & Connecting Rod | 13 | D Piston Assy, Piston Ring Set, Seeger J23 Ring, Piston Assy, Crank Pin Metal Assy, Piston Pinn Bush |
| Balancer Shaft | 14 | Shaft Assy, Balancer, Bearing, Ball |
| Lub. Oil Pump & Governor | 15 | Oil Pump Assy, Oil Pump Cover, Oil Filter Assy, Governor Lever Assy, Needle Bearing, Oil Seal, Governor Assy, Governor Weight Assy |
| Switch(Oil Pressure) | 16 | - |
| Cover | 17 | Top Cover Assy, Decompression Label, Tank Grommet, Collar, Side B Cover, Side A Cover, Seal Rubber, Top Cover Spacer |
| Cooling Fan Case | 18 | Fan Case Rubber, Fan Case Collar, Fan Case Seal |

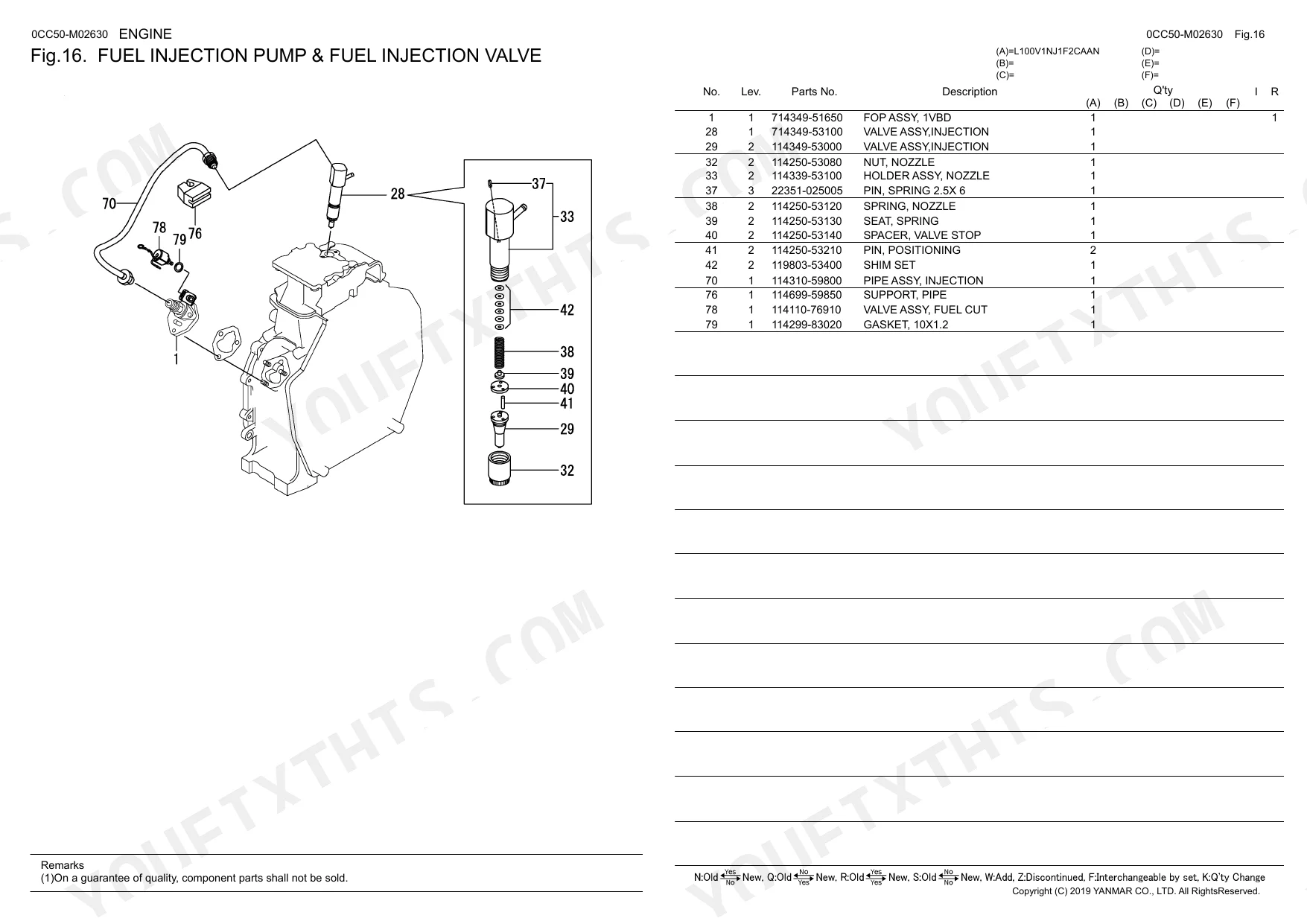

| Fuel Injection Pump & Fuel Injection Valve | 19 | 1VBD Fop Assy, Injection Valve Assy, Nozzle Holder Assy, Nozzle Spring, Spring Seat, Valve Stop Spacer, Injection Pipe Assy, Pipe Support |
| Fuel Tank & Fuel Pipe | 20 | Fuel Oil Filter Assy, Gasket, Fuel Tank A Stay, Fuel Tank B Stay, Fuel Cock Assy, 8X1 Gasket, Fuel Tank Cap Assy, Fuel Tank Strainer |
| Control Device | 21 | Control Label, Handle Bracket Assy, Regulator Handle, Handle Shaft, Handle Spring, Friction Plate, Regulator Spring, Return Spring |
| Recoil Starter | 22 | Recoil Starter Assy, Starter Case, Recoil Starter Reel, Ratchet, Spiral Spring, Ratchet Guide, Friction Spring, Starter Knob |
| Starter Motor | 23 | Starter Motor Assy, Pinion Clutch Assy, Magnet Switch Assy, Armature Assy, Yoke Assy, Rear Cover Assy, Rear Bush, Brush Holder Assy |
| Electric Parts | 24 | Regulator Assy, Harness Bracket, 20A Fuse, Screw |
| Dynamo | 25 | 15A Dinamo Assy, Stator Assy, Dynamo Wheel, Clamp |
| Gasket Set | 26 | Head Gasket, Case Cover Gasket, Cover Gasket, Bonnet Gasket, Valve Stem Seal, Nozzle Gasket, Air Cleaner Gasket |
Yanmar L100V, YANMAR L100V, L100V1NJ1F2CAAN Common Problems This Manual Covers
Yanmar L100V oil filter part number unclear when ordering replacement Filter Assy for lubrication system service p. 15
Check the exploded view on page 15 (Lub. Oil Pump & Governor). The Filter Assy and O-Ring are listed as individual line items with their own part numbers. Cross-reference the Parts No. Index on page 2 to confirm the correct assembly for your serial number variant before placing an order with your dealer.
Manual Section: 12.Lub. Oil Pump & GovernorFuel filter part number for the tank-side Filter Assy is hard to match to the correct variant p. 20
Open the exploded view on page 20 (Fuel Tank & Fuel Pipe). The Filter Assy, Fuel Oil is listed alongside the Tank Assy, Cock Assy, and Cap Assy as separate numbered entries. Verify the correct Filter Assy part number in the Parts No. Index on page 2, noting the Fuel Cock Assy carries its own distinct part number and is not bundled.
Manual Section: 17.Fuel Tank & Fuel PipeAir cleaner element part number needed, unsure if Body Assy and Cover Assy are sold separately p. 8
Check page 8 (Air Cleaner). The Cleaner Assy, Body Assy, Cover Assy, and Gasket are each listed as separate line items with individual part numbers. If you need only the filter element, identify the Gasket, Air Cleaner entry and order it individually rather than purchasing the complete Cleaner Assy and paying for housings you do not need.
Manual Section: 5.Air CleanerGasket set contents unclear when identifying which seals are included for a top-end rebuild p. 26
Review page 26 (Gasket Set) for the complete kit listing. The set breaks out the Head Gasket, O-Ring, Tappet Gasket, and Case Cover Gasket as individual indexed entries. Cross-check page 7 (Cylinder Head) and page 4 (Cylinder Block) to confirm every sealing surface is covered by a listed part before ordering the set.
Manual Section: 23.Gasket SetDynamo replacement part number difficult to confirm, especially whether the 15A Stator Assy is a separate orderable sub-component p. 25
Check page 25 (Dynamo). The Dinamo Assy 15A, Stator Assy, Dynamo Wheel, Clamp, and Cord are each listed with individual part numbers. If only the stator has failed, order the Stator Assy sub-part number directly rather than the complete Dinamo Assy 15A to avoid purchasing components still in serviceable condition.
Manual Section: 22.DynamoCorrect fuse and regulator part numbers for the electrical system are hard to distinguish from each other p. 24

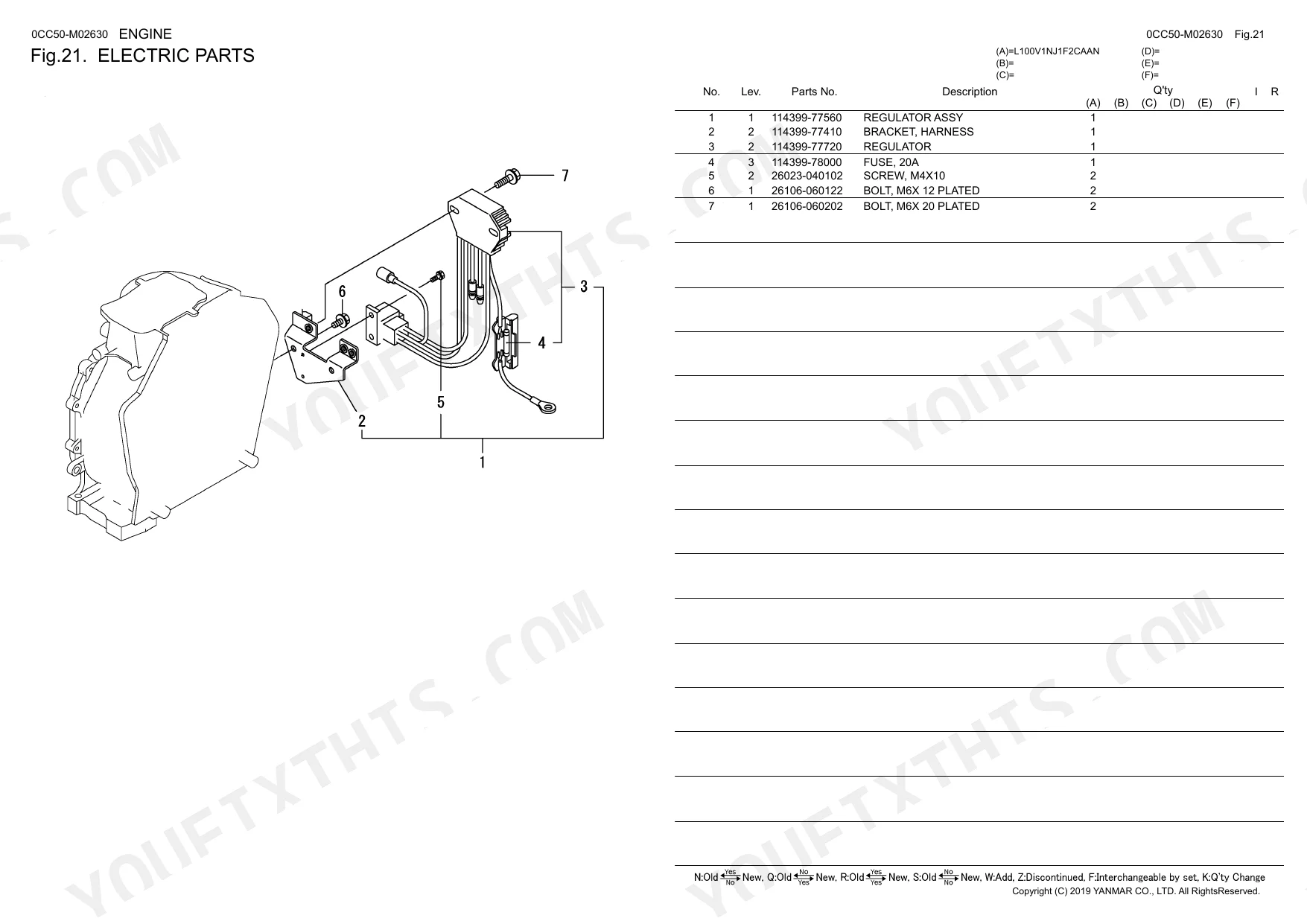

Check page 24 (Electric Parts). The Regulator Assy, standalone Regulator, Harness, and Fuse 20A are each listed as separate line items with distinct part numbers. If only the fuse has blown, order the Fuse 20A entry directly. Note that both a Regulator Assy and a standalone Regulator appear on page 24 as separate entries; confirm which component matches your fault before ordering.
