A cooling fresh water alarm lighting at 95 degrees C, halfway through a run under load, is not the moment to guess which lamp means what or where the countermeasure table lives. This operation manual for the Yanmar 6CXM-GTE six-cylinder marine diesel (publication 49961-204671) covers the engine from daily checks to shutdown: supplying fuel, lube oil, and cooling water, starting and stopping procedure, reading the instrument panel and alarm devices, and the periodic inspection schedule from the first 50 hours out to every 1000 hours.
The maintenance chapter holds the numbers you actually reach for at the engine: 15W40 lube oil in a 22 liter pan (8 liters effective), 8 to 10 mm of give at the V-belt depression, fuel filter torque of 1.2 to 1.6 kg-m, and seawater pump impeller replacement every 2000 hours.
All 44 pages arrive as a 3.97 MB PDF with 35 bookmarks, so the jump from a lit alarm lamp to the matching countermeasure is one click, and any page prints clean for the engine room.
What's Inside This Yanmar 6CXM-GTE Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 2 | For Safe Operation, Explanation of Product, Preparation for Operation, Maintenance & Inspection, Trouble and Troubleshooting |
| For Safe Operation | 4-7 | Warning Symbols, Safety Precautions, Location of Product Safety Labels |

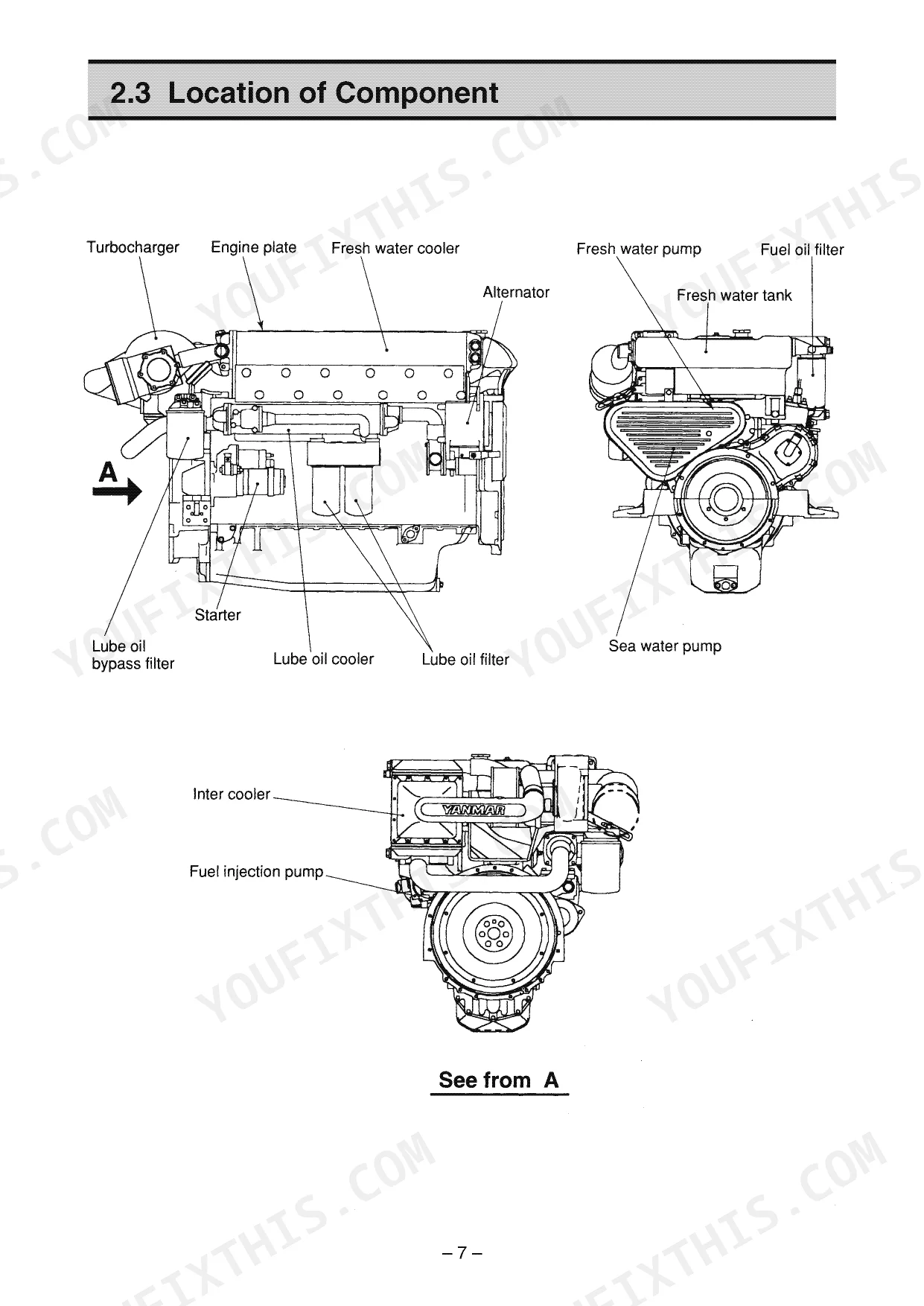

| Product Explanation | 8-13 | Use & Driving System, Engine Specifications, Location of Component, Operation Equipment (Instruments) |

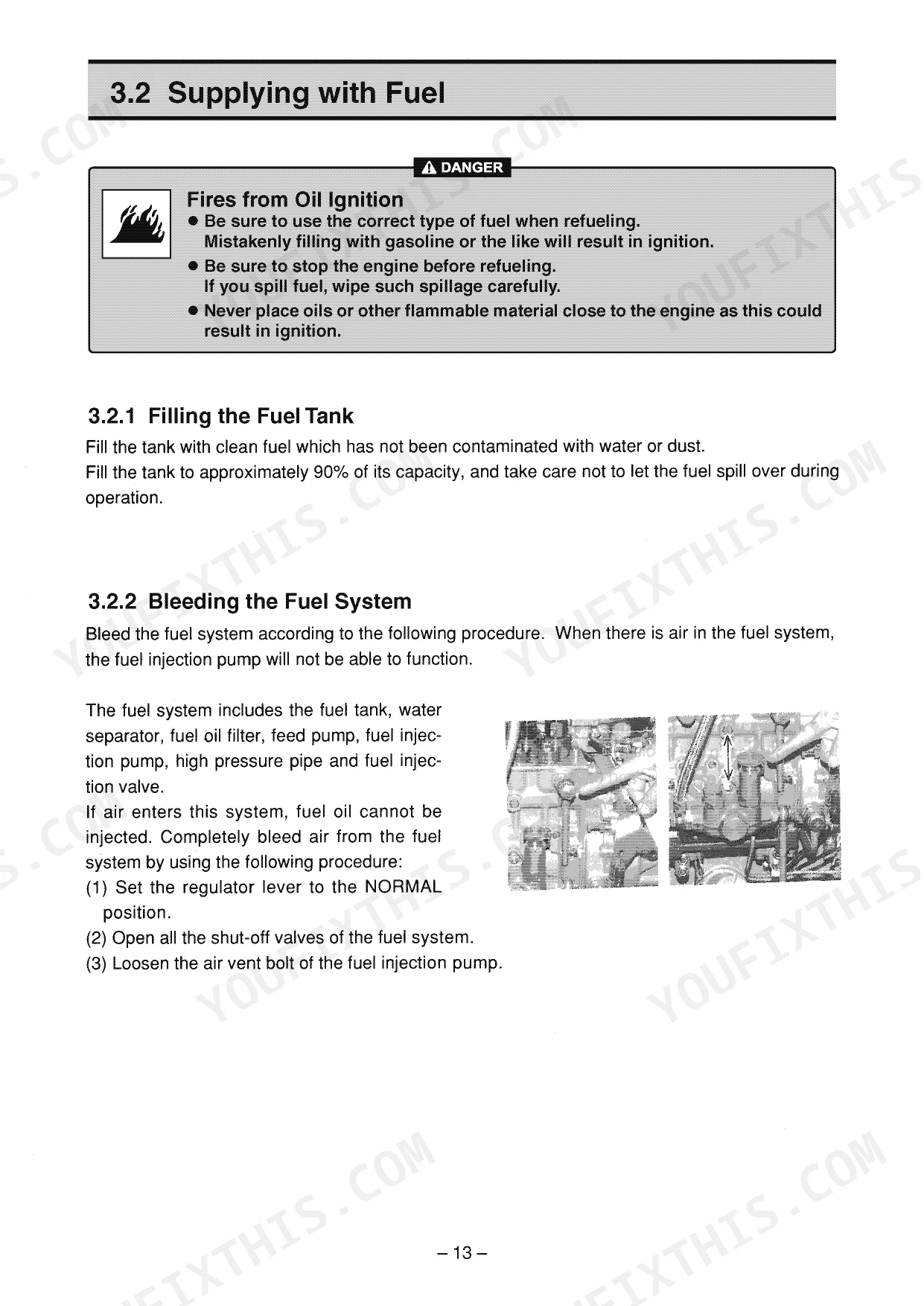

| Before Operation | 14-19 | Fuel Oil, Lube Oil and Cooling Water, Supplying with Fuel, Supplying Engine Lube Oil, Supplying Cooling Water, Cranking |

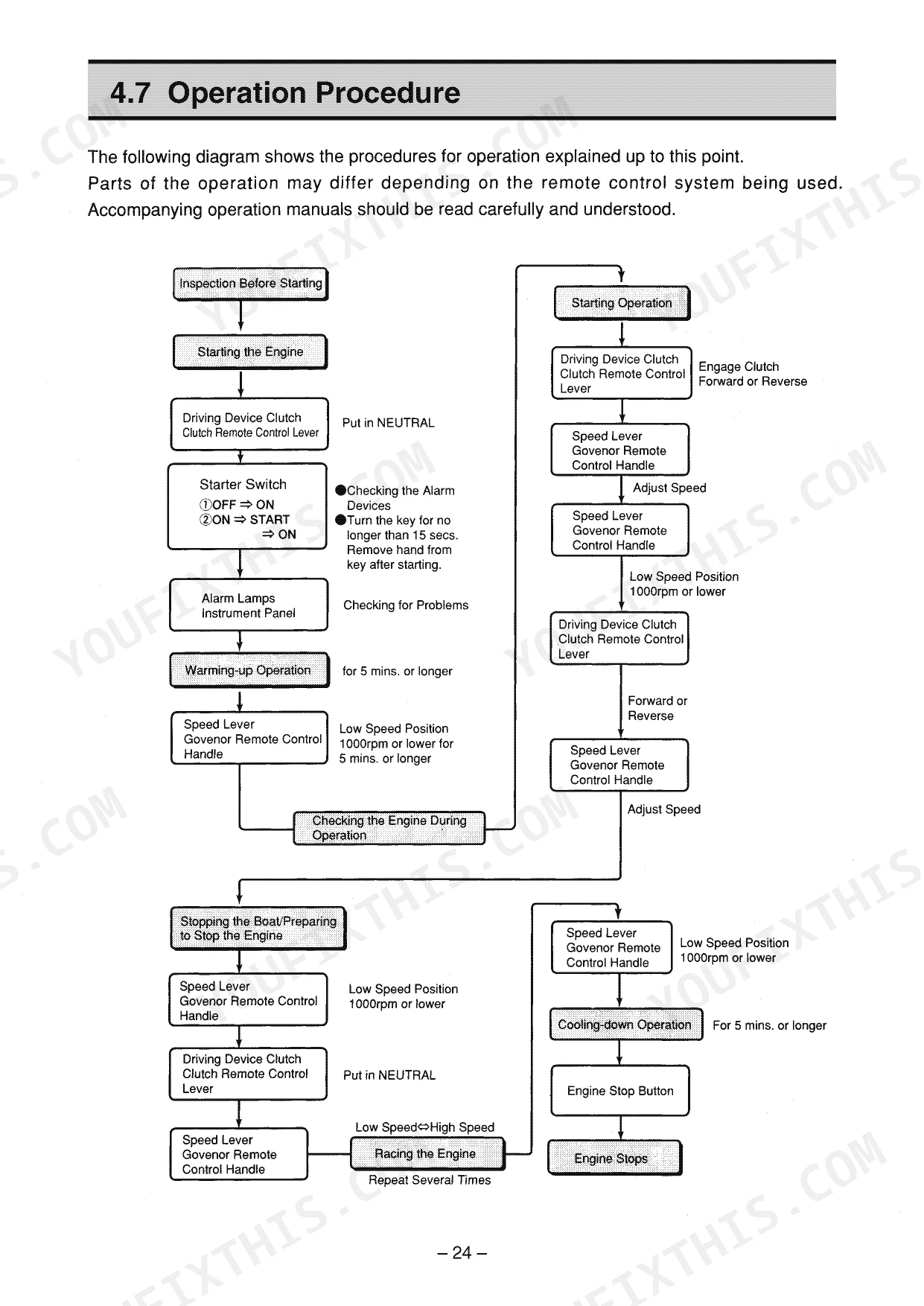

| How to Operate | 20-29 | Inspection Before Starting, Checking the Instrument Panel and Alarm Devices, Starting, Adjusting the Engine Speed, Check During Operation |

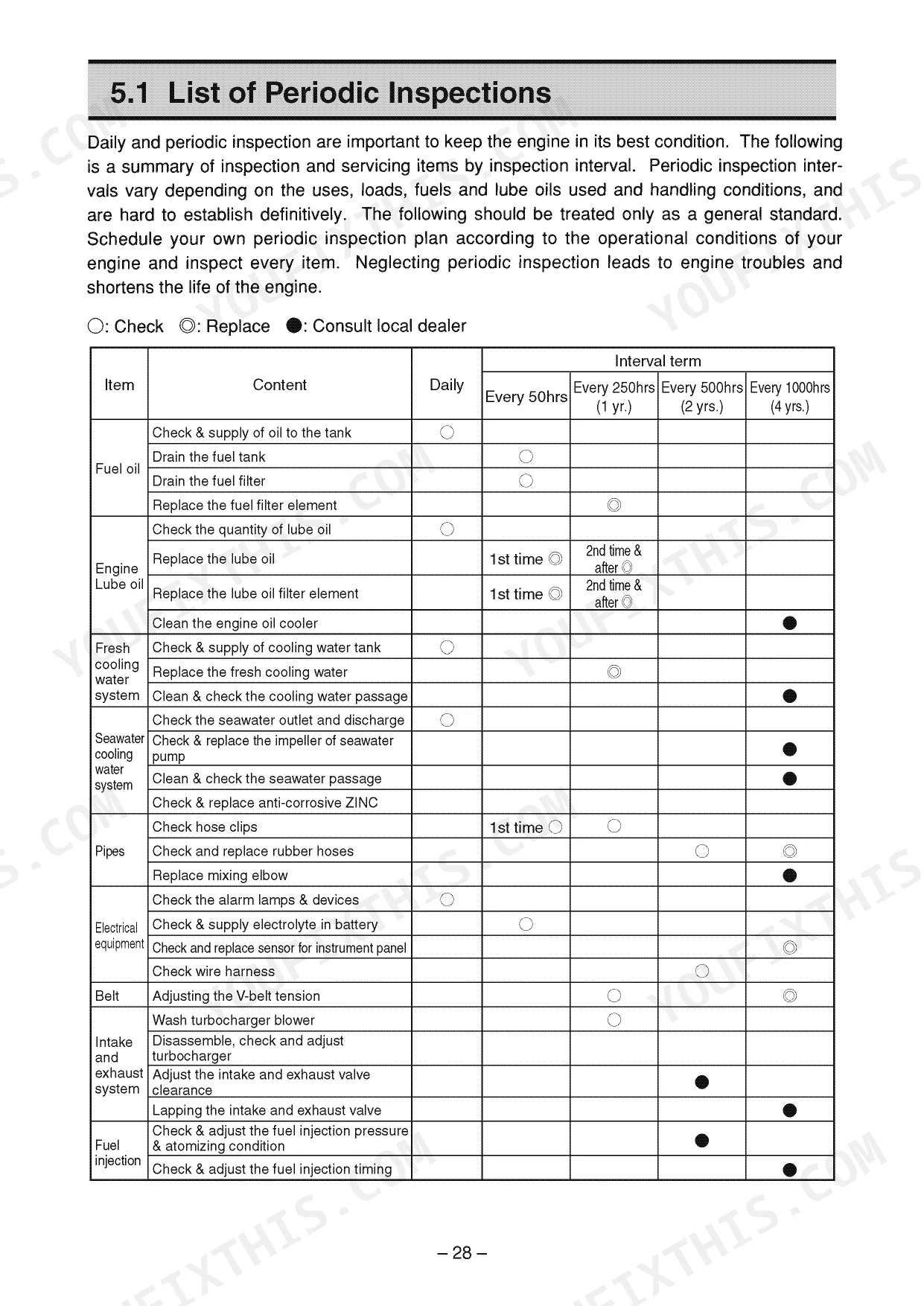

| Maintenance & Inspection | 30-39 | List of Periodic Inspections |
| Trouble and Troubleshooting | 40-44 | Simple Problems and the Appropriate Countermeasures, Consulting Your Yanmar Dealer or Distributor |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Standard tightening torque for M6x1.0 bolts | 10.8±1.0 N·m | p. 30 |
| Seawater pump impeller replacement interval | Every 2000 hrs | p. 38 |
| Fuel filter tightening torque | 1.2~1.6 kg-m | p. 35 |
| Battery capacity | 12V-200Ah | p. 9 |
| V-belt tension (give at depression) | 8~10mm | p. 35 |
| Maximum cooling fresh water temperature | 95°C or higher (alarm threshold) | p. 12 |
| Lube oil filling level | Do not overfill | p. 17 |
| Number of Cylinders | 6 | p. 9 |
| Maximum Output | 342 kW (465 PS) at 2850 rpm | p. 9 |
| Battery Specification | 12V-200Ah | p. 9 |
| Engine Lube Oil Capacity (Full/Effective) | 22/8 l | p. 9 |
| M6x1.0 Bolt Tightening Torque | 10.8 ± 1.0 N.m | p. 30 |
Yanmar 6CXM-GTE Common Problems This Manual Covers
Overheating under load
A worn seawater pump impeller or restricted raw water side lets temperature creep up whenever you ask for power. The periodic inspection schedule covers the cooling system checks and calls for impeller replacement every 2000 hours, with photos of the wear to look for.
Manual Section: 5. Maintenance & Inspection p. 30Cooling water alarm lamp lights
The lamp trips when cooling fresh water passes 95 degrees C, and knowing what to do in the next thirty seconds matters. The instrument panel and alarm device chapter explains each lamp and the checks to run during operation.
Manual Section: 4. How to Operate p. 20Oil sprayed from the breather
An overfilled oil pan pushes oil out of the breather once the engine is running and can lead to real engine trouble. The lube oil supply procedure gives the correct filling method and warns explicitly against overfilling.
Manual Section: 3. Before Operation p. 14Hard starting after a layup
These engines can crank without firing after months idle, especially in damp salt air. The troubleshooting chapter pairs simple problems with countermeasures you can work through before calling a Yanmar dealer, and the storage procedure earlier in the book helps you avoid the problem next season.
Manual Section: 6. Trouble and Troubleshooting p. 40Slipping or worn V-belt
A loose belt undercharges the battery and starves the cooling side at the same time. The inspection items specify 8 to 10 mm of give measured at the depression, so you can set tension by the book instead of by feel.
Manual Section: 5. Maintenance & Inspection p. 30Fuel starvation from clogged filters
Dirty fuel filters show up as surging or a loss of power well before the engine quits outright. Filter replacement sits in the periodic inspection items, complete with the 1.2 to 1.6 kg-m tightening torque for the new element.
Manual Section: 5. Maintenance & Inspection p. 30Frequently Asked Questions
Which engine does this manual cover?
The Yanmar 6CXM-GTE, a six-cylinder marine diesel rated 342 kW (465 PS) at 2850 rpm. The Product Explanation section carries the full specification table, component locations, and the 12V-200Ah battery spec. p. 8
Does it include the maintenance schedule?

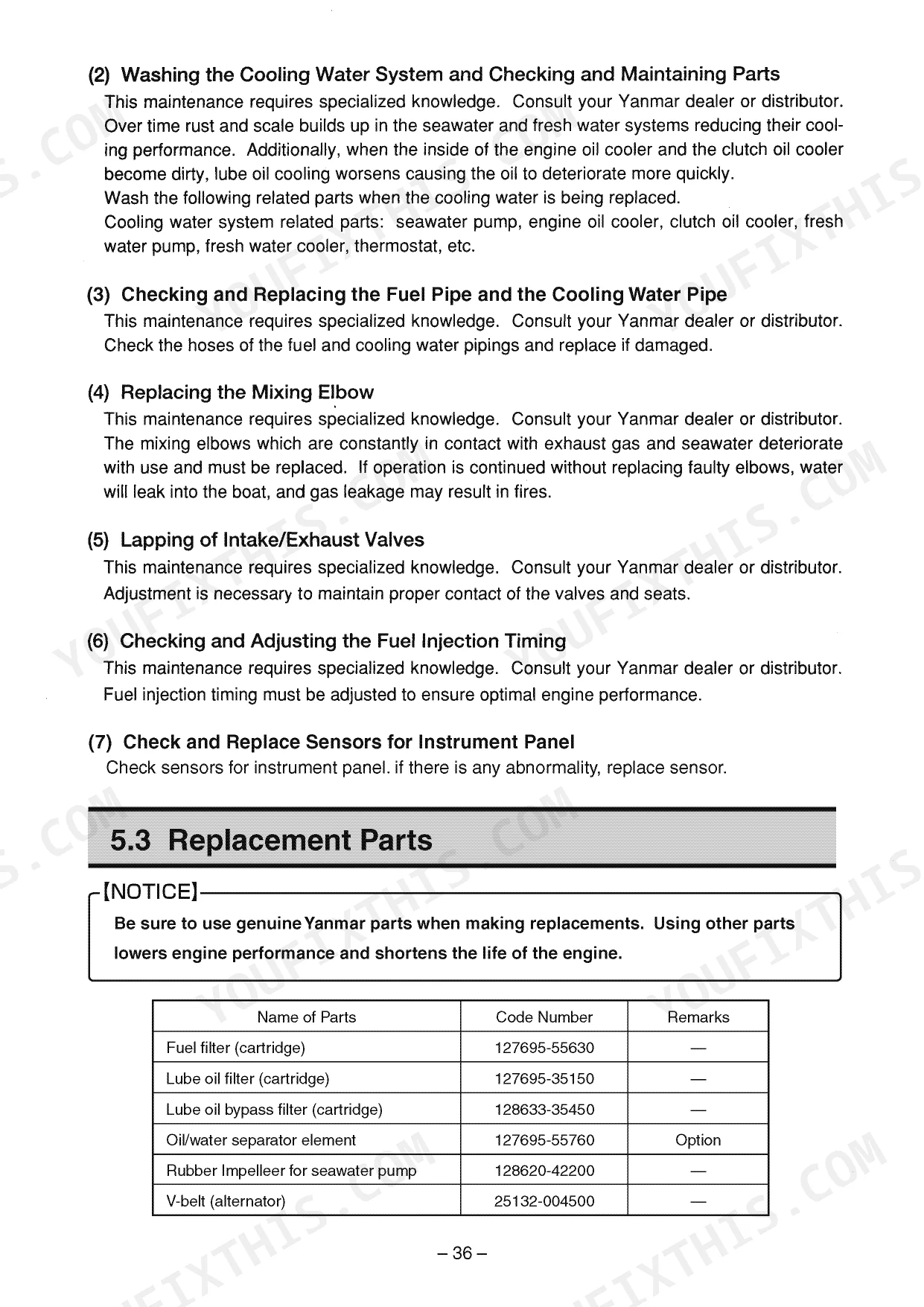

Yes. The Maintenance & Inspection section lays out periodic inspections from the initial 50 hours through every 1000 hours, plus longer items like seawater pump impeller replacement every 2000 hours, standard bolt torques, and a replacement parts list. p. 30
Will it help with starting and overheating problems?

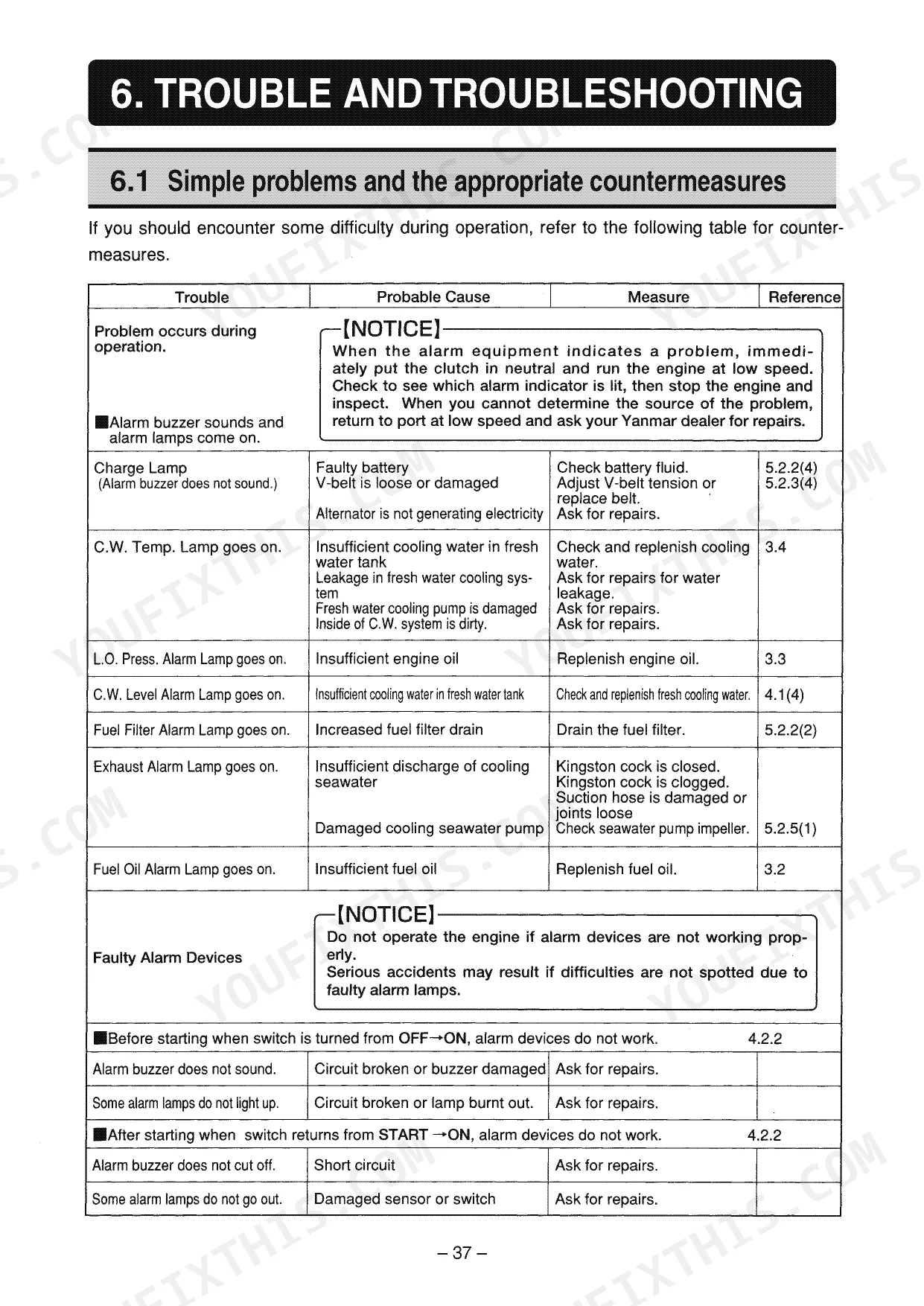

The Trouble and Troubleshooting section matches simple problems with appropriate countermeasures and tells you when a fault needs the dealer. Alarm lamp behavior, including the 95 degree C cooling water threshold, is explained in the How to Operate section. p. 40
Is this a full workshop rebuild manual?
No, this is the factory operation manual. It covers operating procedure, fluids, the inspection schedule, and troubleshooting, not internal rebuild clearances. If you are running or maintaining the engine rather than tearing it down, this is the right book.
How do I get the manual after purchase?
It downloads immediately as a 44-page, 3.97 MB PDF in English with 35 bookmarks for navigation. It works on any device and prints cleanly, so you can keep a paper copy in the engine room.
What format is this manual in?
You get a 44-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
