Keep your marine diesel engine running strong with this 58-page Yanmar 6LYA-STP, 6LY2A-STP Operation Manual PDF (OEM #49961-205581). Inside, you get complete piping routing, detailed wiring diagrams, and a full troubleshooting section to track down starting failures or unexpected alarm buzzer faults. Open to the maintenance schedules to see exact periodic inspection items covering everything from bleeding air out of the fuel system to supplying lube oil to the marine gear. Swap the seawater pump impeller every 2000 hours and verify your low idling speed holds steady at 700±25 rpm using the recommended 12V×120Ah battery capacity. Don't risk your vessel on bad information. Grab this bookmarked digital download, pull it up on your tablet right in the engine room, and get the job done right.
What's Inside This Yanmar 6LYA-STP, 6LY2A-STP Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3 | - |
| 1. for Safe Operation | 5-8 | Fuel Oil, Lube Oil & Cooling Water |

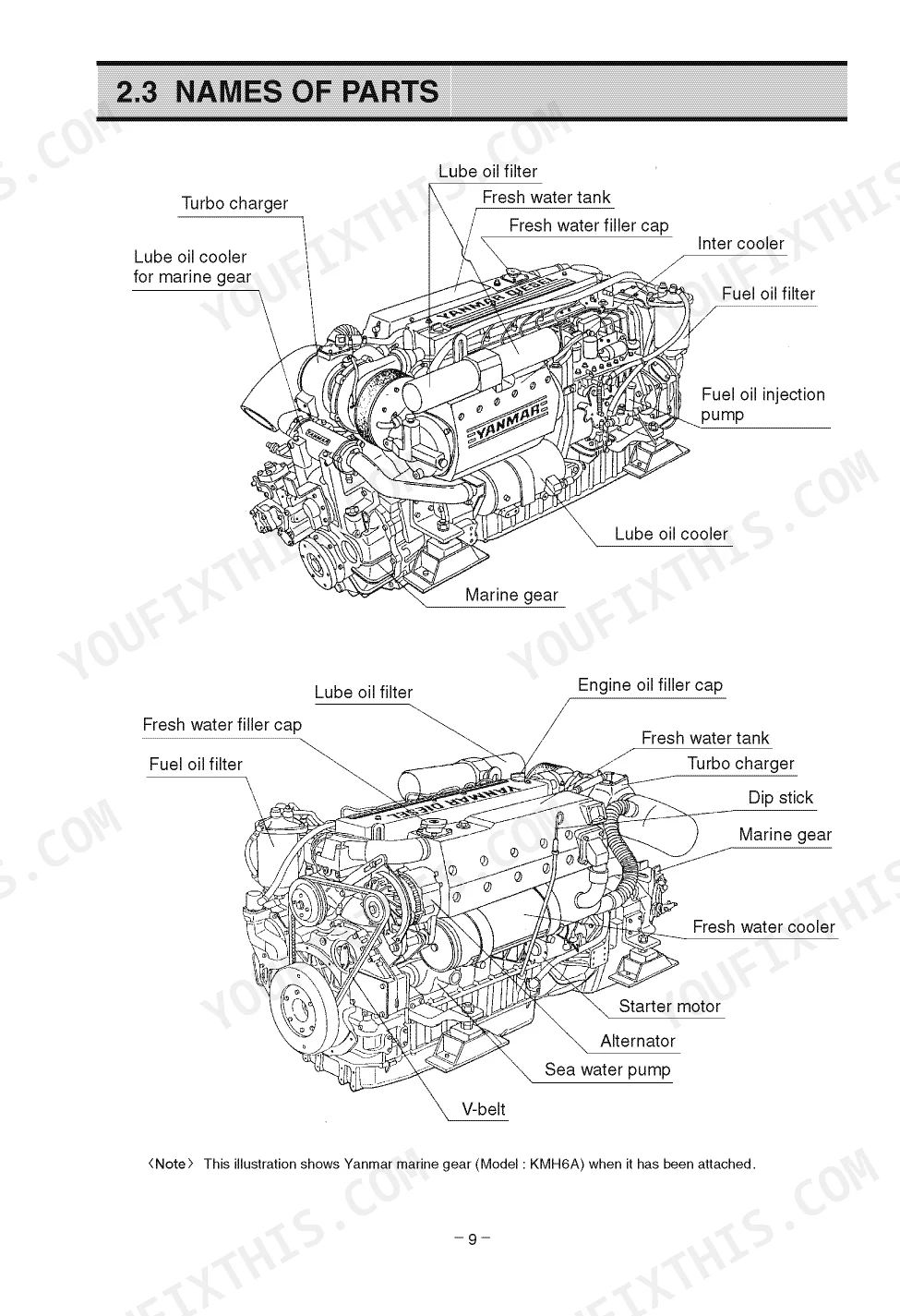

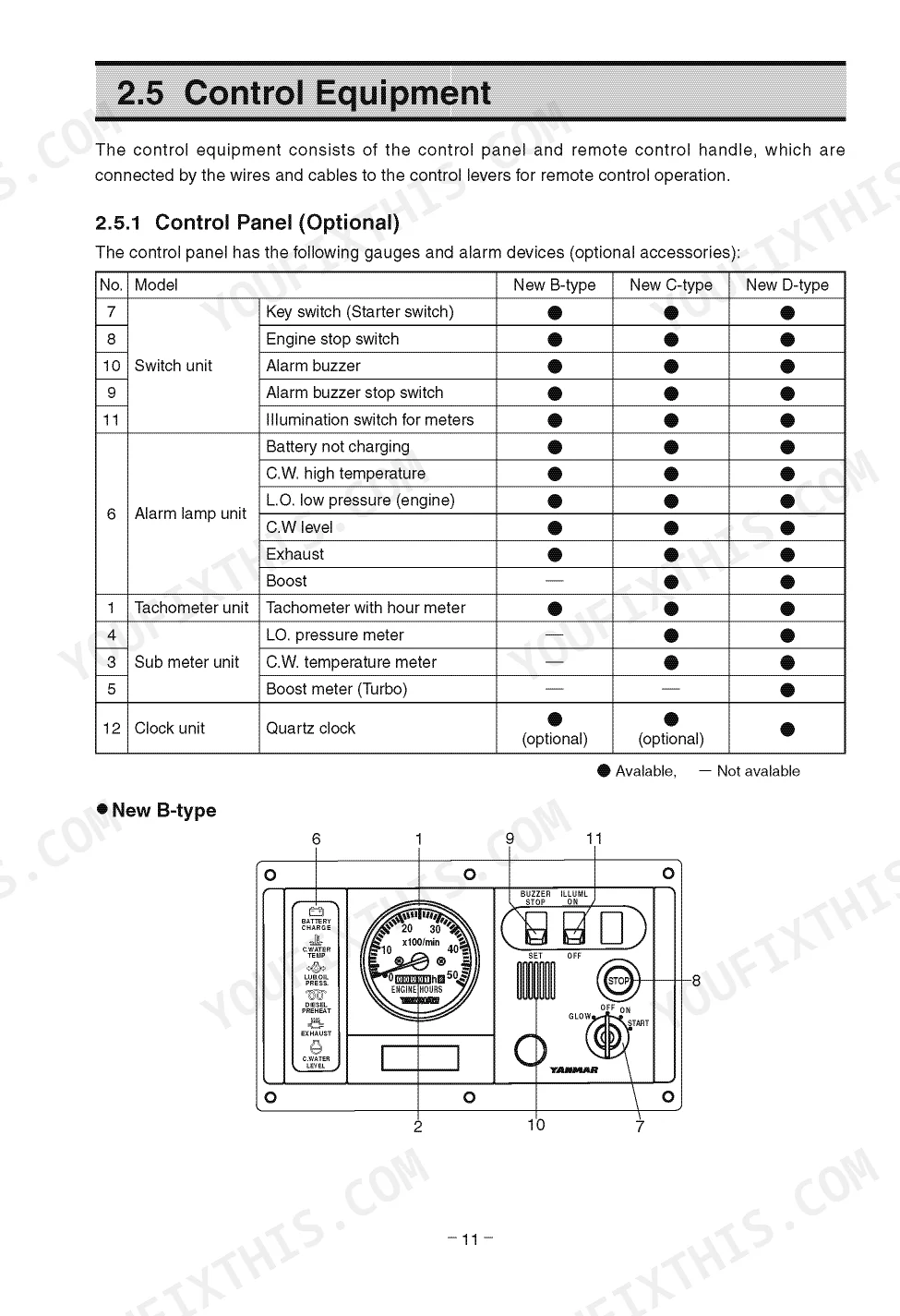

| Explanation of Product | 9-18 | Use, Driving System Etc., Engine Specifications, Names of Parts, Major Servicing Parts, Control Equipment (Control Panel, Remote Control Handle) |

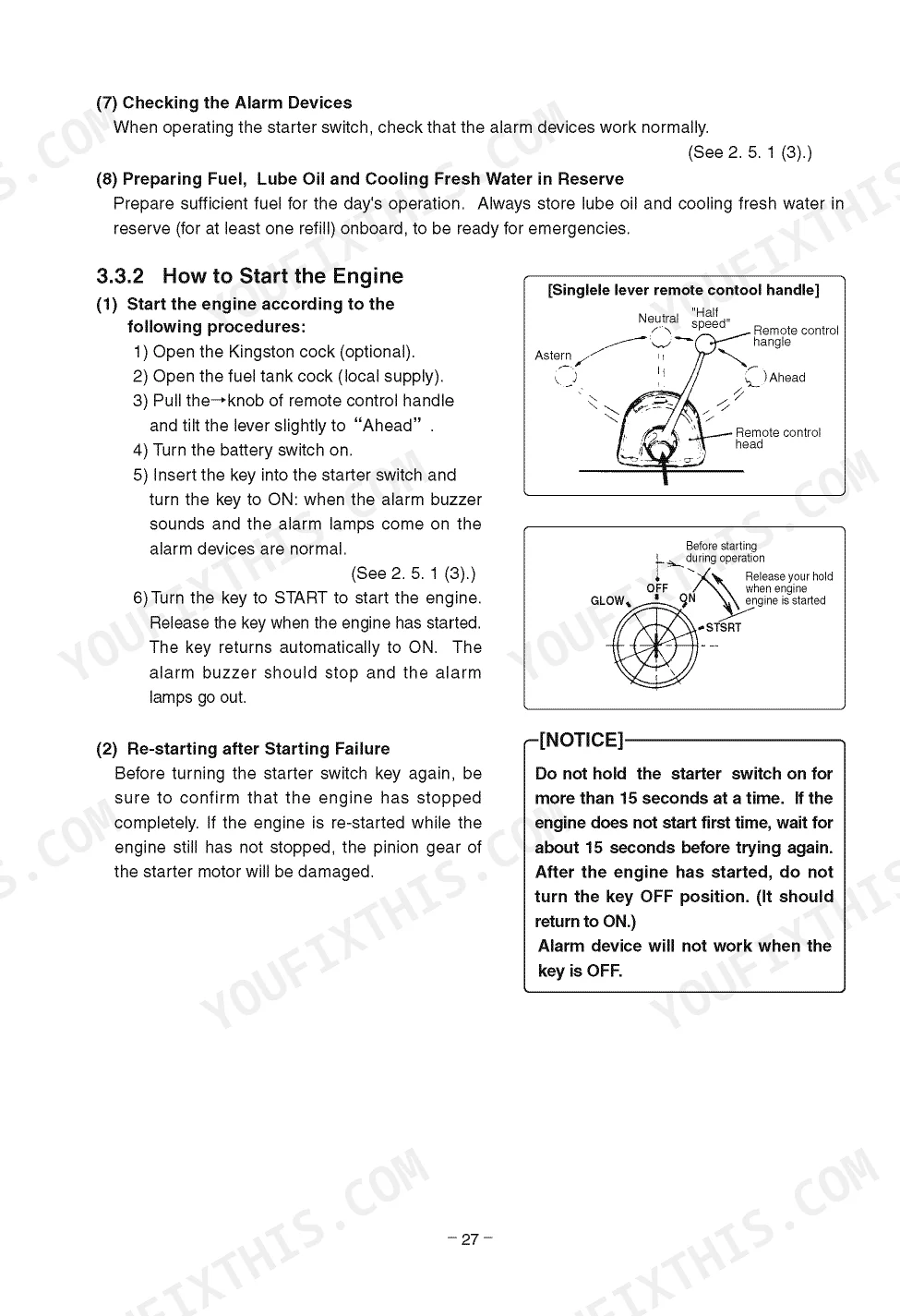

| Operation | 19-34 | Fuel Oil, Lube Oil & Cooling Water |

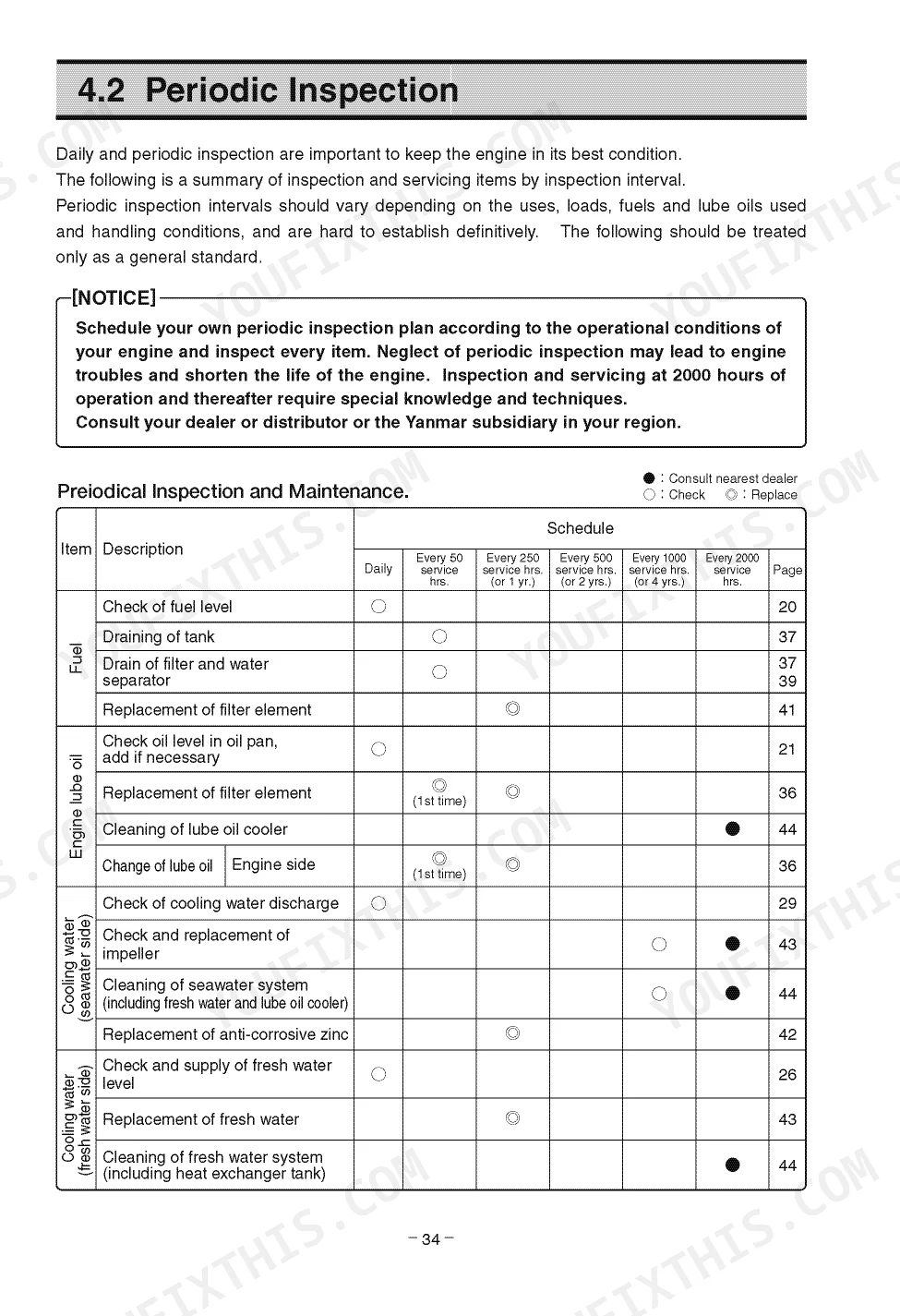

| Maintenance & Inspection | 35-47 | Periodic Inspection |

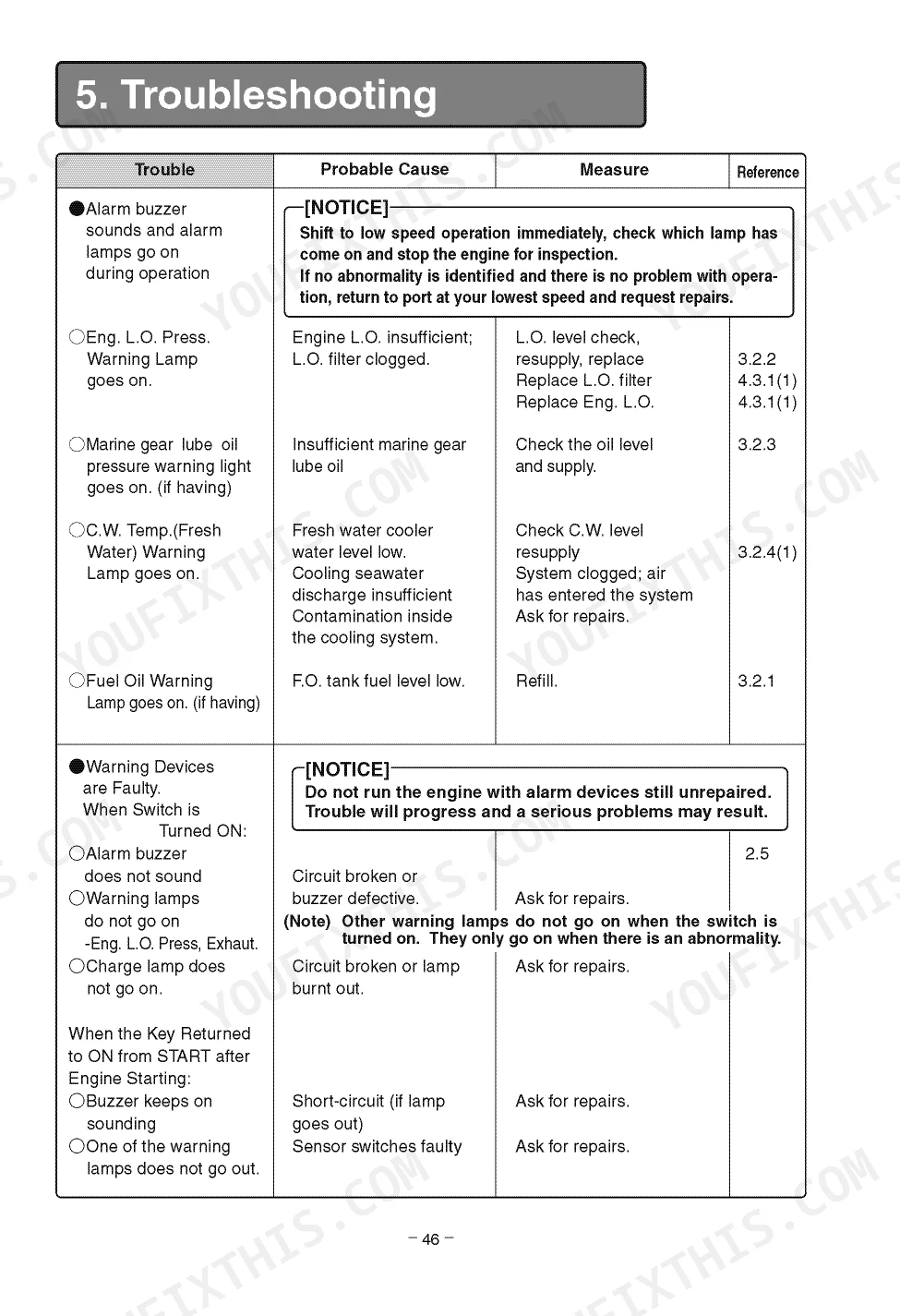

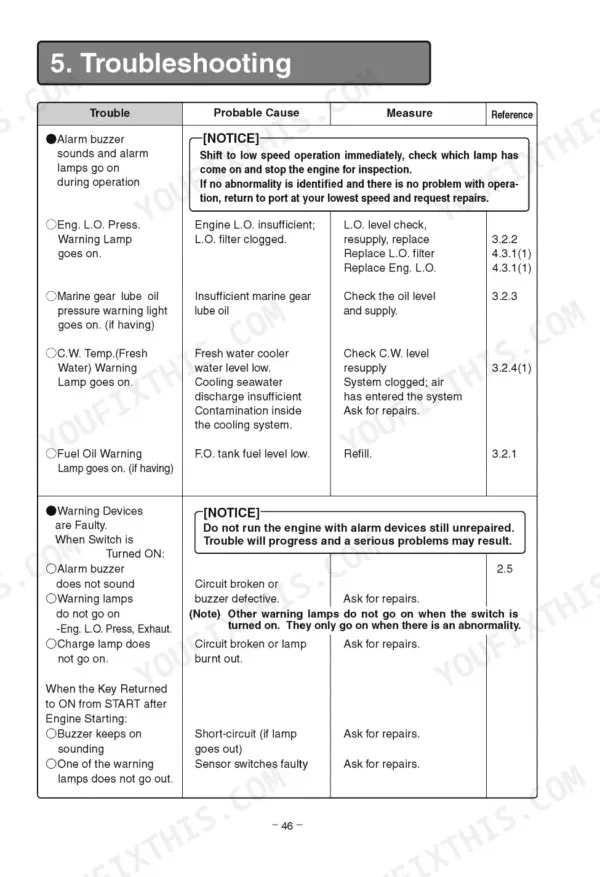

| Troubleshooting | 48-49 | Alarm Buzzer, Alarm Lamps Operation, Engine L.O. Pressure Warning Lamp, Cooling Water Temperature Warning Lamp, Starting Failures, Poor Exhaust Color, Warning Devices Faulty |
| System Diagrams | 50-58 | Piping Diagram, Wiring Diagram |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fresh water system cleaning/replacement interval (including heat exchanger tank) | Every 2000 service hrs. (or 4 yrs.) | p. 36 |
| Seawater pump impeller replacement interval | Every 2000 hours | p. 46 |
| Impeller replacement interval | Every 2000 hours | p. 45 |
| Recommended Battery Capacity | 12V×120Ah | p. 10 |
| Low Idling Speed | 700±25 rpm | p. 10 |
Yanmar 6LYA-STP, 6LY2A-STP Common Problems This Manual Covers
Yanmar 6LYA-STP marine diesel engine overheating and repeated heat-related alarms sounding under heavy load. p. 48

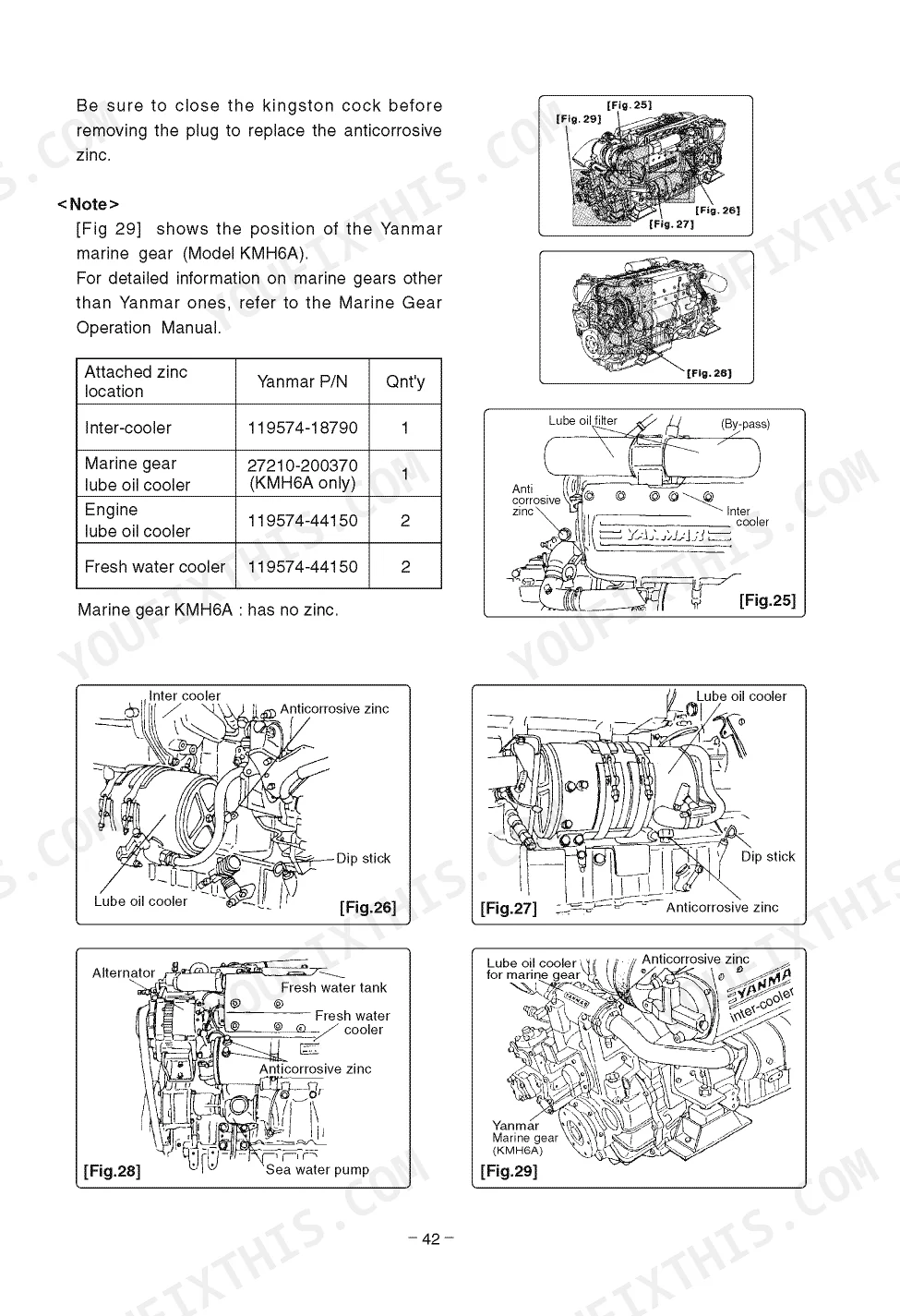

Check the cooling water temperature warning system detailed on page 48. Inspect the seawater pump impeller for damaged or missing vanes. Replace the impeller strictly every 2000 hours according to page 46. Clean the fresh water system and heat exchanger tank every 2000 service hrs.
Manual Section: Alarm buzzer and lamps during operationStarter motor engages but works slowly or engine completely fails to turn over.

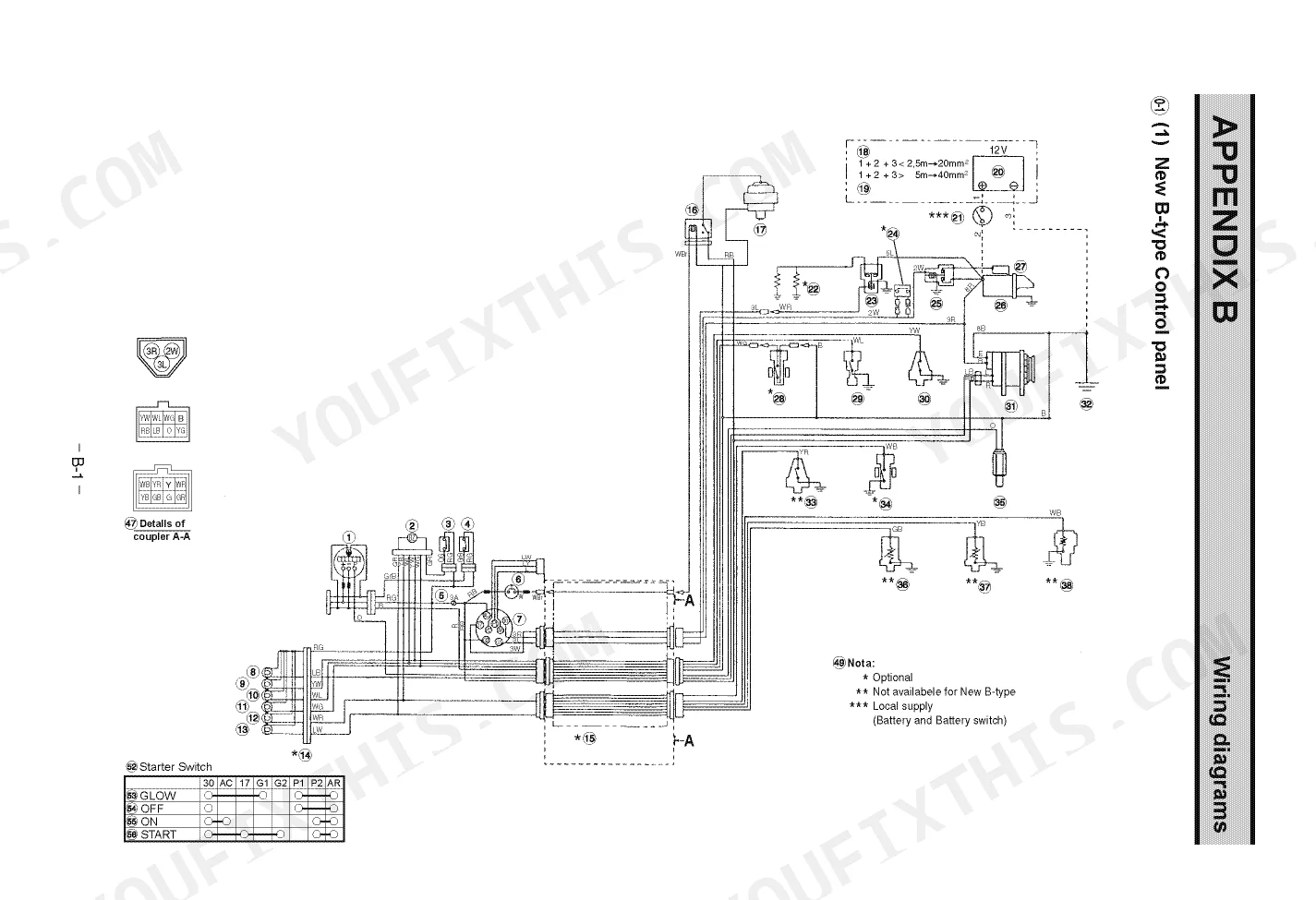

Test the electrical system using the wiring diagram on page 53. Verify the installed battery meets the recommended capacity of 12Vx120Ah found on page 10. Inspect the alternator V-belt for wear and adjust the deflection tension to 8~10mm as specified on page 45.
Manual Section: Starting FailuresSudden loss of power, rough running, or suspicious top-end noise indicating possible valve drop. p. 41
Verify engine lube oil level is correct and replace the filter every 500 service hrs as shown on page 36. Check the low idling speed is set to 700±25 rpm. Consult your dealer for intake and exhaust valve head clearance inspection as noted on page 41.
Manual Section: 4. Maintenance & InspectionCharge warning lamp stays illuminated after engine start and alarm buzzer keeps sounding. p. 48
Inspect the alternator V-belt condition and verify the deflection tension measures exactly 8~10mm as outlined on page 45. Test the warning system circuits using the wiring diagram on page 53. Replace the belt if frayed or glazed to ensure proper charging across the 12Vx120Ah battery.
Manual Section: Faulty Warning Devices (Switch ON)Frequently Asked Questions
How do I temporarily stop the alarm buzzer on a YANMAR 6LYA-STP?
The alarm buzzer can be temporarily stopped using the buzzer stop switch on the control panel. This switch is intended for temporary silencing during inspection, and should not be used to turn off the buzzer permanently unless an abnormality is being inspected. The alarm lamps will remain on until the underlying issue is resolved.
What are the replacement specifications for cooling-system parts on the YANMAR 6LYA-STP and 6LY2A-STP engines?
For cooling system parts, the impeller of the seawater pump must be replaced periodically, specifically every 2000 hours, or if cracks, loss, flaws, or excessive wear of impeller tips and side faces are observed. Other relevant cooling system parts include the engine lube oil cooler, intercooler, fresh water pump, fresh water cooler, and thermostat, which require cleaning and maintenance.
What is the total lube oil capacity for the YANMAR 6LYA-STP and 6LY2A-STP engines?
The total lube oil capacity for the engine is 20.0 liters. When filling the oil pan, the capacity is 16.4 liters, including the oil filter capacity. Always ensure the oil level is at the upper limit on the dipstick after filling.
What type of fuel is recommended for the YANMAR 6LYA-STP and 6LY2A-STP marine diesel engines?
For optimal engine performance, it is recommended to use diesel fuels conforming to ISO8217 DMA, BS2869 A1 or A2, or fuels equivalent to Japanese Industrial Standard, JIS. No. K2204-2. The Cetane fuel number should be 45 or greater to ensure proper operation.
What do I get after purchasing this Yanmar 6LYA-STP, 6LY2A-STP manual?
Immediate download of the complete 58-page searchable OPERATION MANUAL. Access it on any device, from a laptop at your desk to a phone in the field.
Is this Yanmar 6LYA-STP, 6LY2A-STP OPERATION MANUAL printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Can I find wiring schematics in this Yanmar 6LYA-STP, 6LY2A-STP manual?
Yes. You'll find an electrical wiring diagram covering the main wiring layout.
