Before you fire up your marine diesel engine, grab this 58-page Yanmar 6cx(m)-ete operator manual pdf (OEM #499613-00241) to master the daily maintenance and operating procedures for the 6CX(M)-ETE. Inside, you get detailed system diagrams, a complete schedule for periodical service, and an easy troubleshooting guide for abnormal clutch oil pressure or high fresh water temperatures. Packed with clear instructions for initial startup, it also lays out the exact steps for bleeding air from the fuel system and handling the reduction gear. Replace the lube oil filter element every 500 service hours, and verify the engine oil pan is filled to its 23-liter capacity before leaving the dock. A dead engine on the water ruins the day. Download this bookmarked file, pull it up on your tablet at the helm, and keep your vessel running strong.
What's Inside This Yanmar 6CX(M)-ETE Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 4 | - |
| For Your in Safety | 7-10 | Warning Symbols, Safety Precautions, Location for Warning Device Labels |
| Explanation of Product | 11-12 | Use, Driving System, Etc., Major Servicing Parts |
| Identification of Important Parts | 13-14 | - |
| Engine Specifications | 15 | - |
| Precautions | 16-20 | - |
| Fuel and Lube Oil | 21 | 4-1.Selection and Handling of Fuel, 4-2.Selection of Lube Oil |

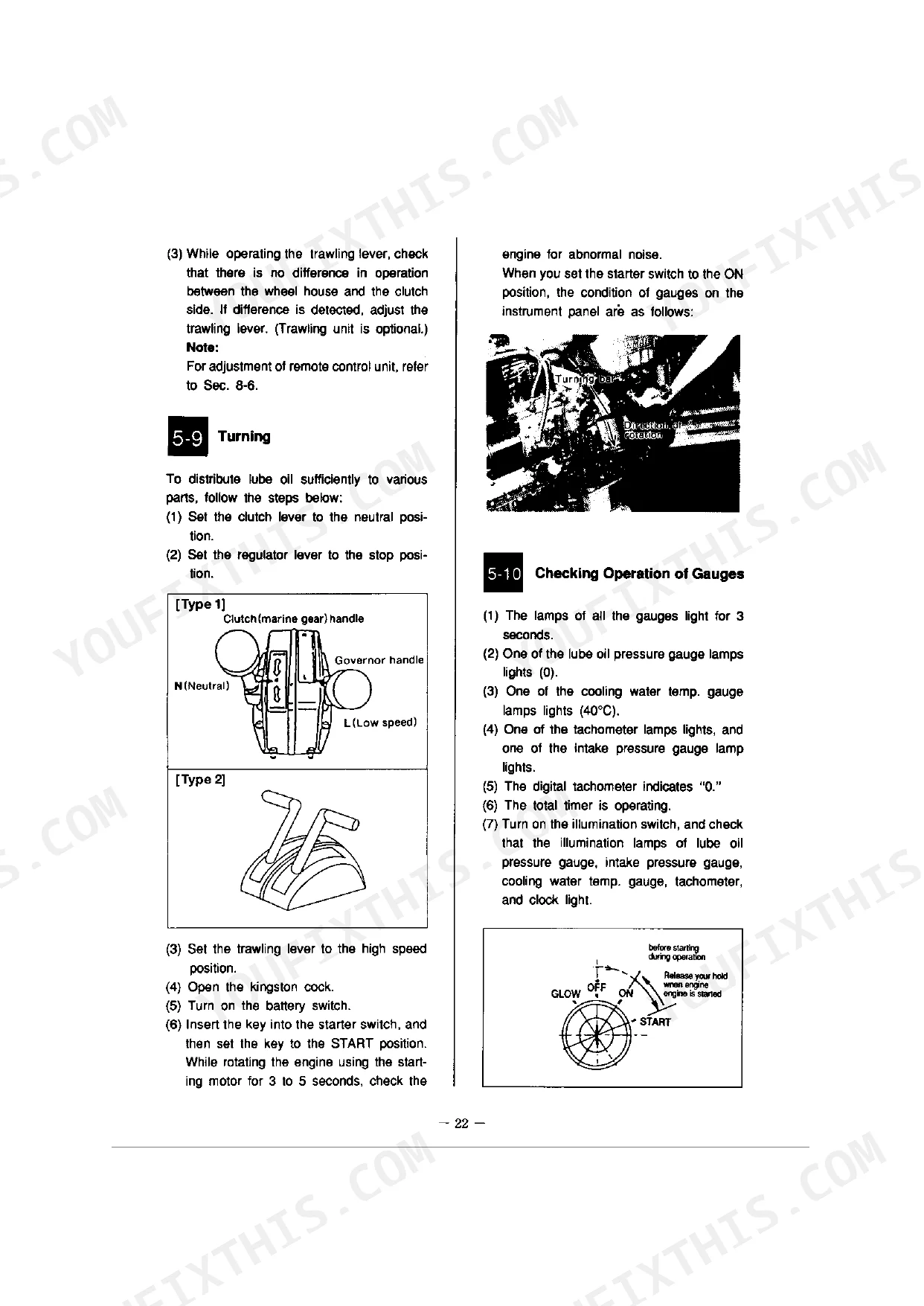

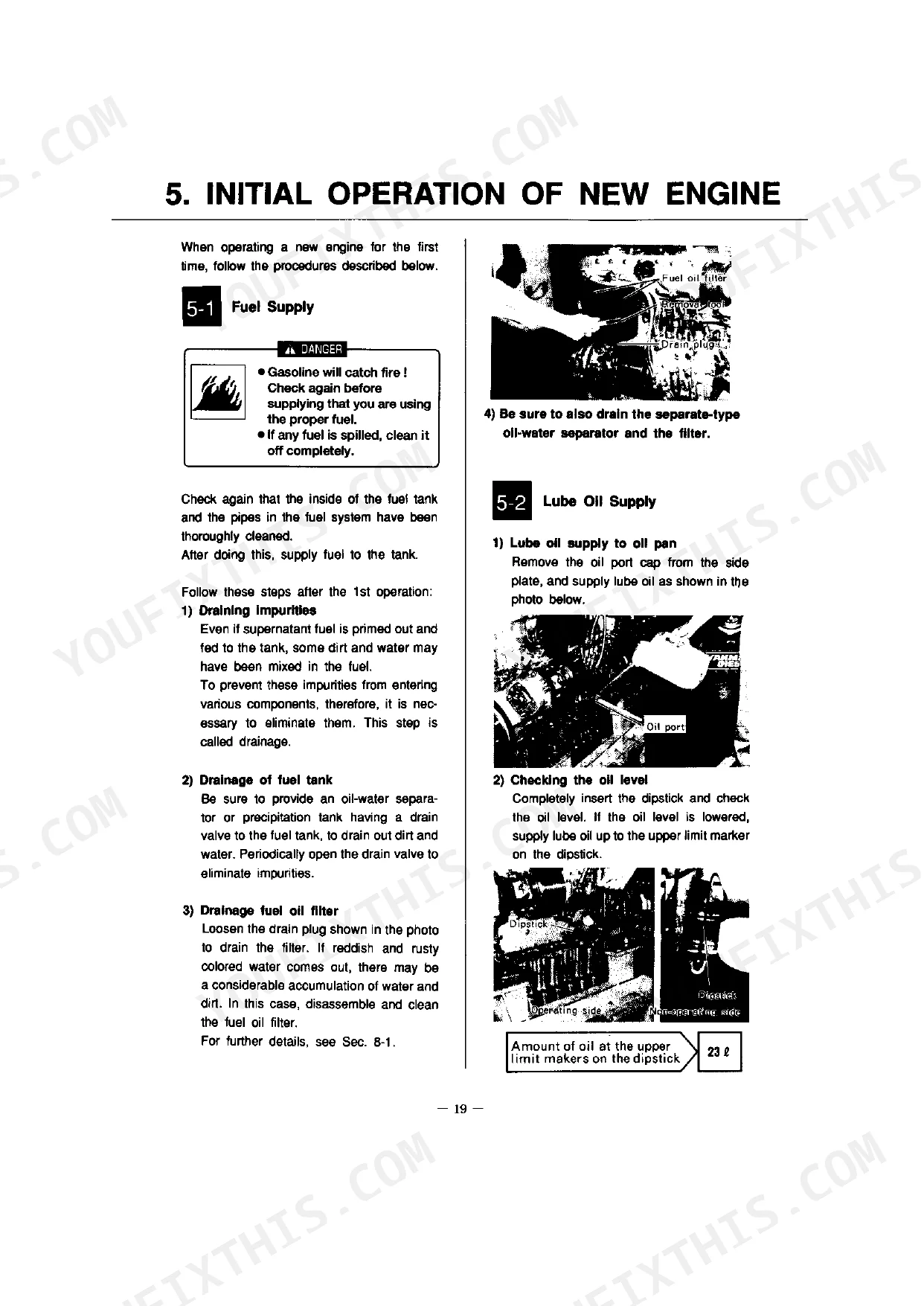

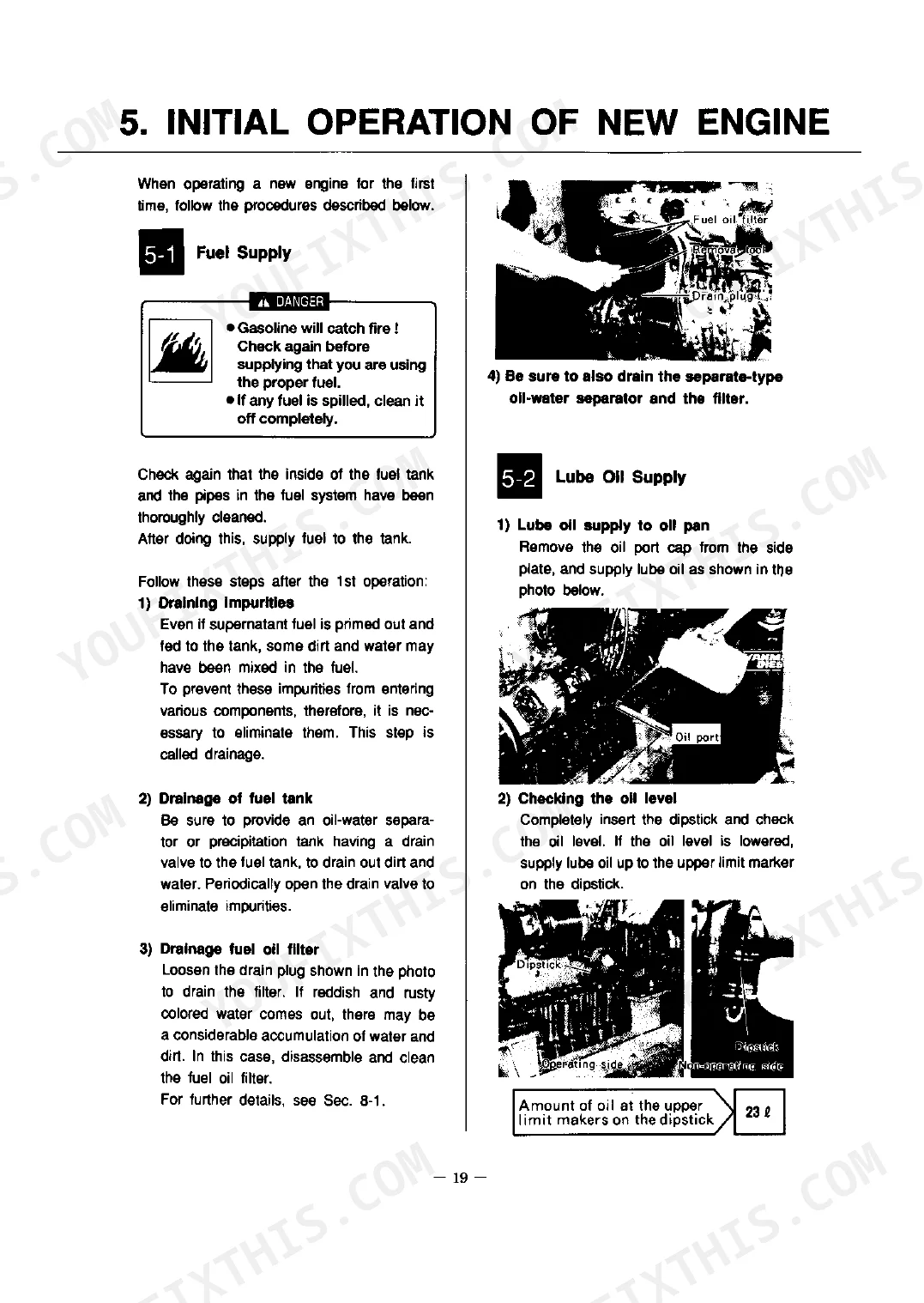

| Initial Operation of New Engine | 22-27 | Fuel Supply, Lube Oil Supply, Cooling Water Supply to Fresh Water Tank, Tightening Drain Cock of Seawater System, Bleeding Air From the Fuel System, Lubricating Each Section |
| Operation | 28-31 | 6-1.Starting, 6-2.Cautions Required Immediately After Starting, 6-3.Cautions Required During Navigation, 6-4.Stopping |
| Handling the Clutch | 32-34 | 7-1.Handling Precautions, 7-2.Trawling, 7-3.Handling the Emergency Bolts, 7-4.Checking and Adjusting the Reduction and Reversing Gear |

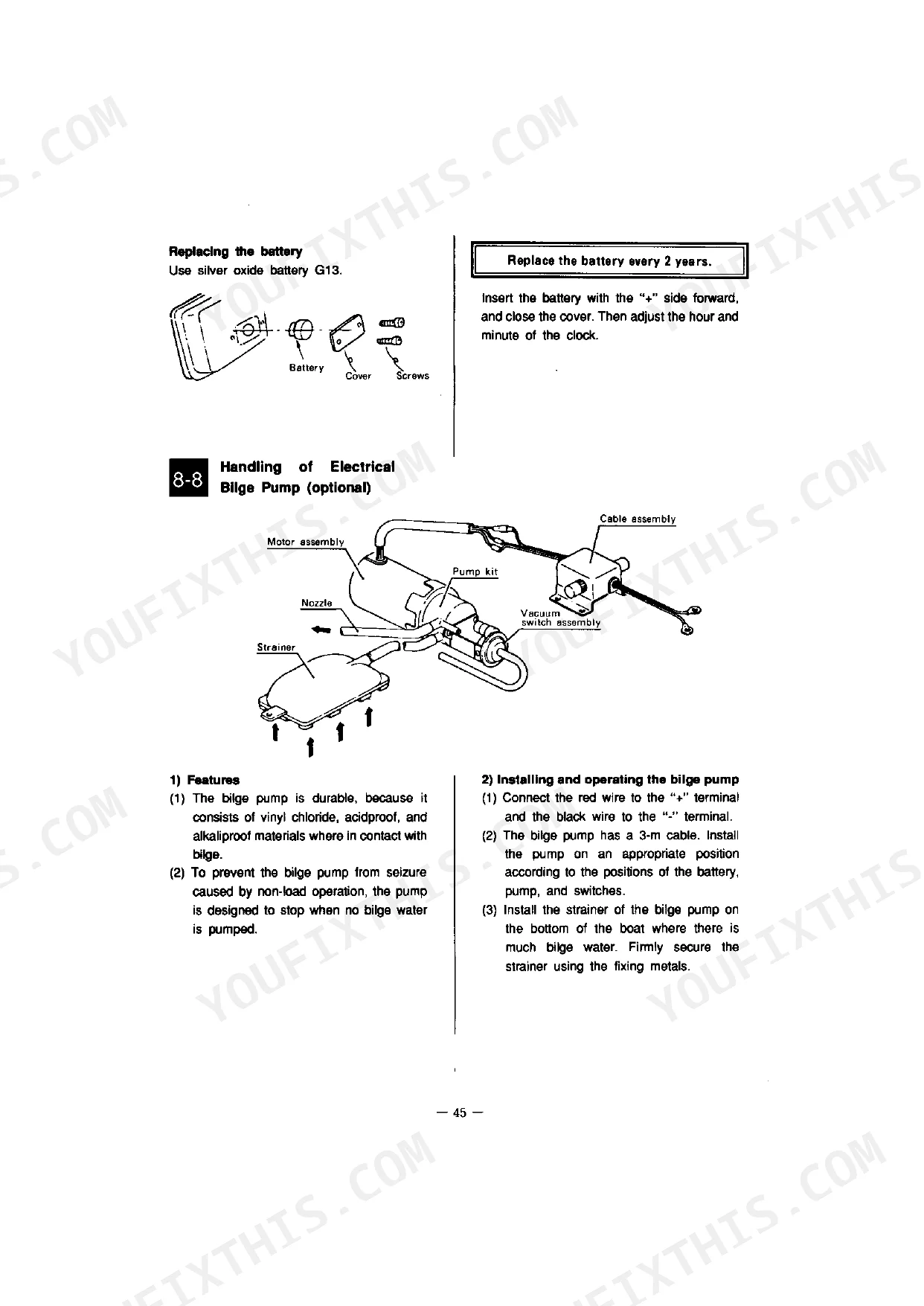

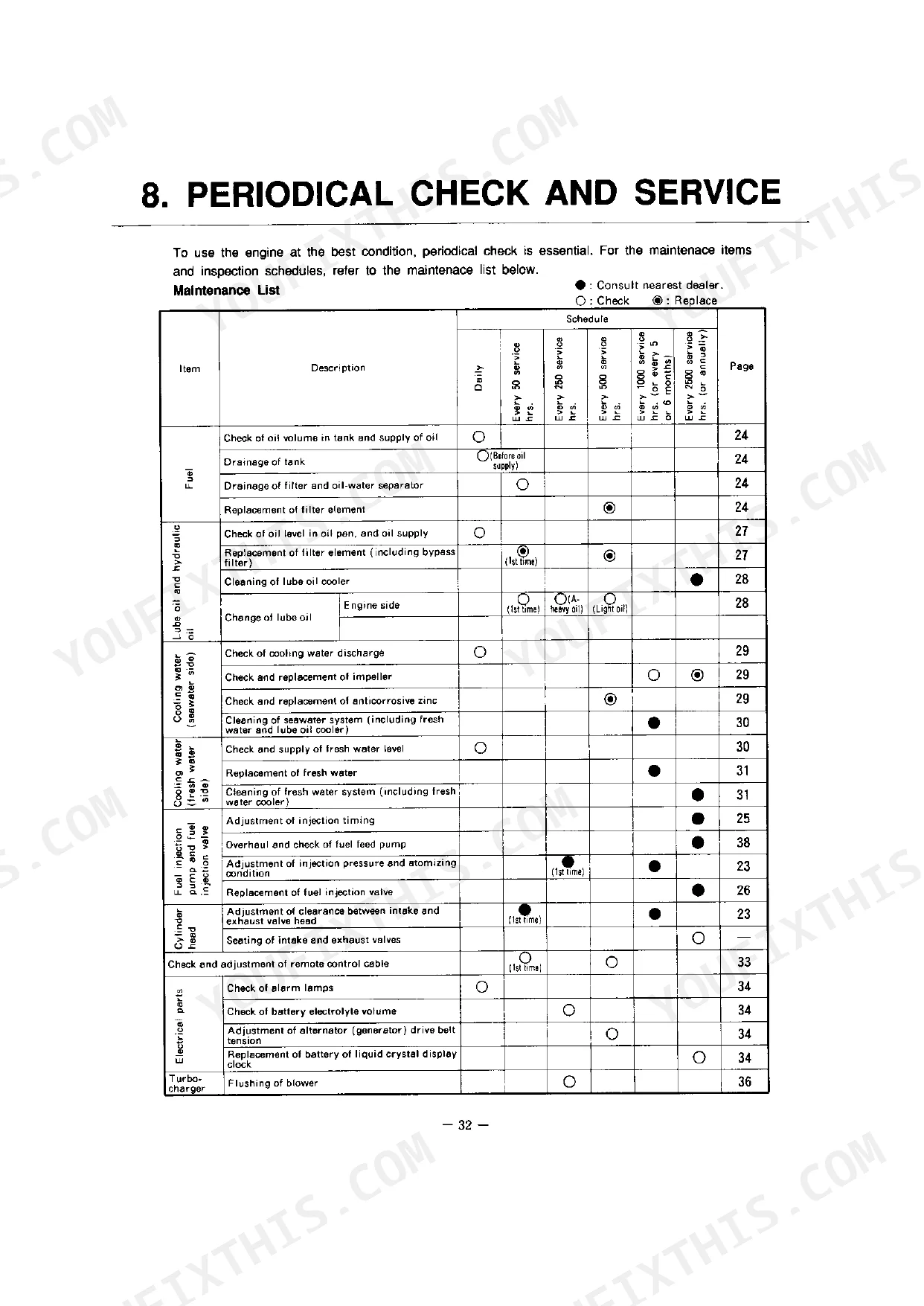

| Periodical Check and Service | 35-50 | Fuel Oil System, Lube Oil System, Cooling Water System, Checking and Adjusting the Engine Parts, Checking the Reduction and Reversing Gear, Remote Control Cable |
| Easy Troubleshooting Guide | 51-52 | 9-1.Air Is Mixed in Fuel System, 9-2.Pressures of Engine Lube Oil Is Abnormal, 9-3.Fresh Water Temperature Is Abnormal High, 9-4.Clutch Oil Pressure Is Abnormal |

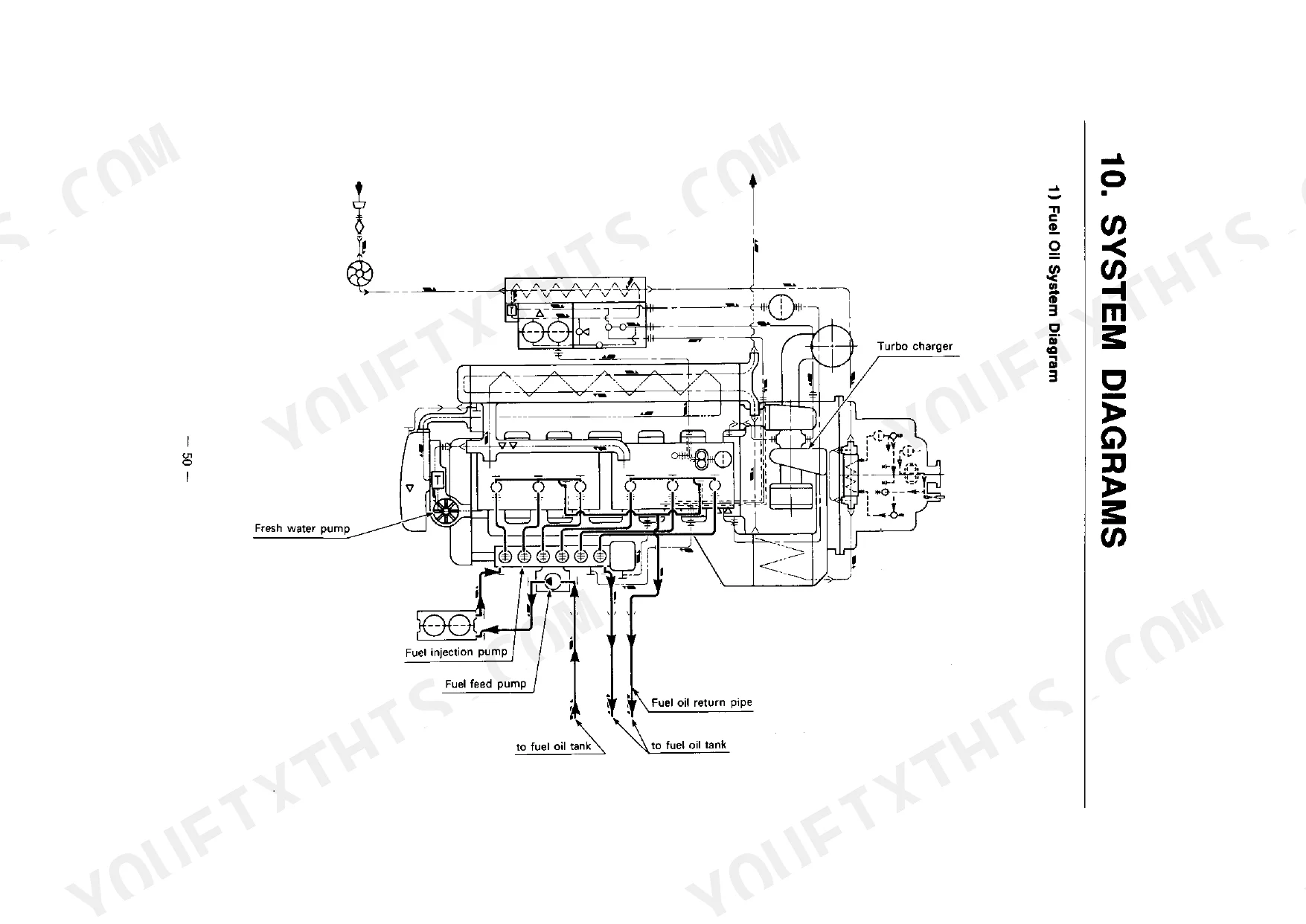

| System Diagrams | 53-57 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Standard Bolt Torque (M6x1) | 1.1±0.1kg-m | p. 36 |
| Fuel Filter Element Replacement | Every 500 service hrs (or 2 or 3 months) | p. 37 |
| Lube Oil Filter Element Replacement (2nd and subsequent) | Every 500 service hrs (or annually) | p. 40 |
| Fuel Injection Valve Securing Nut Torque | 3.2 kg-m | p. 19 |
| Engine Oil Pan Capacity | 23 ℓ | p. 15 |
| Clutch Lube Oil Capacity | 6.5 ℓ | p. 15 |
| Engine Fresh Water Volume | 36 ℓ | p. 15 |
| Fuel Injection Timing | 12° ±1 | p. 15 |
| Alternator Drive Belt Tension | Approx. 10 mm or less deflection | p. 47 |
| Battery Replacement Interval | Every 2 years | p. 48 |
Yanmar 6CX(M)-ETE Common Problems This Manual Covers
Yanmar 6CX(M)-ETE engine will not start or turns over then stalls immediately p. 51
Bleed air from the fuel system using the priming pump as detailed on page 51. Replace the fuel oil filter element if it has exceeded the interval of every 500 service hrs (or 2 or 3 months) noted on page 37. Verify clean fuel flow to the injection pump.
Manual Section: Air in Fuel SystemHigh coolant temperature warning light comes on and engine overheats under heavy load p. 51
Inspect the cooling system if the fresh water temperature reaches 90°C or higher, referencing page 29. Check the seawater flow and verify the engine fresh water volume is topped off to exactly 36 ℓ as specified on page 15. Clean the intake strainer to restore proper flow.
Manual Section: Abnormally High Fresh Water TemperatureLow engine oil pressure alarm sounds or abnormal knocking noise at idle p. 51
Check the dipstick to confirm the engine oil pan capacity is at the required 23 ℓ mark shown on page 15. Replace the lube oil filter element if it has been past the every 500 service hrs (or annually) interval noted on page 40. Inspect the block for leaks.
Manual Section: Abnormal Engine Lube Oil PressureAlternator fails to charge the battery or dashboard voltage indicator reads low p. 47
Test the alternator drive belt tension and adjust it to approx. 10 mm or less deflection as instructed on page 47. Check the battery terminals for corrosion and verify tight, clean connections. Start the engine and monitor the dashboard voltage gauge to confirm the charging circuit is active.
Manual Section: 8.Periodical Check and ServiceFrequently Asked Questions
How do I reset a YANMAR 6CX(M)-ETE alarm?
The manual indicates that when the starter key is turned to START for engine starting and then returned to ON, the warning buzzer stops sounding and all warning lamps go out one by one. If an alarm sounds during operation, turn off the buzzer switch and stop the engine to investigate the cause, as described in Section 5-11 on page 26.
What does a YANMAR 6CX(M)-ETE error code mean?
The manual describes warning lamps and a buzzer that indicate abnormalities during engine operation, such as low lube oil pressure or high cooling water temperature. It does not list specific numerical or alphanumeric error codes. For details on alarm devices, refer to Section 5-11 on page 26.
How do I clear an overheat alarm on a YANMAR 6CX(M)-ETE?
To clear an overheat alarm, first identify the cause of the abnormally high fresh water temperature, which could be due to issues like a malfunctioning fresh water pump or clogged passages (refer to Section 9-3 on page 51). The alarm buzzer can be turned off using the buzzer switch, and the warning lamp should go out once the engine is started and the key returns to the ON position, assuming the underlying issue is resolved.
Where is the serial number on a YANMAR 6CX(M)-ETE engine?
The serial number for the YANMAR 6CX(M)-ETE engine is located on the nameplate, which is attached to the engine's cylinder block. The nameplate also displays the model number, output, and rpm, as detailed in the "Explanation of Product" section on page 11.
What are the maintenance procedures for a YANMAR 6CX(M)-ETE?
The manual provides a detailed "Maintenance List" in Section 8, "PERIODICAL CHECK AND SERVICE," on page 35. This list outlines various checks and services, including daily tasks, and those required every 50, 250, 500, 1000, and 2500 service hours or annually, for systems like fuel, lube oil, cooling water, engine parts, and electrical components.
How quickly can I access this manual after buying?
You get a 58-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
