Getting your sail drive unit back in the water starts right here with this 69-page Yanmar sd40–sd50 series service manual pdf (OEM #M2215-04E140) covering the SD40-3, SD50-3, SD40-4, SD50-4, and SD40-4T variants. Inside, you get detailed exploded views showing exact component orientation, plus step-by-step disassembly instructions for both the upper and lower cases. Open up the shim adjustment section to calculate gear backlash perfectly every time, alongside a complete breakdown of cooling water and lubricating oil routing. Plan to swap out the main needle bearing every 1500 hours, and make sure to lock down the propeller shaft nut to exactly 166.6 N-m before launching. Guessing shim thickness ruins gears fast. Download this bookmarked file straight to your tablet, find your exact clearances, and assemble the drive correctly the first time.
What's Inside This Yanmar SD40–SD50 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| History of Correction | 2 | Manual Name, Unit Model, Date of Correction, Cause for Correction, Outline of Correction, Corrected by |
| For Safety | 5-10 | Safety Labels, Service Area, Work - Wear (Garments), Tools, Fastener Torque, Further Precautions |

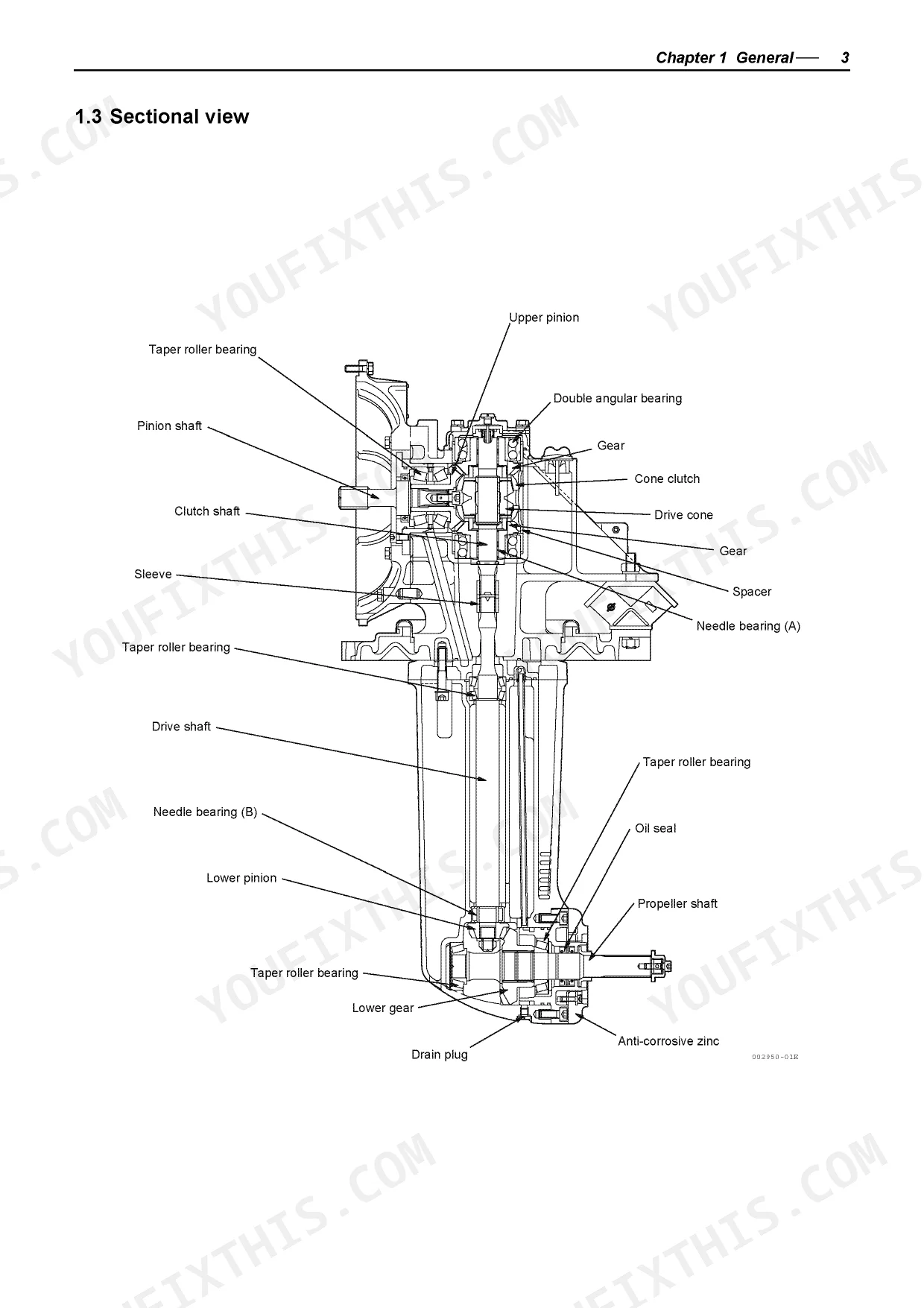

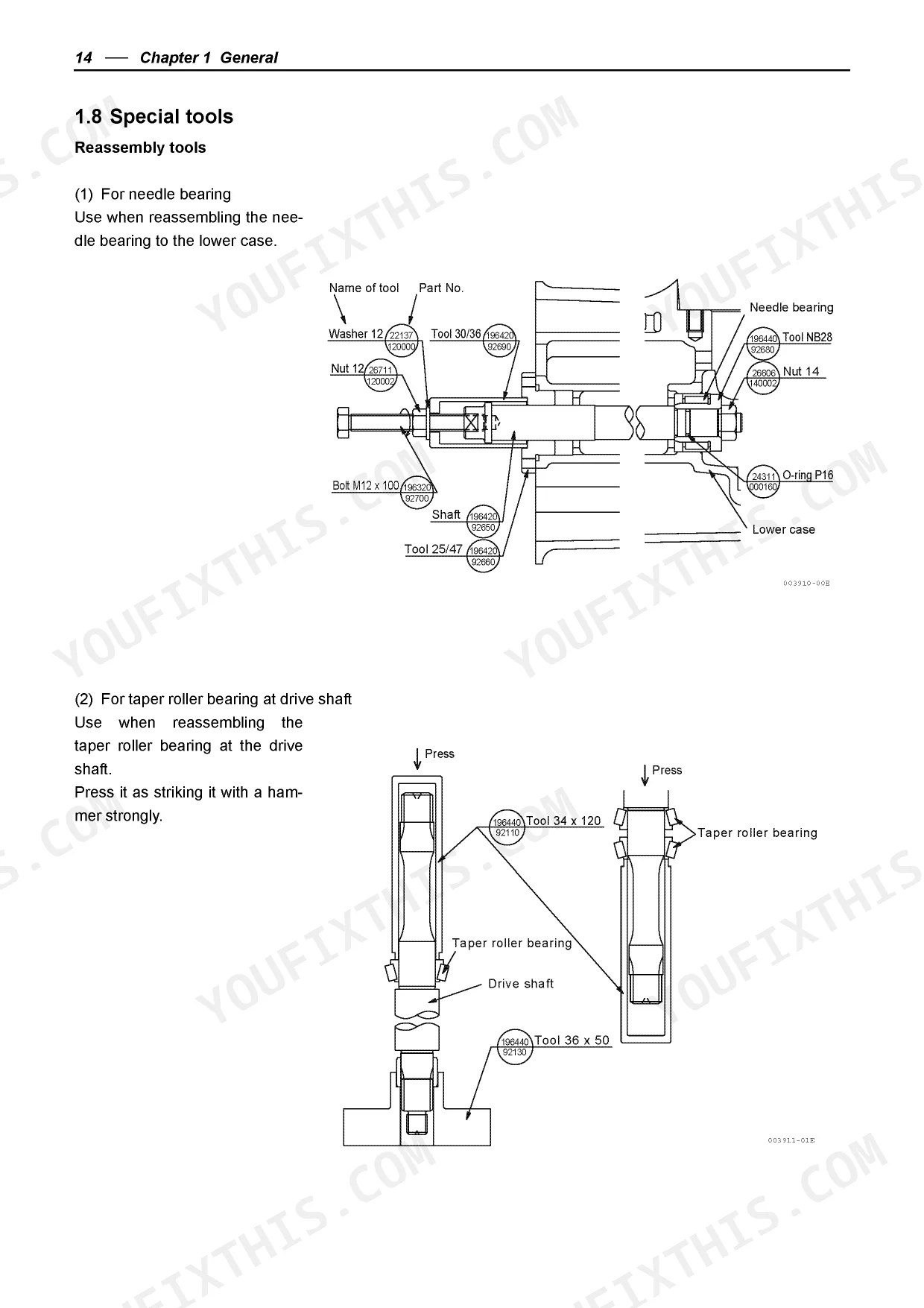

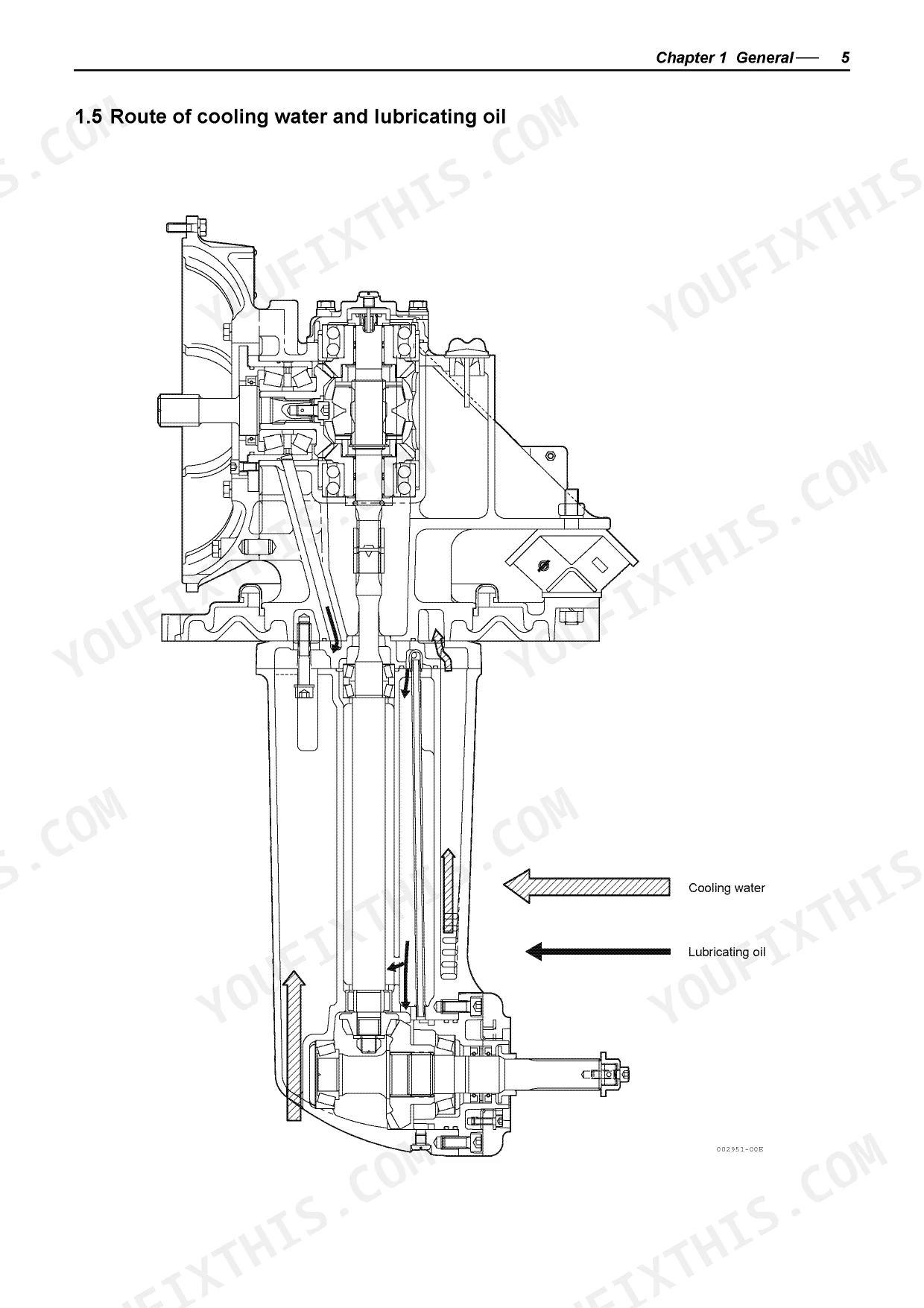

| General | 11-29 | Specifications, Exterior View, Sectional View, Criteria for Replacing Parts, Route of Cooling Water and Lubricating Oil, Lubricating Oil, Disassembly and Reassembly, Special Tools |

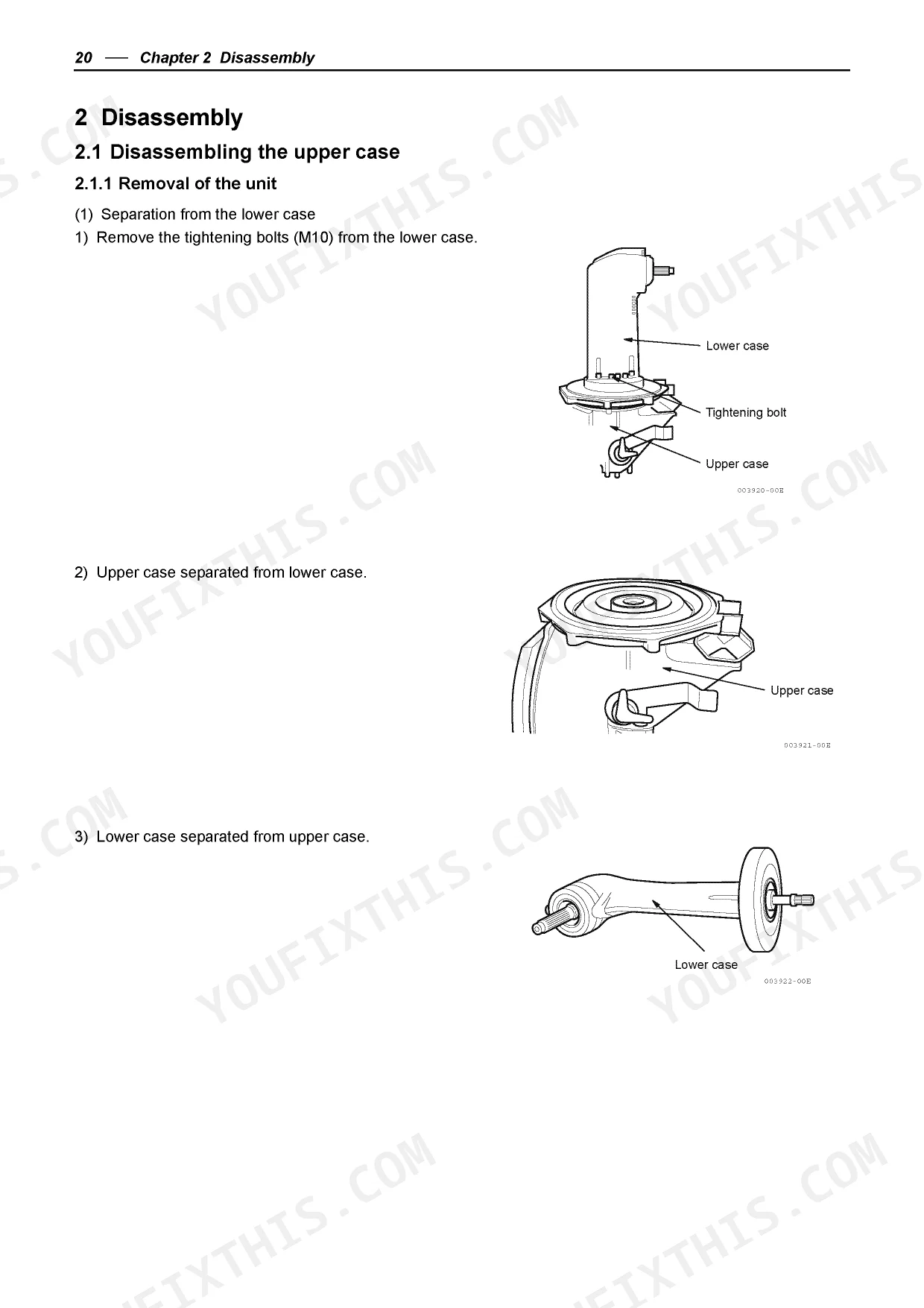

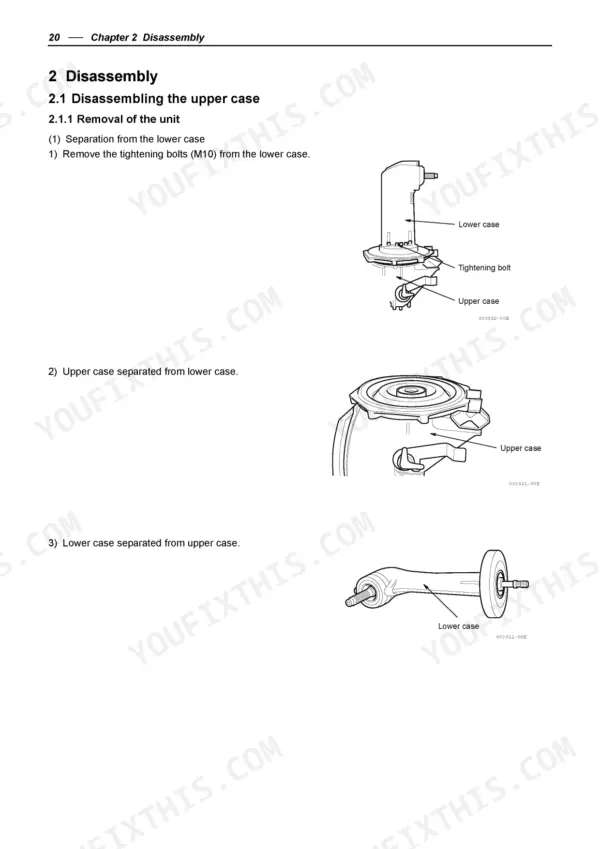

| Disassembly | 30-47 | Disassembling the Upper Case (Removal of the Unit, Disassembling the Unit), Disassembling the Lower Case (Removal of Unit) |
| Reassembly | 48-49 | Reassembling the Bearing for Lower Case (Needle Bearing, Taper Roller Bearing Outer Race), Reassembling the Bearings of Shaft (Propeller Shaft, Drive Shaft) |
| Shim Adjustment (Gear Backlash Adjustment) | 50-56 | Location of Adjustment Shims, Measurement of the Dimensions of the Cases (Upper Case, Lower Case) |
| Adjustment of Bearing Assembly Gap | 57-60 | Upper Gear Bearing (Measurement of the Dimension of the Bearing, Calculation of the Shim Thickness) |
| Adjustment of the Gear Backlash | 61-62 | Upper Gear, Lower Gear |
| Adjustment of the Gear Dye Pattern | 63-64 | Upper Gear, Propeller Shaft |
| Adjustment of the Shift Lever | 65-66 | Measurement of the Dimensions (Shift Lever Bolt, Shifter Pin Position), Calculation of the Shim Thickness, Caution of Reassembly |

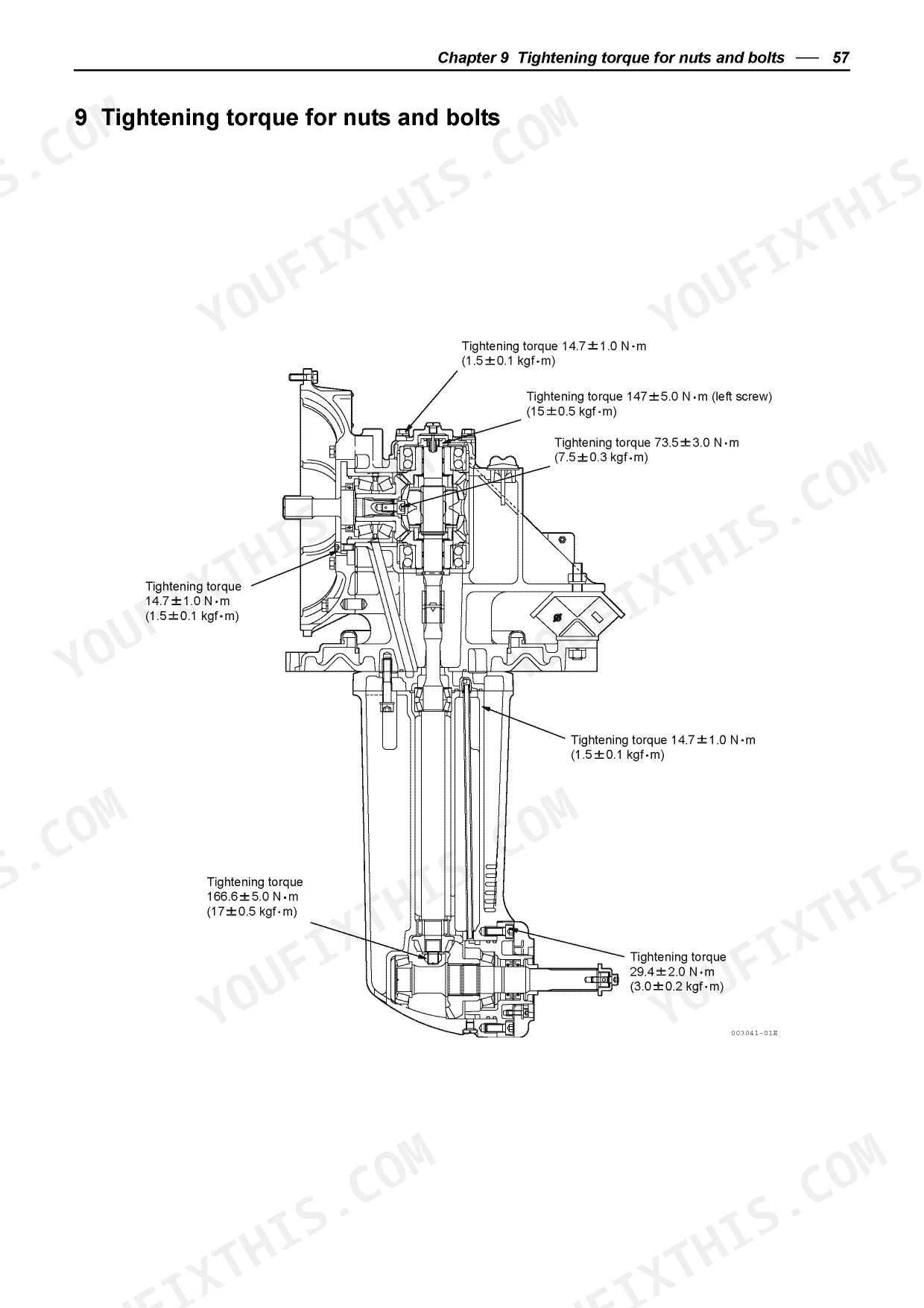

| Tightening Torque for Nuts and Bolts | 67 | - |
| Colophon | 68 | Code No., First Edition, Published by, Edited by, Copyright |

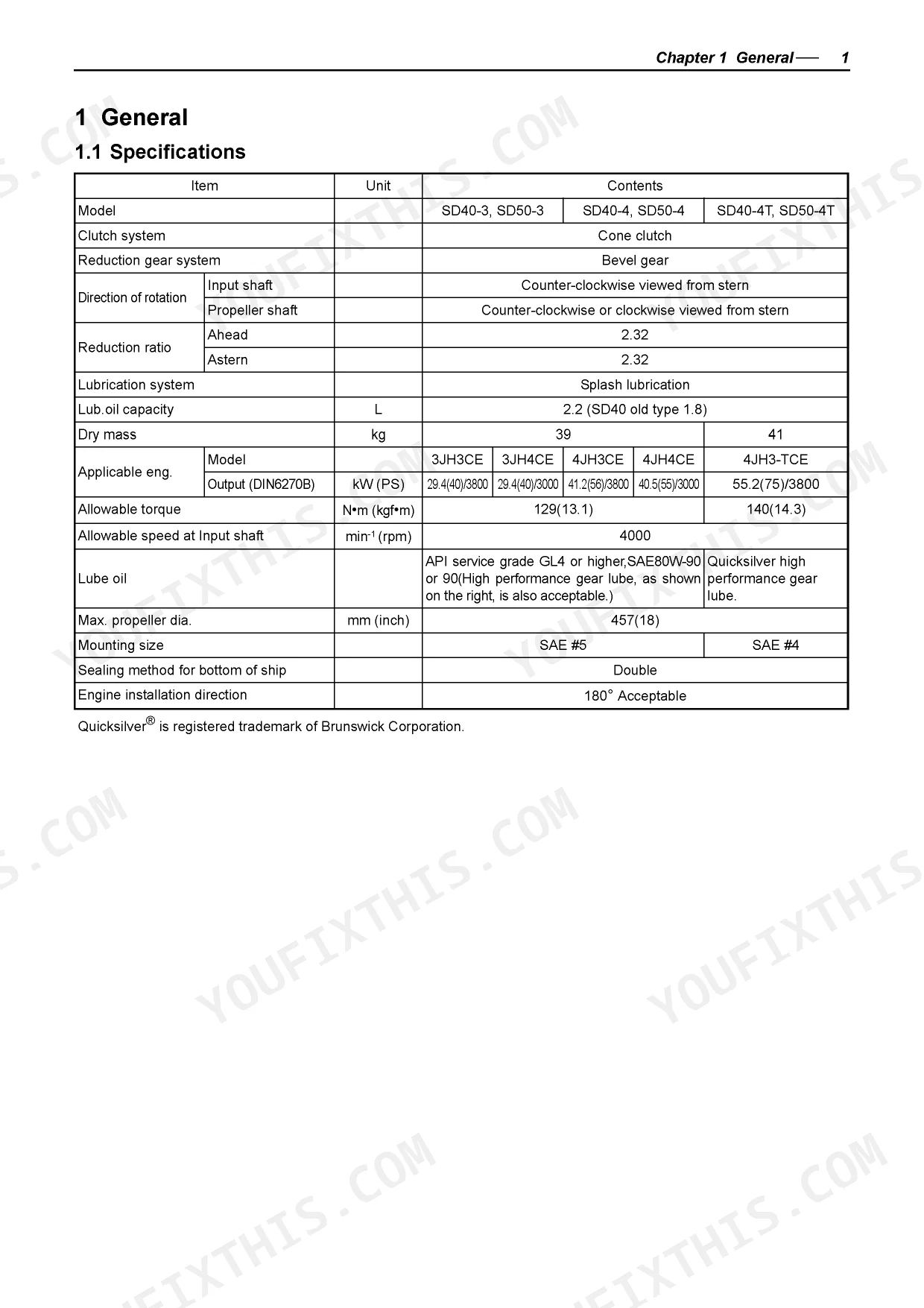

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Tightening torque for propeller shaft nut | 166.6±5.0 N-m (17±0.5 kgf-m) | p. 67 |
| Tightening torque for drive pinion end nut (left screw) | 147±5.0 N·m (15±0.5 kgf・m) | p. 67 |
| Tightening torque for pinion shaft assembly bolt | 73.5±3.0 N·m (7.5±0.3 kgf-m) | p. 67 |
| Needle bearing (A) (K24 x 28 x 17) replacement interval | Every 1500 hours | p. 14 |
| Needle bearing (B) replacement interval | Every 1500 hours | p. 14 |
| O-ring replacement criteria | Disassembly | p. 14 |
| Diaphragms (A) & (B) replacement criteria | Hair cracks | p. 14 |
| Lubricating oil type (API service grade) | GL4 or higher | p. 11 |
| Lubricating oil type (SAE grade) | SAE 80W-90 | p. 11 |
| Shift lever adjustment clearance | 0.2~0.4 mm | p. 65 |
| Reduction ratio (Ahead/Astern) | 2.32 | p. 11 |
| Allowable speed at Input shaft | 4000 min-1 | p. 11 |
Yanmar SD40–SD50 Series Common Problems This Manual Covers
Yanmar SD40 sail drive slips or does not reliably engage under heavy load in ahead or astern p. 14
Inspect the cone clutch and needle bearings. Replace bearings if you see flaking or every 1500 hours as specified on page 14. During reassembly, torque the drive pinion end nut left screw to 147±5.0 N·m. Check page 67 for all required fastener torque specifications.
Manual Section: Criteria for replacing partsShifting feels inconsistent, stiff, or the drive refuses to stay fully engaged in gear p. 65
Measure the shift lever adjustment clearance carefully. Adjust the linkage to achieve exactly 0.2~0.4 mm clearance after adjustment. Refer to page 65 for the correct measurement points. Install the proper shim thickness to maintain this gap and ensure smooth gear engagement.
Manual Section: 8 Adjustment of the Shift LeverHeavy oil leakage around the top cover or accelerated internal bearing wear after neglected maintenance intervals p. 11
Drain the old fluid and inspect the O-rings during disassembly. Replace oil seals every 1000 hours or 2 years. Fill the unit with API service grade GL4 or SAE 80W-90 gear oil. Check page 11 for approved high performance gear lube options.
Manual Section: 1 GeneralPropeller rotates unexpectedly while the vessel is under tow or when the engine is idling p. 67
Check the drive pinion end nut and propeller shaft assembly. Torque the propeller shaft nut to 166.6±5.0 N·m as directed on page 67. Verify the allowable speed at the input shaft does strictly not exceed 4000 rpm during operation or vessel towing.
Manual Section: 9 Tightening Torque for Nuts and BoltsFrequently Asked Questions
How do I reset the Yanmar SD40/SD50 cone clutch or slipping saildrive?
The manual does not explicitly describe a 'reset' procedure for a slipping cone clutch. Instead, it provides procedures for adjusting the shift lever and gear backlash, which are critical for proper clutch engagement. If slipping occurs, it likely points to wear or incorrect adjustment of these components or the need for replacement of parts like bearings or the clutch itself. The 'Adjustment of the shift lever' on page 65 describes how to adjust the shift lever to ensure proper engagement.
What is the torque spec for the Yanmar SD40/SD50 saildrive mounting bolts?
The manual specifies a tightening torque of 14.7±1.0 N·m (1.5±0.1 kgf･m) for the bolts connecting the upper case to the mounting flange, which are the saildrive mounting bolts.
What are the torque specs for the SD40-4T / SD50-4T upper unit fasteners?
For the upper unit, the manual specifies several tightening torques: 14.7±1.0 N·m (1.5±0.1 kgf･m) for mounting flange bolts, 147±5.0 N·m (15±0.5 kgf･m) for the clutch shaft end nut (left screw), and 73.5±3.0 N·m (7.5±0.3 kgf-m) for other fasteners in the upper part.
How do I adjust or shim the Yanmar SD40/SD50 gear backlash?
Gear backlash adjustment involves selecting appropriate shims based on measurements of the gear and case dimensions. The manual provides detailed shim selection methods for the clutch shaft (page 52), pinion shaft (page 54), drive shaft (page 55), and propeller shaft (page 56), as well as procedures for measuring upper and lower gear backlash (pages 61-62).
How to adjust Yanmar SD40 cone clutch tension
The manual does not use the term 'cone clutch tension' but provides procedures for adjusting the shift lever, which directly impacts clutch engagement. The 'Adjustment of the shift lever' on page 65 describes measuring dimensions H and A and calculating shim thickness T to adjust the shift lever's operation.
How will I receive this Service Manual?
You get a 69-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this Yanmar SD40–SD50 Series Service Manual printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Document Quality
This document is a scanned PDF, but it includes an OCR layer, allowing you to search and copy the full text. The text quality is consistently crisp and easy to read across all pages. Diagrams and illustrations are raster images, not vector, but they are clear with readable labels. All pages are clean, free from any notable scan artifacts, stains, or skewed content. There are no notable blank or filler pages in the document.
