All 66 pages of this Yanmar LB446HB-1, LB446H-1 Operator Manual are built for the operator setting up, running, and maintaining these balloon and spotlight lighting towers on site. You get a dense block of operating precautions: pre-start checks, engine startup and parking procedures, transportation guidelines, and electric shock hazards near power lines. Inside the operations chapter: step-by-step procedures for loading the generator, replacing balloon and lighting units, and working every control on both models. Confirm the mast is raised to 4470 mm on the LB446HB-1 balloon type or 4160 mm on the LB446H-1 spotlight, then verify rated output holds at 130 V before lighting up. Dark tower on a night job costs real money. Grab your tablet, pull up the bookmarked PDF, and jump straight to troubleshooting before you lose another hour.
What's Inside This Yanmar LB446HB-1, LB446H-1 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 2 | - |
| Introduction | 3 | - |
| Safety Information | 4 | Danger, Warning, Caution, Important |
| Safety | 7 | Proper Clothing, Fuel and Oil Ignition, Workplace Ventilation, Electric Power Line Clearance, Battery Electrolyte Hazards, Waste Processing |
| Basic Precautions | 8-9 | Proper Clothing, Safety Items, Fuel Ignition, Oil Ignition |

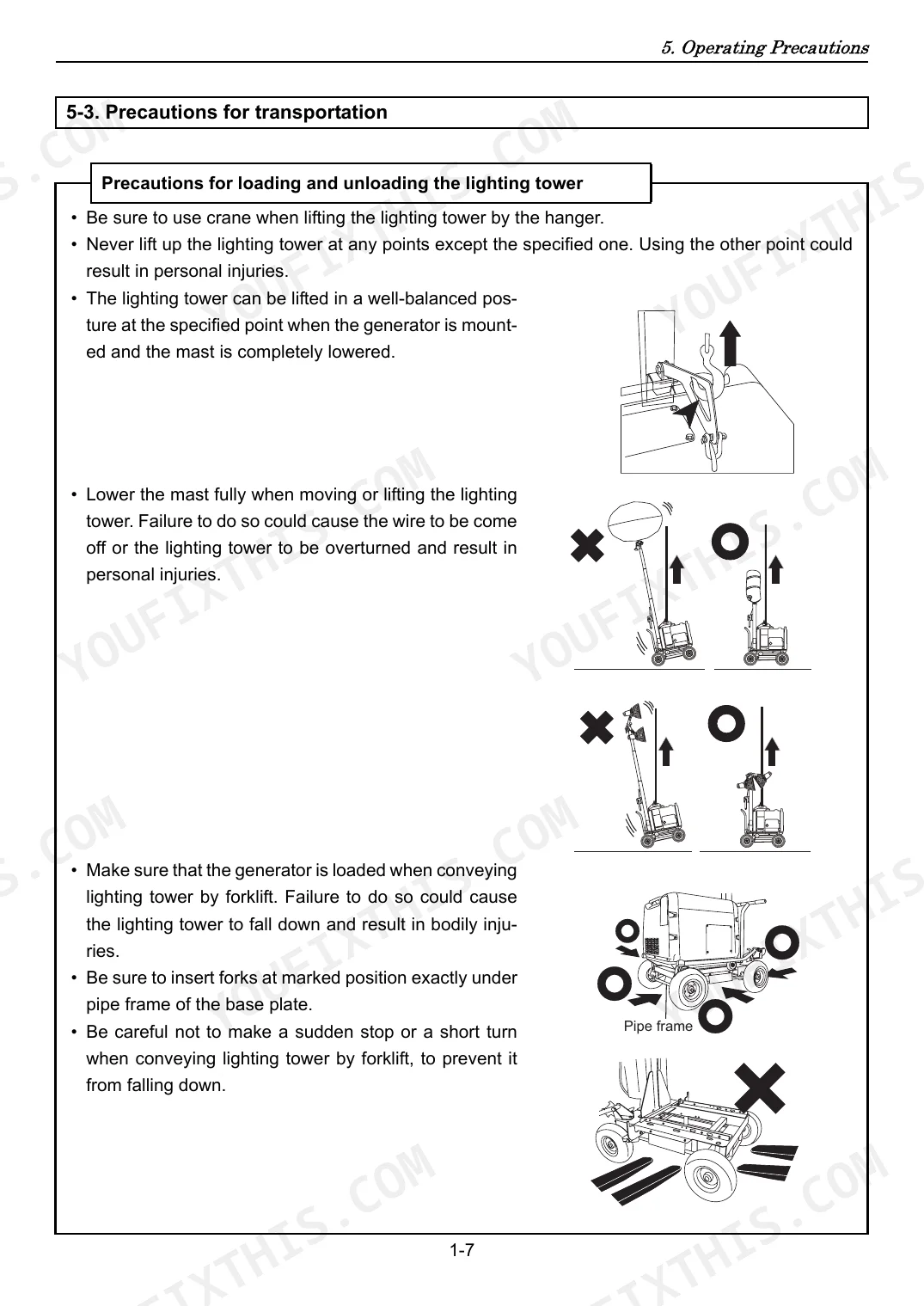

| Operating Precautions | 10-15 | Precautions Before Starting the Engine, Precautions Starting the Engine, Working and Parking, Precautions for Transportation, Precautions for Electric Shock |
| Precautions for Servicing | 16-18 | Appropriate Tools, Fueling and Oiling, Lamp Handling, Balloon Handling, Battery Cable Disconnection, Waste Processing |
| Location of Warning Labels | 19-22 | Warning Labels and Location |

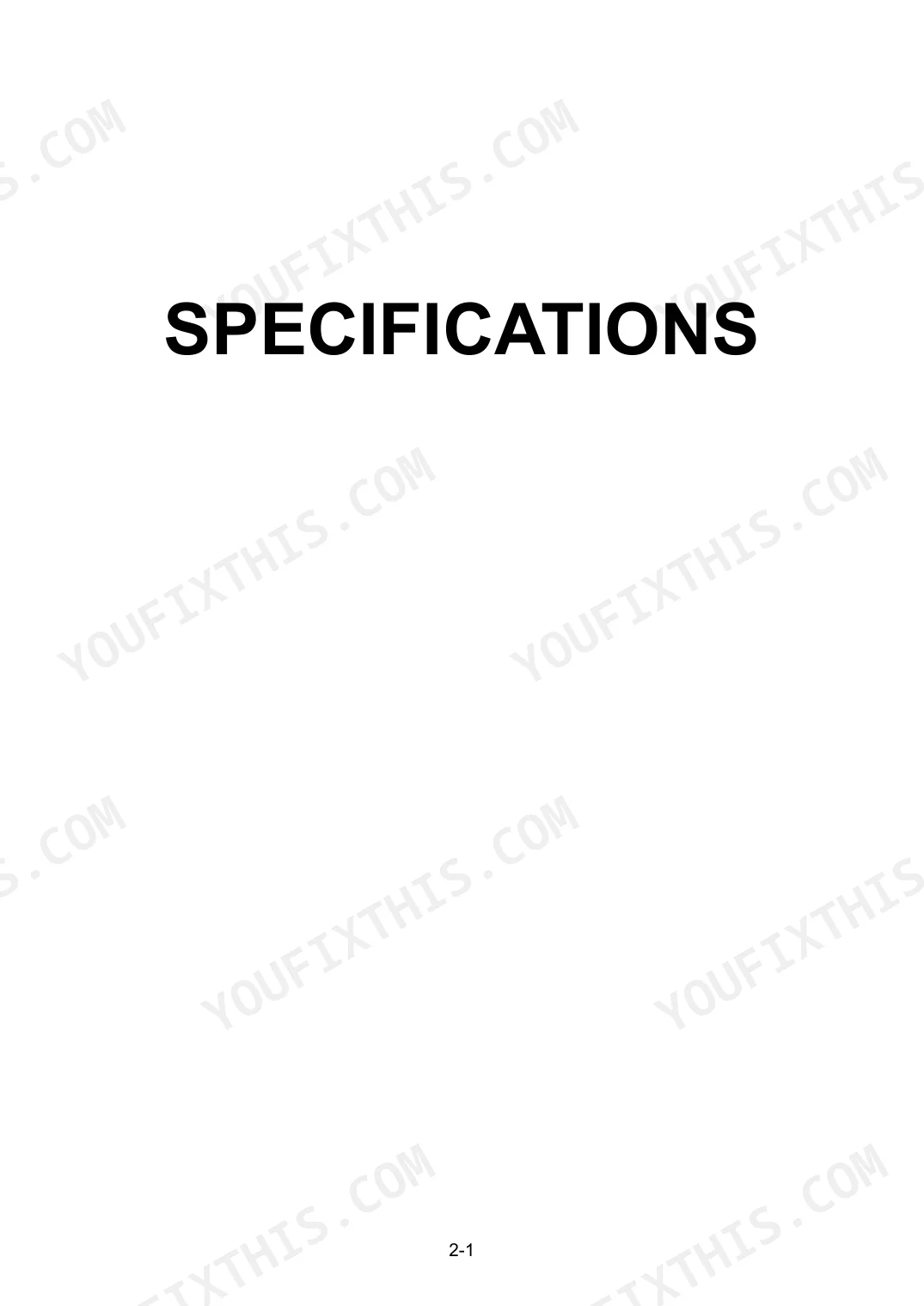

| Specifications | 23 | Rated Voltage, Lamp, Mast, Wheel, Engine, Generator |
| Lighting Tower | 24 | Rated Voltage, Total Luminous Flux, Mast Height, Engine Output, Fuel Tank Capacity, Fan Motor Pressure |

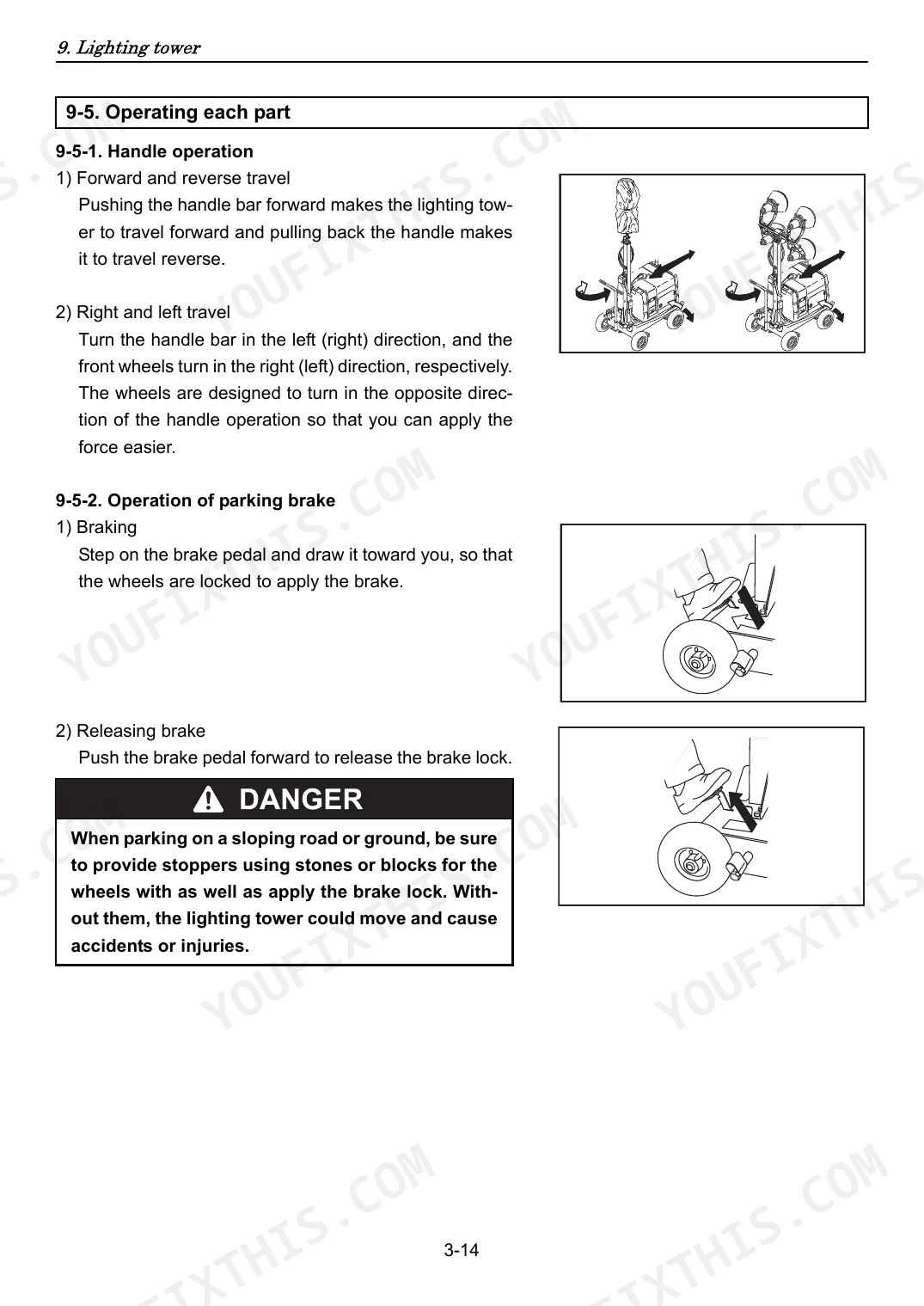

| Operation | 25 | Product Overview, Loading Generator, Replacing Balloon and Lighting Units, Replacing Consumable Parts, Operating Each Part |
| Lighting Tower | 26-48 | Mast Raise and Lower, Outrigger Deployment, Balloon Setup, Spotlight Setup, Winch Operation, Generator Loading, Lamp Replacement, Consumable Parts |
| Lighting Tower | 50-52 | Periodic Checks, Maintenance and Storage, Unclear Points or Problems |
| Troubleshooting | 53 | Lamp Does Not Light, Light Goes Out or Blinks, Lamp Only Lights for a Short Time, Balloon Is Not Inflated, Mast Cannot Be Raised, Mast Keeps on Coming Down |
| Lighting Tower | 54 | Lamp Does Not Light, Light Goes Out or Blinks, Lamp Only Lights for a Short Time, Balloon Is Not Inflated, Mast Cannot Be Raised, Mast Keeps on Coming Down |
| Ordering Replacement Parts and Service Call | 55 | Model Designation, Machine Serial Number, Hourmeter Reading, Nameplate (Lighting Tower), Serial Number Plate (Generator) |
| Ordering Replacement Parts and Service Call | 56 | Model Designation, Machine Serial Number, Hourmeter Reading, Nameplate (Lighting Tower), Serial Number Plate (Generator) |
| Notes | 57 | - |
| Maintenance Log | 58-60 | Date, Machine Hours, Service Performed |
| Notes | 61-66 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| YANMAR genuine lamp part number | 1-3010010-10 | p. 33 |
| Lighting tower rated voltage | 130 V | p. 24 |
| Generator rated output | 1.7 KVA | p. 24 |
| Fuel tank capacity | 15 L | p. 24 |
| Continuous operation without re-supplying fuel oil | 18 hrs | p. 24 |
| Fan motor rated voltage | 12V | p. 24 |
| LB446HB-1 | ||
| Balloon diameter | 1150 mm | p. 24 |
| Mast max. height (Balloon type) | 4470 mm | p. 24 |
| Dry mass (Balloon type) | 227 kg | p. 24 |
| LB446H-1 | ||
| Mast max. height (Spotlight type) | 4160 mm | p. 24 |
| Dry mass (Spotlight type) | 235 kg | p. 24 |
Yanmar LB446HB-1, LB446H-1 Common Problems This Manual Covers
Yanmar lighting tower mast will not raise after main breaker is on and controls are engaged p. 54
Verify the generator is running and stable (rated output: 1.7 kVA) before troubleshooting mast controls. Check that the wire rope is properly seated on the winch drum and no cable is caught. Confirm the safety stopper is fully disengaged. Inspect the mast sliding surface for debris. Work through the mast fault checklist on page 54 in sequence.
Manual Section: TroubleshootingOne or more lamps fail to illuminate after engine starts and generator is producing power p. 54
Verify the lamp coupler connection is fully seated and the lamp switch is ON. Check the lamp is not loose in its socket. Confirm generator output is 130 V. If replacing the lamp, use Yanmar genuine part 1-3010010-10. Work through the lamp fault checklist on page 54 to isolate whether the issue is the lamp, coupler, or generator output.
Manual Section: TroubleshootingEngine cranks slowly or will not start after storage or in cold weather p. 10
Check fuel level in the 15 L tank and confirm no water contamination, especially after storage. Verify the battery isolator is switched ON and the emergency stop is released. In cold weather, allow the full pre-heat cycle to complete before cranking. Review engine startup steps in operating precautions on page 10.
Manual Section: Operating PrecautionsLamps shut off unexpectedly minutes after startup and the main circuit breaker has tripped p. 54
Switch the lamp control OFF and allow a full cooling period before resetting the breaker and re-striking. Check the air cleaner element for blockage and inspect the fuel tank for water, both of which destabilize generator output. Verify voltage is stable at 130 V after restart; cross-reference the fault table on page 54 if it trips again.
Manual Section: TroubleshootingUnit rocks or feels unstable when the mast is raised during initial site setup p. 10
Extend all outriggers fully and lower the stabilizer jacks until they firmly contact the ground before raising the mast. Confirm the unit is level at the work site. Do not raise the mast near overhead power lines. The tower generates 130 V rated AC; follow electric shock precautions on page 10 during setup.
Manual Section: Operating PrecautionsBalloon envelope not inflating or sagging flat after the fan motor is switched on p. 54
Check the balloon zipper is fully closed; a partially open zipper prevents the envelope from pressurizing. Verify the fan motor is running by listening for airflow at the base of the envelope (rated fan voltage: 12 V DC). Inspect the envelope for tears or punctures. Work through the inflation fault checklist on page 54.
Manual Section: TroubleshootingFrequently Asked Questions
What are the torque specifications for the YANMAR LB446HB-1 light tower fasteners?

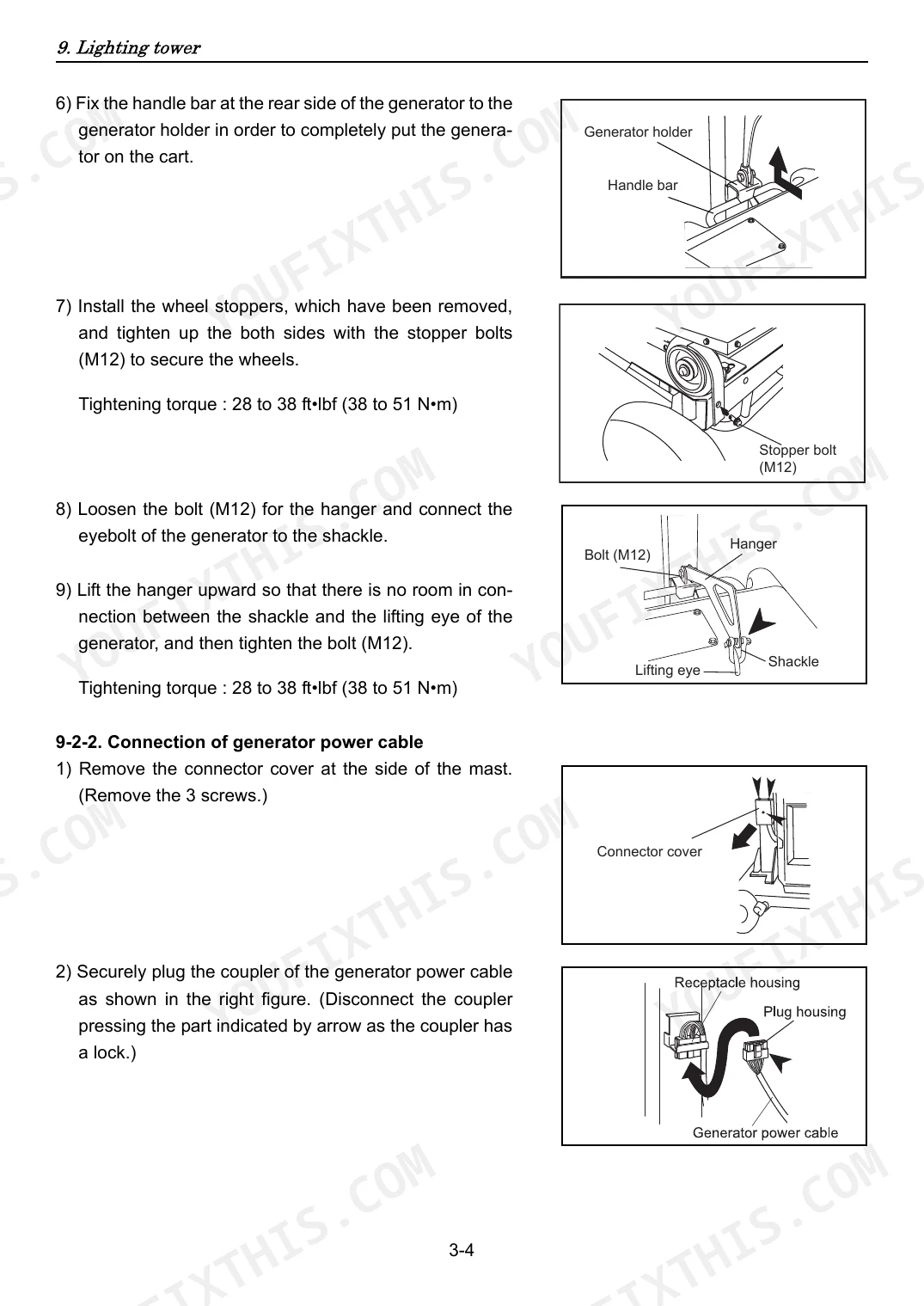

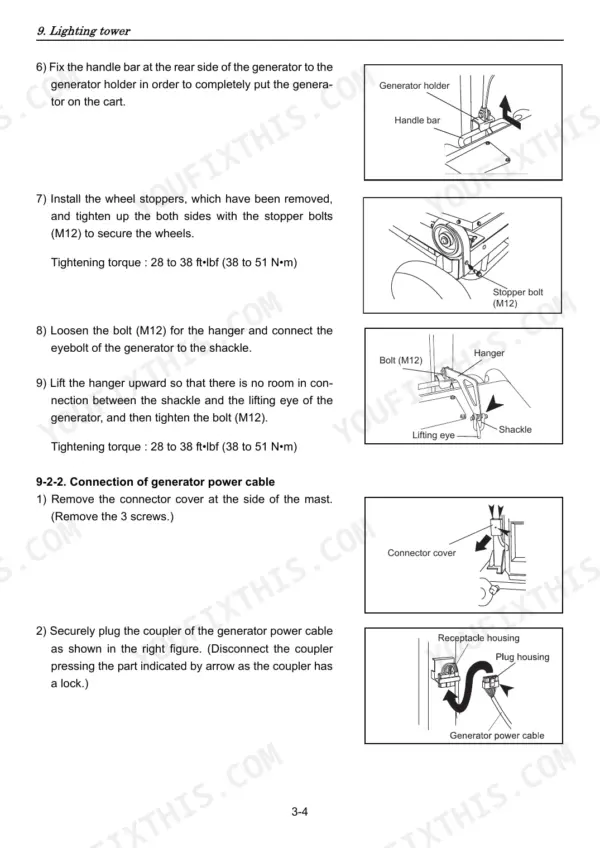

The manual specifies several torque values for fasteners on the light tower. For securing the wheel stoppers and the hanger bolt, the tightening torque is 28 to 38 ft·lbf (38 to 51 N•m). When reinstalling the balloon or lighting units, the tightening torque required is 24 to 33 ft·lbf (33 to 45 N.m).
What are the replacement specifications for lamps/bulbs in the YANMAR LB446HB-1 light tower?
For replacement, use a YANMAR genuine lamp, specifically a Metal halide lamp HIE400W/C/U/EURO/4K with a rating of 400 W. The corresponding Parts No. is 1-3010010-10. Using other types of lamps may not provide the intended performance or could cause the lamp to explode.
How do you fix yanmar lighting tower mast will not raise after main breaker is on and controls are engaged?
Verify the generator is running and stable (rated output: 1.7 kVA) before troubleshooting mast controls. Check that the wire rope is properly seated on the winch drum and no cable is caught. Confirm the safety stopper is fully disengaged. Inspect the mast sliding surface for debris. Work through the mast fault checklist on page 54 in sequence.
How do you fix one or more lamps fail to illuminate after engine starts and generator is producing power?
Verify the lamp coupler connection is fully seated and the lamp switch is ON. Check the lamp is not loose in its socket. Confirm generator output is 130 V. If replacing the lamp, use Yanmar genuine part 1-3010010-10. Work through the lamp fault checklist on page 54.
How will I receive this Yanmar LB446HB-1, LB446H-1 Operator Manual?
You get a 66-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this manual?
There are no print restrictions — the PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Document Quality
This document is a scanned PDF with an optical character recognition (OCR) layer, allowing you to search and copy the full text. The text quality is crisp and easy to read throughout, with diagrams and illustrations presented as clear raster images where labels are generally legible. Pages are clean with minimal scan artifacts or skewing, and the document includes several clearly labeled blank "MEMO" and "NOTES" pages.
