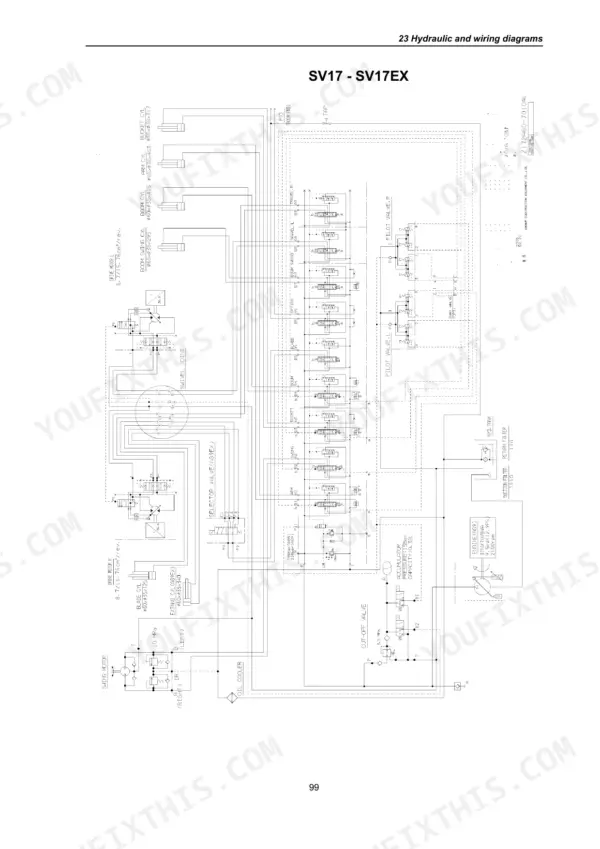

All 118 pages of this Yanmar SV15, SV17, and SV17EX (EP) Operation Manual PDF (OEM #LGBBB0-00015) focus on one job: keeping your mini-excavators running to factory spec from the first hour of break-in through long-term storage. Inside: a full controls reference mapping every lever, pedal, monitor, and model-specific switch; a troubleshooting section that separates real faults from normal machine behavior; and step-by-step maintenance procedures for crawler tension, fan belt adjustment, and filter servicing. You also get complete hydraulic diagrams and wiring diagrams, plus a standard tightening torque table for bolts and pipe joints covering all three models. Swap fuel and air filters at the 500-hour mark; pipe joint bolts torque to 12.7–16.7 N·m on M8 and up to 49.0–58.8 N·m on M16. Every hour down costs money. Download now, bookmarked by section and searchable by keyword, ready to open on your phone right next to the machine.
What's Inside This Yanmar SV15 (EP), SV17 (EP), SV17EX (EP) Manual

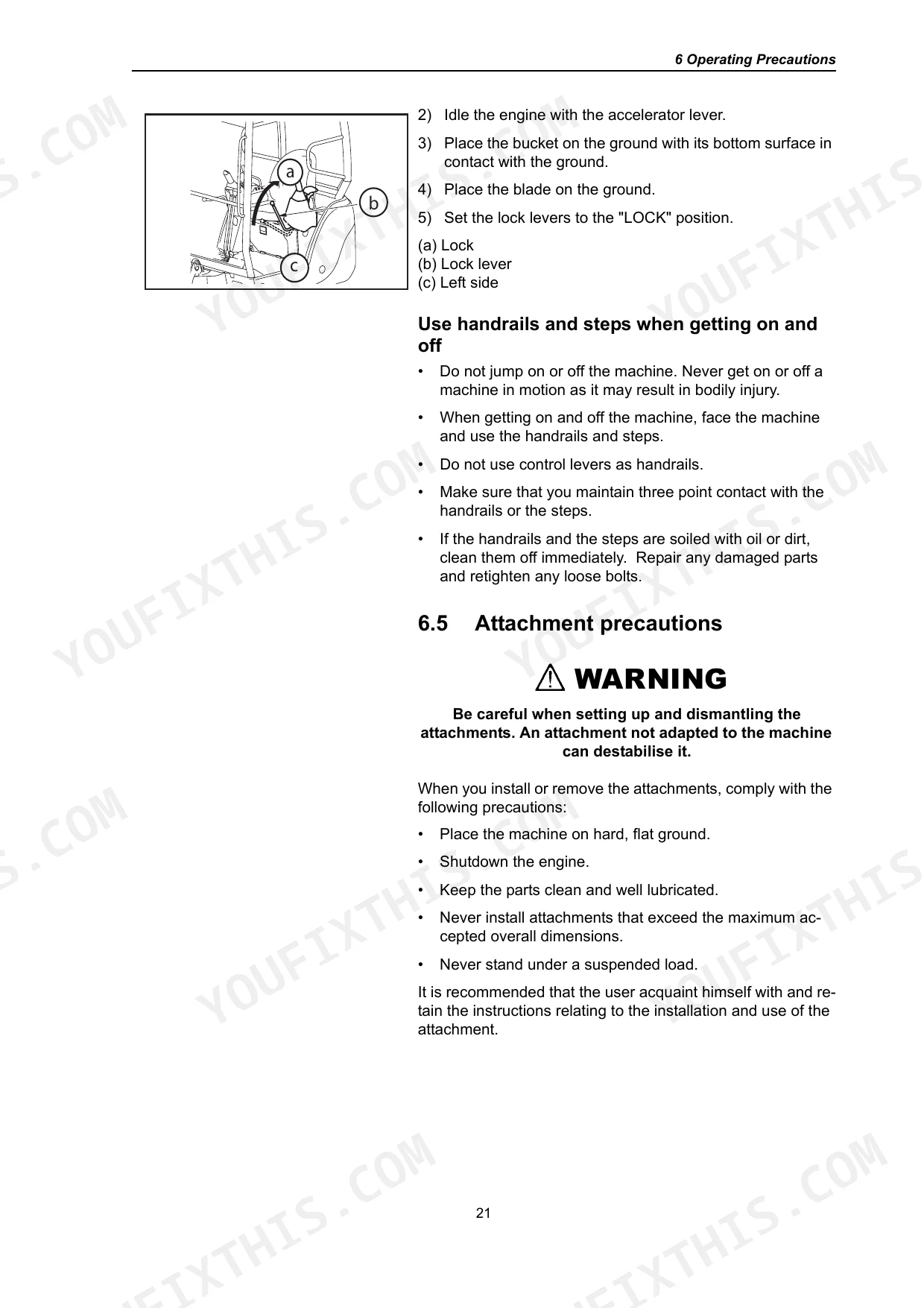

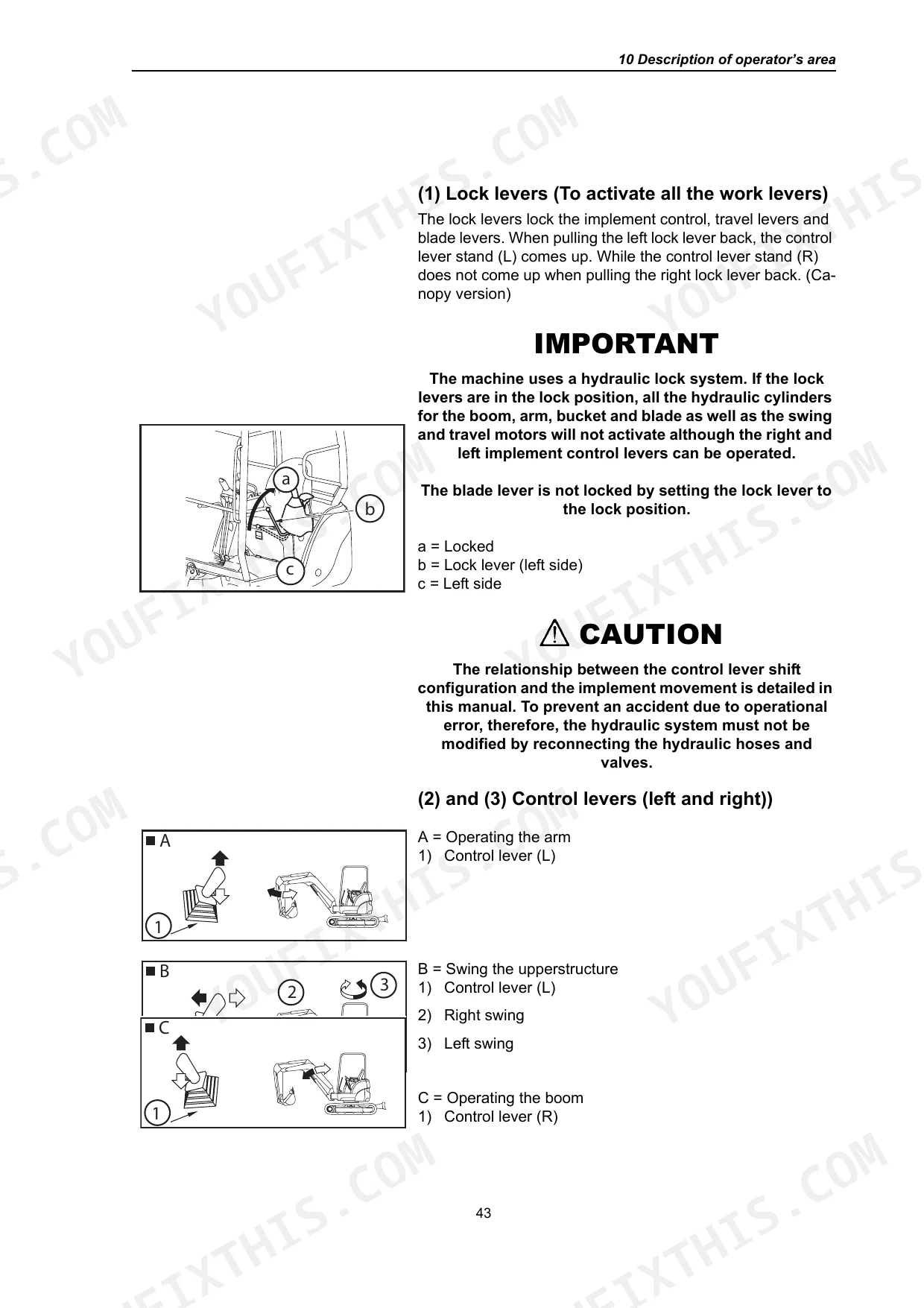

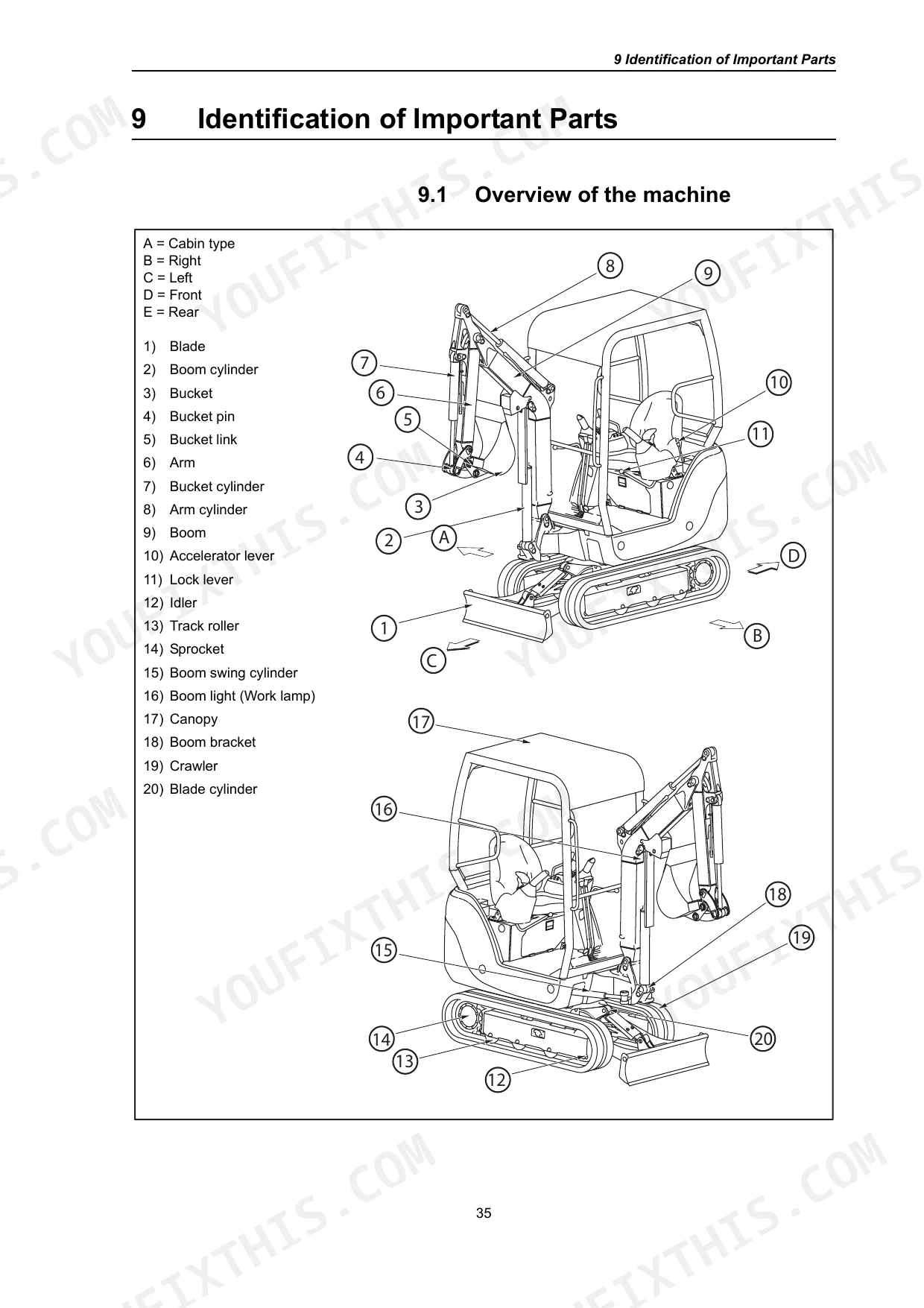

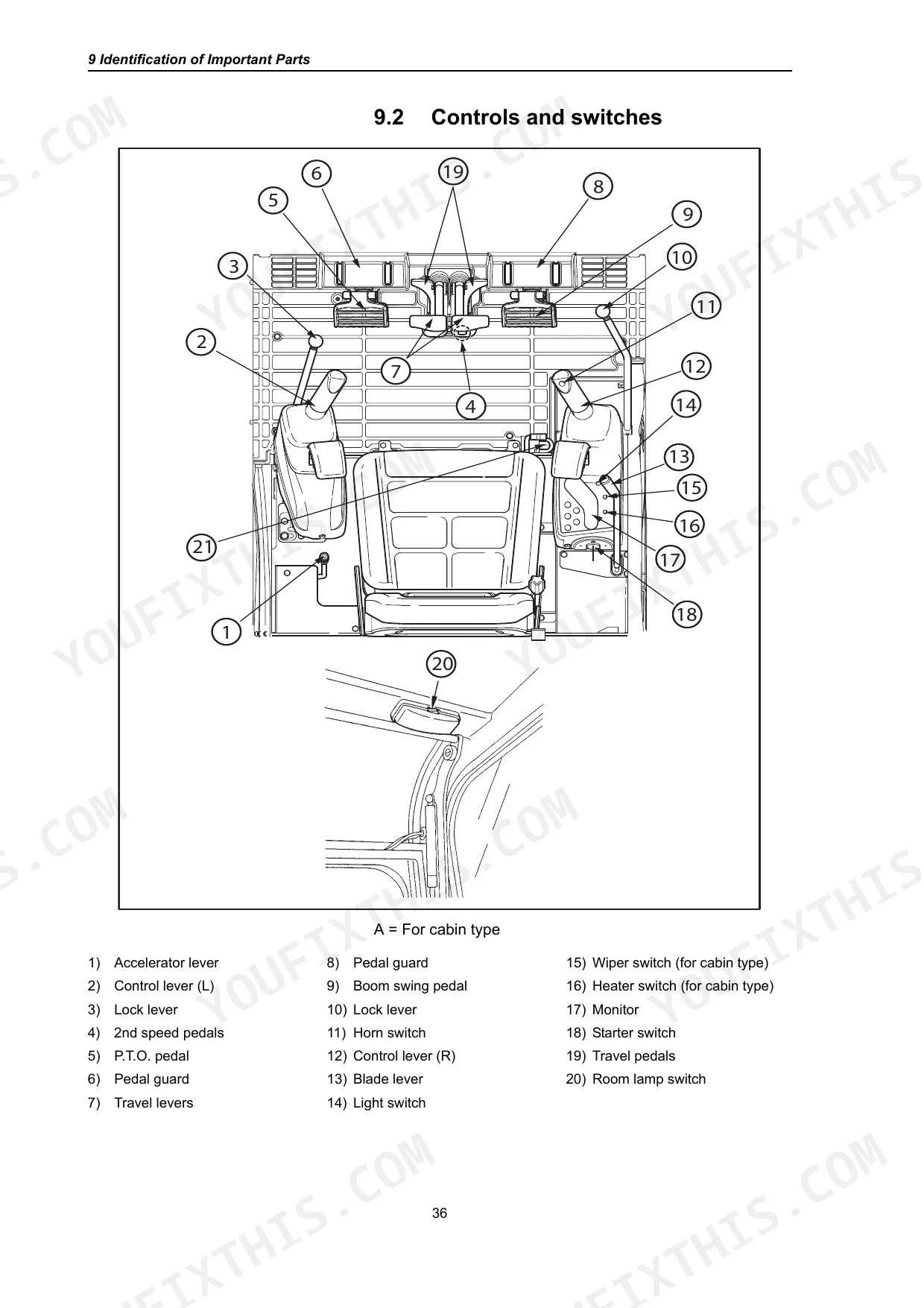

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 7 | Machine Operation, Machine Inspection, Machine Servicing, Safety Instructions, Machine Specifications, Product Information |
| Safety Information | 8-9 | Machine Components, Safety Signs, Safety Instructions, Safety Devices, Unauthorized Modifications, Product Warranty |
| Product Overview and Regulation | 10 | Intended Uses, Operation License, Lifting |
| Ordering Replacement Parts and Service Call | 11-12 | Location of Machine Serial Number Plate, Location of Engine Serial Number Plate, Location of the Epa Identification Plate, Ordering Replacement Parts and Service Calls |
| Safety | 13-36 | Basic Precautions, Operating Precautions, Precautions for Servicing, Safety Messages (Warning Labels) |
| Operation | 37-70 | Identification of Important Parts, Description of operator’s Area, Instructions, Transportation, Long-Term Storage, Troubleshooting |
| Maintenance | 71-84 | Precautions for Servicing, Basic Servicing Practices, Fueling, Oiling and Greasing Based on Temperature Range, Standard Tightening Torque for Bolts and Nuts, Maintenance Table |

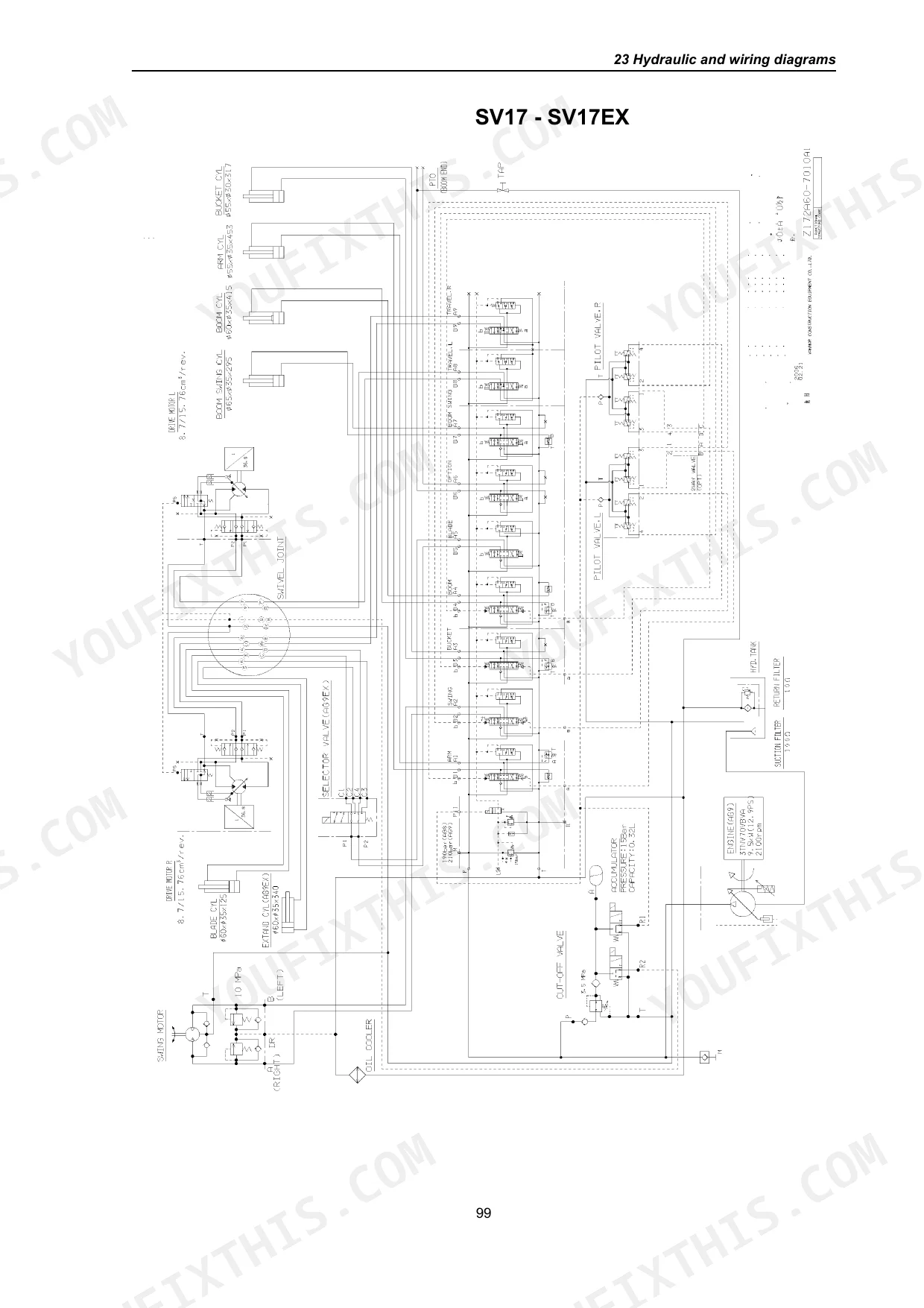

| Specifications | 85-104 | Options, Hydraulic and Wiring Diagrams |
| Notes | 105-118 | Maintenance |

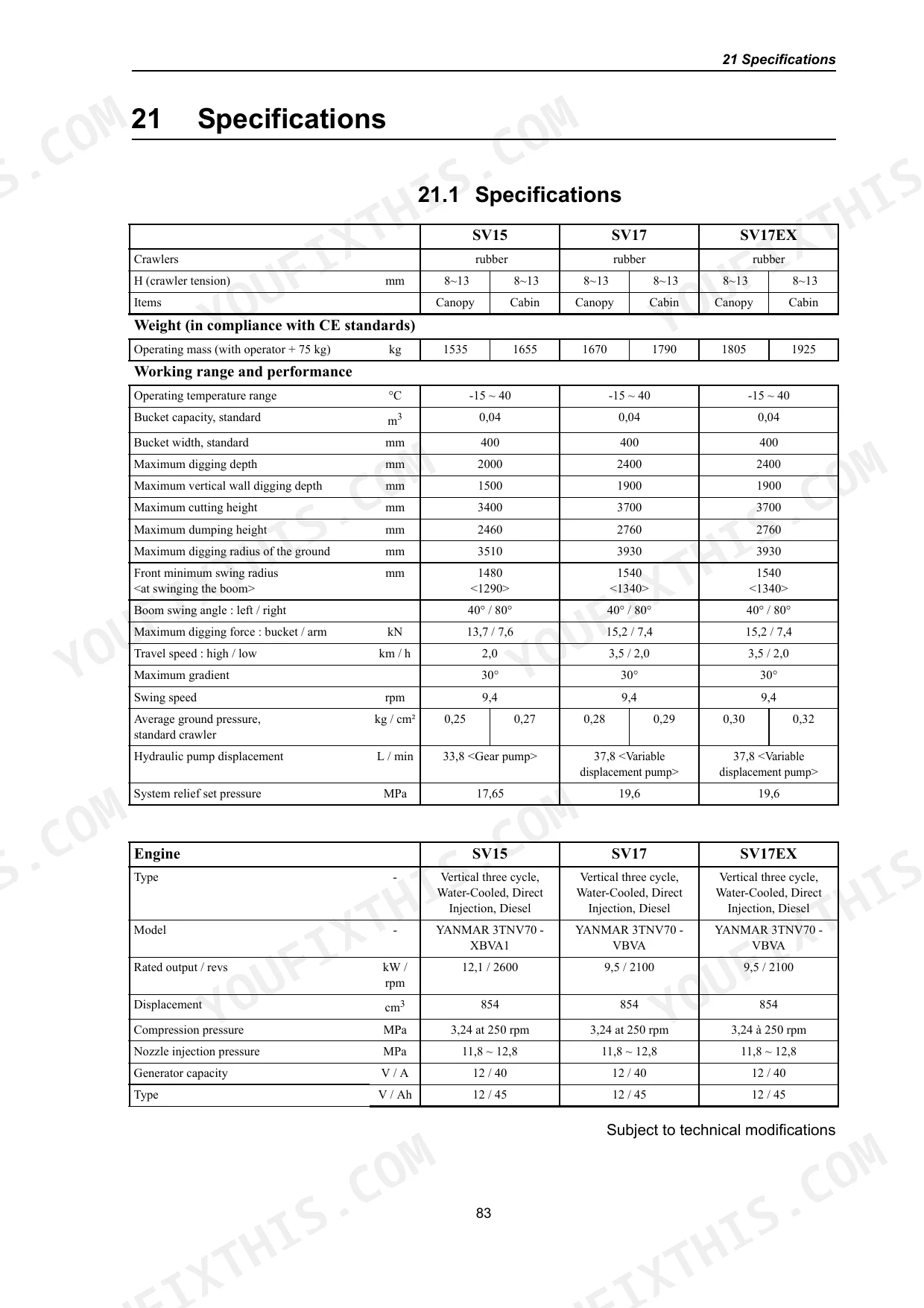

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main pump outlet hoses replacement interval | Earlier of either every 2 years or every 4000 service hours | p. 31 |
| Pipe joint bolt tightening torque (M8) | 12.7 - 16.7 N•m | p. 76 |
| Fuel filter replacement interval | Every 500h | p. 79 |
| Fuel hose (fuel tank to water separator) replacement interval | Earlier of either every 2 years or every 4000 service hours | p. 31 |
| Air filter replacement interval | Every 500h | p. 79 |
| Battery Generator capacity | 12 / 40 V / A | p. 87 |
| Battery Type | 12 / 45 V / Ah | p. 87 |
| Troubleshooting cause for Upperstructure not swinging smoothly | Swing brake is not released | p. 70 |
| Engine Oil Capacity | 2.8 L | p. 75 |
| Hydraulic Oil Capacity (in tank) | 16.0 L | p. 75 |
| Fuel Tank Capacity | 24.5 L | p. 75 |
| Standard Tightening Torque (M12x1.75 screw/nut) | 78.5 - 98.1 N•m | p. 76 |
Yanmar SV15 (EP), SV17 (EP), SV17EX (EP) Common Problems This Manual Covers

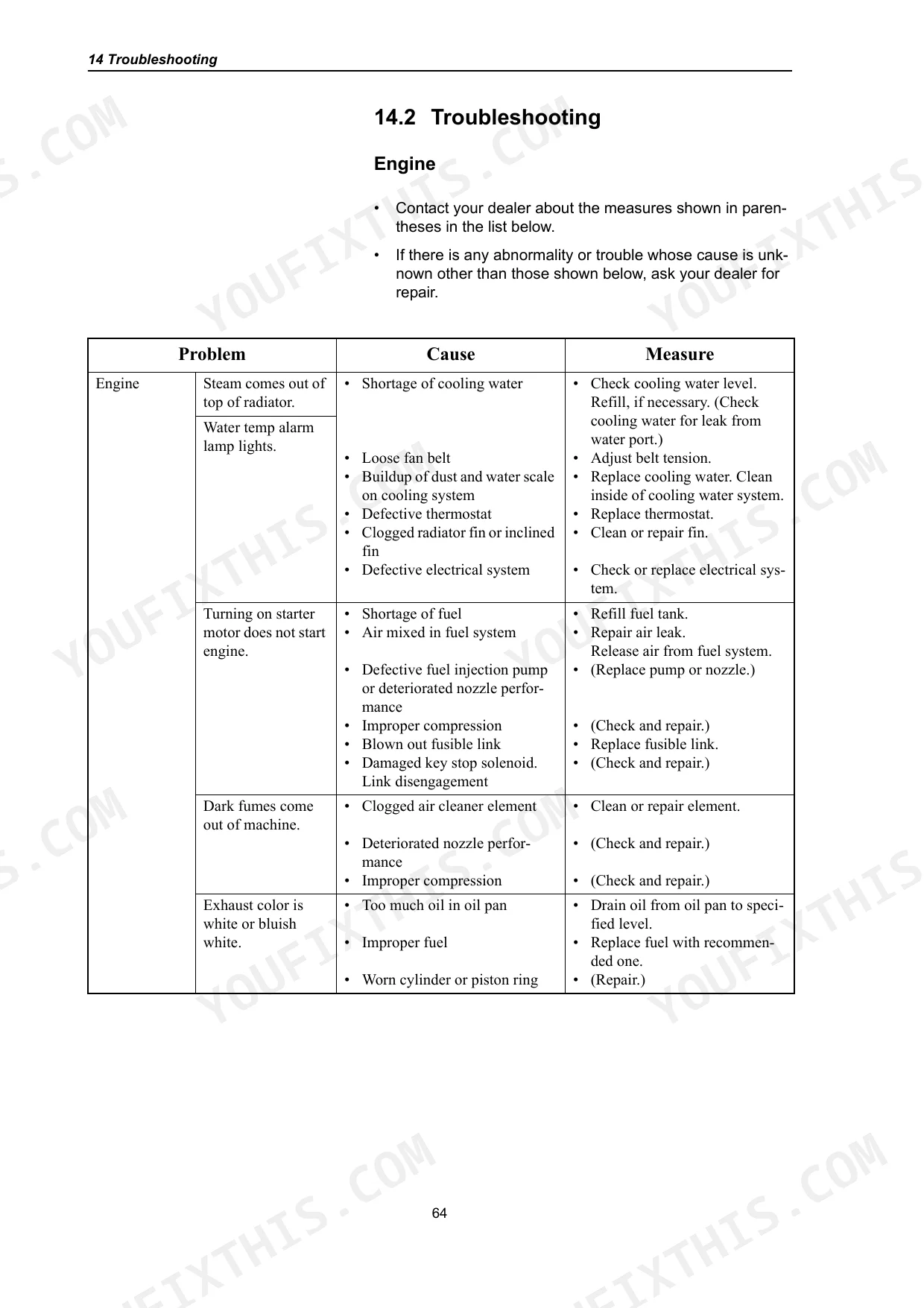

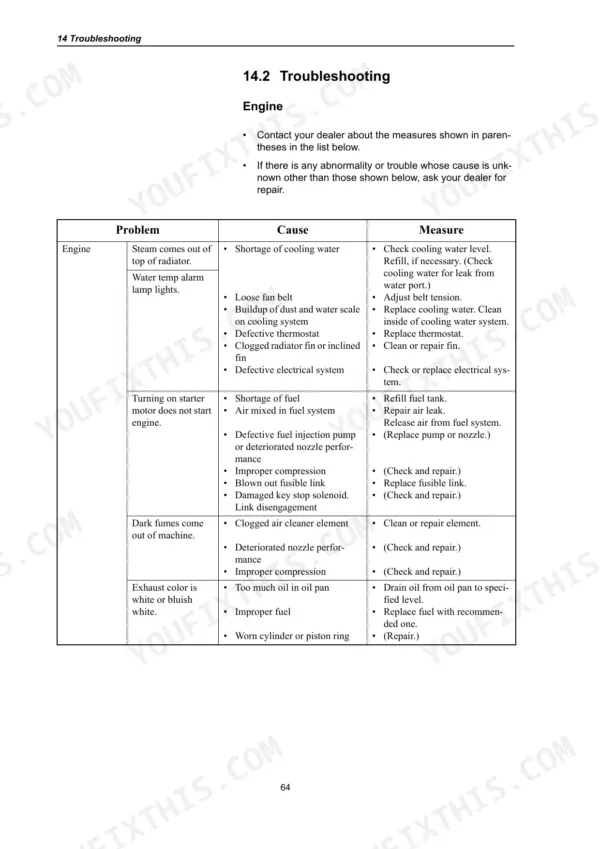

Yanmar SV15 engine won't start in cold weather or turns over slowly p. 68
Inspect the fuel system and verify the glow plugs are functioning. Replace the fuel filter every 500h as specified on page 79 to prevent fuel restriction. Check the engine oil level and fill up to the 2.8 L capacity listed on page 75.
Manual Section: Engine TroubleshootingUpperstructure will not swing smoothly or experiences jerky motion during normal machine operation p. 70
Check the swing brake release mechanism and grease fittings. Turn to page 70 to verify the swing brake is released and inspect the swing motor. Replace the main pump outlet hoses if they exceed the 2 years or 4000 service hours replacement interval noted on page 31.
Manual Section: Machine Body TroubleshootingSteam coming from the radiator and high coolant temperature alarm sounds under heavy load p. 68
Inspect the cooling system and test the radiator cap pressure. Measure the fan belt tension and adjust it to ensure adequate slack between 10 to 15 mm as detailed on page 81. Torque any loose M12x1.75 mounting bolts to 78.5 - 98.1 N•m using the specifications on page 76.
Manual Section: Engine TroubleshootingExcessive track wear and loud vibration from the final drive motor while tramming p. 87
Clean mud and ice buildup from the undercarriage components. Measure the crawler tension and adjust the grease cylinder to maintain 8~13 mm of slack according to the technical specifications on page 87. Inspect the tracks for wear and replace damaged rollers.
Manual Section: MaintenanceFrequently Asked Questions
How to reset Yanmar SV15 engine malfunction indicator?
The manual states that when an indicator lamp lights and a buzzer sounds during operation, the operator should immediately stop operation and check and service the abnormality. Normally, all monitor lamps go off after the engine starts, implying that addressing the underlying issue will turn off the indicator, rather than a specific reset procedure. This information is found on page 41.
What are the replacement specifications for Hydraulic hoses?
Hydraulic hoses are not considered periodic replacement parts. They should be checked for any abnormalities, and if damage or issues are found, they must be retightened or replaced immediately. When replacing hydraulic hoses, it is also necessary to replace the O-rings and seals at the same time, as detailed in Section 7.2 on page 29.
What are the replacement specifications for Fuel filters?
The fuel filter for the Yanmar SV15 mini excavator should be replaced periodically. According to the maintenance table, the replacement interval for the fuel filter is every 500 service hours. This is listed under the 'Check & service items Engine' section.
How do you fix Yanmar SV15 engine won't start in cold weather or turns over slowly?
Inspect the fuel system and verify the glow plugs are functioning. Replace the fuel filter every 500h as specified on page 79 to prevent fuel restriction. Check the engine oil level and fill up to the 2.8 L capacity listed on page 75.
How quickly can I access this Yanmar SV15 (EP), SV17 (EP), SV17EX (EP)?
A 118-page Operation Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this Yanmar SV15 (EP), SV17 (EP)?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Yanmar SV15 (EP), SV17 (EP), SV17EX (EP) manual include?
Yes, an electrical wiring diagram is included to help trace the main circuits.
