Part of the Isuzu 4JB1 engine documentation.
This is the Isuzu A-4JB1PAA10 engine parts catalog, a 59-page PDF for the 1994 to 1998 build of this diesel, the engine fitted to the Takeuchi TL126 compact loader. Every assembly is drawn as an exploded diagram tied to reference numbers, part numbers, and quantities, so you can identify the exact part before you order.The catalog covers the engine gasket kit, cylinder head, the crankshaft, piston and flywheel group, the fuel injection system, engine electrical control parts, the injection pump with its governor, and the radiator hose and sub tank. Between them these sections take you from a top-end gasket to a starter, an injection pump plunger, or a cooling hose.Download it once and keep it for accurate parts identification and ordering on the A-4JB1PAA10, whether you are overhauling the engine or replacing a single worn component.

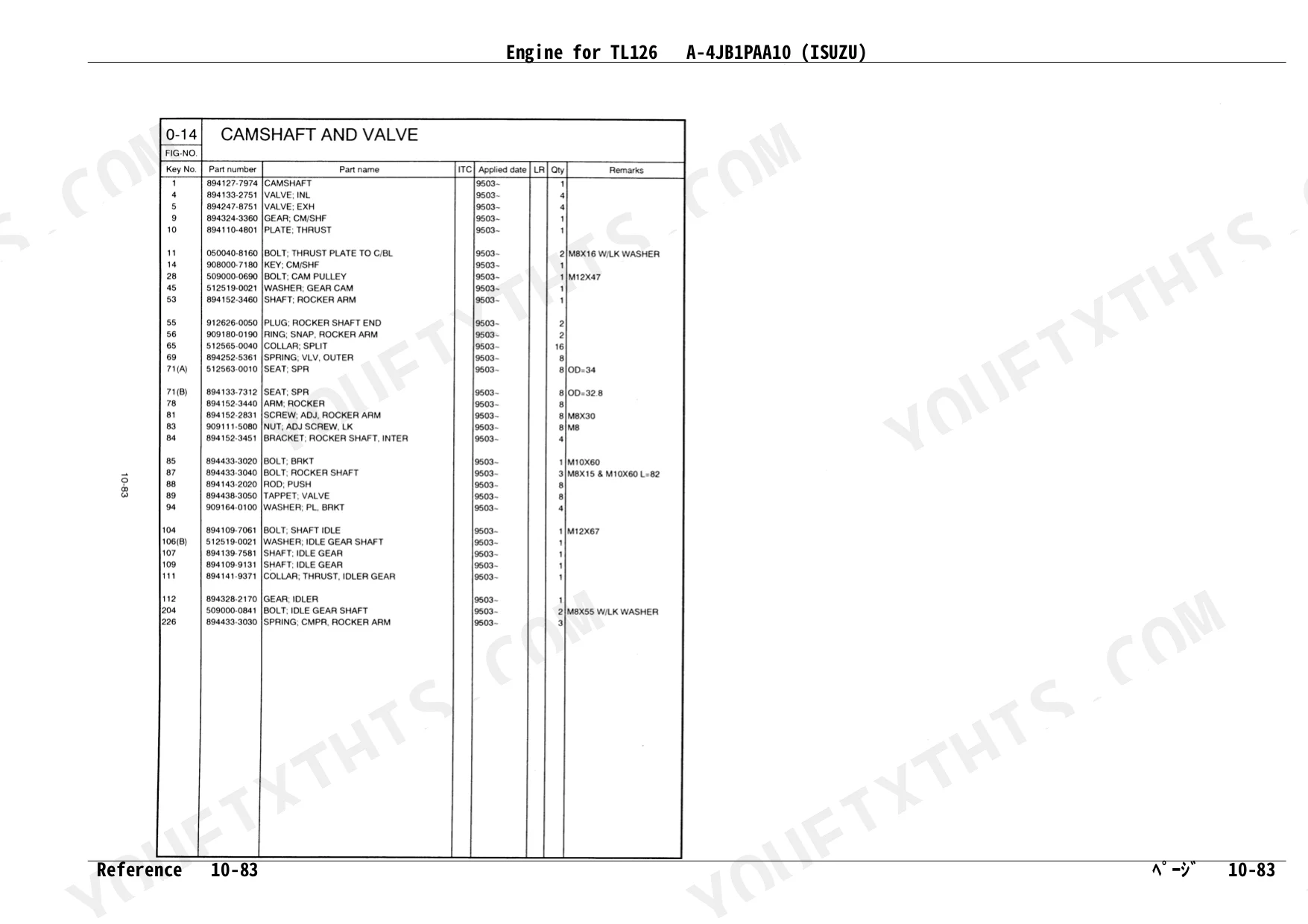

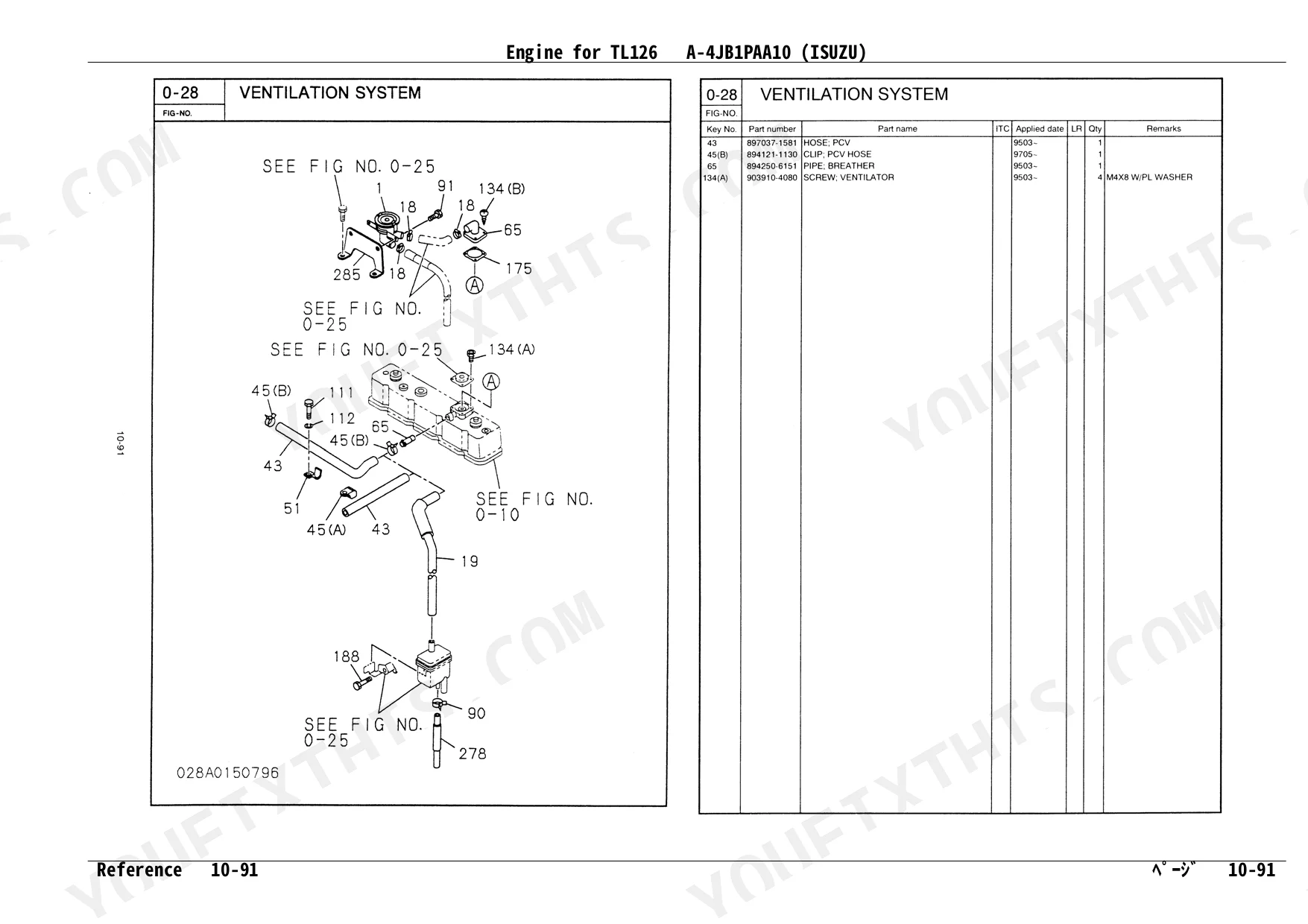

What's Inside This Isuzu A-4JB1PAA10 Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Engine Gasket Kit | 11 | Engine overhaul, cylinder head overhaul, gasket sets |
| Cylinder Head | 13 | assembly, valves, guides, seats |
| Crankshaft, Piston and Flywheel | 19-20 | Crankshaft, pistons, connecting rods, flywheel, damper |
| Fuel Injection System | 33-34 | Injection pump, nozzles, fuel pipes, shims, clamps |
| Engine Electrical Control Parts | 41-42 | Starter, generator, solenoids, switches, cables |
| Injection Pump | 45-46 | Pump housing, delivery valves, plungers, tappets, shims |
| Governor; Injection Pump | 47-48 | Governor assembly, flyweights, springs, levers, shims |
| Radiator Hose and Sub Tank | 54 | Surge tank, cap, switch, hoses |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| GASKET: CYL HD Thickness | T-1.65 | p. 13 |
| PLUG; OIL GALLERY Thread | PT1/8 | p. 14 |
| STUD; CRANKCASE Size | M8X40 L=52 | p. 16 |
| PULLEY; CR/SHF DAMPER Grooves | 1-GROOVE | p. 20 |
| BOLT; COVER TO CASE Flange Size | M8X60 FLANGE | p. 22 |
| THERMOSTAT Opening Temperature | 82°C | p. 28 |
| BELT; COOLING FAN Length | L=1051 | p. 30 |
| STARTER ASM Voltage/Power | 12V-2.2KW | p. 42 |
| GENERATOR ASM Voltage/Current | 12V35A | p. 42 |
Isuzu A-4JB1PAA10 Common Problems This Manual Covers
Faulty fuel injectors
Clogged nozzles, worn seals, or contaminated fuel cause rough idling, loss of power, and black smoke. The fuel injection section identifies the injection pump, nozzles, and fuel pipes with their part numbers.
Manual Section: Fuel Injection System p. 33Injection pump and governor wear
Worn plungers, delivery valves, or governor parts show up as poor running and hard starting. The injection pump section breaks down the pump housing, plungers, tappets, and shims.
Manual Section: Injection Pump p. 45Broken crankshaft keyway

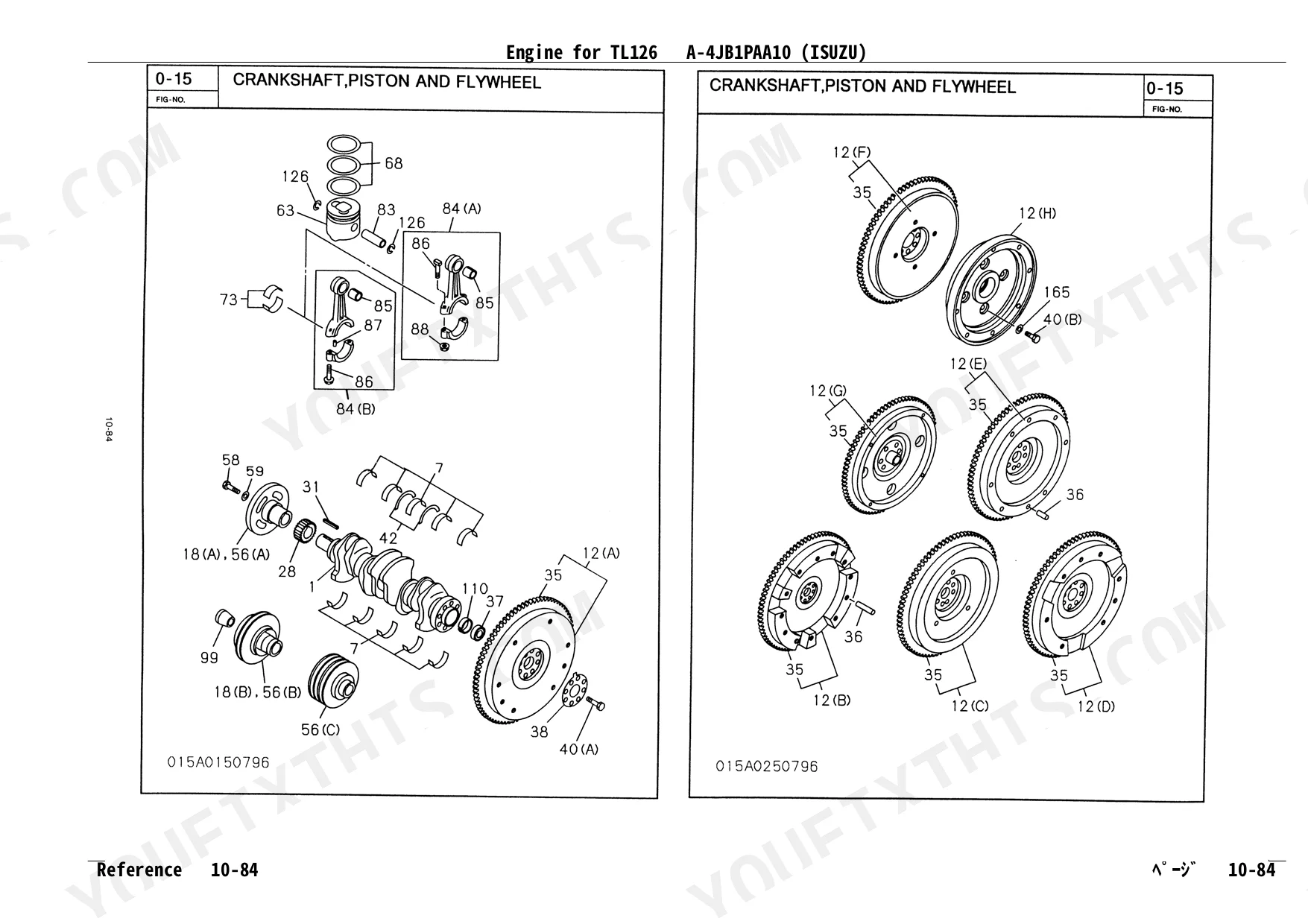

A broken crankshaft keyway or damaged bottom end parts are a known failure on this engine. The crankshaft group section identifies the crankshaft, pistons, connecting rods, flywheel, and damper.
Manual Section: Crankshaft, Piston and Flywheel p. 19Head gasket and overhaul parts

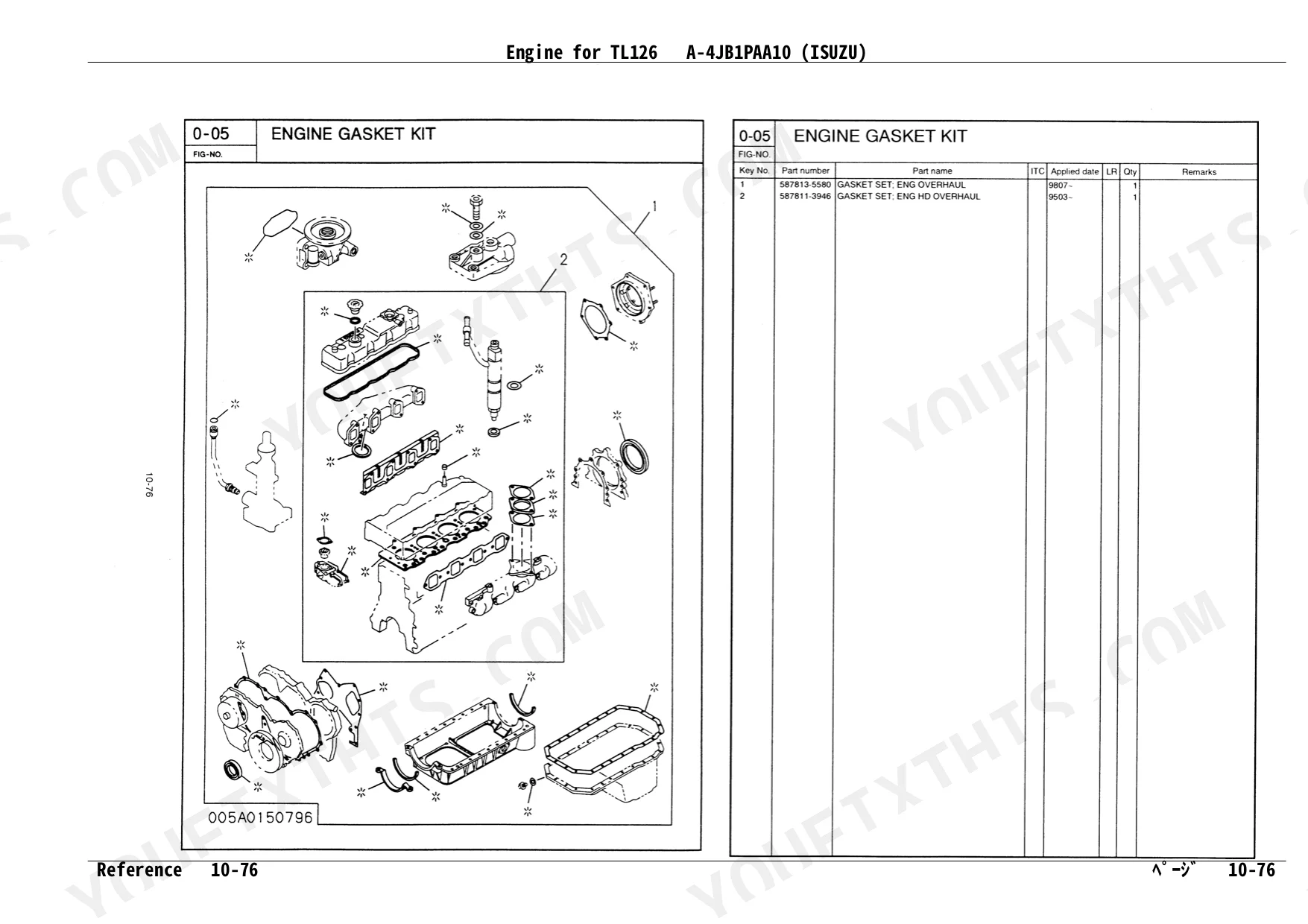

A blown head gasket or a full overhaul needs the correct gasket set. The engine gasket kit section lists the overhaul and cylinder head overhaul gasket sets.
Manual Section: Engine Gasket Kit p. 11Cooling warnings and hose failures
A radiator warning at low speed or a collapsing hose points to the cooling parts. The radiator hose and sub tank section covers the surge tank, cap, switch, and hoses.
Manual Section: Radiator Hose and Sub Tank p. 54Starting and charging faults
Slow cranking or a flat battery traces to the starter, generator, or their cables. The engine electrical control parts section identifies the starter, generator, solenoids, and switches.
Manual Section: Engine Electrical Control Parts p. 41Frequently Asked Questions
Which engine and machine does this catalog cover?
It covers the Isuzu A-4JB1PAA10 diesel engine for the 1994 to 1998 period, the engine used in the Takeuchi TL126 compact loader, across 59 pages of exploded parts diagrams.
Does it break down the injection pump?
Yes. The Injection Pump section covers the pump housing, delivery valves, plungers, tappets, and shims, and a separate governor section covers the flyweights, springs, and levers. p. 45
Can I find starter and generator part numbers?
Yes. The Engine Electrical Control Parts section identifies the starter, generator, solenoids, switches, and cables, including the 12V 2.2 kW starter and 12V 35A generator. p. 41
Does it cover fuel injection and cooling parts?
Yes. The Fuel Injection System section lists the injection pump, nozzles, and fuel pipes, and the Radiator Hose and Sub Tank section covers the surge tank, cap, and hoses. p. 33
What do I get after purchasing this Isuzu A-4JB1PAA10 manual?
A 59-page searchable PDF, available for immediate download. Works on any device, so you can pull it up on your phone while working on the engine. No shipping, no waiting.
Can I print specific sections of this Isuzu A-4JB1PAA10 Parts Catalog?
No restrictions. The PDF is DRM-free, so print whatever sections you need to take out to the shop. Standard letter or A4 paper works fine.
