Part of the Case Repair Manuals.
This is the complete factory repair manual for the Case IH Magnum 7100 Series (7110, 7120, 7130, 7140, 7150) and 7200 Series (7210, 7220, 7230, 7240, 7250) tractors. It is organized into the standard Case service groups and covers the machine from the 6T-830 and 6TA-830 diesel engines with their turbocharger, aftercooler, and injection system, through the electrical system with wiring schematics and troubleshooting, the steering with the hand pump, the emergency steering, and the MFD front axle, the power train with the speed and range powershift transmission, the brakes, and the hydraulic system. It carries specification details, valve clearances, torque specifications, turbocharger failure analysis, and step-by-step removal, tractor split, and troubleshooting, with many sections split by serial number so the procedures match exactly what is fitted to your machine.
What's Inside This Case IH Magnum 7100 & 7200 Series Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General | General Information 7100 Series, General Information 7200 Series, Torque Specifications, Specification Details | |
| Engine | Engine Troubleshooting, Engine Tune-Up, Engine Removal, Tractor Split Between Engine and Speed Transmission, Air Induction System, Aftercooler System, Cylinder Block, Lubrication System, Cooling System, Turbocharger, Turbocharger Failure Analysis, Valve Clearances | |
| Fuel System | Fuel System Specifications, Fuel Tank, Fuel System and Filters, Injection Pump, Fuel Injectors | |
| Electrical | Wiring Schematics and Troubleshooting, Alternator, Neutral Start Switch, Starting Motor (Nippondenso), Battery Servicing and Testing | |
| Steering | Steering Column and Hand Pump, Steering Cylinder 2WD and MFD, Steering Axle and Lines 2WD, MFD Front Axle, Emergency Steering System | |
| Power Train | Speed Transmission, Range Transmission, Tractor Split Between Speed and Range Transmission, Powershift Transmission Service, Serial-Number-Specific Variants | |
| Brakes | Brake Service, Troubleshooting, Removal and Installation | |
| Hydraulic System | Hydraulic Pump, Control Valves, Pressure Checks and Troubleshooting, Remote Valves, Hitch | |
| Chassis | Cab, Air Conditioning, Operator Platform, Mounted Equipment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine | 6T-830 (turbocharged) and 6TA-830 (turbocharged aftercooled) diesel | |
| Intake / Exhaust Valve Clearance | 0.30 mm intake, 0.60 mm exhaust (cold) | |
| Transmission | Speed and range powershift transmission | |
| Drive | Two-wheel drive or MFD (mechanical front drive) | |
| Flywheel to Crankshaft Bolt Torque | 137 N·m |
Case IH Magnum 7100 & 7200 Series Common Problems This Manual Covers

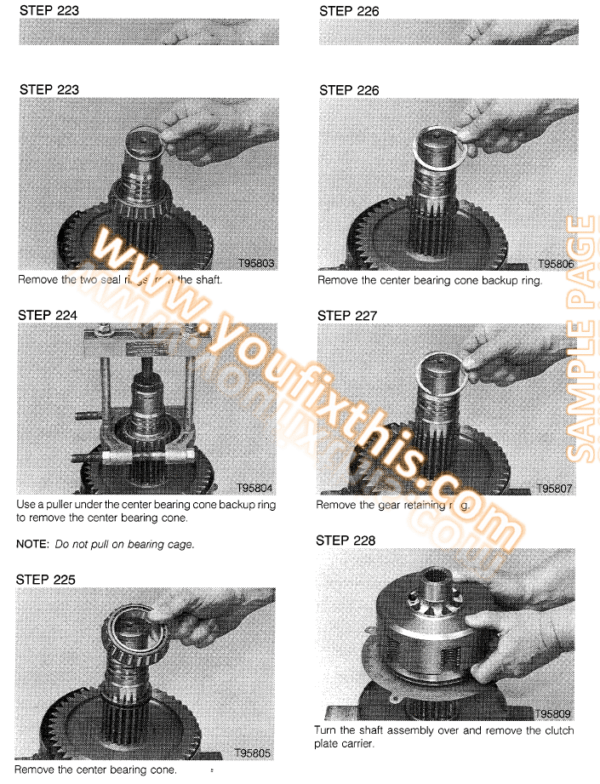

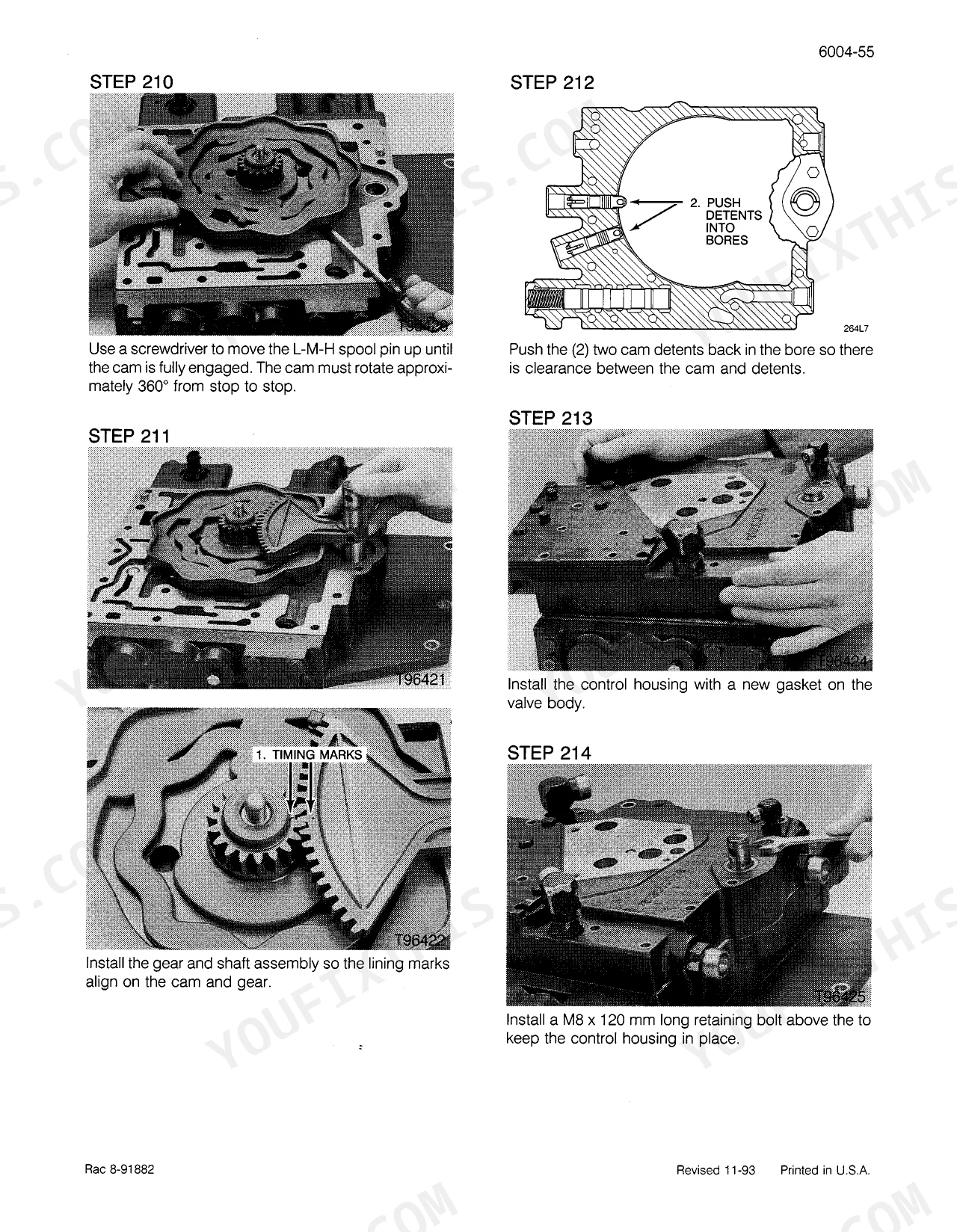

Powershift transmission slips, is harsh, or loses drive
Match your serial number to the correct transmission section first, since the coverage splits between the 7100 and 7200 Series builds. Check the transmission and clutch pressures against spec before removing the transmission, since a pressure or control fault often mimics internal wear. The tractor-split and service procedures follow if a rebuild is needed.
Manual Section: Power TrainLow power, black smoke, or a boost concern on the turbo engine
Work the engine troubleshooting and tune-up, check the air induction and aftercooler systems, and set the valve clearances to 0.30 mm intake and 0.60 mm exhaust cold. Review the turbocharger failure analysis section before replacing the turbo on a 6T-830 or 6TA-830, since an intake, fuel, or aftercooler fault often presents as a boost problem.
Manual Section: EngineHydraulics or hitch weak, slow, or erratic
Use the hydraulic pressure checks and troubleshooting to confirm pump output and system pressure, then work the control valves and remote valves. Confirm the pressures against spec before replacing the pump, since a relief or valve fault commonly causes weak or slow hydraulics on these tractors.
Manual Section: Hydraulic SystemHeavy steering, or emergency steering warning

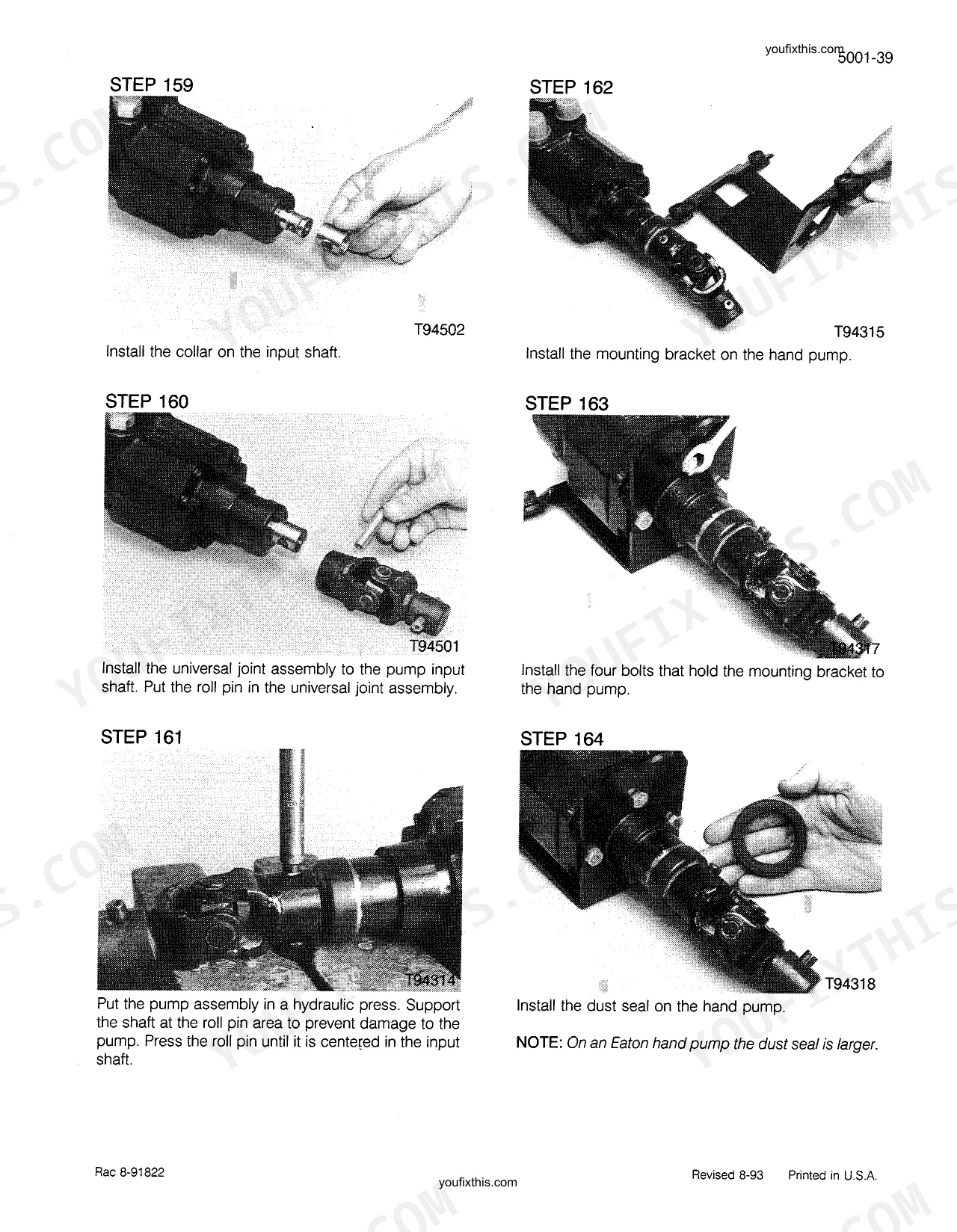

Service the steering column and hand pump and check the steering cylinder for your 2WD or MFD build, then verify the emergency steering system operation. Confirm hydraulic supply and pressure before replacing the hand pump, since a supply or emergency-steering fault often presents as heavy steering.
Manual Section: SteeringFrequently Asked Questions
How do I troubleshoot a powershift transmission fault on the Magnum?
The Power Train group covers the speed and range transmissions, the tractor split between speed and range, and the powershift service, with troubleshooting. Because the transmission coverage is split by serial number (for example the 7100 Series transmission from S/N AJB005513 and after and all 7200 Series), match your machine's serial number to the correct section, then check pressures against spec before pulling the transmission.
Which engine do these tractors use, and is it fully covered?
The Magnum 7100/7200 Series uses the 6T-830 (turbocharged) and the 6TA-830 (turbocharged and aftercooled) diesel. The Engine group covers troubleshooting, tune-up, removal, the air induction and aftercooler systems, the cylinder block, lubrication and cooling, the turbocharger, and a turbocharger failure analysis section, along with the specification details and valve clearances (0.30 mm intake, 0.60 mm exhaust cold).
My tractor has MFD. Is the front axle and steering covered?
Yes. The Steering group covers the steering column and hand pump, the steering cylinder for both 2WD and MFD tractors, the 2WD steering axle and lines, the MFD front axle, and the emergency steering system. Follow the section that matches whether your machine is two-wheel drive or MFD.
Are wiring schematics included?

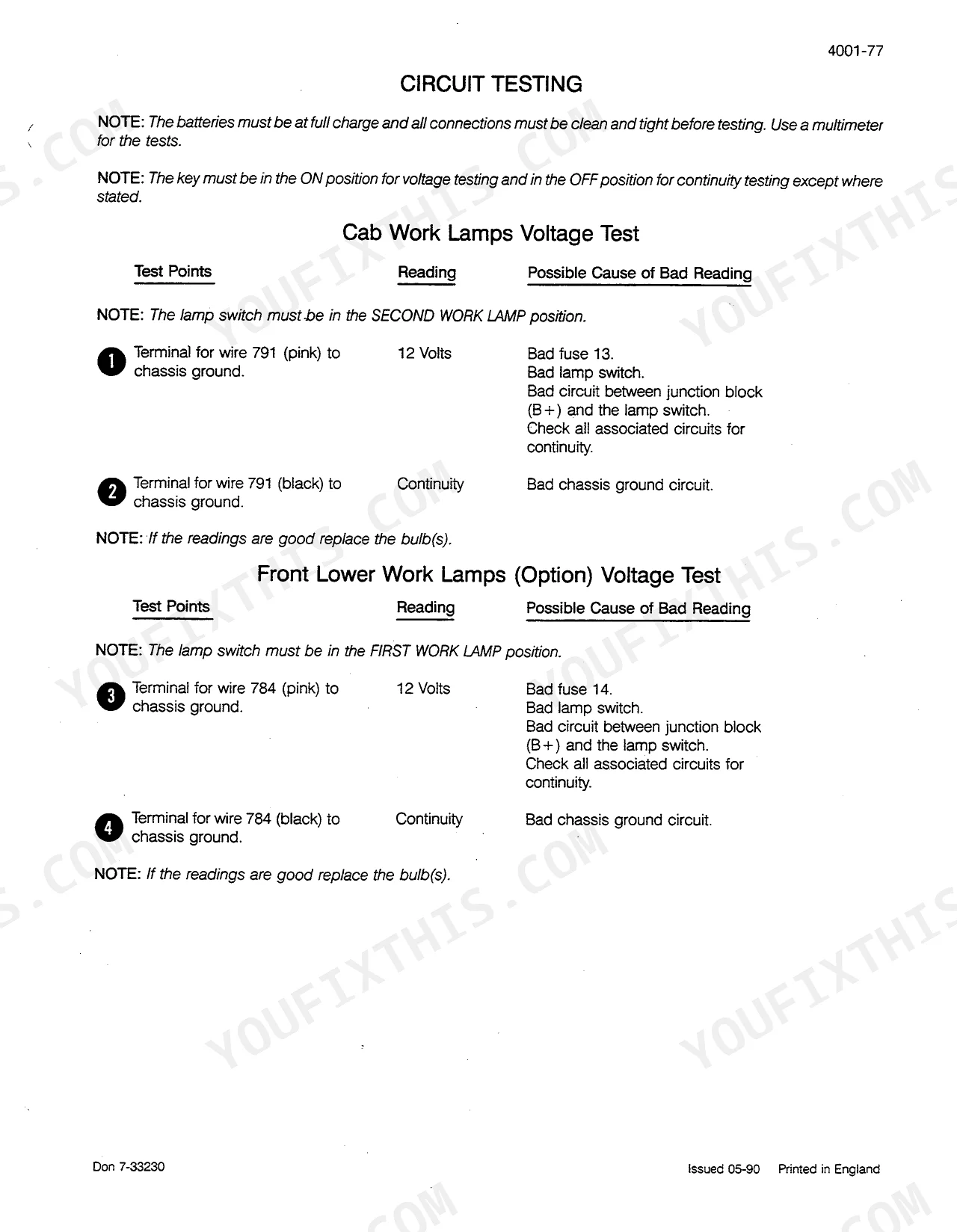

Yes. The Electrical group includes the wiring schematics and troubleshooting (with a separate set for machines prior to a given P.I.N.), the alternator, the neutral start switch, the Nippondenso starting motor, and battery servicing and testing, so you can trace a circuit back to the schematic that matches your build.
Does the manual match my serial number?
Yes. Many sections, including the general information, the transmission, and the wiring schematics, are split by serial number or P.I.N. Check your machine's serial number against the section headings and follow the variant that matches your build, since the Magnum ran several running changes across the 7100 and 7200 Series.
What format is this Case IH Magnum 7110, 7120, 7130, 7140, 7150, 7210, 7220?
Instant PDF download (345 MB). You get the full 2200-page searchable Repair Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Is this Case IH Magnum 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
