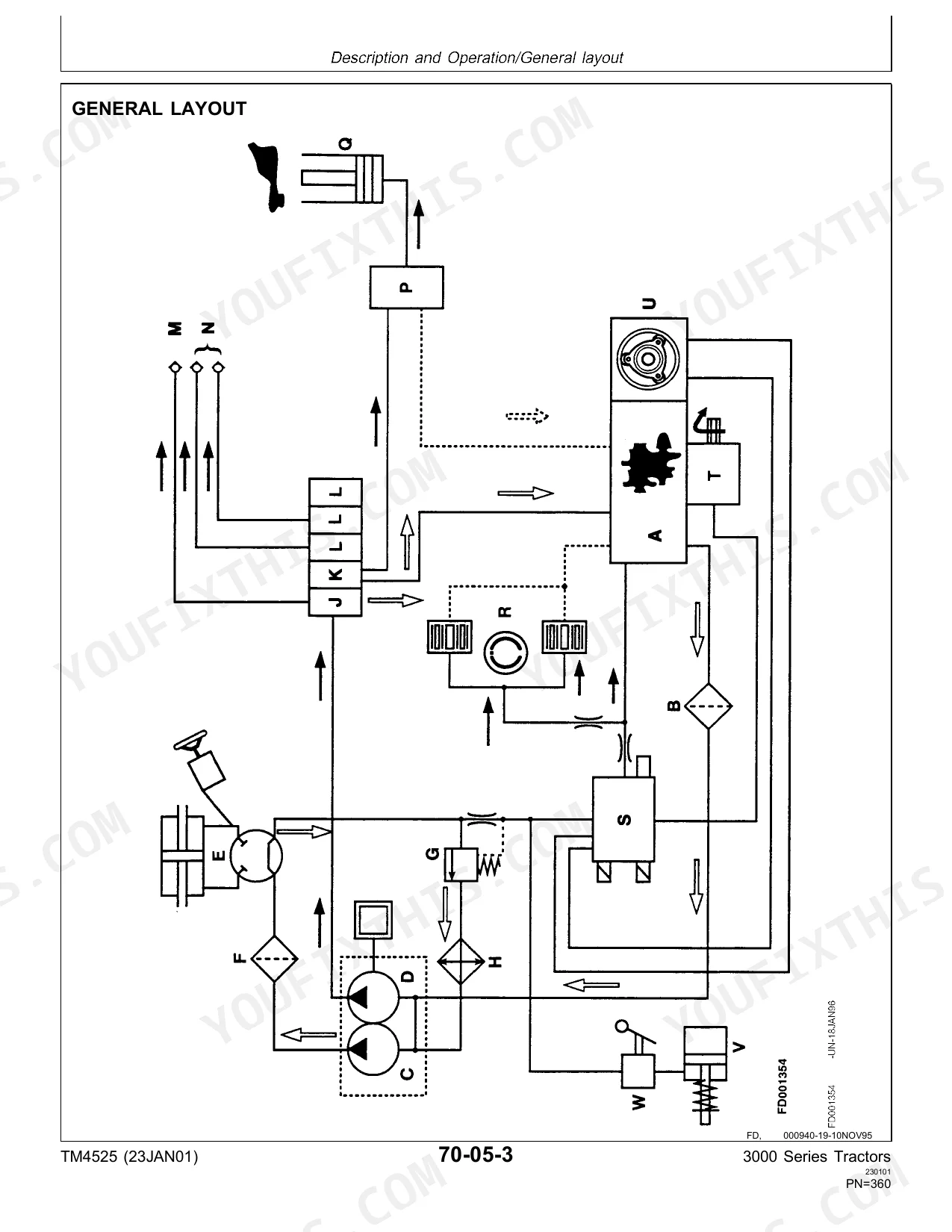

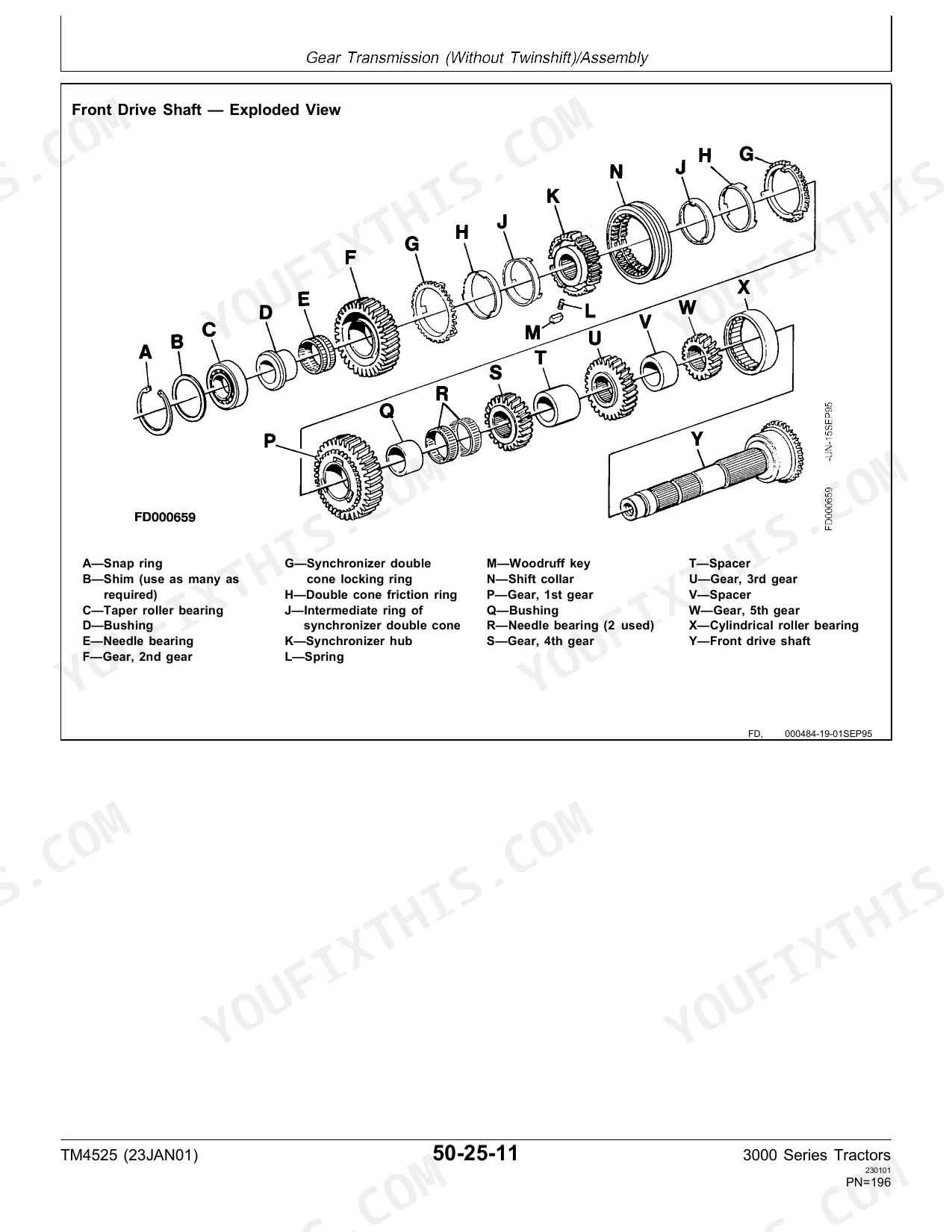

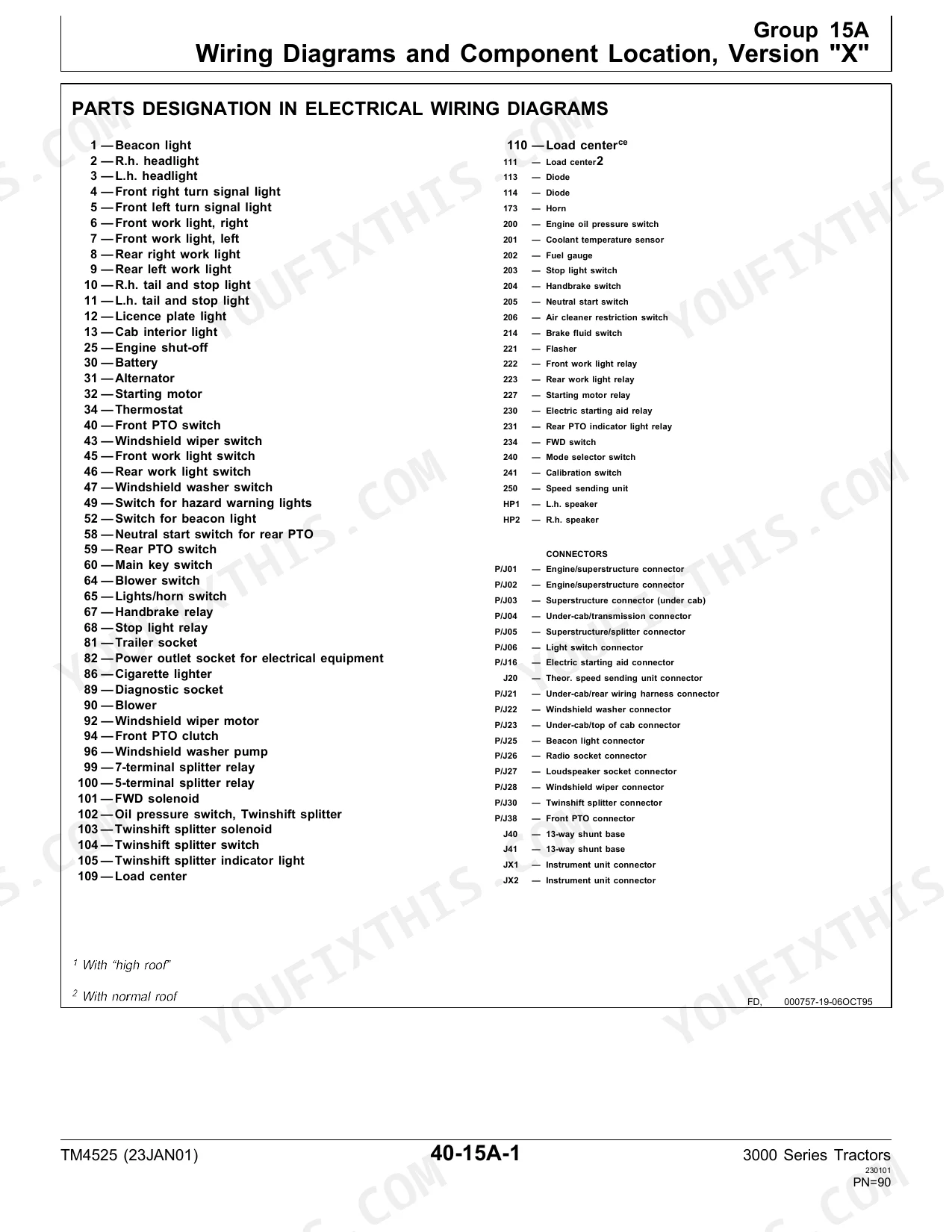

Factory service data for the John Deere 3100, 3200, 3300, and 3400 tractors is fully documented in this 490-page PDF (OEM #TM4525). The guide covers all seven variations, including the 3200 X, 3300 X, and 3400 X models. Mechanics will find wiring diagrams detailing both Standard and Version "X" electrical systems, mapping circuits from the starting motor to the rear PTO indicator lights. The hydraulic section provides fluid-routing schematics for the rockshaft, selective control valves, and FWD systems. The drivetrain and final drives are covered with exploded views. You get exact specifications, like torquing the flywheel housing to the clutch housing at 60 ± 20 N·m and setting gear transmission play to 0.15 ± 0.05 mm. Download the searchable file to locate the exact repair procedure immediately.
What's Inside This John Deere 3100 & variants Manual

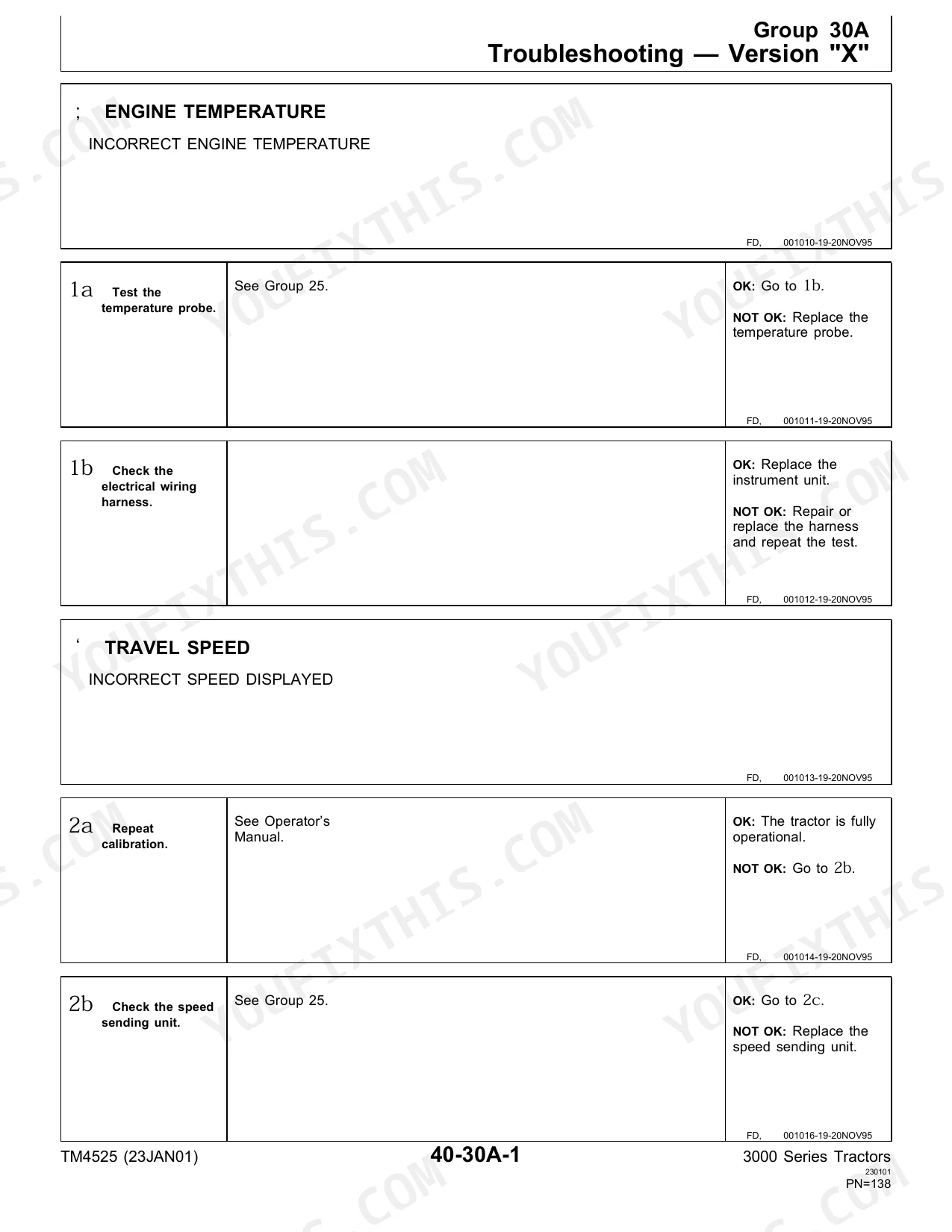

| System | Pages | Key Topics |
|---|---|---|
| Safety | 5-18 | - |
| General Information | 19-50 | Special Tools, Specifications, Battery, Operation, Safety Precautions, Troubleshooting, Checking Electrolyte Level, Starting with Booster Battery |
| Engine | 51-54 | Removal and Installation, Engine Separation From Clutch Housing, Removal and Installation Overview |
| Fuel, Air Intake and Cooling Systems | 55-58 | Coolant Pump Drive (Drive Belt Tension), Checking the Tension of the Alternator/Coolant Pump Belt and Compressor Belt |
| Electrical System | 59-150 | Fuses and Connectors, Standard Tractors (Access, Allocation, Wiring), Version "X" (Special Tools, Access, Replacing JX1/JX2 Connectors) |

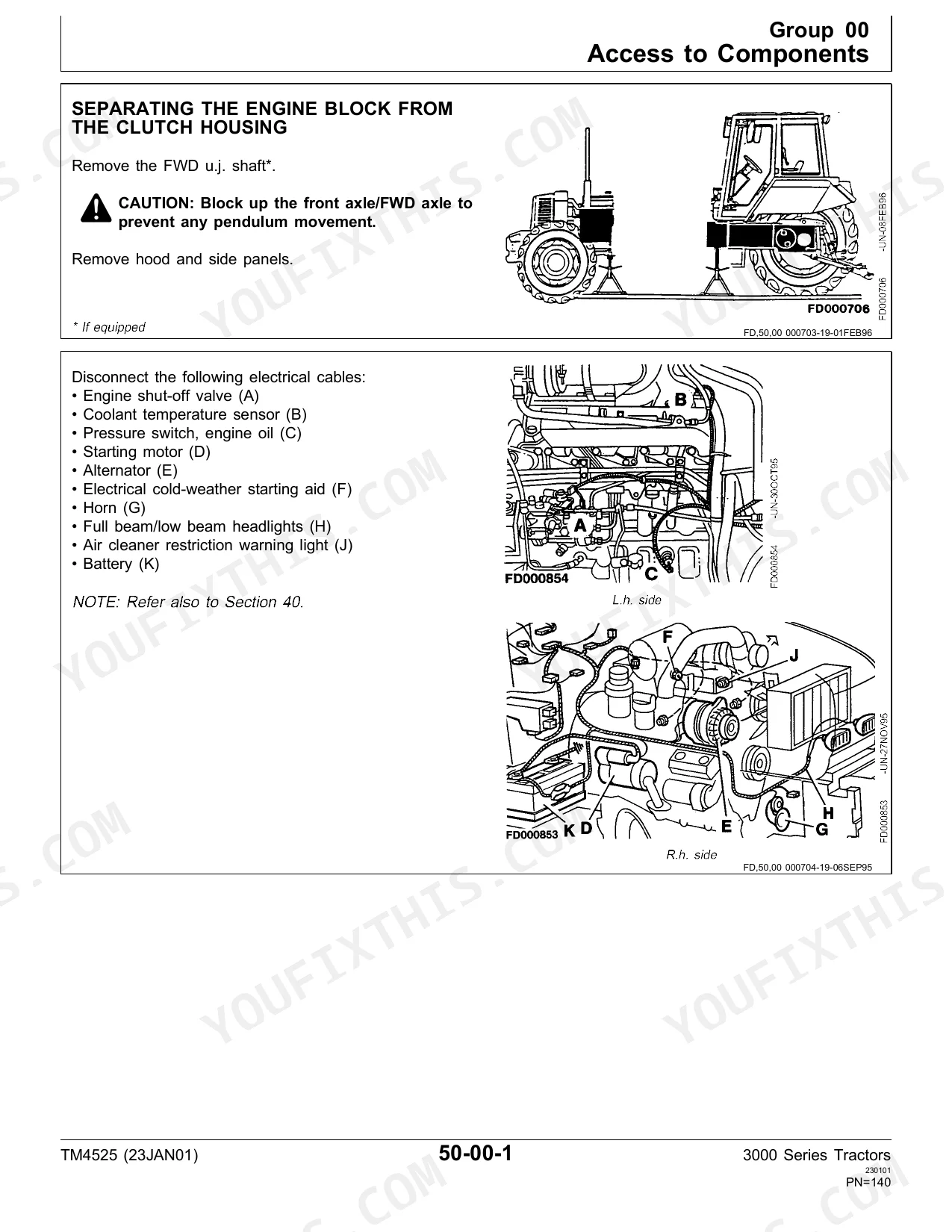

| Clutch and Gear Transmission | 151-254 | Access to Components (Separating: Engine From the Clutch Housing, Clutch Housing From the Gear Transmission Housing, Gear Transmission From the Diff. Housing) |
| Drive Systems | 255-316 | Removal and Installation (FWD: Clutch Housing, Axle) |
| Steering and Brakes | 317-366 | Removing and Installing Components (Steering Unit, Trailer Brake Valve) |
| Hydraulic System | 367-454 | Removing and Installing Components (Special Tools, Flow Divider, Manifold Valve, Distributor, PTO Clutch Assistance, Hydraulic Assist Cylinder, PTO Clutch, Selective Control Valves, Rockshaft Valve, Rockshaft Housing, Hydraulic Pump) |
| Operator's Cab | 455-482 | Removing and Installing the Cab, Standard Tractors (Special Tools, Safety Instructions, Removing the Operator's Cab, Preliminary Operations, Raising the Cab) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| JIC Connector Tightening Torque (M14 x 1.5 thread B) | 36 N·m (27 lb-ft) minimum, 44 N·m (32 lb-ft) maximum | p. 434 |
| Gear Transmission (Without Twinshift) Play (A) | 0.15 ± 0.05 mm (0.006 ± 0.002 in.) | p. 200 |
| Gear Transmission (Without Twinshift) Tightening torque (Flywheel housing to clutch housing) | 60 ± 20 N·m (44 ± 15 lb-ft) | p. 201 |
| Steering pump displacement | 11 cm³ (0.67 cu in) | p. 392 |
| Steering pump pressure | 14000 kPa (140 bar; 2030 psi) | p. 392 |
| Possible reasons for hydraulic oil pressure being too low | Hydraulic oil filter contaminated or obstructed; The pressure-limiting valve on the manifold valve remains open (perhaps obstructed by an impurity); Leak in the Twinshift splitter circuit or FWD clutch (if equipped) | p. 394 |

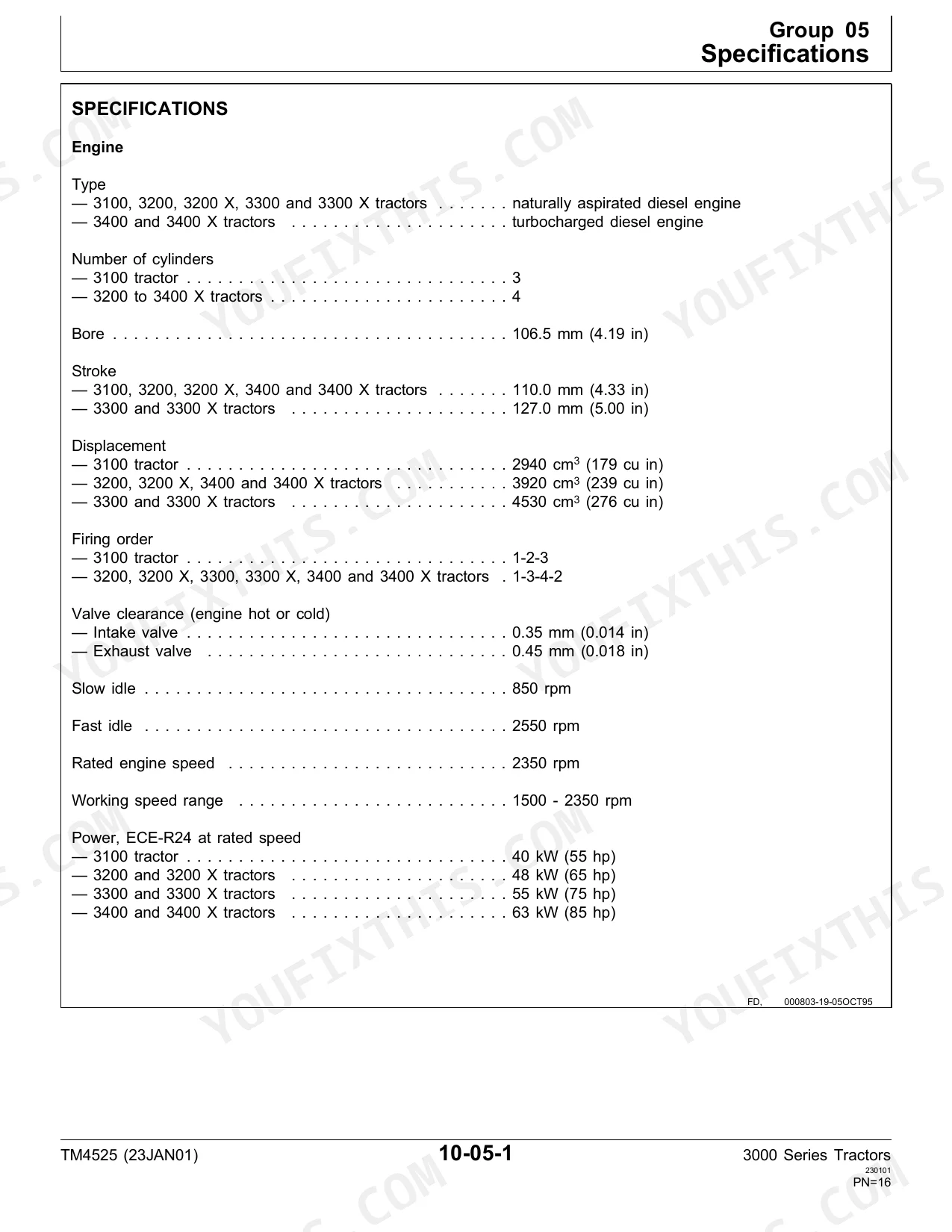

| Engine Bore | 106.5 mm (4.19 in) | p. 21 |
| Engine Intake Valve Clearance | 0.35 mm (0.014 in) | p. 21 |
| Engine Slow Idle Speed | 850 rpm | p. 21 |
| Battery Voltage | 12 V | p. 22 |
| Standard tractors | ||
| Fuel Tank Capacity | 115 l (30.4 US gal) | p. 27 |
| 3100 tractor | ||
| Cooling Circuit Capacity | 11 l (2.9 US gal) | p. 27 |
John Deere 3100 & variants Common Problems This Manual Covers
John Deere 3400 hydraulic functions stop working after backhoe installation, auxiliary circuit has no flow p. 394
Inspect the power-beyond port plumbing: confirm the return hose routes back to tank, not a capped port. Verify routing against the hydraulic schematic. Check pilot pressure per page 394; a clogged filter or stuck pressure-limiting valve on the manifold will starve the circuit. Torque any JIC M14 x 1.5 fittings to 36–44 N·m (27–32 lb-ft) after replumbing.
Manual Section: Hydraulic SystemFrequently Asked Questions
Why do the John Deere 3400 hydraulic functions stop working after installing a backhoe?
Inspect the power-beyond port plumbing: confirm the return hose routes back to tank rather than a capped port. Verify routing against the hydraulic layout in the manual. Check pilot pressure per page 394; a clogged filter or stuck pressure-limiting valve on the manifold will starve the auxiliary circuit. Torque any JIC M14 x 1.5 fittings to 36–44 N·m (27–32 lb-ft) after replumbing.
What are the torque specs for John Deere 3100/3200/3300/3400 engine and wheel bolts?

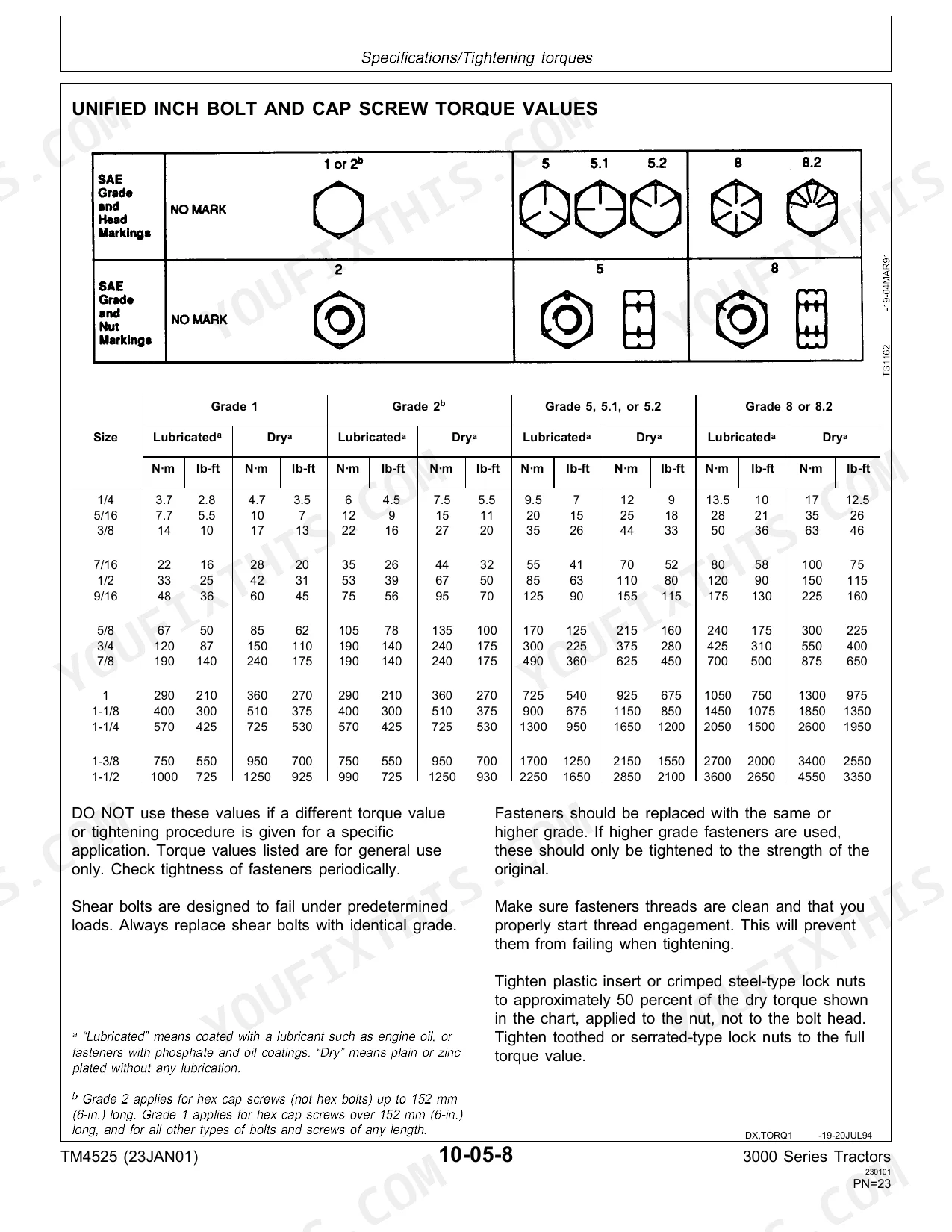

General torque values for unified inch and metric bolts are provided in tables on pages 28 and 29. For specific components, the flywheel housing to clutch housing bolts should be tightened to 60 ± 20 N·m (44 ± 15 lb-ft), and the rear axle nuts to 120 N·m (90 lb-ft).
What format is this manual in?
Immediate download of the complete 490-page searchable Technical Manual. Access it on any device — laptop at your desk or phone in the field.
Can I print this manual?
Yes, print as many copies as you want — there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Does this John Deere 3100 & variants manual include wiring diagrams?
Yes — full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
Document Quality
This document is a scanned PDF, with an OCR layer that allows you to search and copy the full text. The text throughout the document is crisp and easy to read. Diagrams and illustrations are a mix of sharp line drawings and decent quality photos, with all labels clearly readable. Pages are generally clean with no notable scan artifacts, stains, or skewed content. There are several blank pages interspersed throughout the document, serving as filler pages.
