Looking for a John Deere JD760 Service Manual PDF that came from the factory, not a forum? These 390 pages walk you through every system on the JD760 Tractor, from the diesel engine to the Syncro-Range transmission, PTO, and power brakes. You get complete wiring diagrams for the alternator, starter, and lighting circuits, plus hydraulic schematics covering the main pump, power steering, and selective control valves. A full troubleshooting section takes you from symptom to fix on the engine, fuel gauge, hydraulic pump, and transmission. Torque the cylinder head screws to 180 ft-lbs and the connecting rod bearings between 155 and 165 ft-lbs; the specs section lists them all. Your tractor is down. Get factory numbers, not guesses. Bookmarked with a full text layer, so you can jump straight to any section or hunt down a spec by keyword.
What's Inside This John Deere JD760 Manual
| System | Pages | Key Topics |
|---|---|---|
| Description | 5-8 | Tractor Features, Operator Station, Engine, Serial Numbers, Model Numbers |
| Operation | 9-18 | Starting Controls, Pre-Starting Inspection, Starting the Engine, Cold Weather Starting, Operating Controls, Operating the Tractor |

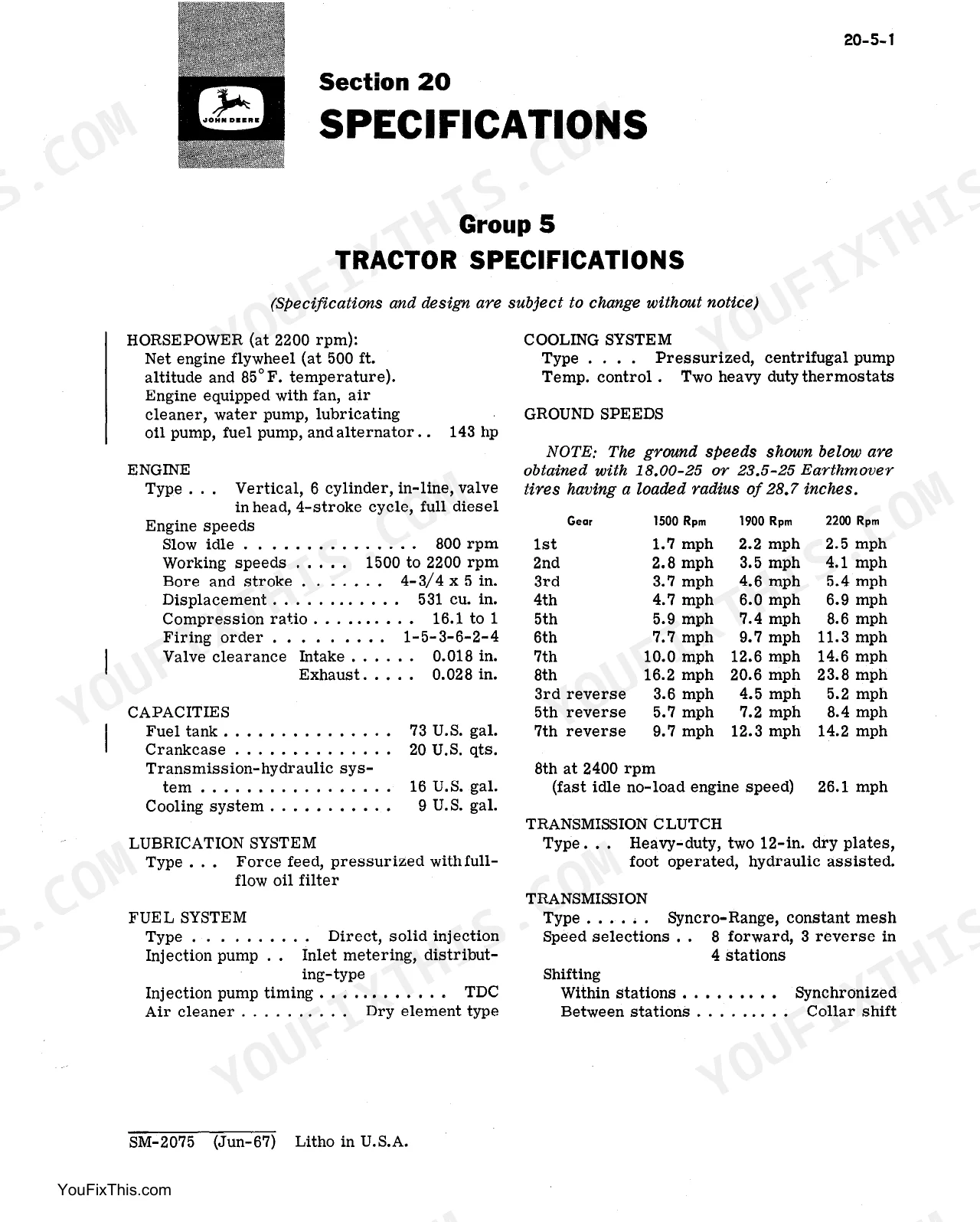

| Tractor Specifications | 19-34 | Engine Specifications, Tune-Up Specifications, Transmission and Hydraulic Specifications, Torque Values, Capacities |

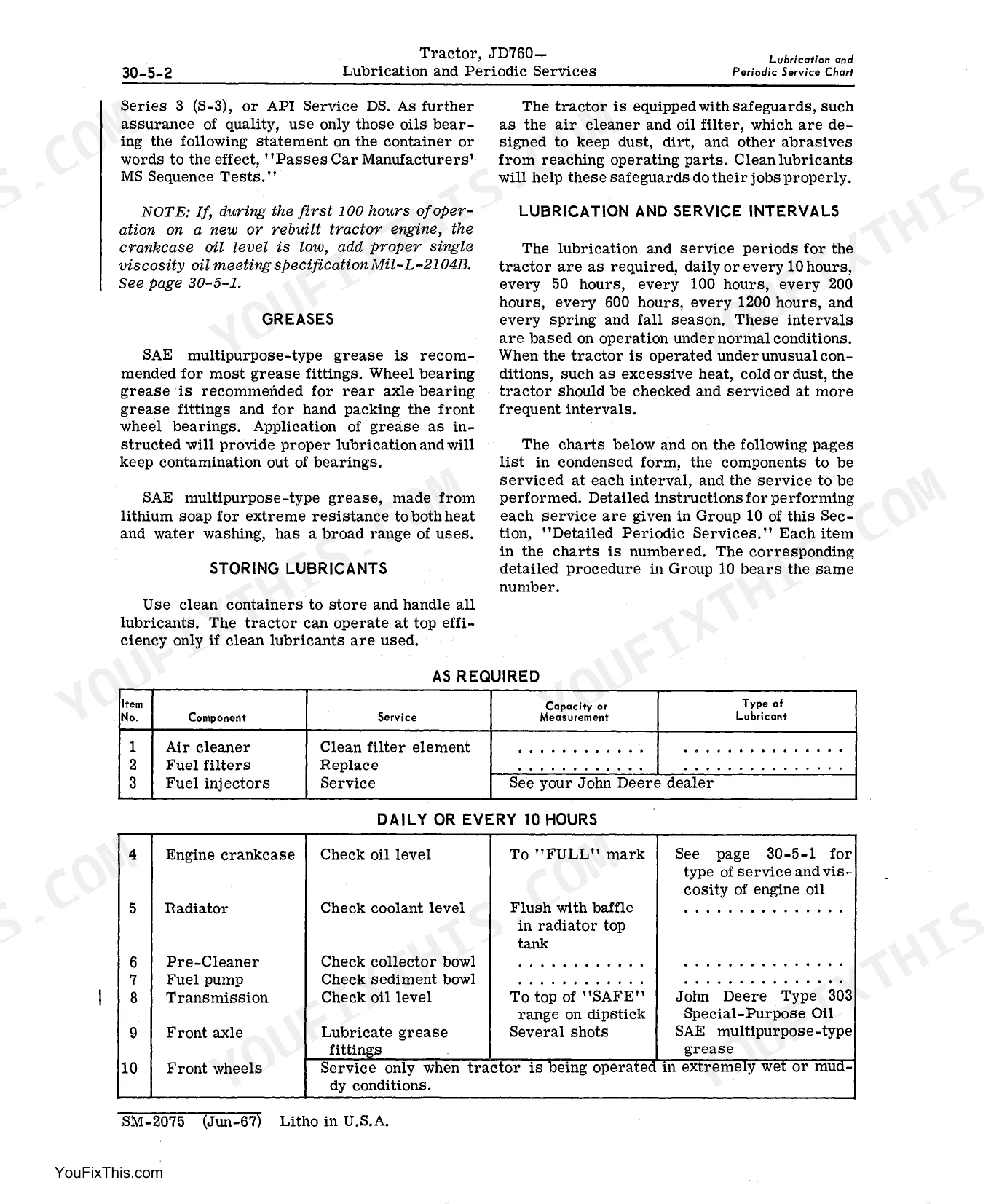

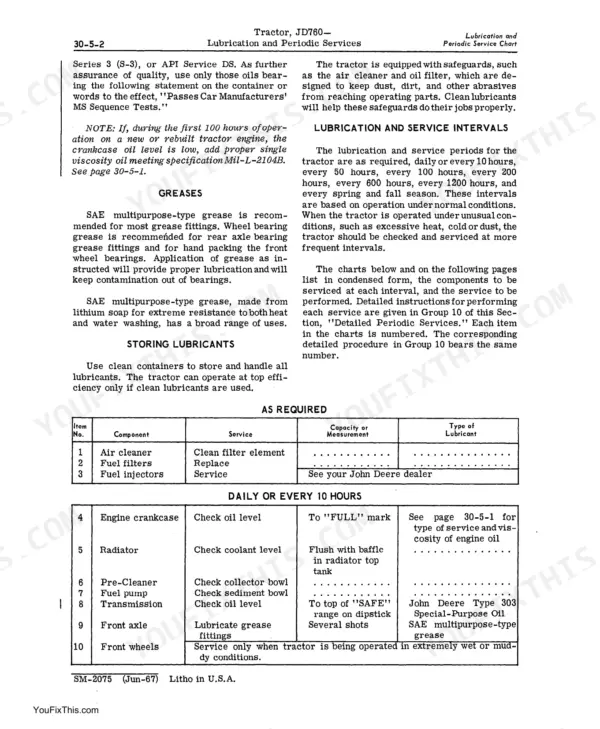

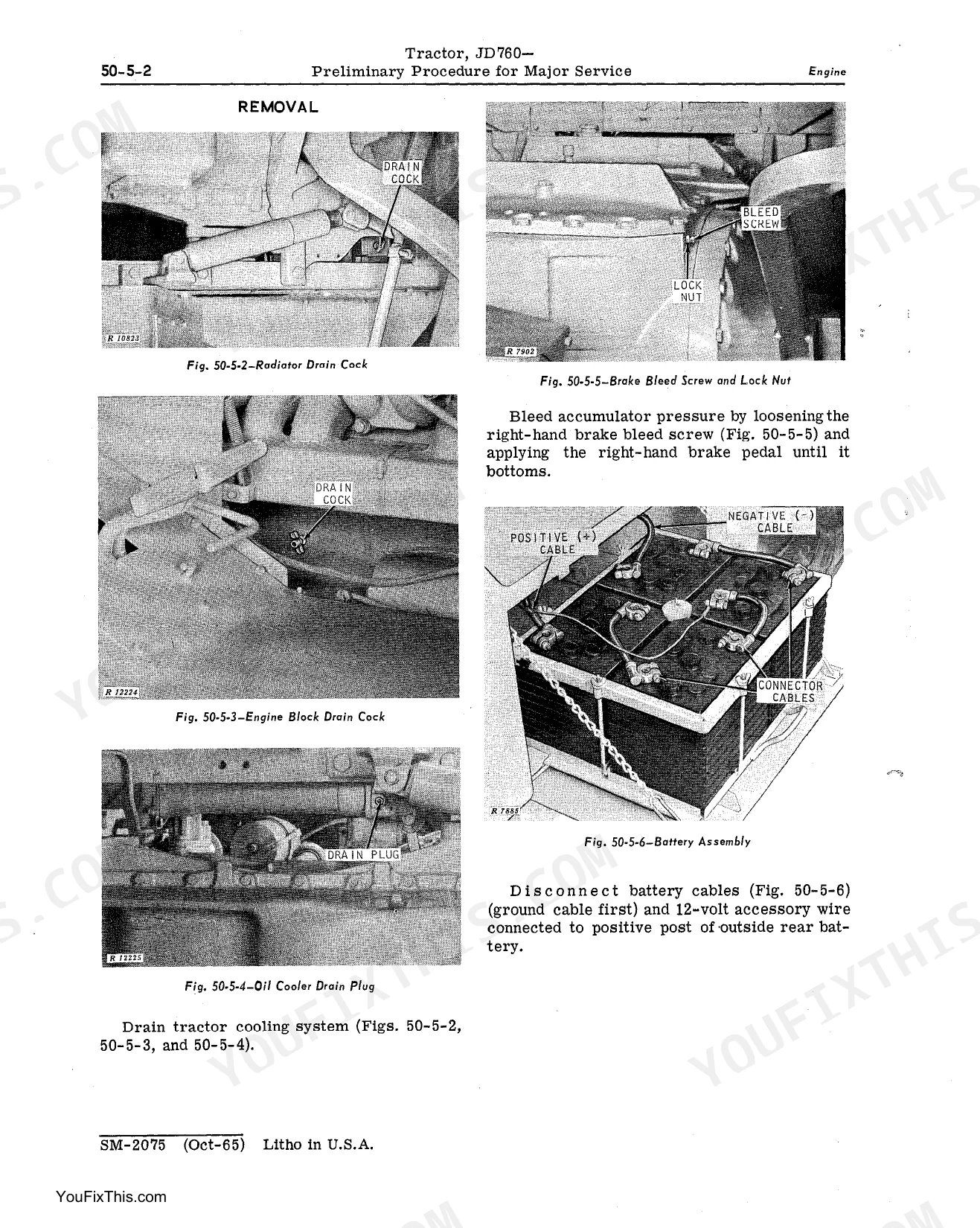

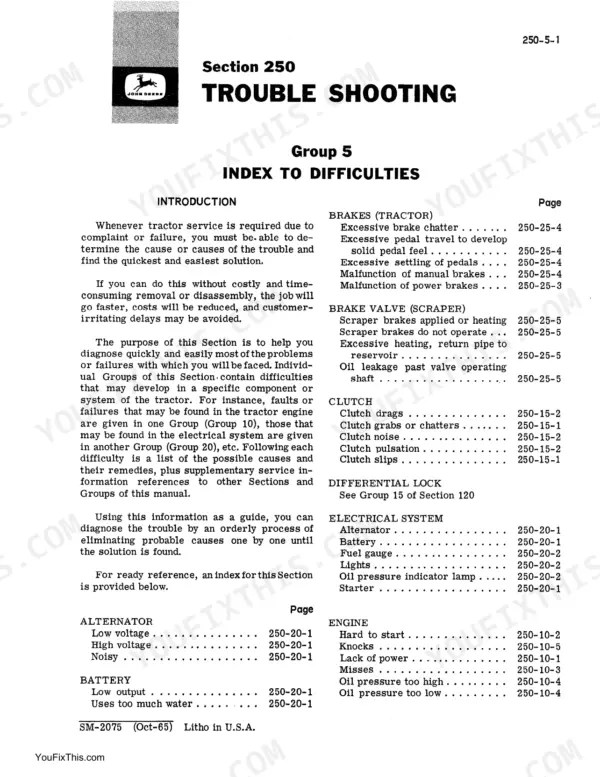

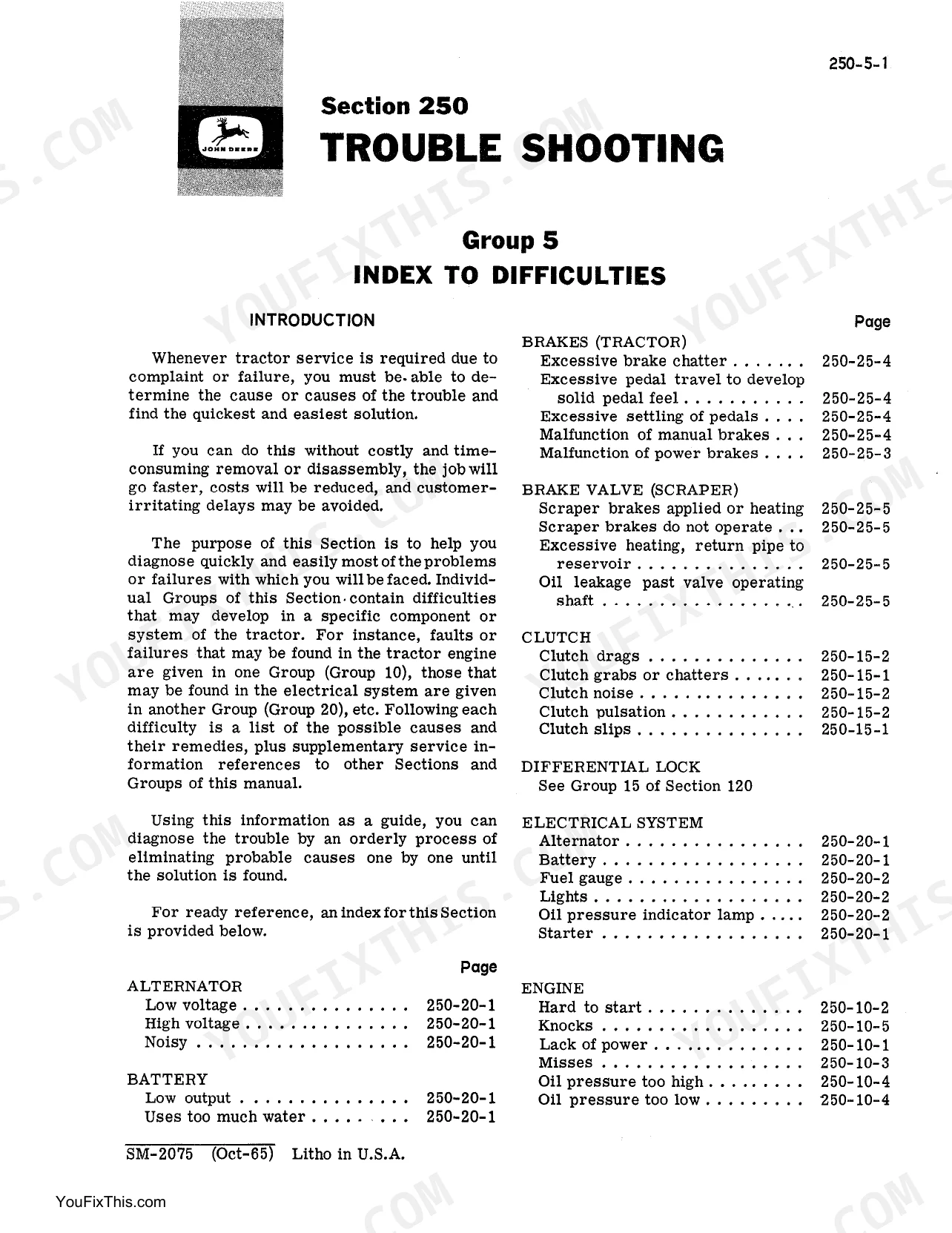

| Lubrication and Periodic Service | 35-48 | Engine Lubricating Oils, Greases, Lubrication and Service Intervals, Air Cleaner, Fuel Filters, Fuel Injectors |
| Engine Tune-Up and Tractor Adjustment | 49-64 | Visual Inspection, Air Intake System, Fuel System, Charging Circuit, Starting Circuit, Cooling System |
| Preliminary Procedures for Major Service | 65-78 | Engine Removal, Grille Housing, Radiator, Hydraulic Pump, Front Axle, Operator's Station |
| Engine and Lubrication System | 79-114 | Engine Components, Engine Lubrication, Crankcase Ventilation, Cylinder Head, Cylinder Block, Pistons, Oil Pump, Oil Cooler, Oil Filter Assembly, Oil Flow, Pressure Regulator |
| Cooling System | 115-122 | Centrifugal Pump, Thermostats, Water Pump, Radiator, Fan Assembly, Water Manifold |
| Diesel Fuel System | 123-144 | Fuel Tank, Fuel Pump, Fuel Filters, Injection Pump, Injection Nozzles, Air Cleaner |
| Transmission Clutch | 145-182 | Clutch Control Valve, Clutch Control Cylinder, Clutch Release Bearing, Clutch Shaft, Clutch Pedal Assembly |
| Differential | 183-196 | Differential Lock, Differential Lock Control Valve, Differential Housing Cover, Clutch Piston, Differential Bevel Gear, Spider and Bevel Pinion |
| Final Drive System | 197-200 | Axle Shaft, Planet Pinion Carrier, Planet Pinions, Final Drive Gear, Planetary Gear System |
| Power Take-Off (PTO) | 201-214 | PTO Clutch, PTO Shaft, PTO Clutch Valve, PTO Disconnect Assembly, Vertical PTO |
| Electrical System | 215-250 | Alternator, Regulator, Starter, Starter Circuit Relay, Batteries, Lighting and Accessory Systems |
| Seat | 251-256 | Suspension Assembly, Counterbalance Reel, Seat Support, Shock Absorber Assembly, Suspension Arm and Links |
| Front Axle, Wheels and Tires | 257-266 | Pivot Bracket, Steering Bellcrank, Front Wheel Knuckles, Steering Arms, Tie Rods, Front Wheels, Rear Wheels, Tire Inflation, Valve Core, Ballast, Rear Counterweights |
| Hydraulic System and Pumps | 267-300 | Transmission Reservoir, Main Pump, Transmission Pump, Power Steering, Power Brakes, Scraper Control Valves, Main Hydraulic Pump, Stroke Control Valve, Crankcase Outlet Valve, Drive Disks, Coupler |
| Power Steering | 301-320 | Steering Valve, Steering Cylinders, Valve Operating Shaft, Steering Wheel Shaft, Control Valves, Synchronizing Valve |
| Power Brakes | 321-346 | Brake Pedals, Brake Valve Assembly, Brake Accumulator, Scraper Brake Valve, Brake Cylinders, Brake Disks |
| Selective Control Valves | 347-354 | Operating Levers, Scraper Bowl Valve, Ejector Gate Valve, Scarifier Control, Lift Check Body, Valve Spools |
| Drawbar Assembly | 355-356 | Front Support, Rear Support, Drawbar, Retaining Strap, Headed Pin |
| Troubleshooting | 357-374 | Alternator, Battery, Engine, Fuel Gauge, Hydraulic Pump, Transmission |
| Special Service Tools | 375-384 | Engine and Clutch Service Tools, Hydraulic and PTO Service Tools, Injection Nozzle Service Tools, Alternator Service Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cylinder head (with “F” grade screws) | 180 ft-lbs | p. 22 |
| Connecting rod bearing | 155 to 165 ft-lbs | p. 22 |
| Batteries | Four, 115 ampere-hour, 6-volt batteries, connected in series | p. 20 |
| Brush tension | 32 to 40 oz. | p. 27 |
| No load test at 20 volts (maximum amps) | 65 amps. | p. 27 |
| O.D. of pump shaft at impeller end | 0.6262 to 0.6272 in. | p. 21 |
| I.D. of bore in impeller | 0.6242 to 0.6252 in. | p. 21 |
| Maximum water pressure for rinsing filter element | 40 psi | p. 143 |
| Maximum drying temperature for filter element | 180°F | p. 143 |
| Battery size (length) | 9-1/4 inches | p. 241 |
| Pressure control valve operating pressure | 1800 to 1850 psi | p. 277 |
| Pressure control valve bore front diameter | 0.7513 ± 0.0005 inch | p. 277 |
John Deere JD760 Common Problems This Manual Covers
John Deere JD760 engine cranks slowly or won't start at all in cold weather
Test the batteries first: four 6-volt, 115 ampere-hour units connected in series, so one weak cell drags down the whole string. Clean and tighten the ground connections. Bench-test the starter against the specs on page 237: minimum locked torque of 22 ft-lbs at 4 volts and 400 amps. Replace brushes worn to 3/8 inch.
Manual Section: Electrical System p. 237Hydraulic functions slow and jerky, pump squeals under load, system pressure won't hold
Hook a gauge to the system and check it against the 2250 psi maximum on page 20. A squeal points to a suction-side air leak, so tighten the inlet fittings and check reservoir oil level. If pressure stays low, turn the stroke control valve adjusting screw until the gauge reads 2250 to 2300 psi, per page 298.
Manual Section: Hydraulic Pumps p. 298Engine overheats at full throttle, coolant temperature climbs fast, radiator boils over
Check coolant level and belt tension first, then clean chaff and debris out of the radiator fins. If the water pump is suspect, pull it and measure impeller-to-housing clearance: 0.015 to 0.035 inch, per page 122. Press a new impeller to that same clearance and torque the fan cap screws to 35 ft-lbs.
Manual Section: Cooling System p. 122Engine down on power, black smoke under load, air cleaner plugged with field dust
Remove the dry element and empty the dust cup; have the operator dump it every 200 hours. Blow the element clean from the inside out with compressed air under 100 psi, per page 142, or rinse it with water at no more than 40 psi and dry it below 180°F before reinstalling.
Manual Section: Diesel Fuel System p. 142Clutch slips under a heavy pull, engagement chatters, transmission gets hard to shift
Check transmission oil level and condition before tearing anything down. Drain and refill every 1200 hours per the schedule on page 38, replace the filter elements, and torque the filter covers to 50 ± 5 ft-lbs as shown on page 273. If slipping continues with fresh oil, inspect the clutch control valve and clutch pack for wear.
Manual Section: Clutch TroubleshootingFrequently Asked Questions
What are the torque specifications for the cylinder head cap screws?
The cylinder head cap screws should be tightened to 180 ft-lbs when using 'F' grade screws. This procedure is detailed in the engine cap screw torques table. p. 24
How do I troubleshoot starting problems on a John Deere JD760?
If the starter operates sluggishly, check for a low battery, high resistance in the circuit, excessive engine drag, or starter drag. If the starter does not operate, connect a voltmeter to the solenoid control terminals; if battery voltage is present while depressing the starter switch, the starter is defective. p. 224
What are the valve clearance specifications for the engine?
The intake valve clearance is 0.018 inch and the exhaust valve clearance is 0.028 inch. These clearances apply whether the engine is hot or cold. p. 54
What is the recommended service interval for changing the engine oil and filter?
The engine oil and filter should be drained and filled every 100 hours of operation. The crankcase capacity is 19 U.S. quarts. p. 37
How do I adjust the alternator belt tension?
The alternator belts should be adjusted to allow 1-inch deflection with 20 pounds of force applied midway between the alternator and crankshaft pulleys. To adjust, loosen the adjusting cap screw and mounting bolt nuts, then pull outward on the front alternator frame. p. 59
Do I get instant access to this John Deere JD760 Service Manual?
Instant PDF download. You get the full 390-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this John Deere JD760 manual?
You can. The PDF is unlocked and carries no copy protection, so print the sections you want and keep the file as your backup.
