This is the factory repair manual for the New Holland 8670 and 8770 Genesis tractors. The book is written for the whole Genesis family, so its specification tables also carry the 8870 and 8970 alongside your machine, which is useful when a shared part number sends you looking. All four run the same 6-cylinder in-line 7.5 litre turbocharged diesel with a 111.8 mm bore and a 127.0 mm stroke, and what separates them is rating and intercooling. The manual works through the tractor system by system and closes with a large electrical section.
What's Inside This New Holland 8670, 8670A, 8770, 8770A Repair Manual

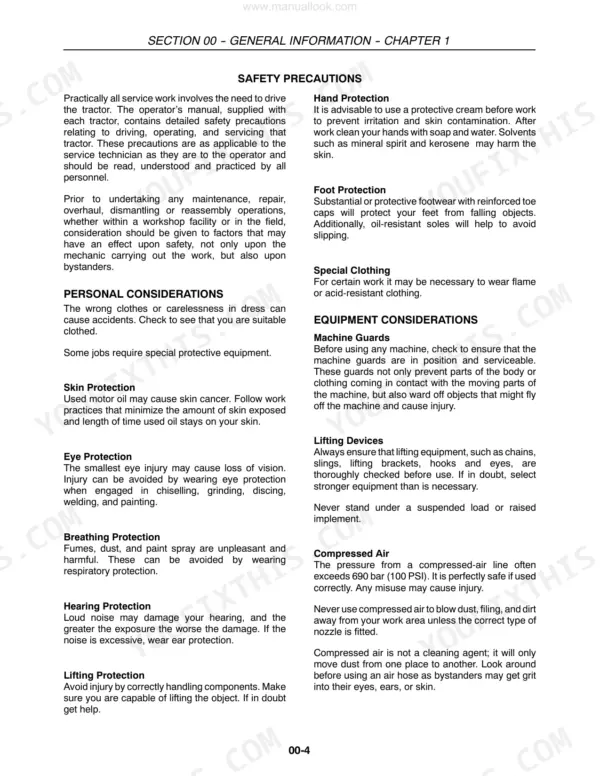

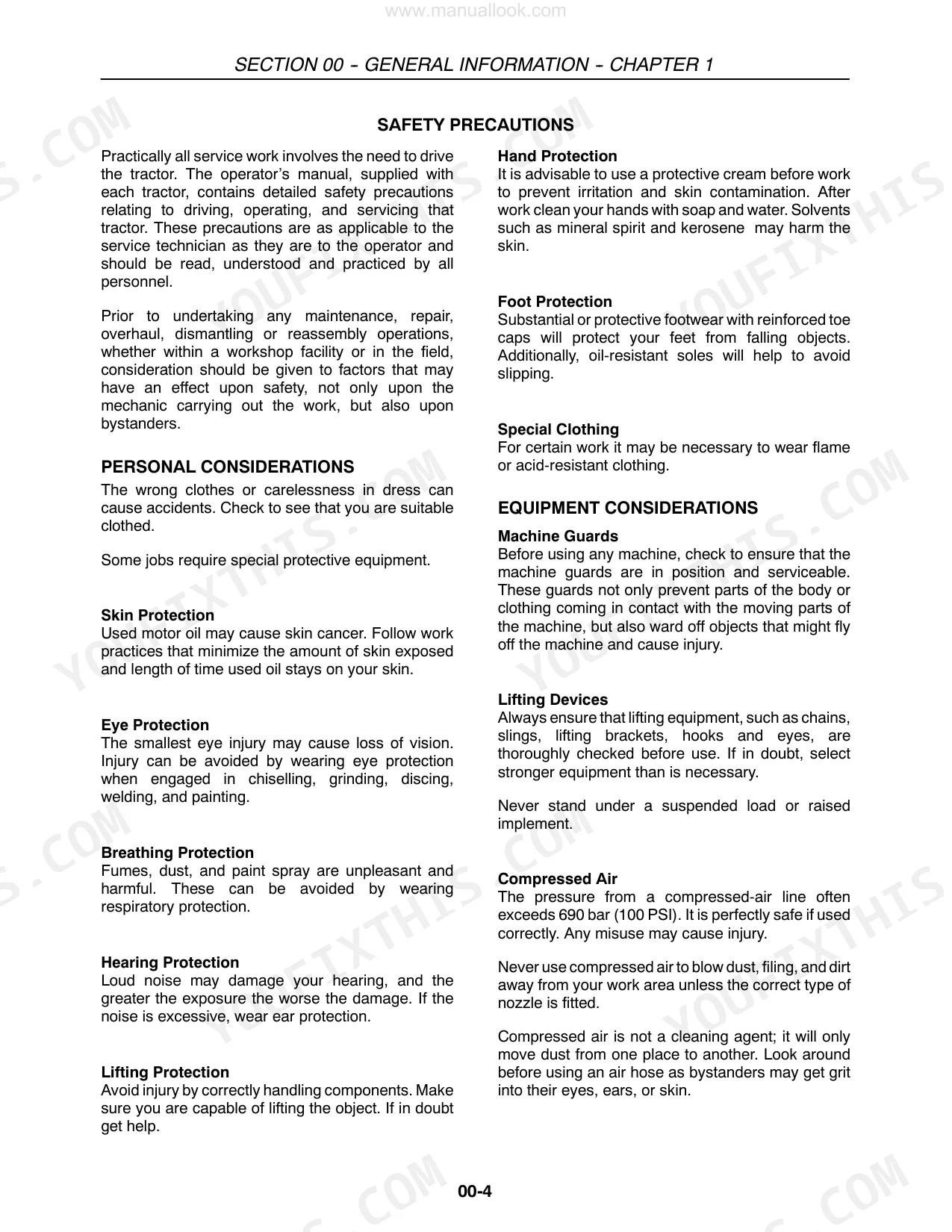

| System | Pages | Key Topics |
|---|---|---|
| General Information | 1-28 | Shop Safety, Standard Tightening Torques, Approved Fluids and Consumables, Tractor Identification, General Troubleshooting |
| Engine | 29-224 | 6-Cylinder In-Line 7.5 L (456 Cu in) Turbocharged Diesel, Specifications and Wear Limits, Cylinder Block and Head, Pistons and Crankshaft, Compression Test, Engine Overhaul |

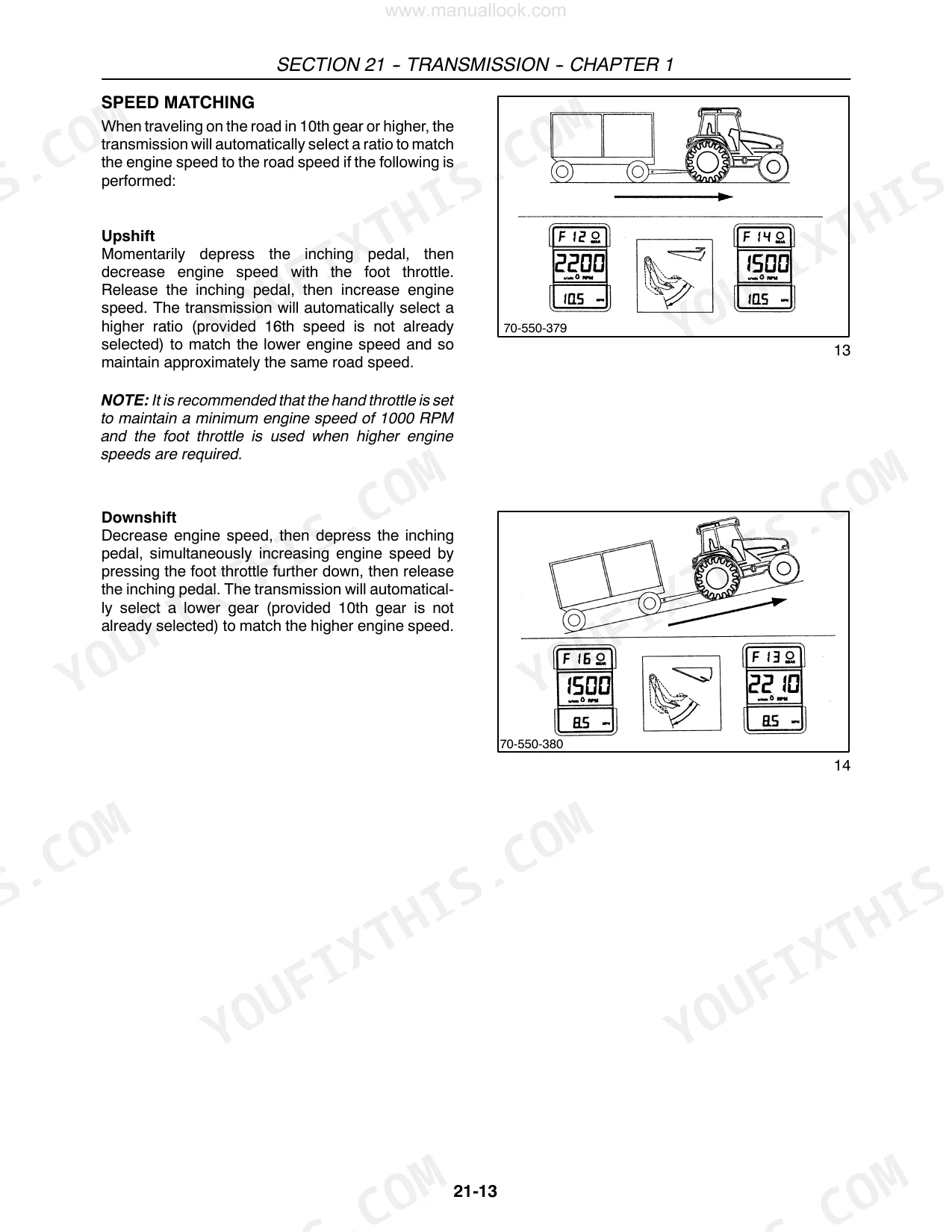

| Transmission | 225-386 | Powershift Transmission, Clutch Packs and Control Valves, Range Gears, Shift Controls, Pressure Testing and Overhaul |
| Drive Lines | 387-410 | Drive Shafts and Couplings, Universal Joints, Drive Line Service |

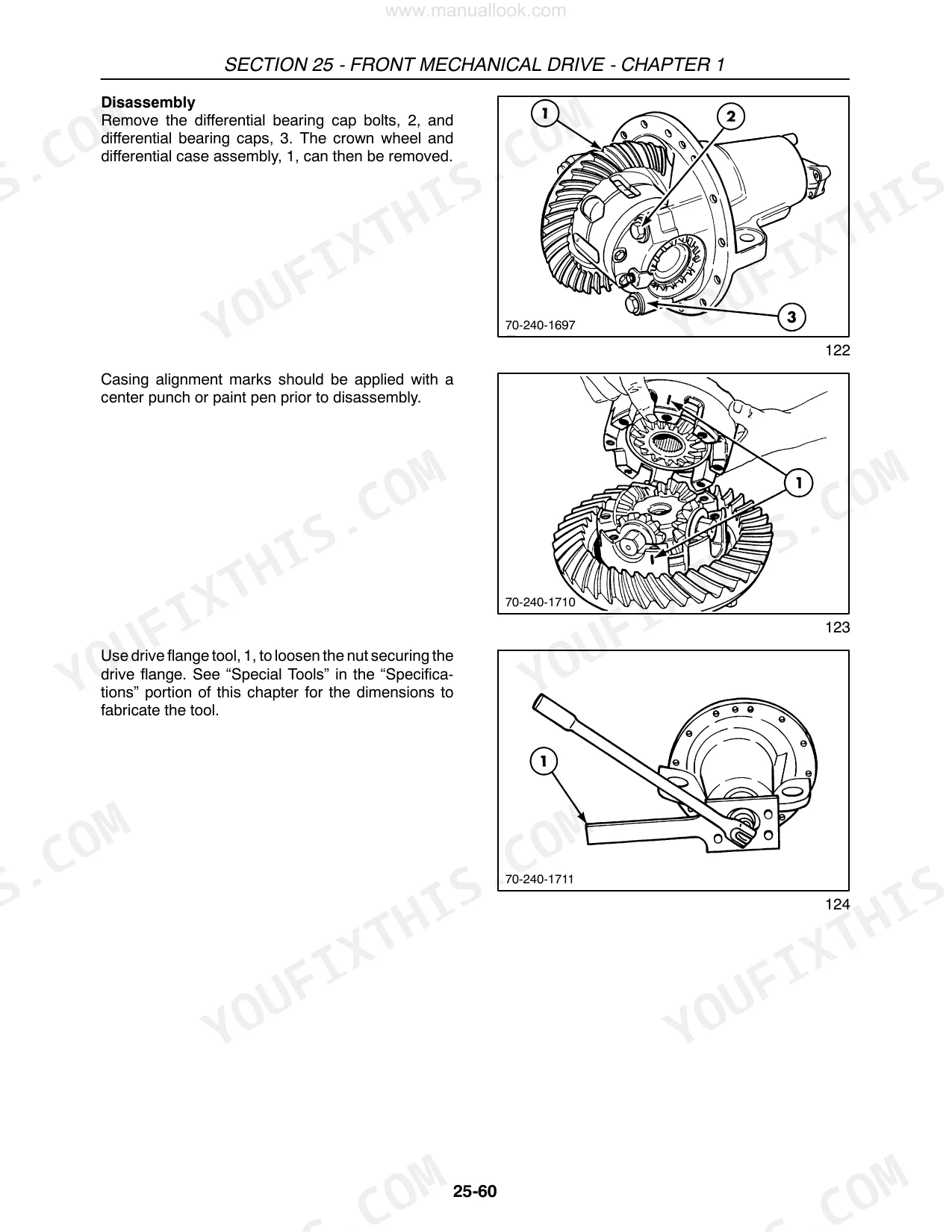

| Front Mechanical Drive | 411-574 | Front-Wheel Drive Axle, Bevel Drive and Differential, Hub Reduction, Steering Knuckles, Axle Rebuild |

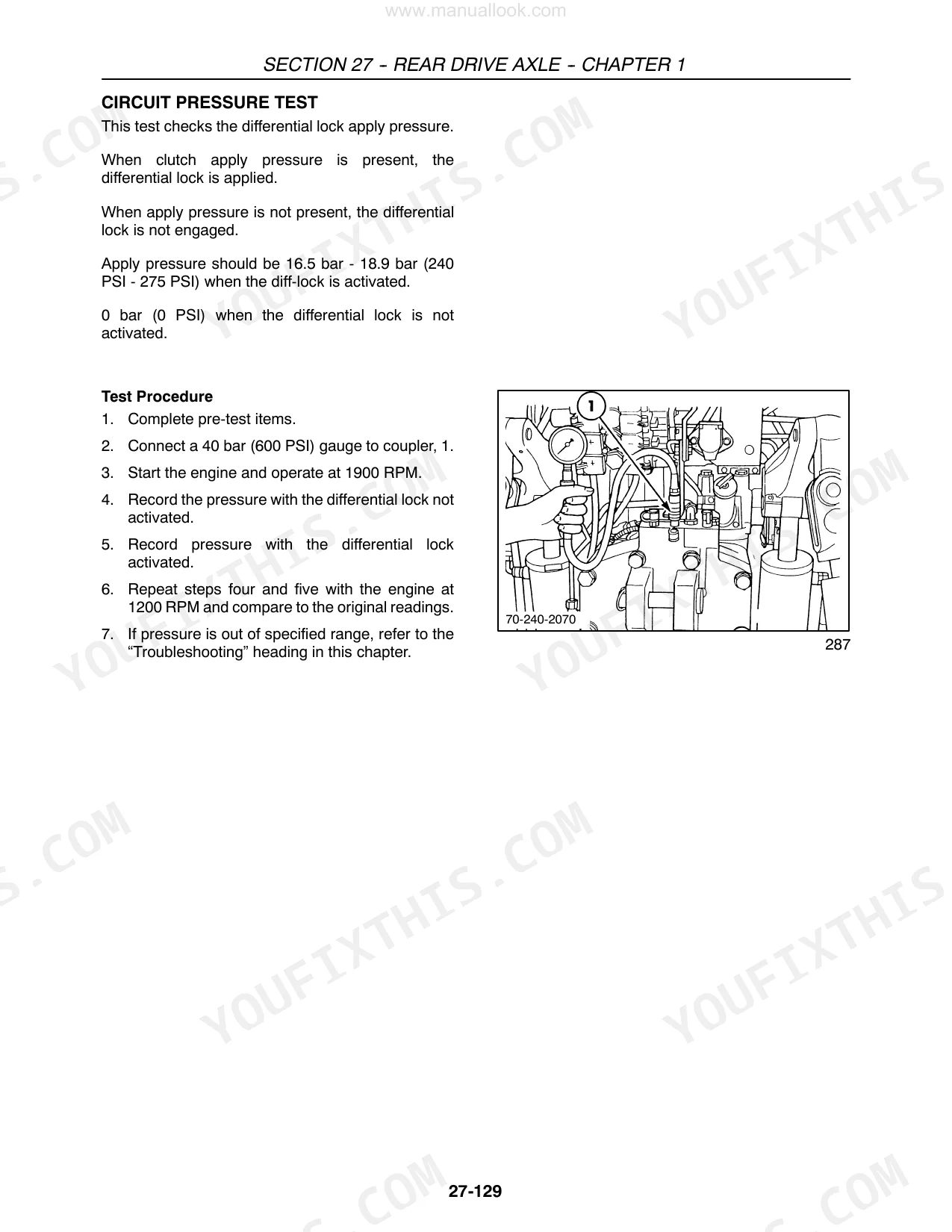

| Rear Drive Axle | 575-704 | Rear Bevel Gear Pair and Differential, Differential Lock, Final Drives, Bearing Preload and Backlash |
| Power Take-Off | 705-802 | PTO Clutch and Brake, Speed Selection and Output Shaft Change, PTO Control, PTO Overhaul |
| Brakes and Controls | 803-936 | Service Brakes, Parking Brake, Brake Valve and Pedals, Bleeding the Brake Circuit |
| Hydraulic Systems | 937-1269 | Hydraulic Pump and Supply Circuit, Remote Control Valves, Three-Point Hitch and Draft Control, Pressure Testing and Pump Overhaul |
| Steering | 1270-1299 | Hydrostatic Steering Unit and Circuit, Steering Control Valve and Cylinder, Steering Column, Fault Finding |
| Two-Wheel Drive Axle and Wheels | 1300-1353 | Two-Wheel-Drive Front Axle, Hubs and Stub Axles, Wheel Track Adjustment, Tyre Fitment and Wheel Torques |
| Climate Control | 1354-1443 | Heating, Ventilation and Air Conditioning, Compressor and Condenser, Refrigerant Handling, Charging and Leak Testing |
| Electrical Systems | 1444-2041 | Wiring Schematics and Harness Connector Views, Starting and Charging Systems, Starter Motor and Alternator, Instruments and Lighting, Fuses and Relays, Circuit Test Procedures |
| Platform, Cab, and Bodywork | 2042-2105 | Cab and Platform Assembly, Bodywork Panels, Hood and Grille, Glazing, Operator Seat and Controls |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Genesis models | ||
| Engine | 6 cylinder in-line, turbocharged, 456 cu in (7.5 L) | |
| Bore and stroke | 4.4 in (111.8 mm) x 5.0 in (127.0 mm) | |
| Compression ratio | 17.5:1 | |
| Firing order | 1-5-3-6-2-4 | |
| Rated engine speed | 2100 rpm | |
| Cylinder bore diameter | 111.778 to 111.841 mm (4.4007 to 4.4032 in) | |
| 8670 | ||
| PTO horsepower | 145 hp | |
| Intercooler | Not fitted | |
| 8770 | ||
| PTO horsepower | 160 hp | |
| Intercooler | Not fitted; units built after January 1996 are intercooled | |
| 8870 / 8970 (also tabulated) | ||
| PTO horsepower | 180 hp and 210 hp | |
| 8670 / 8770 | ||
| Low and high idle speed | 900 +/- 25 rpm and 2305 +/- 25 rpm | |
New Holland 8670, 8670A, 8770, 8770A Common Problems This Manual Covers
Ordering engine parts for an 8770 and getting the wrong ones.
Check the build date before you order. The specification table marks the 8770 as not intercooled, but a footnote states that units built after January 1996 are intercooled, which changes the charge-air plumbing and the parts that go with it. Bore, stroke, displacement and compression ratio are identical across the Genesis family, so a part that looks right for a 8870 may still be wrong for your tractor.
Manual Section: SECTION 10 - ENGINEThe engine is down on power, smokes, or will not hold rated speed.
Work the engine section against its own figures. Rated engine speed is 2100 rpm, low idle 900 rpm and high idle 2305 rpm, each with a 25 rpm tolerance, so a tractor that will not reach high idle has a governor or fuel problem rather than a mechanical one. Run the compression test the section describes, then check the cylinder bore against its 111.778 to 111.841 mm diameter and its taper and out-of-round limits.
Manual Section: SECTION 10 - ENGINEThe three-point hitch is slow, or a remote valve fades under load.
The hydraulic section is the largest mechanical part of the book, running from page 937 to page 1269. It covers the pump and supply circuit, the remote control valves and the three-point hitch with its draft control, along with the pressure test procedure and the pump overhaul. Test the supply before you strip a valve, because a tired pump makes every function fade together while a drifted valve affects only one.
Manual Section: SECTION 35 - HYDRAULIC SYSTEMSFrequently Asked Questions
Which tractors does this manual cover?
It is the repair manual for the 8670 and 8770, including their A variants. Because New Holland wrote one book for the Genesis family, the specification tables also list the 8870 and 8970 side by side, which is genuinely useful when you are checking whether a clearance or a part is shared.
Is my 8770 intercooled?
It depends on when it was built. The specification table marks the 8770 as not intercooled, with a footnote that units built after January 1996 are intercooled. The 8670 is not intercooled at all, while the 8870 and 8970 always are. All four are turbocharged.
What power do these tractors make?
PTO horsepower is 145 on the 8670 and 160 on the 8770, at a rated engine speed of 2100 rpm. For reference, the same table gives 180 on the 8870 and 210 on the 8970. Low idle is 900 rpm plus or minus 25 and high idle 2305 rpm plus or minus 25 on the 8670 and 8770.
What are the engine dimensions?
All four Genesis tractors share a 6-cylinder in-line engine of 456 cu in (7.5 L), with a 4.4 in (111.8 mm) bore and a 5.0 in (127.0 mm) stroke and a 17.5:1 compression ratio. Firing order is 1-5-3-6-2-4. Cylinder bore diameter is 111.778 to 111.841 mm, with a 0.025 mm taper repair limit and a 0.127 mm wear limit.
How big is the manual and can I search it?
It is 2105 pages in English, a searchable and printable PDF. Search the text, print the pages you need for the bench, and keep the rest on a laptop in the workshop.
Is this New Holland 8670, 8670A, 8770, 8770A Repair Manual a digital download?
Immediate download of the complete 2105-page searchable Repair Manual (72 MB). Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this New Holland 8670, 8670A, 8770, 8770A?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
