Part of the New Holland Repair Manuals.
This is the factory repair manual for the New Holland TN60VA, TN75VA and TN95VA narrow vineyard tractors, complete repair part number 87352279. It is split the way New Holland numbers the tractor: engine, clutch, transmissions, front-wheel drive, axles, PTO, brakes, hydraulics, steering, wheels, air conditioning, electrical and cab. The engine section tabulates all three tractors side by side, and they are not the same engine: the TN60VA and TN75VA share a 3-cylinder block while the TN95VA runs a 4-cylinder, and the TN95VA even carries a different engine type with and without a cab.
What's Inside This New Holland TN60VA, TN75VA, TN95VA Repair Manual

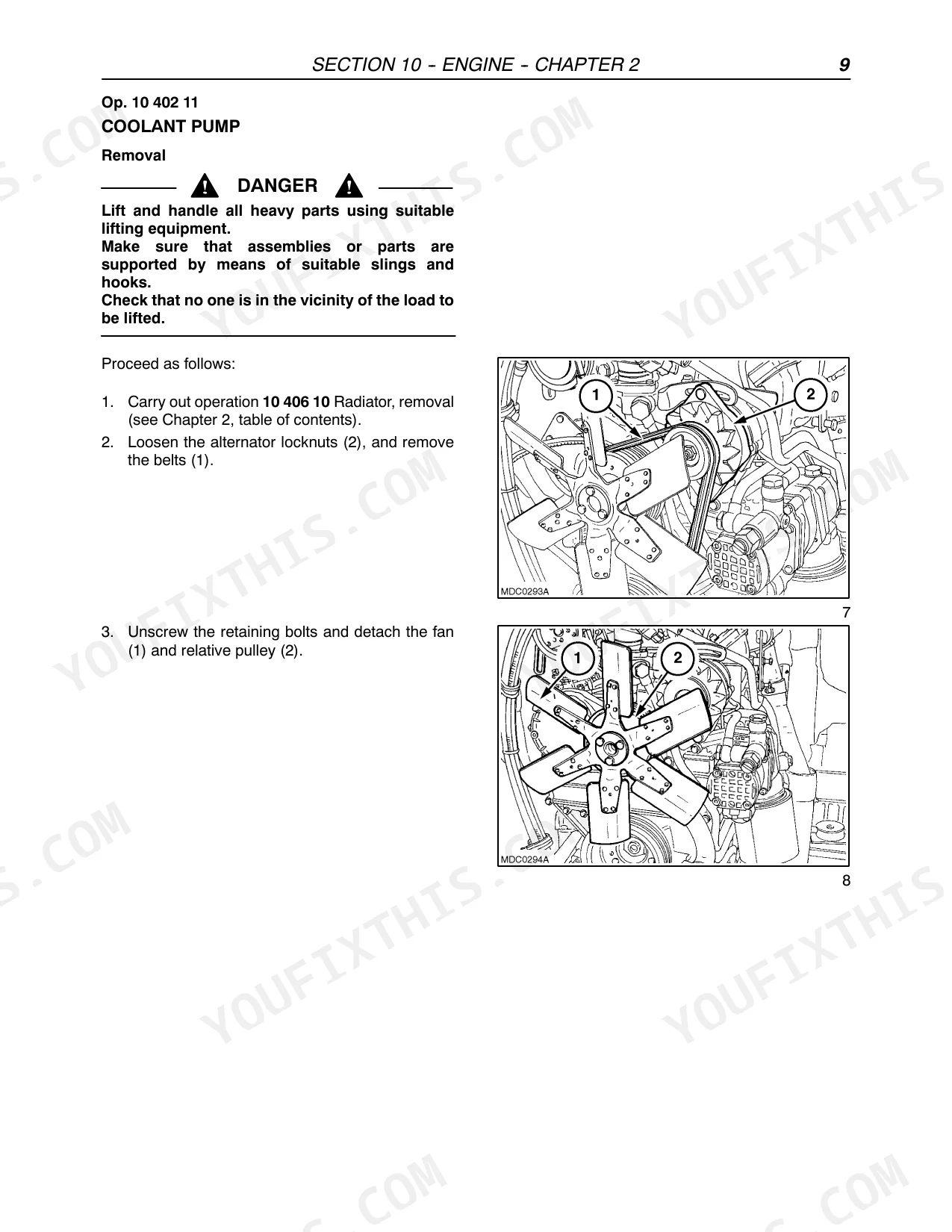

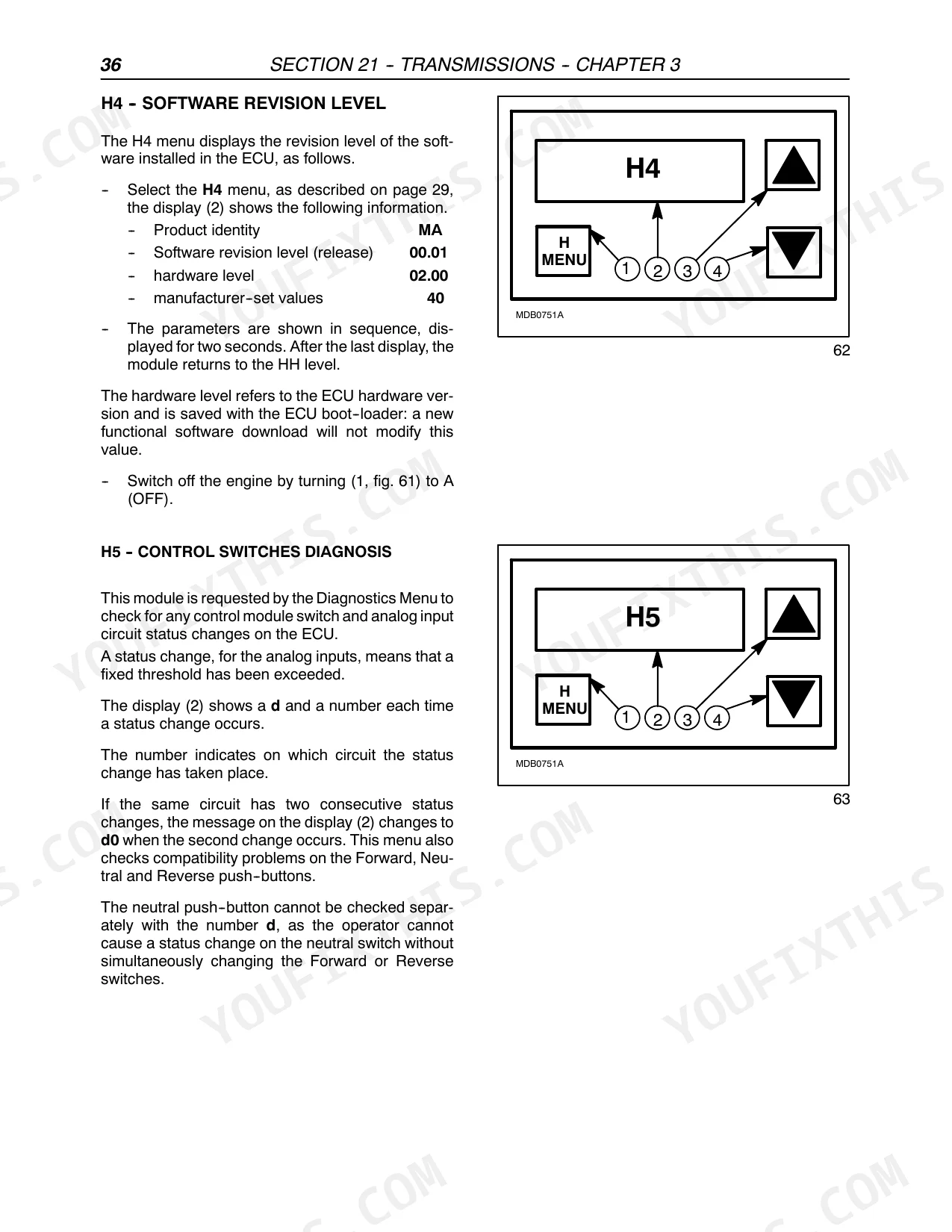

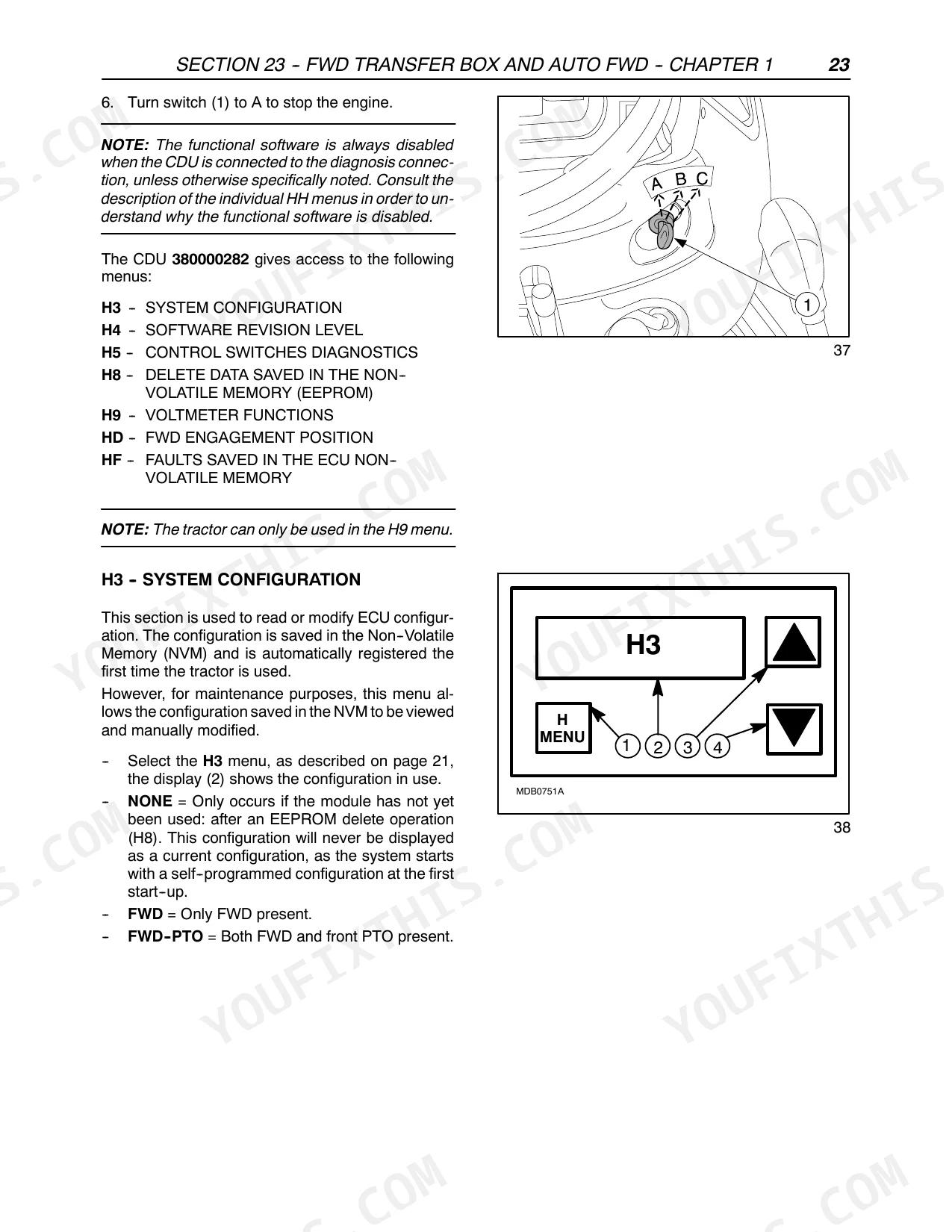

| System | Pages | Key Topics |
|---|---|---|
| General | 39-64 | Shop Safety, Standard Tightening Torques, Approved Fluids and Consumables, Tractor Identification |
| Engine | 65-188 | 3-Cylinder 2931 Cm3 and 4-Cylinder 3900 Cm3 Direct-Injection Diesels, Per-Model Engine Types, Timing System, Cylinder Head and Valve Train, Pistons and Crankshaft, Engine Overhaul |
| Clutch | 189-216 | Clutch and Its Release Mechanism, Main and PTO Clutch Control, Pedal Free Play, Clutch Overhaul |
| Transmissions | 217-422 | Synchro Command Gearbox and Power Shuttle, Shuttle Unit, Range Gear, Creeper, Gearbox Strip-Down and Reassembly |
| FWD Transfer Box and Auto FWD | 423-494 | Front-Wheel-Drive Transfer Box, Auto FWD Engagement, Electrohydraulic FWD Clutch, Drive Shafts and Guards, Transfer Box Overhaul |
| Front Axle Mechanical Transmission | 495-614 | Driven Front Axle, Bevel Drive and Differential, Epicyclic Hub Reduction, Steering Knuckles, Axle Rebuild |
| Rear Axle Mechanical Transmission | 615-646 | Rear Bevel Gear Pair and Differential, Differential Lock, Lateral Final Drives, Bearing Preload and Backlash |
| Mechanical Power Take-Off | 647-662 | Mechanically Engaged PTO, Servo-Assist PTO Control, Speed Selection and Shaft Change, PTO Overhaul |
| Brakes | 663-684 | Wet Disc Service Brakes, Parking Brake, Pedal Adjustment, Bleeding the Brake Circuit |
| Hydraulic Systems | 685-886 | High-Pressure and Low-Pressure Circuits, Hydraulic Pump, Hydraulic Lift with Draft, Position and Float Control, Remote Control Valves, Three-Point Linkage, Pressure Testing |
| Steering | 887-922 | Hydrostatic Steering Wheel Unit, Steering Control Valve, Steering Cylinder, Circuit Fault Finding |
| Axles and Wheels | 923-942 | Two-Wheel-Drive Front Axle, Hubs and Stub Axles, Narrow and Vineyard Track Settings, Wheel Torques |
| Cab Climate Control | 943-984 | Compressor, Condenser, Filter Dryer and Expansion Valve, Refrigerant Handling, A/C Charging and Leak Testing |
| Electrical System: Components and Circuits | 985-1058 | Starting and Charging Systems, Alternator and Starter Motor, Battery, Instruments, Switches and Sensors |
| Electrical System: Wiring Schematics and Diagnostics | 1059-1306 | Wiring Schematics and Harness Connector Views by Build, Fuses and Relays, Lighting, Circuit Test Procedures |
| Platform, Cab, Bodywork | 1307-1330 | Platform and Cab Assembly, Bodywork Panels, Hood and Grille, Glazing, Component Removal |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| TN60VA | ||
| Engine type | 8035.05C.929, 3 cylinders in line, naturally aspirated | |
| Compression ratio | 17:1, naturally aspirated | |
| Maximum power | 43.5 kW (59 Hp) at 2300 rpm | |
| TN75VA | ||
| Engine type | 8035.25.929, 3 cylinders in line, turbocharged | |
| Maximum power | 55.5 kW (76 Hp) at 2300 rpm | |
| TN95VA with cab / less cab | ||
| Engine type | 8045.25C.929 / 8045.25S.925, 4 cylinders in line, turbocharged | |
| TN60VA / TN75VA | ||
| Total displacement | 178.84 in3 (2931 cm3) | |
| TN95VA | ||
| Total displacement | 238 in3 (3900 cm3) | |
| Maximum power | 67.5 kW (92 Hp) at 2300 rpm | |
| All models | ||
| Bore and stroke | 4.0944 in (104 mm) x 4.5275 in (115 mm) | |
| Hour counter calibration speed | 1800 rpm engine speed | |
| TN75VA / TN95VA | ||
| Compression ratio | 16.5:1, turbocharged | |
New Holland TN60VA, TN75VA, TN95VA Common Problems This Manual Covers
Ordering engine parts for a TN95VA and getting the wrong ones.
Check whether the tractor has a cab. The manual lists two engine types for the TN95VA: 8045.25C.929 with a cab and 8045.25S.925 without, and they are not interchangeable line for line even though both are the turbocharged 4-cylinder of 3900 cm3. The TN60VA and TN75VA are a different block again, a 3-cylinder of 2931 cm3, with the TN60VA naturally aspirated at 17:1 and the TN75VA turbocharged at 16.5:1.
Manual Section: SECTION 10 - ENGINEThe engine is down on power or smokes under load.
Work against the figures for your tractor rather than a generic number. Maximum power comes at 2300 rpm and is 43.5 kW on the TN60VA, 55.5 kW on the TN75VA and 67.5 kW on the TN95VA, so a turbocharged TN75VA short on boost behaves nothing like a naturally aspirated TN60VA short on compression. The engine section carries the timing system, the valve train and the full overhaul with the clearances for each block.
Manual Section: SECTION 10 - ENGINEThe three-point lift is slow, will not hold, or the remotes fade as the oil warms.
The hydraulic section runs from page 685 to page 886 and splits the tractor into a high-pressure and a low-pressure circuit, giving the test procedure for each so you can tell a tired pump from a lift control that has drifted. It then covers the pump, the lift with its draft, position and float controls, the remote valves and the three-point linkage, with the test points and the overhaul procedures.
Manual Section: SECTION 35 - HYDRAULIC SYSTEMSFrequently Asked Questions
Which tractors does this manual cover?
The TNVA vineyard series: TN60VA, TN75VA and TN95VA, under complete repair part number 87352279. The chassis, transmissions, axles, hydraulics and electrics are common, but the engines are not, and the manual tabulates all three side by side.
Which engine is in each tractor?
The TN60VA runs engine type 8035.05C.929, a naturally aspirated 3-cylinder of 2931 cm3 with a 17:1 compression ratio. The TN75VA runs 8035.25.929, the same 3-cylinder block turbocharged at 16.5:1. The TN95VA steps up to a 4-cylinder of 3900 cm3, also turbocharged at 16.5:1, and it carries a different engine type depending on the build: 8045.25C.929 with a cab and 8045.25S.925 without.
What power does each make?
All at 2300 rpm: 43.5 kW (59 Hp) on the TN60VA, 55.5 kW (76 Hp) on the TN75VA and 67.5 kW (92 Hp) on the TN95VA. Bore and stroke are common across the three at 104 mm by 115 mm, which is why the 4-cylinder TN95VA reaches 3900 cm3.
Does it include the wiring diagrams?
Yes. The electrical section runs from page 985 to page 1306. Components and circuits, including the starting and charging systems, the alternator and starter motor overhauls, the battery and the instruments, occupy 985 to 1058, and the wiring schematics with harness connector views, fuses, relays, lighting and the circuit test procedures fill 1059 to 1306.
How big is the manual and can I search it?
It is 1330 pages in English, a searchable and printable PDF. Search the text, print the pages you need for the bench, and keep the rest on a laptop in the workshop.
How quickly can I access this New Holland TN60VA, TN75VA, TN95VA manual after?
This is a 1330-page searchable PDF (58 MB) ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this New Holland TN60VA, TN75VA, TN95VA manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
