Part of the John Deere Repair Manuals.
This is the complete John Deere factory repair manual for the 5083E, 5093E and 5101E Limited and standard utility tractors. Across 1,525 pages it covers every major system on these machines: rebuilding the 4.5L 350 Series diesel engine and cooling system, servicing the PowrReverser 12-forward/12-reverse transmission and clutch packs, repairing the drive system including MFWD and differential, tracing the full electrical system with wiring harnesses, and servicing the open-center hydraulic system including the rockshaft and selective control valves. Torque values, test pressures and capacities are called out so the repair is done to spec the first time.
What's Inside This John Deere 5083E-5101E Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | Safety, General Specifications, Fuel and Lubricants, Serial Number Locations, Features and Accessories | |

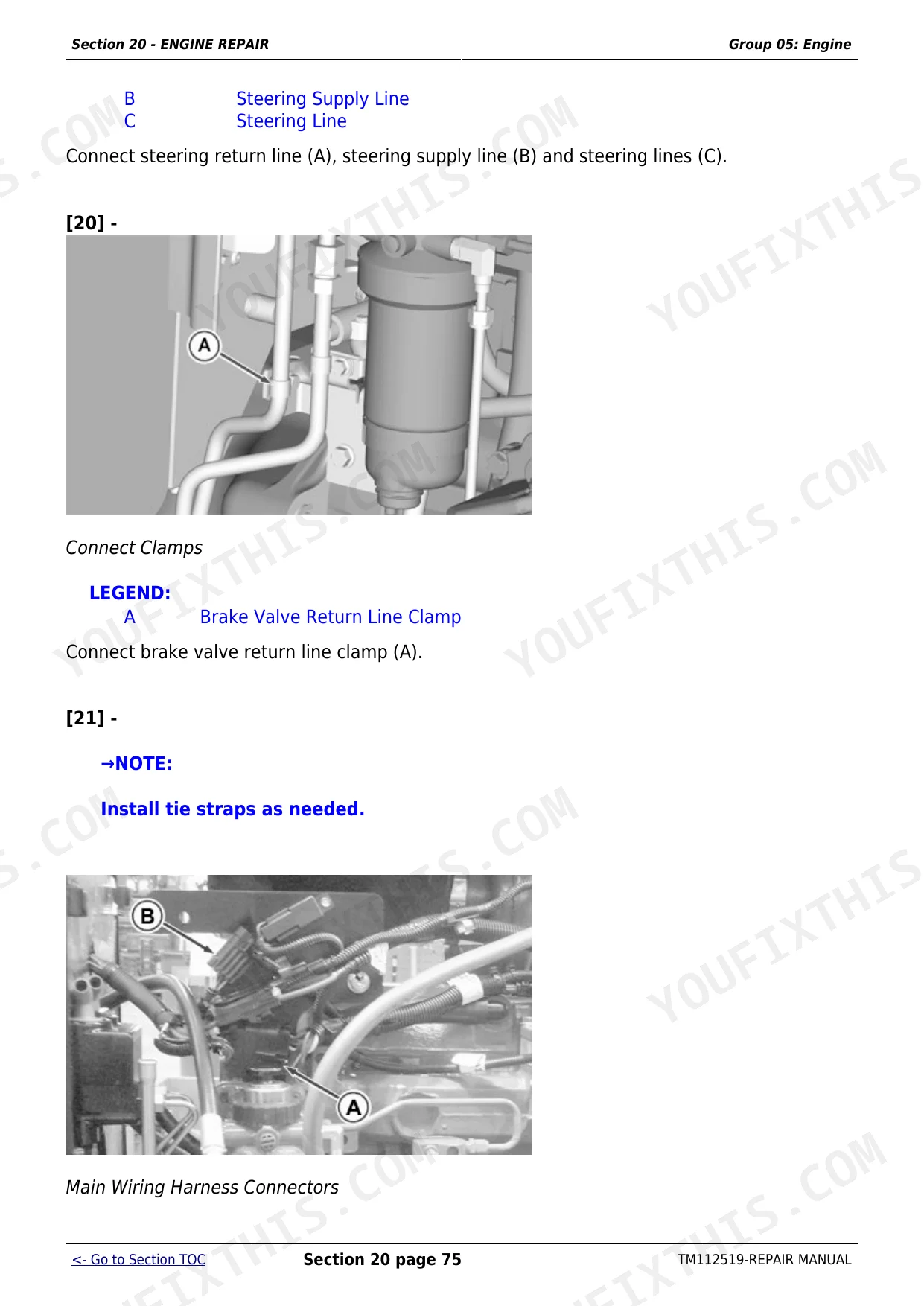

| Engine | Engine Remove and Install, Cooling System | |

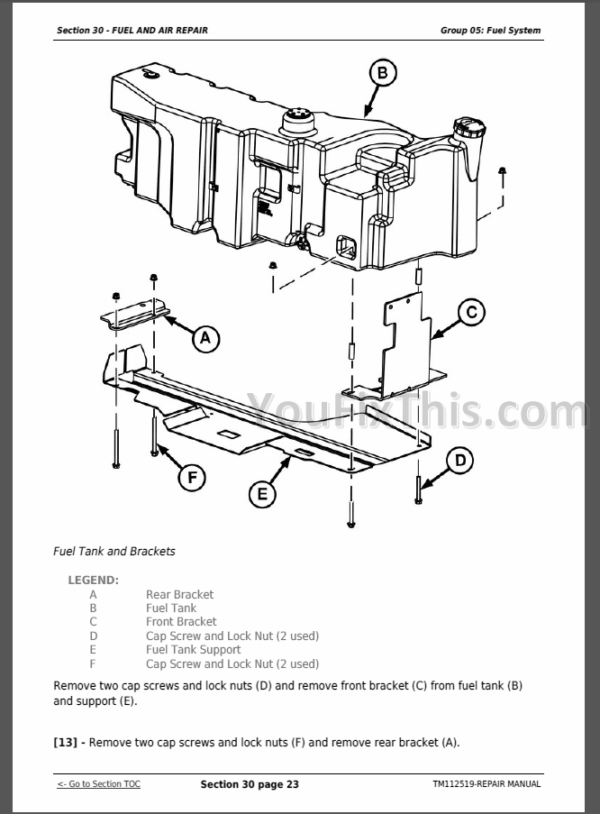

| Fuel and Air | Fuel System, Air Intake System, Speed Control Linkage | |

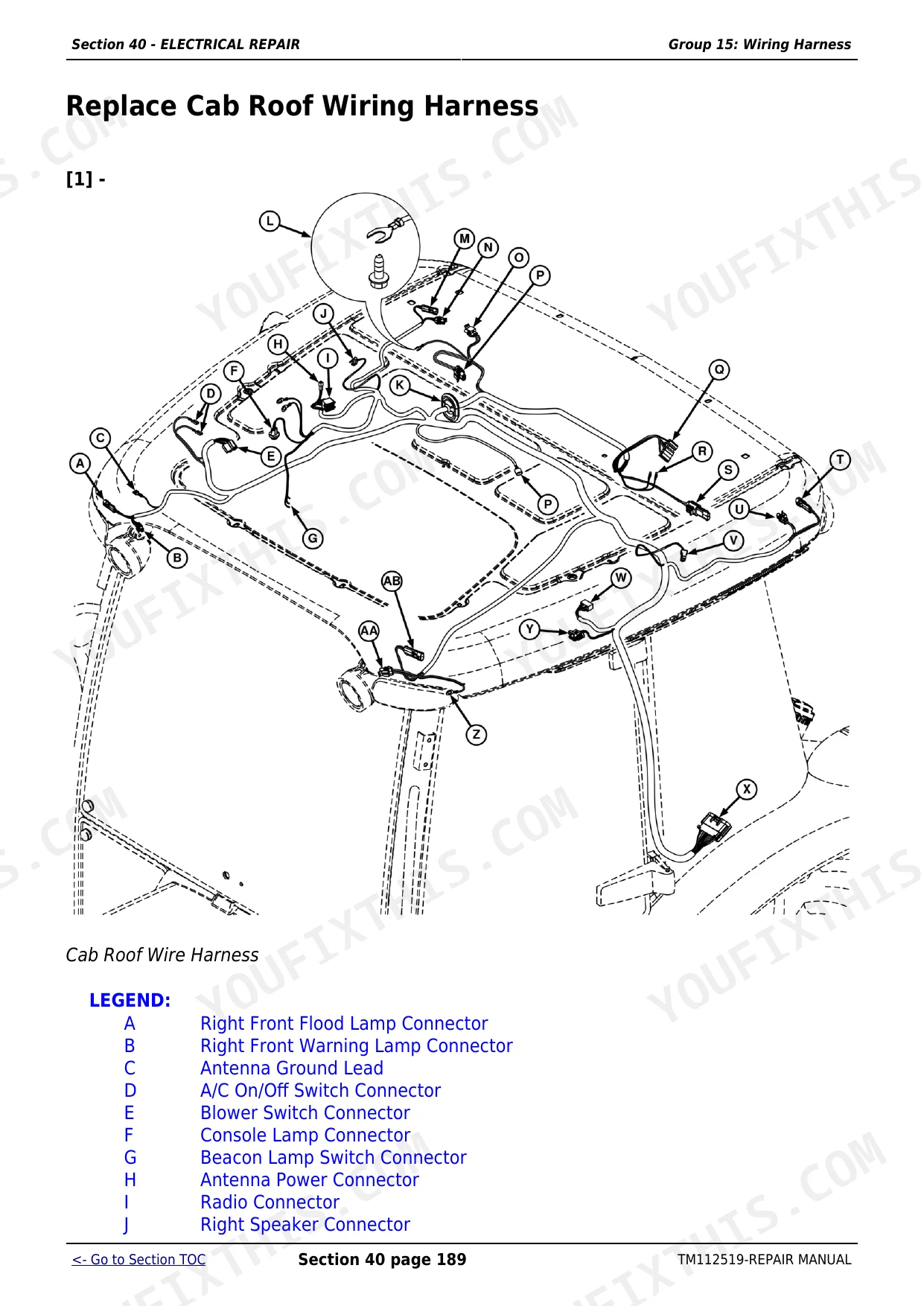

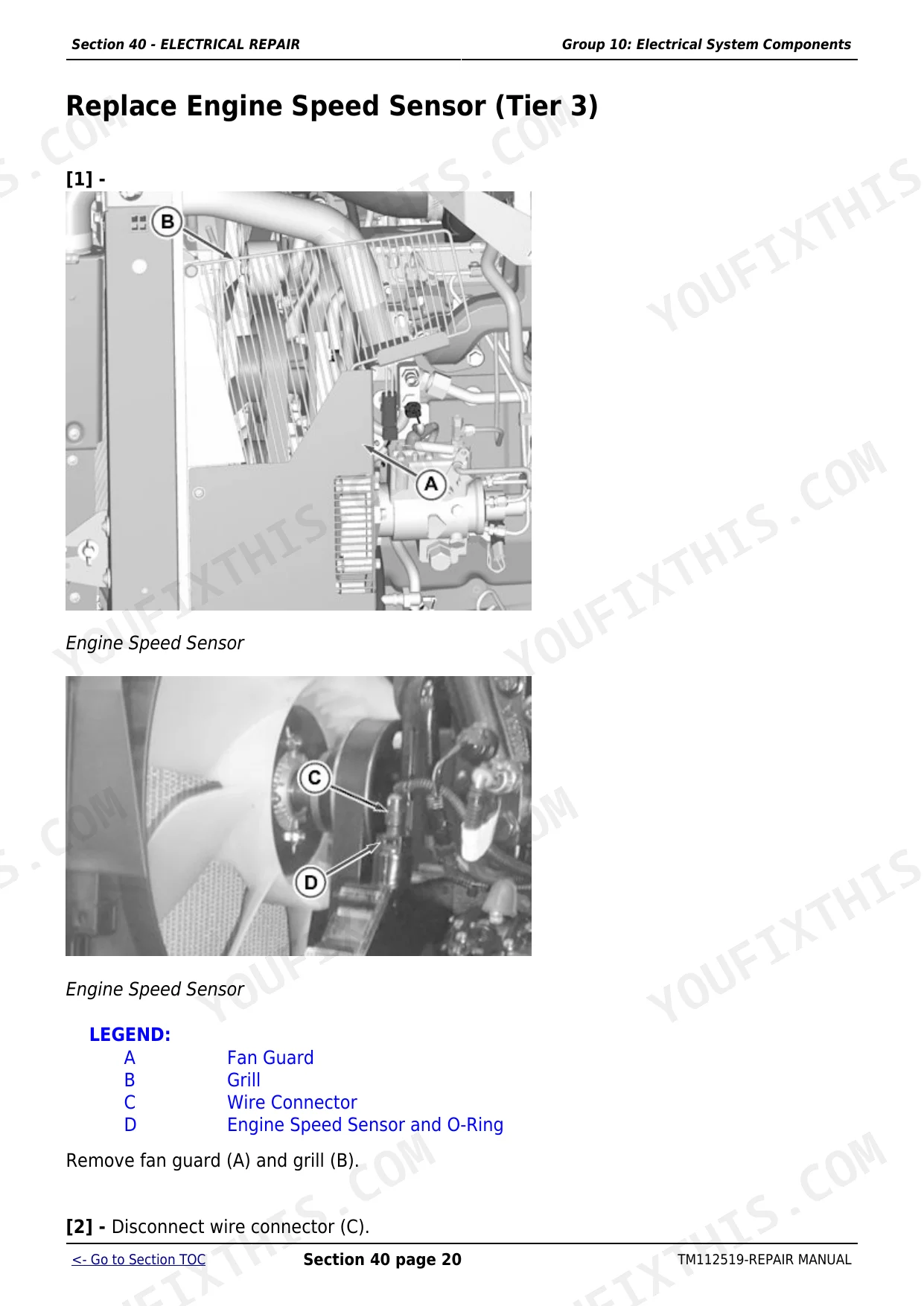

| Electrical System | Battery, Starter and Alternator, Electrical System Components, Wiring Harness | |
| Power Train | Clutch Housing, Clutch Assembly, PowrReverser Clutch Assembly, PowrReverser Transmission | |
| Drive System | Differential, Final Drives, Rear PTO Drive Shaft, Mechanical Front Wheel Drive, Creeper Assembly | |
| Steering and Brakes | Steering Repair, Brake Repair | |
| Hydraulic System | Hydraulic Pump and Filter, Hydraulic Oil Cooler, Rockshaft, Selective Control Valve, Hydraulic Mid-Mount Control Valve | |
| Miscellaneous | 3-Point Hitch, Fenders, Hood | |
| Operator Station - Cab (S.N. -439999) | Seat and Support, Control Console and Panel, Cab Components, Air Conditioning System, Heating System | |
| Operator Station - Cab (S.N. 440000-) and Open Station | Seat and Support, ROLL-GARD, Control Console and Panel, Cab Components, Air Conditioning System, Heating System | |
| Dealer Fabricated Tools | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All models | ||
| Engine | John Deere 350 Series 4.5L 4-cylinder diesel | |
| Transmission | PowrReverser, 12 forward / 12 reverse | |
| Rear PTO Speed | 540 rpm (540/540E optional) | |
| Hydraulic System | Open-center, tandem gear pump, wet disc brakes | |
| Fuel Tank Capacity | 113.5 L (30 gal) Tier 2 later/Tier 3; 96.5 L (25.5 gal) open station | |
| 5083E and 5083E Limited | ||
| Rated Power | 61 kW (82 hp) | |
| 5093E and 5093E Limited | ||
| Rated Power | 68 kW (91 hp) | |
| 5101E and 5101E Limited | ||
| Rated Power | 74 kW (99 hp) | |
| Assembly | ||
| Engine/Flywheel Housing to Clutch Housing Cap Screw Torque | 260 N.m (192 lb.-ft.) | |
| Clutch Housing to Engine M20 Cap Screw Torque | 430 N.m (317 lb.-ft.) | |
John Deere 5083E-5101E Common Problems This Manual Covers
Tractor will not move forward or respond in any gear despite engine running
Check the low-pressure hydraulic return hose at the differential lock lever footstep for looseness or disconnection - this is the most commonly reported cause of total hydraulic loss on these tractors. The Hydraulic Repair section covers the full return circuit, pump inspection, and filter service so you can confirm whether the hose is the fault or whether the hydraulic pump itself needs attention before committing to major disassembly.
Manual Section: Hydraulic RepairErratic PTO operation or loss of transmission pressure
On the 5083E this is frequently linked to a failed bearing on the rear PTO cover that causes seal failure and system contamination. The Power Train Repair section covers PTO cover removal, bearing replacement, and transmission pressure testing so you can confirm the contamination path and replace affected seals before contamination damages the transmission clutch packs.
Manual Section: Power Train RepairComplete loss of dashboard gauges with power confirmed at the cluster
Gauge cluster failures on the 5101E that survive standard checks typically trace to a ground fault or blown fuse in the gauge cluster circuit, not the cluster itself. The Electrical Repair section covers the wiring harness routing, fuse locations, ground points, and cluster circuit diagnostics so you can trace the open ground or upstream fault before replacing an expensive cluster.
Manual Section: Electrical RepairEngine will not crank and dash will not light up on open-operator-station 5101E
When headlamps work but nothing else responds, the fault is typically upstream of the main ignition circuit - a failed safety interlock, blown main fuse, or wiring harness fault at the operator station. The Electrical Repair section covers the open-operator-station wiring including the ROLL-GARD integration and safety interlock chain so you can trace the dead circuit without guessing at components.
Manual Section: EngineFrequently Asked Questions
What engine is in the John Deere 5083E, 5093E and 5101E tractors?
All three models use the John Deere 350 Series 4.5L 4-cylinder diesel. The 5083E produces 61 kW (82 hp), the 5093E 68 kW (91 hp), and the 5101E 74 kW (99 hp). The manual's General Information section lists fuel requirements and capacities for each variant including Limited trim.
What transmission is in the 5083E, 5093E and 5101E, and how is it serviced?
These tractors use the PowrReverser transmission with 12 forward and 12 reverse speeds. The Power Train Repair section covers clutch housing removal, clutch assembly service, and PowrReverser clutch packs in detail, with the clutch housing to engine M20 cap screw torque specified at 430 N.m (317 lb.-ft.).
Why does the 5083E lose hydraulic pressure or fail to move in gear?
A common cause on these tractors is a loose or disconnected low-pressure hydraulic return hose at the differential lock lever footstep, which drains the hydraulic system. The Hydraulic Repair section covers the hydraulic pump, filter, and return circuit so you can isolate whether the fault is a failed hose, pump wear, or a stuck control valve before pulling parts.
What are the engine torque specs for the 5083E, 5093E and 5101E?
Key torques from the General Information section include 260 N.m (192 lb.-ft.) for the engine/flywheel housing to clutch housing cap screws, 430 N.m (317 lb.-ft.) for the clutch housing to engine M20 cap screws, 318 N.m (235 lb.-ft.) for engine to front support top cap screws, and 162 N.m (119 lb.-ft.) for the lower cap screws.
Does this manual cover the electrical and wiring system?
Yes. The Electrical Repair section covers battery service, starter and alternator removal and testing, electrical system components, and full wiring harness tracing. It provides the diagnostic information needed to chase intermittent faults such as dead gauge clusters and no-crank conditions that are commonly reported on the 5101E open-operator-station variant.
