Part of the John Deere Repair Manuals.
This is the Diagnosis and Tests manual (TM607119) for John Deere 5083E and 5093E utility tractors, 2010-2017. It is the book you open when the tractor acts up and you need to know why: symptom charts for engine, starting, charging, PowrReverser and diff lock complaints, full CCU and PTR trouble code diagnostics, wiring schematics, and live-value addresses you read straight off the instrument cluster. It gives real test numbers - pump flow, relief pressures, solenoid resistances, sensor voltages - so you test instead of guess. Be clear on scope: this is the diagnostic companion to the repair manual. It finds the failed part; teardown and rebuild steps live in the repair book. Procedures are split by serial number, PM and PY builds.
What's Inside This John Deere 5083E / 5093E Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 8-123 | Safety, General References; General Specifications Point to the Operator's Manual |

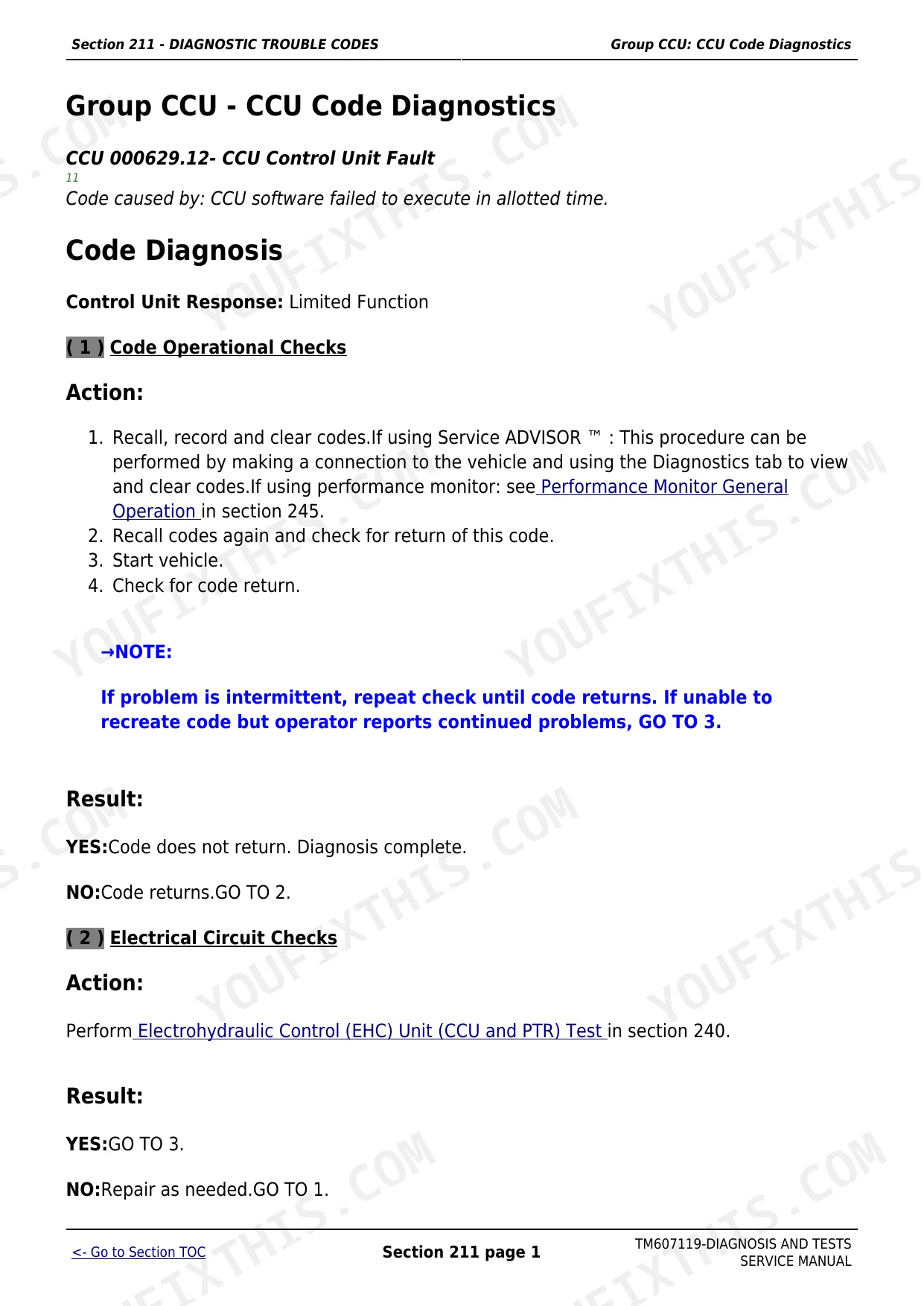

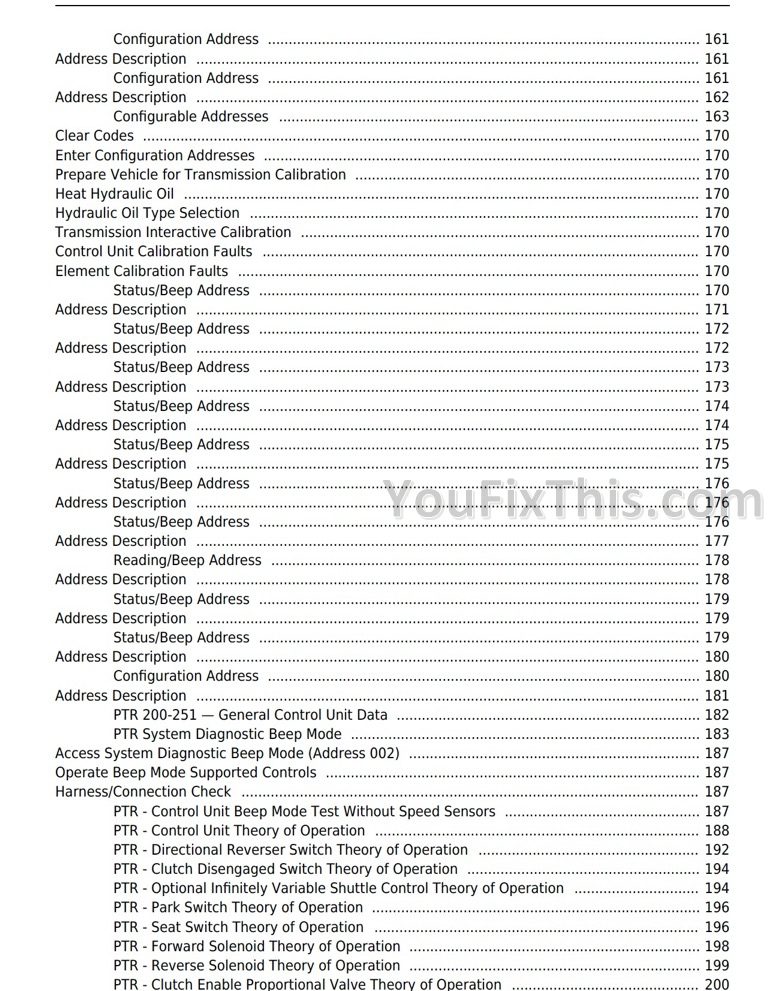

| Diagnostic Trouble Codes | 124-215 | CCU (Chassis Control Unit) Code Diagnostics, PTR (Power Train Reverser) Code Diagnostics |
| Observable Symptoms | 216-234 | Engine Problems, Fuel and Air Problems, Starting and Charging, Lighting, Instrument Cluster, Control Unit, PowrReverser, Differential Lock Symptoms |

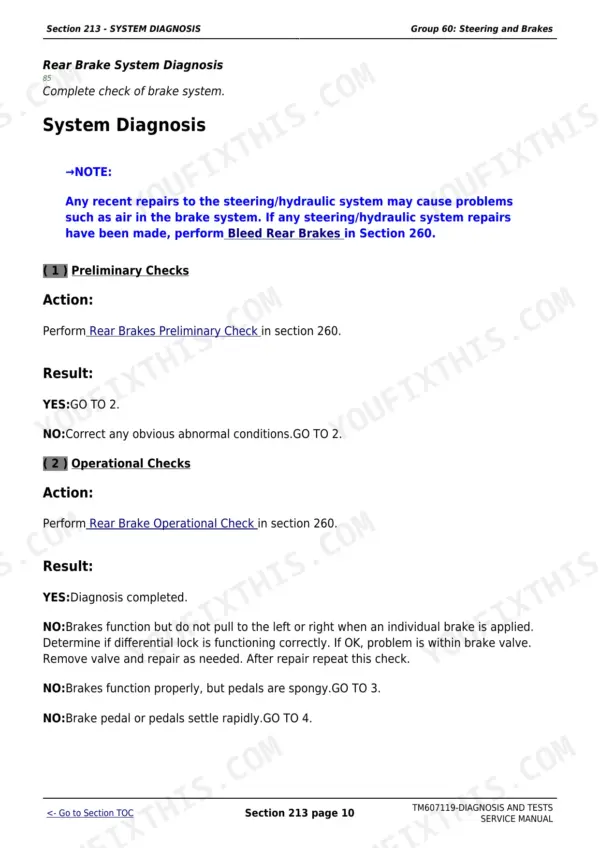

| System Diagnosis | 235-261 | Electrical System Diagnosis, PowrReverser Transmission Diagnosis, MFWD System, Rear Mechanical PTO, Steering and Brakes, Hydraulics, Operator Station |
| Engines | 262-269 | General Engine Specifications, Tractor-Specific Engine Information, Throttle Lever Adjustment, Engine Overview |

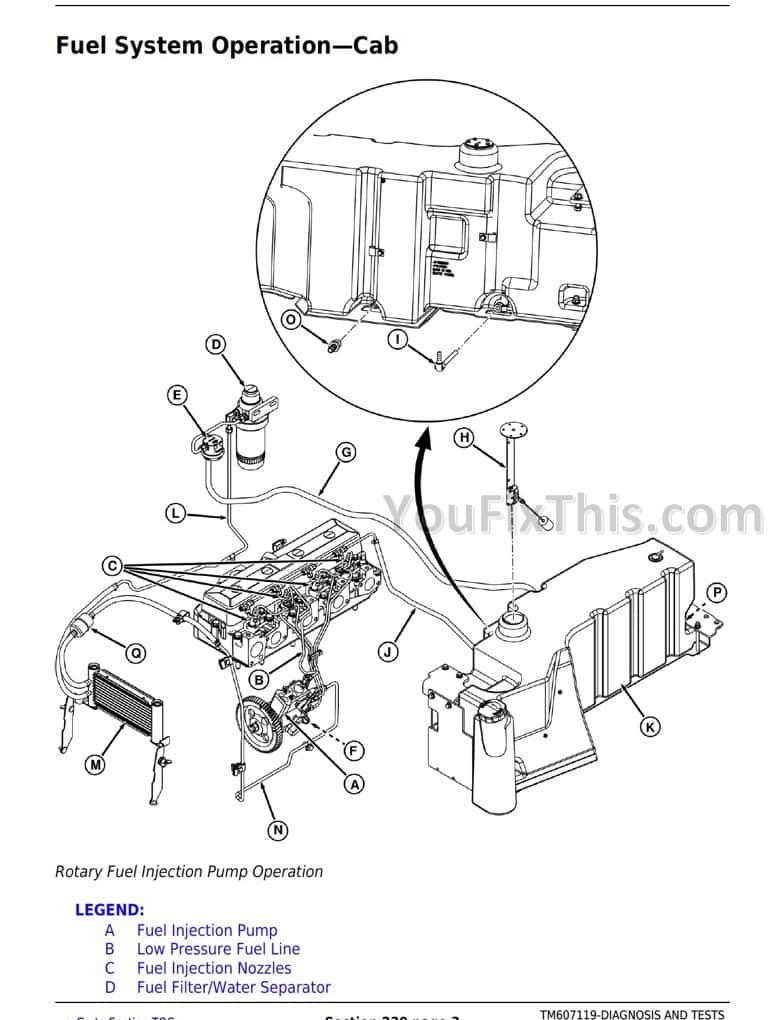

| Fuel and Air | 270-286 | Fuel System Operation (Cab and Open Station), Air Intake System Operation |

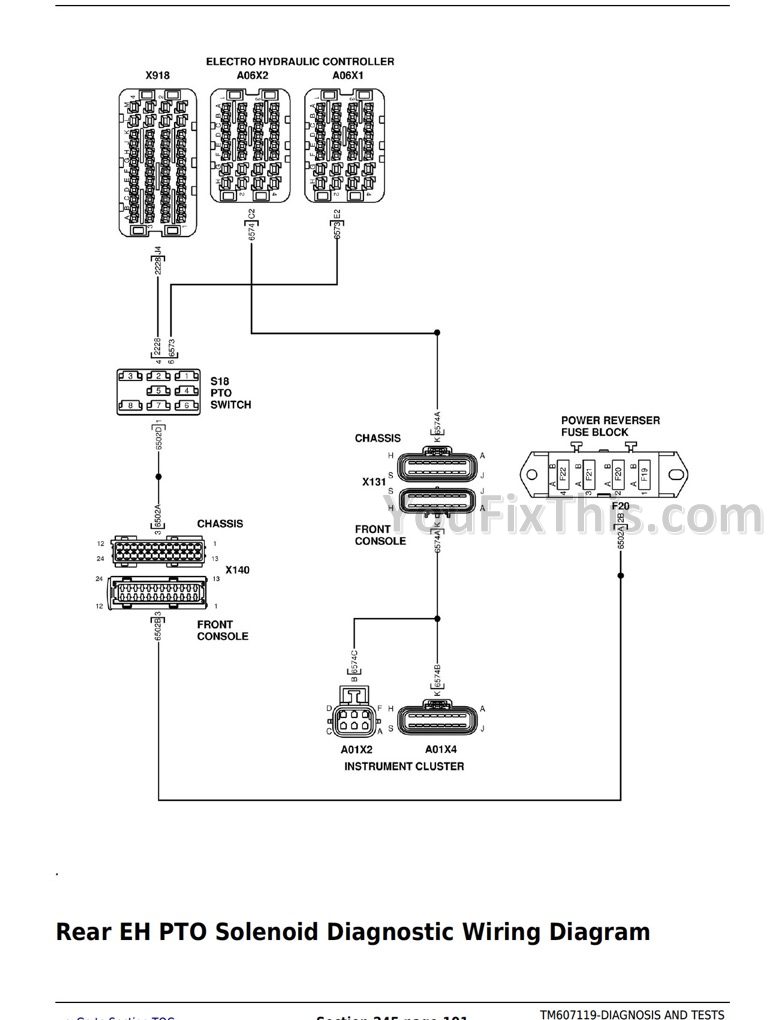

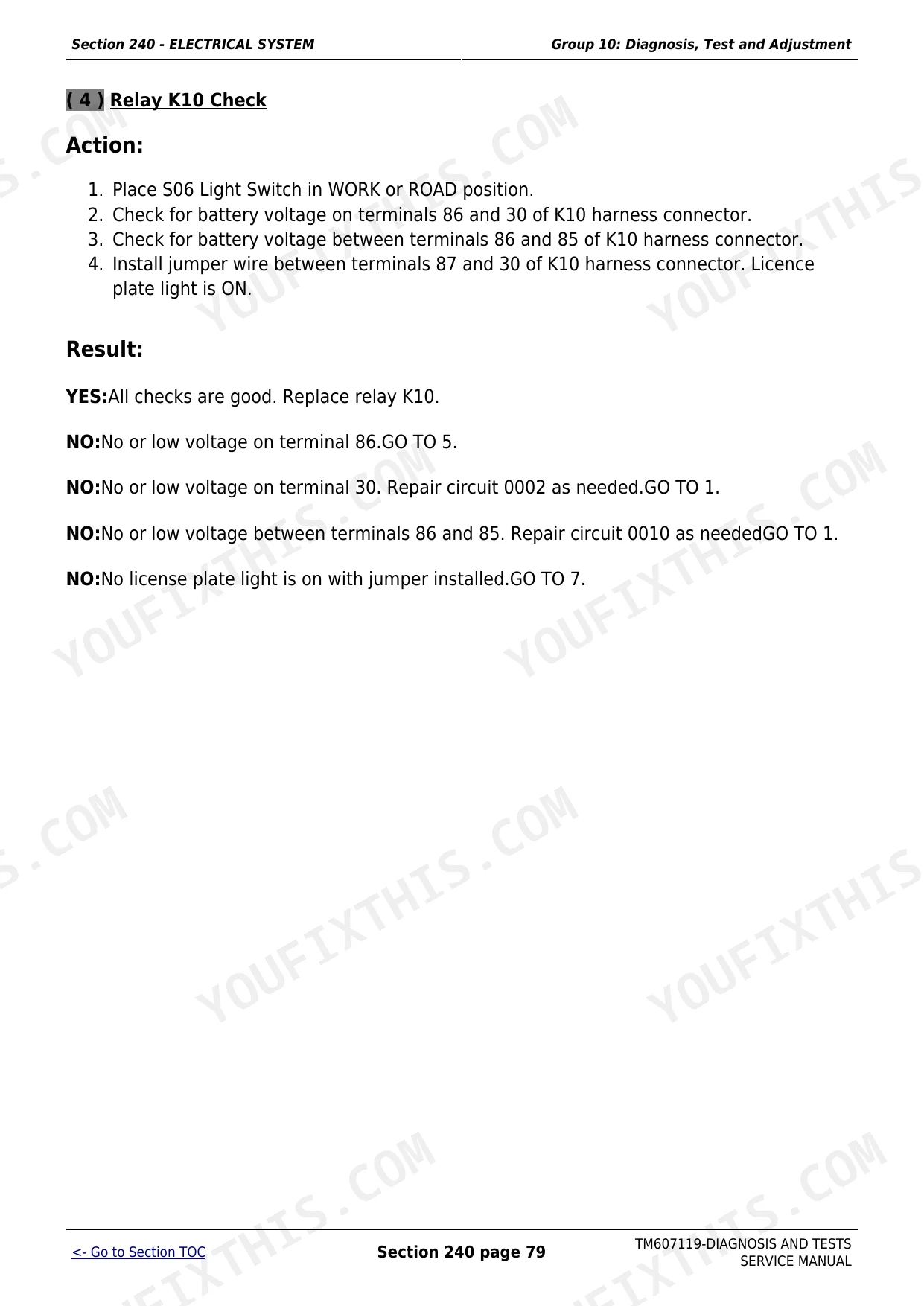

| Electrical System | 287-562 | Electrical Test Procedures, Connector and Circuit Checks, Wiring Schematics |
| Control Units | 563-780 | Electro-Hydraulic Controller, Performance Monitor, Diagnostic Trouble Code Listing, PRF/CCU/PTR Code Lists, Control Unit Addresses |
| Transmission | 781-853 | Transmission Preliminary and Operational Checks, Install Test Equipment, PowrReverser Control Valve Tests, Pump Flow Test, Main Pressure Relief Valve Adjustment, Theory of Operation |

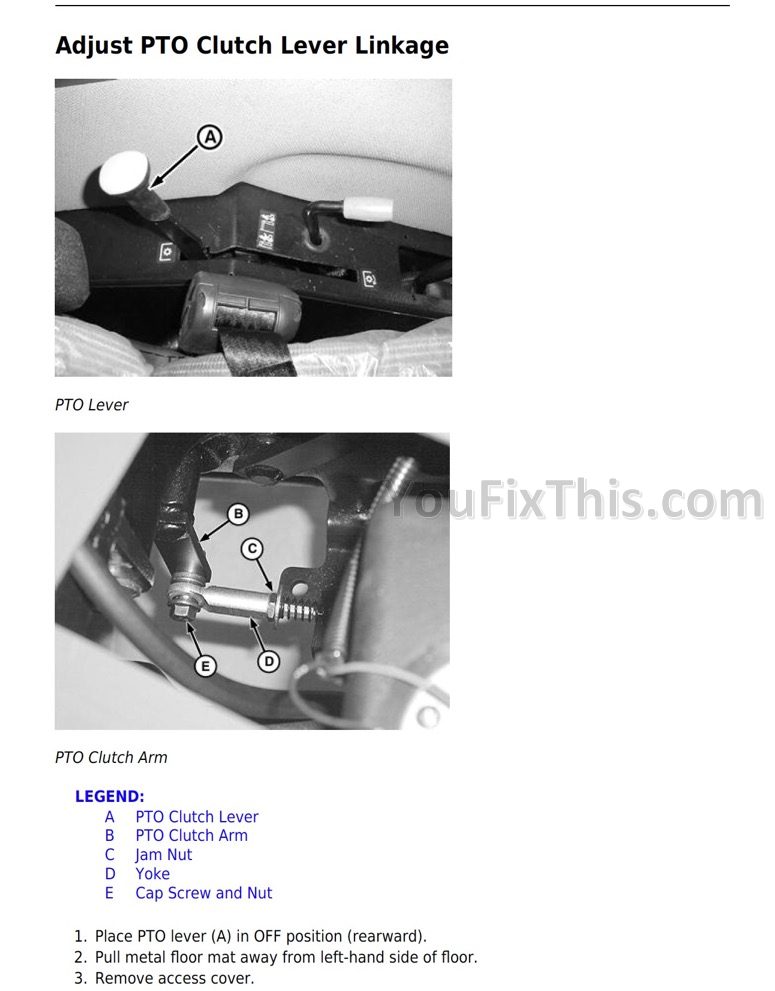

| Drive Systems | 854-888 | PTO Clutch Lever Linkage, Park Brake Band and Linkage Adjustment, Final Drive Components, Differential Power Flow, Differential Lock Operation |

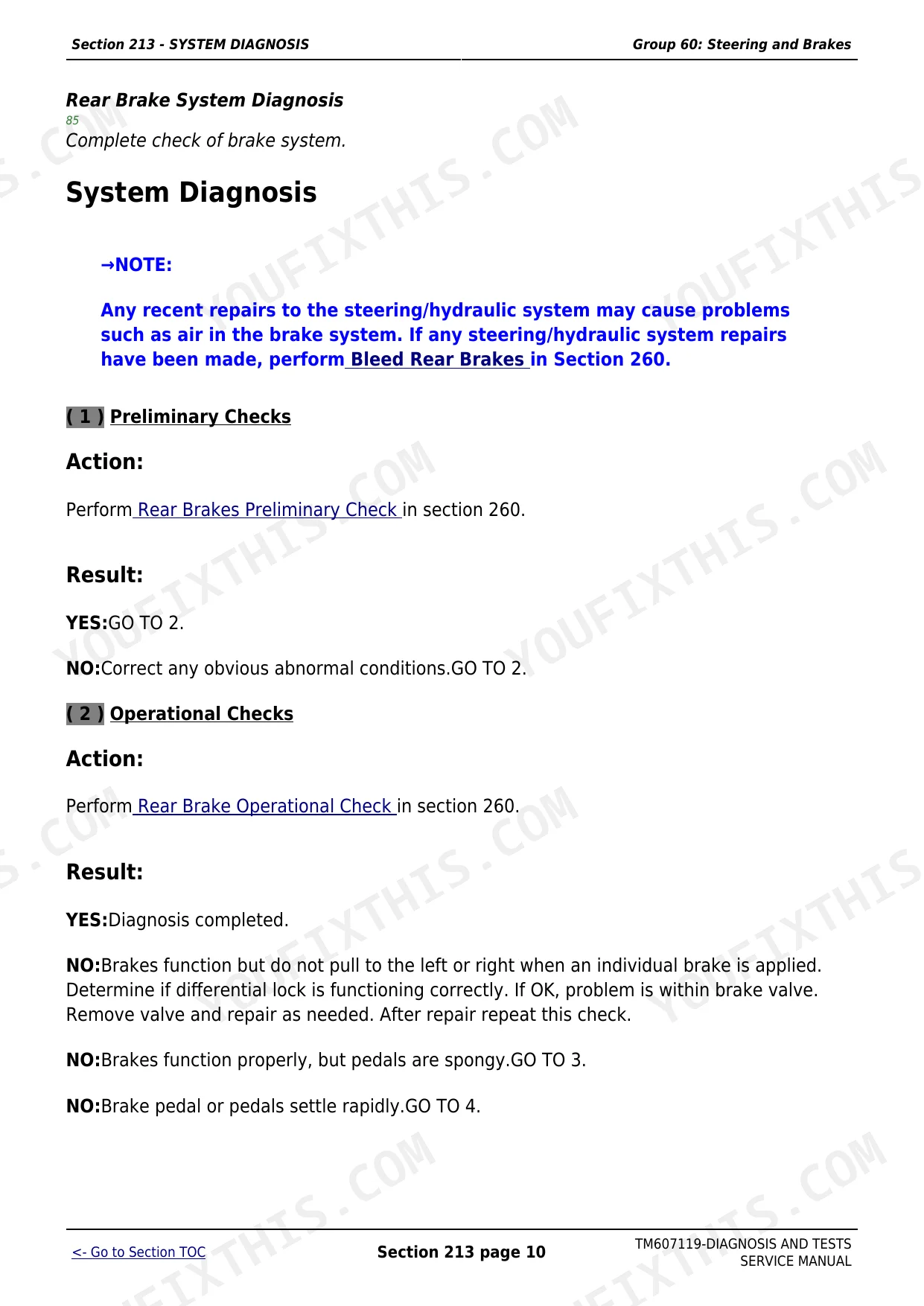

| Steering and Brakes | 889-920 | Steering Valve Operation (Neutral, Manual and Power Turning), Brake System and Brake Valve Operation |
| Hydraulics | 921-1010 | Rockshaft Position-Sensing Feedback Linkage Adjustment, Hydraulic System, Filter and Pump Operation, Rockshaft Control Valve Operation, Surge Relief Valve |
| Operator Station | 1011-1066 | Air Conditioning Refrigerant Circuit, Compressor, Condenser, receiver/dryer, Expansion Valve, Thermostat Switch, Evaporator, high/low Pressure Switch |
| Service Tools | 1067-1090 | Dealer-Fabricated Tools, Service Tools and Kits |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Hydraulic pump flow rate | 47.6 - 60 L/min (12.6 - 16 gpm) | p. 936 |
| Main relief valve pressure | 18995 - 19685 kPa (190 - 197 bar) (2755 - 2855 psi) | p. 939 |
| Rockshaft load-sense relief valve pressure | 18995 - 19685 kPa (190 - 197 bar) (2755 - 2855 psi) | p. 940 |
| Hitch settling check (wear limit) | 50 mm cylinders: max drop 3.0 mm (0.12 in.) in 15 minutes | p. 926 |
| Hydraulic pressure bleed-down time | minimum 5 seconds to drop below 3450 kPa (34.5 bar) (500 psi) | p. 941 |
| Rockshaft position-sensing feedback linkage | vertical distance 416 +/- 4 mm (16.400 +/- 0.157 in.) | p. 952 |
| Hydraulic trailer brake pilot pressure | 1200 - 1400 kPa (12 - 14 bar) (174 - 203 psi) | p. 958 |
| Steering relief valve pressure | 13000 - 13500 kPa (130 - 135 bar) (1885 - 1960 psi) | p. 900 |
| Steering flow rate | 19.1 - 24.9 L/min (5.0 - 6.6 gpm) | p. 899 |
| Brake retractor adjustment pressure | 10000 kPa (100 bar) (1450 psi) | p. 907 |
| PowrReverser pump flow at 2400 rpm | 26.6 L/min (7.03 gpm) | p. 806 |
| PowrReverser main relief valve pressure | 2000 kPa (20 bar) (290 psi) | p. 809 |
| Forward high clutch fill pressure adjustment range | 51 - 500 kPa (0.51 - 5.00 bar) | p. 734 |
| PowerShuttle minimum wheel-speed fill pressure | 095 - 270 kPa (0.95 - 2.70 bar) | p. 741 |
| Transmission forward/reverse solenoid | 1.0 - 1.5 A energized, coil resistance 12.0 - 18.0 Ohms | p. 518 |
| Clutch enable proportional valve coil resistance | 5.5 - 9.0 Ohms | p. 468 |
| Power shuttle control voltage (low range) | 0.95 V fully counterclockwise to 3.85 V fully clockwise | p. 506 |
| Alternator output | 70 A at 13.2 V (open station) / 90 A at 13.2 V (cab) | p. 301 |
| Alternator regulated voltage | 14.2 - 14.8 V (minimum 10 A at 2400 rpm) | p. 302 |
| CAN bus voltages | CAN Hi circuit 914: 2.50 - 3.50 V; CAN Lo circuit 915: 1.50 V and up | p. 605 |
| Sensor supply voltage (key in RUN, engine off) | 4.80 - 5.20 V | p. 471 |
| Rear PTO solenoid coil resistance | 8.0 - 14.0 Ohms | p. 501 |
| Engine coolant temperature reading range (CCU address 065) | -40 to 125 C (-40 to 257 F) | p. 640 |
| Rear PTO speed reading (CCU address 058) | 0 - 1200 rpm | p. 637 |
| Air conditioning compressor clutch air gap | 0.35 - 0.65 mm (0.014 - 0.026 in.) | p. 1039 |
| A/C test coupling valve stem depth | 7 - 7.6 mm (0.275 - 0.300 in.) | p. 1036 |
John Deere 5083E / 5093E Common Problems This Manual Covers
PowrReverser is slow to engage, slips under load, or shifts harshly between forward and reverse.
The Transmission section walks you through preliminary and operational checks, installing test equipment, and the PowrReverser control valve tests. Verify pump flow (26.6 L/min at 2400 rpm) and main relief (20 bar), then check the forward high clutch fill pressure against its 51-500 kPa adjustment range. Electrically, the forward/reverse solenoids should draw 1.0-1.5 A energized with 12.0-18.0 ohm coils.
Manual Section: Transmission (pages 781-853) and Control Units p. 806Hitch will not lift, lifts slowly, or drops on its own with an implement attached.
The Hydraulics section covers pump and filter operation, rockshaft control valve operation and the surge relief valve. Test pump flow against 47.6-60 L/min and main relief against 190-197 bar, run the hitch settling check (max 3.0 mm drop in 15 minutes on 50 mm cylinders), and set the position-sensing feedback linkage to 416 +/- 4 mm if position control is off.
Manual Section: Hydraulics (pages 921-1010) p. 936Battery goes flat, charge light stays on, or electrical gremlins across the cluster and controllers.
System Diagnosis and the Electrical System section give the test procedures, connector checks and full wiring schematics. Verify alternator output (70 A open station / 90 A cab at 13.2 V) and regulated voltage of 14.2-14.8 V, then check sensor supply (4.80-5.20 V, key in RUN) and CAN bus levels (CAN Hi 2.50-3.50 V) before condemning a control unit.
Manual Section: Electrical System (pages 287-562) p. 301Cab air conditioning blows warm on a 5083E/5093E with a cab.
The Operator Station section covers the whole refrigerant circuit: compressor, condenser, receiver/dryer, expansion valve, thermostat switch, evaporator and the high/low pressure switch. Check the compressor clutch air gap against 0.35-0.65 mm and the test coupling valve stem depth of 7-7.6 mm before connecting gauges, then work the circuit component by component.
Manual Section: Operator Station (pages 1011-1066) p. 1039Frequently Asked Questions
Does this manual list the John Deere 5083E and 5093E error codes, and how do I read them?
Yes. The Control Units section carries the full diagnostic trouble code listing for the CCU (Chassis Control Unit) and PTR (Power Train Reverser) controller, plus the code-by-code diagnostic procedures in the Diagnostic Trouble Codes section. Better than the codes alone is the address workflow: you call up live values on the display by CCU or PTR address - for example address 065 shows engine coolant temperature from -40 to 125 C, and address 058 shows rear PTO speed from 0 to 1200 rpm. That means you watch what the sensor actually reports instead of guessing whether it failed. p. 637
How do I reset the error codes or the dashboard on a 5093E?
Straight answer: there is no magic reset that fixes anything. A CCU or PTR code that keeps coming back has a live cause, and this manual is built to find it - each code has a diagnostic procedure that walks the circuit with a meter. Clear the fault (a chafed wire, a bad connector, a solenoid out of the 8.0-14.0 ohm range on the rear PTO, for example) and the code stops setting. The book gives you the connector and circuit checks and the wiring schematics to do exactly that. p. 501
Are torque specs and general machine specifications in this book?
Be honest with yourself before buying: no. This is a Diagnosis and Tests manual, and it explicitly sends you to the Operator's Manual for general machine specifications. Rebuild torque values live in the separate repair manual, and some deep transmission work points to the PowrReverser CTM. What this book carries instead are test specifications - pressures, flows, voltages, resistances, adjustment values - which is what you need to decide whether a component is bad before you ever pick up a torque wrench. p. 56
What actual test numbers will I get for the hydraulics and transmission?
Real ones you can put a gauge on today. Hydraulic pump flow is 47.6-60 L/min (12.6-16 gpm) and main relief pressure is 18995-19685 kPa (190-197 bar, 2755-2855 psi). The PowrReverser has its own circuit: pump flow 26.6 L/min at 2400 rpm and main relief at 2000 kPa (20 bar, 290 psi). Steering relief is 130-135 bar with 19.1-24.9 L/min flow. There is even a hitch settling wear limit - a 50 mm cylinder may drop no more than 3.0 mm in 15 minutes - so you can judge internal leakage without opening anything. p. 936
Do the procedures fit my exact tractor? Mine is a 2015 build.
Check your PIN first - this matters. The procedures throughout the book are split by serial number break: PM builds (-009999) and PY builds (010000-) get separate steps, wiring and values in many sections. Follow the wrong branch and you will chase a test value that was never right for your machine. The manual covers both branches for the 5083E and 5093E across the 2010-2017 run, cab and open station, including separate fuel system operation coverage for each station type. p. 809
