Part of the John Deere Repair Manuals.
This is the full repair manual for the John Deere 5083E, 5093E and 5101E utility tractors, including the narrow EN orchard variants (61 kW/82 hp, 68 kW/91 hp and 74 kW/99 hp per the factory 97/68/EC ratings). It covers teardown and rebuild of the PowerTech 4.5L diesel, PowrReverser and PowrQuad transmission overhaul, MFWD front axle and final drives, hydrostatic steering, wet-disc brakes, hydraulic pump, rockshaft, SCVs and three-point hitch, plus wiring harness, cab, HVAC and sheet metal. Every job comes with torque values, specs and the dealer-fabricated tool drawings you need to do it right. Note: this is the repair book - diagnostic codes and tests live in the companion Diagnosis manual.
What's Inside This John Deere 5083E, 5093E, 5101E Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 8-101 | Machine and Engine Specifications, Torque Values, Fuel and Lubricants, Serial Numbers |

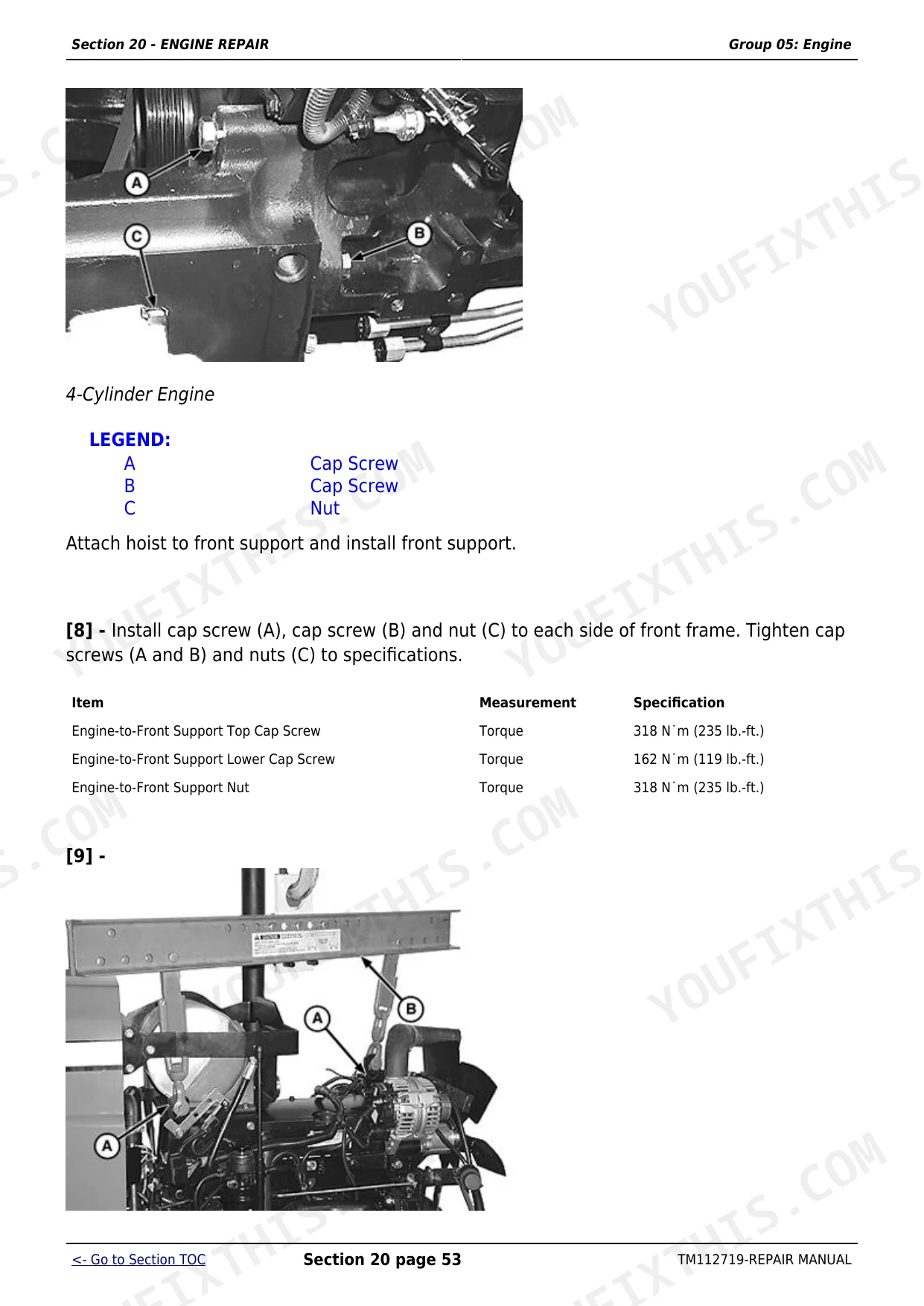

| Engine Repair | 102-204 | PowerTech 4.5L Diesel Engine Removal, Teardown and Rebuild |
| Fuel and Air Repair | 205-268 | Fuel Injection, Air Intake and Cooling System Repair |

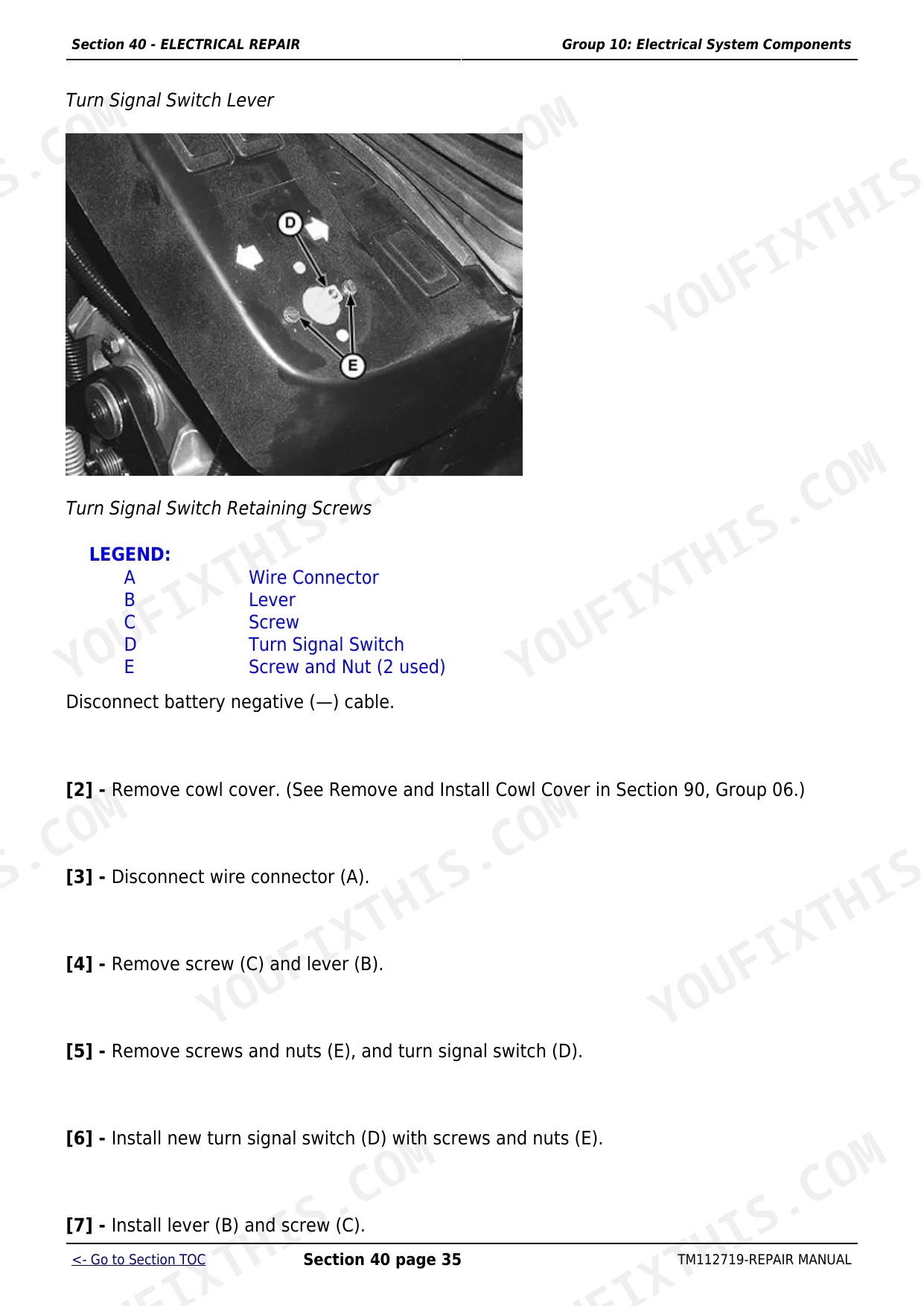

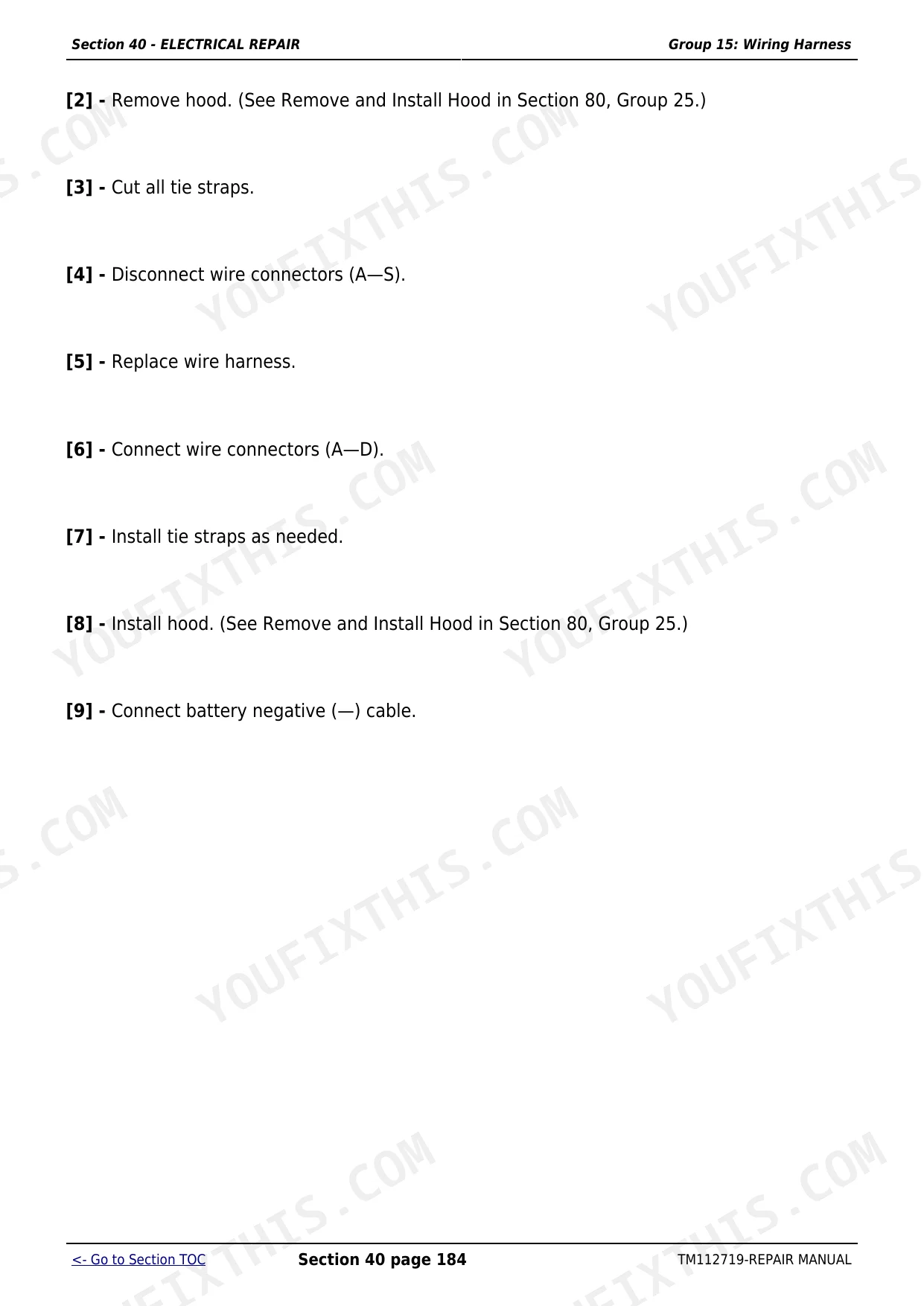

| Electrical Repair | 269-481 | Alternator, Starter, Batteries, Instruments and Wiring Harness Repair |
| Power Train Repair | 482-717 | PowrReverser and PowrQuad Transmission Overhaul, Clutch and Shifting |
| Drive System | 718-854 | MFWD Front Axle, Differential and Final Drive Service |
| Steering and Brake Repair | 855-930 | Hydrostatic Power Steering and Wet-Disc Brake Service |
| Hydraulic Repair | 931-1123 | Hydraulic Pump, Rockshaft, SCV and Three-Point Hitch Repair |
| Miscellaneous Repair | 1124-1158 | Miscellaneous Procedures and Accessories |
| Operator Station Repair | 1159-1344 | Operator's Cab, HVAC, Controls and Sheet Metal |
| Dealer Fabricated Tools | 1345-1349 | Dealer-Fabricated Special Service Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| General | ||
| PTO Type 1 Diameter | 35 mm (1.378 in.) | p. 34 |
| PTO Type 1 n ± 5 mm (0.20 in.) | 85 mm (3.35 in.) | p. 34 |
| PTO Type 2 Diameter | 35 mm (1.378 in.) | p. 34 |
| PTO Type 2 n ± 5 mm (0.20 in.) | 85 mm (3.35 in.) | p. 34 |
| PTO Type 3 Diameter | 45 mm (1.772 in.) | p. 34 |
| PTO Type 3 n ± 5 mm (0.20 in.) | 100 mm (4.00 in.) | p. 34 |
| 5083EN | ||
| Engine (Factory observed per 97/68/EC ISO industry standard) (±3%) | 61 kW (82 hp) | p. 37 |
| 5093EN | ||
| Engine (Factory observed per 97/68/EC ISO industry standard) (±3%) | 68 kW (91 hp) | p. 37 |
| 5101EN | ||
| Engine (Factory observed per 97/68/EC ISO industry standard) (±3%) | 74 kW (99 hp) | p. 37 |
John Deere 5083E, 5093E, 5101E Common Problems This Manual Covers
Engine hesitation, low power or hard starting from water-contaminated or plugged fuel filters
The Fuel and Air Repair section covers the fuel injection and supply system: draining the separator, replacing primary and final filters, checking supply pressure to the injection pump and bleeding air out of the lines properly.
Manual Section: Fuel and Air RepairNoisy hydraulics with weak lift, usually cavitation from low fluid or leaking lines
The Hydraulic Repair section covers hydraulic pump removal and rebuild, rockshaft and SCV service, with the specs to verify pump output. Fix the leak and confirm fluid level first, then test against the manual's pressure figures.
Manual Section: Hydraulic RepairJerky or sticking three-point hitch cylinder from worn seals or a scored cylinder bore
The Hydraulic Repair section walks through rockshaft and three-point hitch teardown, replacing rod and piston seals, inspecting the cylinder body for scoring, and reassembling with correct torque values so lift is smooth again.
Manual Section: Hydraulic RepairOverheating and excess engine noise under load from restricted air filter elements
The Fuel and Air Repair section covers the air intake and cooling system: element removal and inspection, housing and ducting checks, plus cooling system service, so airflow restriction gets fixed before it costs you an engine.
Manual Section: Fuel and Air RepairFrequently Asked Questions
My 5093E hesitates and loses power under load. Does this manual cover the fuel system?
Yes. The Fuel and Air Repair section walks through the fuel injection system, filters and supply lines. On these tractors nine times out of ten it is water or restriction in the primary and final fuel filters, or low supply pressure to the injection pump. The manual shows removal, replacement and bleeding procedures so you can chase it down without guessing.
Can I rebuild the PowrReverser transmission with this manual, or is that dealer-only work?
You can do it. The Power Train Repair section covers complete PowrReverser and PowrQuad overhaul - clutch packs, shift components, disassembly and reassembly with the torque specs. It is a big job and you will want the dealer-fabricated tools shown in the last section, but the procedures are all here. Nothing in it requires factory software.
Does this manual include diagnostic trouble codes and circuit diagrams?
No, and better you know before buying. This is the repair volume: removal, teardown, rebuild and assembly. DTCs, operation-and-test procedures and full schematics are in the separate Diagnosis and Tests manual for these models. This book does cover physical electrical repair - alternator, starter, batteries, instruments and wiring harness replacement.
My three-point hitch is jerky and will not hold a load. Where do I start?
Start with the Hydraulic Repair section. It covers the rockshaft, SCVs, hydraulic pump and three-point hitch. Jerky movement usually traces to worn rod or piston seals in the lift cylinder, or scoring inside the pump. Before tearing in, check fluid level - low oil causes cavitation noise and weak lift, and the manual's specs tell you what pressures to expect.
Which exact tractors does this manual fit, and does it cover the narrow orchard models?
It covers the 5083E, 5093E and 5101E, and the same procedures apply to the 5083EN, 5093EN and 5101EN narrow orchard variants - same PowerTech 4.5L engine and drivetrain, narrower track. The General Information section lists serial number locations so you can confirm your unit before you order parts.
