This is TM607019, the factory repair manual for John Deere 5083E and 5093E utility tractors built from 2008 to 2013 - 1103 pages of teardown and reassembly work. It walks the Tier 3 PowerTech diesel from cylinder head to crankshaft, covers the PowrReverser transmission, MFWD, brakes, power steering, the open-center hydraulics with rockshaft and SCV, plus cab, HVAC and operator station. Section 10 alone runs over a hundred pages of specs: capacities, dimensions, repair tolerances, and full metric and inch torque charts. Section 99 even includes drawings so you can fabricate the dealer service tools yourself. One note up front: this is the repair book. Diagnostics and full wiring schematics live in its sibling, TM607119.
What's Inside This John Deere 5083E-5093E Repair Manual

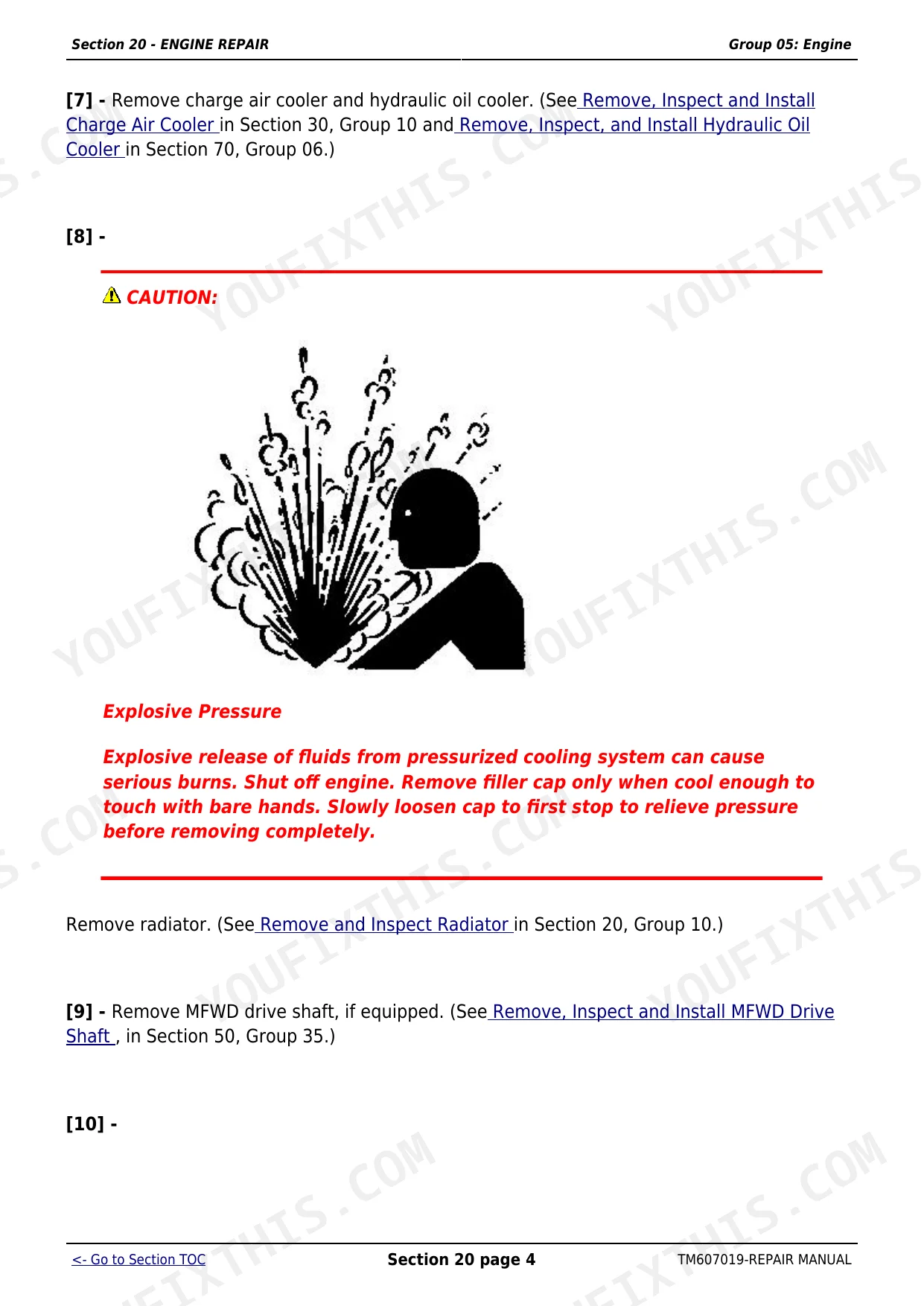

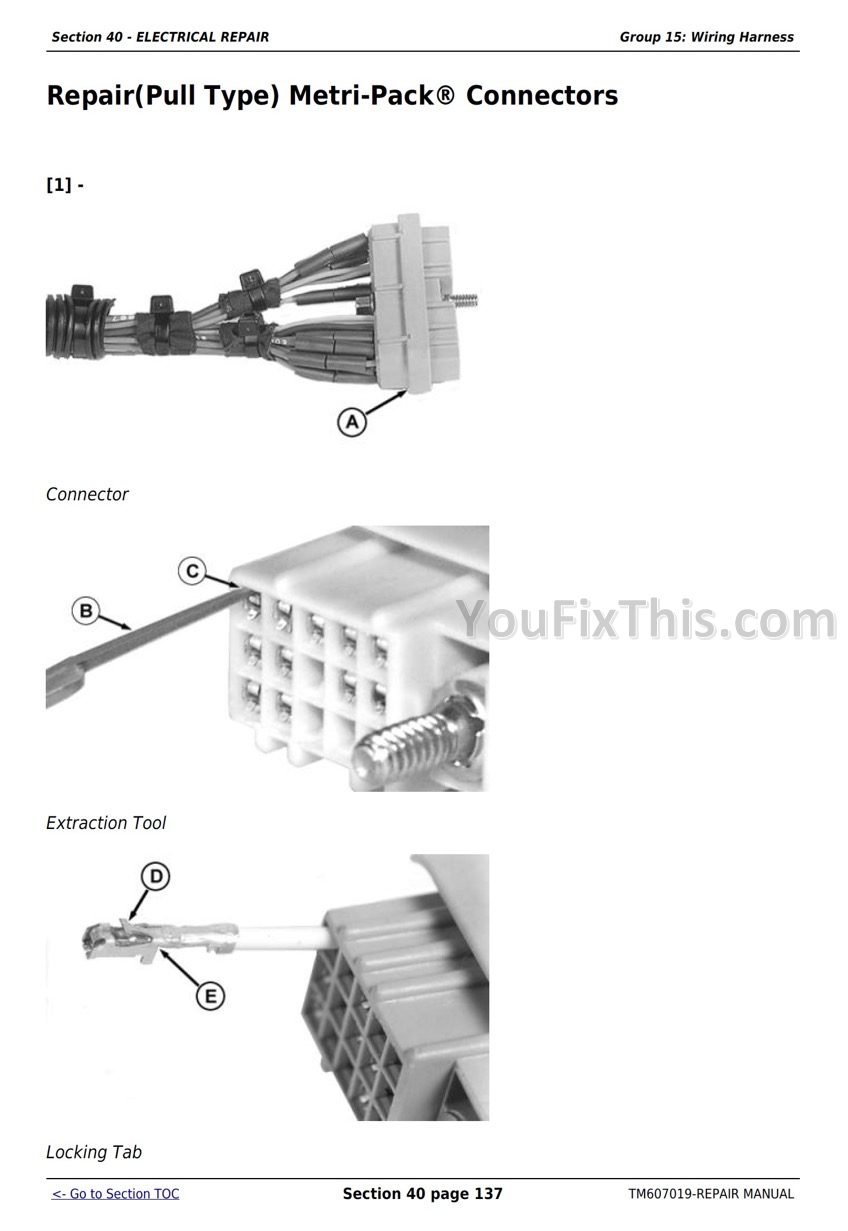

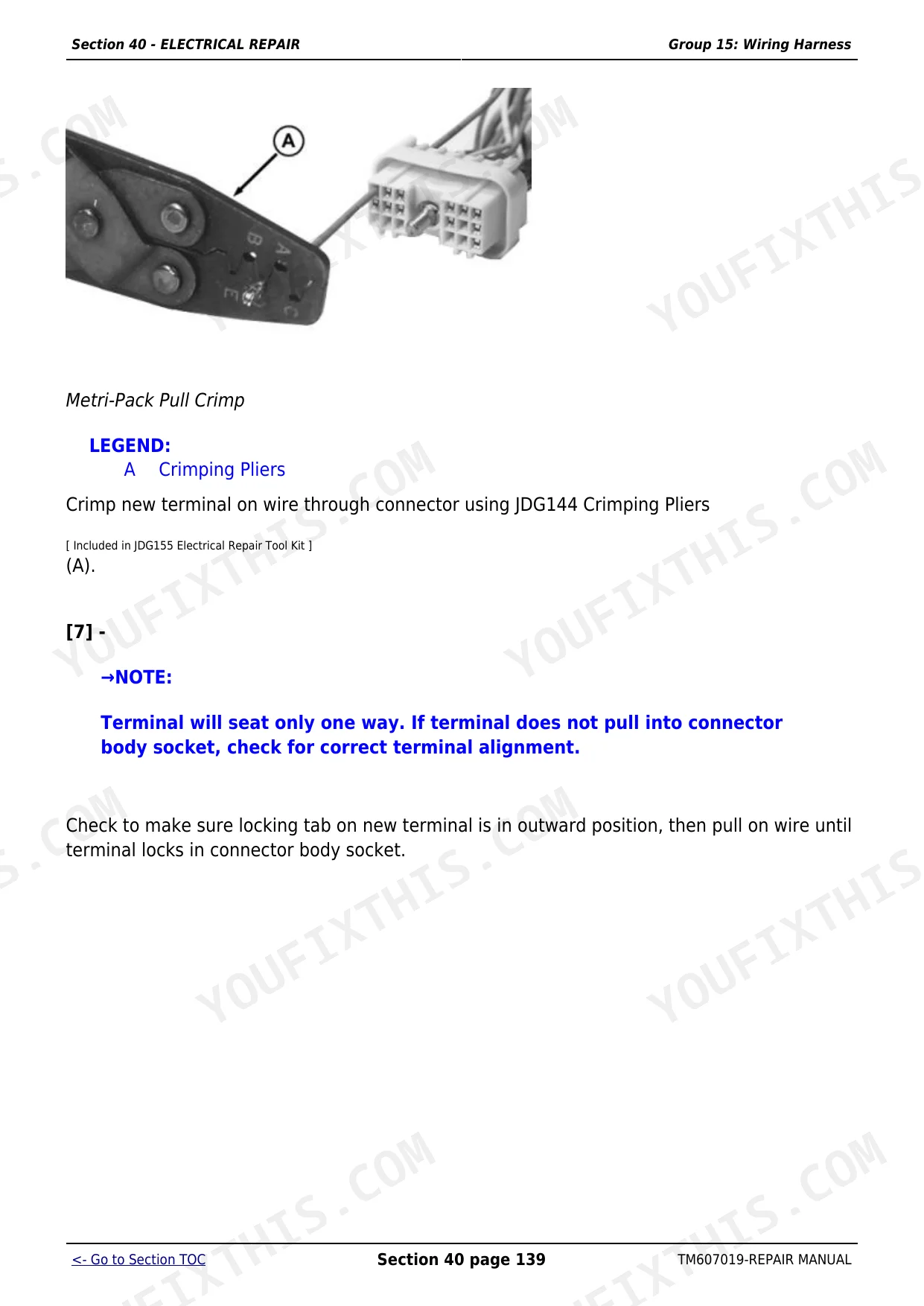

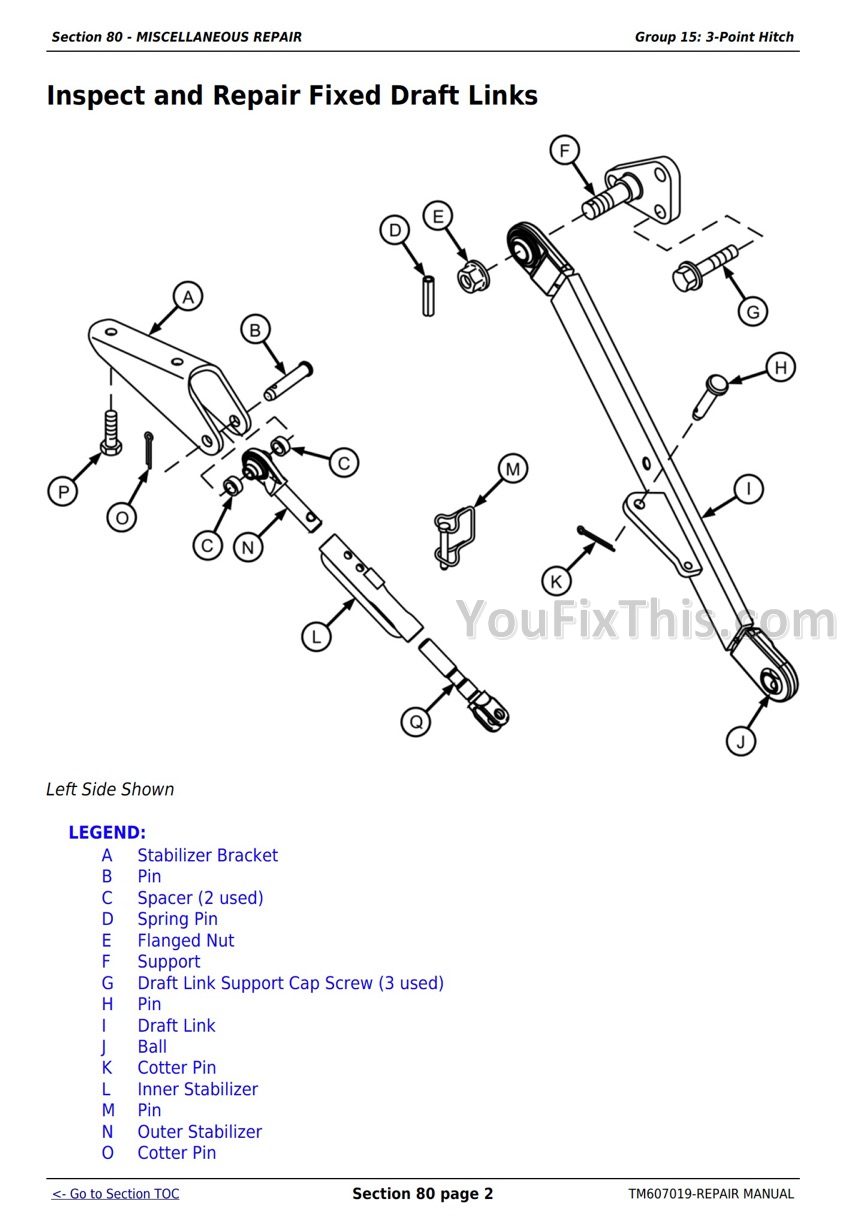

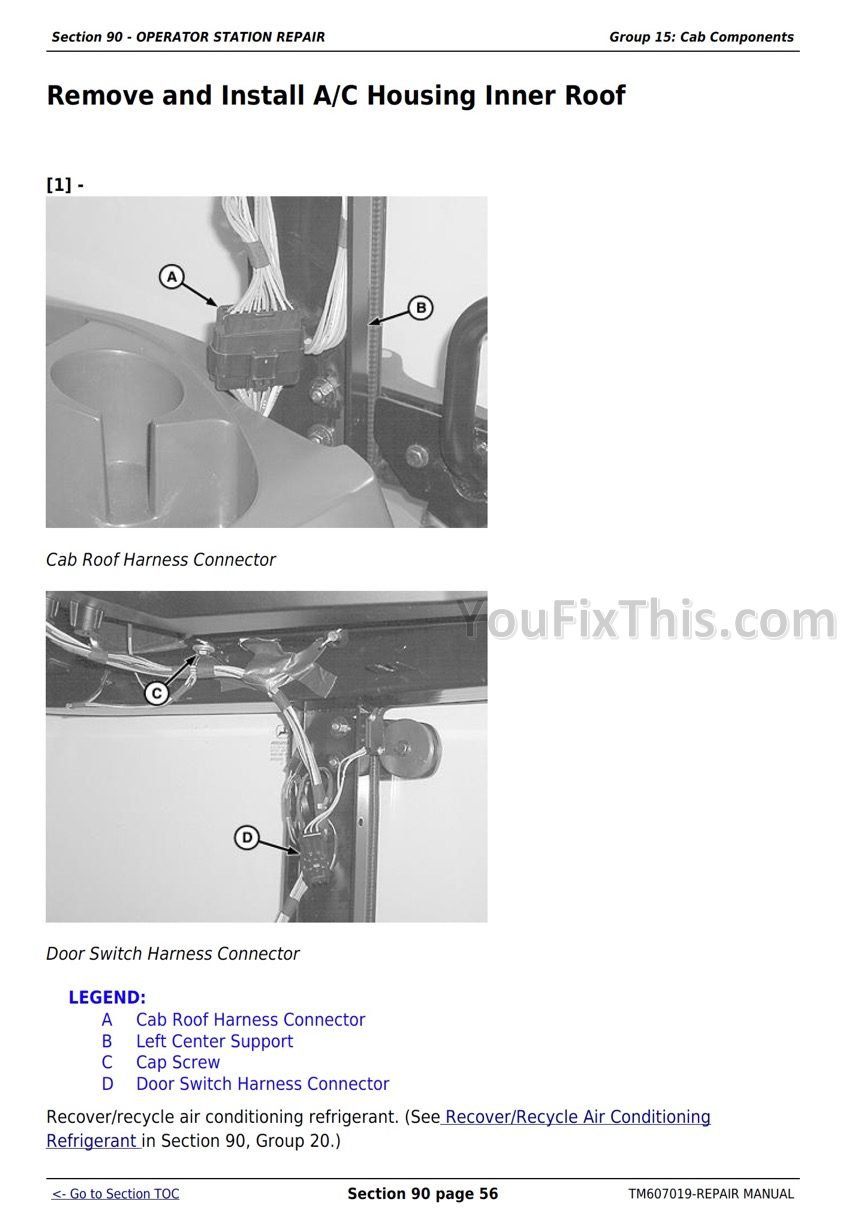

| System | Pages | Key Topics |
|---|---|---|
| General Information | 8-121 | General Specifications, Machine Specifications and Dimensions, Capacities, Repair Specifications, Metric and Inch Torque Value Charts |
| Engine Repair | 122-176 | Engine Disassembly and Assembly, Cylinder Head, Pistons, Crankshaft, Timing, PowerTech Diesel |
| Fuel and Air Repair | 177-230 | Fuel Injection, Fuel Filters, Air Intake, Turbocharger Service |
| Electrical Repair | 231-406 | Electrical Component Repair, Wiring Harness Replacement, Alternator, Starter, Lighting |
| Power Train Repair | 407-628 | Clutch, PowrReverser Transmission, MFWD, Differential, Final Drives |
| Steering and Brake Repair | 629-686 | Power Steering, Steering Cylinder, Brakes, Brake Valve |
| Hydraulic Repair | 687-861 | Hydraulic Pump, SCV, Rockshaft and Hitch, Hydraulic Cylinders |
| Miscellaneous Repair | 862-909 | Frame, Hitch, PTO, Ballast, Miscellaneous Components |
| Operator Station Repair | 910-1100 | Cab, Seat, HVAC, Controls, Instrument Panel |
| Dealer Fabricated Tools | 1101-1103 | Dealer Fabricated Service Tool Drawings |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 5083E | ||
| Engine Power at 2400 rpm (Tier 3) | 61.5 kW (82 hp) | p. 57 |
| PTO Power at 2400 rpm (Tier 3) | 51 kW (68 hp) | p. 57 |
| Maximum Torque (Tier 3) | 313 Nm | p. 57 |
| Unladen Mass (OOS) | 2685 kg (5919 lb) | p. 63 |
| Unladen Mass (Cab) | 3044 kg (6710.8 lb) | p. 65 |
| 5093E | ||
| Engine Power at 2400 rpm (Tier 3) | 69 kW (92 hp) | p. 57 |
| PTO Power at 2400 rpm (Tier 3) | 59 kW (79 hp) | p. 57 |
| Maximum Torque (Tier 3) | 353 Nm | p. 57 |
| Unladen Mass (OOS) | 2910 kg (6415 lb) | p. 63 |
| Unladen Mass (Cab) | 3234 kg (7129.7 lb) | p. 65 |
| All models | ||
| Engine Operating Speed Range | 1600-2400 rpm | p. 57 |
| Fuel Tank Capacity | 126 L (33 U.S. gal) | p. 61 |
| Cooling System Capacity | 10.8 L (11.4 U.S. qt.) | p. 61 |
| Crankcase Capacity (including filter) | 13 L (13.7 U.S. qt.) | p. 61 |
| Transmission/Hydraulic System Capacity (PowrReverser™) | 43.5 L (11.5 gal) | p. 61 |
| MFWD Wheel Hubs Capacity | 0.6 L (0.6 U.S. qt.) | p. 61 |
| MFWD Axle Housing Capacity | 5 L (5.2 U.S. qt.) | p. 61 |
| Hydraulic Flow Rate (Steering) | 24.9 L/min (6.6 gpm) | p. 59 |
| Hydraulic Flow Rate (Implement) | 60.2 L/min (15.9 gpm) | p. 59 |
| Hydraulic System Maximum Pressure (Steering) | 12997-13500 kPa (130-135 bar) (1885-1958 psi) | p. 60 |
| Hydraulic System Maximum Pressure (Implement) | 18995-19692 kPa (190-197 bar) (2755-2856 psi) | p. 60 |
| Hitch Lift Capacity | 1530 kg (3374 lb) | p. 60 |
| SCV Flow Rate | 60.2 l/min (15.9 gpm) | p. 60 |
| Standard Wheelbase (OOS) | 2180 mm (85.8 in) | p. 62 |
| Overall Length (OOS, Including draft links) | 3797 mm (149.5 in) | p. 62 |
| Overall Width Maximum (OOS, tires) | 2296 mm (90.4 in) | p. 62 |
| Height to Top of Hood (OOS) | 1730 mm (68 in) | p. 62 |
| Height to Top of Steering Wheel (OOS) | 1970 mm (77.5 in) | p. 62 |
| Height to Top of ROPS (OOS) | 2608 mm (102.7 in) | p. 62 |
| Overall Width (Cab, outside edge of tires, 44-in.tread setting) | 2100 mm (82.6 in) | p. 64 |
| Cab Width at Belt Line (Cab, Front) | 1118 mm (44.0 in) | p. 64 |
| Cab Width at Belt Line (Cab, Rear) | 1754 mm (69.0 in) | p. 64 |
| Cab Width Across Fenders (Cab) | 1870 mm (73.6 in) | p. 64 |
| Cab Width Below Roof (Cab, Front) | 2424 mm (95.4 in) | p. 64 |
| Cab Width Below Roof (Cab, Rear) | 2369 mm (93.2 in) | p. 64 |
| Cab Roof Width (Cab) | 1723 mm (67.8 in) | p. 64 |
| Height From Ground (Cab, To top of cab) | 2584 mm (101.7 in) | p. 64 |
| Height From Centerline of Rear Axle (Cab, To top of cab) | 2123 mm (83.5 in) | p. 64 |
John Deere 5083E-5093E Common Problems This Manual Covers
Ignition fuse blows at key-on, then no start, no RPM reading, neutral light and PTO drop out
Nine times out of ten on these it's a shorted cold start sensor that has fried the two center console relays and the diode block beside them. Section 40 Electrical Repair covers replacing the sensor, relays, diode block and any cooked harness sections, with connector repair procedures included.
Manual Section: Section 40 - ELECTRICAL REPAIREngine runs rough, misfires, or burns oil between services
Rough running with oil consumption on the PowerTech diesel usually comes down to worn rings or hardened valve stem seals. Section 20 Engine Repair walks the full teardown - cylinder head, valves, pistons, rings and crankshaft - with wear limits and reassembly torques so you know whether parts are reusable.
Manual Section: Section 20 - ENGINE REPAIRHydraulics sluggish or dead - slow rockshaft, weak loader, hard steering under load
Contaminated or low fluid quietly eats the pump and valves on these. Section 70 Hydraulic Repair covers pump removal and rebuild, SCV service, rockshaft and hitch repair, and cylinder resealing. Cross-check your readings against the spec sheet: implement circuit should hold 18995-19692 kPa (2755-2856 psi) at relief.
Manual Section: Section 70 - HYDRAULIC REPAIRClutch slipping or PowrReverser shifting harsh, jumping out of gear
Section 50 Power Train Repair is the biggest section in the book at over 200 pages, covering clutch replacement and adjustment, PowrReverser transmission disassembly and reassembly, MFWD, differential and final drives. It includes the clearances and torques that separate a lasting rebuild from a comeback job.
Manual Section: Section 50 - POWER TRAIN REPAIRFrequently Asked Questions
My 5083E blows the ignition fuse at key-on, then I lose RPMs, the neutral light and the PTO. Does this manual help?
That pattern is the known one on these tractors: a shorted cold start sensor takes out the two center console relays and the diode block next to them. Section 40 (Electrical Repair, pages 231-406) covers replacing those components and the wiring harnesses. Keep in mind the fault-tracing flowcharts and full schematics are in the diagnosis manual TM607119 - this book is for the actual replacement work once you know what died.
Does this manual include the full wiring schematics?
No, and it's worth being straight about that. Deere split these tractors into two books: this repair manual (TM607019) has wiring harness replacement procedures, connector work, alternator, starter and lighting repair in Section 40. The complete electrical schematics and diagnostic procedures are in the diagnosis manual, TM607119. If you're chasing a gremlin, you may want both. If you already know the part that failed, this book gets it swapped correctly.
Are torque specs included for engine and transmission work?
Yes. Section 10 has the general metric and inch torque value charts, and every repair procedure in Sections 20 through 90 lists its own fastener torques inline - head bolts, main caps, transmission housing, final drives, the lot. That's the real value of the factory book over guessing from a generic chart: the spec sits right in the step where you need it, with the tightening sequence where one applies.
Can I use this to reset error codes on the display?
Code reading, code definitions and reset procedures are diagnosis-manual territory (TM607119), not this book. What this repair manual does cover is the instrument panel itself - removal, replacement and repair of the cluster and controls in Section 90 (Operator Station, pages 910-1100), plus the electrical component repair behind it in Section 40. So: codes tell you what's wrong, this book tells you how to fix it.
Which tractors exactly does this cover, and does it handle both cab and open station?
It covers the 5083E (61.5 kW / 82 hp) and 5093E (69 kW / 92 hp), model years 2008-2013, in both open operator station and cab configurations. Section 10 lists specs for each separately - for example unladen mass runs 2685 kg for an OOS 5083E up to 3234 kg for a cab 5093E - and Section 90 covers the full cab, seat, HVAC and controls for cab units.
