Wrenching on a Deere crawler? This 857-page John Deere 350C, 350D, 355D Technical Manual PDF (OEM TM1115) walks you through the crawler bulldozer and crawler loader, from track systems to backhoe hydraulics. You get factory wiring diagrams for the charging, lighting, and harness circuits, hydraulic schematics for the loader, dozer, winch, and backhoe, plus a full System Testing section with operational checkout procedures for the engine, power train, and electrical system. Page after page of torque tables runs from M5 hardware up to 1-1/4 inch bolts. Set axle shaft end play at 0.001 to 0.005 inch, and pressure-test the power shift clutch for leakage at 10 psi before you button it back up. No more chasing wiring faults with a multimeter and a prayer. Bookmarked with a full text layer; jump to any section or type the spec you need.
What's Inside This John Deere 350C, 350D, 355D Manual
| System | Pages | Key Topics |
|---|---|---|
| Technical Manual | 1-2 | General Information, Tracks, Axles and Suspension System, Transmission, Engines, Engine Auxiliary Systems, Equipment Attaching, Electrical System |
| General Information | 5-36 | Introduction and Safety, Specifications, Torque Values, Fuels and Lubricants, Inspection Procedures |
| Tracks | 37-102 | Track Systems, Specifications and Special Tools |
| Axles and Suspension System | 103-138 | Drive Axle Housing and Support, Differential or Bevel Drive, Input Drive Shafts, Axle Shaft, Bearings and Reduction Gears, Specifications and Special Tools |
| Transmission | 139-184 | Controls, Housings and Covers, Gears, Shafts, Bearings and Power Shift Clutch, Transmission Hydraulics, Specifications and Special Tools |
| Engine | 185-313 | Crankshaft and Main Bearings, Camshaft and Valve Actuating Means, Connecting Rods and Pistons, Cylinder Block, Carburetor, Governor, Engine Oiling System, Ventilating System |
| Engine Auxiliary Systems | 314-329 | Cold Weather Starting Aids, Engine Cooling Systems, Intake System, External Fuel Supply Systems, Specifications and Special Tools |
| Equipment Attaching | 330-339 | Drawbar, Hitches and Hitch Pins, Specifications and Special Tools |
| Electrical System | 340-397 | Batteries, Supports and Cables, Alternator, Regulator and Charging System Wiring, Lighting System, Wiring Harness and Switches, System Controls, Instruments and Indicators |
| Frame, Chassis, or Supporting Structure | 398-406 | Engine or Main Frame, Frame Bottom Guards, Chassis Weights |
| Sheet Metal | 407 | Hood or Engine Enclosure, Grille and Grille Housing |
| Operator’S Station | 408-433 | Safety Equipment, Comfort and Convenience Items, Operator Enclosure, Seat |
| Main Hydraulic System | 434-449 | Hydraulic System, Specifications and Special Tools |
| Winch | 450-481 | Controls Linkage, Housing and Mounting Structure, Winch Drive and Clutches, Winch Hydraulic System, Specifications and Special Tools |
| Loader | 482-519 | Buckets, Forks, Controls Linkage, Loader Frames, Loader Hydraulics, Specifications and Special Tools |
| Dozer | 520-549 | Blade, Controls Linkage, Main Frame, Moveable Frames, Specifications and Special Tools |
| Backhoe | 550-661 | Bucket, Controls Linkage, Frames, Hydraulic System, Specifications and Special Tools |
| Log Arch | 662-665 | Frames |
| PTO and Winch Drive | 666-673 | Controls Linkage, Housing and Mounting Structure, Winch Drive and Clutches, Winch Hydraulic System, Specifications and Special Tools |
| Miscellaneous | 674-681 | Output Shaft or Pulley, Specifications and Special Tools |
| Ground Conditioning Tool | 682-693 | Teeth and Shanks, Frame, Hydraulic System, Specifications and Special Tools |
| SYSTEM TESTING | 694-857 | Operational Checkout Procedure, Engine Testing, Electrical System Testing, Power Train Testing, Hydraulic System Testing, Miscellaneous Components |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

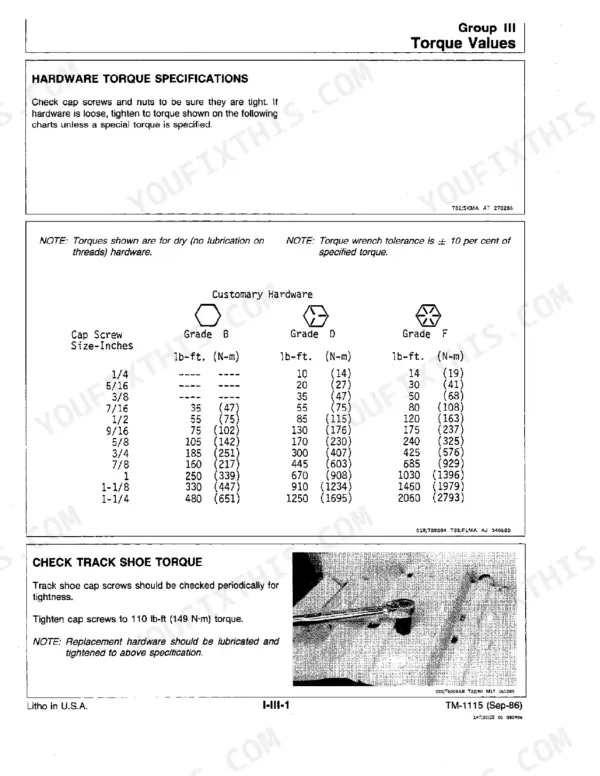

| Hardware Torque Specifications (Customary Hardware) | 10 lb-ft to 2060 lb-ft (14 N-m to 2793 N-m) | p. 19 |
| Metric Hardware Torque Chart (Standard Thread) | 6 N-m to 1180 N-m (5 lb-ft to 870 lb-ft) | p. 20 |
| Tube and Hose Fitting Torque | 8 N-m to 217 N-m (6 lb-ft to 160 lb-ft) | p. 22 |
| Clutch leakage test pressure | 10 psi (1 kg/cm²) | p. 127 |
| Axle shaft end play | 0.001 to 0.005 inch (0.3 to 0.13 mm) | p. 121 |
| Rolling torque with new bearings | 90 to 115 lb-in (1.0 to 1.3 kg-m) | p. 122 |
| Engine Horsepower | 48 hp | p. 15 |
| Cooling System Capacity | 3.25 gal | p. 16 |
| Fuel Tank Capacity | 22 gal | p. 16 |
| Engine Crankcase Oil Capacity | 9 qt | p. 16 |
| Track Shoe Bolt Torque | 110 lb-ft | p. 19 |
| Standard Grouser Height | 1.58 in. | p. 46 |
John Deere 350C, 350D, 355D Common Problems This Manual Covers

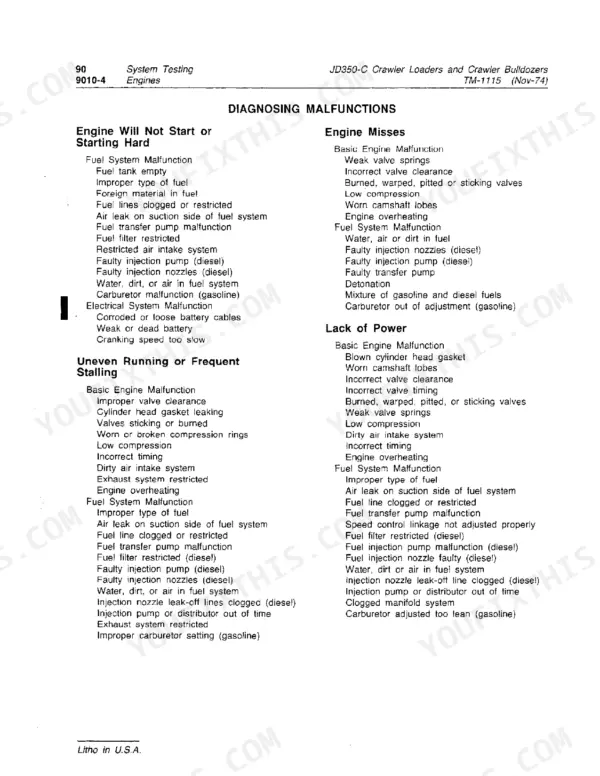

John Deere 350C engine starts fine then dies after a few minutes, restarts and stalls again
Check the return line check valve first; the ball check sticks and blocks fuel return, starving the engine. Remove the valve, clean the ball and spring, and verify free movement. Confirm the 22 gal fuel tank has fuel and inspect the fuel filter. Work through the engine troubleshooting charts starting if stalling continues.
Manual Section: Engine TroubleshootingMachine drifts to one side, steering lever pulls hard and won't disengage the clutch fully
Test the steering clutch for internal leakage before pulling anything apart. Regulate 10 psi (1 kg/cm²) of air pressure into the clutch system with the needle valve open, following the procedure on page 127. Escaping air means worn discs or piston seals. Adjust the brake bands first; if drift returns quickly, plan a clutch pack replacement.
Manual Section: Axles and Suspension System p. 127Final drive housing runs hot and leaks gear oil at the axle seal
Drain the final drive and inspect the oil for metal. Replace seals and bearings as a set, then measure axle shaft end play; the spec is 0.001 to 0.005 inch on page 121. Verify rolling torque during reassembly: 90 to 115 lb-in with new bearings, 70 to 85 lb-in with used bearings, per page 122.
Manual Section: Axles and Suspension System p. 121Engine cranks slowly or refuses to start at all on cold mornings below freezing
Load-test the battery and clean both terminals before blaming the engine. Check the glow plug circuit for continuity and verify each plug heats. If cranking is strong but starting stays hard, run a compression test; healthy diesel cylinders read 350 psi, listed on page 832. Wiring checks for the starting circuit begin on page 340.
Manual Section: Electrical System p. 340Track keeps coming loose, throwing off the sprocket, grousers worn down flat
Measure grouser height before adjusting anything: new shoes measure 1.58 in. and the wear limit is 0.75 in., shown on page 46. Check track chain pitch against the 23.03 in. new spec on page 50 to catch stretched chains. Torque track shoe bolts to 110 lb-ft (149 N-m) per page 19 after any shoe work.
Manual Section: Tracks p. 46Loader bucket lifts slowly under load and blade drops instead of staying raised
Test system relief pressure first: loader circuits should hold 2250 psi, listed on page 846; bulldozer circuits hold 1750 psi, page 844. Low readings point to a worn pump or stuck relief valve. If functions drift down with the engine off, inspect cylinder packings and control valve spools for internal leakage past the seals.
Manual Section: Main Hydraulic System p. 434Frequently Asked Questions
What are the replacement specifications for the fuel filter?
For maximum filter life, sediment and water should not be more than 0.10 per cent. The cetane number should be 40 minimum. p. 23
What is the torque specification for the track shoe cap screws?
Track shoe cap screws should be checked periodically for tightness and tightened to 110 lb-ft (149 N-m) torque. p. 19
What is the correct engine oil pressure at normal operating temperature?
With the engine at normal operating temperature and running at 2500 rpm, the oil pressure reading should be 50 ± 15 psi (345 ± 103 kPa). p. 715
What is the correct fan belt tension for the engine?
The fan belt should be adjusted to 0.75 inch (19.05 mm) deflection when 20 pounds (89 N) of force is applied halfway between the pulleys. p. 716
What is the cylinder head bolt torque specification for the engine?
The cylinder head to block cap screw torque is 95 lb-ft (129 Nm). After 30 minutes of run-in at 3/4 to full load, loosen bolts 5 to 10 degrees and retighten one at a time to 95 lb-ft. p. 286
What do I get after purchasing this John Deere 350C, 350D, 355D manual?
A 857-page Technical Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
