Part of the John Deere manuals.
Every part on your 2001 John Deere 350D, 400D Articulated Dump Truck lives somewhere in this 509-page parts catalog PDF (OEM PC9106). You get exploded views with factory part numbers for the full drivetrain: clutch housing, torque converter, mid and rear axle differentials, front and rear suspension. Inside: engine breakdowns covering crankshaft, camshaft, cylinder block, and fuel injection pump, plus steering cylinders, service brakes, hydraulic tank lines, cab, and chassis assemblies, all cross-referenced through an alphabetical index running A to W. Ordering shims for the dump body hydraulic cylinder? The factory drawing calls out the 1 mm (.039 in.) solid shim; match the number, not your best guess. A wrong part number means a week waiting on the wrong box. Bookmarked and text-searchable; type the component name and land on the exact exploded view.
What's Inside This John Deere 350D, 400D Parts Manual
| System | Pages | Key Topics |
|---|---|---|

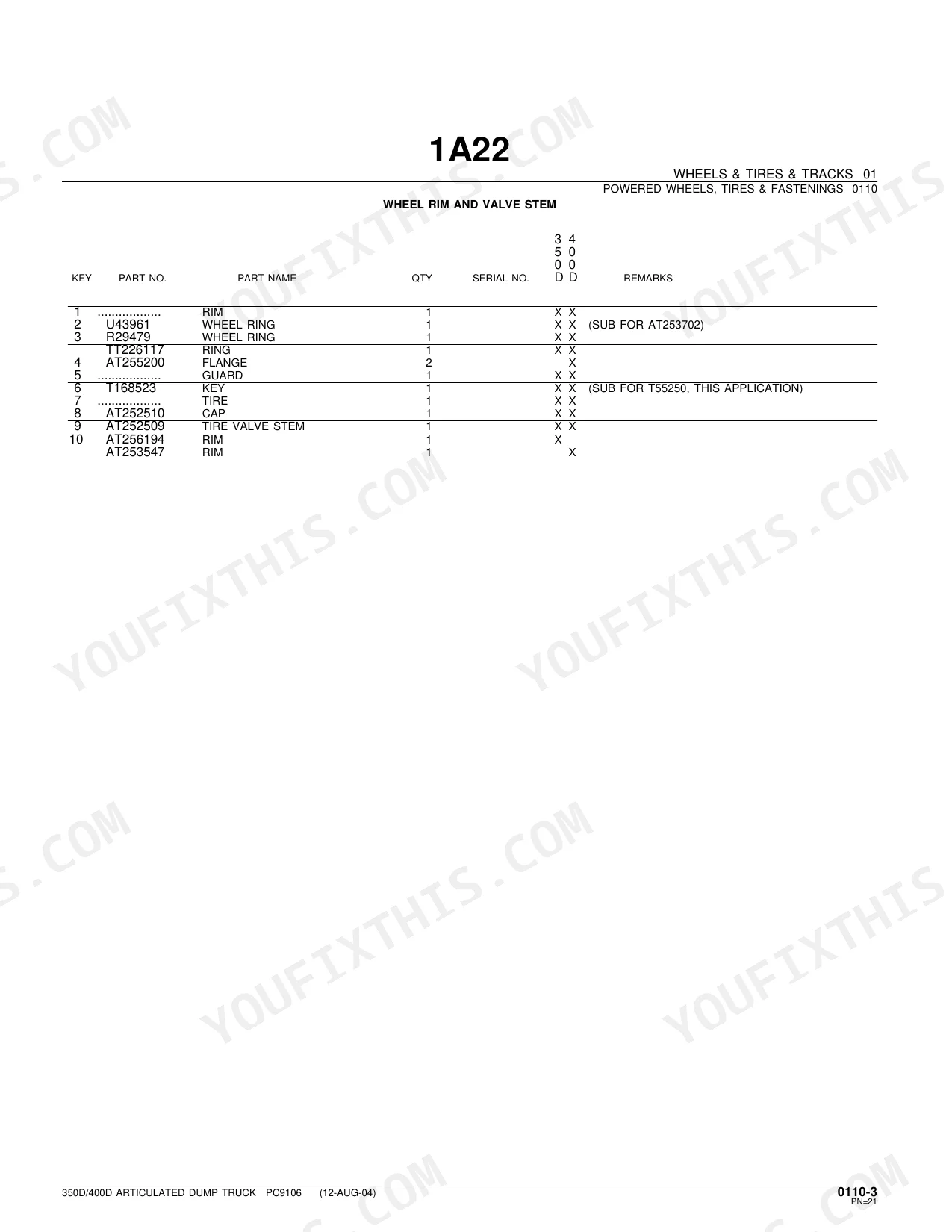

| Wheels, Tires, and Tracks | 19-23 | Wheel Rim, Valve Stem, Tire Inflation Kit |

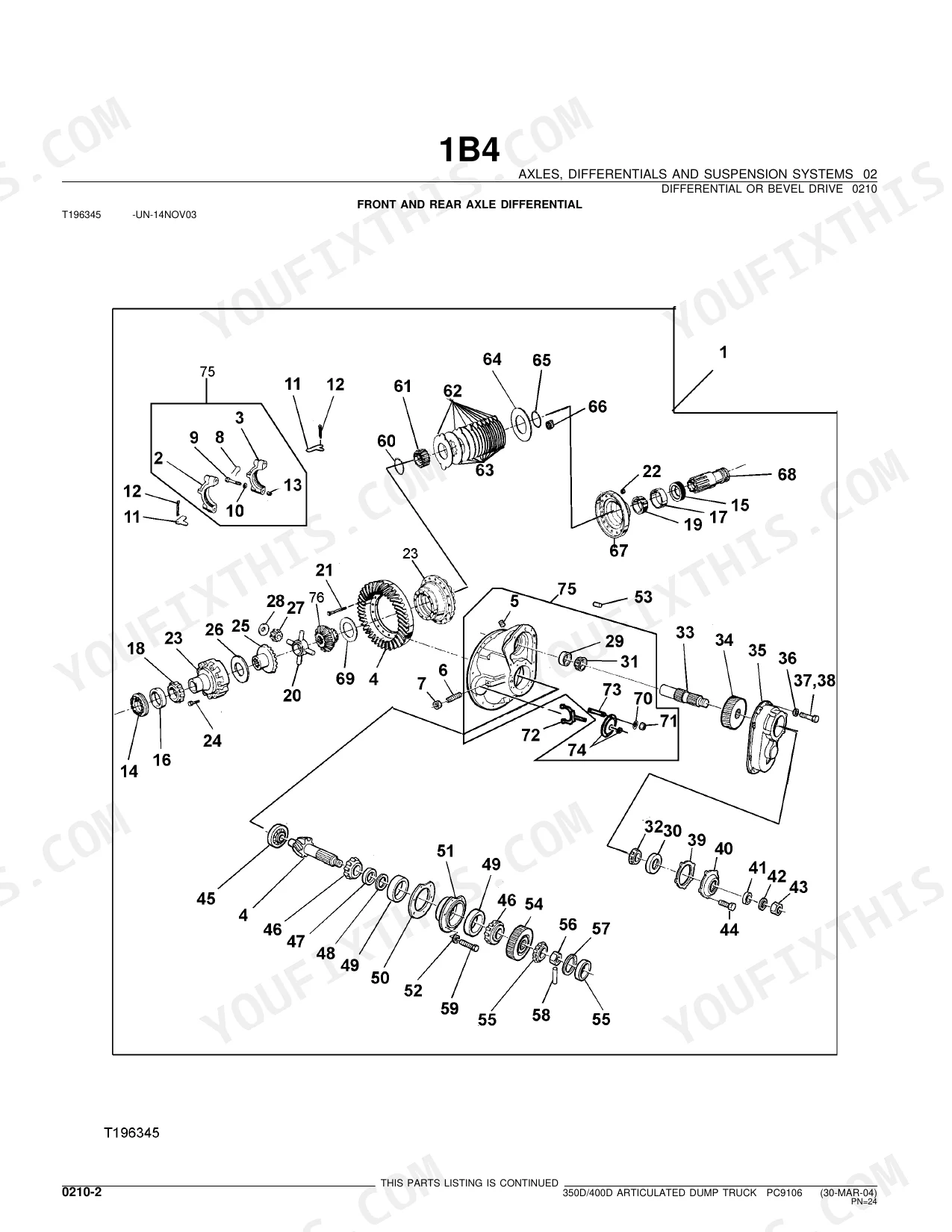

| Axles, Differentials, and Suspension Systems | 24-63 | Front and Rear Axle Differential, Mid Axle Differential, Front Suspension, Rear Suspension |
| Transmission | 64-105 | Clutch Housing, Wear Plate, Shaft, Torque Converter, Control Valve |

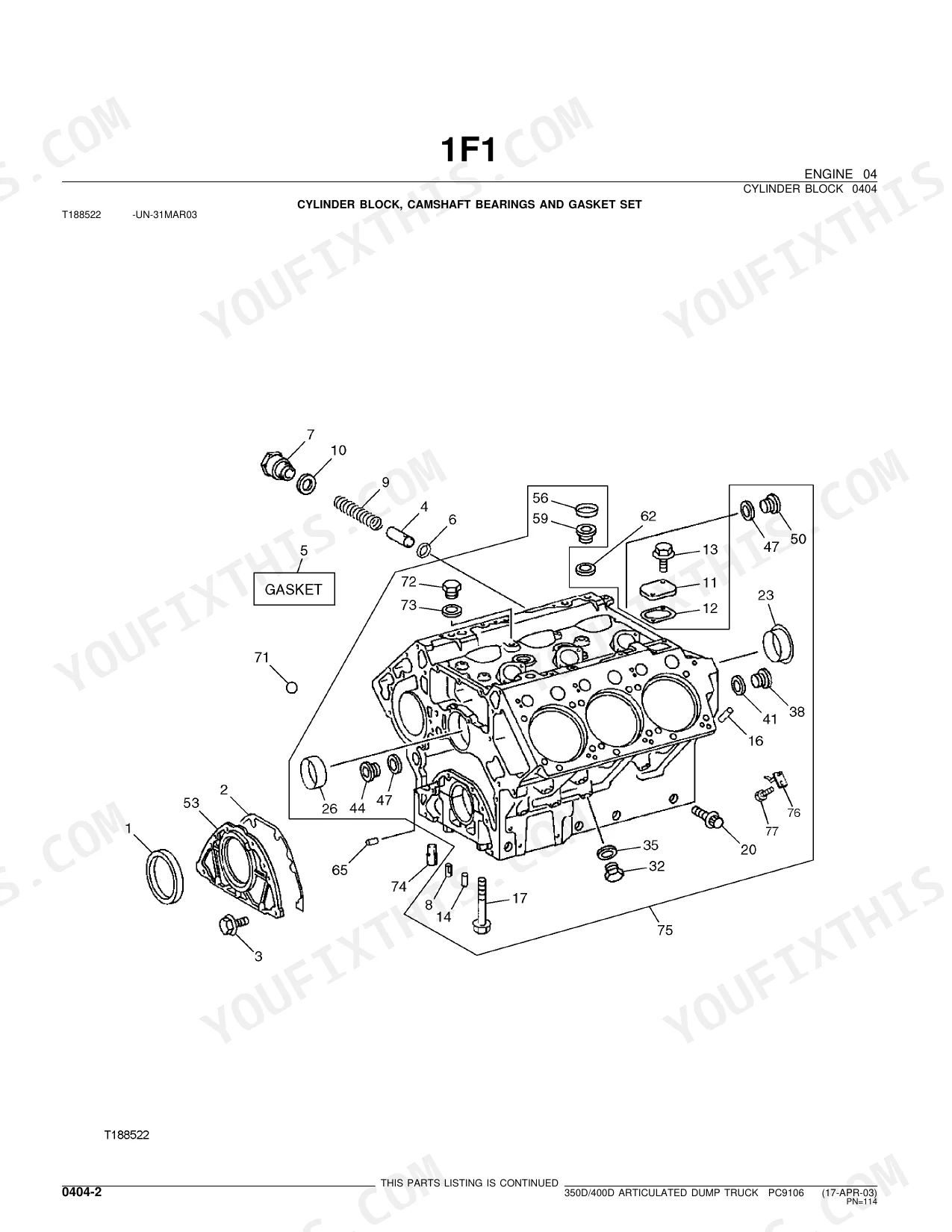

| Engine | 106-159 | Crankshaft, Camshaft, Cylinder Block, Oil Pan, Fuel Injection Pump, Alternator, Flywheel |
| Engine Auxiliary Systems | 160-213 | Engine Block Heater, Radiator, Air Intake System, Muffler, Exhaust Manifold, Fuel Tank |
| Vehicle Hydraulics and Brakes | 214-255 | Steering Cylinders, Service Brakes, Hydraulic Lines, Accumulator, Hydraulic Tank |
| Parking and Emergency Brakes | Parking Brake Active Elements | |
| Miscellaneous Vehicle | Decals and Trademarks | |
| Vehicle Electrical Systems | - | |

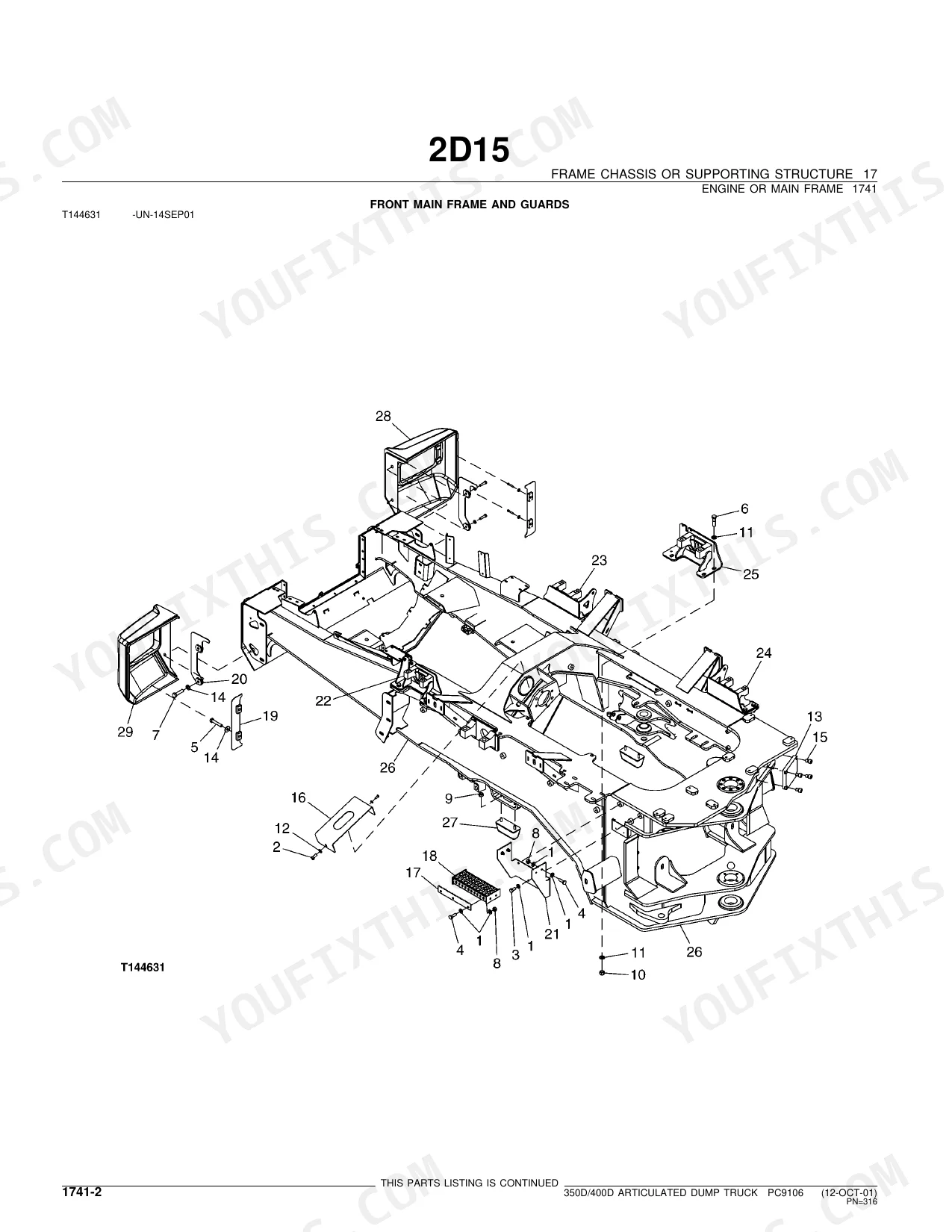

| Frame, Chassis and Supporting Structure | Engine or Main Frame | |

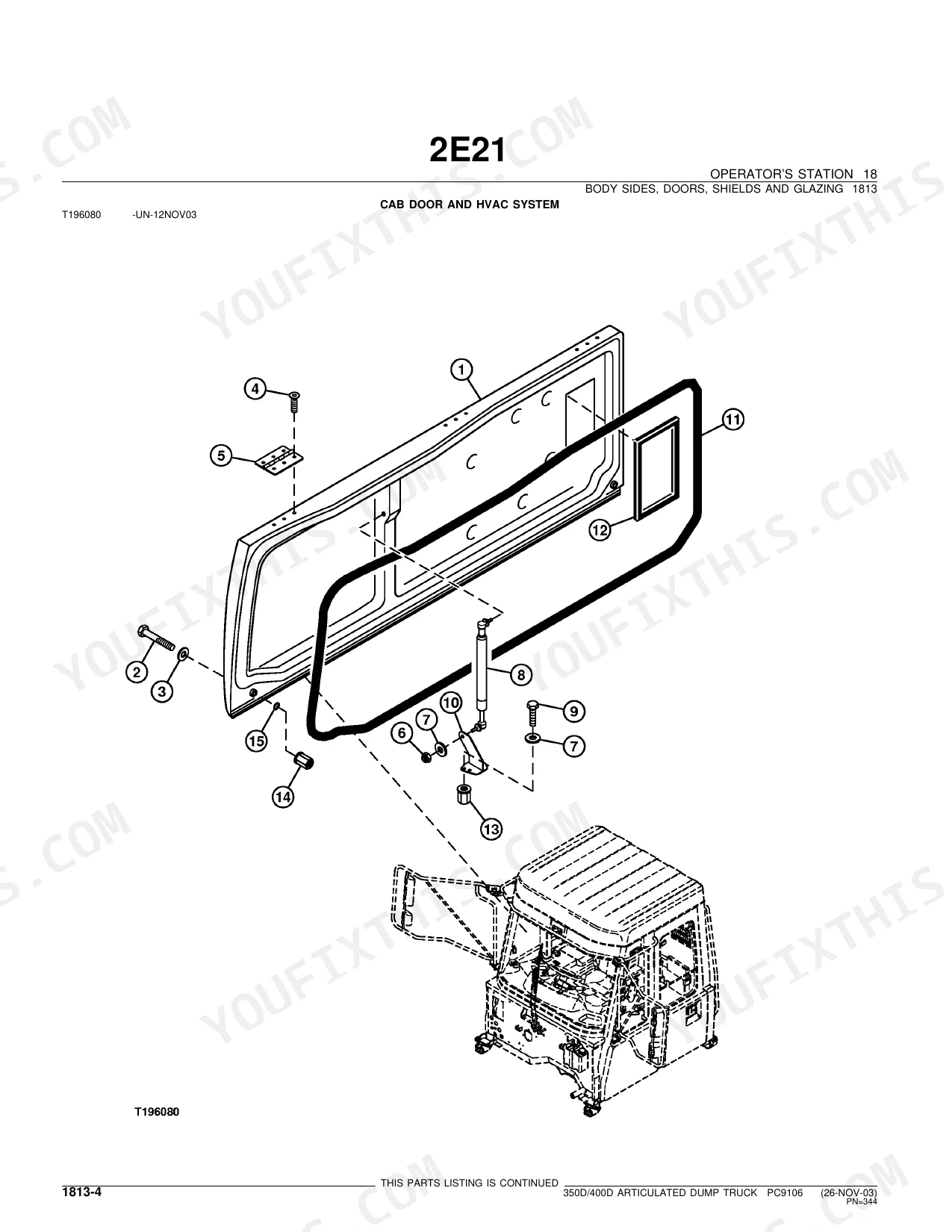

| Body, Doors, Shields and Glazing | Body Sides, Doors, Shields and Glazing | |
| Sheet Metal and Styling | Hood and Hood Supports, Miscellaneous Shields | |
| Safety, Convenience and Miscellaneous | - | |

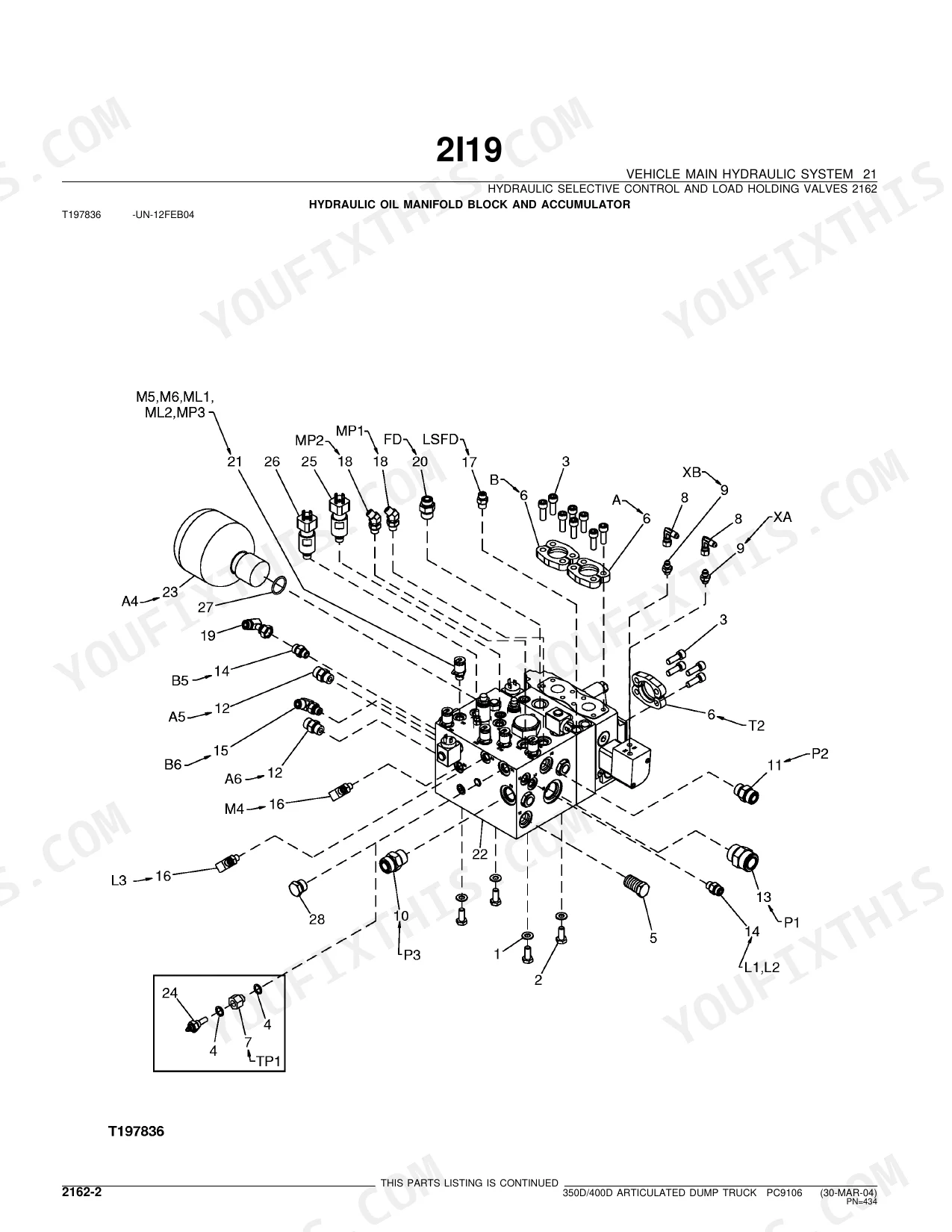

| Vehicle Main Hydraulic System | Vehicle Hydraulics, Hydraulic Pumps and Drives | |
| Vehicle Pneumatic Systems | Pneumatic Pumps and Drives, Pneumatic Control Valves | |
| Haulage Device (Dump Body) | Hydraulic Cylinders | |
| PTO or Winch Drive | Gears, Shafts & Bearings |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Solid shim | 1 mm (.039 in.) | p. 487 |
John Deere 350D, 400D Common Problems This Manual Covers
John Deere 350D 400D dump body cylinder leaking, can't find the right seal kit part number in the book
Check the hydraulic parts diagram. Match your cylinder to its callout number in the exploded view, then read the seal kit line in the parts list against your serial number range. Order the solid shim at the same time; page 487 lists it at 1 mm (.039 in.).
Manual Section: Hydraulic SystemCentralized lubrication grease hoses and divider valve blocks not listed under any obvious parts section
Check the alphabetical index starting on page 3 for grease hose and divider valve listings, then trace each entry to its exploded view callout and parts list line. Record the full part number and hose quantity per run, and order hose rated above the lubrication pump relief pressure of 4000 psi.
Manual Section: Alphabetical Index p. 3Dump body hoist cylinder shim thickness unknown, wrong shims keep showing up with the rebuild parts
Measure your existing shim pack before ordering anything; the solid shim is specified at 1 mm (.039 in.) on page 487, so count the shims and order that thickness. Verify the full cylinder assembly against the hydraulic parts diagram and confirm your serial number range in the parts list.
Manual Section: Hydraulic System p. 487Frequently Asked Questions
What are the replacement specifications for the dump body hydraulic cylinder?
The bin tip cylinder for the 350D/400D dump truck is part number TT230215. The repair kit for this cylinder is part number AT253323, which includes the necessary seals and components for maintenance. p. 485
What is the torque specification for the engine compartment hood bolts?
The bolts for the engine compartment hood should be tightened to 650 N.m (480 LB.FT) after the first 5 hours of operation, and then again after 50 hours. p. 264
What is the correct replacement part for the engine oil filter?
The engine oil filter for the 350D/400D dump truck is part number AT259218. p. 87
What is the specification for the engine oil pressure sender?
The engine oil pressure sender is part number TT221742. p. 145
What is the replacement part number for the engine coolant level warning sender?
The radiator coolant level warning sender is part number TT218693. p. 169
What format is this John Deere 350D manual in?
This is a 509-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I free to print this John Deere 350D Parts Catalog?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
