Pull the 135G onto level ground, drop the covers, and inside an hour you can be matching what is in your hand against the exploded views in this 732-page John Deere 135G parts manual PDF, catalogued by John Deere as PC11134 for the 135G excavator. Hydraulic parts take up the single largest block of this parts catalog, running from pumps and drives through the selective control and load holding valves to the reservoir, filter and cooler. Boom, arm and bucket work is drawn out the same way: frames, controls linkage, bucket with teeth, hydraulic cylinders, plus every line, hose and fitting called out with its own number. Swing bearing hardware, track systems, cab enclosure, seat and belts, and the wiring harness and switches all list callout by callout, down to the 45 A fusible link. A job stops cold over one unknown number. Keep the searchable file on whatever you carry, and the catalogue goes where the machine sits.
Complete the set for your 135G
- Repair Manual: John Deere 135G Excavator Repair Manual
What's Inside This John Deere 135G Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Wheels & Tires & Tracks | 48-67 | Track Systems |
| Axles, Differentials & Suspension Systems | 68-81 | Axles, Diff. & Susp. Sys. Hyd |

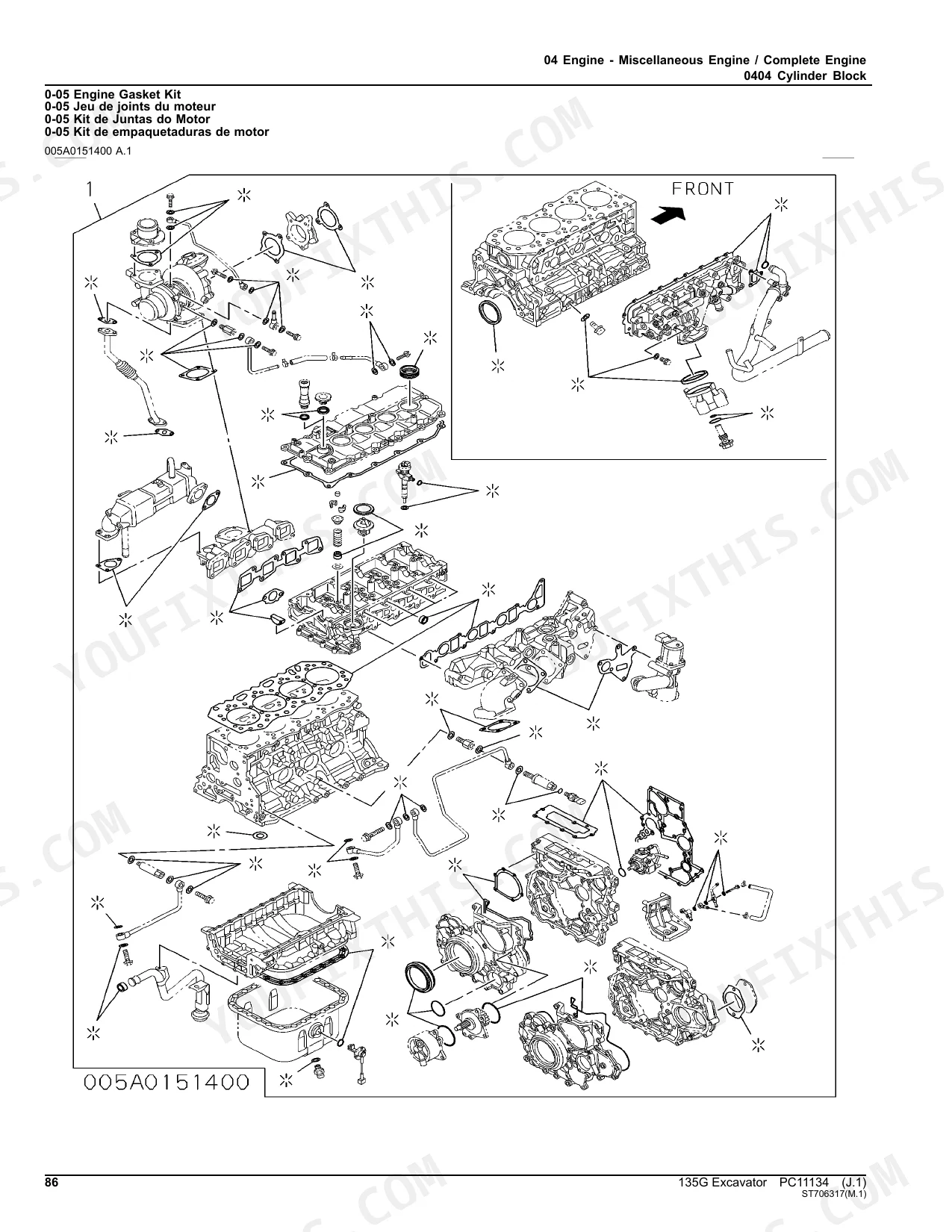

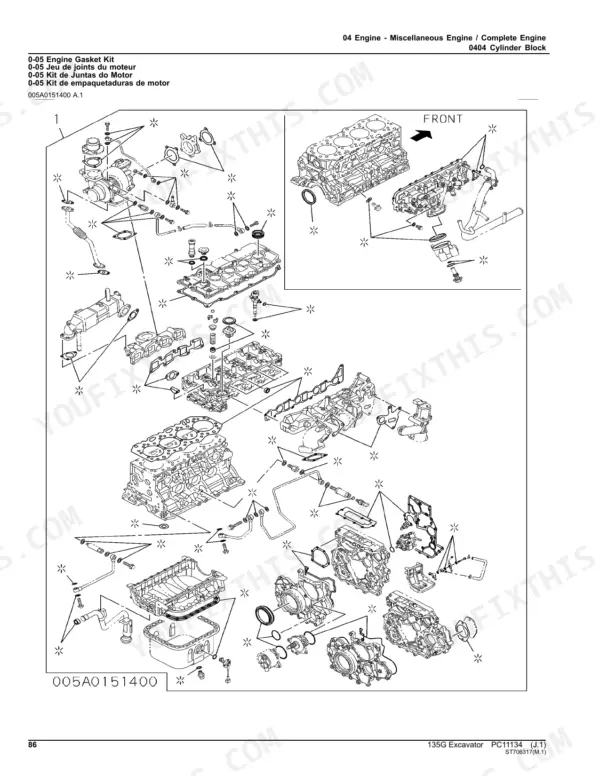

| Engine - Miscellaneous Engine / Complete Engine | 82-181 | Cylinder Block |
| Engine Auxiliary System | 182-209 | Engine Cooling Systems, Intake System, External Exhaust Systems, Engine Mounting, External Fuel Supply Systems |
| Miscellaneous Vehicle | 210-215 | Labels & Trademarks |
| Vehicle Electrical Systems | 216-259 | Batteries, Support & Cables, Vehicle Lighting System, Wiring Harness & Switches |
| Frame Chassis or Supporting Structure | 260-265 | Frame Installation |

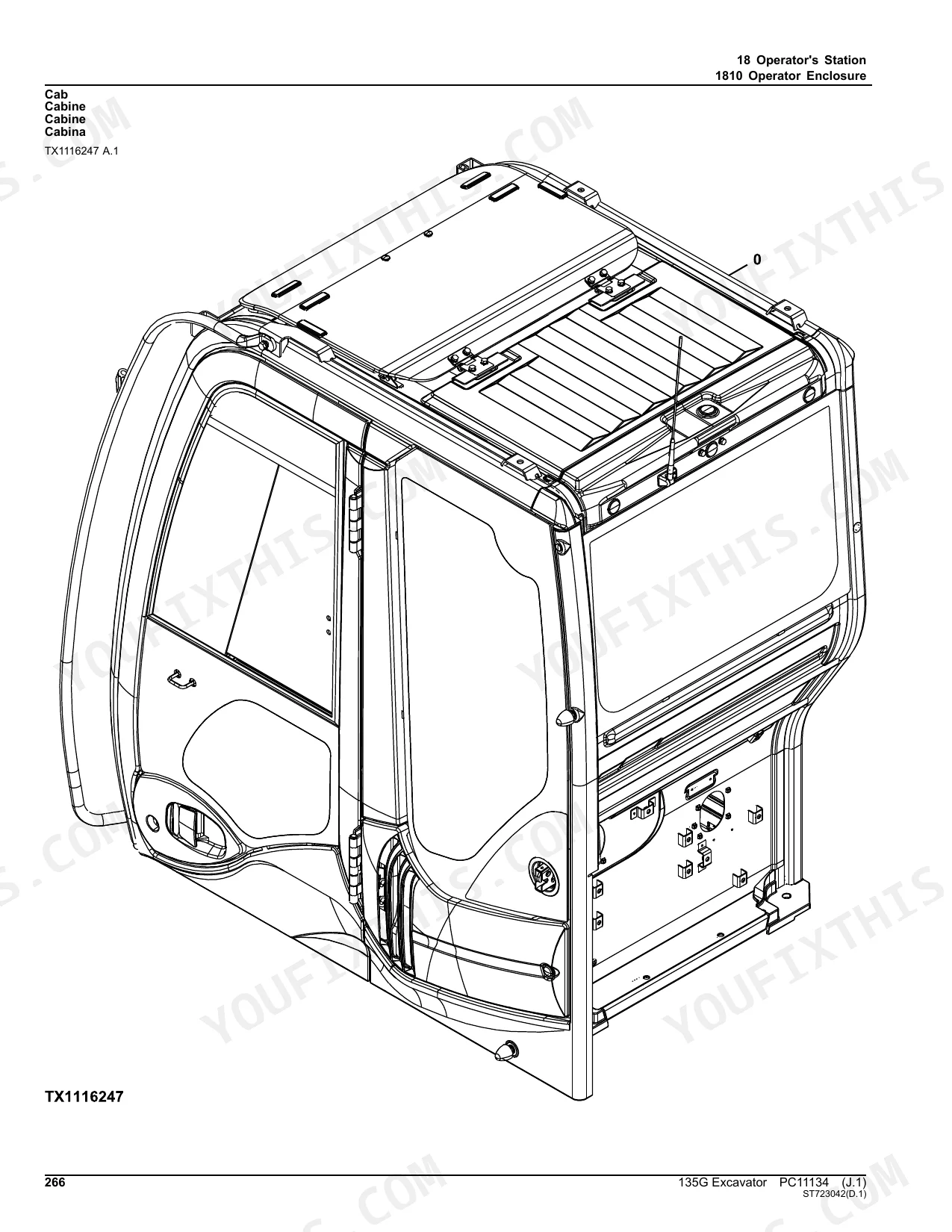

| Operator's Station | 266-347 | Operator Enclosure, Seat and Seat Belts, Heating & Air Conditioning |
| Sheet Metal and Styling | 348-375 | Hood or Engine Enclosure |
| Safety, Convenience and Miscellaneous | 376-391 | Radio, Mirror, Warning Devices, Miscellaneous |
| Vehicle Main Hydraulic System | 392-441 | Hydraulic Pumps & Drives, Hyd Selective Control & Load Holding Valves, Hydraulic Reservoir, Filter & Cooler |
| Global Vehicle Communication | 442-447 | Communication Controller |
| Backhoe & Excavator | 448-667 | Blades & Side Cutters, Bucket with Teeth, Controls Linkage, Frames, Control & Load Holding Valves, Lines, Hoses & Fittings, Hydraulic Cylinders |
| Swing, Rotation or Pivoting System | 668-732 | Swing Bearing & Mounting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuse | 45 A | p. 233 |
| Fusible Link (Item 58) | 60 A | p. 233 |

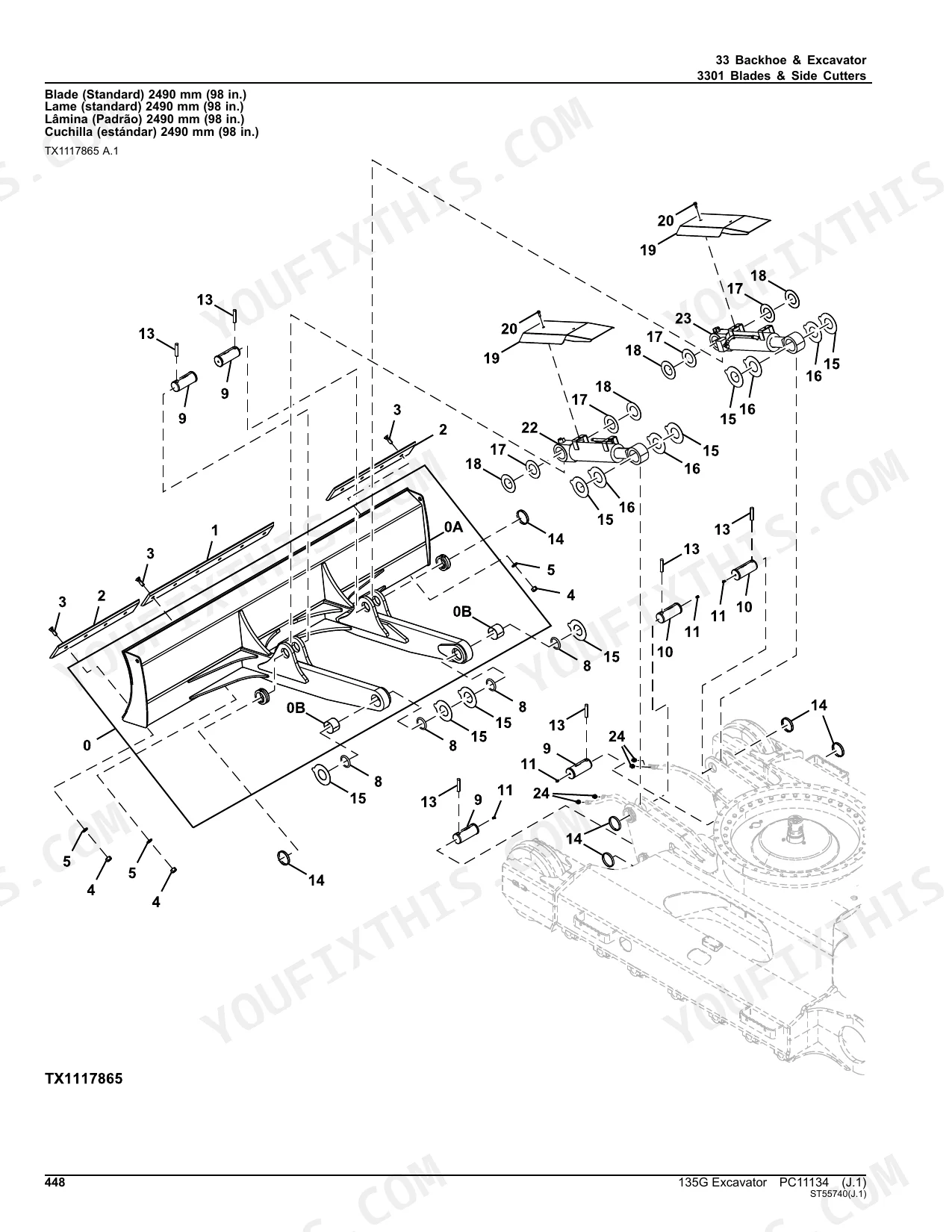

| Standard Blade Width | 2490 mm (98 in.) | p. 448 |
| Heavy-Duty Bucket (24 in) Capacity | 0.35 m³ (0.47 yd³) | p. 452 |
John Deere 135G Common Problems This Manual Covers
John Deere 135G boom cylinder seal kit part number missing, can't tell rod seal from wiper
Go to the Hydraulic Cylinders group, which opens on page 632 with the left boom cylinder. Boom, arm and bucket cylinders each get their own components page, split at serial number 401260, and each components page lists a complete seal kit. Confirm which side of the serial break your machine sits on, then order the kit rather than single seals.
Manual Section: Hydraulic Cylinders p. 632Need the right fusible link and can't tell the 45 A and 60 A links apart
Both fusible links sit in the Wiring Harness & Switches group on page 233: the 45 A link is item 57, part number 4315323, and the 60 A link is item 58, part number 4423418. Read the rating on the old link before you order.
Manual Section: Wiring Harness & Switches p. 233Pump flow rate limit solenoid and delivery pressure sensor look identical in the parts list

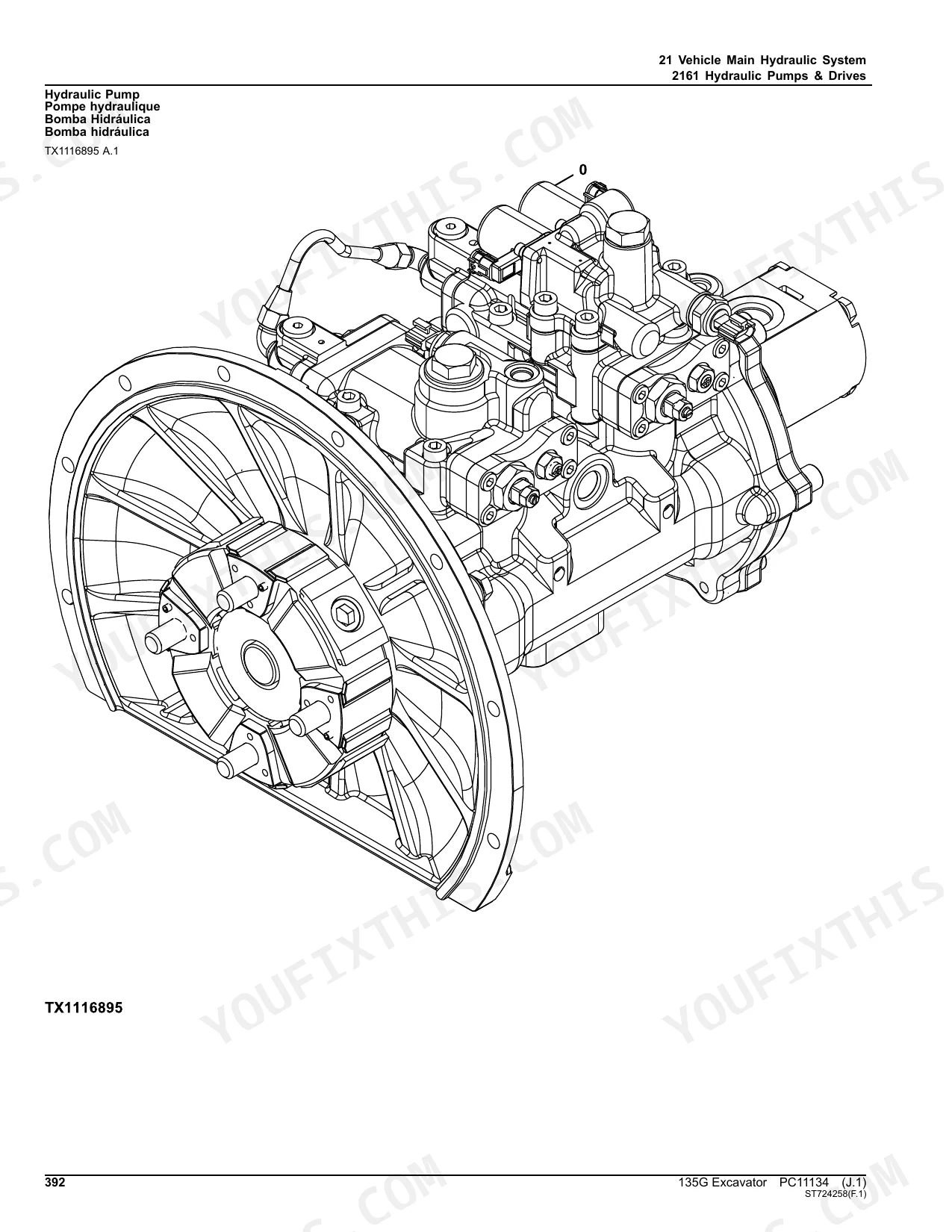

Go to the hydraulic parts diagram on page 392 and work the pump and regulator exploded view. Solenoids and pressure sensors carry separate callout numbers there, so count the callout position against the pump housing rather than guessing from the part's shape. Confirm the electrical connector pin count matches your old unit.
Manual Section: Hydraulic Pumps & Drives p. 392Track chain, idler, and roller part numbers unclear when ordering undercarriage components

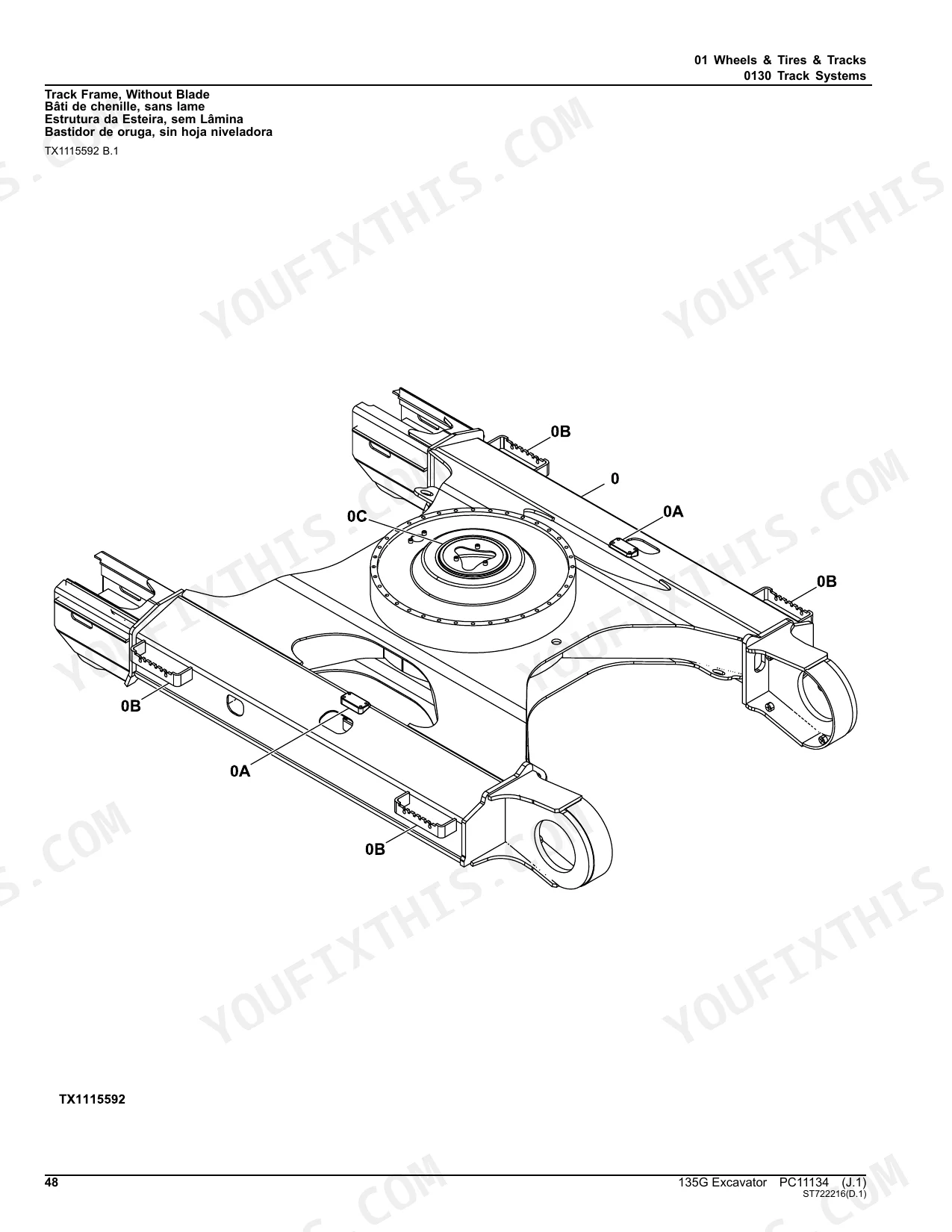

Open Track Systems on page 48. The track frame, front track chain idler, track chain adjuster and track chain assembly each have their own page, and the track chain assembly page lists shoes by width, 500, 600 and 700 mm, so measure your shoe before ordering. Take the bolt and bushing hardware from the same group rather than from a generic kit.
Manual Section: Track Systems p. 48Can't identify the JDLink telematics gateway part number
Work the Global Vehicle Communication section starting at page 442, where the JDLink Modular Telematics Gateway, 4G LTE, lists by part number with its mounting hardware called out separately. The gateway and satellite module controller group follows on the next pages if your machine carries that option.
Manual Section: Communication Controller p. 442Bucket teeth, adapters, and retaining pins ordered as one piece and they don't fit
The Bucket With Teeth group starts on page 452. Each bucket lists its tooth, bucket tooth adapter and pin fastener as separate part numbers, for example TK300FD, TK300C125 and TK300P on the 24 in heavy-duty bucket. Match the bucket width in the page heading to yours before placing the order.
Manual Section: Bucket With Teeth p. 452Frequently Asked Questions
What is the seal kit part number for the John Deere 135G left boom cylinder?
The Left Boom Cylinder Components group, for serials up to 401260, lists the complete cylinder as part number 9323700 and the seal kit as FYA00012899, so you can order the whole kit instead of guessing at single seals. p. 637
Which seal kit fits the John Deere 135G arm cylinder?
For serials up to 401260 the arm cylinder is part number 9323697G, and its components page gives the seal kit as FYA00012900. p. 651
What is the engine oil filter part number for the John Deere 135G?
The engine oil filter for the 135G excavator is part number 8973243861. p. 143
What fusible links does the John Deere 135G use?
The Wiring Harness & Switches group lists two fusible links: a 45 A link, part number 4315323, and a 60 A link, part number 4423418. p. 233
How quickly can I access this John Deere 135G manual after buying?
You get a 732-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Does this John Deere 135G manual allow printing?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
