Within the hour you will probably be on your back under the loader frame, wiping grime off a plate, or holding a split hose up to the light. This catalog is what you check that part against. PC10068 (Aug-19) covers the John Deere 310SJ built 2007 - 2012. Each group has exploded drawings with part numbers, quantities and serial-number breaks.
The wrench work rarely holds up the job. The parts counter does, when nobody can say which of three engines the machine has, or what replaced a transmission now marked NLA.
The alphabetical index (p.53-100) takes you from a part name to its page. The numerical index (p.1277-1313) does the same from a number stamped on an old part.
What's Inside This John Deere 310SJ Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Alphabetical Index | 1-101 | Serial Number Listing Rules, Serial Number Plate Locations, Product Identification Number, Option Code Sticker, Table of Contents, Alphabetical Index |
| Wheels and Tires | 102-115 | Front and Rear Rims with MFWD, Rims Without MFWD, Wheel Spacer Kit |

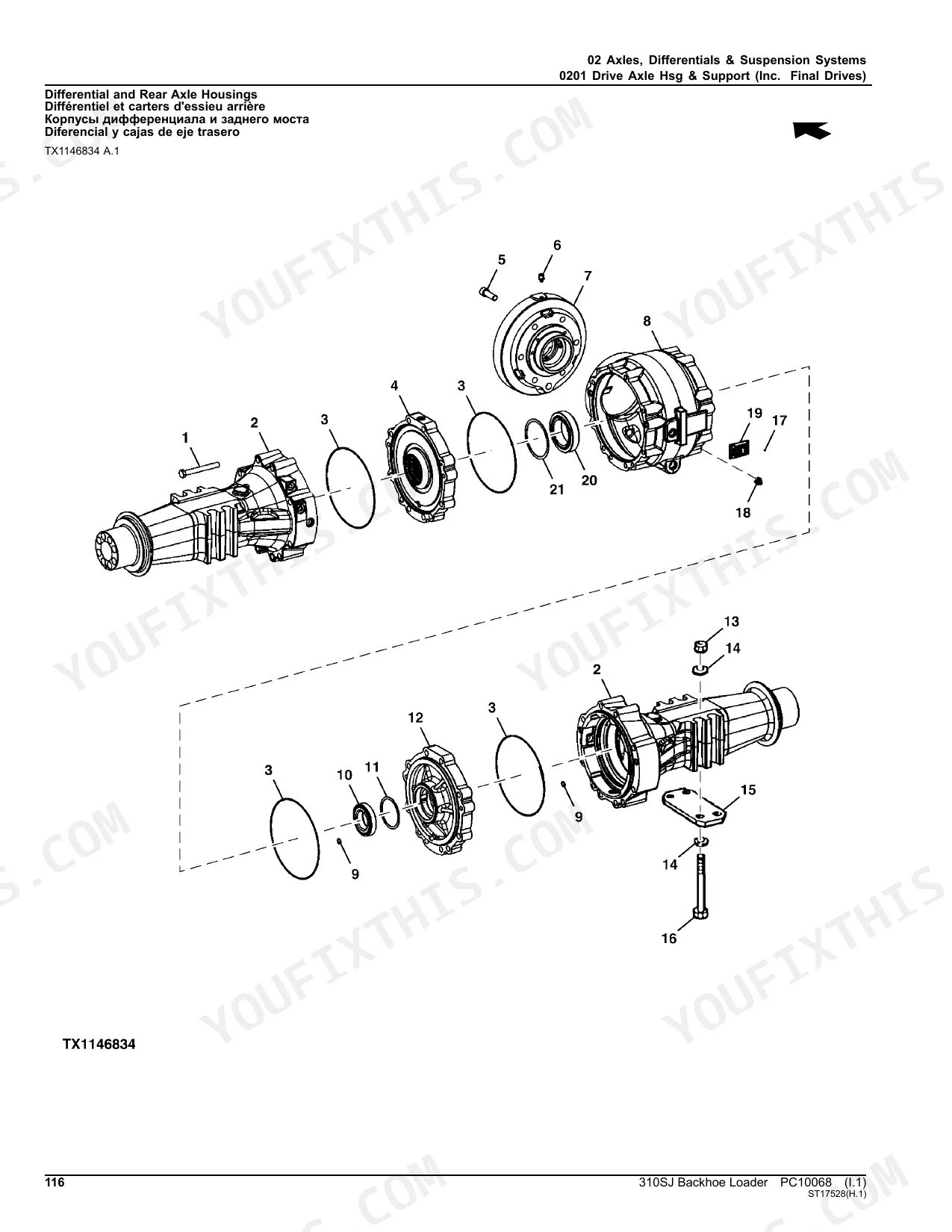

| Axles and Differential | 116-147 | Rear Axle and Differential Housings, Complete Rear Axle Assembly, Front Axle with MFWD |
| Transmission | 148-191 | Transmission Control Lever, Dipstick and Tube, Torque Converter, Gears, Shafts and Power Shift Clutches, Transmission Oil Filter |
| Engine 4045HL287 (SE503032) | 192-277 | Fuel Injection System, Turbocharger, Cylinder Head and Valves, Belt Tensioner, Replacement Engine and Complete Block Assembly |

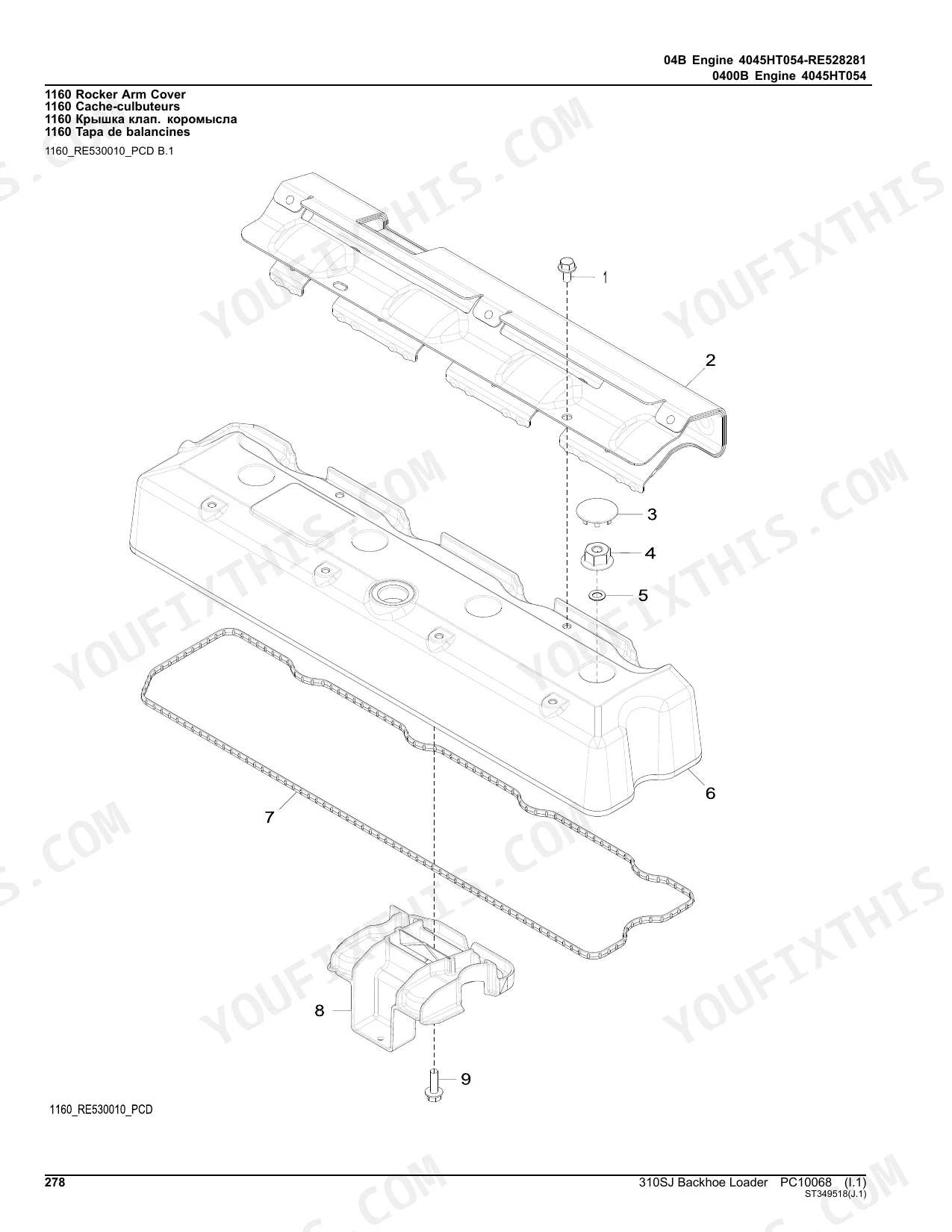

| Engine 4045HT054 (RE528281) | 278-405 | Engine Overhaul and Gasket Kits, Piston Liner and Ring Kits, Crankshaft and Connecting Rod Bearing Kits, Camshaft Kit, Short Block Assembly |

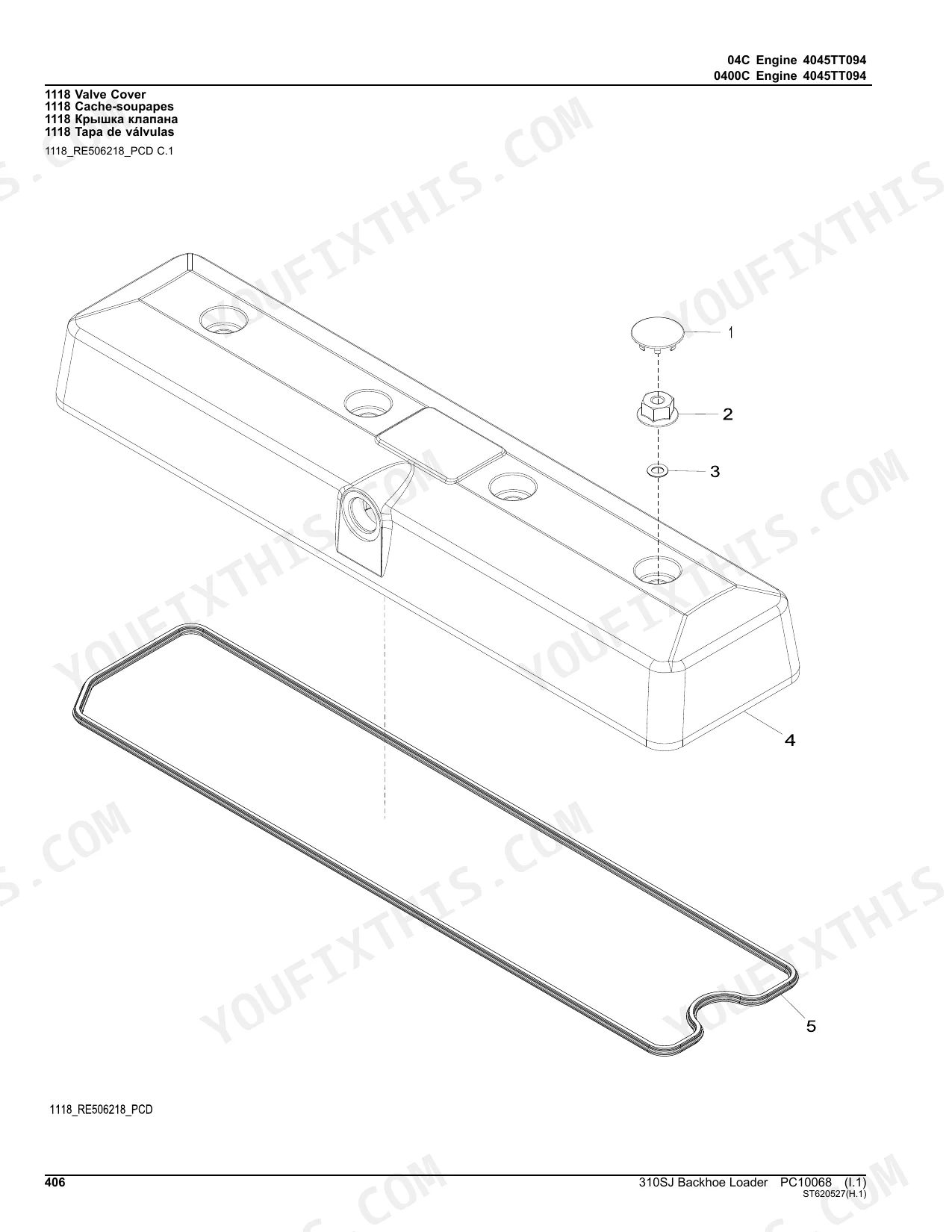

| Engine 4045TT094 | 406-499 | Electronically Controlled Fuel Injection Pump, Injection Nozzles, Air Intake, Final Fuel Filter, Timing Gear Cover and Water Pump |

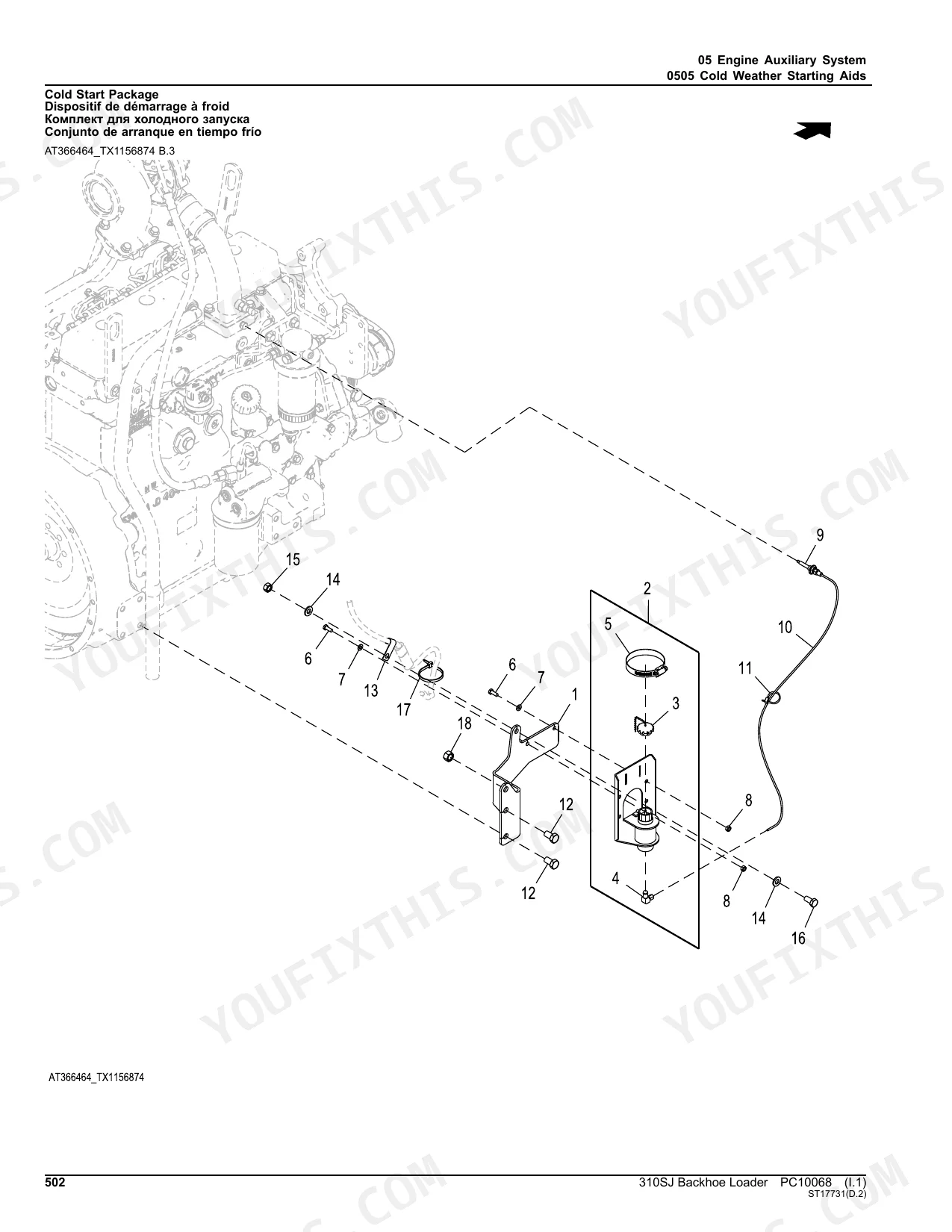

| Engine Auxiliary System | 500-557 | Engine Block Coolant Heater, Air Cleaner and Mounting Brackets, Fuel Tank Lines and Fuel Cooler |
| Steering System | 558-571 | Steering Cylinder and Repair Kit, Steering Hydraulic Valve, Steering Hydraulics with MFWD |
| Service and Parking Brakes | 572-589 | Service Brake Clutch Disc and Carrier, Brake Valve and Pedals, Service Brake Plumbing, Parking Brake Housing and Plumbing |
| Miscellaneous Vehicle | 590-617 | Loader Arm Service Lock, Trademarks and Labels, Fluid Sampling Ports |
| Vehicle Electrical Systems | 618-695 | Battery Installation, Alternator, Side Console and Cab Harnesses, Engine Control Unit |

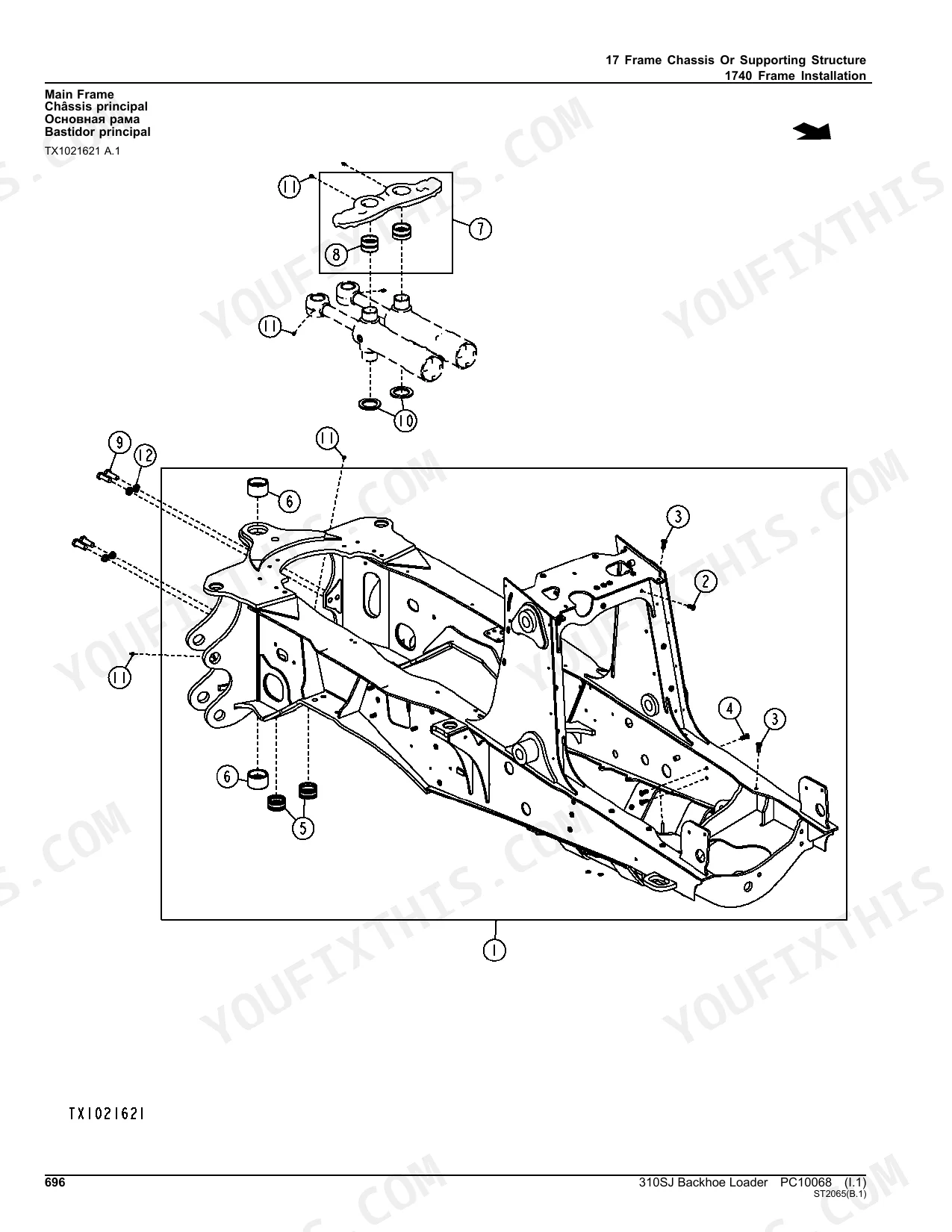

| Frame and Counterweights | 696-715 | Main Frame, Stabilizer Cylinder Guard Kit, Front Counterweight Kits |
| Operator's Station | 716-793 | ROPS Canopy, Cab Frame and Mounting Isolators, Suspension Seat, Seat Belt, Cab Heater and Air Conditioning |
| Sheet Metal and Styling | 794-809 | Hood and Side Panels, Loader Plumbing Shield, Extended Grille Housing |
| Safety, Convenience and Miscellaneous | 810-843 | Radio, Exterior Mirror, Fire Extinguisher Mounting Kit, Horn |
| Main Hydraulic System | 844-857 | Main Hydraulic Pump, Hydraulic Oil Filter, Main Hydraulic System Reservoir |
| JDLink Communication | 858-871 | JDLink Ultimate and Select GTT Kits, JDLink MTG Assembly |
| Loader | 872-969 | Loader Buckets and Cutting Edges, Fork Carriage and Tines, Hydraulic Loader Coupler, Loader Control Valve, Loader Lines, Hoses and Fittings, Loader Cylinders |
| Backhoe | 970-1253 | Backhoe Buckets and Teeth, Backhoe Spring Coupler, Extendable Arm, Backhoe Control Valve, Pilot Control Hydraulics, Backhoe Lines, Hoses and Fittings, Extendable Dipperstick Cylinder |
| Grapple and Thumb | 1254-1269 | Backhoe Thumb for 24 in Buckets, Thumb Kit for 18 and 30 in Buckets, Hydraulic Thumb Cylinder |
| General Backhoe | 1270-1276 | Noise Reduction Hood with Exhaust Extension, Noise Reduction Foam, Heat and Noise Barrier |
| Numerical Index | 1277-1316 | Part Number to Page Lookup |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Parts catalog number | PC10068 (Aug-19), English | p. 1 |
| Production years | Manufactured 2007 - 2012 | p. 3 |
| Engine option 04A | 4045HL287 (SE503032) | p. 192 |
| Engine option 04B | 4045HT054 (RE528281) | p. 278 |
| Engine option 04C | 4045TT094 | p. 406 |
| 4045HL287 emission level | Tier 3 | p. 6 |
| Transmission with MFWD (reman) | PG200326, replaces AT336000 / AT316534 | p. 159 |
| Transmission without MFWD (reman) | PG200325, replaces AT335999 / AT316533 | p. 159 |
| Front axle, MFWD | AT311085 | p. 135 |
| Rear axle | AT445462 | p. 121 |
| Loader bucket | 0.86 m³ (1.125 yd³) | p. 876 |

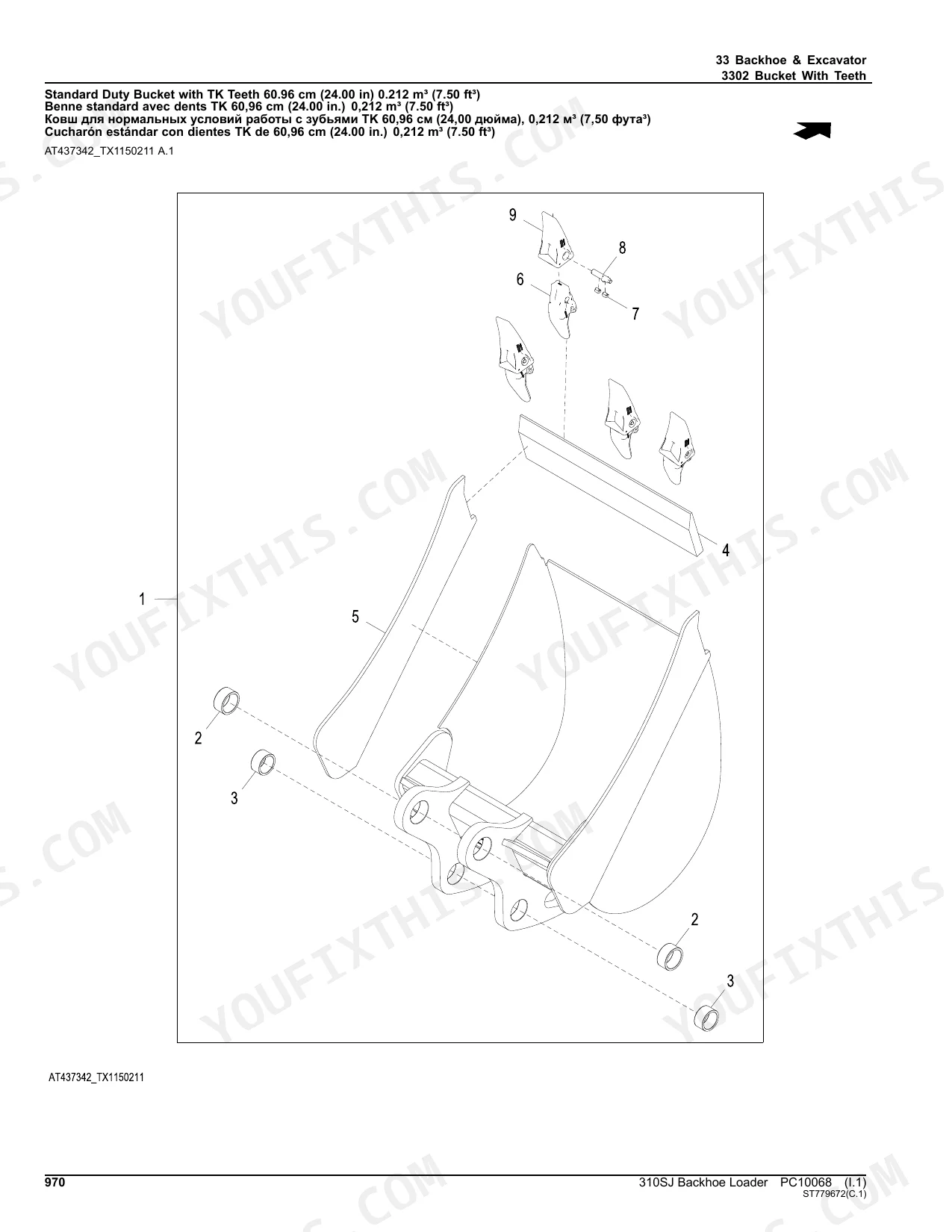

| Standard duty backhoe bucket | 60.96 cm (24.00 in), 0.212 m³ (7.50 ft³) | p. 970 |
| Loader fork carriage | 1.52 m (60.00 in) frame, 1.22 m (48.00 in) tines | p. 896 |
| Front counterweight kit | 200 kg (450 lb.) | p. 706 |
| Engine oil filter | RE504836 (also order R502513) | p. 265 |
| Fuel filter element, 4045HL287 | RE522878 | p. 223 |
| Hydraulic oil filter | AT308274 | p. 847 |
| Primary air filter, 4045TT094 | KV16429 | p. 533 |
| Transmission oil filter | AT466863 | p. 185 |
| Main hydraulic pump | AT331223 | p. 845 |
John Deere 310SJ Common Problems This Manual Covers
Engine parts ordered for the wrong one of the three 4045 engine variants
Read the engine plate on the right side of the block near the fuel pump, then match it to section 04A (4045HL287 SE503032), 04B (4045HT054 RE528281) or 04C (4045TT094). The option code sticker page in the introduction explains how the base engine code identifies the engine model. Only order from the matching section.
Manual Section: Introduction - Option Code Sticker p. 10Transmission number from the housing plate comes back NLA, and the MFWD and non-MFWD units get mixed up
Section 03 lists the original transmissions as NLA and gives the reman replacements. Machines with MFWD take PG200326 (replaces AT336000 / AT316534). Machines without MFWD take PG200325 (replaces AT335999 / AT316533). Check whether the machine has a front drive axle before ordering. The torque converter reman, PG200131, is in the same section.
Manual Section: 03 Transmission p. 159A part shows several numbers with different serial breaks, or an XXXXXX where the serial number should be
The serial number listing rules in the introduction explain the format. A part fits all units, units from a serial number on, units up to and including one, or units between two. XXXXXX means a change was made but the exact break was not available when the book was printed. Compare against your PIN plate, then confirm with the dealer.
Manual Section: Introduction - Serial Number Listing Information p. 4Cannot identify a blown loader or backhoe hose or fitting to reorder it
Loader lines, hoses and fittings are in group 3163 (p.938-955), and backhoe lines, hoses and fittings are in group 3363 (p.1160-1211). Trace the hose route on the exploded drawing from the control valve outward. The loader valve is drawn on p.926-927 and the backhoe valve on p.1100-1101. If a number is stamped on the old fitting, go straight to the numerical index.
Manual Section: 3163 Lines, Hoses & Fittings p. 938Frequently Asked Questions
Which John Deere 310SJ machines does parts catalog PC10068 cover?
The cover says the 310SJ backhoe loader, manufactured 2007 - 2012. No PIN range is printed anywhere in the book. Each part instead carries its own serial applicability: all units, from a serial number on, up to and including one, or between two. XXXXXX means a change was made but the exact number was not available when the catalog was printed. Check those breaks against your PIN plate before you order. p. 3
How do I tell which of the three engines my 310SJ has before ordering engine parts?
The catalog has three separate engine sections: 04A 4045HL287 (SE503032), 04B 4045HT054 (RE528281) and 04C 4045TT094. It does not say which machine serial numbers got which engine. Read the engine plate on the right side of the block, near the fuel pump. The option code sticker page explains that the base engine code identifies the engine model. The emissions table lists the 4045HL287 and 4045HT054 as Tier 3. p. 192
Where are the serial number plates on the John Deere 310SJ?
The catalog shows six plates. The product identification number is on the left-hand side of the loader frame, just above the lift cylinder pivot boss. The engine plate is on the right side of the block near the fuel pump. The transmission plate is on the bottom rear of the housing. The MFWD axle plate is on the right rear of its housing, and the rear axle plate is near the fill plug. The hydraulic pump number is on the bottom face of the pump. p. 5
Does the catalog list the transmission and its reman replacement?
Yes. Section 03 covers the transmission. The original units are all marked NLA: AT316534 / AT336000 with MFWD, and AT316533 / AT335999 without MFWD. Order reman PG200326 for MFWD machines or PG200325 for machines without MFWD. Reman torque converter PG200131 and transmission oil filter AT466863 are listed in the same section. p. 159
Which filters for the 310SJ are listed, with part numbers?
Engine oil filter RE504836, and the catalog says to also order R502513. Fuel filter element RE522878 is listed for the 4045HL287 engine. Hydraulic oil filter AT308274 is in the main hydraulic section. Primary air filter KV16429 is listed for the 4045TT094. Transmission oil filter AT466863 is in section 03. Fuel filter numbers depend on the engine, so read your engine plate before you order a box of them. p. 265
