Part of the John Deere Parts Manuals.

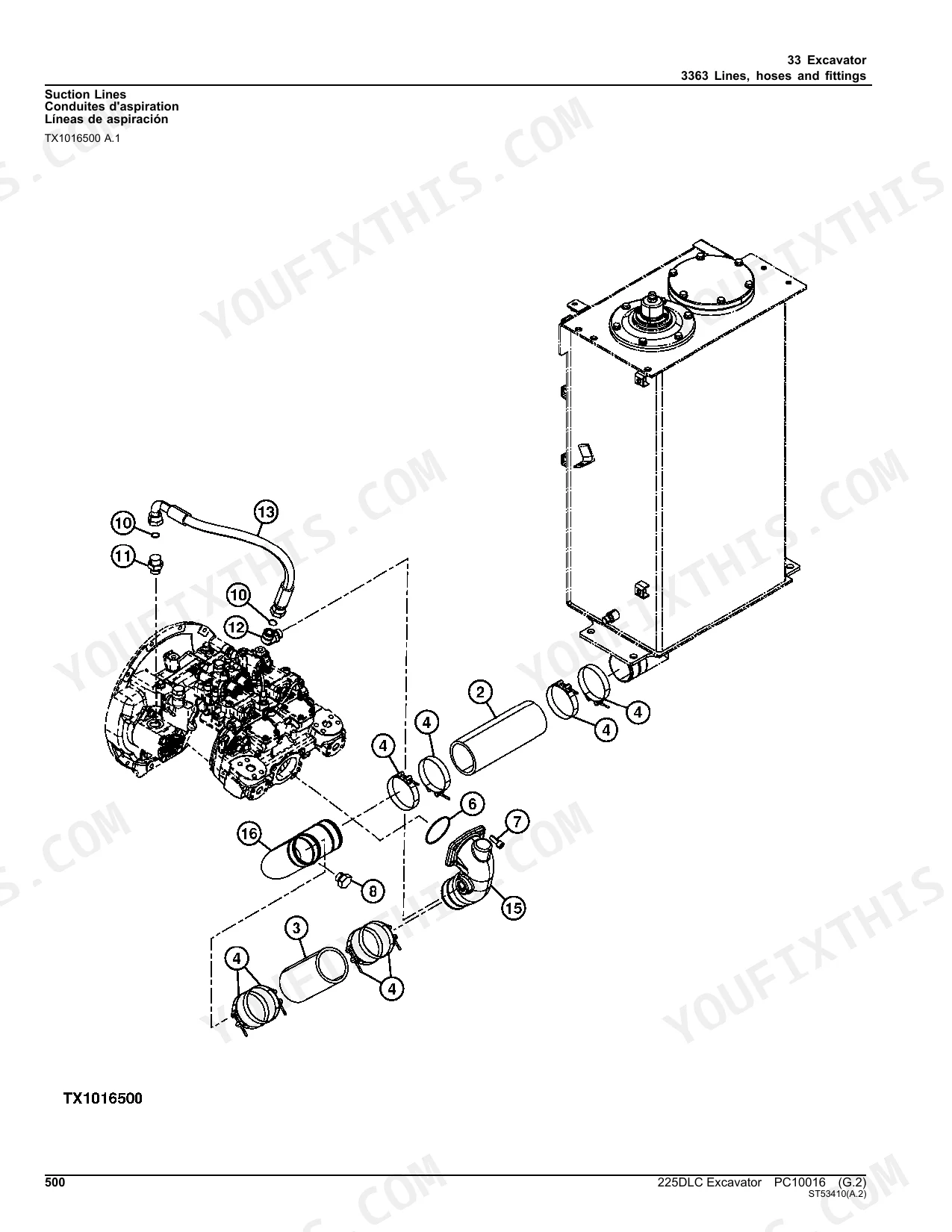

Hydraulic pump, control and load holding valves, and the lines, hoses and fittings are covered in this 652-page John Deere 225DLC excavator parts catalog (OEM ID PC10016). It also covers the engine, track systems, the operator's station, electrical harnesses and the swing system. Each group in this John Deere 225DLC parts catalog PDF pairs exploded views with item numbers, part numbers, quantities and supersession notes, and an index ties parts back to their groups. Supersessions are printed with each entry. Order thermostat 8973007902 for the 180°F (82°C) rating; it replaces 8973007901, and shim 4662206 at 0.1 mm supersedes 4203411. If your job is swapping a hose between the hydraulic pump and the control valves, the exploded views of lines, hoses and fittings show each connection and the fitting it takes. Bookmarks jump to each group and the text layer lets you search any part number, so the right one goes on your order the first time.
What's Inside This John Deere 225DLC Parts Manual
| System | Pages | Key Topics |
|---|---|---|

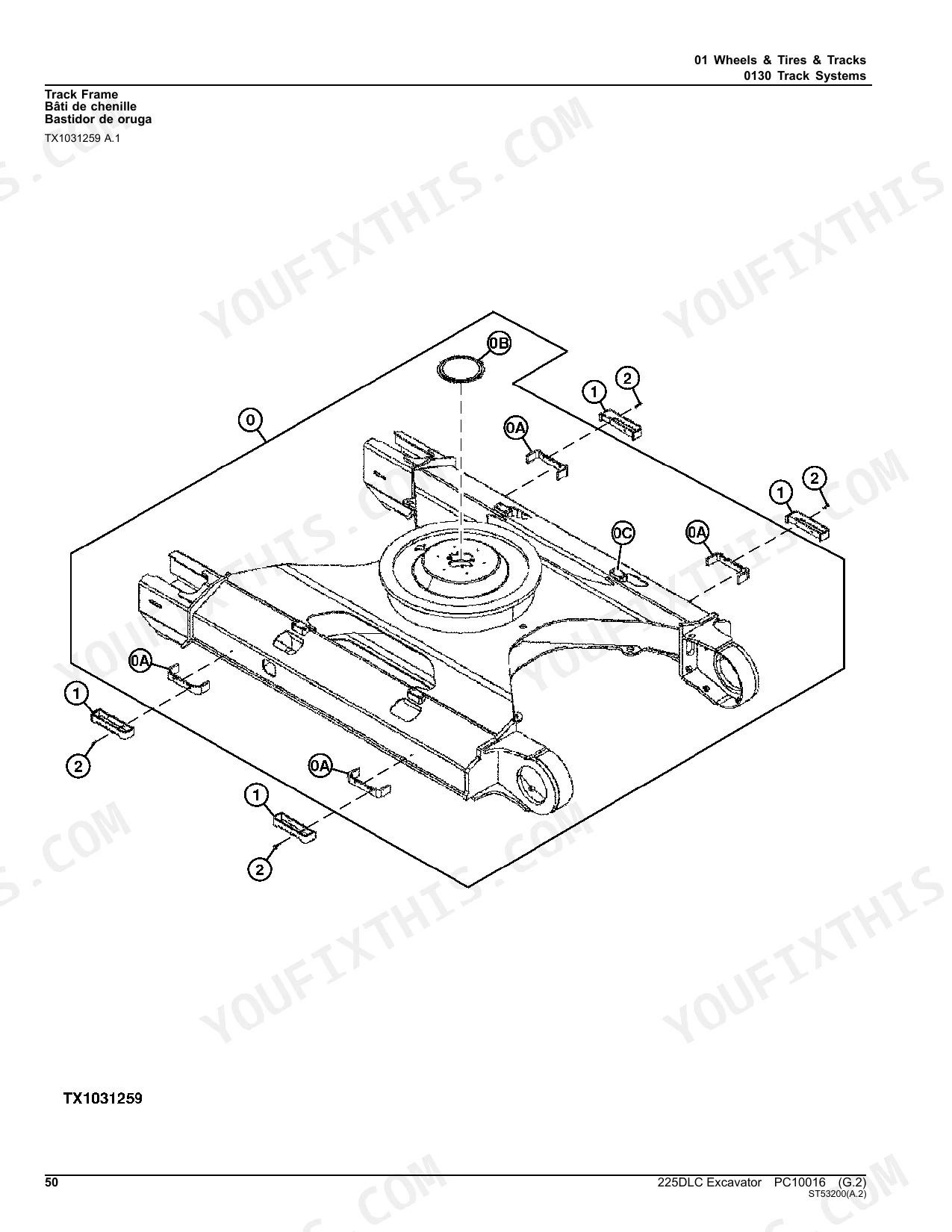

| Wheels & Tires & Tracks | 50-67 | Track Systems |
| Axles, Differentials & Suspension Systems | 68-85 | Hydraulic System |

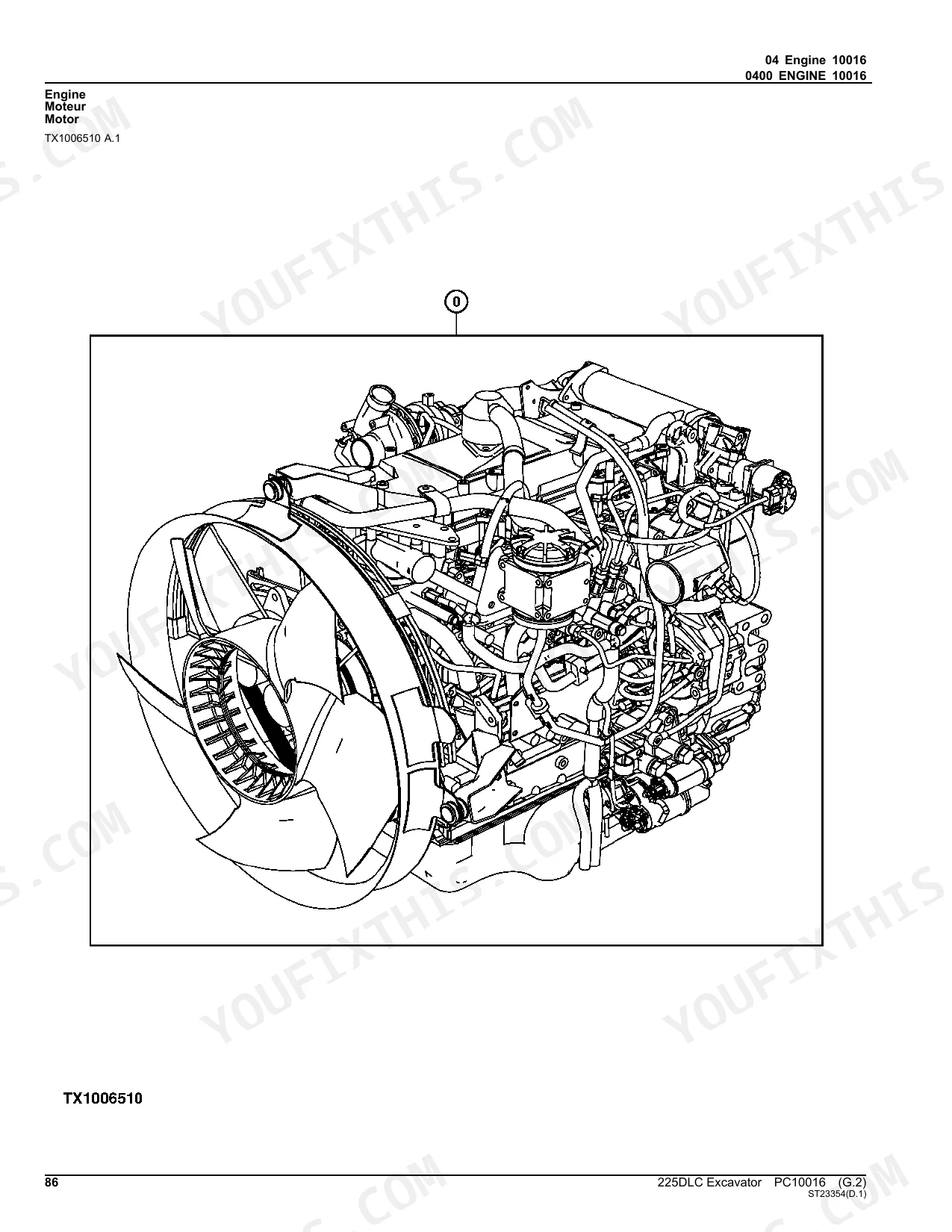

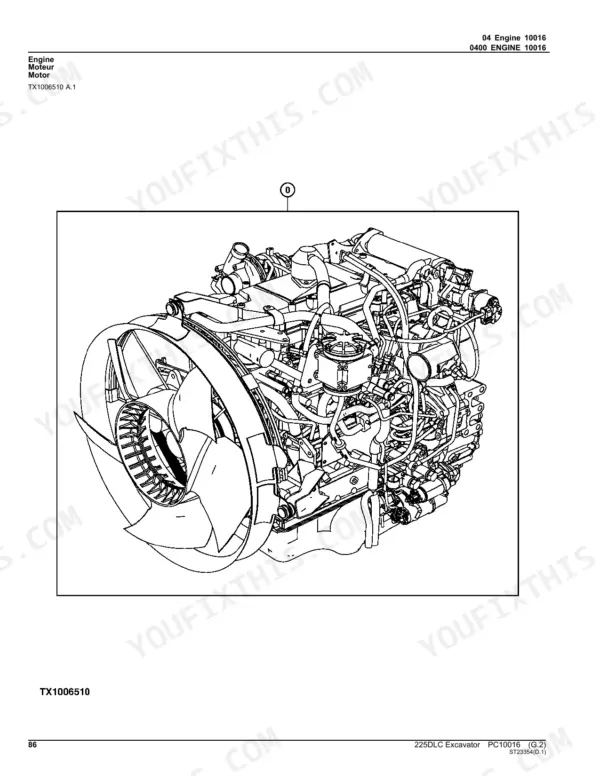

| Engine 10016 | 86-159 | Crankshaft and Main Bearing 10016, Crankshaft and Valve Actuating Means 10016, Cylinder Block 10016, Engine Oiling System 10016, Ventilating System 10016, Cylinder Head |
| Engine Auxiliary System | 160-193 | Engine Cooling Systems, Intake System, External Exhaust Systems, Engine Mounting, Fuel Supply System |
| Miscellaneous Vehicle | 194-201 | Vehicle Finish & Trim, Greases, Oils, Fuels & Coolants |
| Vehicle Electrical Systems | 202-233 | Batteries Support and Cables, Vehicle Lighting System, Wiring Harness and Switches |
| Frame Chassis or Supporting Structure | 234-245 | Frame Installation |

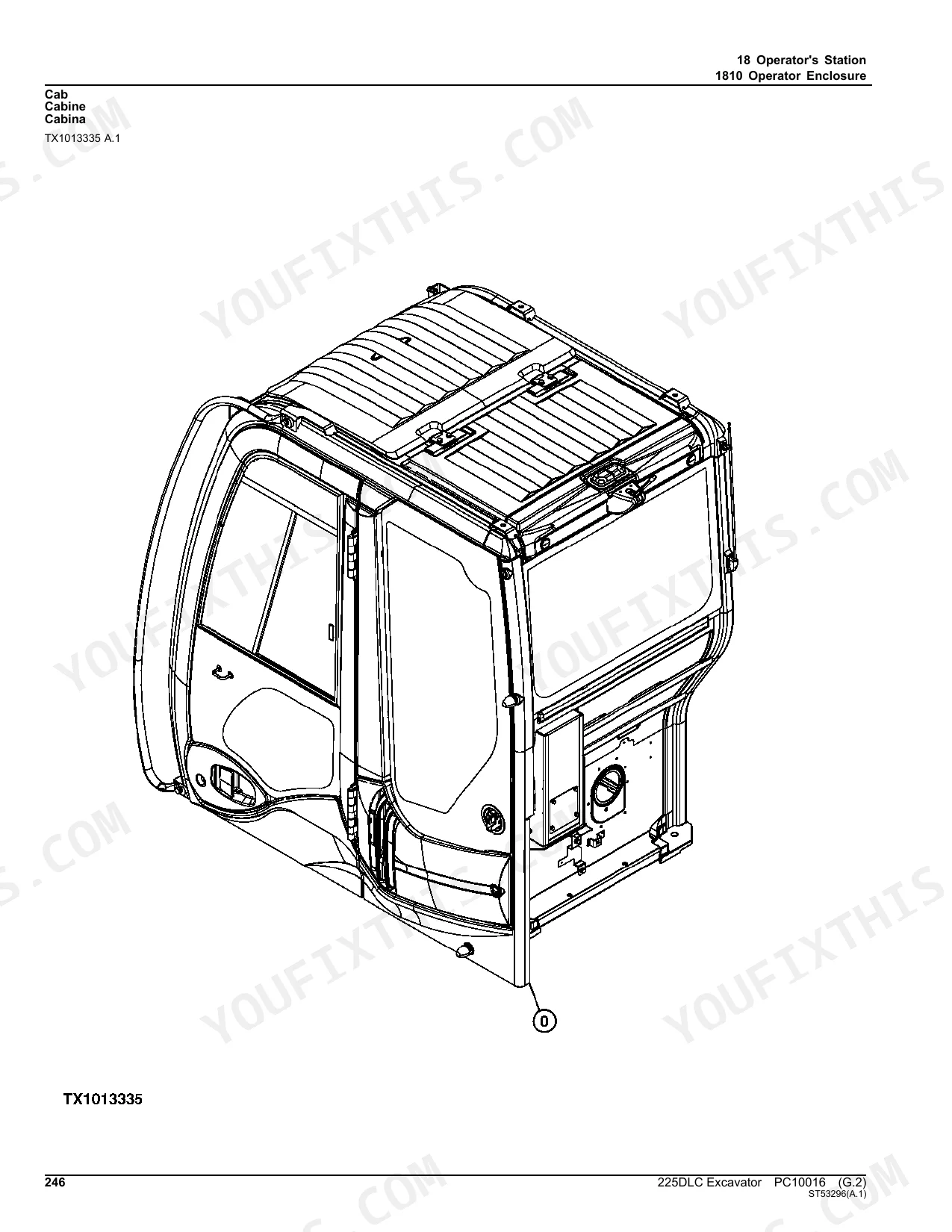

| Operator's Station | 246-333 | Operator Enclosure, Seat and Seat Belts, Heating and Air Conditioning |
| Sheet Metal & Styling | 334-361 | Hood or Engine Enclosure |
| Safety, Convenience & Miscellaneous | 362-375 | Radio, Mirror, Warning Devices |
| Global Vehicle Communication | 376-383 | Global Positioning System |

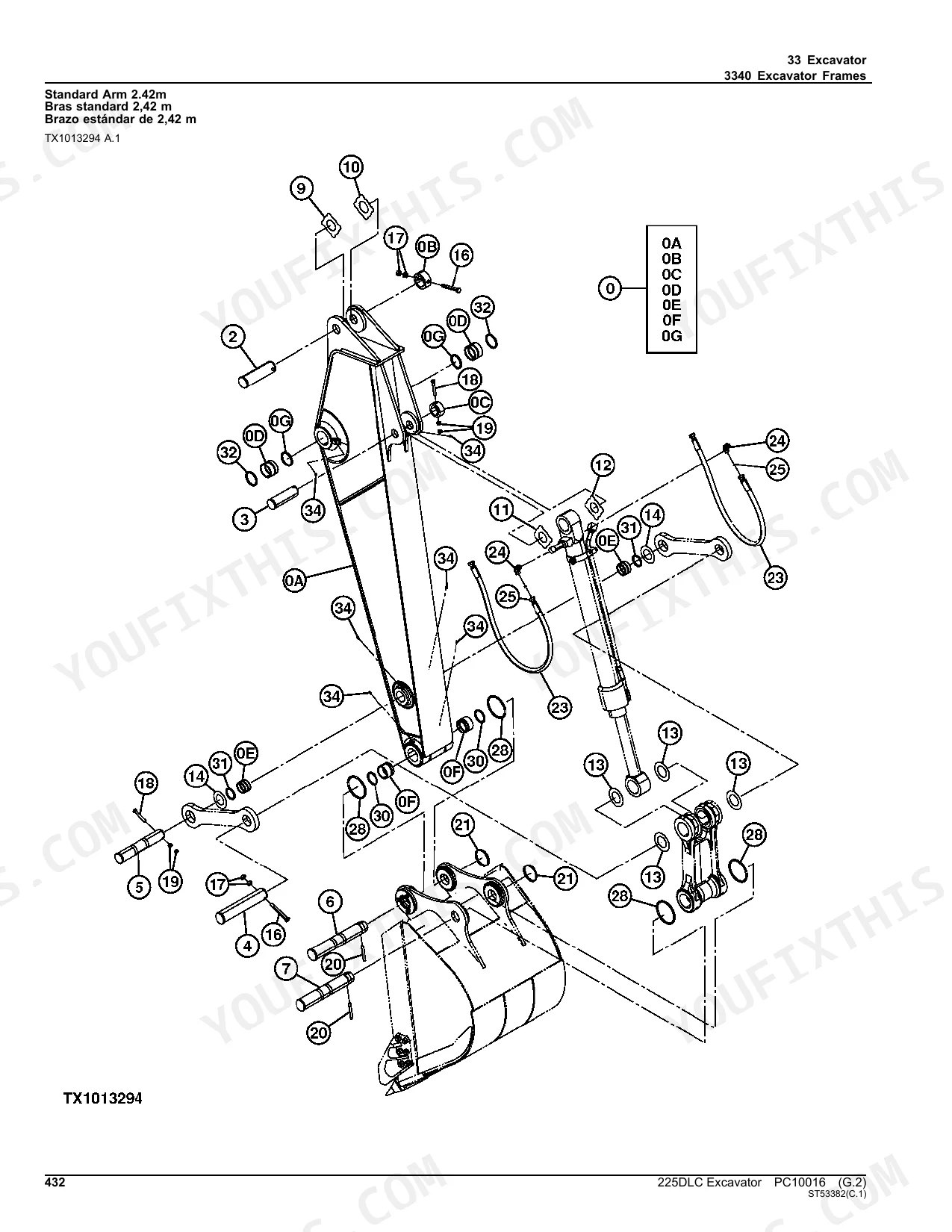

| Excavator | 384-611 | Bucket with Teeth, Controls Linkage, Frames, Boom, Hydraulic Pump, Control & Load Holding Valves, Lines, Hoses and Fittings |
| Swing, Rotation or Pivoting System | 612-652 | Hydraulics |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Thermostat Temperature | 180°F (82°C) | p. 131 |
| Shim thickness | 0.1 mm | p. 415 |
| Push Nut outer diameter | 39 mm | p. 417 |
John Deere 225DLC Common Problems This Manual Covers
John Deere 225DLC engine oil filter part number won't cross-reference against old filter numbers on the shelf
Check the Oil Filter and Lines parts list on page 105. Order oil filter 8983758660, which supersedes 4485262, 8983042431 and 8983042430, so older boxes in the parts room still map to the current number. Add O-ring 4430912 for the adapter fittings, and confirm hoses 4629625 and 4629626 against the exploded view on page 104.
Manual Section: Engine Oiling System p. 105Can't tell which cooling package parts list applies when ordering a radiator, oil cooler or intercooler
Verify your machine serial number first. Use the list on page 161 for machines up to 501154 and the list on page 163 for 501155 and up. Both call out radiator 4650352, filler cap 4650360, oil cooler 4650353 and intercooler 4650354, but the brackets, screens and packing differ, so match those item numbers to your serial range before ordering.
Manual Section: Engine Cooling Systems p. 161Air cleaner filter element part numbers on the old elements no longer match current listings
Check the Air Cleaner parts list on page 173. Two elements are listed: AT280662 supersedes 4286128 and AT280663 supersedes 4286130, so order both against the old numbers. The same page lists indicator 4419601, drain valve 4453910 and gasket 4453911; compare them with the exploded view on page 172 before you close up the housing.
Manual Section: Intake System p. 173Old thermostat part number 8973007901 superseded and the correct replacement rating is unclear
Order thermostat 8973007902 from the engine parts list on page 131; it supersedes 8973007901. Verify the box shows the 180°F (82°C) rating listed on that page before it goes in the engine. Check the Engine 10016 exploded views starting on page 86 to confirm the item location and any related parts you want on the same order.
Manual Section: Engine 10016 p. 131Battery cables and battery relay part numbers hard to identify on the two-battery setup
Check the Batteries, Support and Cables list on page 203. It calls for two TY25879 dry charged batteries, battery cables 4656357, 4647307 and 4639537, and battery relay 8943795431, which supersedes 4255762. Order AT219485 battery post adapters with the cables, since the list marks them not illustrated. The glow plug relay is 8944607061.
Manual Section: Vehicle Electrical Systems p. 203Radiator hose and hose clamp part numbers hard to match on the fan shroud assembly
Inspect the Radiator Hoses and Fan Shroud exploded view on page 166, then match item numbers on the parts list on page 167. Radiator hoses are listed as 3104767 and 4159073, with hose 3104768 and hose clamp TY22485 (quantity 4, supersedes 4357297). Isolator 4701800 supersedes 4632626 if your old shroud isolator carries that number.
