Gas engine, electrical, hydraulic power train and attachments: TM2133, the 156-page John Deere 7H17 technical manual PDF, walks each of these end to end for the 7H17 and 7H19 commercial walk-behind mowers. Electrical schematics and harness drawings lay out the wiring, while the power train section pairs hydraulic schematics with diagnostics and repair for the hydrostatic drive. Torque tables cover metric and inch fasteners. Face seal and O-ring boss fitting values follow, plus fuel, engine oil and hydrostatic transmission oil guidance. Fill the crankcase to 1.8 L (1.9 US qt) when the filter is changed, and gap the spark plug at 0.75 mm (0.030 in.). The task you bring may be tracing a fault through the electrical harness connections or following oil flow through the hydrostatic power train circuit. With text search and bookmarks, you reach Engine Tests and Adjustments quickly and finish that plug service at Deere's 22 N•m (195 lb-in.).
What's Inside This John Deere 7H17, 7H19 Manual
| System | Pages | Key Topics |
|---|---|---|
| Technical Manual | 1-2 | Table of Contents, Specifications and Information, Identification Numbers, Tools and Materials, Component Location, Schematics and Harnesses |
| Introduction | 3-4 | Manual Description, Product Support Program, Manual Organization, Bleed Tabs, Page Numbering |
| Safety | 5-8 | Safety Information, Signal Words, Safety Signs, Emergency Preparedness, Protective Clothing, Service Procedures |

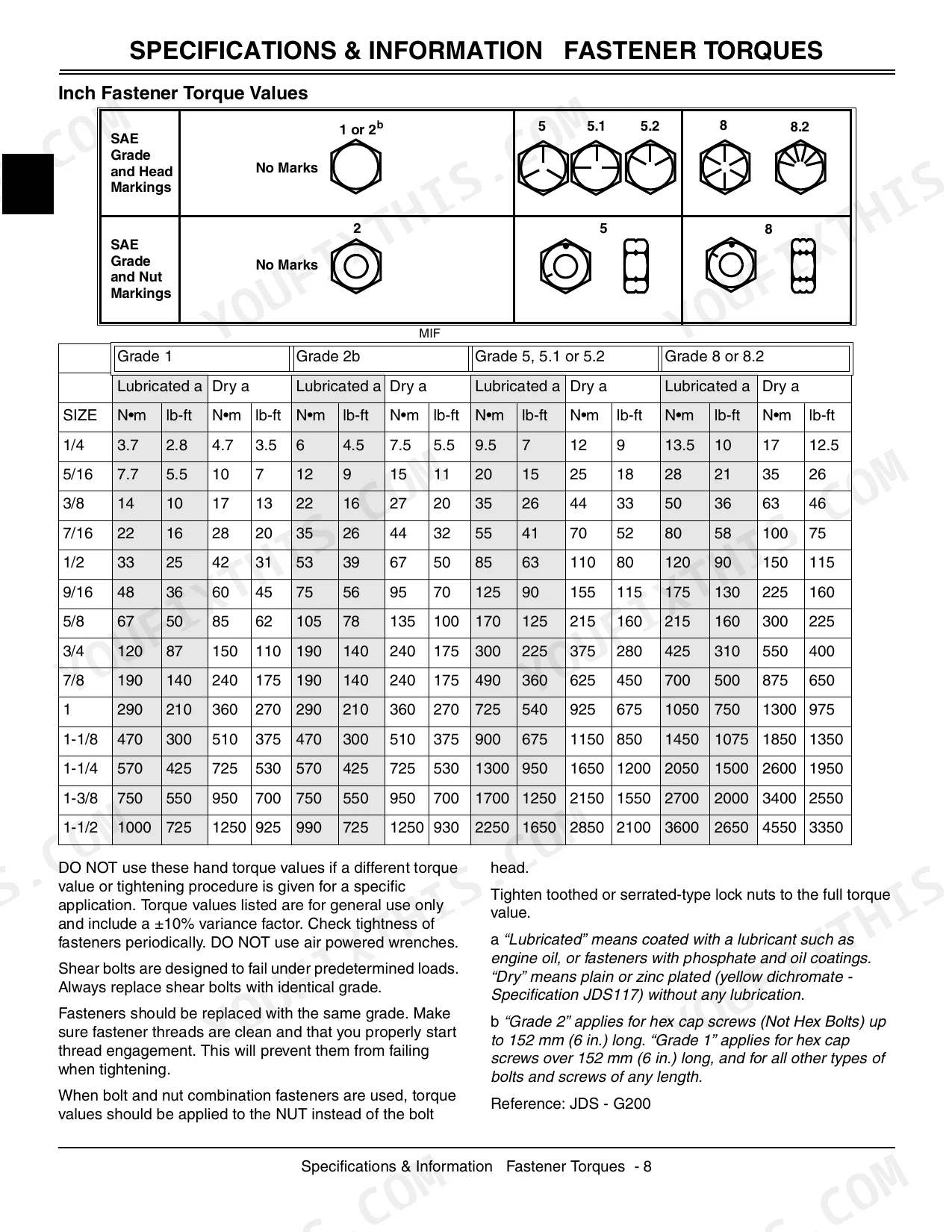

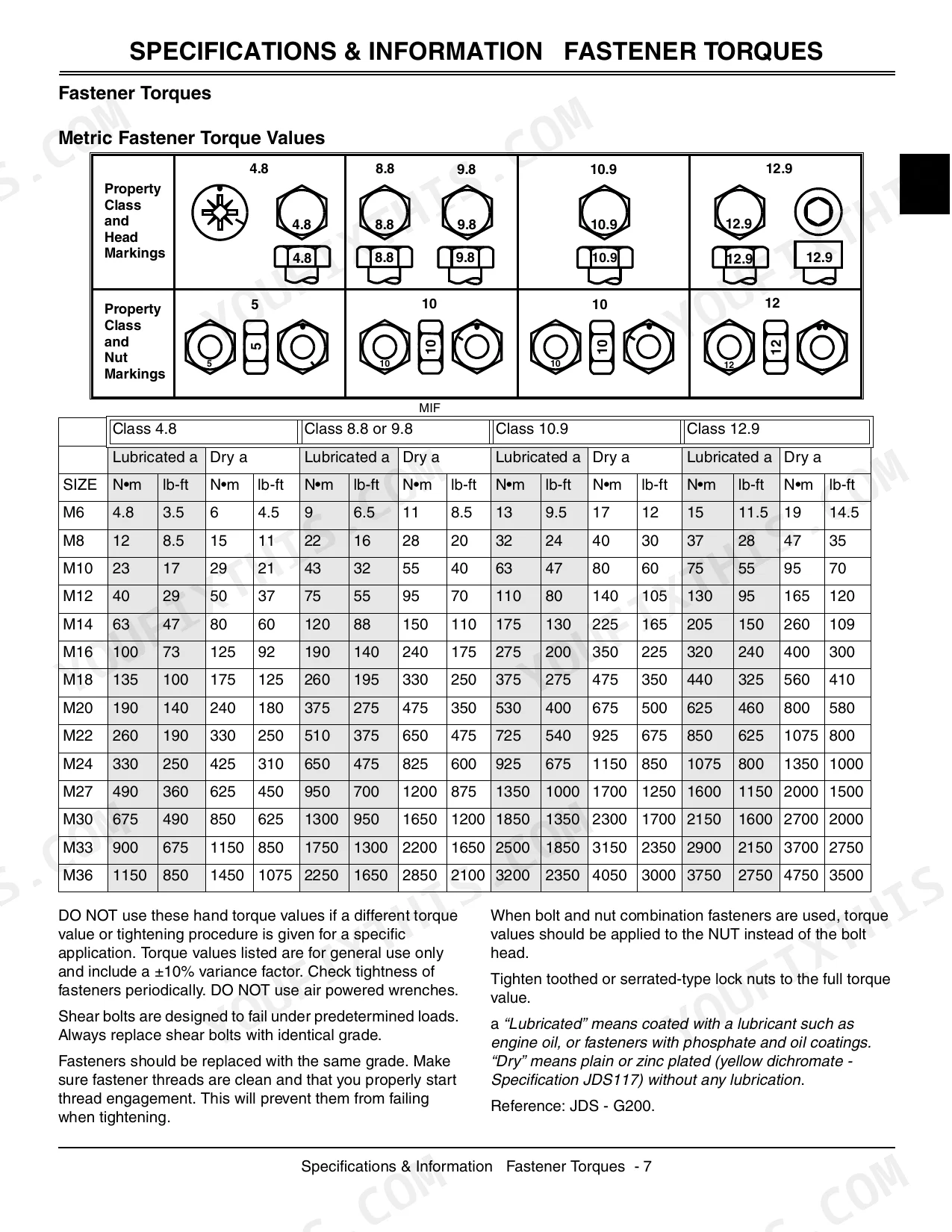

| Specifications and Information | 9-20 | Fastener Torques, O-Ring Seal Service Recommendations |

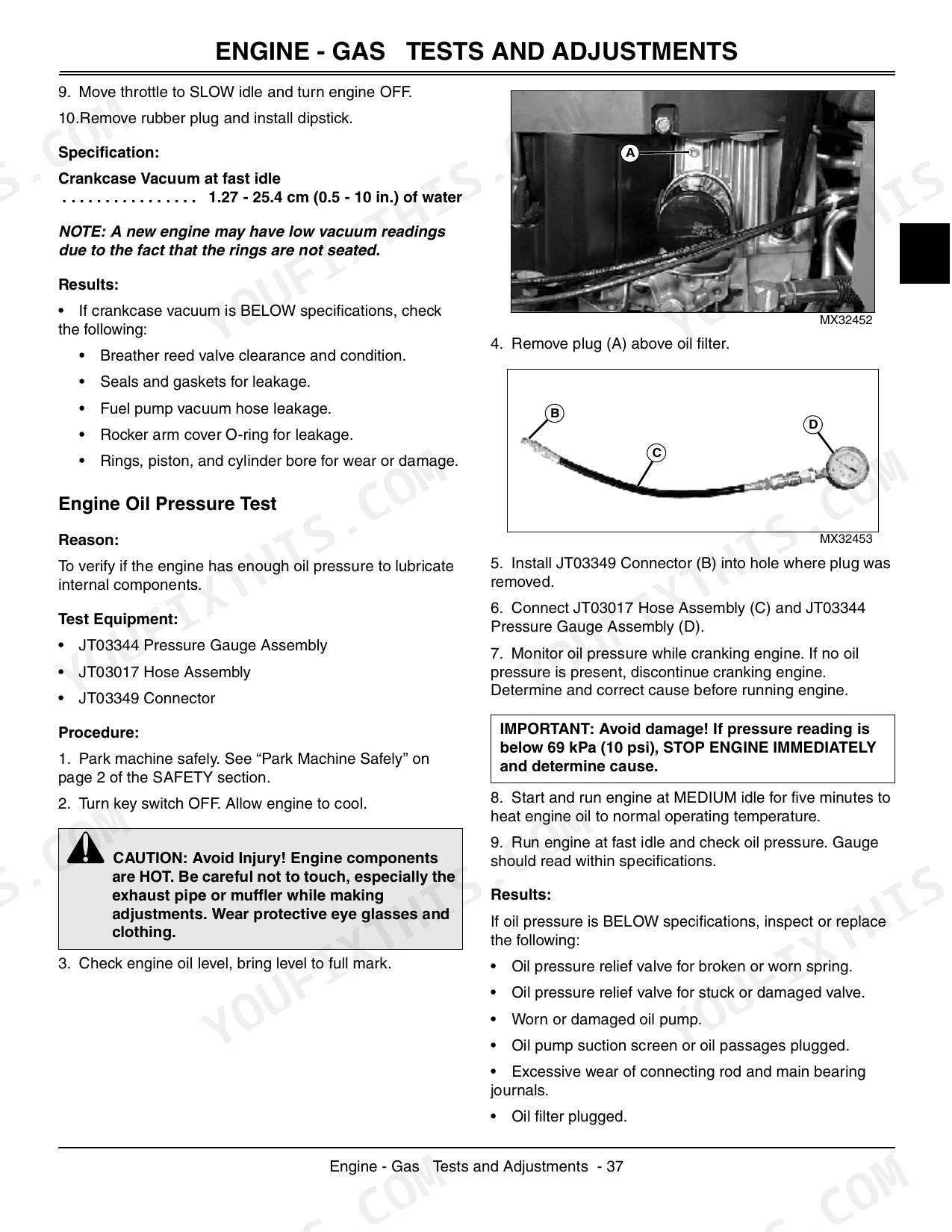

| Engine - Gas | 21-68 | Engine Specifications, Engine Component Location, Engine Tests and Adjustments, Engine Repair |

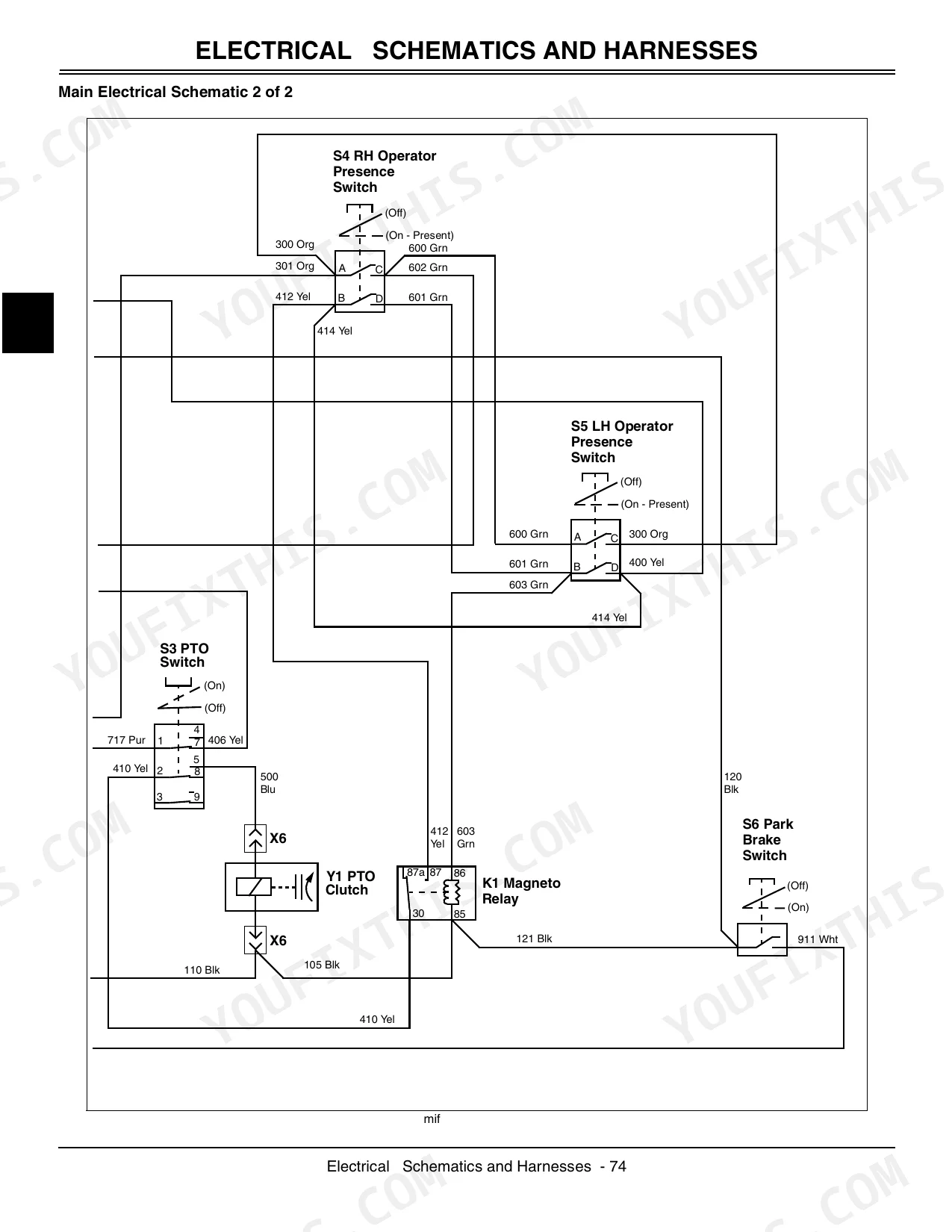

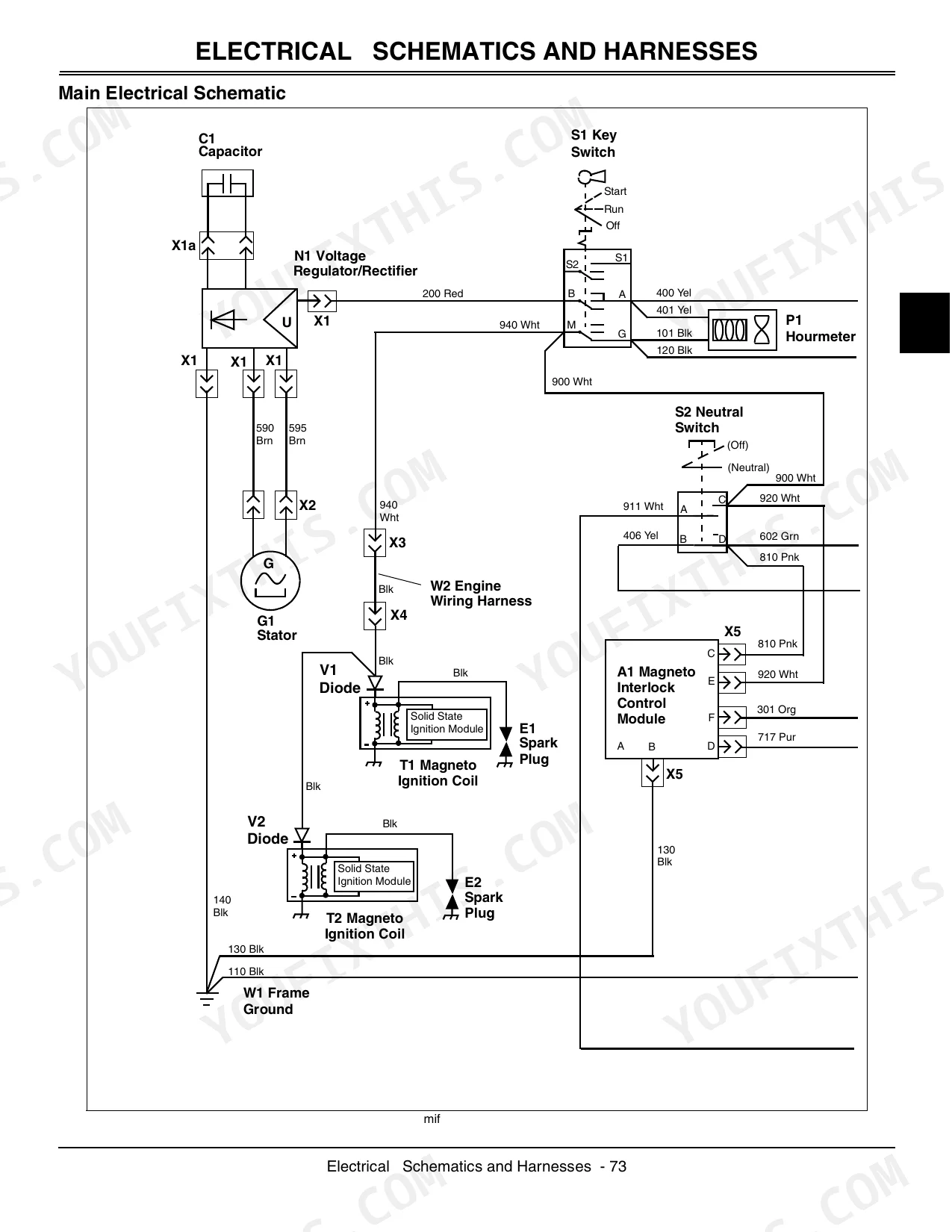

| Electrical | 69-96 | Electrical General Information, Electrical Schematics and Harnesses, Electrical Operation and Diagnostics, Electrical Tests and Adjustments |

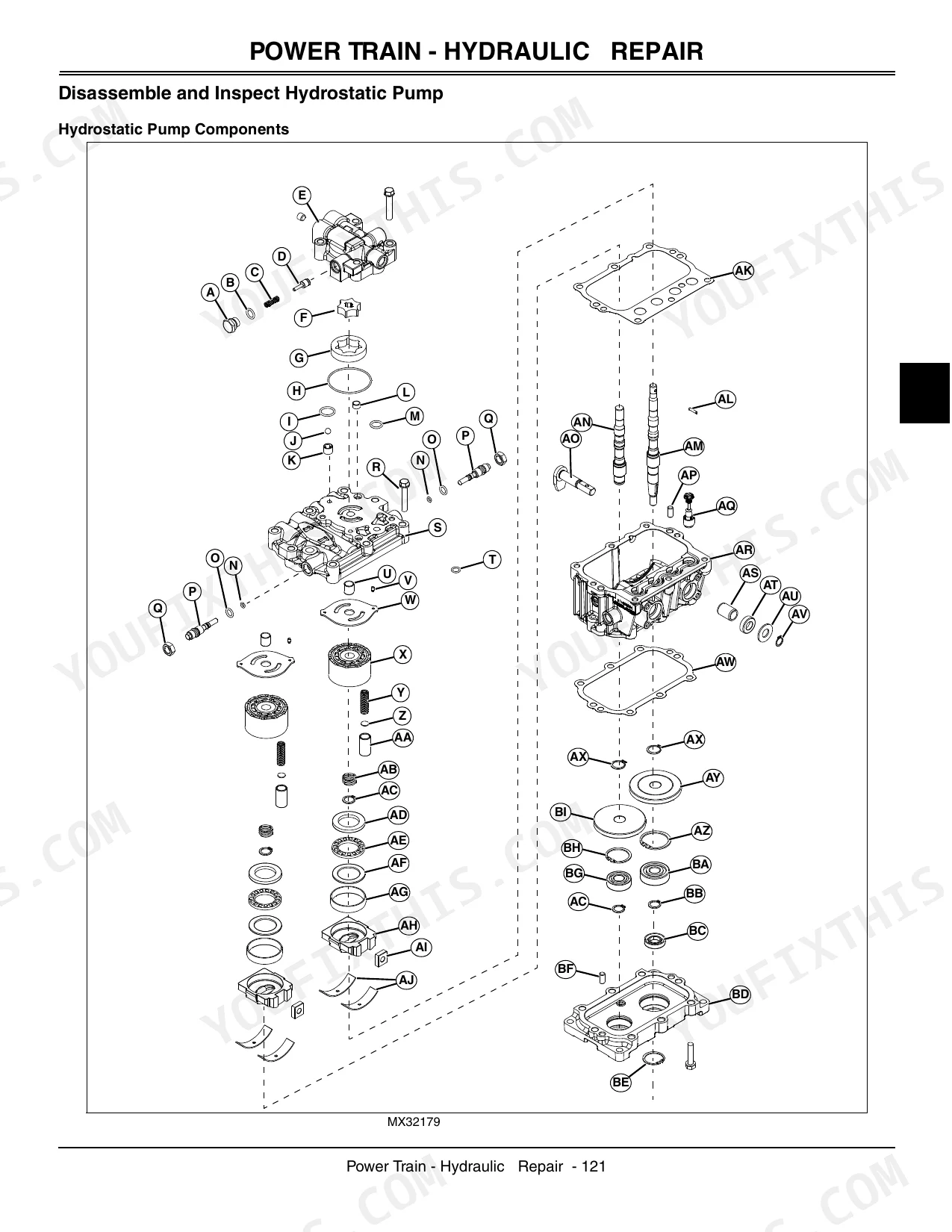

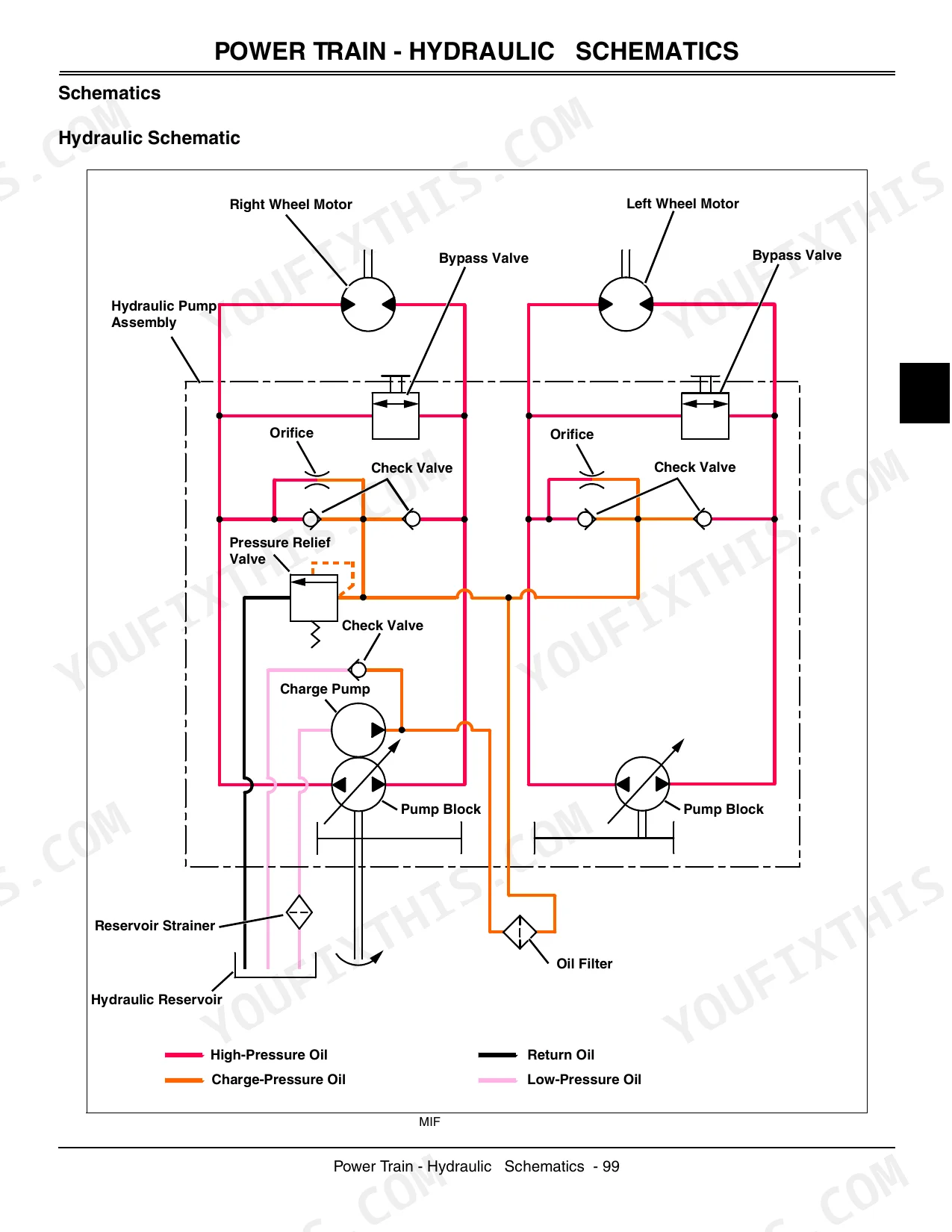

| Power Train - Hydraulic | 97-134 | Power Train Hydraulic Specifications, Power Train Hydraulic Diagnostics, Power Train Hydraulic Repair |
| Attachments | 135-148 | Attachments Specifications, Attachments Component Location, Attachments Diagnostics, Attachments Tests and Adjustments, Attachments Repair |
| Miscellaneous | 149-152 | Miscellaneous Tests and Adjustments |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Spark Plug Gap | 0.75 mm (0.030 in.) | p. 23 |
| Spark Plug Torque | 22 N•m (195 lb-in.) | p. 74 |
| Belt guide clearance | 5 mm (0.2 in.) | p. 109 |
| Engine Oil Capacity (With Filter) | 1.8 L (1.9 US qt) | p. 23 |
| Engine Oil Capacity (Without Filter) | 1.5 L (1.6 US qt) | p. 23 |
| Slow Idle (Governed) | 1550 ± 50 rpm (1700 rpm) | p. 23 |
| Fast Idle | 3600 ± 100 rpm | p. 23 |
| Ignition Timing @3000 rpm | 20° BTDC | p. 23 |
| Minimum Cylinder Compression Pressure | 390 kPa (57 psi) | p. 24 |
| Maximum Difference Between Cylinders | 41 kPa (6 psi) | p. 24 |
| Flywheel Bolt Torque | 56 N•m (41 lb-ft) | p. 26 |
| Hydraulic System Oil Capacity | 7.57 L (2.0 gal) | p. 99 |
John Deere 7H17, 7H19 Common Problems This Manual Covers
John Deere 7H17 and 7H19 mower engine hard to start with weak or no blue spark
Test for spark with the travel speed lever in neutral, PTO off and park brake on. Keep hands clear because the engine may rotate at any time, and hold the plug away from the plug hole (page 34). No strong blue spark: replace the plug, gapped to 0.75 mm (0.030 in.) and torqued to 22 N•m (195 lb-in.) per page 23. Still weak? Check the high tension lead, ignition coil air gap and pulser coil.
Manual Section: Engine Troubleshooting Guide p. 34Engine hard to start with strong spark, spark plug electrodes wet after several cranking attempts
Check compression first, keeping hands away from moving parts while cranking (page 34). Look for at least 390 kPa (57 psi) and no more than 41 kPa (6 psi) between cylinders, per page 24. If compression is good and the plug comes out wet, look for excessive choke use, a plugged air cleaner or carburetor float level set too high. Dry electrodes point to the fuel tank and lines. Low compression: inspect rings, cylinder and cylinder head.
Manual Section: Engine Troubleshooting Guide p. 34Engine runs erratically under normal operation, with low fuel delivery at the fuel pump
Test fuel pump delivery first. Gasoline is extremely flammable, so do not smoke, and work in a ventilated area away from open flame, sparks and pilot lights (page 42). If delivery is low, clean plugged air and fuel passages in the carburetor. If delivery is normal, check for contamination, or an air or vapor lock in the fuel tank and lines, before you touch the carburetor.
Manual Section: Engine Troubleshooting Guide p. 34Engine stalls or rpm drops at a certain point when throttle is opened by hand
Check for unusual smoke from the muffler and adjust the choke if you see it. If rpm drops as the throttle opens, clean the carburetor interior. Check for air being sucked at the carburetor or intake manifold flanges; tighten the flange nuts or replace the damaged gasket. Let the engine cool before checking valves, since it will be hot (page 38), then set clearance cold to 0.10 to 0.15 mm (0.004 to 0.006 in.) per page 39.
Manual Section: Engine Troubleshooting Guide p. 34Gas engine oil consumption is excessive, with level dropping quickly between dipstick checks
Check compression, keeping hands clear of moving parts while cranking (page 34). Look for at least 390 kPa (57 psi) and no more than 41 kPa (6 psi) between cylinders (page 24). If it passes, inspect for oil leaks, high oil level, a plugged oil ring groove, oil seals, a clogged breather valve, a plugged breather drain back hole and incorrect viscosity. Low compression means worn, stuck or broken rings or a worn cylinder bore.
Manual Section: Engine Troubleshooting Guide p. 34Frequently Asked Questions
How do I troubleshoot a John Deere 7H17/7H19 that will not start?
To troubleshoot a no-start condition, first verify a strong blue spark using the spark test on page 42. If spark is present, check compression using the cylinder compression pressure test on page 39. If compression is low, inspect piston rings and cylinder for wear as described on page 59. p. 34
What are the torque specifications for the John Deere 7H17/7H19 spark plug?
The spark plug torque for the FH541V and FH580V engines is 22 N•m (195 lb-in.). p. 23
What is the mower blade bolt torque for a John Deere 7H17/7H19?
The blade cap screw torque for both the 48-inch and 54-inch mower decks is 122 N•m (90 lb-ft). p. 137
What engine oil capacity does the John Deere 7H17/7H19 have?
The engine oil capacity for the FH541V and FH580V engines is 1.8 L (1.9 US qt) with the filter, and 1.5 L (1.6 US qt) without the filter. p. 23
What are the replacement specifications for the John Deere 7H17, 7H19 hydrostatic transmission filter M131053?
The hydraulic oil filter for the hydrostatic transmission is part number M131053. When changing, install the filter until the O-ring contacts the filter base, then tighten an additional 3/4 turn by hand pressure only. p. 99
Is this John Deere 7H17 manual a PDF I download?
You download the Technical Manual yourself: 156 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Can I print specific sections of this John Deere 7H17 Technical Manual?
Yes. Print the pages or sections you need for your own shop use. Any standard printer works.
