A clutch that slips halfway through second cut won't wait for a dealer appointment, and neither will you. This John Deere 2950 Technical Manual PDF puts all 844 pages of factory publication TM4407 behind your tractor, from the radiator back to the Roll-Gard structure, covering the 2950 only with no serial-number cutoff in the book. Engine overhaul for the 6-cylinder, 359 cu in diesel is in JD's separate CTM-4 manual; this one stops at the block. Wiring diagrams trace the harness through the starting motor and alternator, hydraulic schematics map the pump and selective control valve, and power train coverage runs from the Hi-Lo shift unit to the differential. Fill the cooling system to 17 L (4.5 US gal) without Sound-Gard body, and torque the front axle carrier to engine block cap screws to 230 N·m (170 ft-lbs). Every procedure carries factory torque values and clearances, not a guess. Bookmarked and text-searchable, the PDF goes wherever the tractor is parked.
What's Inside This John Deere 2950 Manual
| System | Pages | Key Topics |
|---|---|---|

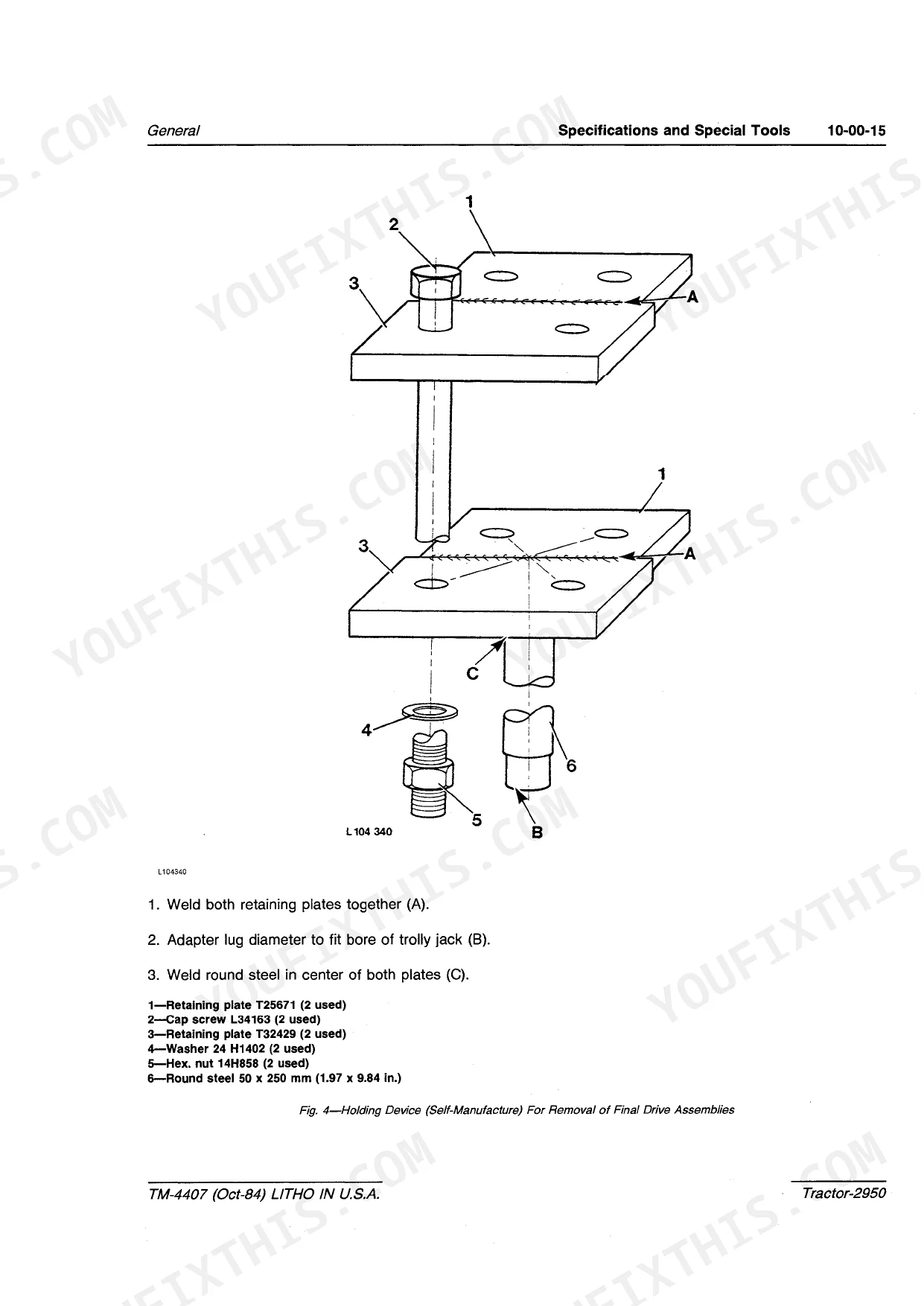

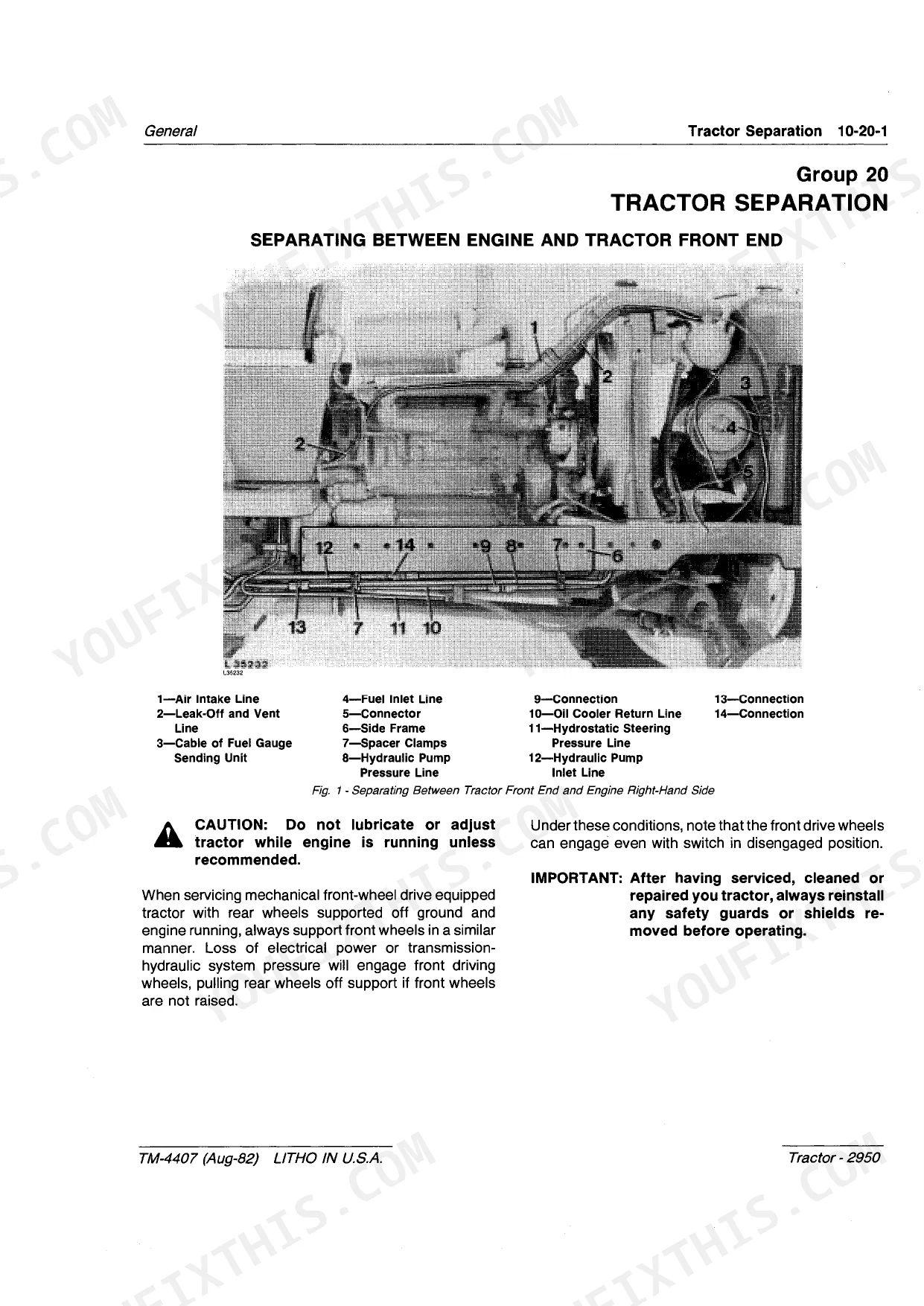

| General | 3-86 | Specifications and Special Tools, Predelivery, Delivery and After-Sales Inspections, Lubrication and Service |
| Engine | 87-92 | Radiator |

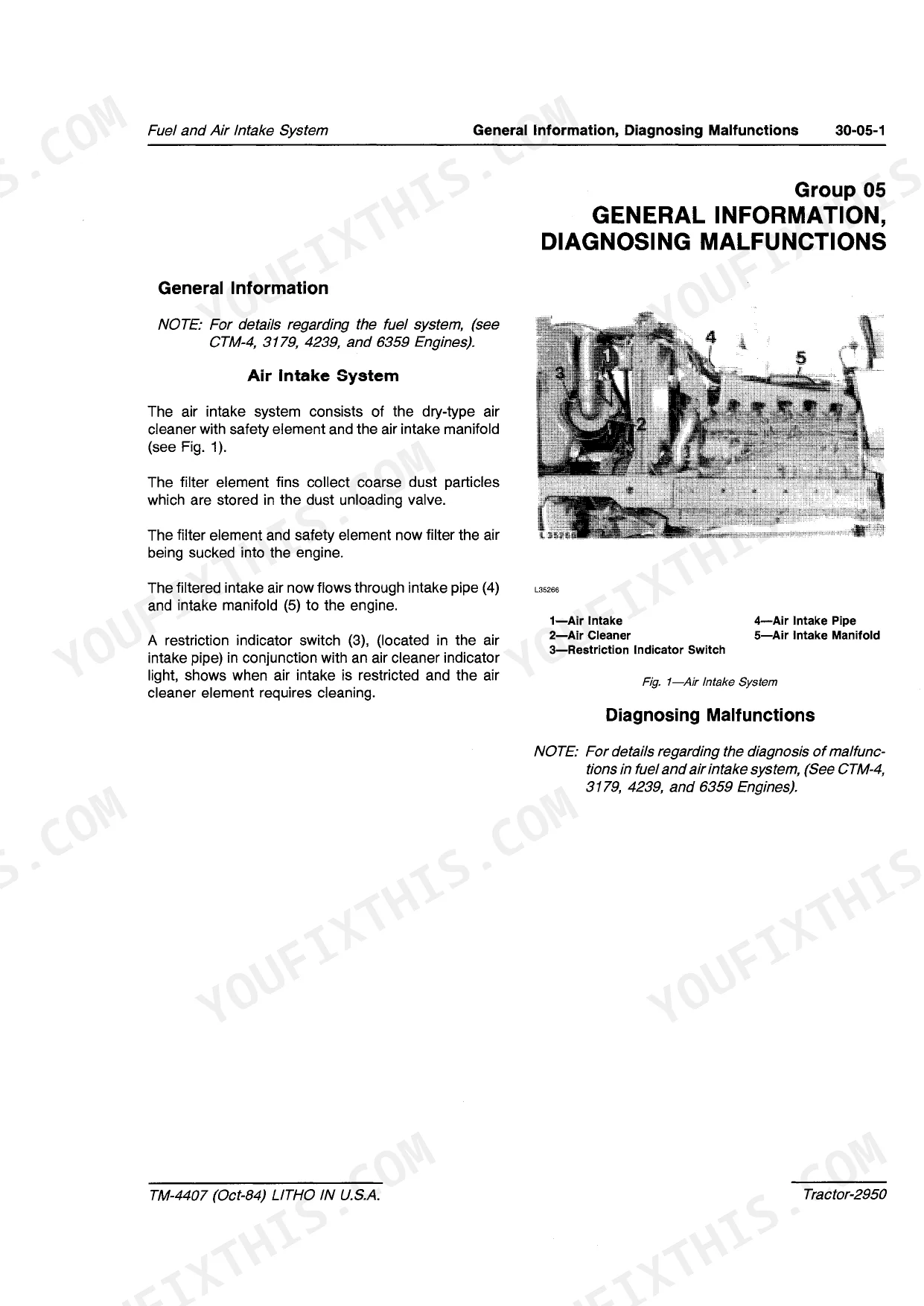

| Fuel and Air Intake System | 93-114 | Fuel Tank and Water Trap, Cold Weather Starting Aids, Speed Control Linkage, Air Cleaner |
| Electrical System | 115-296 | Description, Diagnosing Malfunctions and Tests, Wiring Harnesses, Controls and Instruments, Lighting System, Wiring Diagrams, Starting Motor, Alternator |
| Power Train | 297-508 | Clutch Operating Linkages, Engine Clutch, Hi-Lo Shift Unit, Creeper Transmission, Transmission Shift Linkage, Synchronized Transmission and Transmission Oil Pump, Differential, Final Drives, Independent PTO, Mechanical Front Wheel Drive |
| Steering System and Brakes | 509-572 | Steering System, Brakes |
| Hydraulic System | 573-742 | Description, Diagnosing Malfunctions and Tests, Oil Reservoir, Filter, Valves and Oil Cooler, Hydraulic Pump, Rockshaft, Selective Control Valve and Coupler |
| Operator's Station | 743-844 | Air Conditioning System, Ventilation and Heating, Seats, Sound-Gard Body, Roll-Gard Protective Structure |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front axle carrier to engine block, cap screws | 230 N·m (170 ft-lbs) | p. 14 |
| Front axle carrier to oil pan, cap screws | 400 N·m (300 ft-lbs) | p. 14 |
| Recommended torque for pipe and hose connections (with O-rings) 3/8-24 UNF | 7.5 N·m (5.5 ft-lbs) | p. 16 |
| Capacity of cooling system (Without Sound-Gard Body) | 17 L (4.5 US gal) | p. 10 |
| Capacity of cooling system (With Sound-Gard Body) | 19 L (5.0 US gal) | p. 10 |
| Starting Motor No-Load Test (11.5 Volts) Min. Ampere | 60 Ampere | p. 117 |
| Starting Motor No-Load Test (11.5 Volts) Max. Ampere | 90 Ampere | p. 117 |
| Battery voltage | 2 x 12 Volts | p. 117 |
| Ampere-hours | 88 Ah | p. 117 |
| Thickness of a new clutch disk | 10 mm (0.39 in.) | p. 302 |
| Maximum permissible warp of clutch disk | 0.5 mm (0.02 in.) | p. 302 |
| Rear wheels to axle | 400 N·m (300 ft-lbs) | p. 11 |
John Deere 2950 Common Problems This Manual Covers
Steering wheel hard to turn and brakes feel spongy once hydraulic oil warms up
Check the hydraulic filters before blaming the steering valve; a plugged first-stage element opens its relief valve at 500 kPa (5 bar) differential, spec on page 638. Test the hydrostatic steering pressure control valve for movement at 12300 kPa (1800 psi), page 640. For the spongy pedal, isolate the brake valve from the final drives and check leak-down alone and together: leak-down only when combined points to a defective reservoir check valve, uneven leak-down between pedals points to a faulty equalizing valve, page 561.
Manual Section: Hydraulic System - Hydrostatic Steering Pressure Control Valve p. 640Hi-Lo shift unit jumps out of engagement under load
Test clutch pressure at the manifold; spec is 1000 to 1070 kPa (145 to 155 psi) on page 621, and each shim changes pressure about 35 kPa (5 psi). If pressure checks good, pull the Hi-Lo unit and inspect the drum and disks; torque the unit back to the clutch housing at 50 N·m (35 lb-ft), spec on page 305.
Manual Section: Hydraulic System - Clutch and Inlet Pressure Check p. 621Engine temperature climbs into the red after an hour of heavy tillage work
Clean the radiator core and grille screens with compressed air, blowing from the fan side out. Pressure test the radiator at 50 kPa (7 psi) and check the filler cap relief valve opens at 40 to 50 kPa, specs on page 88. Drain and refill with fresh coolant; capacity is 19 L with the Sound-Gard body.
Manual Section: Engine p. 88Frequently Asked Questions
What are the torque specifications for the John Deere 2950 rear wheel bolts?
The torque specification for the rear wheels to the axle is 400 N·m (300 ft-lbs). p. 11
How do you fix John Deere 2950 hydraulics that go weak and the pump chatters once the oil gets hot?
Check transmission and hydraulic oil level first; the system holds 68.0 L on initial fill. Run the high pressure to sump leak test on page 618; leakage over 480 cc (1 pint) per minute points to internal charge-circuit leakage. Verify standby pressure reaches 15800 to 16200 kPa before condemning the main pump. p. 618
Why does the clutch slip or chatter during loader work, with the pedal engagement point drifting?
Adjust clutch pedal free travel to 25 mm before splitting the tractor. If slipping continues, split it and measure the disk; replace anything worn below the new thickness of 10 mm (0.39 in.), spec on page 302. Torque the clutch assembly to flywheel cap screws to 50 N·m (35 lb-ft) on reassembly, spec on page 303. p. 302
Why does the starter click once but not crank, though it sometimes fires after a few more key cycles?
Clean and tighten both battery cable ends first; the system runs two 12 volt batteries rated 88 Ah each. Test the solenoid; it needs a minimum of 8 volts to pull in, spec on page 118. Bench test the starting motor no-load at 11.5 volts; current draw above 90 amperes means worn bushings or a dragging armature. p. 117
Is this John Deere 2950 manual a PDF I download?
A single searchable PDF file of 844 pages, downloadable right after payment. Nothing ships, nothing waits in the mail.
Can I print a copy of this John Deere 2950 Technical Manual for the shop?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
Are hydraulic system diagrams in this John Deere 2950 Technical Manual?
Yes. The complete hydraulic system schematic on page 603 numbers every line and component: the pump, rockshaft, selective control valves, hydrostatic steering, Hi-Lo circuit, and PTO (covered separately as Independent PTO in the Power Train section). Individual valve, pump, and cylinder diagrams continue throughout the Hydraulic System section.
