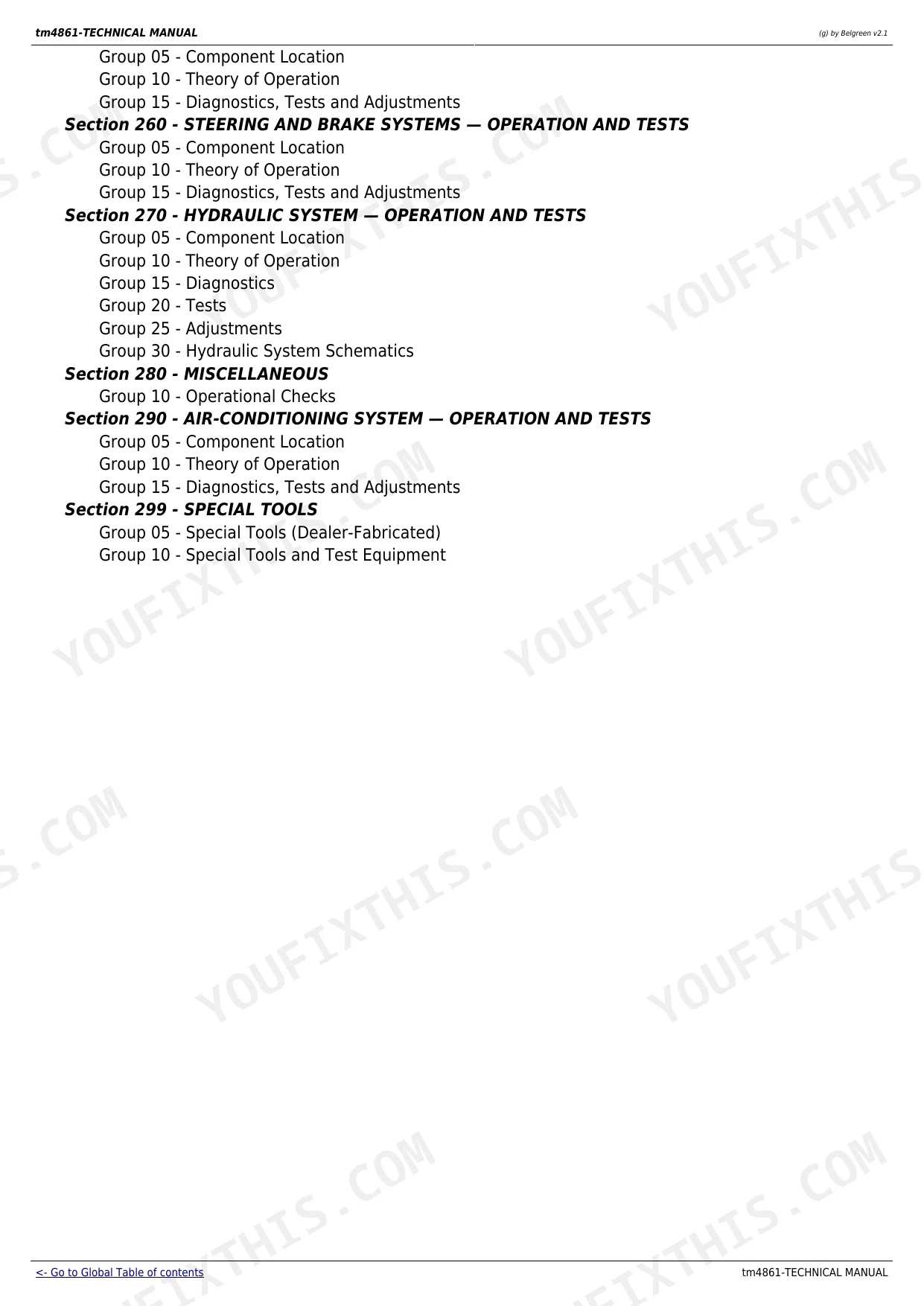

This is TM4861, the factory technical manual for John Deere 5215F, 5215V, 5315F/V, 5515F/V and 5615F/V orchard and vineyard tractors built 2004 to 2010. The big deal here: Deere usually splits these into two books, but this one carries both halves. You get the full Repair side (Sections 05 to 90: engine, fuel, electrical, 24/12 transmission, drive systems, steering, brakes, hydraulics, cab) plus the complete Operation and Tests side, including Section 211 Diagnostic Trouble Codes, Section 212 Observable Symptoms, Section 245 Electronic Control Units, and Section 290 Air Conditioning. That means you can pull a code, trace it, test the circuit, and then tear down and rebuild the component without buying a second manual.
What's Inside This John Deere 5215F-5615V Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 9-27 | Safety Precautions, Decals, Safe Service Practices |
| General Information | 28-77 | Per-Model Engine and Machine Specifications, Fuels and Lubricants, Standard Torque Charts |
| Engine - Repair | 78-98 | Cylinder Head, Block, Pistons, Crankshaft, Timing, Overhaul |
| Fuel and Air Intake - Repair | 99-131 | Injection Pump and Injectors, Filters, Turbocharger, Air Cleaner |
| Electrical System - Repair | 132-166 | Alternator, Starter, Batteries, Harness and Component Replacement |

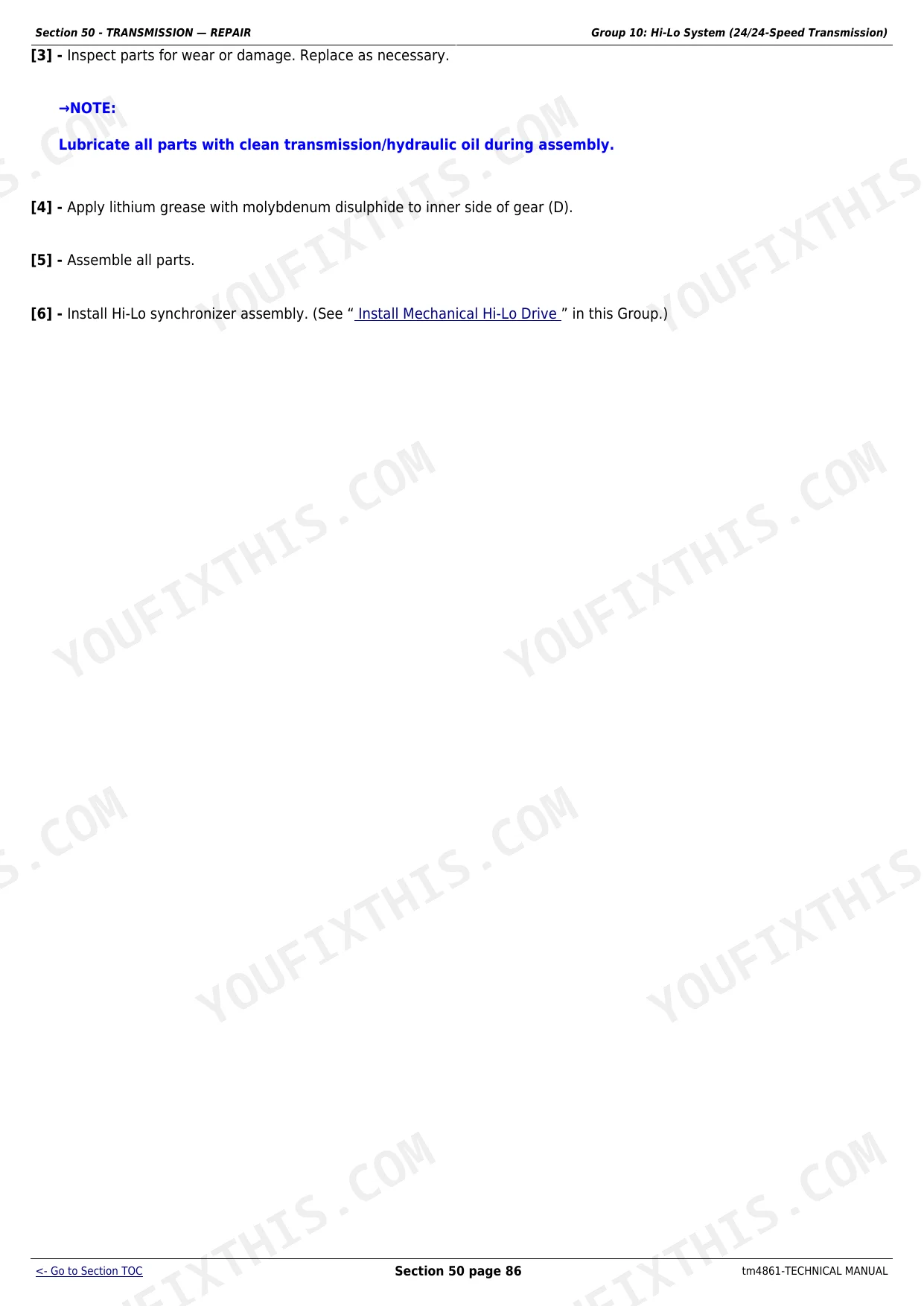

| Transmissions - Repair | 167-385 | Main Transmission and the 24/12-Speed: Clutch, Shafts, Synchronizers, Overhaul |

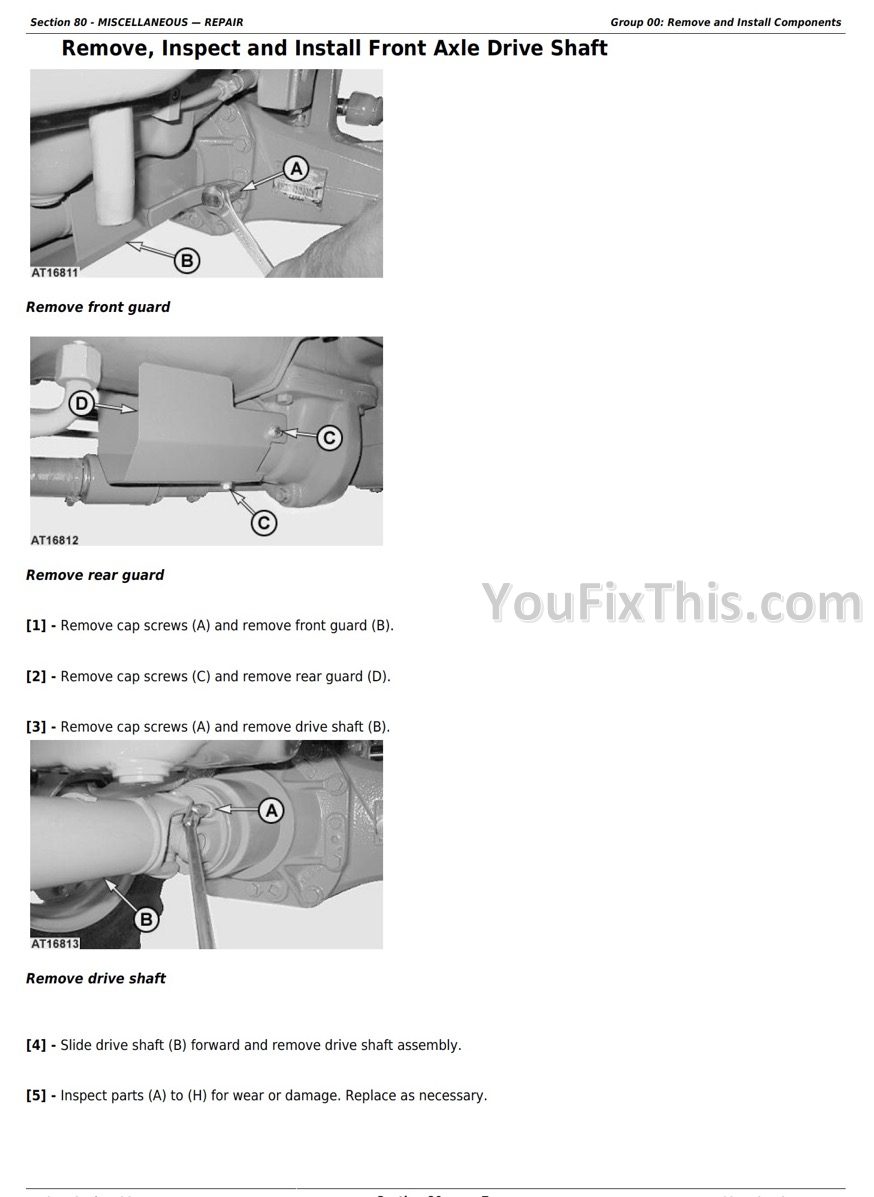

| Drive Systems - Repair | 386-481 | MFWD Front Axle, Rear Axle, Final Drives, Differential Lock, PTO |

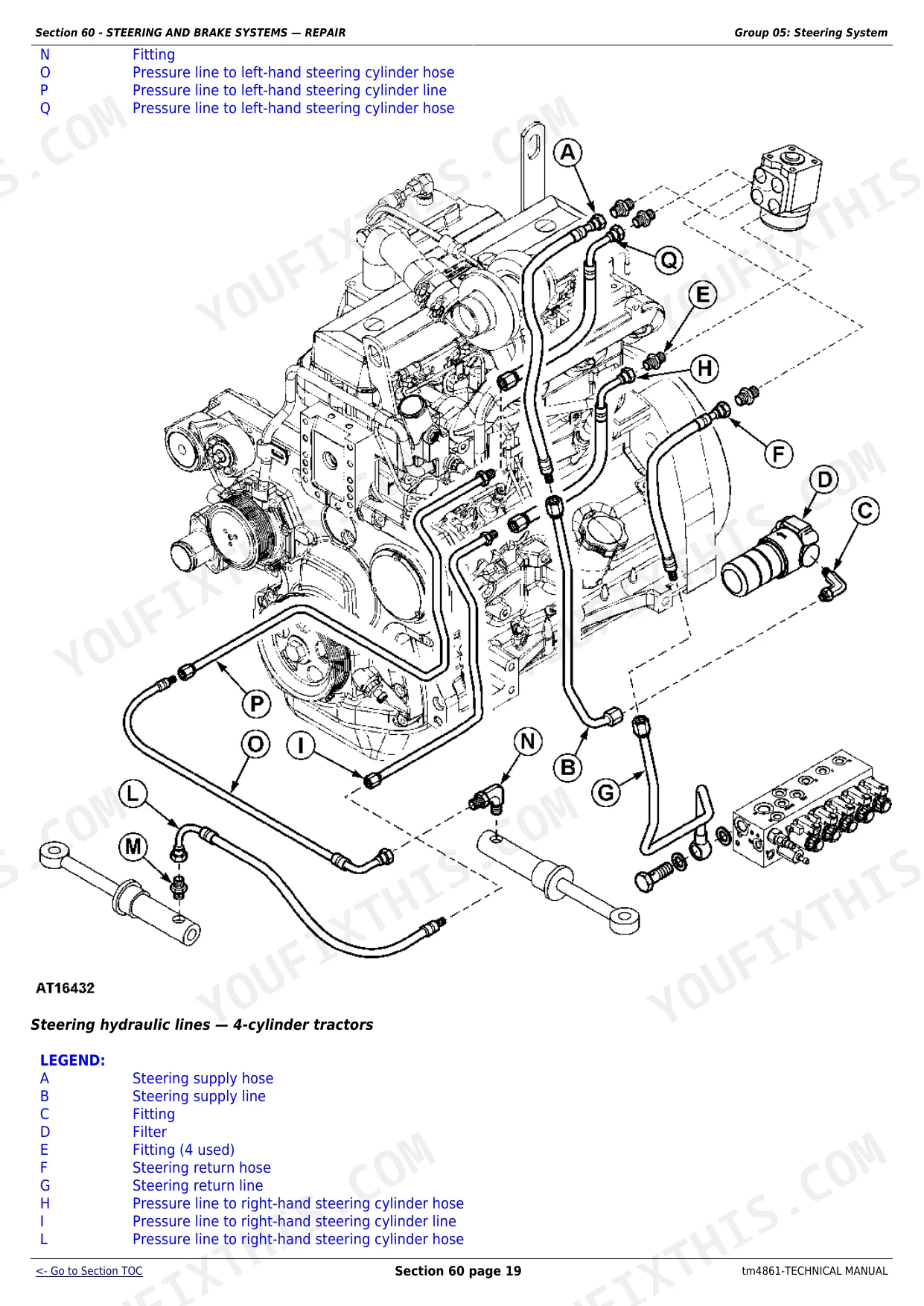

| Steering and Brakes - Repair | 482-547 | Steering Pump, Cylinder, Service and Park Brakes |
| Hydraulic System - Repair | 548-641 | Hydraulic Pump, Rockshaft and Hitch, SCVS, Assembly Torques (Pump to Front Plate 37 Lb-Ft, Rockshaft Case 90 Lb-Ft) |
| Miscellaneous - Repair | 642-674 | Frame, Ballast, Wheels and Tires, Fenders |

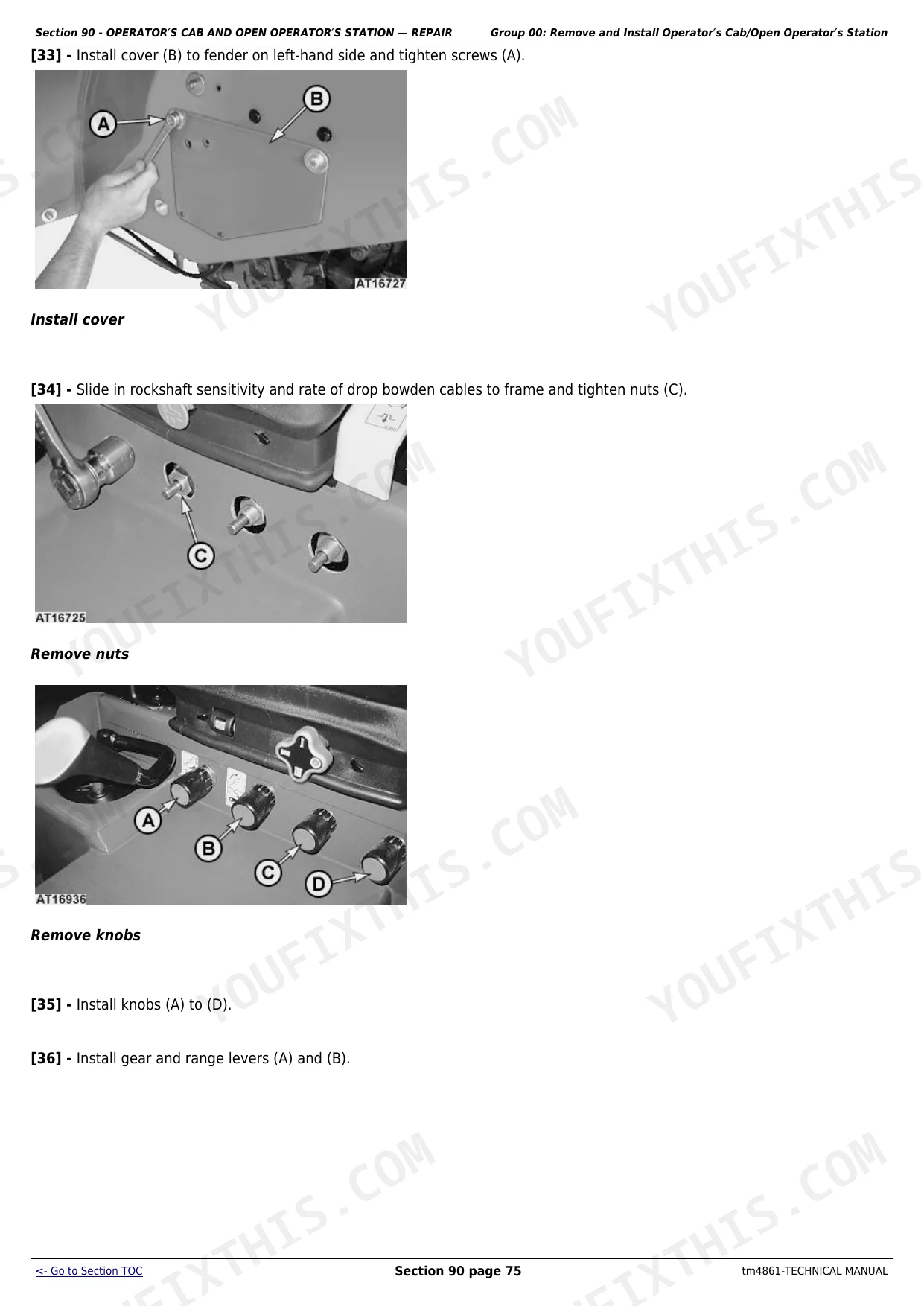

| Operator's Cab and Open Station | 675-864 | Cab Removal, Glass, Seat, Controls, Air-Conditioning Components |
| Diagnostics: Trouble Codes and Observable Symptoms | 865-953 | Ehm Electro-Hydraulic Management Codes, Calibration Messages, Step-by-Step Yes/No Decision Trees, Power Train Symptoms (e.g. Traction Clutch) |
| Engine, Fuel and Cooling - Operation and Tests | 954-992 | Engine Theory, Fuel and Air Intake Tests, Cooling System Checks |

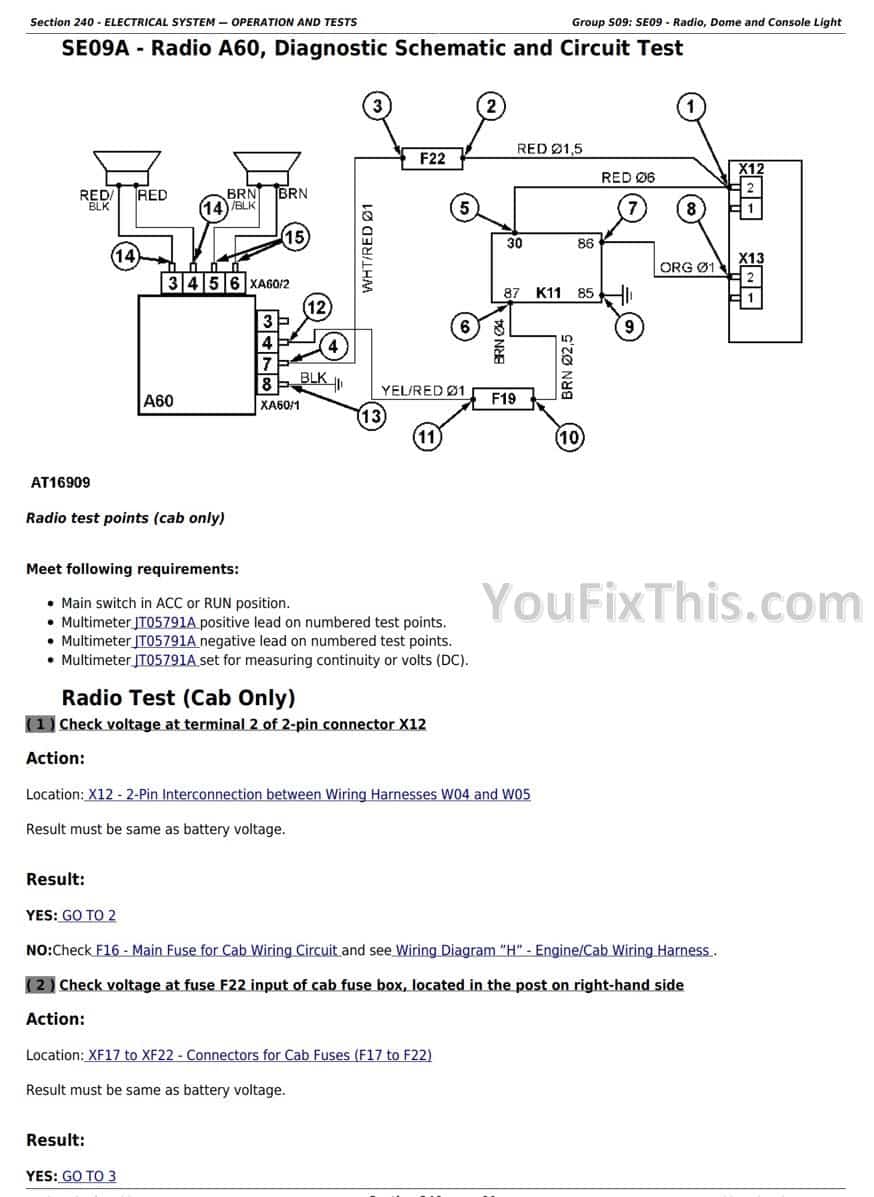

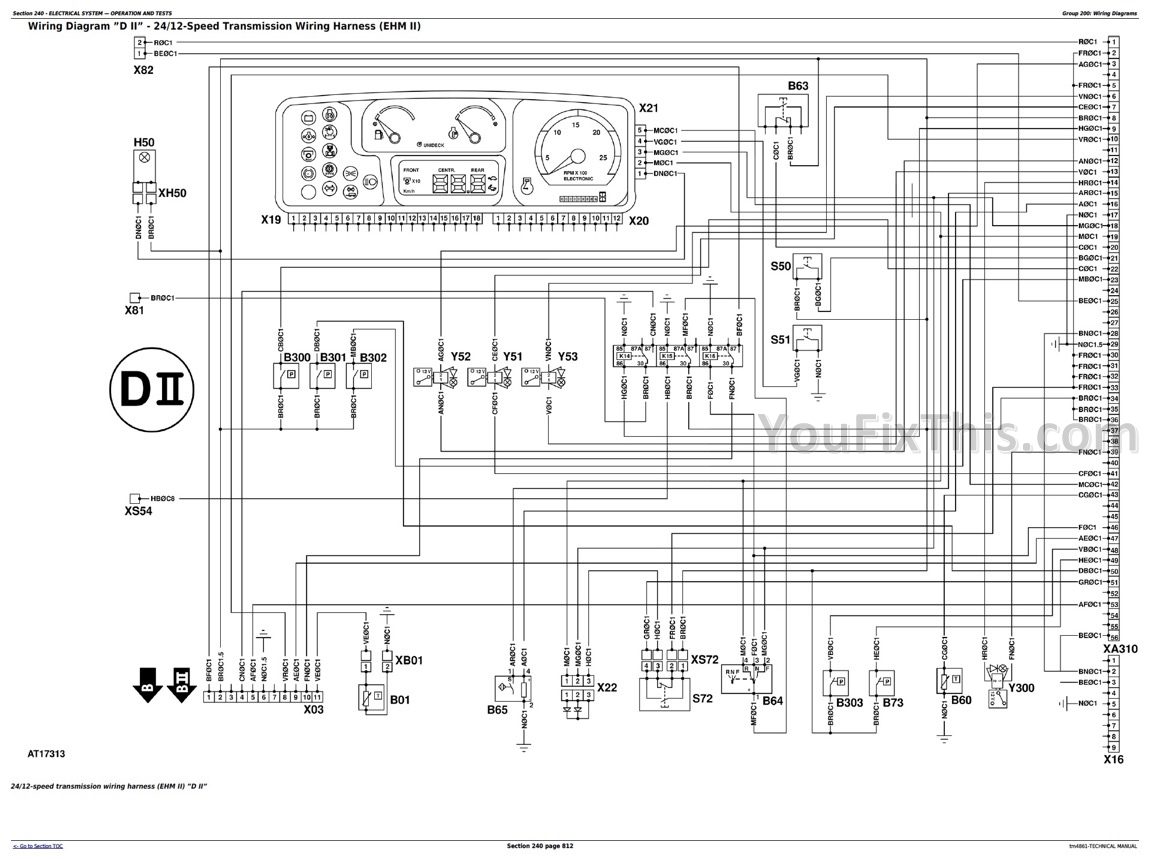

| Electrical System - Operation and Tests | 993-1829 | Circuit Diagnostics, Component Location, Connector Tests, Wiring References |
| Electronic Control Units | 1830-1871 | Control Unit Configuration, Inputs and Outputs, Diagnostics |
| Power Train and 24/12-Speed - Operation and Tests | 1872-1977 | Transmission Theory, Clutch and Pressure Tests, Calibration |
| Steering and Brakes - Operation and Tests | 1978-2040 | Steering Pressure and Flow Tests, Brake Checks |
| Hydraulic System - Operation and Tests | 2041-2193 | Pump and System Pressure Tests, Rockshaft and SCV Diagnostics |
| Air-Conditioning and Miscellaneous - Operation and Tests | 2194-2227 | A/C Component Location, Refrigerant Charge and Leak Checks, Compressor and Blower Tests |
| Special Tools | 2228-2242 | Deere Tool Numbers, Pressure Gauges, Pullers and Fixtures Called Out in the Procedures |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 5315F/V | ||
| Engine Model | 3029TAT71 | p. 29 |
| Power at Rated Speed (97/68 EEC) | 49 kW (66.5 hp) | p. 29 |
| Maximum Torque | 235 N·m at 1600 rpm | p. 29 |
| 5515F/V | ||
| Engine Model | 4045TAT70 | p. 29 |
| Power at Rated Speed (97/68 EEC) | 60.5 kW (82 hp) | p. 29 |
| Maximum Torque | 314 N·m at 1500 rpm | p. 29 |
| 5615F/V | ||
| Engine Model | 4045TAT71 | p. 29 |
| Power at Rated Speed (97/68 EEC) | 66.5 kW (90.5 hp) | p. 29 |
| Maximum Torque | 337 N·m at 1500 rpm | p. 29 |
| 5215F/V | ||
| Power at Rated Speed (97/68 EEC) | 41 kW (56 hp) | p. 29 |
| Maximum Torque | 223 N·m at 1600 rpm | p. 29 |
| 5215F/V, 5315F/V | ||
| Engine Cylinders / Displacement | 3 cylinders, 2940 cm3 (179 cu. in.) | p. 29 |
| Implement Pump Displacement | 20 cm3 (1.22 cu in.) | p. 31 |
| 5515F/V, 5615F/V | ||
| Engine Cylinders / Displacement | 4 cylinders, 4530 cm3 (276 cu. in.) | p. 29 |
| All models | ||
| Valve Clearance (Intake / Exhaust) | 0.35 mm / 0.45 mm | p. 29 |
| Slow Idle / Fast Idle | 825-875 rpm / 2460-2510 rpm | p. 29 |
| Engine Rated Speed | 2300 rpm | p. 29 |
| Engine Speed for 540 rpm Rear PTO | 1938 rpm | p. 29 |
John Deere 5215F-5615V Common Problems This Manual Covers
Engine overheating in the orchard, especially mid-season when the radiator screens load up with leaves and dust
Section 230 (Fuel, Air Intake and Cooling Systems) gives the cooling system tests: thermostat opening check, radiator and coolant circuit inspection, and air intake restriction checks. These narrow-body F/V tractors pull a lot of debris through tight grille openings, so the manual's test sequence separates a plugged core from a failed thermostat before you buy parts.
Manual Section: Fuel, AIR Intake AND Cooling Systems (Section 230) p. 957Engine cranks but will not start, or knocks after fuel system work
Section 220 (Engine Operation and Tests) walks the no-start diagnosis, and Section 30 (Fuel and Air Intake Systems Repair) covers injection pump removal, installation and timing. A desynchronized injection pump knocks and can damage the engine, so follow the Section 30 pump timing procedure exactly rather than setting it by ear.
Manual Section: Fuel AND AIR Intake Systems - Repair (Section 30) p. 99Engine knock or low oil pressure warning on the 3029 and 4045 engines
Section 220 (Engine Operation and Tests) has the oil pressure test procedure to confirm whether the problem is real before teardown. If pressure is actually low, Section 20 (Engine Repair) covers the oil pump, main and rod bearing inspection with wear limits, so you can decide between a bearing set and a full rebuild on measurements, not guesswork.
Manual Section: Engine - Repair (Section 20) p. 78Transmission fault code or erratic shifting on the 24/12-speed gearbox

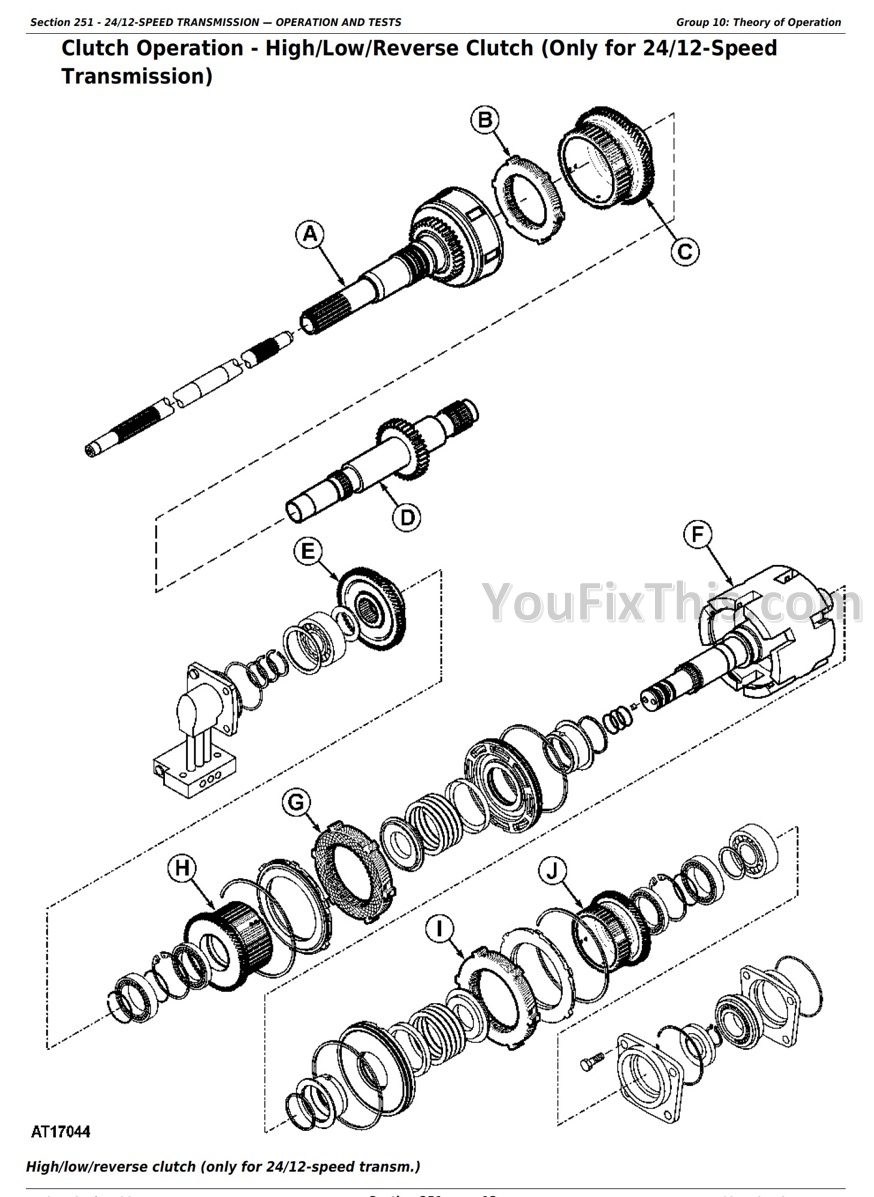

Start in Section 211 (Diagnostic Trouble Codes) to identify what the controller is flagging, then move to Section 251 (24/12-Speed Transmission Operation and Tests) for the pressure tests and electrical checks. If a component fails the test, Section 51 gives the complete repair procedure for that transmission, including disassembly and adjustment.
Manual Section: 24/12-SPEED Transmission - Operation AND Tests (Section 251) p. 1947Frequently Asked Questions
My 5315F is throwing a fault on the dash. Does this manual actually explain the codes, or just tell me to see the dealer?
It explains them. Section 211 lists the diagnostic trouble codes for these tractors, Section 212 walks observable symptoms when there is no code, and Section 245 covers the electronic control units themselves. You get the diagnostic procedure, not a note to call Deere. For anything the tester finds, the matching repair section (20 to 90) has the fix. p. 865
Are the torque specs in here, like head bolts and flywheel bolts?
Yes. Each repair procedure in Sections 20 through 90 carries its fastener torques and tightening sequences right in the step where you need them. Section 20 handles the engine work (head, flywheel, mains, rods), Section 30 covers injectors and fuel lines, Section 70 the hydraulic fittings. You are not hunting a separate spec book.
Which engines does it cover? My 5515F has the 4-cylinder.
All four models, each with its own data. The 5215F/V and 5315F/V run the 3-cylinder 2940 cm3 engine (41 kW/56 hp and 49 kW/66.5 hp, engine model 3029TAT71 on the 5315). The 5515F/V and 5615F/V run the 4-cylinder 4530 cm3 (4045TAT70 at 60.5 kW/82 hp and 4045TAT71 at 66.5 kW/90.5 hp). Rated speed is 2300 rpm across the board, valve clearance 0.35 mm intake / 0.45 mm exhaust. p. 29
Does it cover the 24/12 transmission or just the base gearbox?

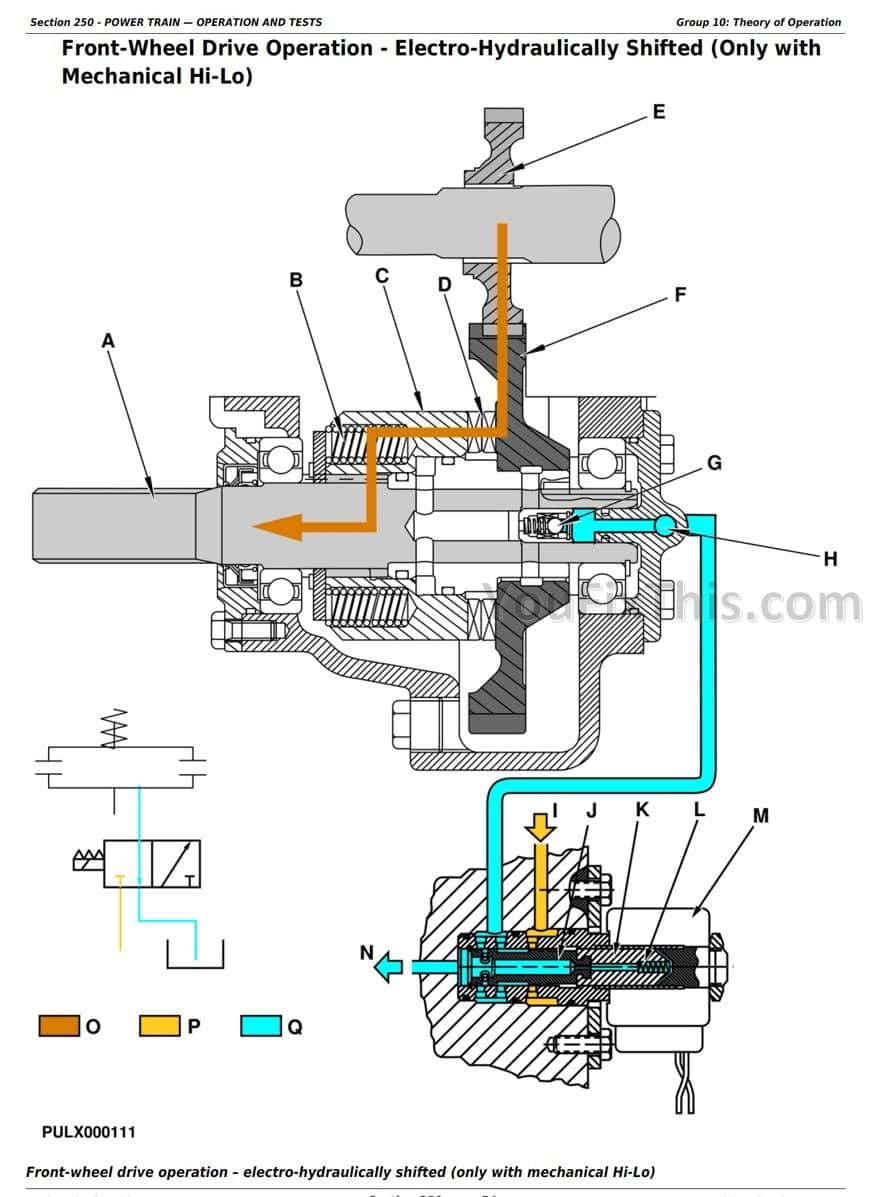

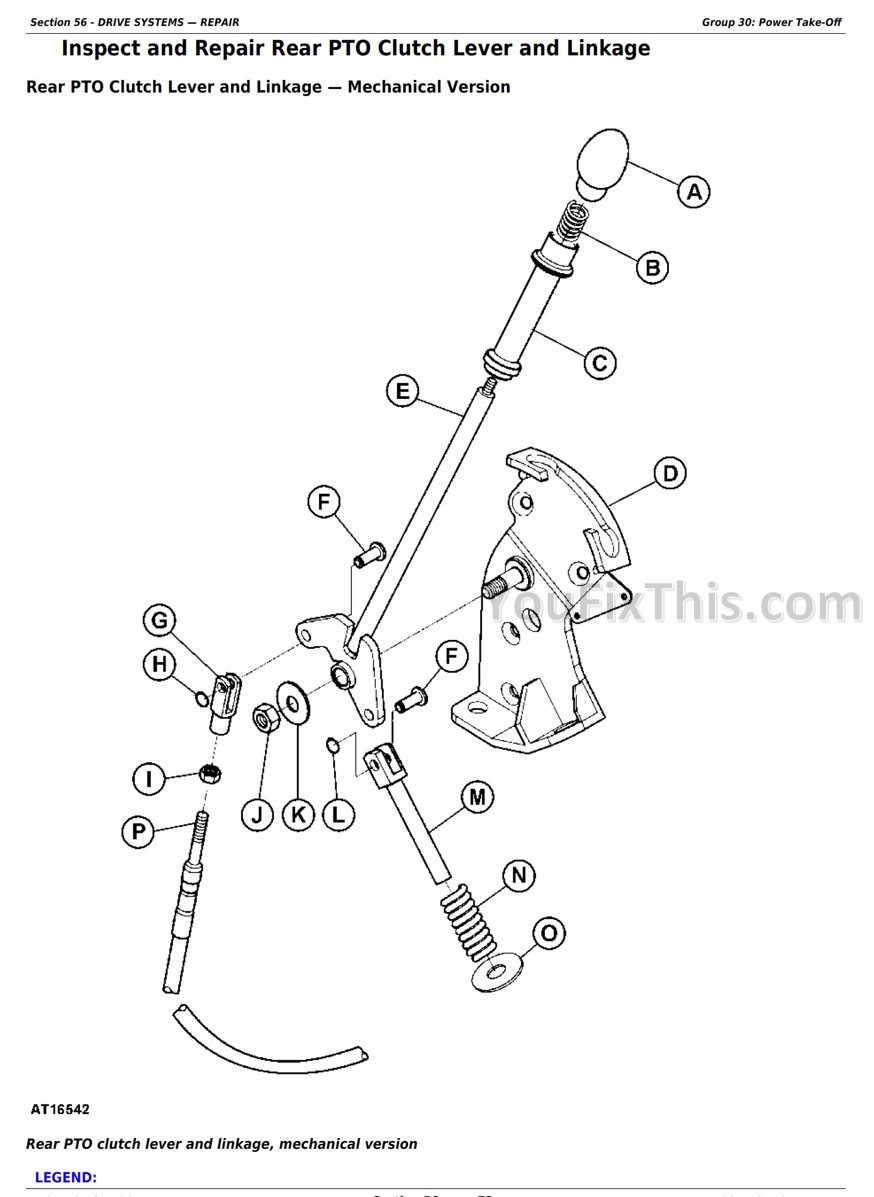

Both. Section 50 covers the standard transmission repair, and the 24/12-speed unit gets its own dedicated coverage: Section 51 for teardown and repair, Section 251 for operation, testing and troubleshooting. Clutch, shift linkage and related drive systems are in Section 56 and Section 250.
Is this a PDF I can search, and does it cover the cab and air conditioning?
It is the full technical manual in digital form, searchable by section. Cab and open operator station repair is Section 90, and the air conditioning system has its own operation and tests coverage in Section 290, which matters on these narrow F/V cabs where A/C work is tight and you want the procedure before you open the system.
