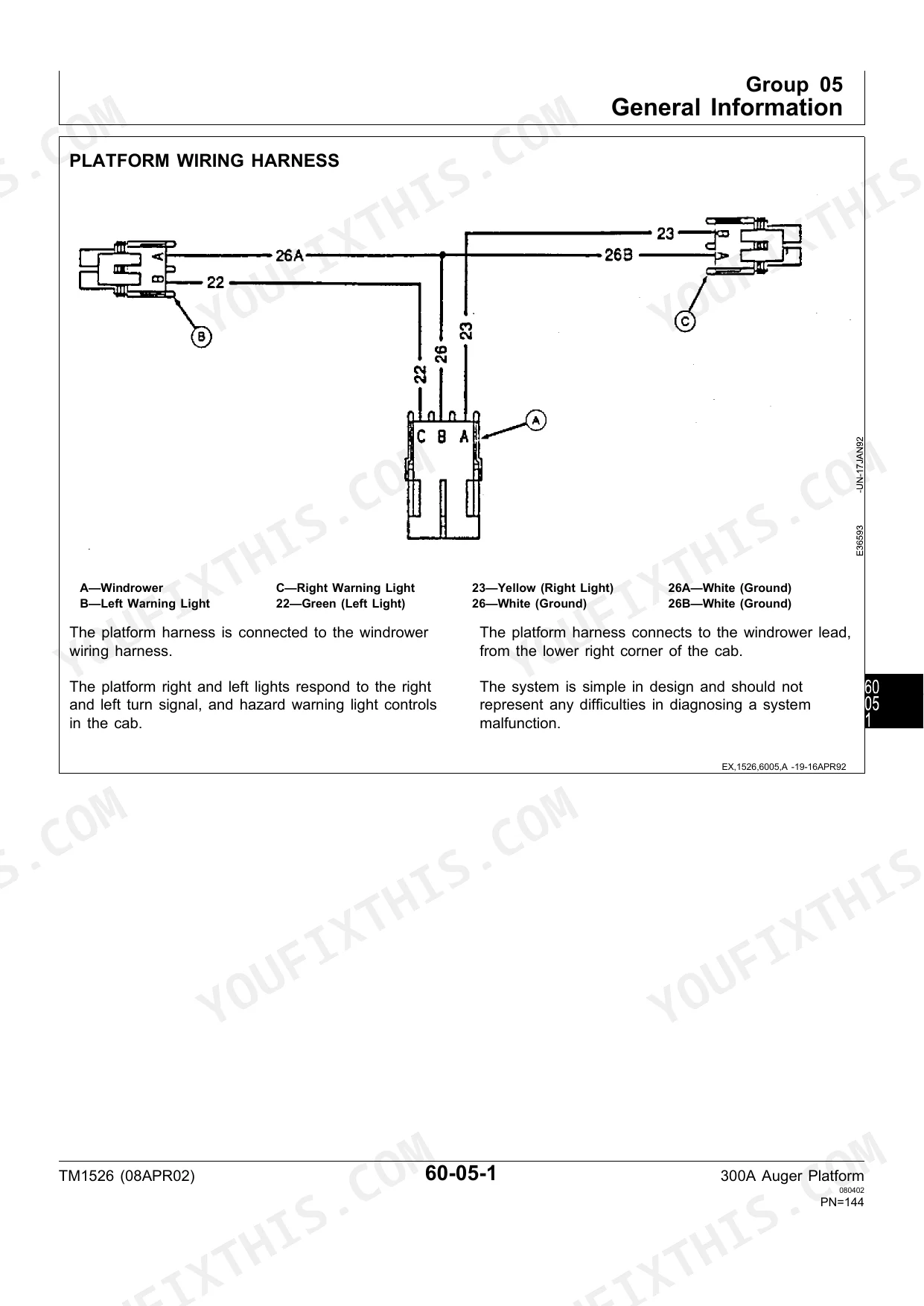

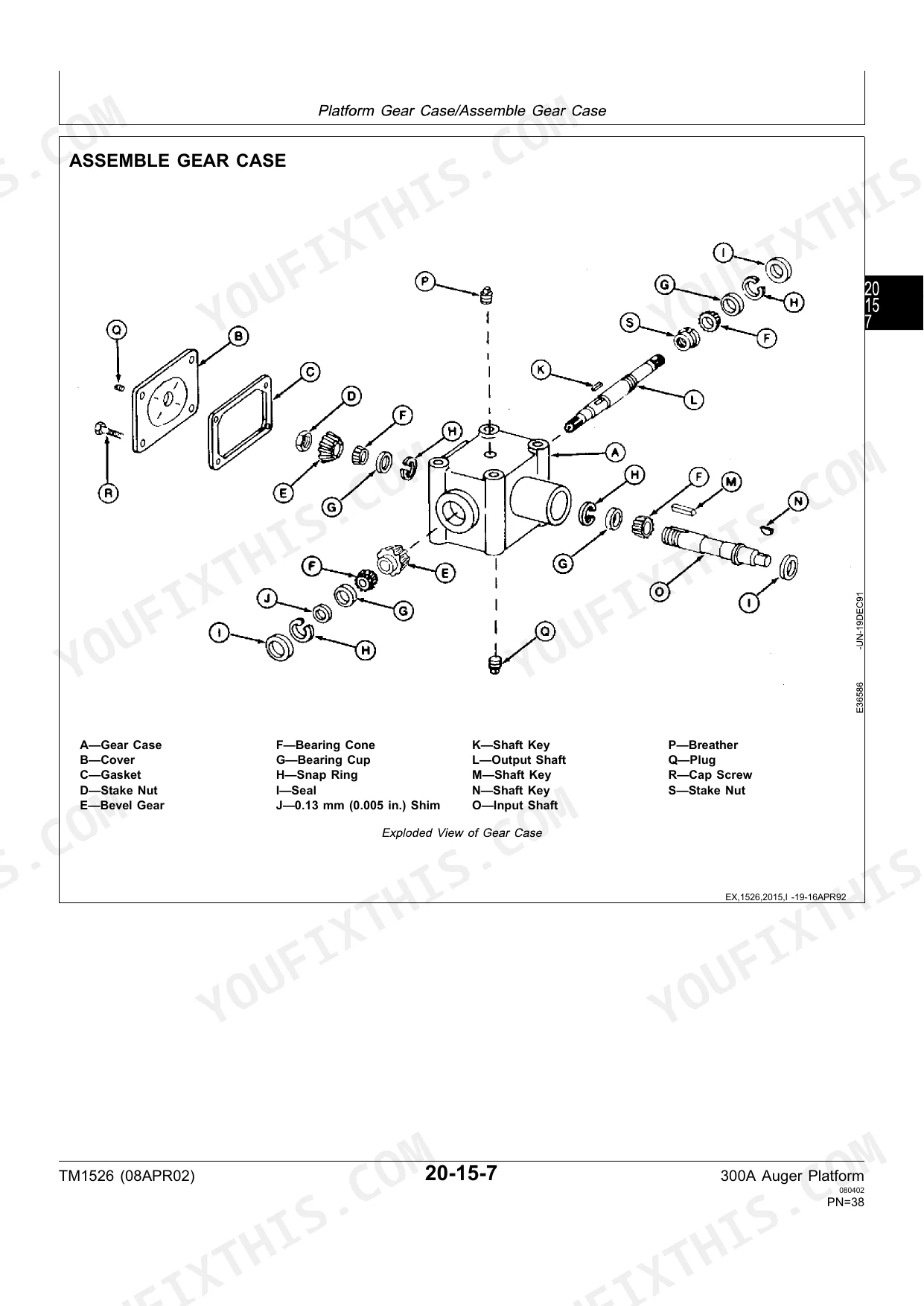

A knife drive case that starts hammering mid-season leaves you standing over a torn-down platform with nothing to measure against. TM1526 is the 236-page John Deere Technical Manual PDF for the 300A Auger Platform and the 300 Grass Seed Special. Exploded views carry the drive train, reel, auger and cutterbar work, showing how the PTO driveline and platform gear case go back together. The platform wiring harness diagram traces the left and right warning light circuits, and diagnosing malfunctions charts head every major system. Set the drive belt spring on a 36 or 66 Hay Conditioner to 140 mm (5 1/2 in.), and torque a 1/2-inch Grade 1 cap screw to 33 N·m (25 lb-ft) lubricated. Out in the shed after dark, you have no one to ask. Bookmarked and clean enough to print, so the pages can ride out to the bench and take some grease before the field dries.
What's Inside This John Deere 300A Auger Platform & 300 Grass Seed Special Manual
| System | Pages | Key Topics |
|---|---|---|

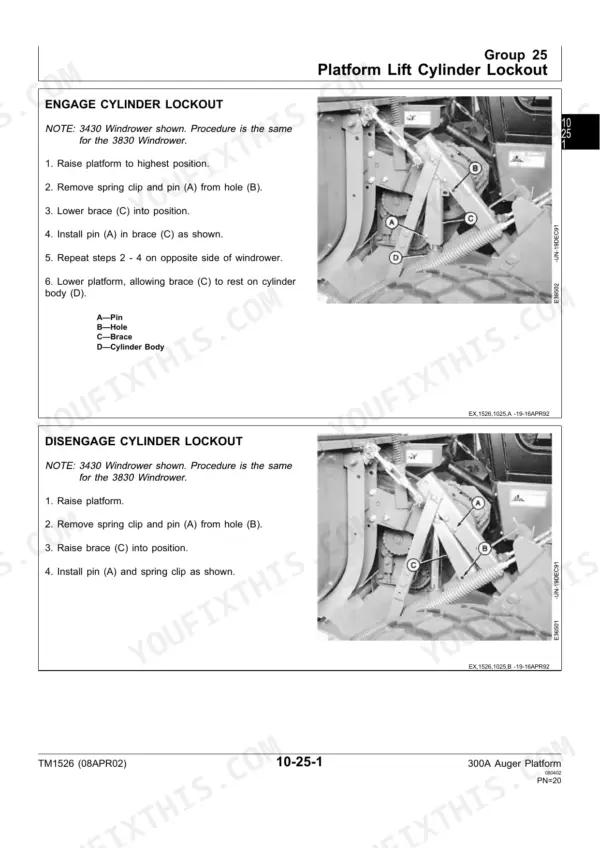

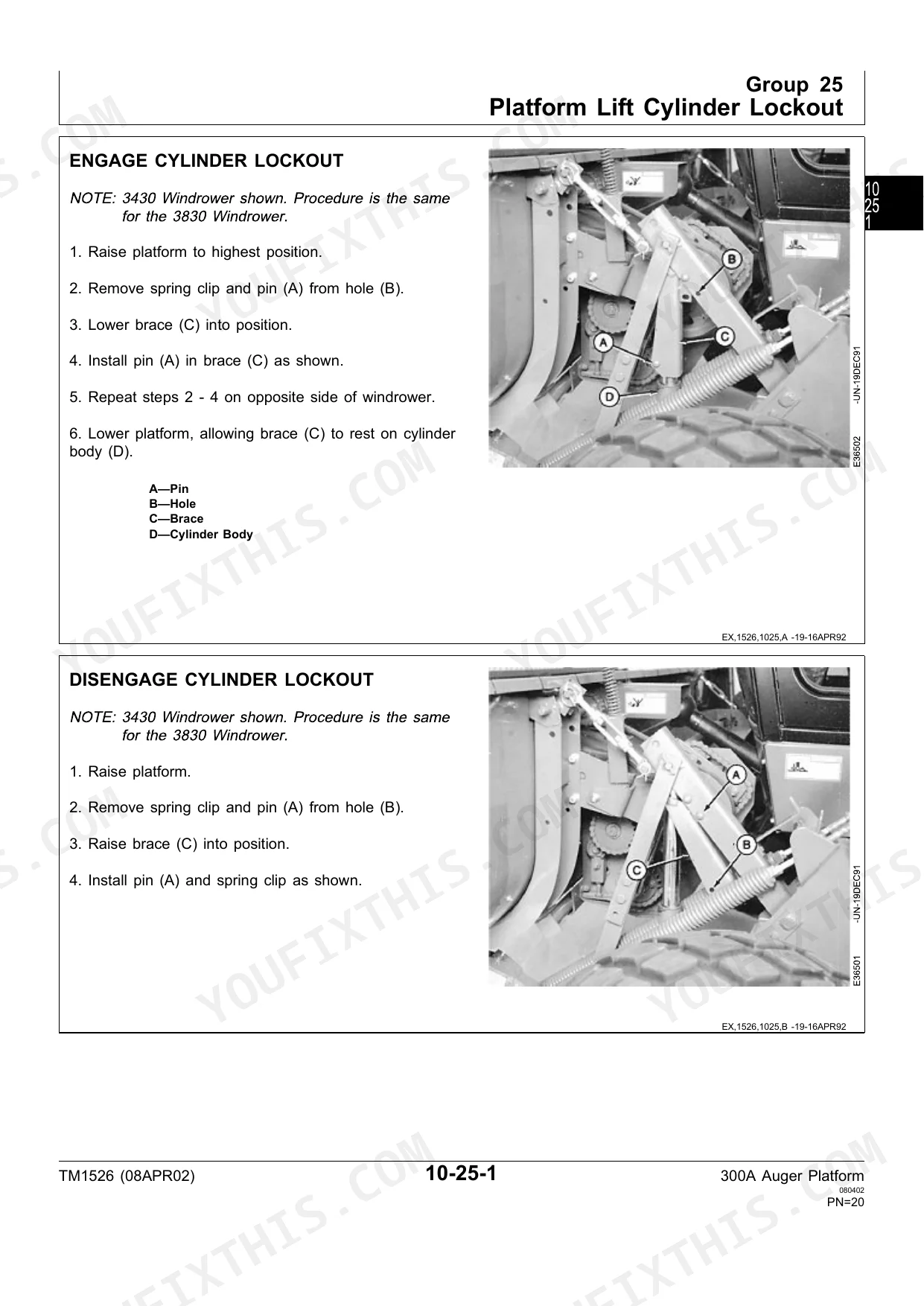

| General | 5-24 | Safety, Specifications, Lubrication, Platform Lift Cylinder Lockout |
| Drive Train | 25-68 | PTO Driveline, Platform Gear Case, Right and Left Cross Shafts, Adjustments |
| Reel | 69-90 | Diagnosing Malfunctions, Repair Reel, Adjust Reel |
| Auger | 91-114 | Diagnosing Malfunctions, Repair Auger, Adjust Auger |
| Cutting Components | 115-154 | Diagnosing Malfunctions, Cutterbar, Knife Drive Case |
| Electrical | 155-164 | General Information, Warning Light, Connector, Contact |
| Hay Conditioner | 165-226 | Hay Conditioner All Models, Hay Conditioner 36-66, Hay Conditioner 31-61 |
| Fabricated Tools | 227-230 | Gear Block, Sheave Plate, Shim, Wrench |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Unified Inch Bolt and Cap Screw Torque (Grade 1, 1/4 in) | 3.7 N·m (2.8 lb-ft) lubricated, 4.7 N·m (3.5 lb-ft) dry | p. 19 |
| Unified Inch Bolt and Cap Screw Torque (Grade 1, 5/16 in) | 7.7 N·m (5.5 lb-ft) lubricated, 10 N·m (7 lb-ft) dry | p. 19 |
| 300A | ||
| Bushing press depth | flush plus or minus 0.5 mm (0.02 in.) | p. 148 |
| 36-66 Hay Conditioner | ||
| Conditioner Drive Belt Spring Length | 140 mm (5 1/2-in.) | p. 195 |
John Deere 300A Auger Platform & 300 Grass Seed Special Common Problems This Manual Covers
Crop carries over the top of the John Deere 300A auger
Check stripper adjustment first and reset it for 3 mm (1/8 in.) clearance between stripper and auger. In short crop, install the deflector shield. The Auger Problems chart on page 97 lists both causes.
Manual Section: Auger p. 97Crop plugs in front of the auger
A slipping clutch or worn clutch disks let the auger stall under load. Adjust the slip clutch, and replace the disks if they are worn excessively. Slip clutch inspection and installation follow in the Repair Auger group.
Manual Section: Auger p. 97Crop wraps around the middle of the auger
Heavy, long-stem crop is the usual cause of wrapping at the middle of the auger. The Auger Problems chart on page 97 gives one fix for it: remove the rubber auger paddles.

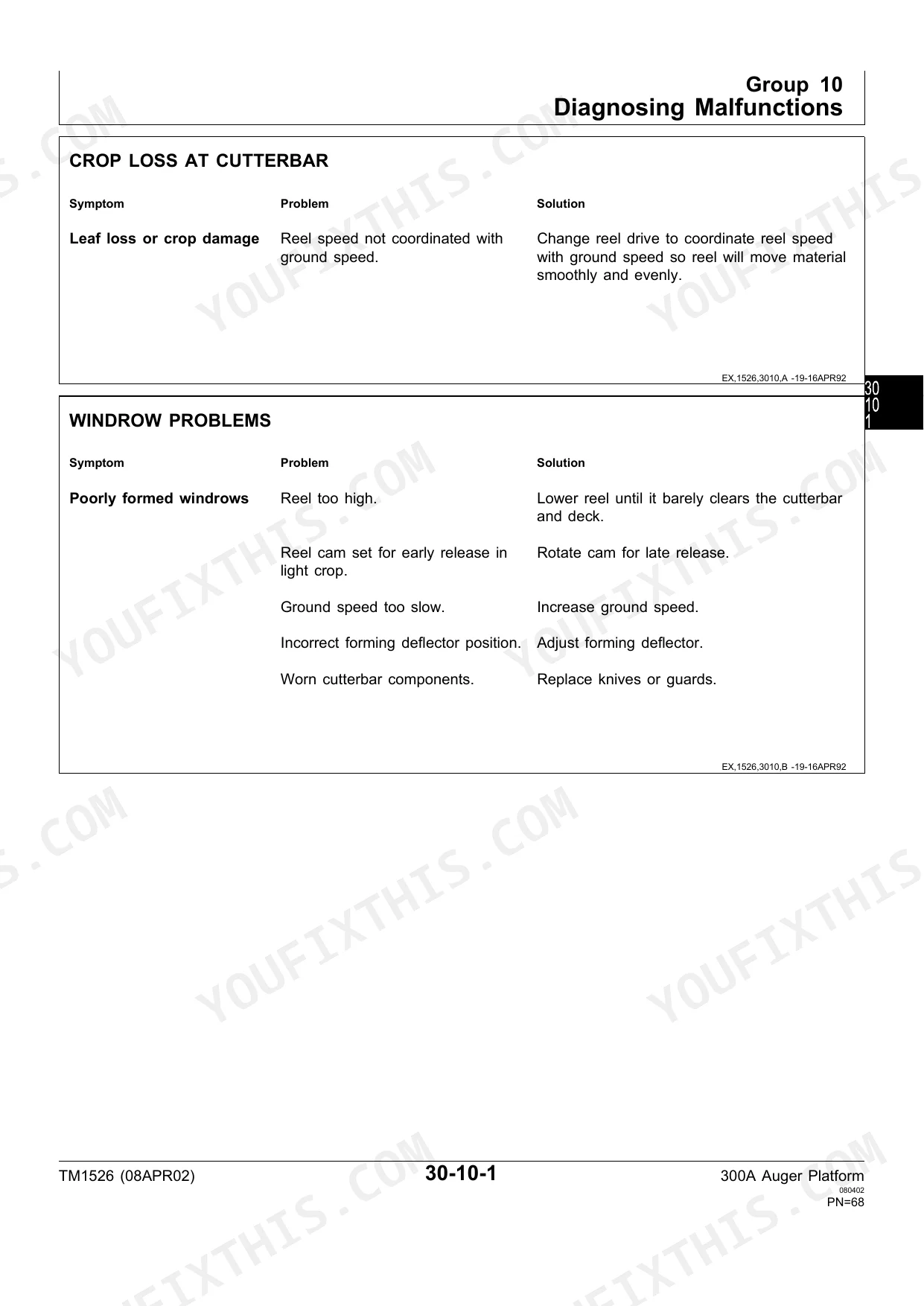

Manual Section: Auger p. 97Poorly formed windrows behind the 300A Auger Platform
Lower the reel until it barely clears the cutterbar and deck. In light crop, rotate the reel cam for late release. Raise ground speed if it is too slow, adjust the forming deflector, and replace worn knives or guards.
Manual Section: Reel p. 75Excessive knife section or guard breakage
In rocky fields, raise the cutterbar using the gauge shoes and by reducing guard angle. Adjust the platform float springs and hold-downs, replace bent or broken guards, and raise the reel if the teeth reach into the knife. Slow down if ground speed is too fast.
Manual Section: Cutting Components p. 123Cutterbar noise during operation
Straighten a bent knife and reset the guards. Tighten the knife drive case mounting bolts, tighten or replace a loose or worn knife head pin and check its bushing, and tighten the nut securing the drive arm to the knife drive case.
Manual Section: Cutting Components p. 123Frequently Asked Questions
What are the torque settings for the cross shaft lock nuts on the 300A Auger Platform?
Torque the cross shaft lock nuts to 163 N·m (120 lb-ft). p. 30
What is the required torque for the gear case mounting bolts on the 300A Auger Platform?
The gear case mounting bolts take 129 N·m (95 lb-ft). p. 30
What is the gear case oil capacity on the John Deere 300A Auger Platform?
The platform gear case takes 0.55 L (1-1/8 pt), per the fill step on page 48. p. 48
What is the correct auger drive chain deflection on the 300A Auger Platform?
Adjust the auger drive chain to 13 mm (1/2 in.) of deflection at mid-span. p. 95
What is the torque specification for the auger drive shaft lock nut on the 300A Auger Platform?
Tighten the auger drive shaft lock nut to 183 N·m (135 lb-ft). p. 95
Is this John Deere 300A Auger Platform Technical Manual a digital download?
You get a 236-page non-searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Are there any print restrictions on this John Deere 300A Auger Platform manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
