On a 300D, 310D or 315D, hydraulic parts are where ordering questions start. Is it a Gresen or Husco valve, a Sunstrand or Commercial Intertech pump? Which side of the 802199/802200 serial break is your machine on? Parts catalog PC2321 (Jul-19) answers those questions with exploded drawings. Each drawing lists part number, quantity, serial range and a 300D/310D/315D column.
The catalog also covers the rest of the machine. That includes the John Deere 4039 engine in turbocharged and non-turbocharged versions, the collar shift transmission and reverser, the MFWD axle, brakes, cab, loader and extendible dipperstick. While a backhoe sits waiting on the wrong seal kit, you lose days, not hours.
The alphabetical index (p.15-62) and numerical index (p.1063-1110) take you from a part name or a stamped number to the right page.
What's Inside This John Deere 300D, 310D, 315D Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Alphabetical Index | 1-63 | Serial Number Plate Locations, Product Identification Number, Engine Model by Machine, Remarks and Abbreviations, Table of Contents, Alphabetical Index |
| Wheels and Tires | 64-67 | Rear Drive Wheels, Front Drive Wheels (MFWD), Front Wheels |

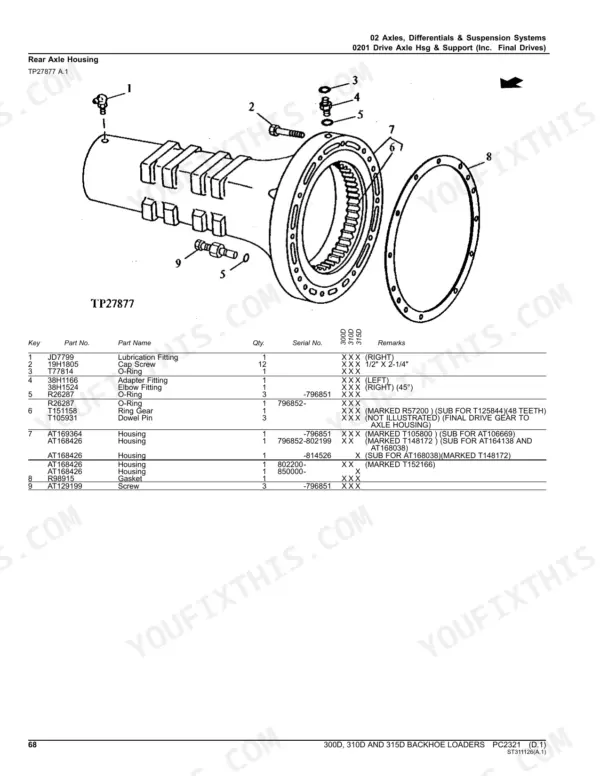

| Axles, Differential and MFWD | 68-109 | Rear Axle Housing and Mounting, Differential and Differential Lock, Front Axle Spindles and Hubs, Planetary Drives, MFWD Axle |
| Transmission and Reverser | 110-173 | Shifter and Reverser Controls, Universal Joint, Transmission Case W/ and W/O MFWD, Forward Clutch and Reverse Brake, Reverser Charge Pump and Filter |

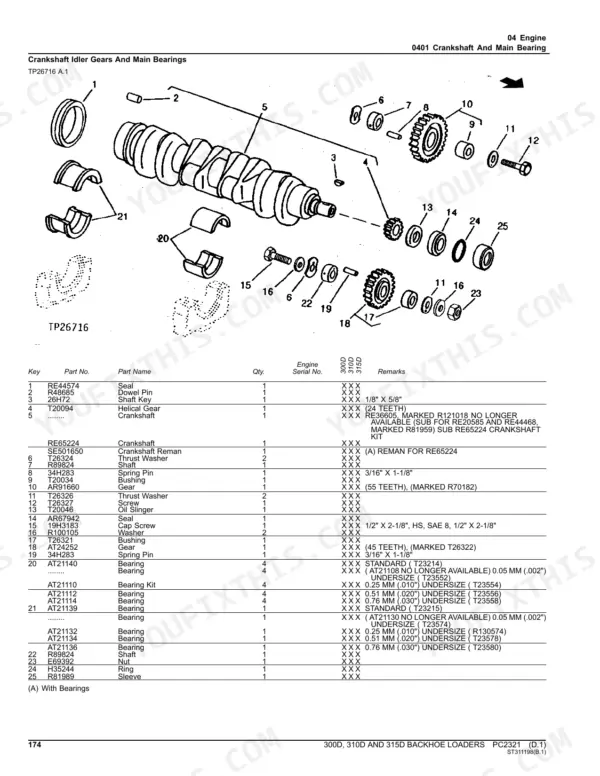

| Engine 4039 | 174-249 | Crankshaft and Bearings, Camshaft and Rocker Arms, Pistons and Liners, Cylinder Block and Overhaul Kit, Oil Pump, Cylinder Head, Fuel Injection, Turbocharger, Starter, Gasket Kits |
| Engine Cooling, Air Intake, Exhaust and Fuel Tank | 250-297 | Coolant Heater and Cold Start Aid, Radiator and Fan, Speed Control Linkage, Air Cleaner and Pre-Cleaner, Muffler, Engine Mounts, Fuel Tank |
| Torque Converter | 298-299 | Converter Housing and Mounts |
| Power Steering Hydraulics | 300-325 | Steering Hoses and Lines, Steering Hydraulics W/ and W/O MFWD |
| Service and Park Brakes | 326-339 | Brake Disks, Brake Valve and Pedals, Brake Hydraulics, Park Brake Band and Actuator |
| Service Tools, Decals, Fluids and Filters | 340-377 | Loader Boom Service Lock, Decals and Labels, Engine Oil and Fluids, Fluid Analysis Kits, Lubrication Lines, Machine Filters |

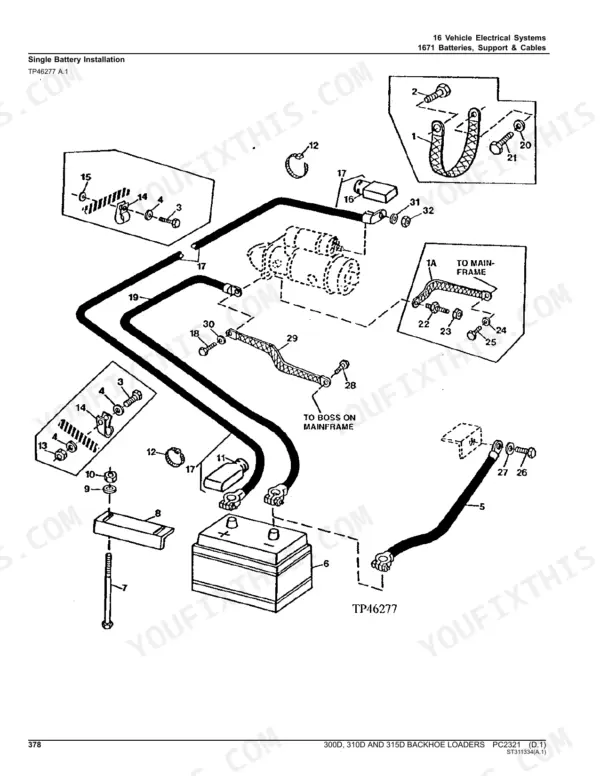

| Electrical System | 378-437 | Batteries and Cables, Alternator, Front and Rear Lights, Wiring Harnesses and Switches, Instrument Panel |
| Main Frame, Guards and Counterweights | 438-451 | Main Frame, MFWD Drive Shaft Guard, Front Counterweight |

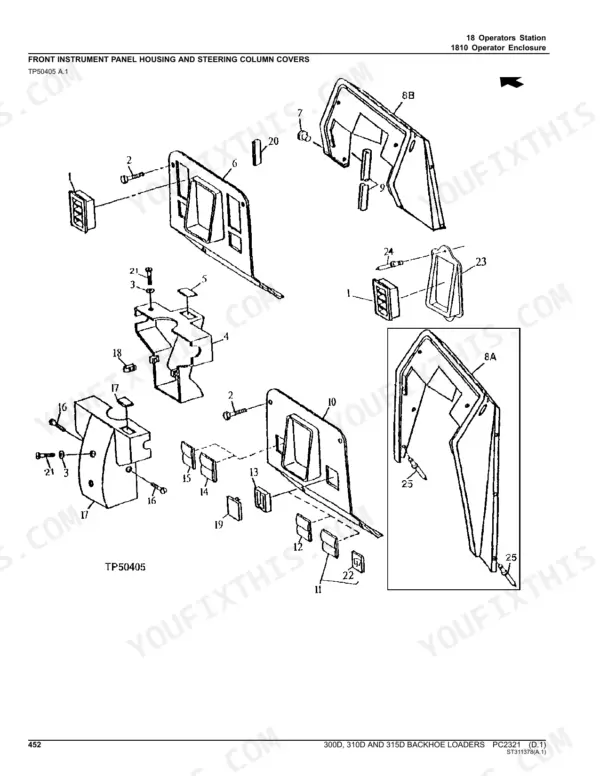

| Cab, ROPS and Seat | 452-513 | ROPS Frame and Roof, Cab Frame and Glass, Seat and Suspension, Seat Belt, Steps |
| Heating and Air Conditioning | 514-573 | Cab Heater and Hoses, A/C Compressor Drive, Condenser and Hoses |
| Hood, Shields, Fenders and Accessories | 574-607 | Hood and Side Shields, Battery Box, Grille, Fenders, Radio, Mirrors, Horn and Back-Up Alarm, Toolbox |
| Vehicle Hydraulics and Main Pump | 608-661 | Hydraulic Oil Filter, Hydraulic Lines, Main Hydraulic and Steering Pump |
| Loader | 662-801 | Loader and Multi-Purpose Buckets with Teeth, Bucket Leveling and Return-To-Dig Linkage, Lift Arm, Loader Control Valve, Loader Cylinders |

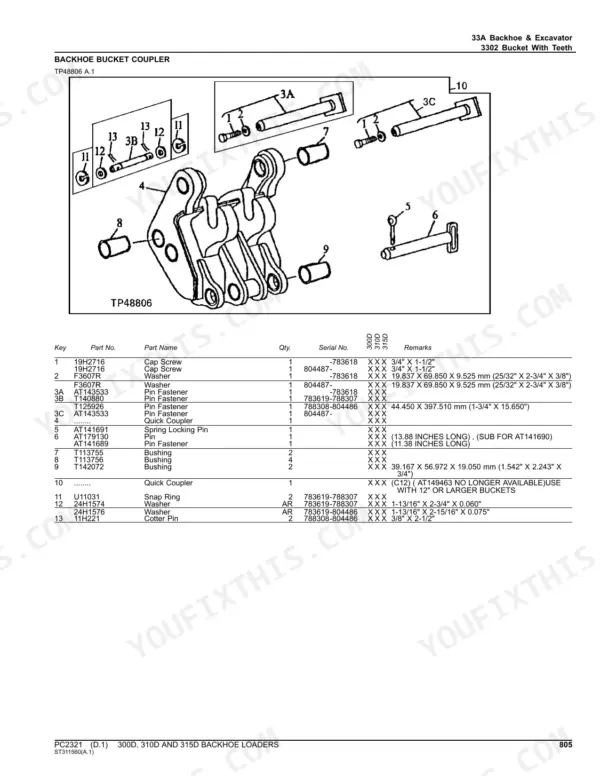

| Backhoe Buckets and Controls | 802-875 | Ripper Tooth, Backhoe Buckets and Teeth, Stabilizer and Backhoe Control Linkage |

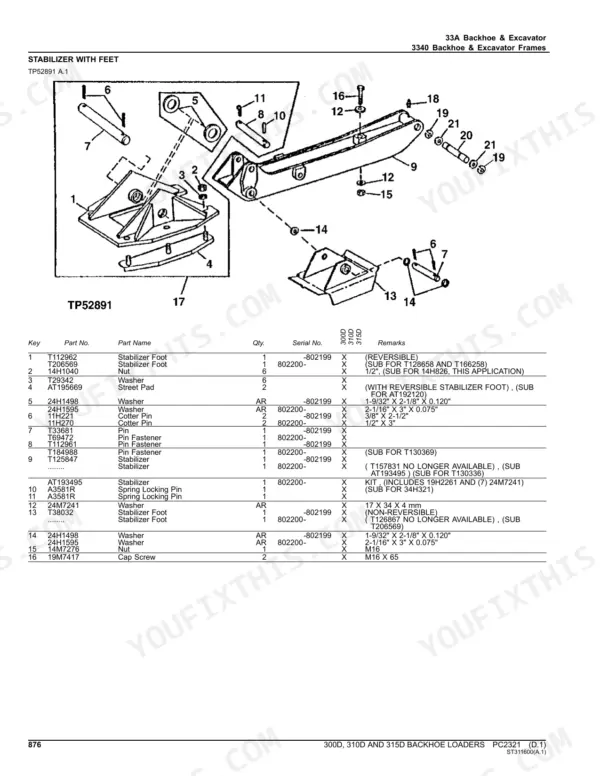

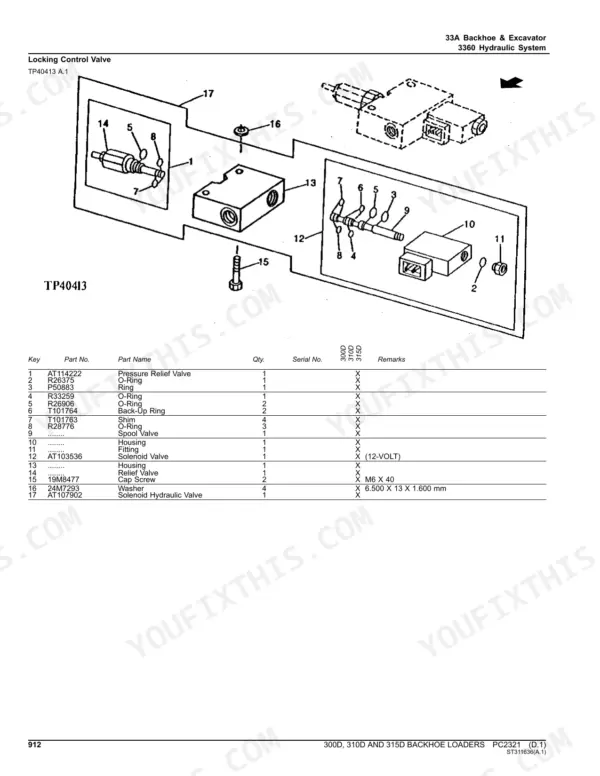

| Backhoe Frames, Boom and Dipperstick | 876-911 | Stabilizers, Swing Frame, Backhoe Boom, Extendible Dipperstick |
| Backhoe Hydraulics | 912-1062 | Backhoe Control Valve, Stabilizer Cylinders, Bucket, Swing and Boom Cylinders, Extendible Dipperstick Hydraulics |
| Numerical Index | 1063-1112 | Part Number to Page Lookup |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Parts catalog number | PC2321 (Jul-19), English | p. 1 |
| Models covered | 300D, 310D and 315D backhoe loaders | p. 1 |
| 300D production years | Manufactured 1991-1996 | p. 3 |
| 310D production years | Manufactured 1991-1996 | p. 4 |
| Serial number plates | Up to seven per machine | p. 6 |
| Engine family | John Deere 4039, 3.9 liter | p. 9 |
| 300D engines | 4039DT007, 4039DT010, 4039DT012, 4039DT013 (non-turbocharged) | p. 9 |
| 310D and 315D engines | 4039DT008, 4039DT014, 4039TT002, 4039TT003, 4039TT004, 4039TT005 | p. 9 |
| MFWD axle lubricant | SAE90 (M1L-L-2105B as printed) | p. 10 |
| Rear drive wheel tire sizes | 16.9 x 24, 17.5L x 24, 21L x 24, 16.9 x 28, 19.5L x 24 | p. 64 |
| Front drive wheel tire sizes (MFWD) | 12 x 16.5, 10.5 x 18, 14 x 17.5 | p. 65 |
| Loader buckets | .76 cubic meter (1.00 cubic yard), 1.00 cubic meter (1.3 cubic yard) | p. 664 |
| Multi-purpose loader bucket | 92 inch (310D, 315D) | p. 670 |
| Backhoe bucket, 457 mm (18 in.) | 4.1 cu ft standard; 5.1 cu ft STD, HD and EHD | p. 807 |
| Extendible dipperstick extension | 1.2 m (to serial 787831) | p. 897 |
| Engine oil filter | T19044 | p. 195 |
| Fuel filter | AR50041 (to 461565), RE62419 (461566 and up) | p. 376 |
| Air cleaner elements, turbocharged | AT65296 primary, AT44378 safety | p. 266 |
| Hydraulic oil filter (to 802199) | AT184206 | p. 608 |
| Main hydraulic pump, Commercial Intertech (802200 and up) | AT168186 | p. 647 |
John Deere 300D, 310D, 315D Common Problems This Manual Covers
Ordering a loader or backhoe control valve part without knowing if the machine has a Gresen or a Husco valve.
Check your serial number against the split in the catalog. The loader control valve is Gresen up to 802199 (p.708) and Husco from 802200 (p.742 covers 802200-807613). The backhoe valve follows the same Gresen/Husco change: Gresen on p.940 and Husco on p.970. Match the drawing to the valve body before you order seals or spools.
Manual Section: 3160 Loader Hydraulics - Loader Control Valve p. 708The main hydraulic pump has failed and you don't know which pump the machine left the factory with.
Section 2160 lists two pumps split at the serial break. Up to 802199 it is the Sunstrand main hydraulic and steering pump on p.642. From 802200 it is the Commercial Intertech pump AT168186 on p.647. Read the machine's product identification number on the left-hand side frame near the front support first.
Manual Section: 2160 Vehicle Hydraulics - Main Hydraulic Pump p. 642A frame, fuel tank or hydraulic part shows up and doesn't fit, even though the model is right.
Many groups split at -802199 and 802200-, for example the main frame (p.438/p.440) and fuel tank (p.288/p.292). Page 5 explains how a serial range reads. It can mean from a number on, up to and including one, or between two numbers. Check the Serial No. column on every line before ordering.
Manual Section: Introduction - Serial Number Listing p. 5A piston or connecting rod was ordered for a turbo engine, but the machine has a non-turbo 4039 (or the other way round).
Read the engine plate first, then use the table on p.9 that maps each 4039 engine code to its machine. The Engine 4039 section gives turbocharged and non-turbocharged engines their own lists, such as p.180 with turbo and p.181 without. You will also find reman options there, like the SE501650 crankshaft.
Manual Section: Introduction - Engine Serial Number Plate p. 9Frequently Asked Questions
Which John Deere backhoe loaders does parts catalog PC2321 cover?
It covers the 300D, 310D and 315D backhoe loaders and no other models. The book prints 1991-1996 as the build years for the 300D and 310D. It does not print production years for the 315D. Every parts list has 300D, 310D and 315D columns marked with an X, plus a Serial No. column. That lets you confirm a part fits your model before you order it. p. 1
How do I tell which 4039 engine my 300D, 310D or 315D has before ordering engine parts?
Read the engine serial number plate on the right-hand side of the cylinder block, near the fuel pump. In the code, 4039 means 3.9 liter, TT means turbocharged and DT means non-turbocharged. The 300D used the 4039DT007, DT010, DT012 and DT013. The 310D and 315D used the 4039DT008, DT014, TT002, TT003, TT004 and TT005. The engine section lists turbo and non-turbo parts separately, for example connecting rods and pistons on p.180 and p.181. p. 9
Where are the serial number plates on the John Deere 300D, 310D and 315D?
A machine can carry up to seven plates. The product identification number is on the left-hand side frame near the front support. The engine plate is on the right side of the block near the fuel pump. The reverser plate is on the top left of the reverser housing. The transmission plate is on the top right of the transmission. The MFWD axle plate is on the left-hand (rear) side of the axle housing. The extendible dipperstick number is on top of the dipperstick near the bucket cylinder mount. The book does not say where the hydraulic pump plate is. p. 6
Does the catalog list the hydraulic hoses, lines and fittings for the loader and backhoe?
Yes, hoses, lines and fittings are drawn with their part numbers. Vehicle hydraulics are in section 2160 (p.608-661), loader hydraulics in 3160 (p.708-801) and backhoe hydraulics in 3360/3360A (p.912-1062). Steering hoses are in 0960 (p.300-325). This is a parts book, so there is no hydraulic schematic. p. 613
Which filters for the 300D, 310D and 315D are listed, with part numbers?
The engine oil filter is T19044. The fuel filter is AR50041 up to serial 461565 and RE62419 from 461566. Turbocharged engines take an AT65296 primary and an AT44378 safety air cleaner element. The hydraulic oil filter is AT184206 up to 802199. From serial 802200, the transaxle filter assembly is listed as T19044. Each number is on its own section page, so you can check the drawing before you order. p. 195
