This 588-page parts catalog, John Deere publication PC11192, covers the 50G compact excavator from PIN 1FF050GX_ _H280001, with a model page up front naming the 4TNV88C engine. The John Deere 50G parts manual PDF breaks each group into exploded views where every callout number ties to its part number, quantity and supersession notes, so a swing hydraulics fitting or a bucket linkage pin gets identified without guesswork. The Backhoe & Excavator group alone runs about 230 pages, covering blades and side cutters, bucket with teeth, controls linkage, boom, control and load holding valves, hydraulic cylinders, plus lines. Track systems, axles, wiring harnesses and switches, operator enclosure, seat belts, heating and air conditioning each sit in their own illustrated group. It lists parts only, not repair procedures or torque values. Bookmarked and text-searchable, it travels with you to whatever jobsite the machine is on.
What's Inside This John Deere 50G Parts Manual

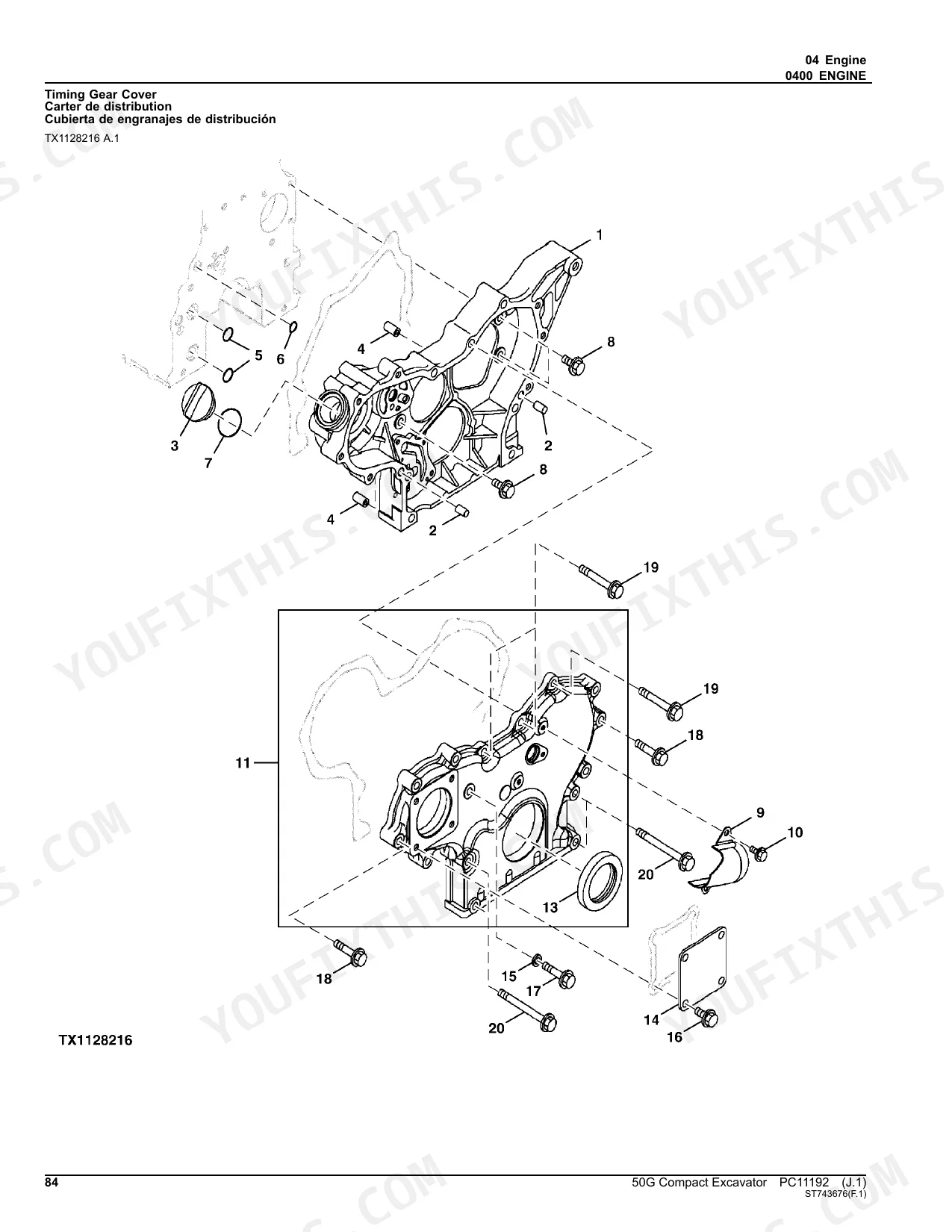

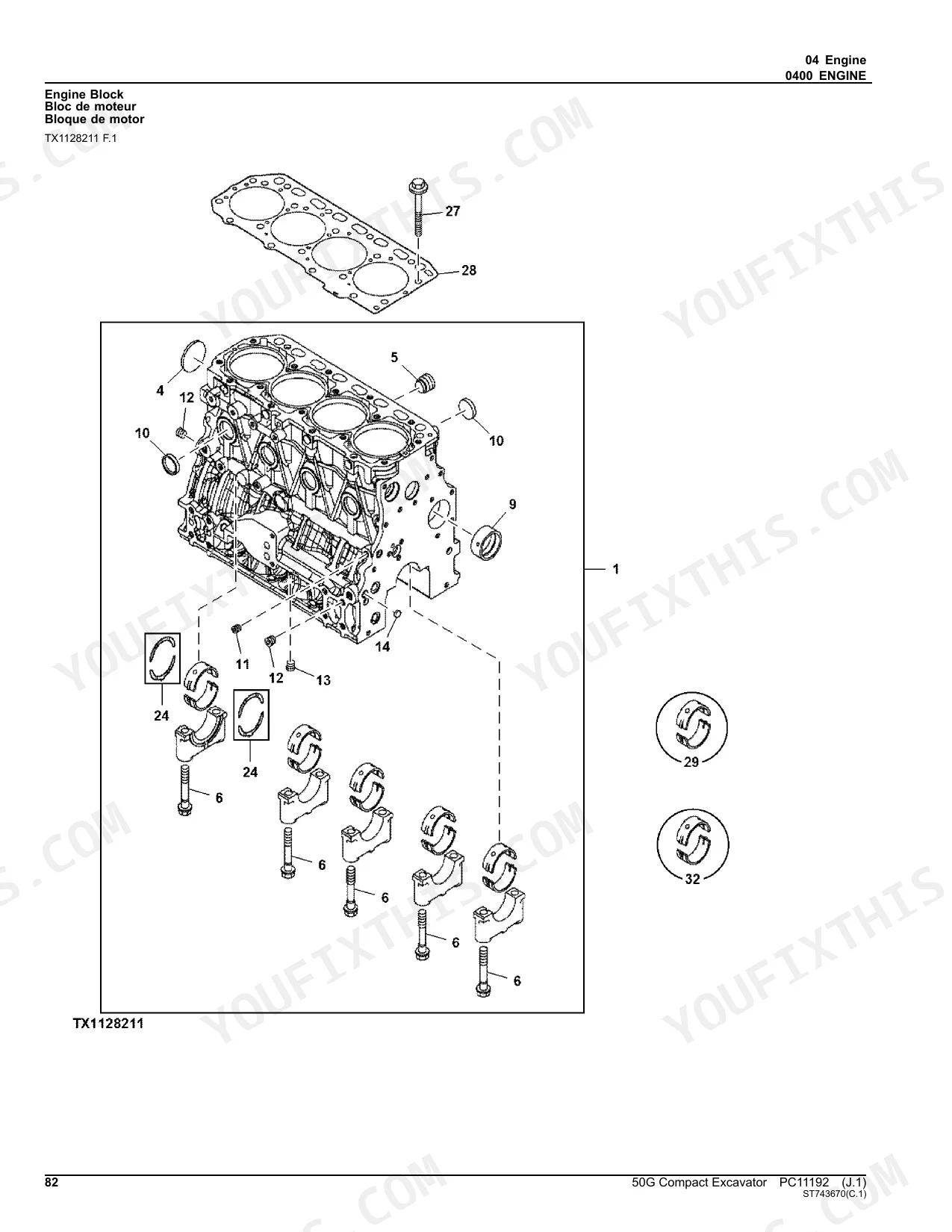

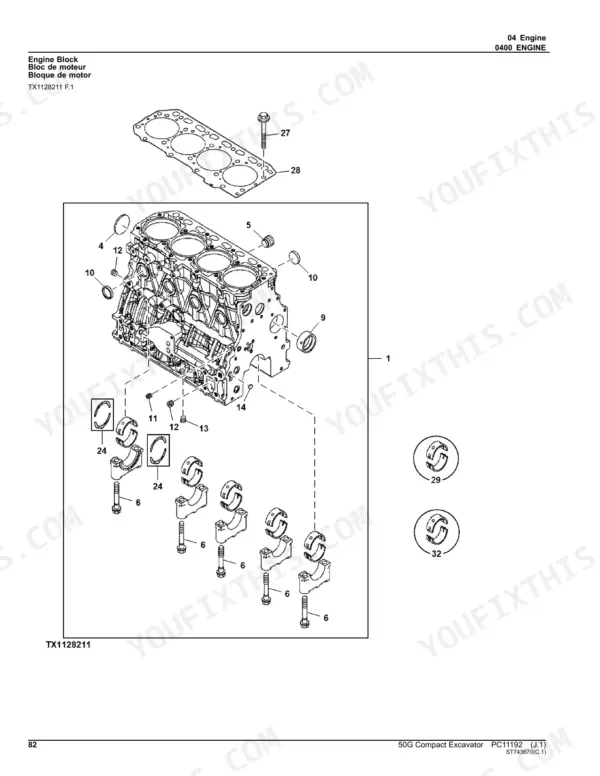

| System | Pages | Key Topics |
|---|---|---|
| Wheels & Tires & Tracks | 40-65 | Powered Wheels, Tires, And Fastenings, Track Systems |
| Axles, Differentials & Suspension Systems | 66-79 | Axles, Diff. & Susp. Sys. Hyd |
| Engine | 80-119 | Block, Timing Gear Cover, Cylinder Head, Rocker Arms, And Valves |
| Engine Auxiliary System | 120-151 | Cold Weather Starting Aids, Engine Cooling Systems, Intake System, External Exhaust Systems, Engine Mounting, External Fuel Supply Systems |
| Miscellaneous Vehicle | 152-157 | Labels & Trademarks |
| Vehicle Electrical Systems | 158-171 | Wiring Harness & Switches |
| Frame Chassis or Supporting Structure | 172-181 | Frame Installation |

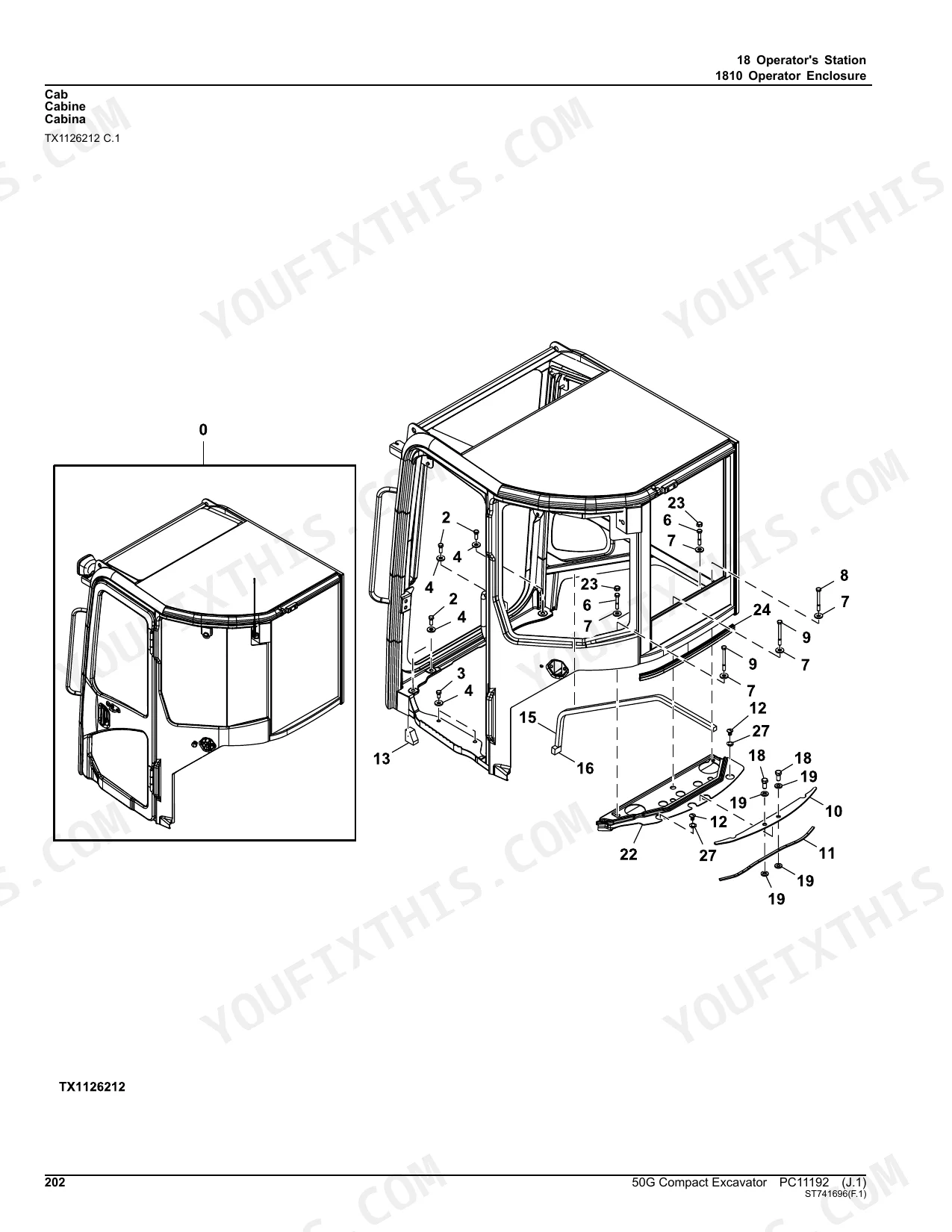

| Operator's Station | 182-273 | Operator Enclosure, ROPS, FOPS, Ops, Or Body Frame, Seat and Seat Belts, Heating & Air Conditioning |
| Sheet Metal & Styling | 274-305 | Hood or Engine Enclosure |
| Safety, Convenience & Miscellaneous | 306-307 | Radio |
| Vehicle Main Hydraulic System | 308-319 | Hyd Pumps & Drives, Hyd Reservoir, Filter & Cooler |

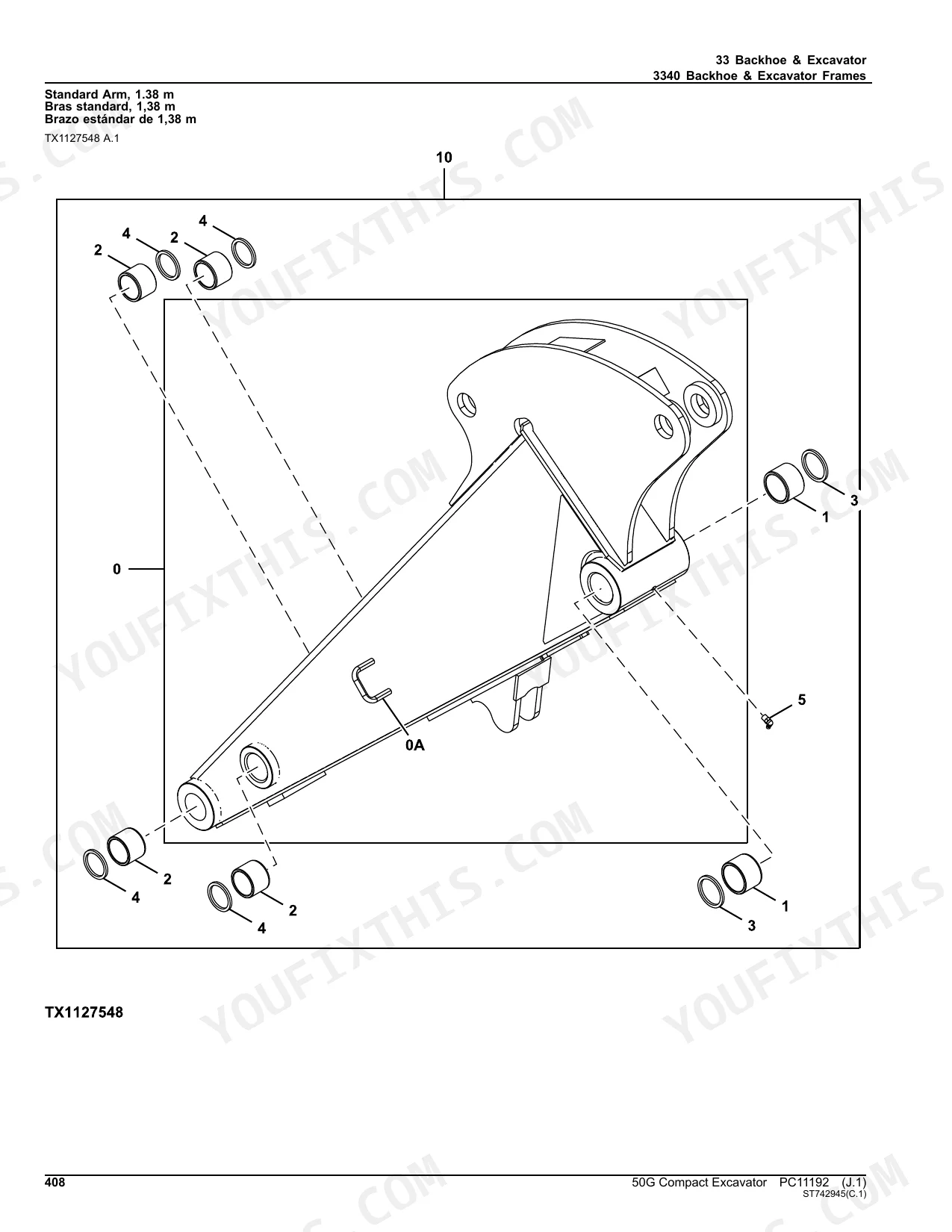

| Backhoe & Excavator | 320-549 | Blades & Side Cutters, Bucket with Teeth, Controls Linkage, Frames, Boom, Bucket Linkage, Control & Load Holding Valves, Lines |
| Swing, Rotation or Pivoting System | 550-588 | Hydraulics |
John Deere 50G Common Problems This Manual Covers
John Deere 50G track and roller part numbers hard to pick out of the undercarriage views

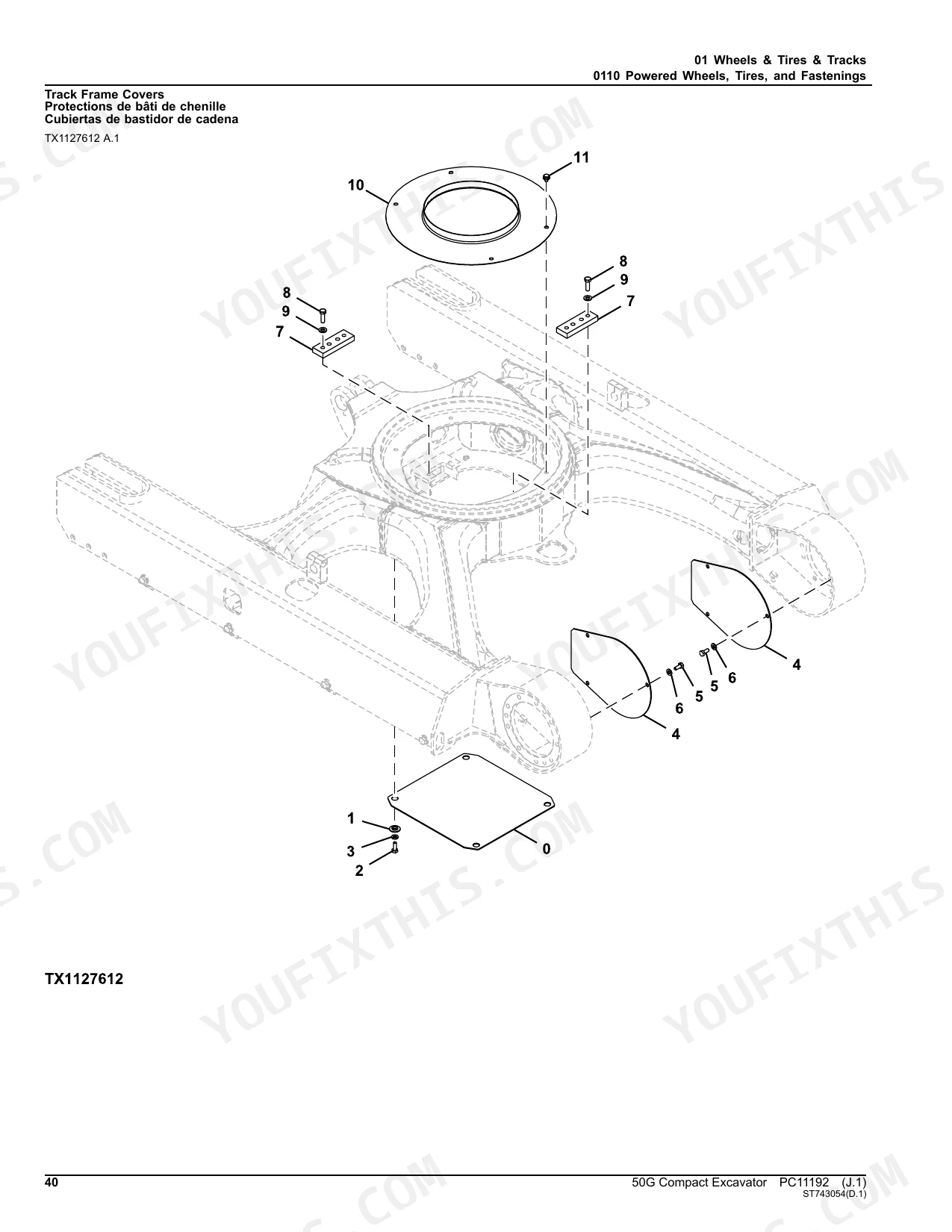

The Wheels & Tires & Tracks group starts on page 40 with the track frame covers. Rubber track belt 4718320 is on page 47, and the track frame lower rollers follow on page 52. Match each callout number to the parts list beside the illustration before ordering.
Manual Section: Wheels & Tires & Tracks p. 40Ordering the wrong fuel filter element for the 50G
Fuel filters show up in two groups. The engine group shows them on page 110 with part numbers on page 111, including filter element MIU802421. The External Fuel Supply Systems listing on page 147 carries the same MIU802421 element and marks the old FYD00005698 fuel filter NLA.
Manual Section: Engine Auxiliary System p. 147Cannot locate the hydraulic reservoir filter element for routine service

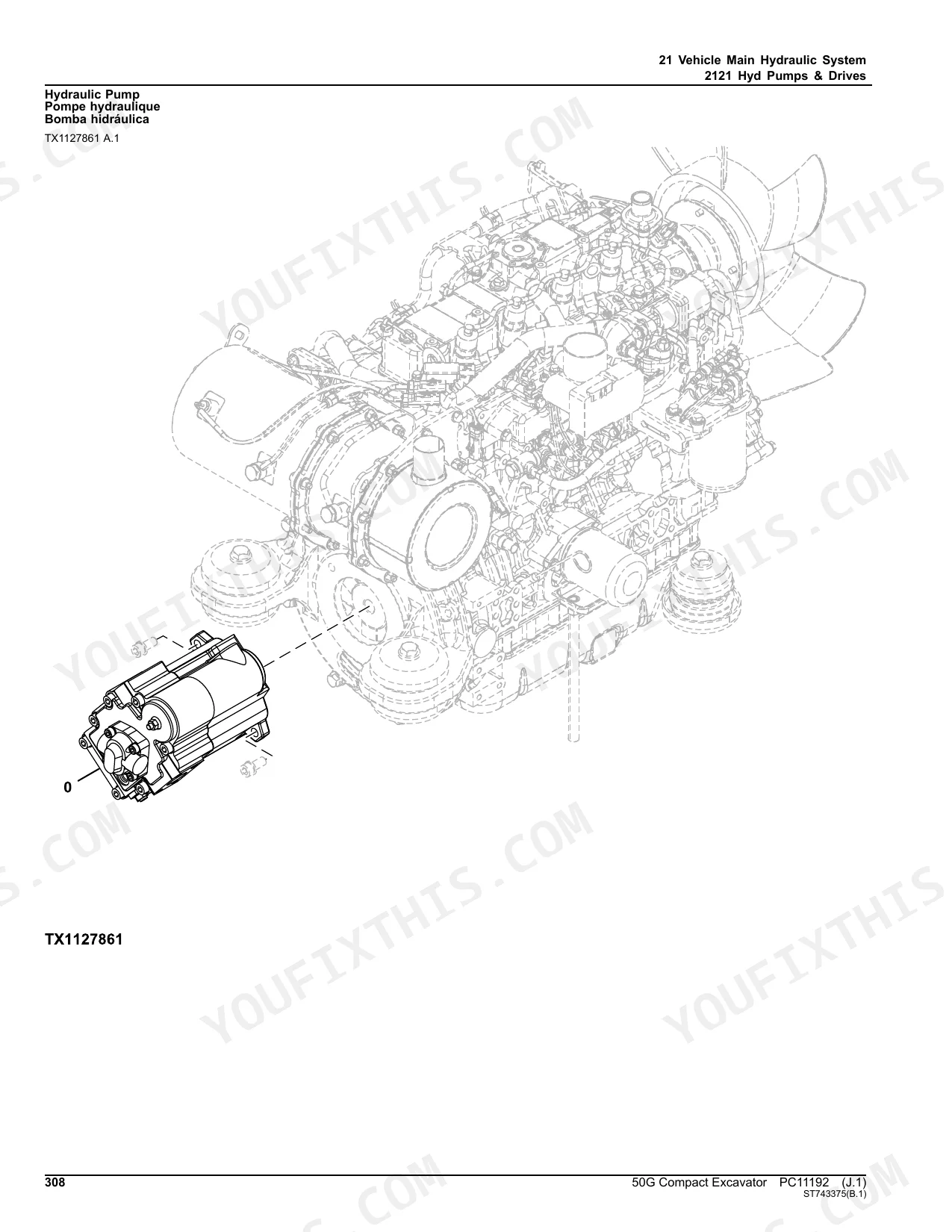

Go to the Hyd Reservoir, Filter & Cooler group on page 316. Filter element AT308568 is callout 6, and filter 4720291 with strainer 4617512 is callout 7. Pumps and drives start on page 308 if you also need pump-side parts, such as seal kit 4633148 on page 311.
Manual Section: Vehicle Main Hydraulic System p. 316Boom and arm cylinder seal kit numbers not clear in the exploded views
Use the Hydraulic Cylinders group. Page 525 covers the arm cylinder 4718112G and lists seal kit FYD00000072, while page 529 lists seal kit FYD00000075 with its own barrel and cap. Identify the cylinder by its part number before ordering a kit.
Manual Section: Backhoe & Excavator p. 525Finding the right wiring harness or battery cable for a 50G

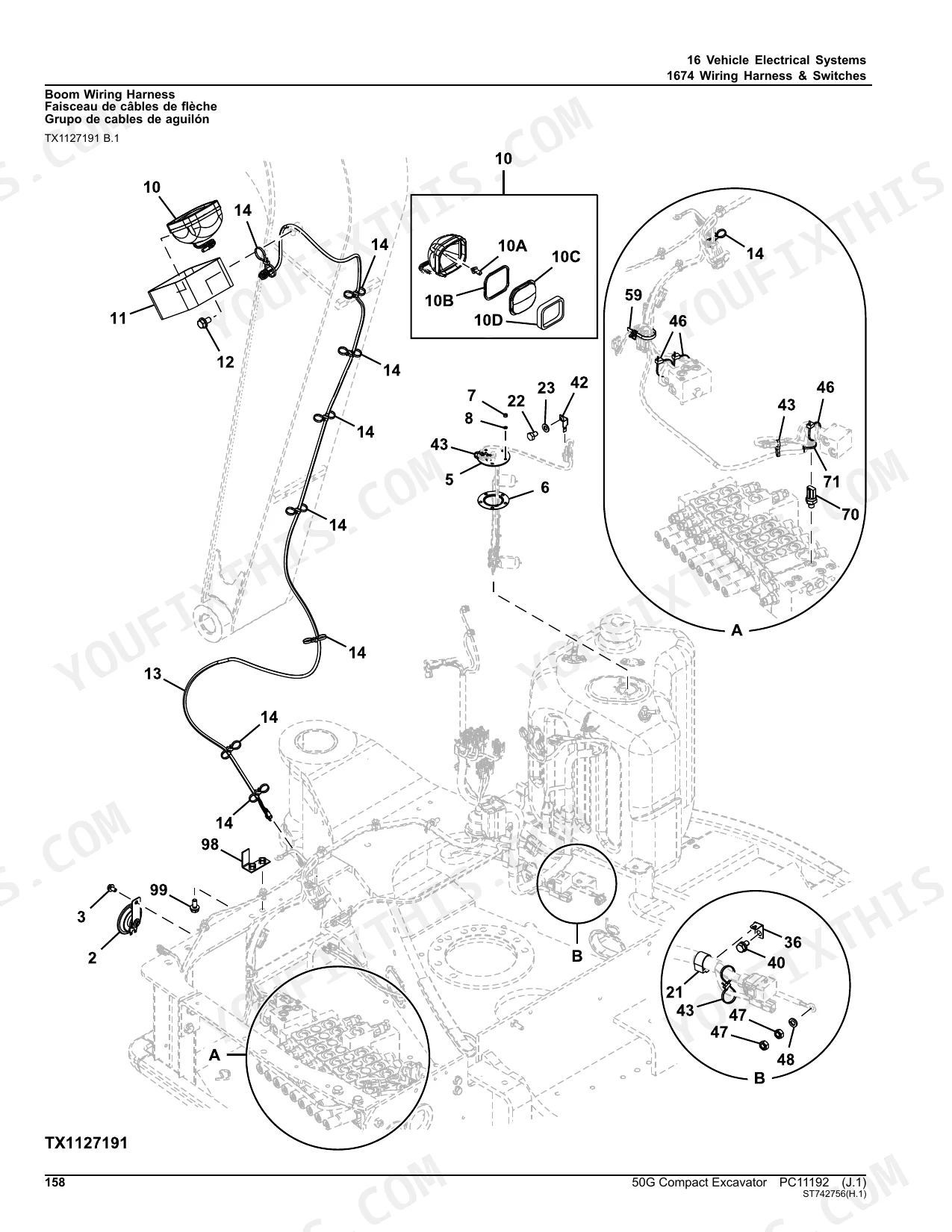

The Wiring Harness & Switches group starts on page 158 with the boom wiring harness, followed by the machine and cab harness views. Battery and cable parts are on pages 166 and 167, including battery TY24394. These are parts illustrations, not circuit diagrams, so use them to identify part numbers only.
Manual Section: Vehicle Electrical Systems p. 158Swing bearing and swing motor parts listed under an unfamiliar group name
Swing parts sit in the Swing, Rotation or Pivoting System group, which starts on page 550. Page 552 shows the swing motor and gear box, and page 565 lists swing bearing FYD00010664 with its 24 cap screws, part number 19M8088.
Manual Section: Swing, Rotation or Pivoting System p. 550Frequently Asked Questions
What is the part number for the John Deere 50G hydraulic reservoir filter element?
The hydraulic reservoir filter element is AT308568, which supersedes 4129280, TH100661, TH111011 and 4225846. The same reservoir group on page 316 also lists filter 4720291 with its 4617512 strainer. p. 316
What is the engine oil filter part number for the John Deere 50G?
The engine oil filter is MIU800650, listed as callout 30 in the engine group on page 101. p. 101
Which cap screws hold the swing bearing on the John Deere 50G?
Page 565 lists 24 cap screws, part number 19M8088 (M12 X 75, supersedes J921275), with swing bearing FYD00010664. This is a parts catalog, so it gives part numbers and quantities but no tightening torque. p. 565
What bolts hold the John Deere 50G blade cutting edges?
The cutting edges use bolt FYD00001450 with nut 4434851, 14 of each, listed with cutting edges 3102626 and 3102269 in the Blades & Side Cutters group on page 327. p. 327
What air filter elements does the John Deere 50G use?
The outer air filter element is FYD00001540. The inner element is FYD00000374, which is not installed at the factory and is ordered separately if needed (page 125). p. 125
How is this John Deere 50G Parts Manual delivered?
You download the Parts Manual yourself: 588 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Am I able to print pages from this John Deere 50G manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
