Applicability first: this John Deere 325, 328 parts catalog PDF, published by the factory as PC9348, covers both skid steer models across 616 pages. Exploded views carry the hydraulics section, the largest block in the book, running from control valve and hydraulic reservoir through the hydrostatic drive circuit, with every callout tied to its own part number. Frame and boom drawings lay out the boom, its lock and the frame covers as assemblies, so you can order the pin and the bushing in one go. Engine coverage splits by build: 5030TT001-RE515930 and 5030TT002-RE515931 each get their own cylinder block breakdown, so you match your machine before anything ships. Electrical, power train, steering and brakes, and the operator's station fill out the rest. A rebuild stalls for the want of one number. Bookmarks split the file by system, text search takes a part number straight to its drawing, and the catalog rides along to wherever the machine sits.
What's Inside This John Deere 325, 328 Parts Manual
| System | Pages | Key Topics |
|---|---|---|

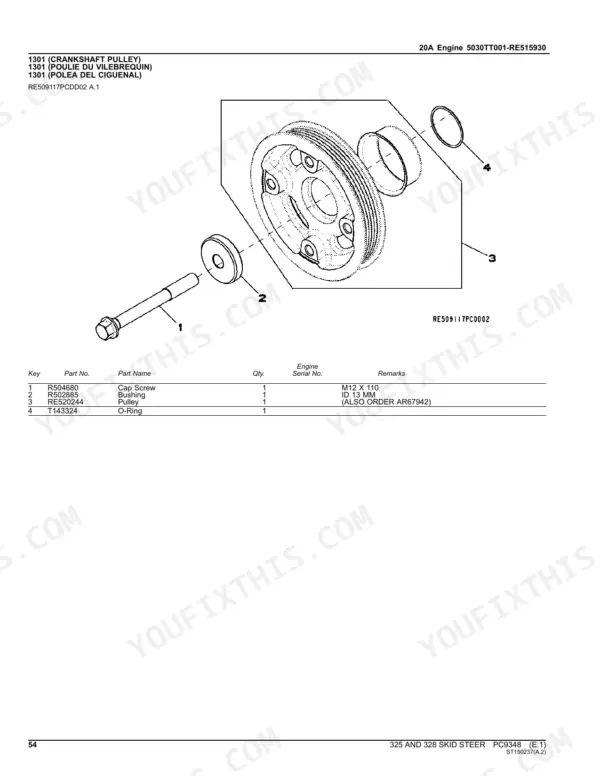

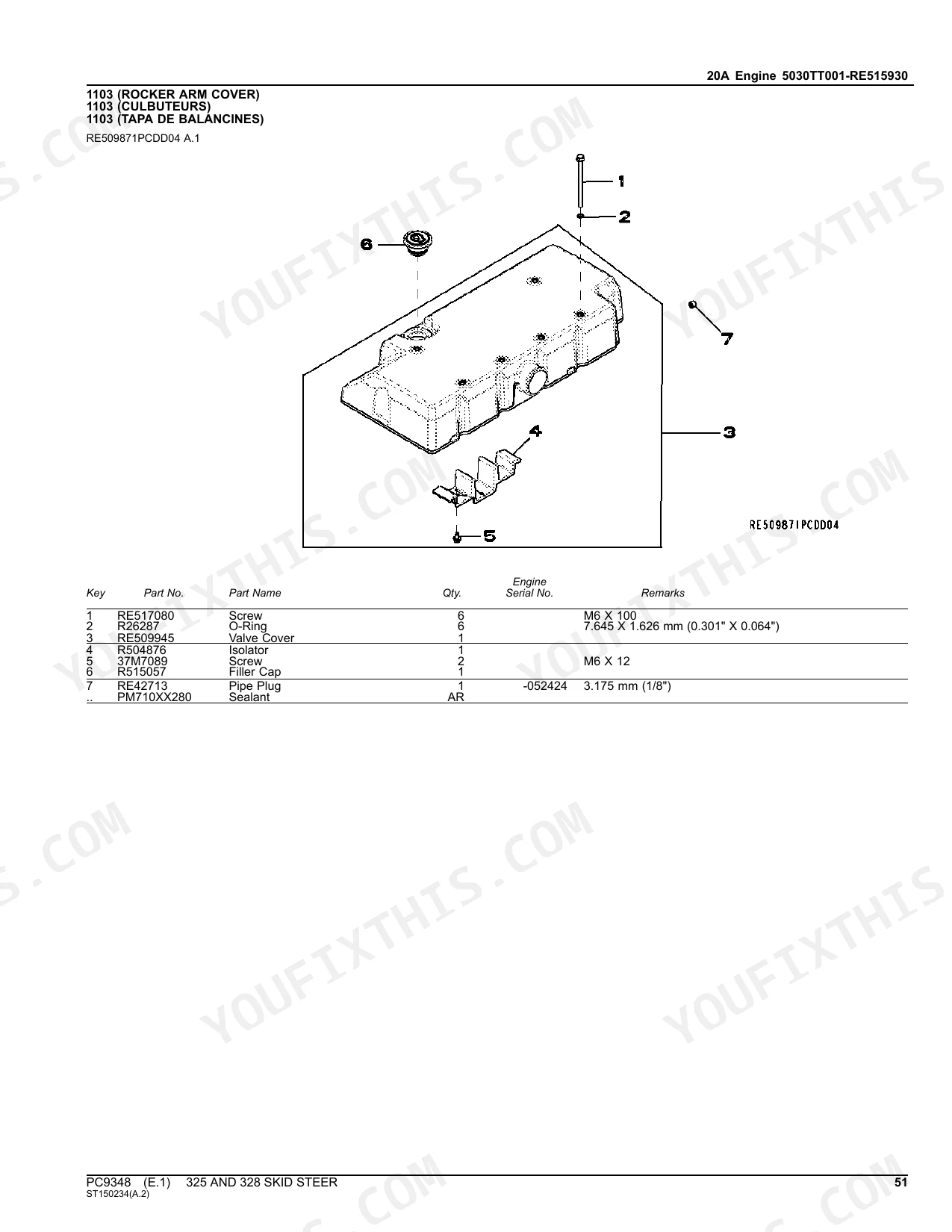

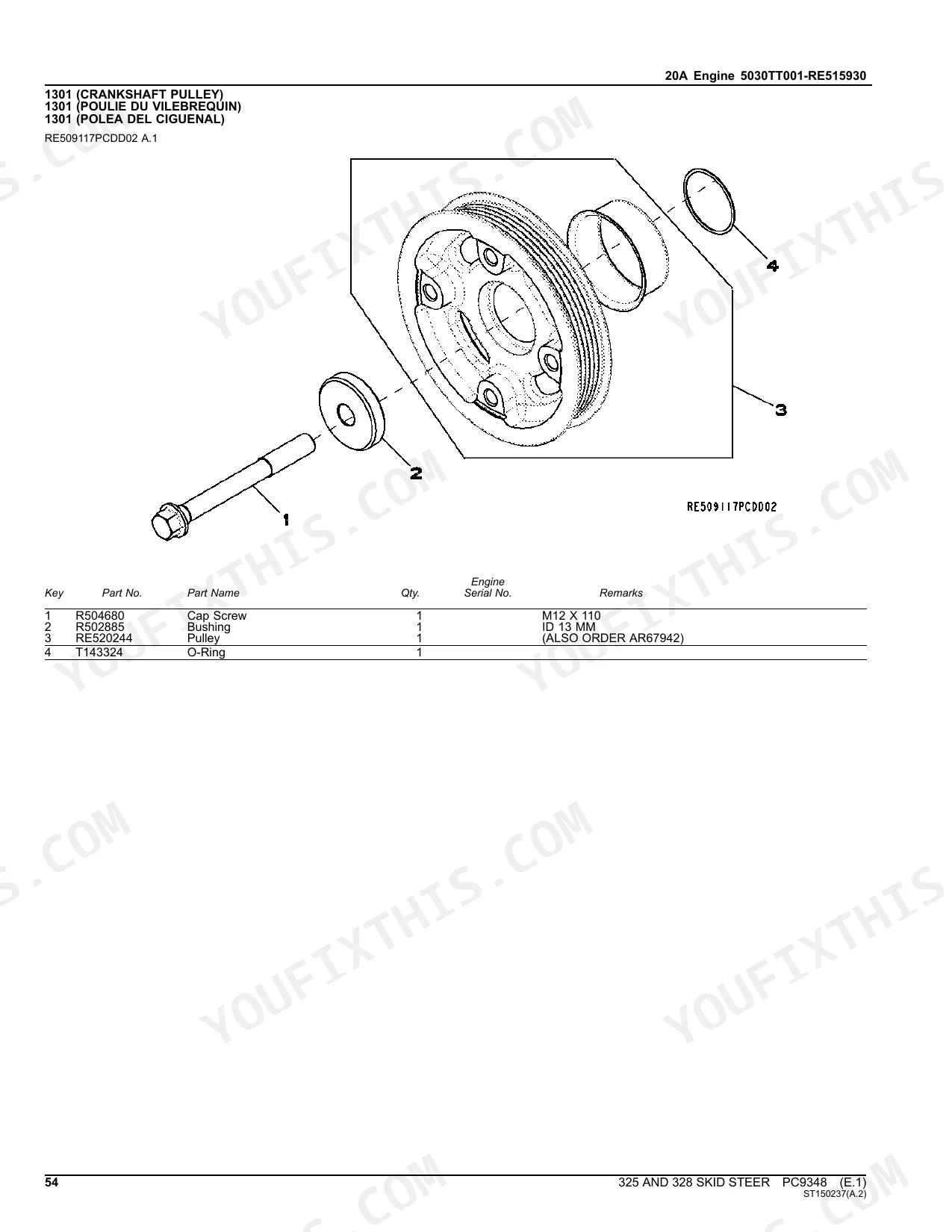

| Engine 5030TT001-RE515930 | 47-142 | Cylinder Block |
| Engine 5030TT002-RE515931 | 143-238 | Cylinder Block |
| Engine Auxiliary Systems | 239-270 | Throttle Control and Cable, Air Filter, Fuel Tank |
| Electrical | 271-330 | Lights, Back-Up Alarm, Battery and Cables |
| Power Train | 331-338 | Axle |
| Steering and Brakes | 339-378 | Steering Centering Assembly, Steering Linkage, Control Lever |

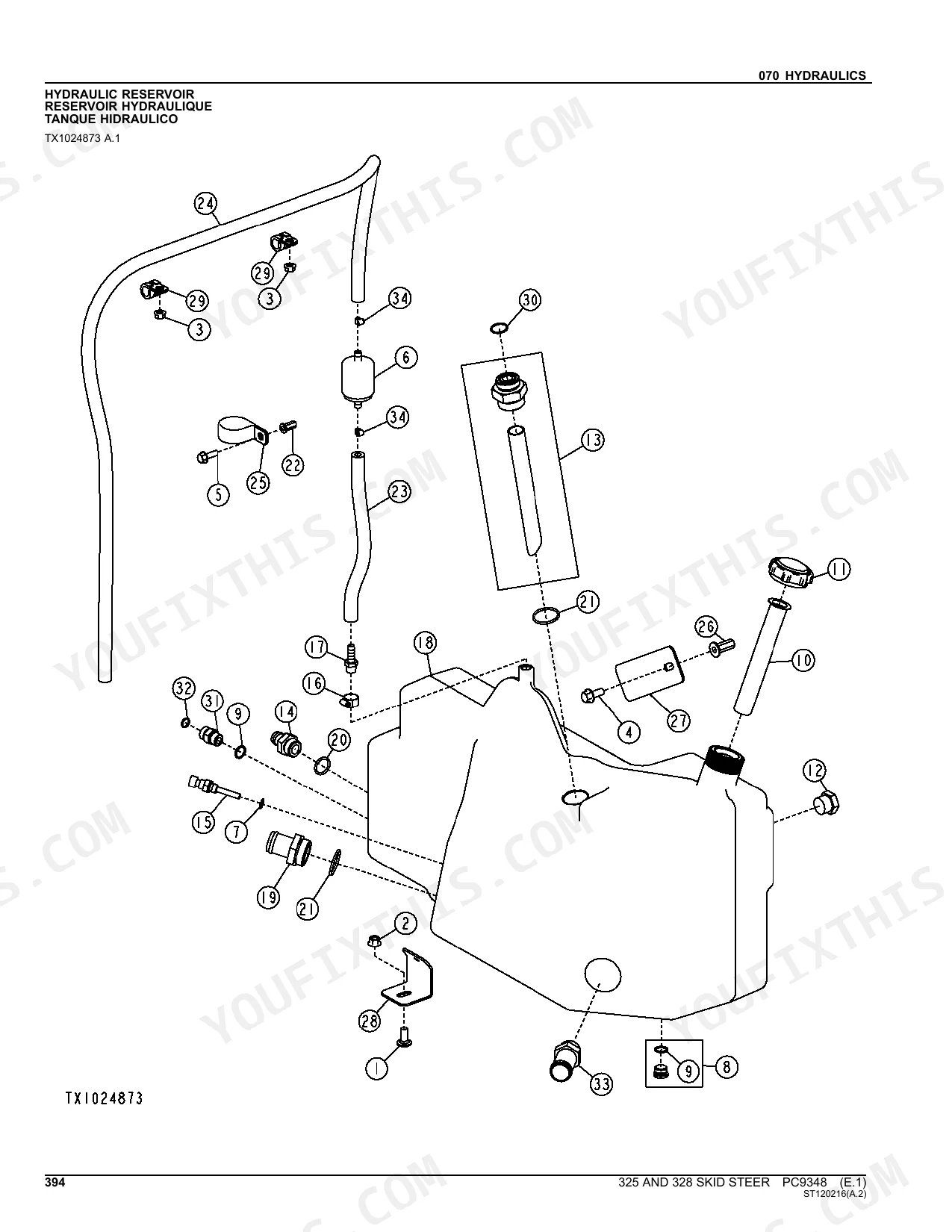

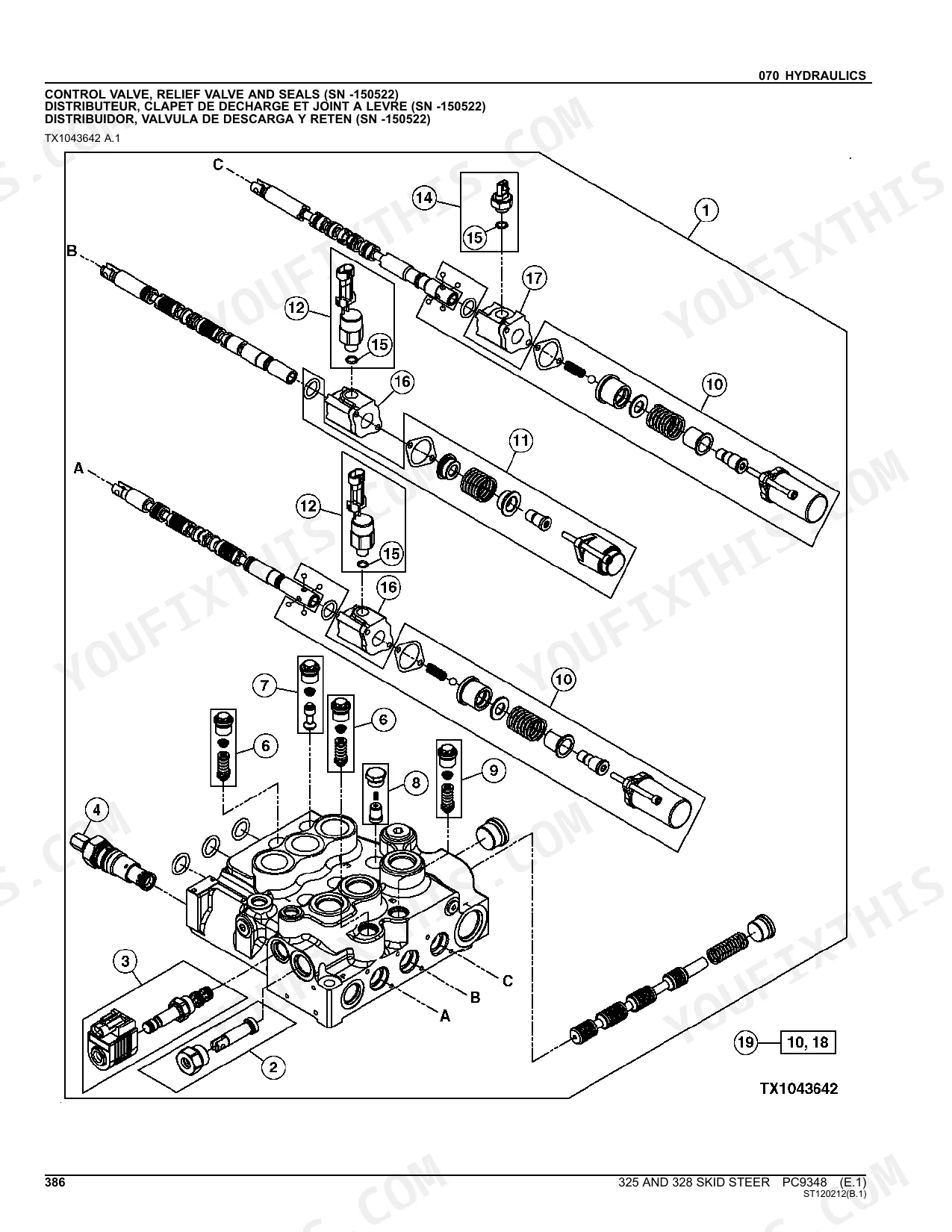

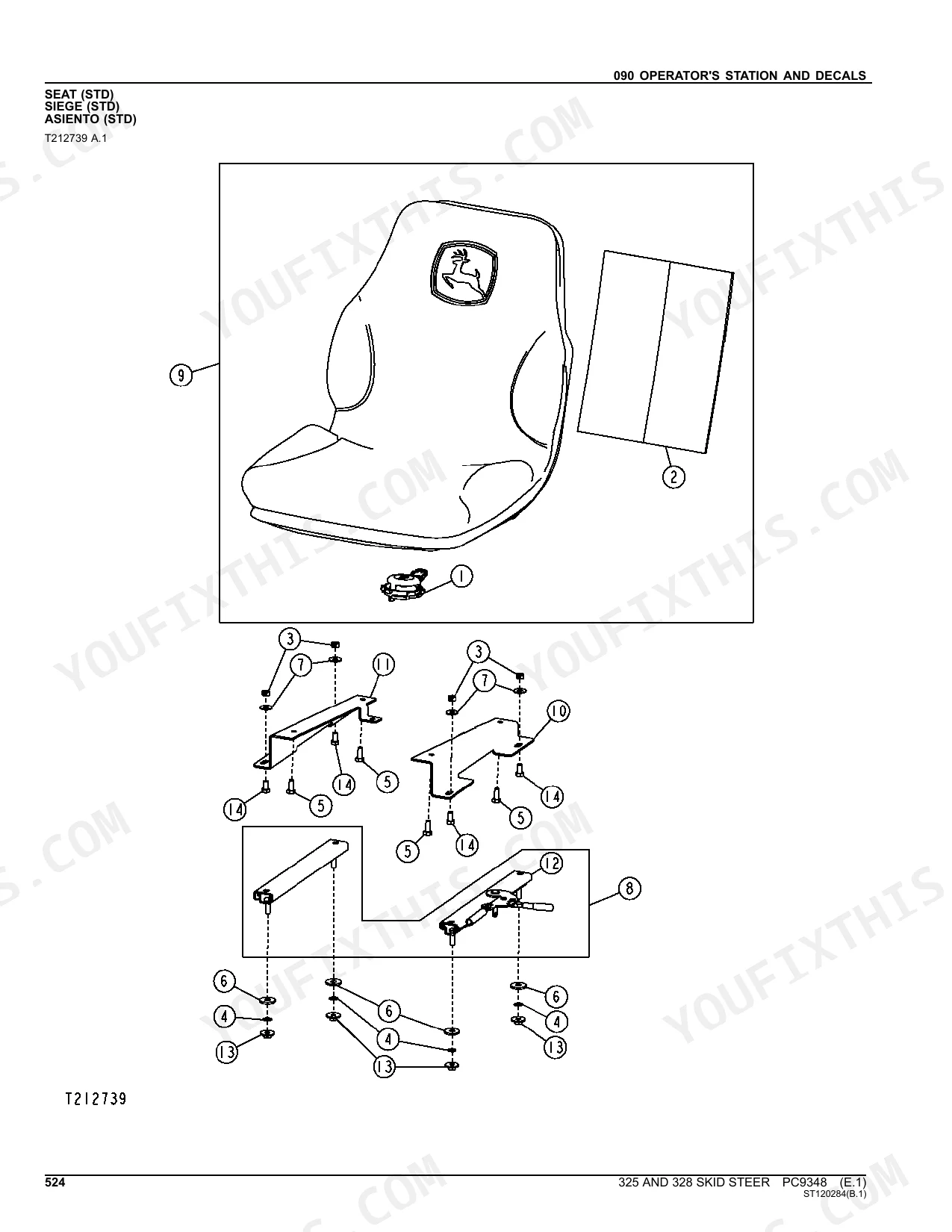

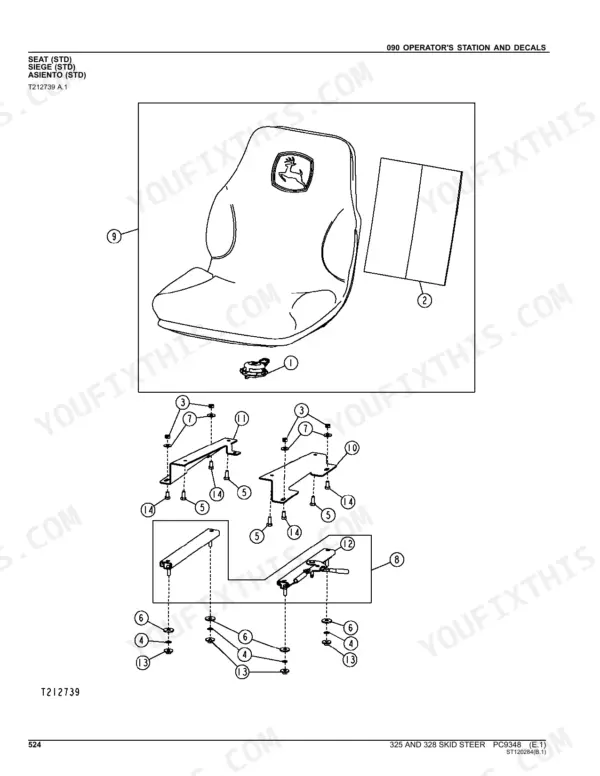

| Hydraulics | 379-478 | Control Valve, Hydraulic Reservoir, Hydrostatic Drive Hydraulics |
| Frame and Boom | 479-520 | Boom Lock, Frame Covers, Boom |
| Operator's Station and Decals | 521-616 | Seat, Cab, Labels |
John Deere 325, 328 Common Problems This Manual Covers
John Deere 325 quick-tach attachment lock plate worn out, can't identify replacement shim part numbers

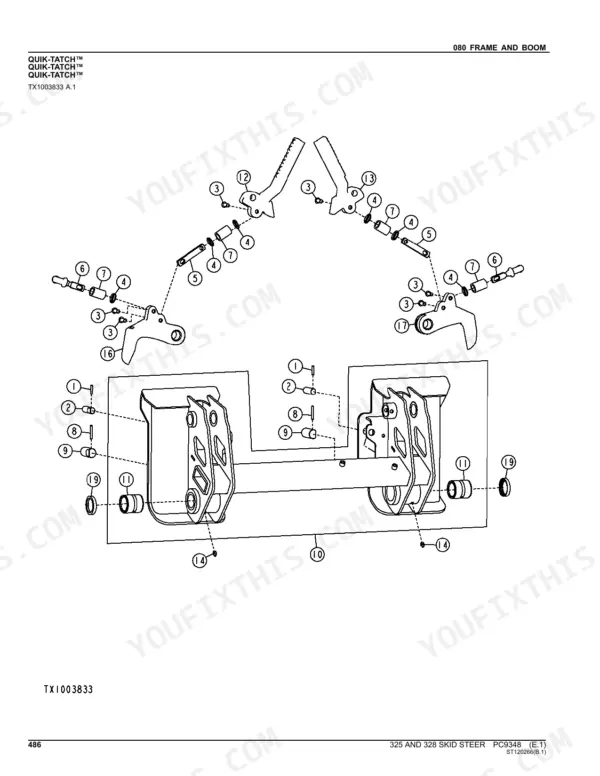

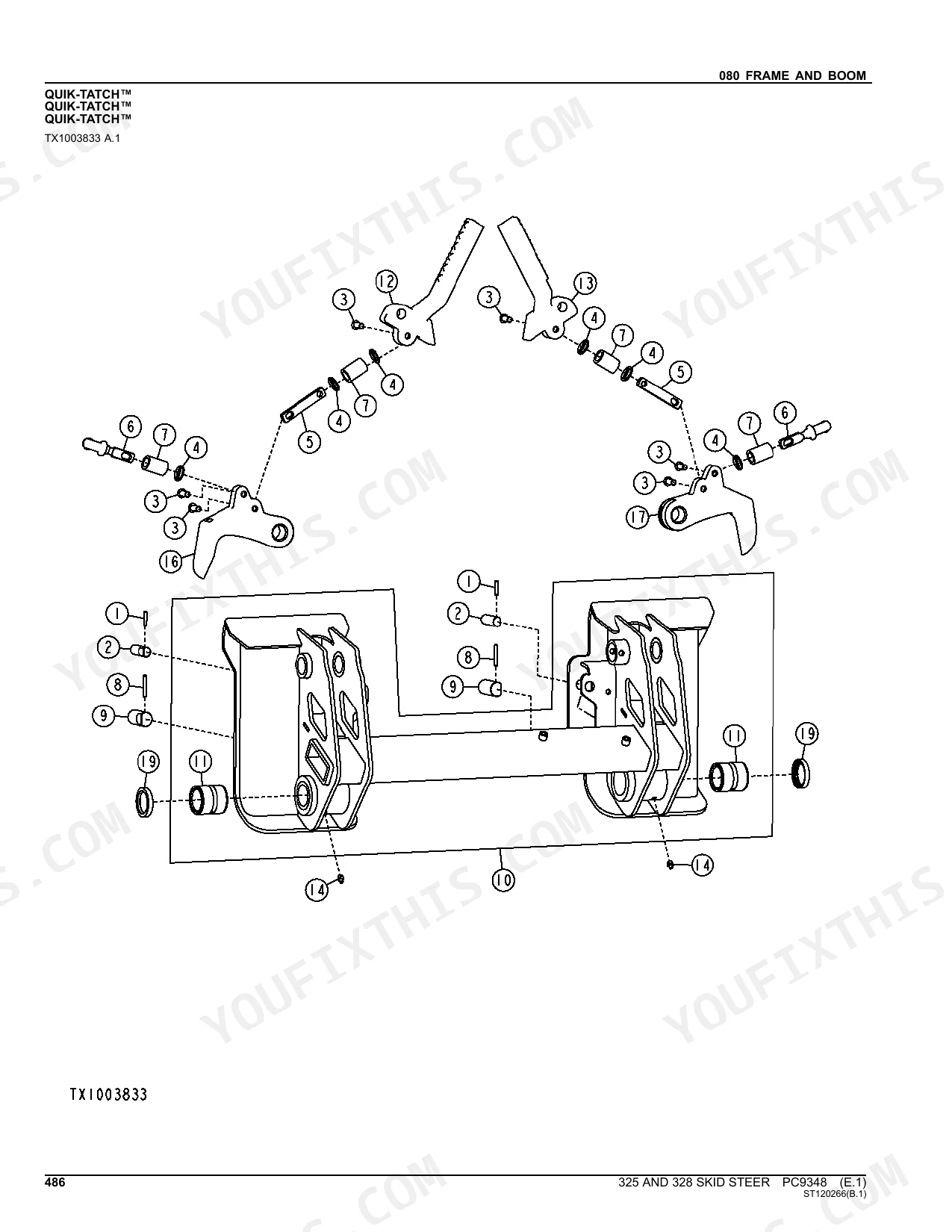

Pull up the Quik-Tatch exploded view starting on page 484 in the Frame and Boom group. Match your lock lever and wear plate callouts against the illustration, then pull the shim part numbers off the facing parts list. Verify your serial number range in the index before ordering, since 325 and 328 shim stacks differ.
Fuel gauge sender and float assembly part number not listed under the fuel tank group
Start with the fuel tank illustration on page 239 in Engine Auxiliary Systems, then cross into the Electrical group on page 271 where the instrument panel and sender parts are grouped. Trace the callout number from the tank drawing to the parts list column. Confirm the sender matches your engine build code before ordering.
Battery ground cable and ground strap part numbers hard to trace through the wiring harness pages
Open the Electrical group on page 271 and work through the Battery and Cables illustration. Ground cables are called out separately from the positive side, so read the length dimension in the description column and match it to the cable on your machine. Check the index for harness variations across the 2 models covered.
Water pump and related gasket part numbers unclear between the two engine sections
Identify your engine model number off the block tag first. Engine 5030TT001-RE515930 parts begin on page 47 with the diagram, and 5030TT002-RE515931 parts begin on page 143. Do not mix the two lists. Pull the water pump callout and its gasket from the matching cylinder block illustration.
Left side drive motor and hydrostatic components not clearly separated in the hydraulic parts listings
Check the Steering and Brakes group on page 339 for hydrostatic motor and brake components, then the Hydraulics group on page 379 for pump and drive hydraulics. Drive motors are listed by side, so confirm left versus right in the description column. The hydraulic parts diagram shows the supply and case drain line callouts.
Manual Section: Steering and Brakes p. 339Boom cylinder pins and bushings worn, need correct part numbers for lift arm rebuild

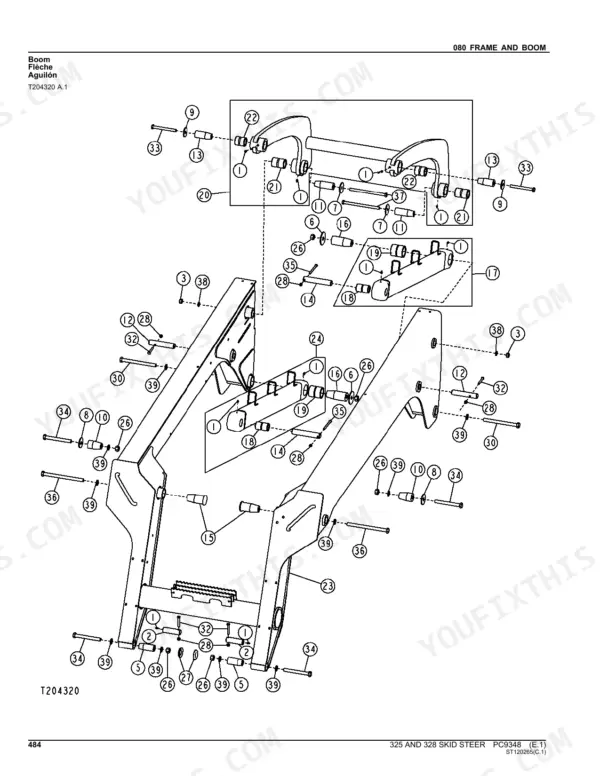

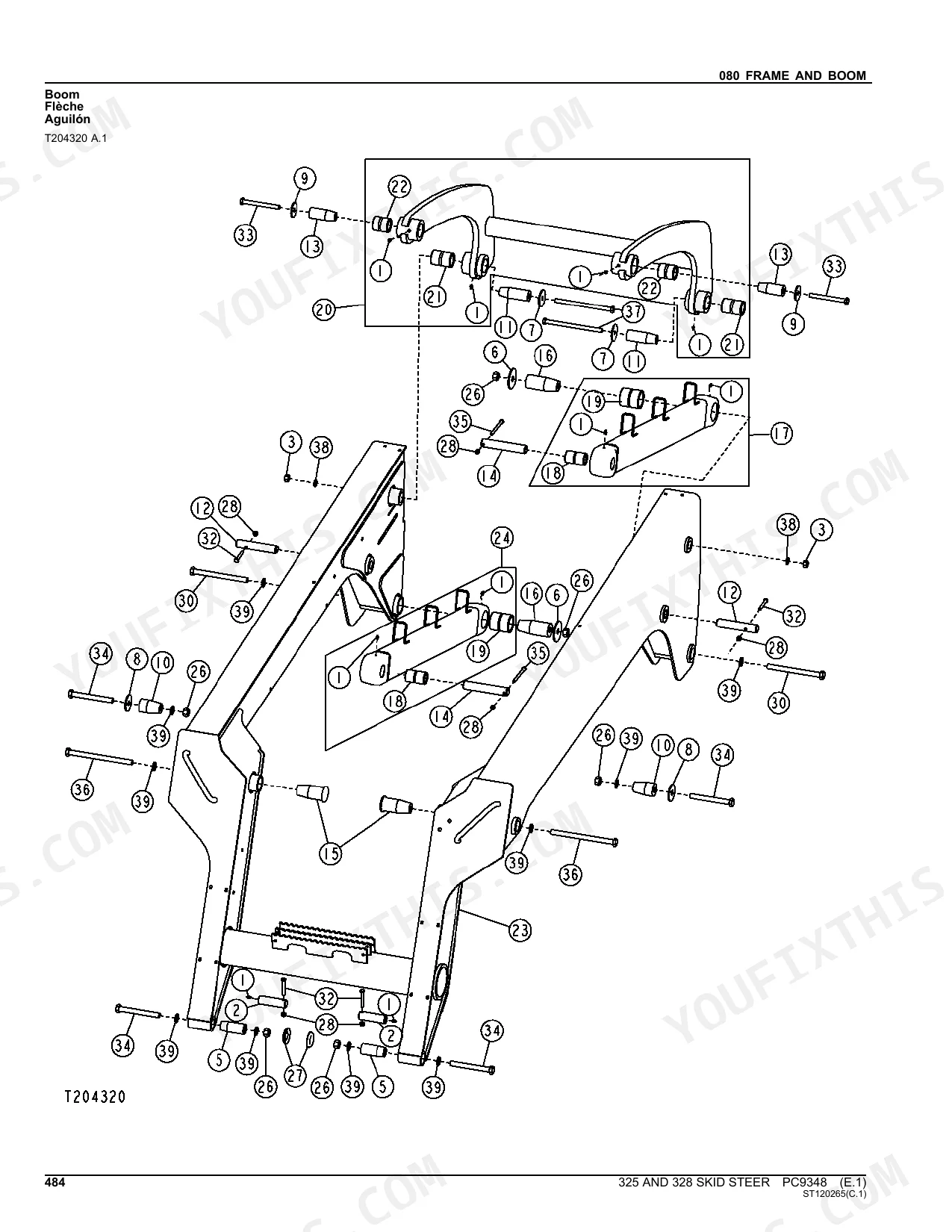

Work from the boom illustration on page 486 in the Frame and Boom group. Pins, bushings and retainers carry separate callout numbers, so list all three per joint rather than ordering the pin alone. Measure your existing pin diameter and compare against the description column, then verify fit through the index.
Frequently Asked Questions
What are the water pump replacement specs for a John Deere 325, 328 skid steer?
The water pump listed for the 325 and 328 skid steer, RE507604, carries the remark ORDER RE545573, so RE545573 is the number to order. The remanufactured option is SE502114, listed as the reman for RE507604. p. 67
What are the fuel filter replacement specs for a John Deere 325, 328 skid steer?
The fuel filter for the 325 and 328 skid steer is part number RE525105. The filter element itself is part number RE508202. p. 74
What is the cylinder head bolt torque spec for a John Deere 325, 328 skid steer?
The head bolt kit on page 112 lists R516693 (quantity 10), 19M8986 at M8 X 100 (quantity 6) and R516692 (quantity 2). This parts catalog gives part numbers and sizes, not torque values. p. 112
What is the alternator belt specification for the John Deere 325, 328 skid steer?
The alternator belt for the 325 and 328 skid steer is part number R519408, which is 2500 X 20.960 mm. p. 261
What is the part number for the engine oil filter?
The engine oil filter for the 325 and 328 skid steer is part number RE519626. p. 104
Is this John Deere 325 Parts Catalog a digital download?
Delivery is instant: a 616-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Does this John Deere 325 manual allow printing?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
