Both the 325 and 328 skid steer loaders sit inside one John Deere factory book: TM2191, 880 pages, the John Deere 325, 328 Operation and Test Manual PDF your dealer's shop worked from. Wiring diagrams and component location drawings fill the electrical section, the largest block in the volume, tracing circuits from the EMU through the joystick controllers out to fuse specs and connector repair. Hydraulic and hydrostatic coverage runs close behind: control valve theory, pressure and pump flow tests, cylinder drift checks, park brake and tracking adjustment, and diagnostic trouble codes for EMU, HCU, JSL and JSR faults. Set drive chain play at 5 mm (0.197 in.) up and down, tension the chain to 6.35 mm at the tire tread, and reject any boom cylinder drifting past 12.7 mm (0.5 in.). Intermittent faults under load eat a morning. Text searchable, your copy rides along to whatever yard the machine sits in.
Complete the set for your 325, 328
- Parts Catalog: John Deere 325, 328 Skid Steer Parts Catalog
- Repair Manual: John Deere 325, 328 Skid Steer Repair Manual
What's Inside This John Deere 325, 328 Manual

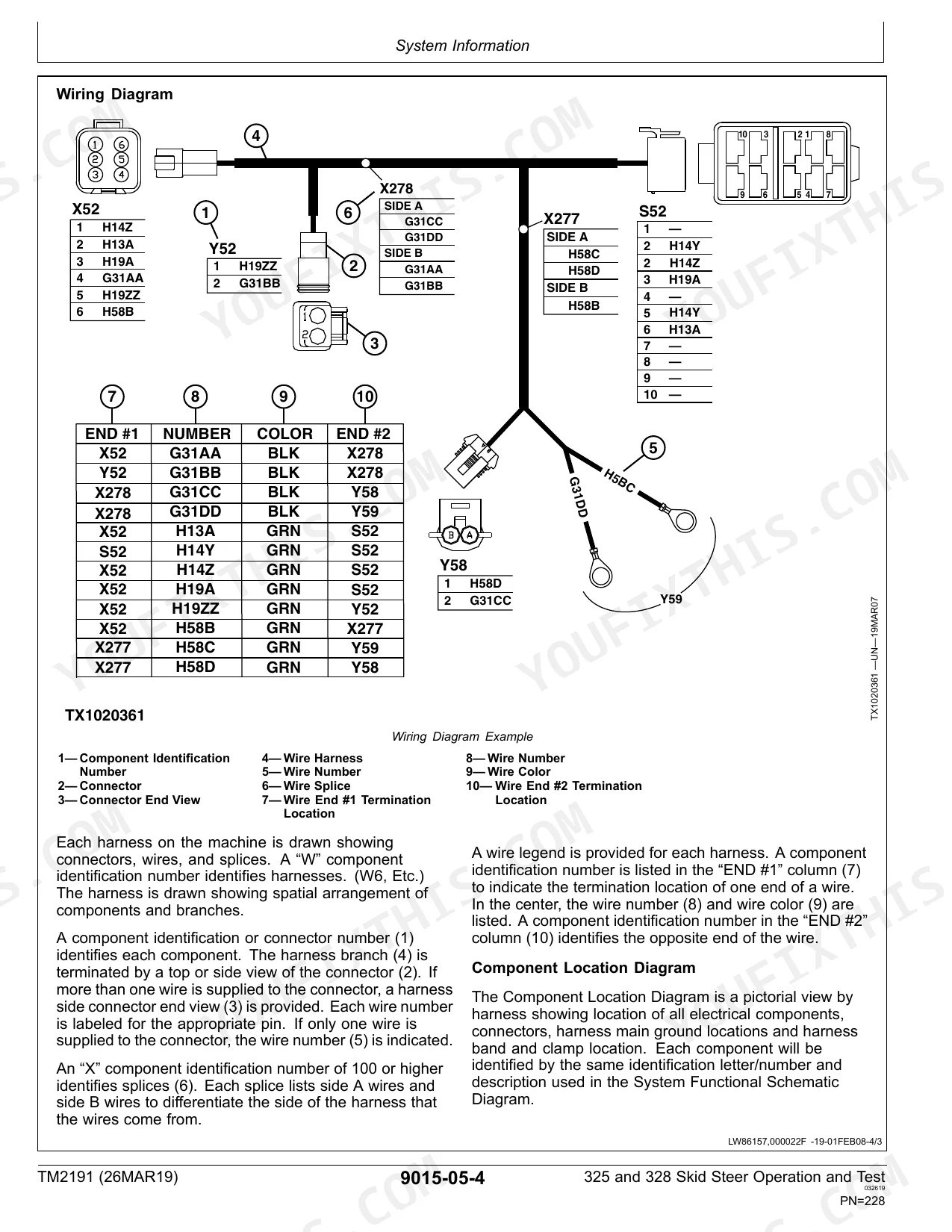

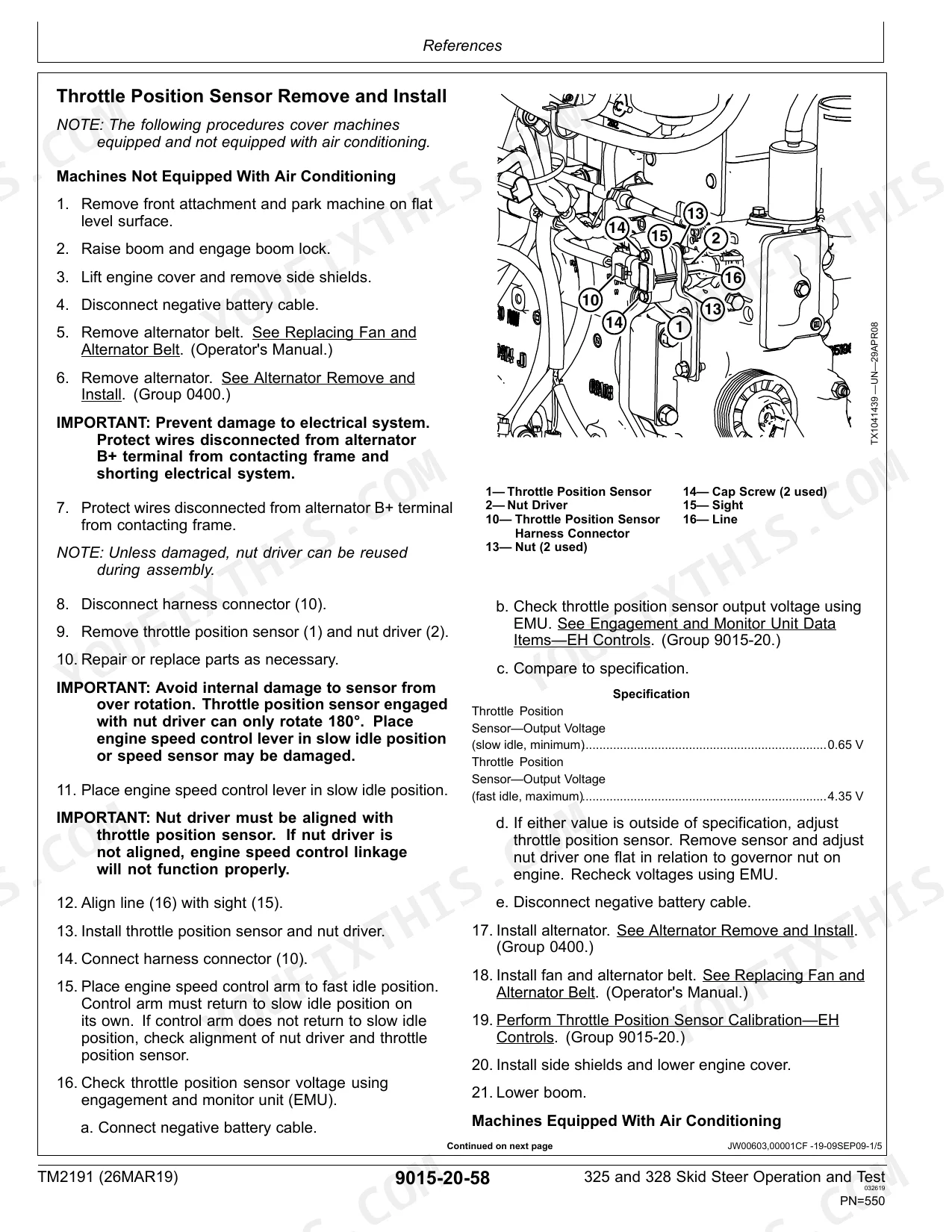

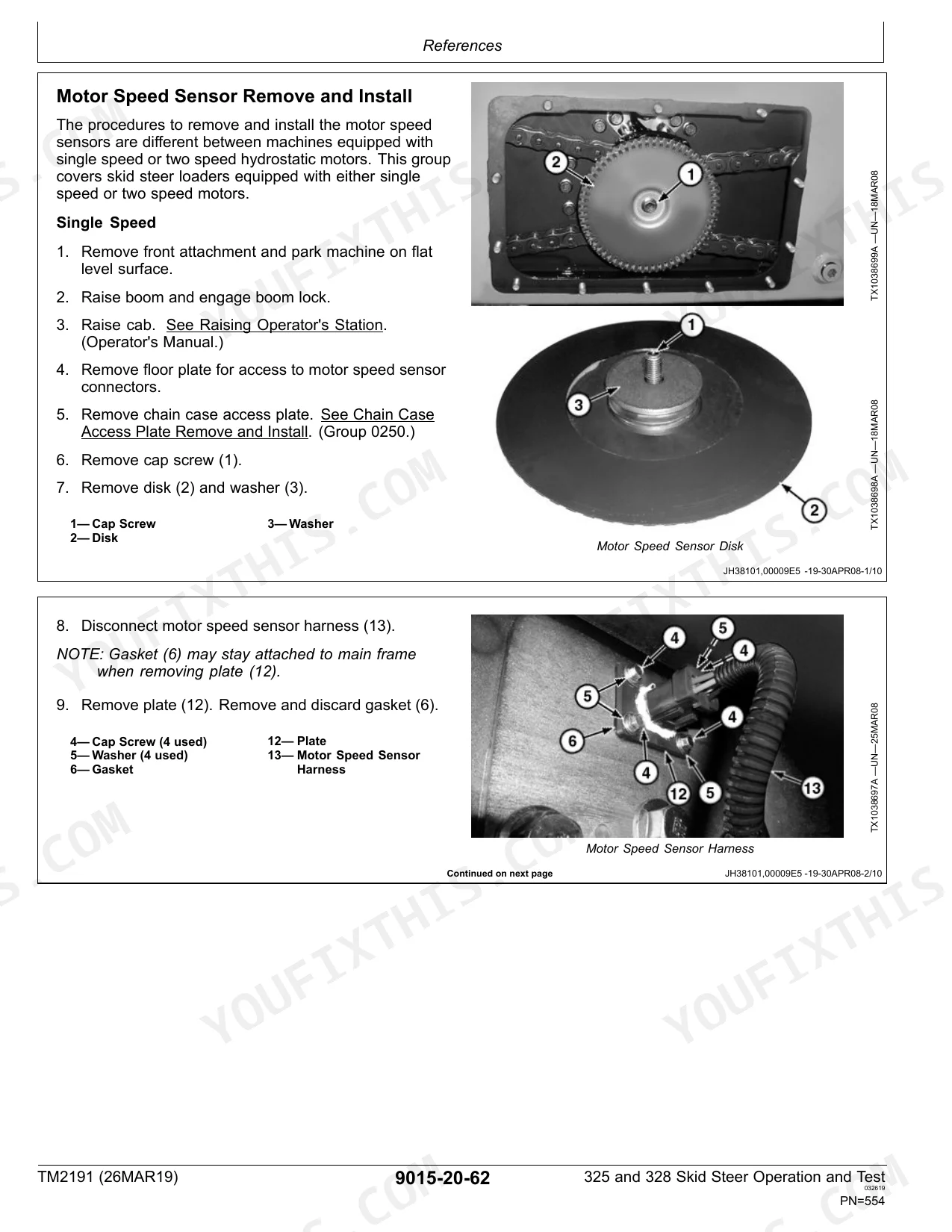

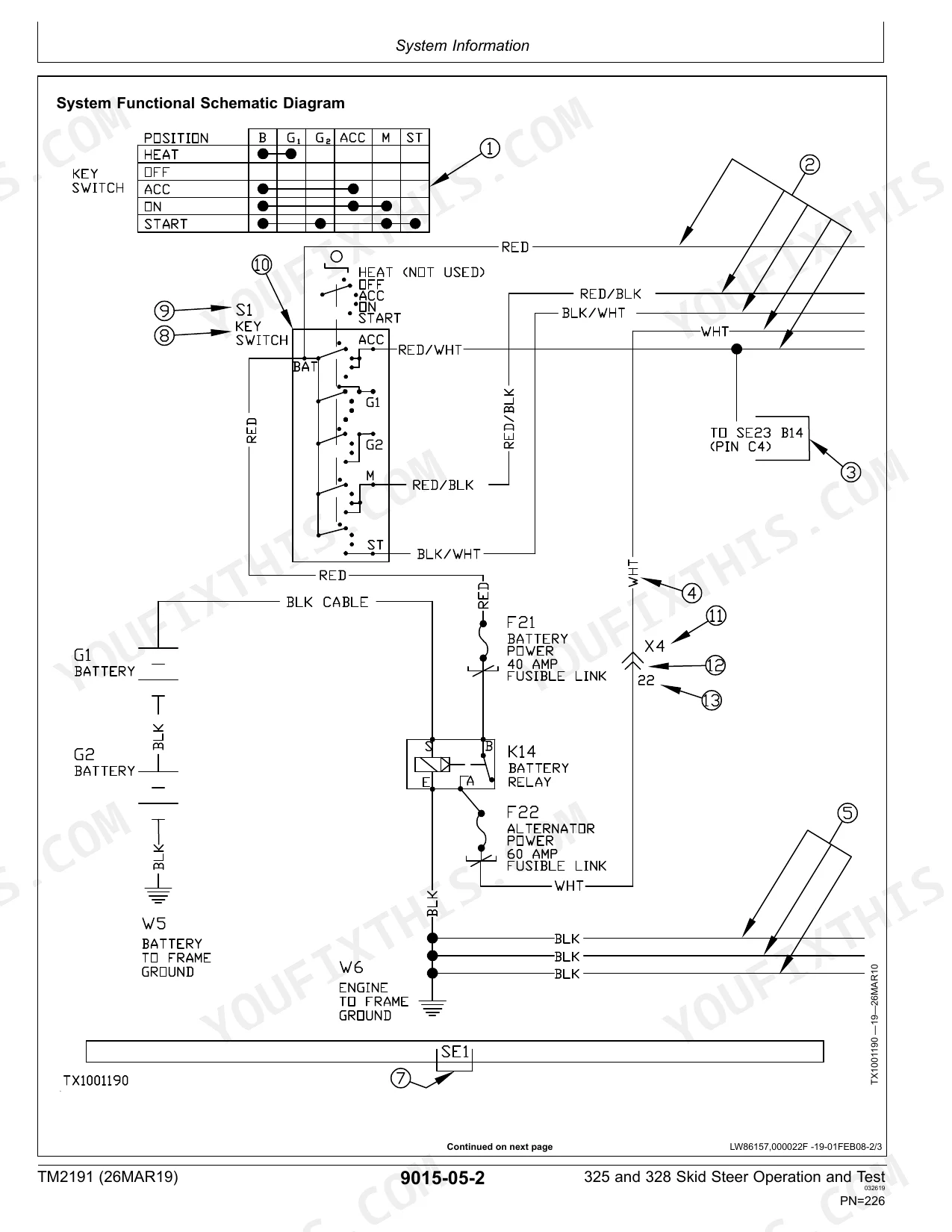

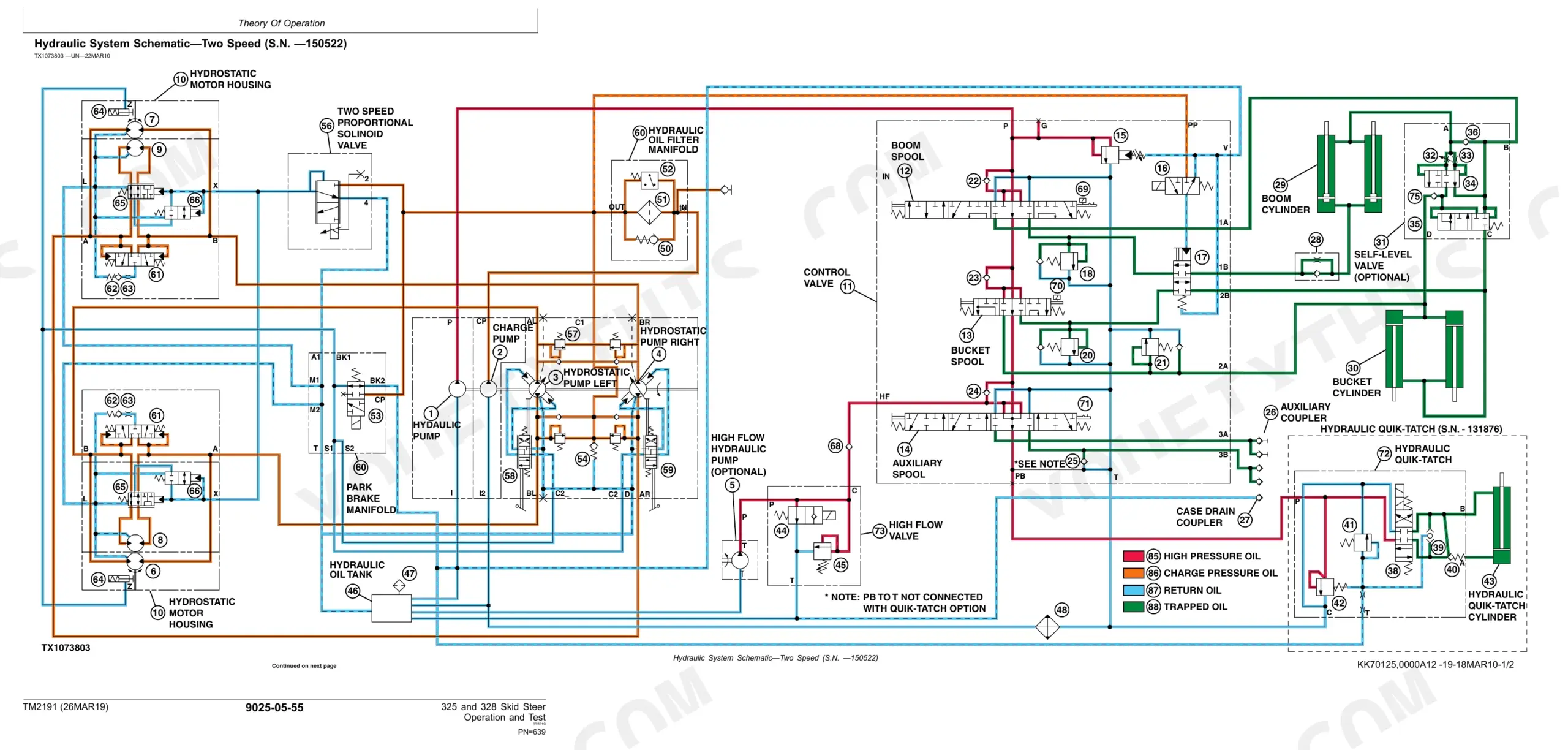

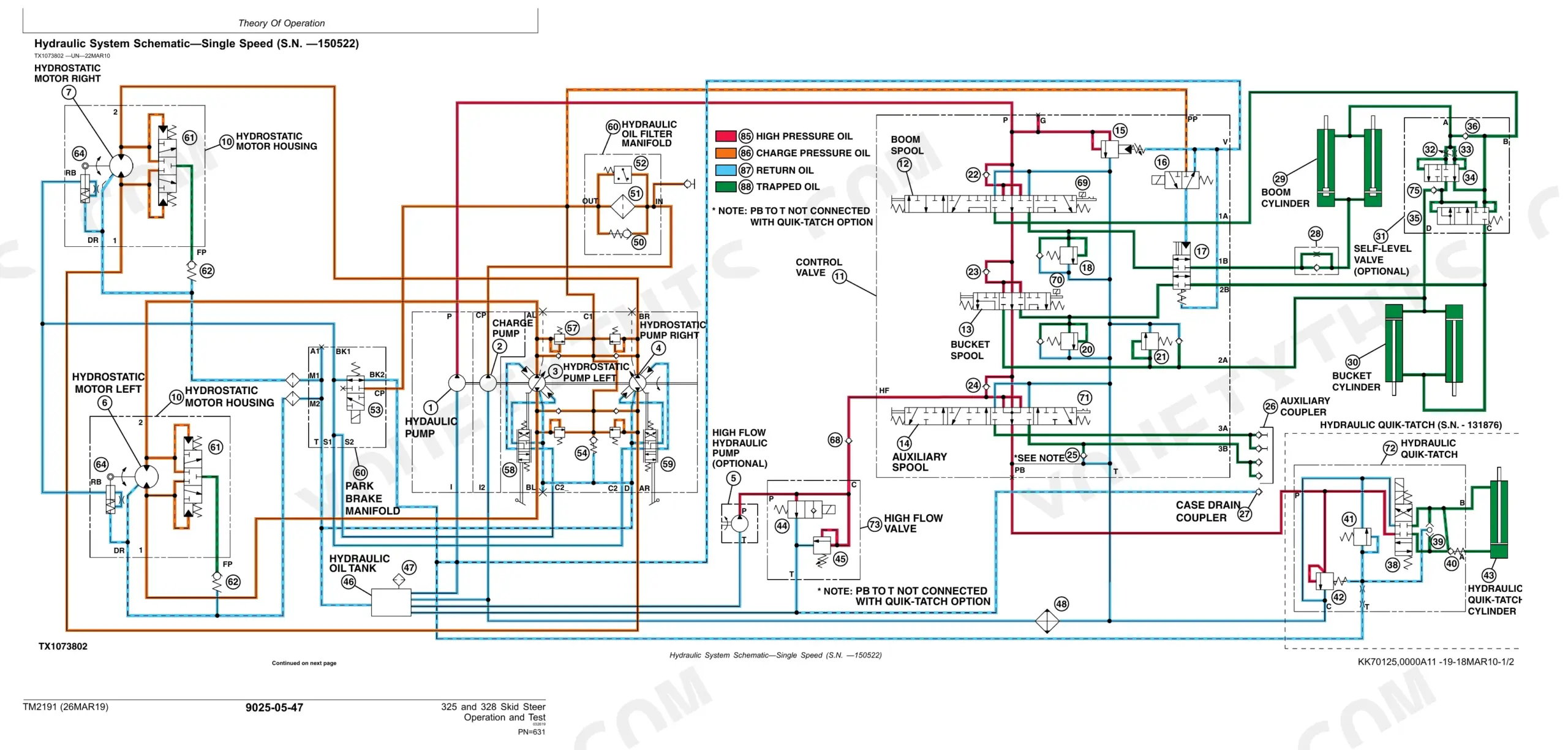

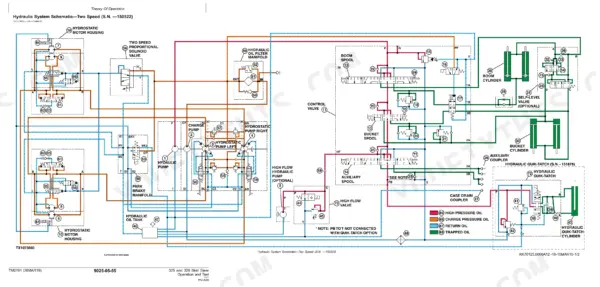

| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-18 | Safety (Recognize Safety Information, Follow Safety Instructions, Operate Only If Qualified) |
| Diagnostic Trouble Codes (DTCs) | 19-186 | EMU Codes, HCU Codes, JSL Codes, JSR Codes, Troubleshooting Procedures |
| Operational Checkout Procedure | 187-208 | Key Switch Checks, EMU Circuits, Hydraulic Controls, Quik-Tatch, Steering Mistracking |
| Engine | 209-220 | Theory of Operation, Observable Symptoms, Engine Speed Test, Turbocharger Boost Pressure |
| Electrical System | 221-566 | System Diagrams, Fuse Specifications, Component Location, Wiring Diagrams, Connector Repair |
| Power Train | 567-582 | Chain Case Operation, Drive Chain Tension, Axle Play, Grinding Noise, Drive Chain Adjustment |
| Hydraulic System | 583-736 | Theory of Operation, Control Valve Operation, Pressure Tests, Pump Flow Tests, Cylinder Drift |
| Hydrostatic System | 737-846 | Hydrostatic Pump Operation, Steering Control, Park Brake System, Neutral Adjustment, Tracking Adjustment |
| Heating and Air Conditioning | 847-864 | System Cycle of Operation, Refrigerant Handling, Operational Checks, Pressure Diagnostic Chart |
| Dealer Fabricated Tools | 865-868 | Motor Speed Sensor Test Harness, Solenoid Power Harness |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Air conditioner compressor clutch relay coil resistance | 81—99 ohms | p. 73 |
| Boom Cylinder Drift | 12.7 mm Maximum / 0.5 in. Maximum | p. 198 |
| Boom Circuit Drift | 12.7 mm Maximum / 0.5 in. Maximum | p. 200 |
| Chain Tension—Play | 6.35 mm at tire tread, 0.25 in. at tire tread | p. 581 |
| Drive Chain—Play | 5 mm up and down, 0.197 in. up and down | p. 581 |
| Engine—Slow Idle Speed | 1230—1370 rpm | p. 217 |
| Engine—Fast Idle Speed | 2930—3070 rpm | p. 217 |
| Bucket Circuit Drift | 12.7 mm Maximum | p. 201 |
| 325 | ||
| 325 New, Typical Flow Rate | 83.3 L/min (22.0 gpm) | p. 734 |
| 325 Used, Minimum Flow Rate | 66.6 L/min (17.6 gpm) | p. 734 |
| 325 Turbocharger Boost Pressure | 107 kPa at 2800 rpm | p. 219 |
| 328 | ||
| 328 Turbocharger Boost Pressure | 121 kPa at 2800 rpm | p. 219 |
John Deere 325, 328 Common Problems This Manual Covers
John Deere 325 skid steer starts then dies after a few seconds, stalls under load
Bleed air from the low pressure fuel side and change the fuel filter before chasing the injection pump. Drain any water from the bowl, then run the engine speed test and confirm slow idle holds 1230 to 1370 rpm on page 217. If idle wanders below that, pull and bench test the injectors.
Manual Section: Engine p. 217Boom and bucket will not move, loader valve dead with engine running
Sit down, buckle the belt, and cycle the park brake switch in order before touching a wrench. Check for power at the port lock solenoid, then walk the key switch and EMU circuit checks in the Operational Checkout Procedure starting on page 187. Retorque any loose EMU cap screws to 6.8 N.m per page 545.
Manual Section: Operational Checkout Procedure p. 187Lift arms drop slowly overnight, bucket rolls forward on its own while parked
Park level, load the bucket, and mark the cylinder rod with a scribe. Measure boom drift over the checkout interval and compare against the 12.7 mm (0.5 in.) maximum on page 198, then repeat for bucket circuit drift against the same 12.7 mm limit on page 201. Exceed either number and reseal the cylinder.
Manual Section: Hydraulic System Malfunctions p. 198Hydraulics slow and weak, auxiliary attachment lugs down when lift arms are cycled
Replace the hydraulic filter and top the reservoir first, since a plugged element starves the pump. Then run a pump flow test: a used 325 pump must still deliver 66.6 L/min (17.6 gpm), and the flow chart on page 734 lists the new typical value of 83.3 L/min (22.0 gpm). Low flow means worn pump.
Manual Section: Hydraulic System p. 734Grinding or rattling noise from the chain case, wheels feel loose when turning
Jack the side up and check chain tension by hand at the tire tread. Play should sit near 6.35 mm (0.25 in.) at the tread and 5 mm (0.197 in.) up and down on the chain itself per page 581. Adjust the axle, then torque the axle housing nut to 305 N.m (225 lb-ft).
Manual Section: Power Train p. 581Machine mistracks and pulls to one side, loses power climbing a pile
Verify tire pressures match side to side, then check charge pump flow against the 50.7 L/min (13.4 gpm) minimum for standard controls listed on page 735. Perform the neutral and tracking adjustments in the Hydrostatic System section, and torque the electric displacement control lock nut to 10 N.m per page 829.
Manual Section: Hydrostatic System Malfunctions p. 735Frequently Asked Questions
How do I clear diagnostic trouble codes on a John Deere 325 or 328 skid steer?

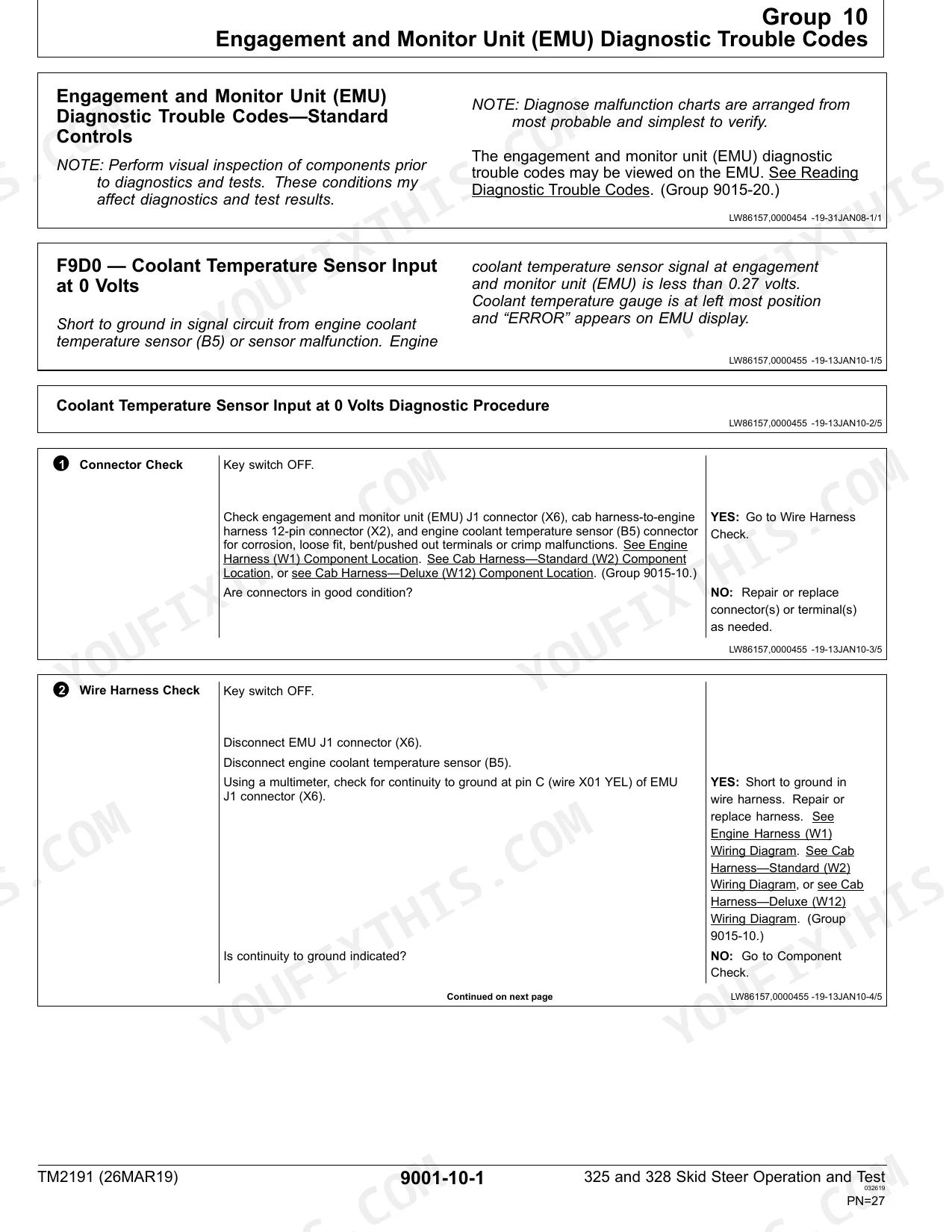

To clear diagnostic trouble codes on standard control machines, access the 'CODES' menu on the EMU display, scroll to the end of the list, and hold the SELECT button for 5 seconds while 'WAIT' is displayed. On EH control machines, use the 'Codes Clear' screen in the service menu to delete all stored codes. p. 509
What is the procedure for clearing diagnostic trouble codes on EH control machines?
On EH control machines, you can clear codes by accessing the service menu. Press and hold the MENU button for 5 seconds to enter the service menu, navigate to the 'Codes Clear' screen, and press the SELECT button to delete all stored codes. p. 509
What is the specification for the boom cylinder drift on the 325 and 328 skid steer loaders?
The maximum allowable drift for the boom cylinder is 12.7 mm (0.5 in.) over a 5-minute period. p. 198
What is the torque spec for the engagement and monitor unit cap screws on a John Deere 325, 328 skid steer?
The cap screws for the engagement and monitor unit should be tightened to a torque of 6.8 N·m (60 lb-in.). p. 545
What is the park brake solenoid resistance spec on a John Deere 325, 328 skid steer?
The resistance for the park brake solenoid (Y5) should be between 7 and 10.5 Ohms. p. 519
What exactly do I receive with this John Deere 325 Technical Manual?
You get a 880-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print just the pages I need from this John Deere 325 manual?
Yes. The PDF is DRM-free, so printing works from any reader and any printer.
