Part of the John Deere Parts Manuals.
Within the hour you'll be reading the serial plate on your 310G, 310SG or 315SG, then matching it to an exploded view. After that you can call the dealer with an exact part number.
Every day the backhoe sits waiting on the wrong filter or seal kit is a day of lost billing. This John Deere book is PC2755, dated January 2007. It covers machines built from 2000 onward. Each group has reference keys, quantities and serial breaks, with descriptions in English, French and Spanish.
This is a parts book, not a repair manual. It has no torque values, capacities or schematics. Start with the serial number locations, then work by system using the alphabetical index. If you already have a number, the numerical index at the back sends you straight to the right group and page.
What's Inside This John Deere 310G, 310SG, 315SG Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Index | 1-45 | Serial Number Locations, Alphabetical Index, How to Use the Catalog |
| Wheels and Tires | 46-49 | Powered Wheels, Non-Powered Wheels, Tires and Fastenings |

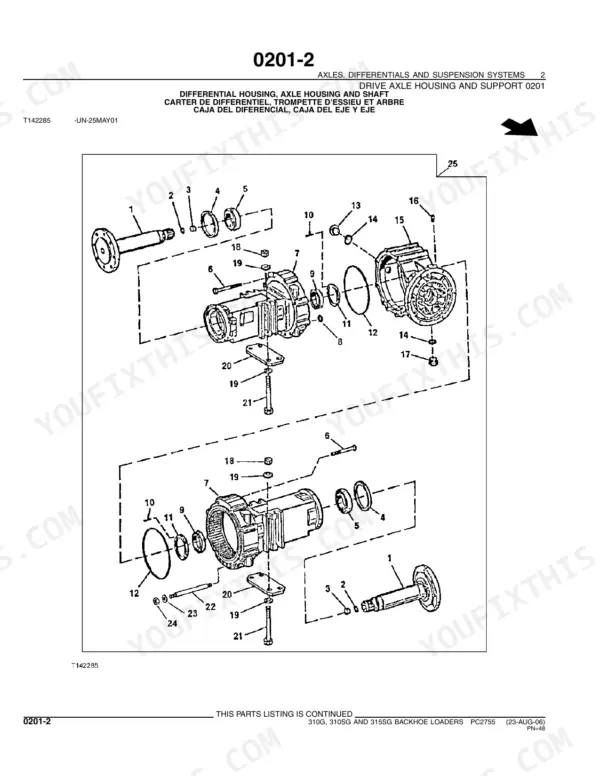

| Axles and Differentials | 50-84 | Drive Axle Housing, Differential, Non-Powered Wheel Axles, Axle Shafts and Reduction Gears |
| Transmission | 85-137 | Controls, Input Drive Shafts, Housing and Covers, Gears and Power Shift Clutch, Transmission Hydraulics |

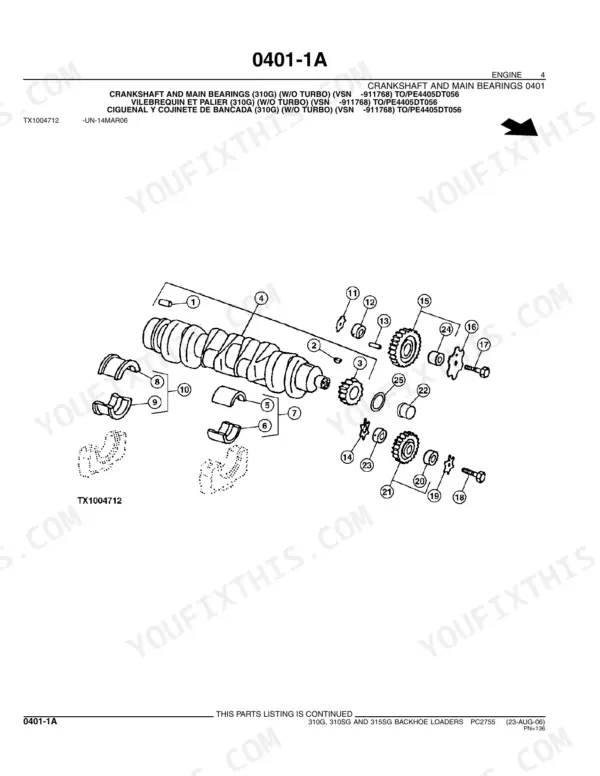

| Engine | 138-277 | Crankshaft, Camshaft, Pistons, Cylinder Block, Oiling System, Cylinder Head, Fuel Injection, Turbocharger, Water Pump, Gasket Kits |

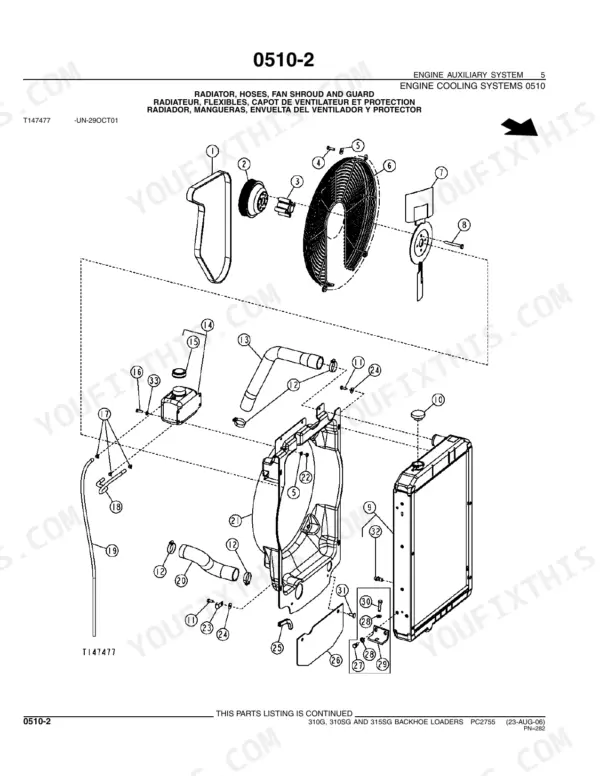

| Engine Auxiliary Systems | 278-307 | Cold Weather Starting Aids, Cooling, Speed Controls, Intake, Exhaust, Engine Mounting, Fuel Supply |
| Steering and Brakes | 308-339 | Power Steering Hydraulics, Service Brakes, Parking Brake |
| Miscellaneous Vehicle | 340-363 | Hand Tools, License Bracket, Finish and Trim, Shipping, Greases, Oils, Fuels and Coolants |
| Electrical | 364-417 | Batteries and Cables, Alternator and Charging Wiring, Lighting, Wiring Harness and Switches |

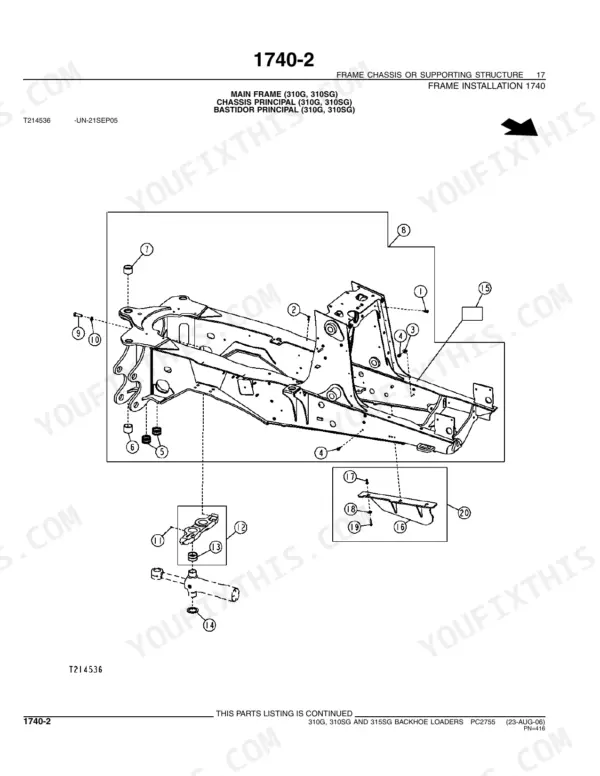

| Frame, Operator Station and Sheet Metal | 418-543 | Frame, Bumpers, ROPS, Platform, Windshield, Seat, Heating and Air Conditioning, Hood, Fenders, Warning Devices |
| Vehicle Hydraulics | 544-571 | Main Hydraulic System, Reservoir, Hydraulic Oil Filter |
| Loader | 572-667 | Buckets, Forks, Attachment Coupler, Controls Linkage, Frames, Control Valves, Lines and Hoses, Hydraulic Cylinders |

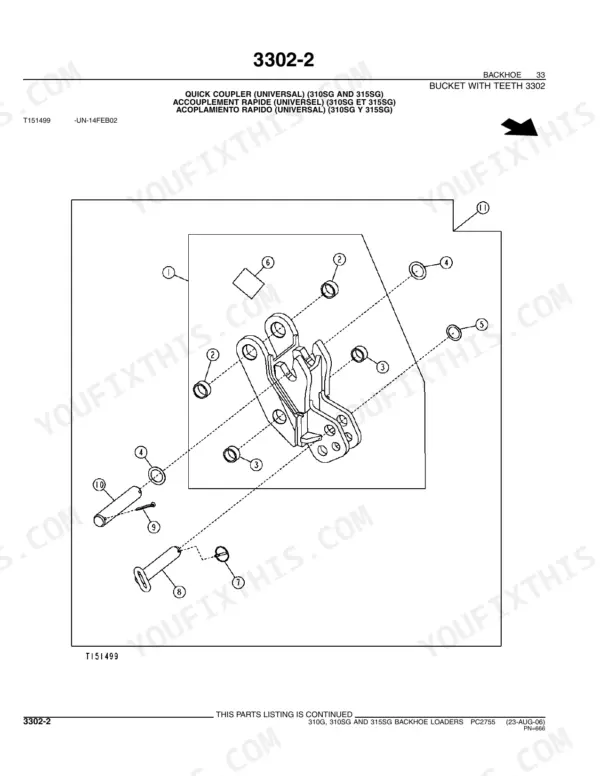

| Backhoe | 668-890 | Bucket, Controls Linkage, Boom, Dipperstick, Stabilizers, Control Valves, Lines and Hoses, Hydraulic Cylinders |
| Numerical Index | 891-933 | Part Number to Group and Page Cross-Reference |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Production | Manufactured 2000- | p. 2 |
| Engine listed | PE4045DT056 | p. 15 |
| Rear wheel for 16.9 X 28 tire | AT309100 | p. 46 |
| Engine oil filter | RE59754 | p. 185 |
| Engine oil filter, high capacity | RE67764 | p. 189 |
| Air filter, primary | KV16429 | p. 291 |
| Air filter, secondary | AT171854 | p. 291 |
| Hydraulic oil filter | AT308274 | p. 559 |
John Deere 310G, 310SG, 315SG Common Problems This Manual Covers
The counter hands over the wrong part because the 310G and 310SG got mixed up
Start in Introduction and Index to find the serial number locations, then read your plate. In each group, match your model and serial against the bracketed breaks like (310SG,315SG)(SN 926789-). Give the counter your number and serial, not a description of the part.

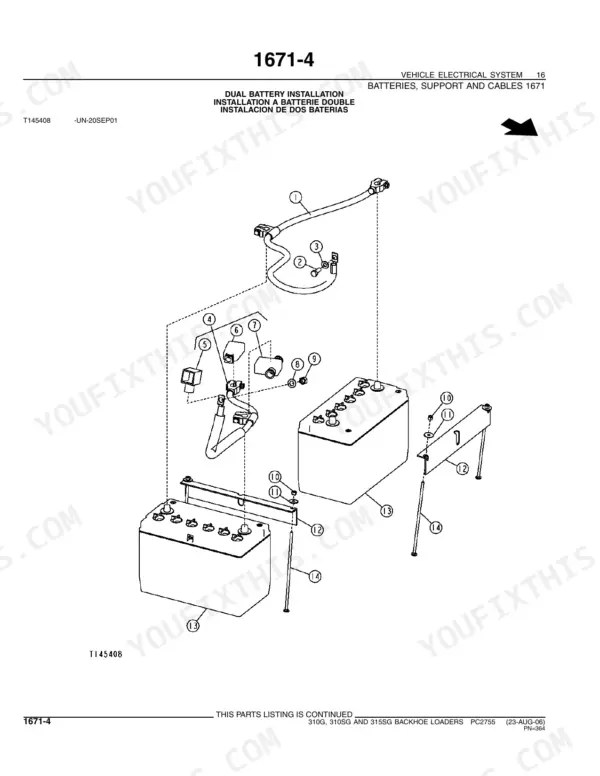

Manual Section: Introduction and Index p. 4A filter that looks right doesn't seal or thread on properly
Look up the exact number instead of matching by size. The Engine group lists the oil filter RE59754 on page 185 and the high capacity RE67764 on page 189. Engine Auxiliary Systems lists the air filters KV16429 and AT171854 on page 291. Vehicle Hydraulics lists AT308274 on page 559.
Manual Section: Engine; Engine Auxiliary Systems; Vehicle Hydraulics p. 185A backhoe cylinder is weeping oil and you need the right seal kit the first time
Go to the hydraulic cylinders pages in the Backhoe group and find the cylinder by position: boom, dipperstick, bucket or stabilizer. Each exploded view shows the cylinder's parts and serial breaks. Order against the cylinder you actually have on the machine, not one from a similar model.
Manual Section: Backhoe - Hydraulic Cylinders p. 844A bent or cracked rear rim has to be replaced on a 16.9 X 28 tire
Open Wheels and Tires and find the powered wheels pages. Page 46 lists AT309100 as the rear wheel for the 16.9 X 28 tire. Check the fastenings on the same pages before ordering, so the rim and its studs and nuts arrive together.
Manual Section: Wheels and Tires p. 46Frequently Asked Questions
How do I read the serial breaks so I order the part that fits my machine?
Every group tags parts with ranges such as (310G)(SN -910900) or (310SG,315SG)(SN 926789-). A dash in front of the number means up to that serial. A dash after it means from that serial on. Read the plate before you open the book, because the 310G and the SG models often take different parts for the same job. p. 4
Which engine oil filter does the catalog list?
The standard engine oil filter is RE59754 on page 185. A high capacity filter, RE67764, is listed on page 189. Check which oiling system page matches your engine and serial range before ordering. The two filters aren't interchangeable by guesswork. p. 185
What are the air filter and hydraulic filter numbers?
The primary air filter is KV16429 and the secondary is AT171854, both on page 291. The hydraulic oil filter is AT308274 on page 559. Write all three on the inside of the cab door and save yourself a trip back to this page. p. 291
Which engine is in my 310G?
Page 15 lists the PE4045DT056 for the 310G up to VSN 911768. Engine parts like pistons, gaskets and turbocharger pieces follow the engine model, not just the machine model. Confirm the engine serial plate on the block before ordering anything internal. p. 15
I have a part number off an old part but no idea where it goes. Can this help?
Yes. The numerical index at the back cross-references every part number to its group and page. From there the exploded view shows where it sits and what serial range it covers. Having that alone pays for the book when a part shows up with no paperwork. p. 891
