Transmission, steering, brakes, electrical and the loader group get walked end to end across the 944 pages of this John Deere 544H wheel loader parts manual PDF, printed by the factory as parts catalog PC2610. Exploded views break each assembly down to key numbers, so the bucket tooth you need, a lift cylinder seal or a quick-attach pin all carry their own part number and quantity. Loader coverage alone fills roughly the last quarter of the book, running from bucket and frames through the hydraulic pump, control and load holding valves, lines and hoses, reservoir and cylinders. Match your worn parts by size where the casting number is gone: the parking brake O-ring reads 9.250 x 1.780 mm, the cotter pin 4 x 63 mm. Guessing costs more than the part: freight, downtime, a second teardown. Bookmarked by system and searchable by number, so what you read here is what goes on your order.
What's Inside This John Deere 544H Parts Manual

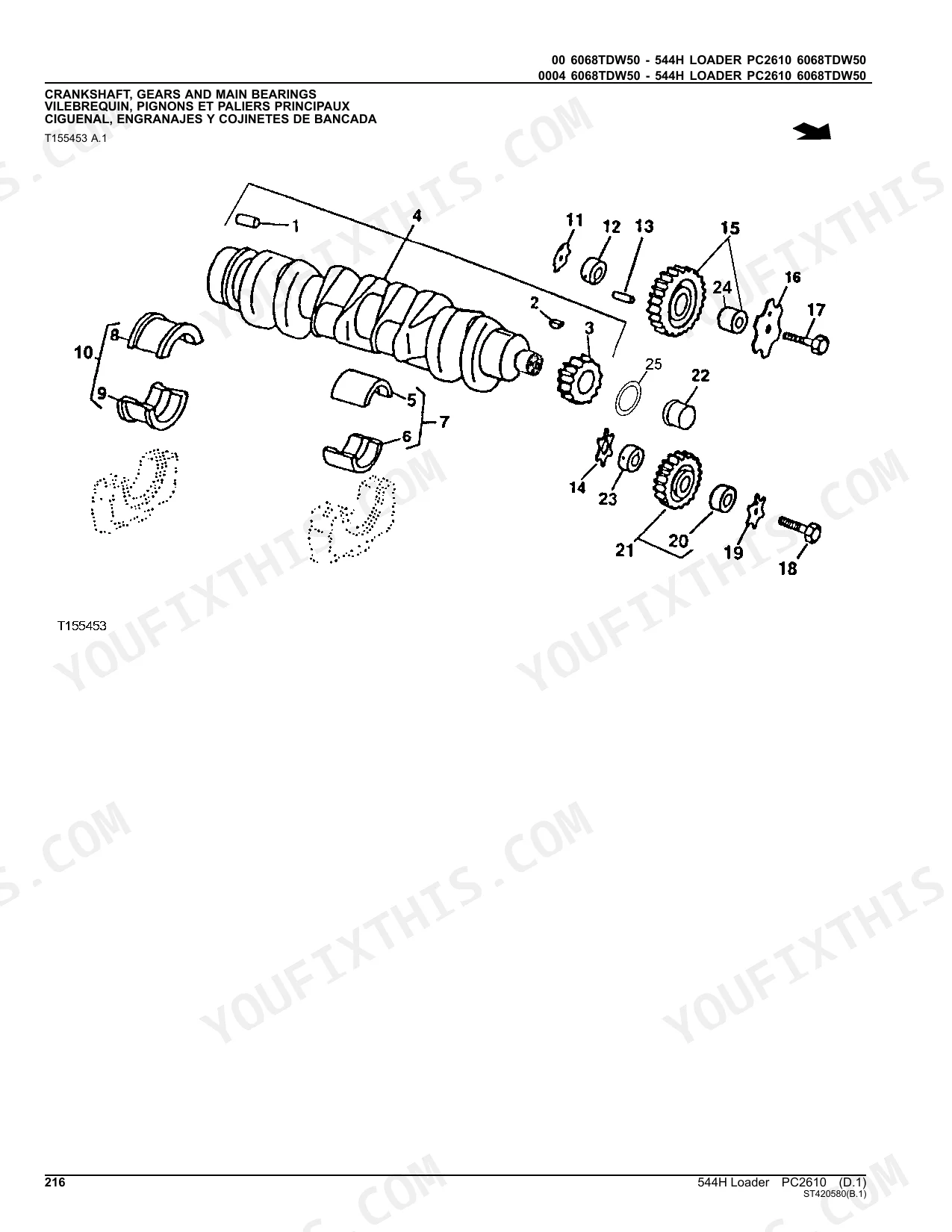

| System | Pages | Key Topics |
|---|---|---|
| Wheels & Tires & Tracks | 58-65 | Powered Wheels, Tires & Fastenings |
| Axles, Differentials & Suspension Systems | 66-97 | Drive Axle Housing & Support, Powered Wheel Axle, Axles, Diff. & Susp. Sys. Hyd |
| Axle | 98-139 | Differential or Bevel Drive, Shaft, Bearings, Reduction Gears |
| Transmission | 140-283 | Input Drive Shafts & U-Joints, Mounting Parts, Gears, Shafts & Power Shift Clutches, Hydraulics |
| Engine Auxiliary System | 284-333 | Cold Weather Starting Aids, Engine Cooling Systems, Engine Speed Controls, Intake System, External Exhaust Systems, Engine Mounting, External Fuel Supply Systems |
| Steering System | 334-359 | Emergency Steering, Power Steering Hydraulic System |
| Service Brakes | 360-367 | Hydraulics |
| Parking Brakes | 368-373 | Brake Disk, Brake Disk Replacement, Brake Mounting |
| Miscellaneous Vehicle | 374-417 | License Bracket, Vehicle Finish & Trim, Shipping & Packaging, Greases, Oils, Fuels & Coolants, Lubrication Systems |
| Vehicle Electrical Systems | 418-531 | Batteries, Support & Cables, Alternator, Regulator & Charging System Wiring, Vehicle Lighting System, Wiring Harness and Switches, Instruments and Indicators |

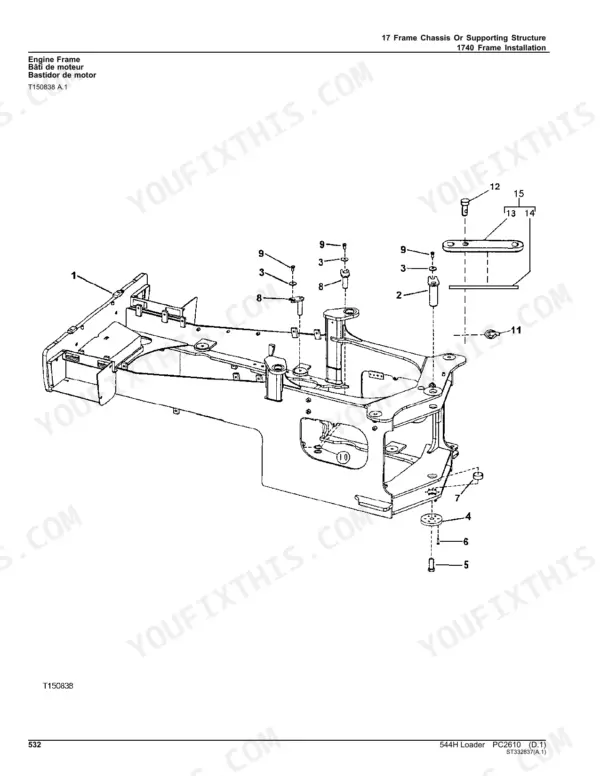

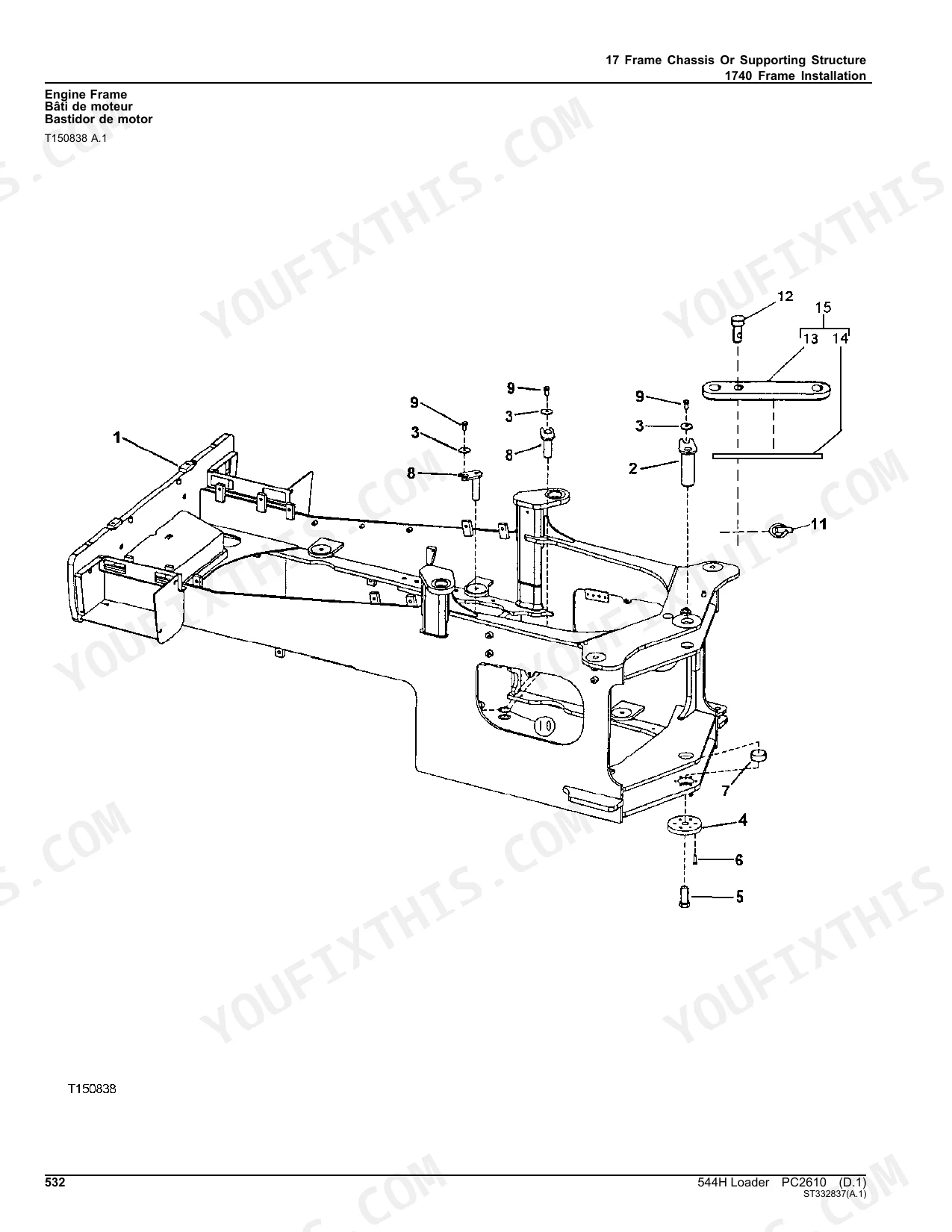

| Frame Chassis or Supporting Structure | 532-547 | Frame Installation, Frame Bottom Guards, Chassis Weights |

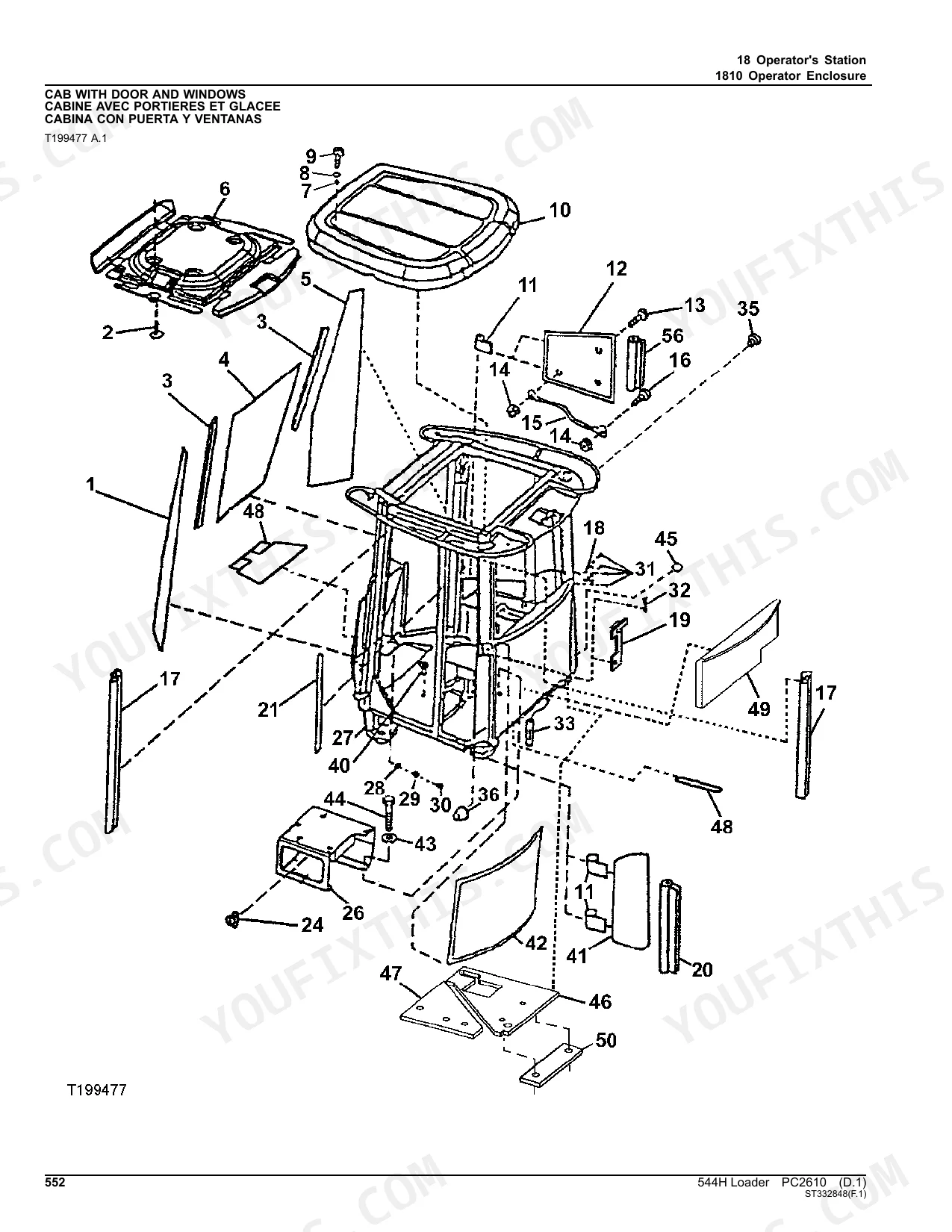

| Operator's Station | 548-669 | Operator Enclosure, Windshield & Wipers, Seat and Seat Belts, Steps & Handholds, Heating & Air Conditioning |
| Sheet Metal & Styling | 670-689 | Hood or Engine Enclosure, Miscellaneous Shields, Grille & Grille Housing, Fenders |
| Safety, Convenience & Miscellaneous | 690-711 | Radio, Mirror, Fire Extinguisher, Warning Devices Including Horn & Reverse Alarm |

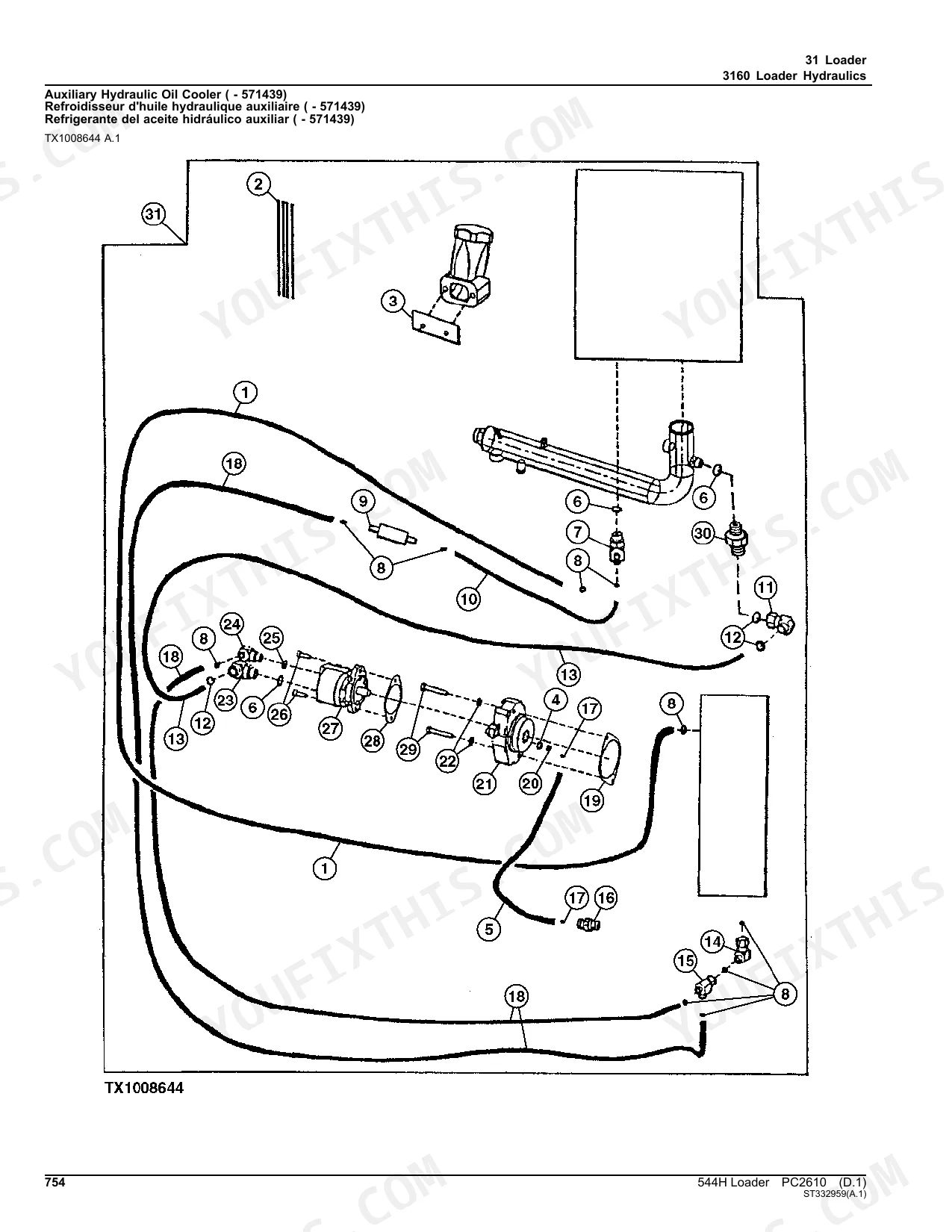

| Loader | 712-944 | Bucket (Including Teeth), Frames, Hydraulics, Hydraulic Pump, Control & Load Holding Valves, Lines, Hoses and Fittings, Hydraulic Reservoir |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| O-Ring (Key 5, Page 369) | 9.250 X 1.780 mm (0.364" X 0.070") | p. 369 |
| O-Ring (Key 6, Page 369) | 23.470 X 2.946 mm (0.924" X 0.116") | p. 369 |
| Alternator V-Belt T178548, standard pulley (55 Amp with A/C) | 2755 mm | p. 425 |
| Alternator V-Belt T178465, high ambient pulley (55 Amp with A/C) | 2705 mm | p. 425 |
John Deere 544H Common Problems This Manual Covers
John Deere 544H transmission parts breakdown needed, can't tell which shaft and clutch group matches my serial number

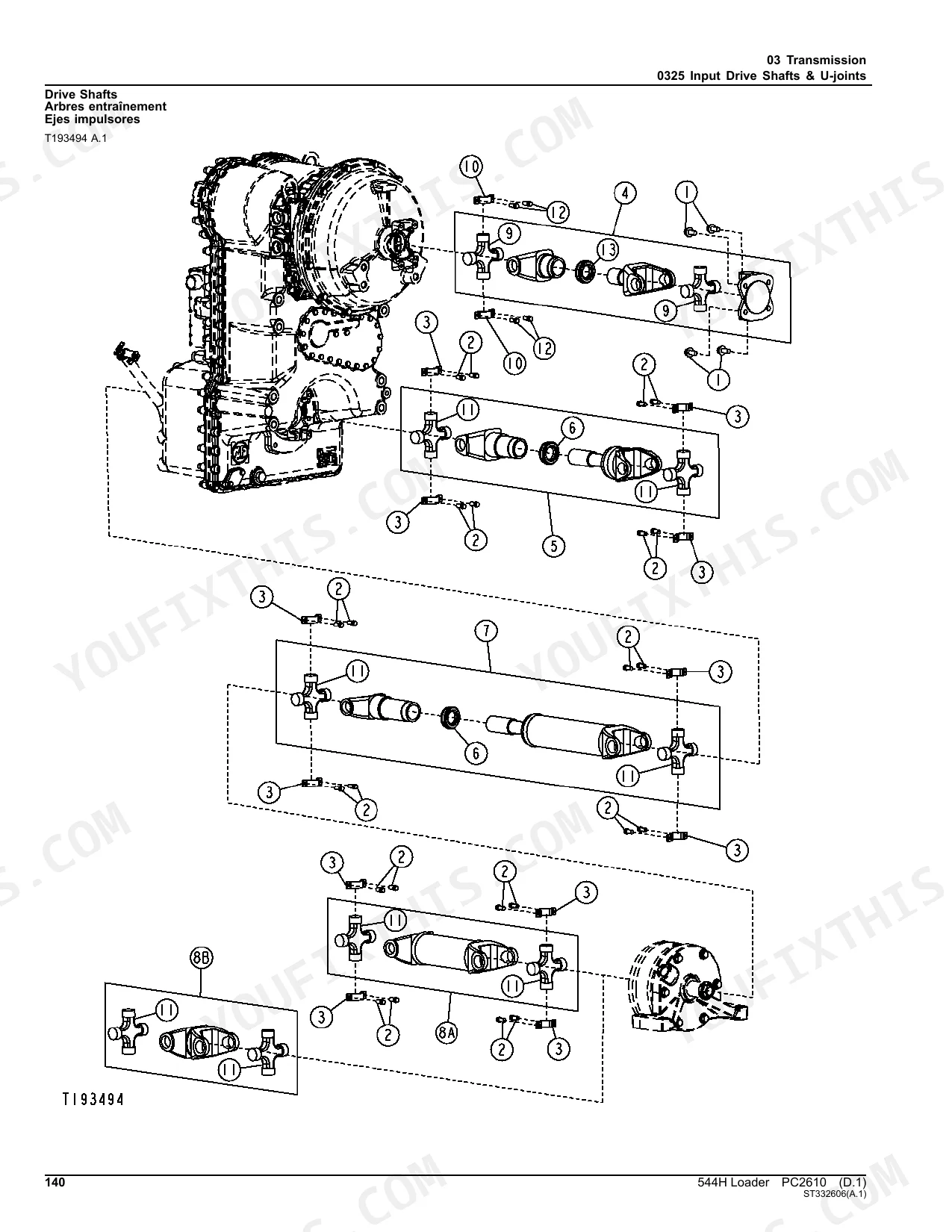

Start with the drivetrain parts diagram on page 140 and work forward through 144 and 156 to match your gear, shaft and power shift clutch layout against the callouts. Confirm the serial break note printed with each group before ordering. The transmission seal and gasket kit components are listed together on pages 146 and 147.
Manual Section: Transmission p. 140Need part numbers for parking brake O-rings and seals, nothing on the shelf matches
Pull the parking brake group on page 368 and compare the exploded view keys against what came out of the housing. Verify O-ring sizing before you order: key 5 on page 369 measures 9.250 X 1.780 mm (0.364" X 0.070"), and the large housing O-ring on page 371 runs 100.965 X 5.334 mm (3.975" X 0.210").
Manual Section: Parking Brakes p. 368Bottom hinge pin retainer and loader pin numbers, not sure which bushings go with which joint

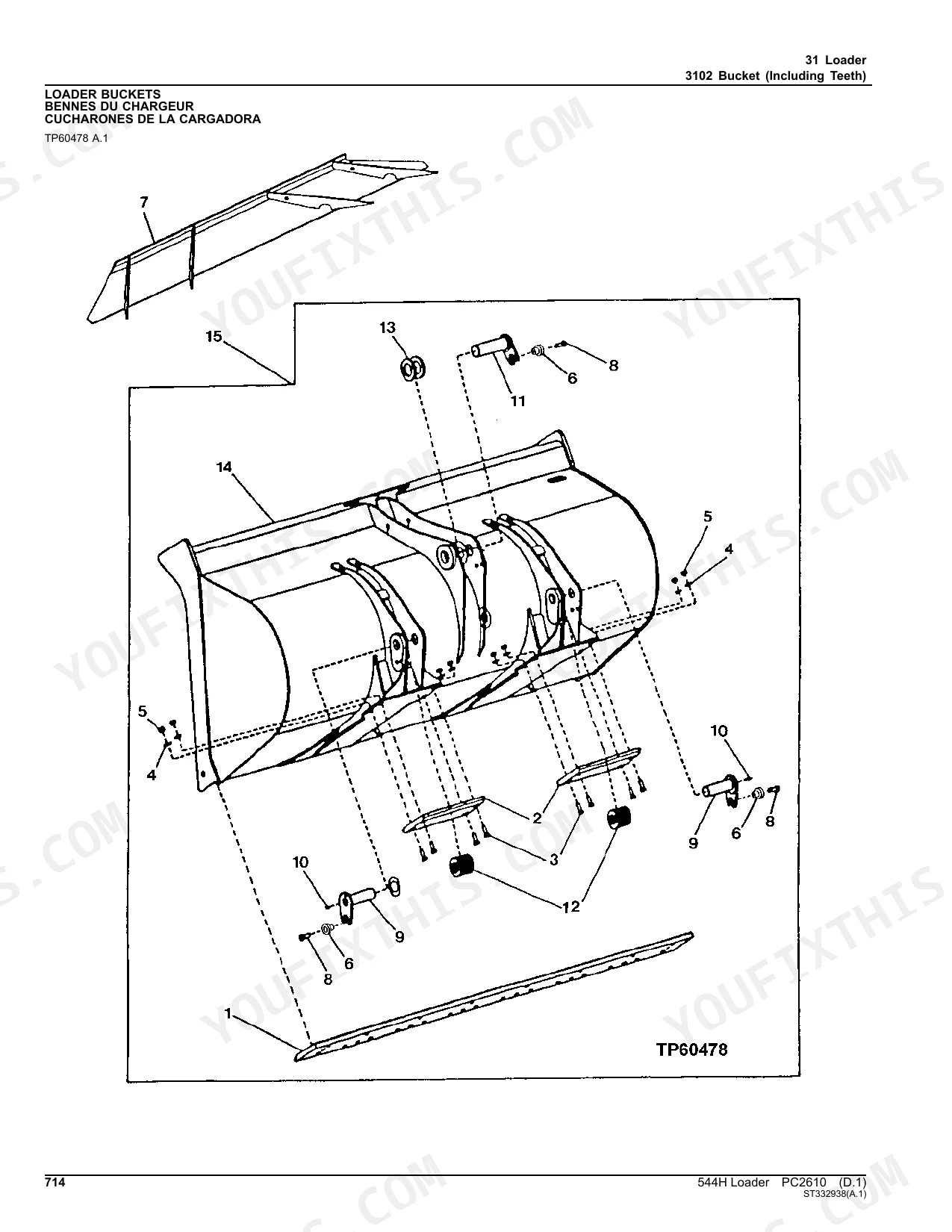

Work the boom and attachment parts diagrams on pages 714, 716 and 718. Each pin, retainer and bushing carries its own key number and quantity, so count the washers and cotter pins in the callout list before you order. Order pins and bushings as matched sets rather than singles.
Manual Section: LoaderHydraulic cylinder seal kit and bore kit part numbers for the bucket and lift cylinders
Check the hydraulic cylinder kits listing on pages 907 through 909, where seal kits and bore kits are broken out separately by cylinder. Cross-reference the cylinder body against the loader hydraulic parts diagrams starting to confirm which cylinder you actually have. The loader pump repair kits sit on pages 764 and 765.
Manual Section: LoaderFuel supply and cold start components cross-reference, hand primer and shutoff solenoid numbers unclear
Open the engine auxiliary group on page 284 and locate the external fuel supply and cold weather starting aid subsections. Match the solenoid and primer callouts to your engine configuration, then verify the quantity column before ordering. This group also carries the speed control linkage parts, so check those keys while the page is open.
Manual Section: Engine Auxiliary System p. 284Parking brake switch and warning light wiring parts hard to identify in the electrical group

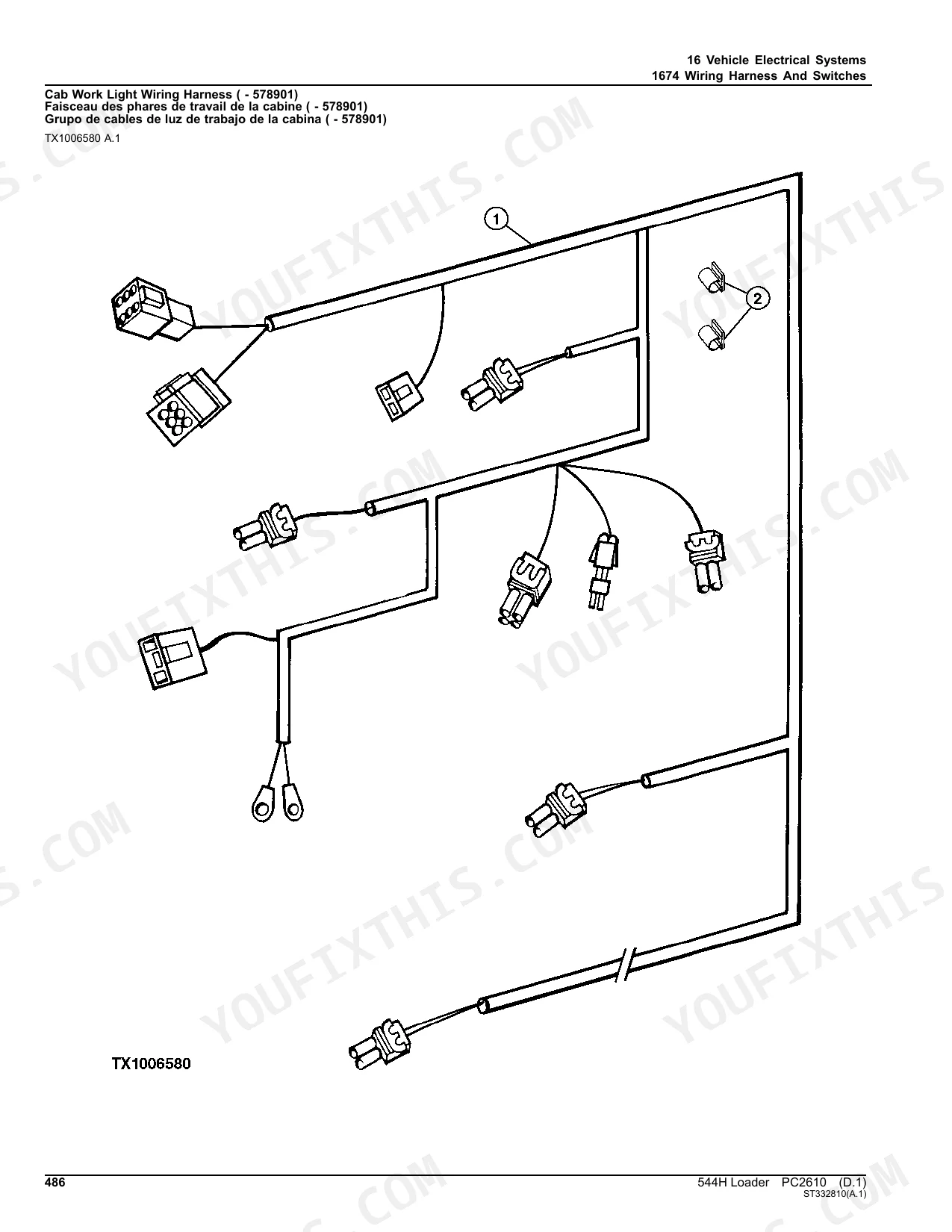

Go to the vehicle electrical group on page 418 for the switch and indicator part numbers, then trace the circuit on the wiring diagrams on pages 486, 490 and 492 to confirm which harness connector feeds it. The hydraulic filter restriction switch jumper harness is listed separately on pages 504 and 505.
Manual Section: Vehicle Electrical Systems p. 418Frequently Asked Questions
What is the torque specification for the wheel cap screws on a John Deere 544H?
The wheel cap screw is part number 19M8224, size M20 x 60. This parts catalog does not list a torque value; take it from the 544H technical manual rather than a generic chart. p. 59
What is the correct engine oil for a John Deere 544H?
The recommended engine oil for the 544H is Torq-Gard Supreme or Torq-Gard Supreme Plus-50. For example, Torq-Gard Supreme Plus-50 (SAE 15W/40) is available in various container sizes, such as 3.8 L (1 gallon) or 208 L (55 gallons). p. 402
What is the part number for the engine oil filter on a John Deere 544H?
The engine oil filter is RE59754 for both engine serial ranges: the oil filter and adapter group for engines up to 815734 is on page 238, and for engines 815735 and up on page 239. p. 238
What is the correct coolant for the John Deere 544H engine?
The engine cooling fluid is available in various container sizes, such as 5L (1.3 gal), 20L (5.3 gal), 60L (15.9 gal), and 210L (52.5 gal). p. 410
What is the part number for the alternator belt on a 544H with air conditioning?
For a 55 Amp alternator with air conditioning the catalog lists V-belt T178548 (standard pulley, 2755 mm) and T178465 (high ambient pulley, 2705 mm); the brackets and belt are split by machine serial number on pages 424 to 427. p. 425
Is this John Deere 544H manual a PDF I download?
You get a 944-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Am I free to print this John Deere 544H Parts Manual?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
