You have a 200D LC parked with a weeping hose or a worn idler, and the parts counter wants a number before they will quote it. This is Deere parts catalog PC10015 (Aug-19), English. It covers PIN 1FF200DX_ _D510001 and up, on machines manufactured 2007 onward.
The engine is where most orders go wrong on this excavator. The book carries three 6068 variants, and each one has its own sectional pictorial index. Order from the wrong one and the crew stands still for a day waiting on the right part. The catalog shows you where the engine plate sits and how to read it.
Every group has exploded drawings with part number, quantity and serial-number breaks. Go by section headers, or use the alphabetical and numerical indexes to get from a part name or number to the right page.
What's Inside This John Deere 200D LC Parts Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Alphabetical Index | 1-63 | Serial Number Listing Rules, Serial Number Plate Locations, Engine Serial Number Decoding, Table of Contents, Alphabetical Index |
| Track Systems | 64-83 | Track Frame, Carrier Rollers, Lower Track Rollers, Track Chain Idler, Track Chain Adjuster, Track Chain and Shoes |
| Travel Hydraulics | 84-100 | Rotary Manifold, Travel Motor Components, Travel Motor Hydraulic Lines |

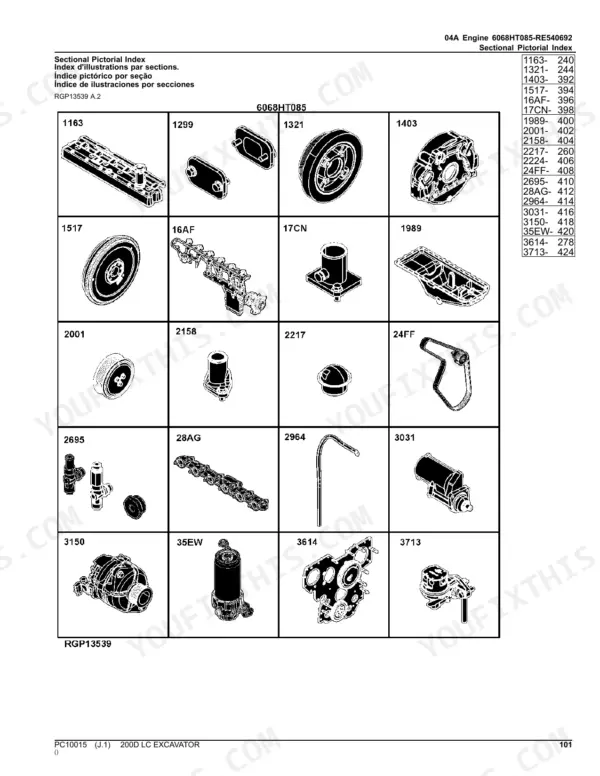

| Engine 6068HT085 (RE540692) | 101-236 | Sectional Pictorial Index, Fuel Injection System, Cylinder Block, Crankshaft and Pistons, Turbocharger, Engine Wiring Harness |

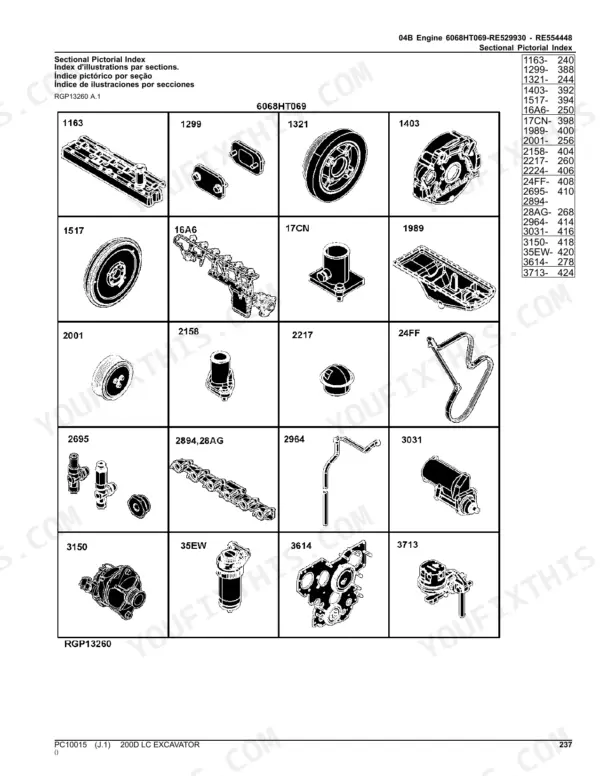

| Engine 6068HT069 (RE529930 - RE554448) | 237-382 | Sectional Pictorial Index, Fuel Injection System, Cylinder Block, Cylinder Head, Turbocharger by Serial Break, Engine Sensors |

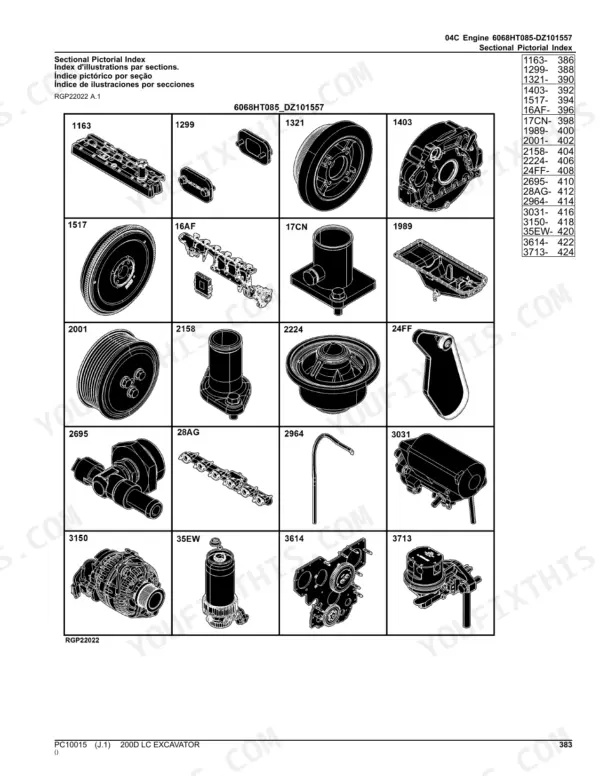

| Engine 6068HT085 (DZ101557) | 383-503 | Sectional Pictorial Index, Fuel Injection System, Cylinder Block, Cylinder Head, Turbocharger, Engine Sensors |

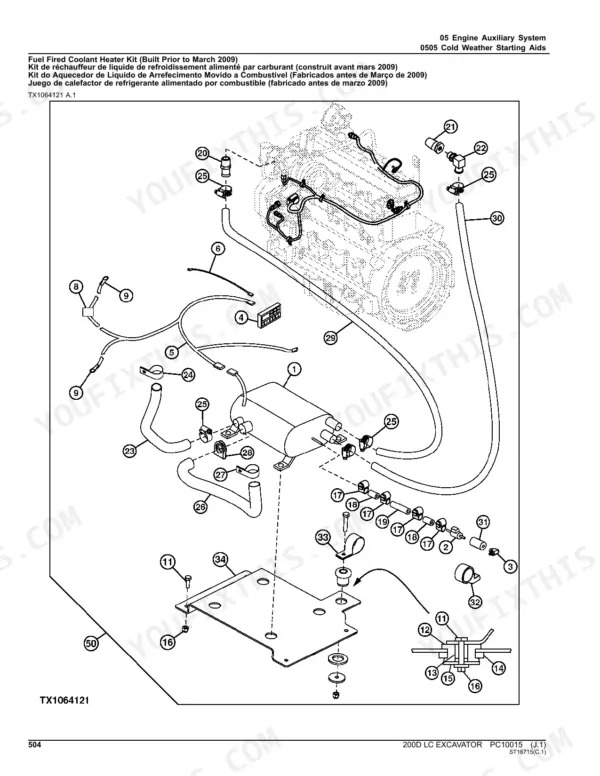

| Engine Auxiliary Systems | 504-565 | Cold Weather Starting Aids, Cooling Package, Direct Drive Fan, Air Cleaner and Hoses, Muffler, Engine Mounting, Fuel Tank and Fuel Hoses |
| Vehicle Assembly, Decals and Seal Kits | 566-577 | Oil Filter, Labels and Decals, French, Spanish and Portuguese Decals, Metric O-Ring Kit |

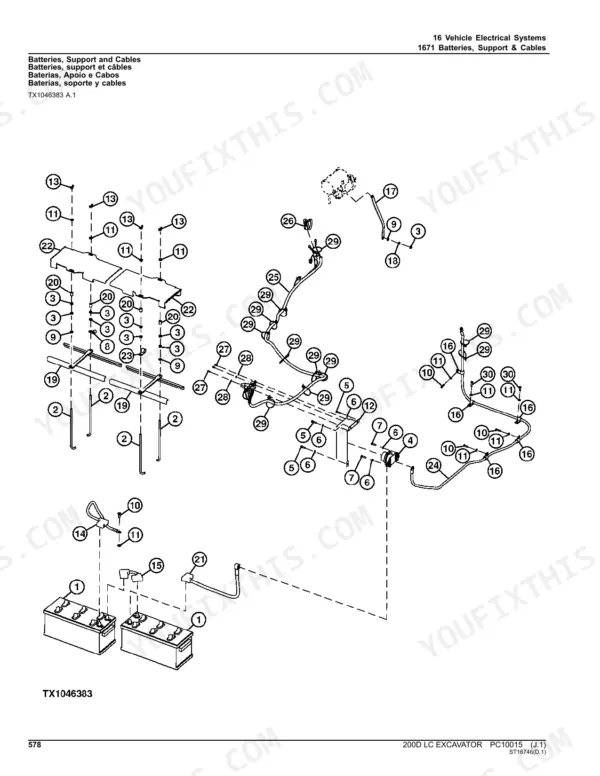

| Electrical System | 578-631 | Batteries, Support and Cables, Headlights and Work Lights, Machine Wiring Harness, Monitor and Monitor Harness, Cab Wiring Harness |
| Frame and Counterweight | 632-641 | Counterweight, Main Frame, Swing Bearing |
| Operator's Station | 642-721 | Cab Mounts, Cab, Secondary Exit Kit, Air and Mechanical Seat Suspension, Seat Belt, Air Conditioner and Heater, Compressor, Condenser and Receiver-Dryer |
| Hood and Engine Enclosure | 722-753 | Engine Cover, Tool Box, Access Panels, Severe Duty Hydraulic Pump Compartment Panels |
| Radio, Mirrors, Warning Devices and JDLink | 754-773 | Radio, Rear View Mirrors, Horn, Travel Alarm, JDLink Telematics |

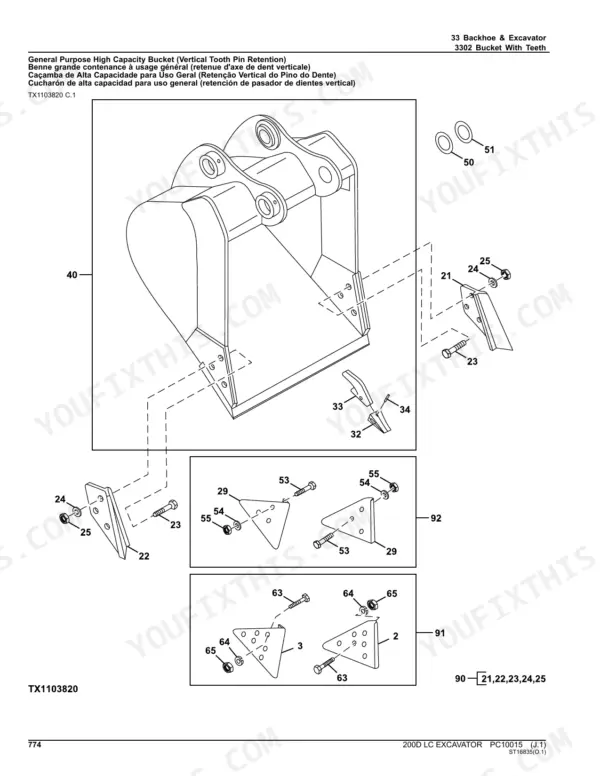

| Buckets and Tooth Systems | 774-801 | General Purpose and Heavy Duty Buckets, Ditching Buckets, TK225 and TK350 Tooth Systems, Esco Ultralok Hammerless Teeth and Adapters |

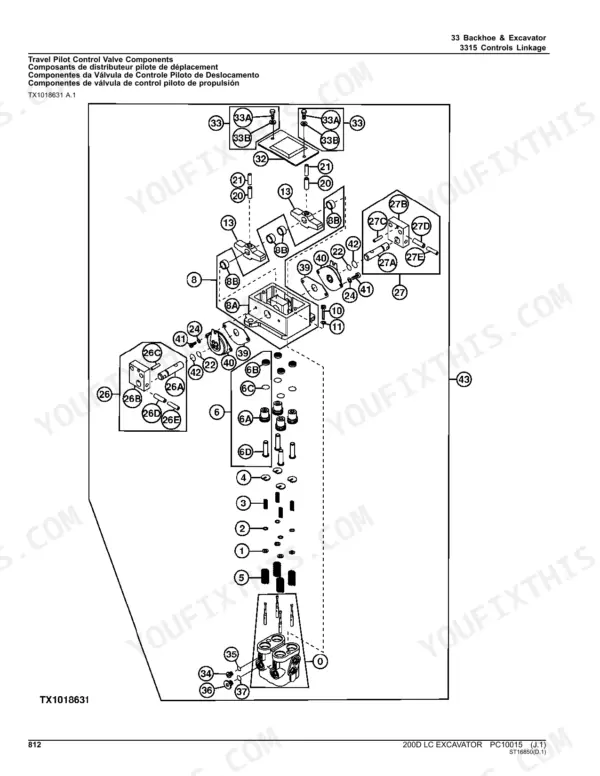

| Controls, Arms and Boom | 802-843 | Pilot Control Valves and Levers, Travel Pedals, Auxiliary Pilot Valve, Short and Standard Arms, Super Long Front, Standard Boom |
| Hydraulic Pump and Control Valve | 844-893 | Hydraulic Pump Mounting, Main Hydraulic Pump, Pilot Pump, Control Valve Body and Spools, Pilot Signal Manifold |
| Hydraulic Lines, Reservoir and Cylinders | 894-1025 | Suction Lines, Drain Lines, Pilot Lines, Filter and Bypass Valve, Hydraulic Oil Reservoir, Boom, Arm and Bucket Cylinders |
| Swing Hydraulics | 1026-1034 | Swing Motor Mounting and Oil Fill, Swing Motor, Swing Motor Gear Case |
| Numerical Index | 1035-1072 | Part Number to Page Lookup |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Parts catalog number | PC10015 (Aug-19), English | p. 1 |
| Machine serial number coverage | 1FF200DX_ _D510001 and up | p. 1 |
| Production start | Manufactured 2007 onward | p. 3 |
| Engine option 04A | 6068HT085 (RE540692) | p. 31 |
| Engine option 04B | 6068HT069 (RE529930 to RE554448) | p. 31 |
| Engine option 04C | 6068HT085 (DZ101557) | p. 31 |
| 6068HT069 emission level | Tier 3 / Stage III A | p. 6 |
| Serial number plates | Seven | p. 5 |
| High-strength bolt marking | HS SAE 8 (10.9 for metric) | p. 4 |
| Open center 3 bar track shoes | 600 mm, 700 mm, 800 mm | p. 81 |
| Open center 1 bar track shoe | 700 mm (2.27 ft) | p. 81 |
| General purpose bucket | 1.2 m (48 in.), 1.0 m³ (1.31 yd³), 6 teeth | p. 777 |
| Short arm | 2.42 m | p. 824 |
| Standard arm | 2.91 m | p. 826 |
| Super long front counterweight | Additional 2100 lbs required | p. 843 |
| Engine oil filter | RE504836 (also order R502513) | p. 567 |
| Fuel filter, 6068HT085 (RE540692) | RE524723 | p. 141 |
| Hydraulic reservoir filter | 4434017 | p. 1009 |
| Air cleaner filter element | AT300487 | p. 545 |
| Hydraulic pump | 9262320 (reman PG200134) | p. 849 |
John Deere 200D LC Common Problems This Manual Covers
Engine parts ordered for the wrong 6068 variant
Read the engine serial plate on the right side of the cylinder block near the starter. Decode it using the engine serial number pages in the introduction. Then order only from the matching section: 04A 6068HT085 RE540692, 04B 6068HT069 or 04C 6068HT085 DZ101557. Each has its own pictorial index.
Manual Section: Introduction - Engine Serial Number p. 7Two part numbers listed for the same position, split by a serial-number break or marked XXXXXX
The introduction's serial number listing rules explain each case. A part can fit all machines, from a serial number on, up to and including one, or between two. XXXXXX means a change was made but the exact number was not known at printing. Match against your PIN plate and confirm with the dealer.
Manual Section: Introduction - Serial Number Listing Information p. 4Blown hose with no readable tag, and no idea where its part number is
Trace the hose back to what it feeds. Then open hydraulic lines section 3363 and find the matching group: suction lines, drain lines, or pilot lines with filter and bypass valve. Travel motor hoses are in Travel Hydraulics. If you only know the part name, use the alphabetical index.
Manual Section: 3363 Lines, Hoses and Fittings p. 894Main hydraulic pump quote does not match the number on the old pump
Look up the main pump in section 3361: it lists 9262320, with PG200134 as the remanufactured equivalent. Your dealer may quote either number. Read the pump plate near the front of the pump to confirm which one you have, and check the pilot pump in the same section. If you only have a number, find it in the numerical index.
Manual Section: 3361 Hydraulic Pump p. 849Frequently Asked Questions
Which John Deere 200D LC machines does parts catalog PC10015 cover?
The cover lists PIN 1FF200DX_ _D510001 and up, on machines manufactured 2007 onward. No upper PIN limit is printed. Check the product identification plate at the front of the upperstructure, to the right of the cab, before you order anything. Part numbers can change after printing, so confirm the final number with your dealer. p. 1
How do I tell which of the three engines my 200D LC has before ordering engine parts?
The book has three engine sections: 04A for the 6068HT085 RE540692, 04B for the 6068HT069 RE529930 to RE554448, and 04C for the 6068HT085 DZ101557. It does not say which machine serial numbers got which engine. So go to the engine itself. The plate is on the right side of the cylinder block near the starter. The introduction explains how the 13-character engine serial number and the engine type code are built. p. 31
Where are the serial number plates on the John Deere 200D LC?
The catalog shows seven plates. The product identification plate is at the front of the upperstructure, right of the cab. The engine plate is on the right side of the cylinder block near the starter. The hydraulic pump plate is near the front of the pump. The swing motor plate is on top of the swing motor. Each travel motor carries its own plate. The control valve plate is on the upper left-hand side of the valve. p. 5
Does the catalog list hydraulic hoses, tubes and fittings for the 200D LC?
Yes. Section 3363 runs from page 894 to 1007. It starts with suction lines and drain lines, then pilot lines with the filter and bypass valve. Travel motor lines are in their own group under Travel Hydraulics. p. 894
Which filters for the 200D LC are listed, with part numbers?
Engine oil filter RE504836, and the catalog says to also order R502513. Fuel filter RE524723 is listed in the 6068HT085 RE540692 engine section. If you have one of the other engines, check its own section. Hydraulic reservoir filter is 4434017, and the air cleaner element is AT300487. Each number is on its own section page, so you can check the drawing before you order. p. 567
