Part of the John Deere Repair Manuals.
Fits the John Deere 2254, 2256, 2258, 2264 and 2266 combines from serial number 067766, European version, both standard and Hillmaster machines. The 2254 runs the John Deere 6068 engine and the other four run the 6081. Technical manual TM4594 puts both halves in one file: repair sections 05 to 140 and operation and tests sections 210 to 340.
The electrical system is covered twice, split at serial number 068568/068569, so check your type plate before you chase a wire. You get functional schematics, harness diagrams, hydraulic circuit diagrams, Infotrak and ContourMaster error codes, and hydrostatic pressure tests.
What's Inside This John Deere 2254–2266 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety and General | 1-36 | Safety, Lubricants and Coolant, Hardware Torque Values, Type Plates and Serial Numbers |
| Engine, Fuel, Air Intake and Cooling | 37-70 | Engine Variants, Engine Removal and Installation, Fuel System, Air Intake, Aftercooler, Cooling System |

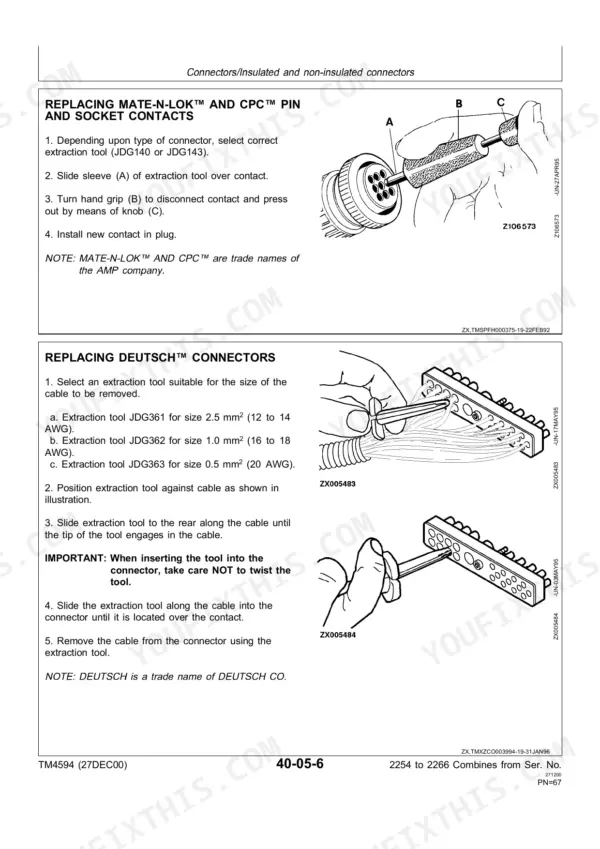

| Electrical System | 71-118 | Connectors, Alternators, Starting Motor, Electronic Boards, Hillmaster Control, Lateral Tilt, Shaft Speed Monitoring |
| Power Train | 119-192 | Intermediate Transmission, Differential, Shifter Forks, Planetary Final Drives, Final Drive Bearings and Attaching Screws |
| Hydrostatic Drive | 193-234 | Variable Pump, Servo Control, Charge Pump, Swashplate, Fixed-Displacement Motor, Oil Change, Cam Lobe Motor |

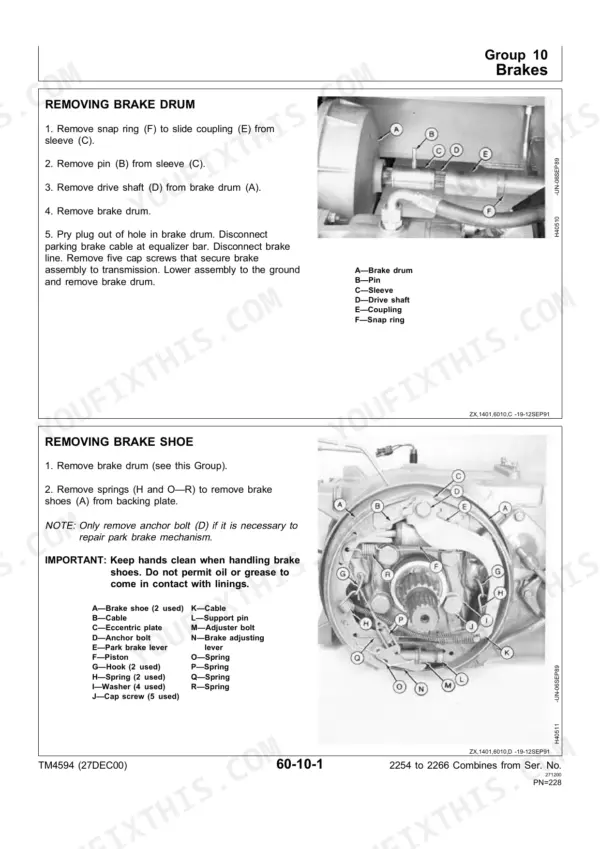

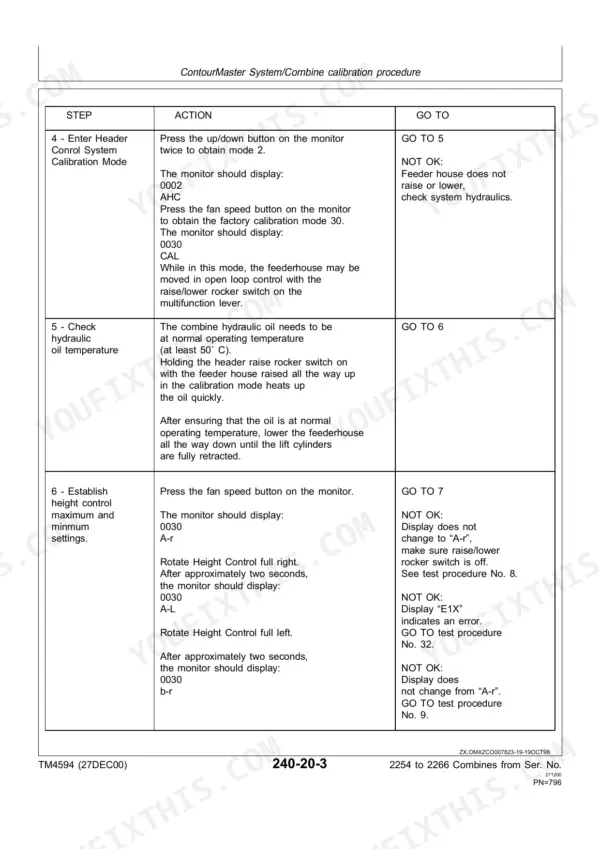

| Brakes, Steering, Rear Axle and Hydraulic System | 235-340 | Brake Actuation, Drum Brakes, Hydrostatic Steering, Rear Axle, Hydraulic Reservoir, Triple Pump, Solenoid Valves, Cylinders and Accumulators |
| Miscellaneous, Cab and Air Conditioning | 341-380 | Bearings, Shafts, Drive Belts and Chains, Side Guard, R134a Air Conditioning, Cab Heating, Gear Shift Linkage |
| Feeder House | 381-408 | Feeder House Removal, Bottom Feeder Drum, Conveyor Chains, Upper Shaft, Slip Clutch, Drives, Reverser |
| Separator and Cleaning Unit | 409-486 | Stone Trap, Threshing Cylinder and Concave, Secondary Cylinder, Electric Clutch, Variable Cylinder Drive, Straw Walkers, Cleaning Fan |
| Grain Recovery, Unloading and Special Equipment | 487-528 | Tailings Elevator, Clean Grain Elevator, Grain Tank Filling and Unloading, Unloading Auger, Straw Chopper, Chaff Spreader |
| Specifications and Engine Data | 529-562 | Rotation Speeds, Model Specifications, Dimensions and Tires, Permissible Weight, Engine Data, Fuel System Operation |
| Electrical to S.N. 068568: Schematics and Harnesses | 563-664 | Circuit Malfunctions, Electrical Symbols, Test Equipment, Component Survey, Functional Schematics, Harness Locations, Wiring Diagrams |
| Electrical to S.N. 068568: Supply, Instruments and Lighting | 665-738 | Starting Circuit, Ether Starting Aid, Engine Shut-Off, Instruments, Lighting, Cab Accessories, Straw Warning, Reel Speed Control |
| Electrical to S.N. 068568: Separator, Header and Infotrak | 739-832 | Separator Engagement, Infotrak Error Codes, Grain Loss Monitoring, Hillmaster Leveling, Combine Data Center, Unloading and 4WD, Header Float Control |
| ContourMaster System to S.N. 068568 | 833-894 | Combine and Header Calibration, Address Displays, Sensor Tests, Valve Commands, Error Codes, Calibration Failures |

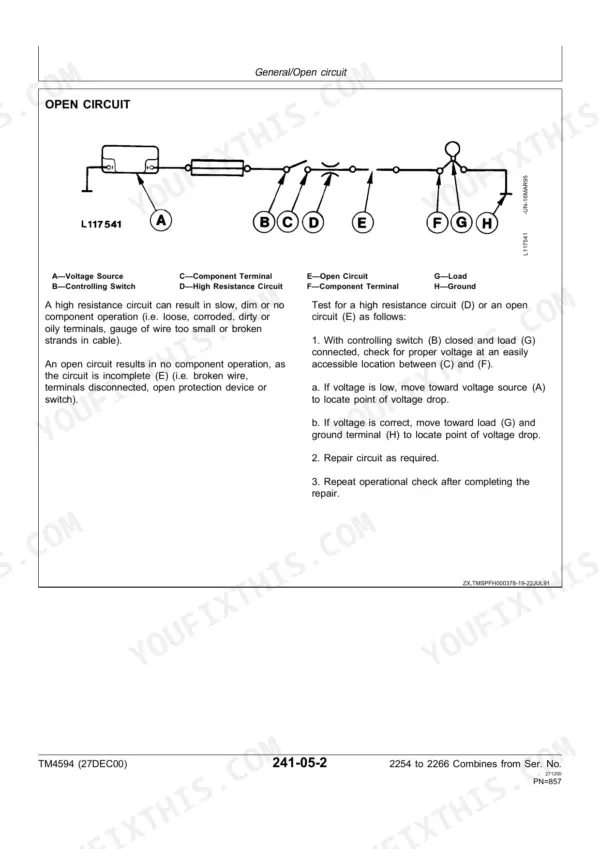

| Electrical From S.N. 068569: Schematics and Harnesses | 895-992 | Circuit Malfunctions, Electrical Symbols, Test Equipment, Component Survey, Functional Schematics, Harness Locations, Wiring Diagrams, Harness W59 and Row-Crop Unit Adapter |

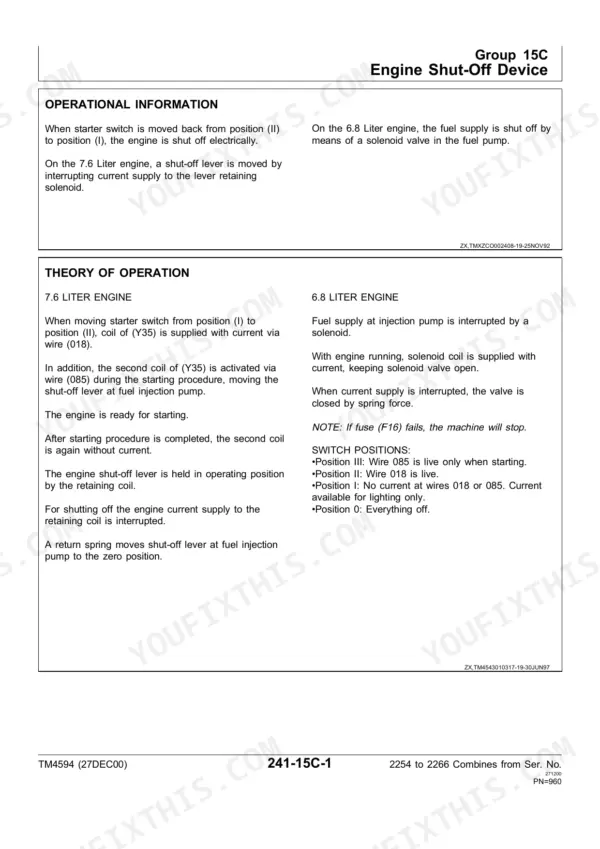

| Electrical From S.N. 068569: Supply, Instruments and Lighting | 993-1072 | Starting Circuit, Ether Starting Aid, Engine Shut-Off, Fuse Tester, Instruments, Lights and Cab Accessories, Straw Warning, Reel Speed Control |
| Electrical From S.N. 068569: Separator, Header and Infotrak | 1073-1172 | Separator Engagement, Infotrak Error Codes, Grain Loss Monitoring, Hillmaster Leveling, Combine Data Center, Unloading and 4WD, Header Float Control, Road Safety Switch |
| ContourMaster System From S.N. 068569 | 1173-1234 | Combine and Header Calibration, Address Displays, Sensor Tests, Valve Commands, Error Codes, Calibration Failures, AHC Controller |
| Power Train Tests | 1235-1284 | Hydrostatic Specifications, Drive Circuit Diagram, Four-Wheel Drive, Pressure Testing, Wear Inspection, Three-Speed Transmission, Brakes |
| Hydraulic System Tests and Circuit Diagrams | 1285-1338 | Open-Center Hydraulics, Hydraulic Symbols, Standard and Hillmaster Circuit Diagrams, Solenoid Valves, Leveling System, Hydraulic Tests |
| Operator's Cab and Optional Equipment | 1339-1390 | Operator and Passenger Seats, Air Comfort Seat Diagnosis, Ventilation and Heating, Air Conditioning Tests and Troubleshooting, Hydrostatic Chaff Spreader, Index |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine power at rated speed (ECE R24), 2254 | 132 kW (180 hp) | p. 553 |
| Engine power at rated speed (ECE R24), 2256 | 154 kW (210 hp) | p. 556 |
| Engine power at rated speed (ECE R24), 2258 | 173 kW (235 hp) | p. 557 |
| Engine power at rated speed (ECE R24), 2264 | 184 kW (250 hp) | p. 557 |
| Engine power at rated speed (ECE R24), 2266 | 199 kW (270 hp) | p. 558 |
| Fuel tank capacity, 2254 / 2256 / 2258 | 450 L (119 U.S. gal) | p. 535 |
| Fuel tank capacity, 2266 | 550 L (145.3 U.S. gal) | p. 540 |
| Engine oil capacity with filters, 2254 (6068HZ001) | 19 L (5 U.S. gal) | p. 552 |
| Engine oil capacity with filters, 2256 / 2258 / 2264 / 2266 (6081) | 30 L (7.9 U.S. gal) | p. 555 |
| Coolant capacity (engine only), 2254 | 11.3 L (3 U.S. gal) | p. 552 |
| Coolant capacity (engine only), 2256 / 2258 / 2264 / 2266 | 14.2 L (3.8 U.S. gal) | p. 555 |
| Engine oil pressure at low idle, 2254 | 105 kPa (1.05 bar; 15 psi) | p. 552 |
| Engine oil pressure at low idle, 2256 / 2258 / 2264 / 2266 | 210 kPa (2.1 bar; 30 psi) | p. 555 |
| Hydrostatic high pressure relief valve setting, 2264 / 2266 | 43100 kPa (431 bar) (6250 psi) | p. 1238 |
| Hydraulic pump I delivery, standard | 35 L/min (9.2 gpm) | p. 1335 |
| Hydraulic pump I delivery, Hillmaster | 45 L/min (11 gpm) | p. 1335 |
| Threshing cylinder rasp bar screws torque | 140 N·m (103 lb-ft) | p. 413 |
| Final drive attaching screws torque | 430 N·m (317 lb-ft) | p. 191 |
| Grain tank capacity, 2266 standard | 7500 L (212 bu) | p. 539 |
| Grain tank capacity, 2266 Hillmaster | 7000 L (198 bu) | p. 539 |
John Deere 2254–2266 Common Problems This Manual Covers

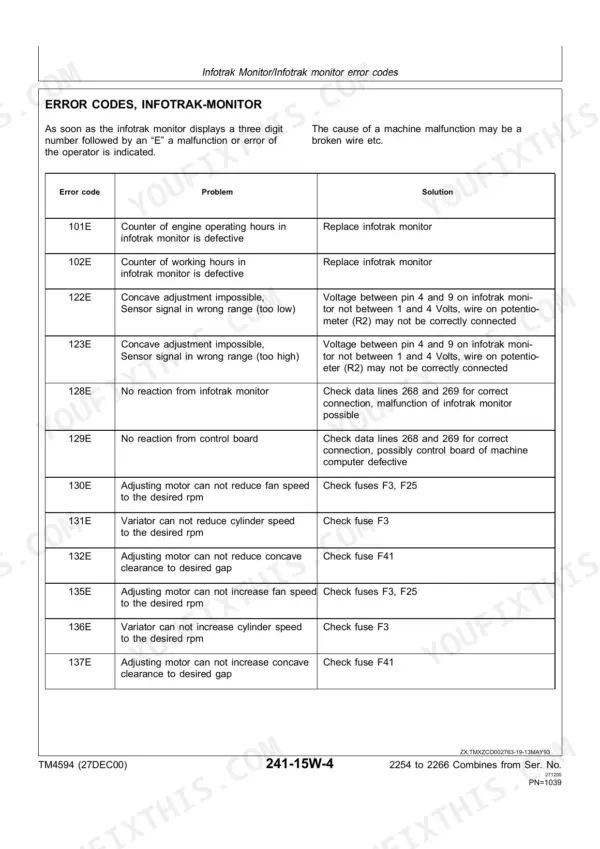

Infotrak monitor shows error code 101E
The manual reads 101E as a defective engine operating hours counter inside the Infotrak monitor itself. The fix it gives is to replace the Infotrak monitor. Find the code in the Infotrak error code tables in the Separator, Header and Infotrak electrical section for your serial range, to 068568 or from 068569.
Manual Section: Infotrak Monitor - Error Codes p. 746ContourMaster calibration stops with error E01
E01 means feeder house calibration has to be done before header calibration. The system will not take the header calibration until the feeder house is set. Run feeder house calibration in mode No. 30, then repeat the header calibration. The ContourMaster section lists calibration failures for both serial ranges.
Manual Section: ContourMaster System - Calibration Error Codes p. 1227ContourMaster error E63 during valve calibration
E63 means the raise valve deadband is greater than 1200 mA. Start by recalibrating the valve, following the ContourMaster calibration procedure for your serial range. If E63 comes back after the recalibration, the manual says to replace the valve. The valve command tests in the same section help you confirm the fault before you order the part.
Manual Section: ContourMaster System - Calibration Error Codes p. 1229Air conditioning gives inadequate cooling
The air conditioning troubleshooting chart in the Operator's Cab and Optional Equipment section lists a severely contaminated condenser as one cause. Clean the condenser first, then check the cooling again before you work on the R134a side of the system.
Manual Section: Operator's Cab - Operational Tests and Troubleshooting p. 1360Frequently Asked Questions
Which John Deere combines does technical manual TM4594 cover?
It covers the John Deere 2254, 2256, 2258, 2264 and 2266 from serial number 067766, standard and Hillmaster machines, European version. The electrical system is covered twice, once to serial number 068568 and once from serial number 068569. p. 1
How much engine oil do these combines take with filters?
The 2254 with the 6068 engine takes 19 L (5 U.S. gal) with filters. The 2256, 2258, 2264 and 2266 with the 6081 engine take 30 L (7.9 U.S. gal). p. 552
What is the fuel tank capacity of these John Deere combines?
The 2254, 2256 and 2258 carry 450 L (119 U.S. gal). The 2264 holds the same 450 L (119 U.S. gal) on standard and Hillmaster machines. The 2266 standard and Hillmaster both carry 550 L (145.3 U.S. gal). p. 535
Is the 2266 grain tank the same size on standard and Hillmaster machines?
No. The 2266 standard holds 7500 L (212 bu) and the 2266 Hillmaster holds 7000 L (198 bu). p. 539
Does the manual include wiring diagrams, hydraulic schematics and fault codes?
Yes. The electrical sections have functional schematics such as FUNCTIONAL SCHEMATIC, SECTIONS 1, 2, 3A AND 3B, plus wiring and harness diagrams. Both sets are there, to serial number 068568 and from serial number 068569. The hydraulic sections have the hydrostatic drive circuit diagram and circuit diagrams for basic and Hillmaster functions. Error code tables cover the Infotrak monitor, such as 101E, and ContourMaster, such as E63. p. 598
