Factory-level teardown and rebuild procedures for the John Deere 7200 and 7400 tractors fill this 933-page repair manual (OEM #TM1551). Step-by-step instructions and exploded views cover the SyncroPlus and PowrQuad transmissions, MFWD axle, rear differential, final drives, hydraulic pumps, and selective control valves. Electrical sections map every connector type and harness route for cab and open-station configurations, alongside full sensor replacement steps for the monitoring system. Accurate specifications are included throughout, such as setting the axle pivot cap screws to 500 N·m (370 lb-ft) and torquing the front wheel-to-hub cap screws to 310 N·m (230 lb-ft).
What's Inside This John Deere 7200, 7400 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Dealer Predelivery Service | 6 | - |
| Quick Reference Specifications | 7-8 | Engine, Capacities, Torques, Valve Clearance, Fuel Tank, Transmission, Differential and Hydraulic System |
| Safety | 9-25 | Group 05 - Safety (Handle Fluids Safely-Avoid Fires, Prevent Battery Explosions, Prepare for Emergencies, Prevent Acid Burns, Handle Chemical Products Safely, Avoid High-Pressure Fluids, Park Machine Safely, Support Machine Properly, Wear Protective Clothing, Work in Clean Area, Service Machines Safely, Work in Ventilated Area, Illuminate Work Area Safely, Replace Safety Signs, Use Proper Lifting Equipment, Service Tires Safely, Avoid Harmful Asbestos Dust, Avoid Heating Near Pressurized Fluid Lines, Remove Paint Before Welding or Heating, Use Proper Tools, Dispose of Waste Properly, Live with Safety) |
| General Information | 26-39 | Group 05 - General Information (Specifications, Sealants and Adhesives Cross-Reference Chart, Glossary of Terms, Metric Bolt and Cap Screw Torque Values, Unified Inch Bolt and Cap Screw Torque Values) |
| Engine | 40-56 | Group 00 - Component Removal and Installation (Essential or Recommended Tools, Service Equipment and Tools, Repair Engine-Use CTM8, Specifications, Install Engine in Repair Stand) |
| Fuel, Air Intake, and Cooling Systems | 57-78 | Group 05 - Throttle Controls (Repair Engine-Use CTM8, Specifications, Hand and Foot Throttle Linkage, Adjust Foot Throttle Pedal, Adjust Hand Throttle) |
| Electrical | 79-159 | Group 05 - Connectors (Service Equipment and Tools, Other Material, Using High-Pressure Washers, Replace Weather Pack Weather Pack Is a Trademark of Packard Electric.Connector, Install Weather Pack Weather Pack Is a Trademark of Packard Electric.Contact, Remove Connector Body From Blade Terminals, Replace Metri-Pack Metri-Pack Is a Trademark of Packard Electric.Connectors, Replace Cpc Cpc Is a Trademark of Amp Inc., Large Mate-N-Loc Mate-N-Loc Is a Trademark of Amp Inc.and Metri-Pack Metri-Pack Is a Trademark of Packard Electric. Pin Type Connectors, Replace Cpc Cpc Is a Trademark of Amp Inc. Blade Type Connectors, Replace Small Mate-N-Loc Mate-N-Loc Is a Trademark of Amp Inc. Socket Connector, Replace Small Mate-N-Loc Mate-N-Loc Is a Trademark of Amp Inc. Pin Connector, Replace Deutsch Deutsch Is a Trademark of the Deutsch Co. Connectors, Install Deutsch Deutsch Is a Trademark of the Deutsch Co. Contact, Use Electrical Insulating Compound) |
| Transmission | 160-469 | Group 00 - Component Removal and Installation (Essential or Recommended Tools, Service Equipment and Tools, Other Material, Specifications, Sealing Instructions, Remove Drive Train, Install Drive Train, Remove SyncroPlus SyncroPlus Is a Trademark of Deere & Company.Clutch Housing, Install SyncroPlus SyncroPlus Is a Trademark of Deere & Company.Clutch Housing, Remove SyncroPlus SyncroPlus Is a Trademark of Deere & Company.Gear Transmission, Install SyncroPlus SyncroPlus Is a Trademark of Deere & Company.Gear Transmission, Remove PowrQuad PowrQuad Is a Trademark of Deere & Company.Transmission, Install PowrQuad PowrQuad Is a Trademark of Deere & Company.Transmission, Remove SyncroPlus SyncroPlus Is a Trademark of Deere & Company.Creeper Transmission, Install SyncroPlus SyncroPlus Is a Trademark of Deere & Company.Creeper Transmission, Remove PowrQuad PowrQuad Is a Trademark of Deere & Company.Creeper Transmission, Install PowrQuad PowrQuad Is a Trademark of Deere & Company.Creeper Transmission, Remove Range Box, Install Range Box) |
| Drive Systems | 470-674 | Group 00 - Component Removal and Installation (Essential or Recommended Tools, Service Equipment and Tools, Other Material, Specifications, Sealing Instructions, Remove MFWD Clutch, Install MFWD Clutch, Remove MFWD Axle, Install MFWD Axle, Remove Rear PTO Assembly, Install Rear PTO Assembly, Remove Standard Final Drive, Install Standard Final Drive, Remove Hi-Crop Final Drive, Install Hi-Crop Final Drive) |
| Steering and Brakes | 675-716 | Group 05 - Hydrostatic Steering (Essential or Recommended Tools, Service Equipment and Tools, Specifications, Remove and Install Steering Valve, Steering Valve-Exploded View, Disassemble, Inspect, And Assemble Steering Valve) |
| Hydraulics | 717-832 | Group 00 - Component Removal and Installation (Essential or Recommended Tools, Specifications, Remove and Install Inlet-Priority Valve Assembly, Remove and Install Main Hydraulic Pump, Remove and Install Charge Pump) |
| Miscellaneous | 833-842 | Group 00 - Component Removal and Installation (Special or Essential Tools, Specifications, Remove Front Axle, Install Front Axle) |
| Operator Station | 843-917 | Group 00 - Component Removal and Installation (Specifications, Remove Cab, Install Cab) |
| Dealer Fabricated Tools | 918-933 | Group 05 - Fabricated Tools (Dfrw4-Axle Wheel Hub Tool, DFRW11-Differential Side Bevel Gear End Play Tool, DFRW20-Compressor Holding Fixture, DFRW29-Final Drive Housing Adapter, DFRW30-Axle Jacking Tool, DFRW60 - DFRW61 - DFRW62-Extension Harnesses, DFRW63 - DFRW64 - DFRW65 - DFRW66 - DFRW81-Tap-Out Harnesses, DFRW70-Holding Tool, DFRW77-Rear Tractor Access Platform, DFRW78-Seat Support Tray, DFRW79-Piston Holding Tool, DFRW80-Front PTO Lifting Brackets and Spacers, DFRW108-Park Rod Adjusting Nut Tool {para}Tool May Be Purchased. Order JDG952{/para}) |

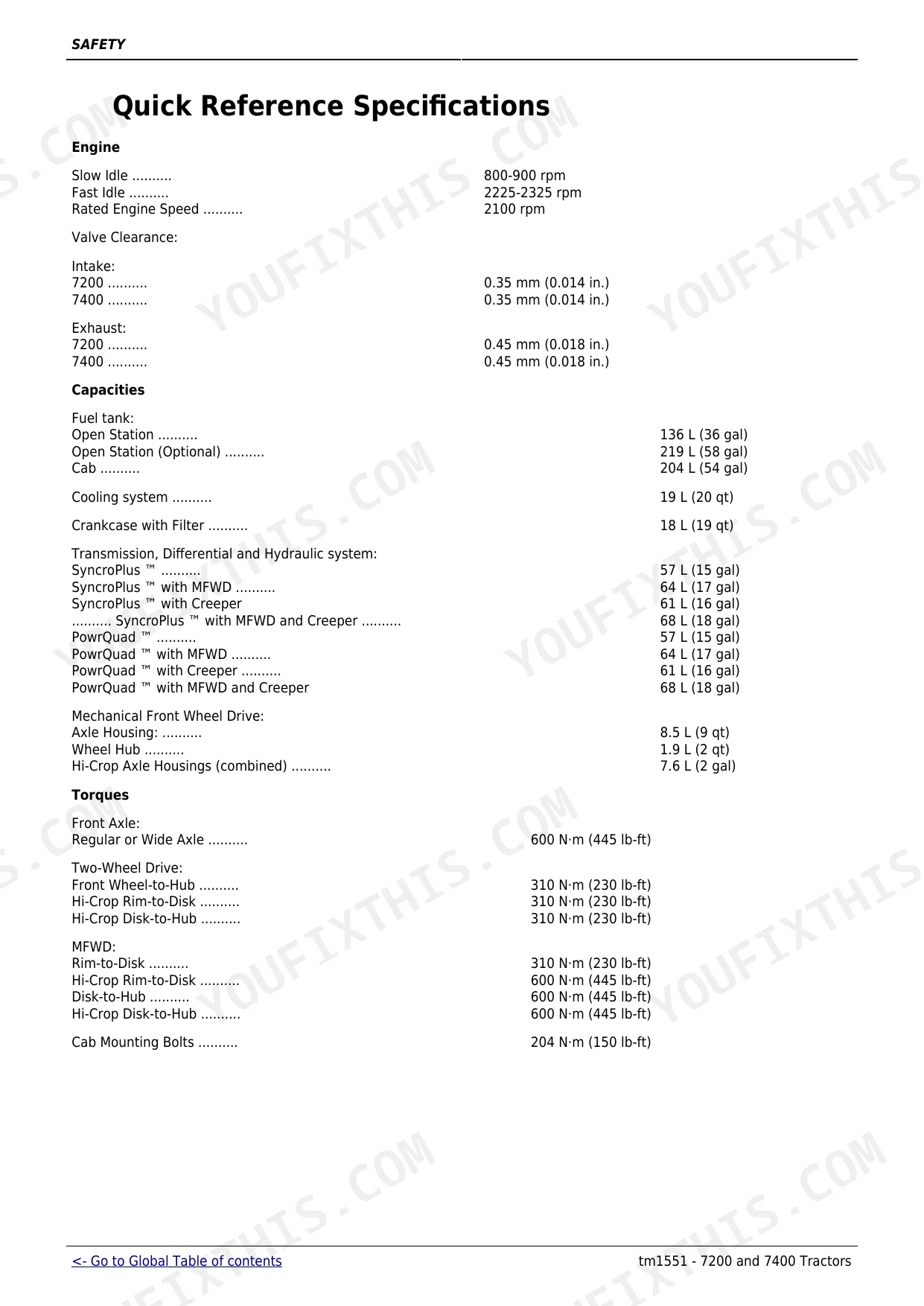

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front Axle: Regular or Wide Axle Torque | 600 N·m (445 lb-ft) | p. 7 |
| Axle Pivot Cap Screws Torque | 500 N·m (370 lb-ft) | p. 833 |
| Starter Circuit Relay Replacement | Procedure described, no specific torque value for relay itself | p. 111 |
| Starter Motor Cap Screw Torque | 48 N·m (35 lb-ft) | p. 110 |
| Key Switch | Component identified, no specific clearance, torque, or replacement values found | p. 101 |
| Battery cables / ground straps | Component identified, no specific clearance, torque, or replacement values found | p. 111 |
| Engine Flywheel-to-Detuner Cap Screw Torque | 50 N·m (37 lb-ft) | p. 188 |
| Output Shaft End Play | 0.015-0.15 mm (0.001-0.006 in.) | p. 616 |
| Threaded Pins of Shifter forks Torque | 40 N·m (30 lb-ft) | p. 294 |
| Shifter Fork Pins Protrusion | 6.75-7.25 mm (0.266-0.285 in.) | p. 414 |
| Fuel Shut-Off Solenoid Replacement | Procedure described, no specific torque or clearance values found | p. 120 |
| Slow Idle Speed | 800-900 rpm | p. 7 |
John Deere 7200, 7400 Common Problems This Manual Covers
John Deere 7200 won't crank or needs multiple key cycles before engine turns over p. 111
Check the 12-volt starting circuit before replacing the starter. Test voltage at the solenoid terminal during cranking; below 10V means trace the relay and ground path, not the starter itself. Replace the relay following page 111, clean all frame and engine block ground straps, and verify key switch output. Starter mounting cap screws torque to 48 N·m (35 lb-ft).
Manual Section: Replace Starter Circuit RelayEngine shuts down without warning, won't restart or runs rough and loses power when hot p. 57
Inspect the fuel filter and shutoff solenoid first, since heat commonly degrades both. Bleed the fuel system after filter replacement following fuel service procedures on page 57. Verify the shutoff solenoid holds open at operating temperature; one that drops out under heat kills fuel delivery. Check the tank return line is clear. Full tank capacity is 204 L (54 gal).
Manual Section: Fuel Filter, Fuel Pump and Bleed Fuel System ReplacementTractor stuck in gear and will not shift, lever moves but transmission stays locked
Adjust the PowrQuad shift and park linkage before opening the transmission. Verify shifter cam neutral alignment and F-N-R rod positions. If linkage is correct but the machine stays stuck, shift forks have likely dropped into the synchros. On reassembly, set fork pin protrusion to 6.75-7.25 mm (0.266-0.285 in.) and torque threaded pins to 40 N·m (30 lb-ft).
Manual Section: PowrQuad Shift and Park Linkage AdjustmentVibration and clunking felt between engine and transmission that worsens under load p. 188
Remove the drive train and access the flywheel-to-transmission coupler. Inspect the detuner for cracked rubber elements and worn splines; a coupler that looks intact can still transmit vibration if the rubber has hardened. Torque flywheel-to-detuner cap screws to 50 N·m (37 lb-ft) per page 188 on reassembly. Replace the complete coupler assembly if any element is cracked or compressed.
Manual Section: Section 50 - TRANSMISSIONDriveline clunk or looseness at the rear output shaft that worsens under load p. 616
Inspect the rear output shaft with the final drive removed. Measure shaft end play with a dial indicator; acceptable range is 0.015-0.15 mm (0.001-0.006 in.) per page 616. Wear beyond this spec produces the clunking and load-sensitive looseness owners describe. Replace worn bearings and shims as needed, and check differential drive shaft end play at 0.025-0.076 mm (0.001-0.003 in.) while the assembly is open.
Manual Section: Section 56 - DRIVE SYSTEMSFrequently Asked Questions
The 7200 won't crank or needs several key cycles — what should I check?
Test voltage at the starter solenoid during cranking; below 10 V means trace the relay and ground path, not the starter. Replace the starting relay per page 111 and clean all frame and engine-block ground straps.
It's stuck in gear and won't shift — what's the fix?
Adjust the PowrQuad shift and park linkage first and verify shifter-cam neutral alignment. If the linkage is correct, the shift forks have likely dropped into the synchros; set fork pin protrusion to 6.75–7.25 mm (0.266–0.285 in.) on reassembly.
There's a clunk between the engine and transmission under load — what causes it?
Inspect the flywheel-to-transmission coupler and detuner for cracked rubber elements and worn splines. Torque the flywheel-to-detuner cap screws to 50 N·m (37 lb-ft) on reassembly (page 188).
What are the torque specs for John Deere 7200/7400 wheel bolts and front axle components?
For John Deere 7200/7400 tractors, the torque specifications for front axle components include: Front Wheel-to-Hub Cap Screws at 310 N·m (230 lb-ft) for two-wheel drive and MFWD Rim-to-Disk, or 600 N·m (445 lb-ft) for MFWD Disk-to-Hub and Hi-Crop Disk-to-Hub. Axle Pivot Cap Screws should be tightened to 500 N·m (370 lb-ft), Steering Arm-to-Kingpin Cap Screws to 436 N·m (320 lb-ft), and Hub Retaining Nuts to 48 N·m (35 lb-ft).
How quickly can I access this manual after buying?
A 933-page Repair Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone — no shipping wait.
Is this John Deere 7200, 7400 Repair Manual printable?
Yes — the PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Document Quality
This document is a scanned PDF with an OCR text layer, so you can search and copy the full text content. The text is generally crisp and easy to read, with no significant blurriness or fading. Diagrams and illustrations are scanned images, not vector graphics, but their labels are clear and readable. Pages are mostly clean, though some exhibit minor scan artifacts and faint grey backgrounds. There are several pages with minimal content or that are almost entirely blank, serving as filler.
