Covers OEM #OMT182515 across 240 pages, written to keep your dozer working instead of guessing. Operating procedures walk through instrument panel functions, Transmission Controller display readings, blade pitch and angle controls, and winch operation from start to finish. Maintenance is laid out by interval, from daily checks through 2000-hour service, with fluid capacities, service schedules, and troubleshooting charts for engine, electrical, hydraulic, and hydrostatic transmission faults. Track sag target runs 51 ± 6 mm; the front idlers take SAE 80W90 GL-5 gear oil. When the machine is down, find the factory answer on the first try. Every section is bookmarked and the text is searchable, so you can pull it up on a tablet at the machine and start working.
What's Inside This John Deere 450H, 550H, 650H Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety, Safety Features | 9 | Safety Features |
| Safety, General Precautions | 10-15 | Recognize Safety Information, Follow Safety Instructions, Operate Only If Qualified, Wear Protective Equipment, Avoid Unauthorized Machine Modifications, Inspect Machine |
| Safety, Operating Precautions | 16-18 | Start Only From Operator's Seat, Prevent Unintended Machine Movement, Avoid Work Site Hazards, Keep Riders Off Machine, Avoid Backover Accidents, Avoid Machine Tip Over |
| Safety, Maintenance Precautions | 19-21 | Park and Prepare for Service Safely, Service Cooling System Safely, Remove Paint Before Welding or Heating, Make Welding Repairs Safely, Drive Metal Pins Safely |
| Safety, Safety Signs | 22 | Safety Signs |
| Operation, Operator's Station | 23-36 | Instrument Panel with Gauge Package, If Equipped, Instrument Panel Functions, Instrument Panel, Transmission Controller Display Window, Air Conditioning and Cab Heater |
| Operation, Operating the Machine | 37-82 | Inspect Machine Daily Before Starting, Check Instruments Before Starting, Starting the Engine, Starting Fluid, If Equipped, Using Coolant Heater |
| Maintenance, Machine | 83-91 | Diesel Fuel, Low Sulfur Diesel Fuel Conditioner, Dieselscan Fuel Analysis, Handling and Storing Diesel Fuel, Alternative and Synthetic Lubricants, Diesel Engine Break-In Oil |
| Maintenance, Periodic Maintenance | 92-98 | Service Your Machine at Specified Intervals, Check the Hour Meter Regularly, Prepare Machine for Maintenance, Fuel Tank, Maintenance and Repair Record Keeping System, Oilscan Plus® |
| Maintenance, As Required | 99-103 | Inspect Serpentine Belt, Check Track Sag, Adjust Track Sag, Operating in Mud or Snow, Check Blade Ball and Socket Joint |
| Maintenance, Every 10 Hours or Daily | 104-108 | Check Coolant Level, Check Engine Oil Level, Drain Water Separator Sediment, Check Hydraulic Oil Level, Check Transmission Oil Level, Clean Dust Unloader Valve |
| Maintenance, After 100 Hours | 109 | Change Engine Break-In Oil and Filter |
| Maintenance, Every 250 Hours | 110-111 | Drain Final Fuel Filter Sediment, Check Final Drives Oil Level, Change Engine Oil and Filter |
| Maintenance, Every 500 Hours | 112-121 | Change Engine Oil and Filter, Check Air Intake Hose, Replace Final Fuel Filter, Replace Primary Fuel Filter, Check Coolant Conditioner in Radiator |
| Maintenance, Every 1000 Hours | 122-127 | Clean Engine Crankcase Ventilation Tube, Change Final Drives Oil, Replace Air Cleaner Elements, Replace Dust Unloader Valve, Change Winch Oil and Filter, If Equipped |
| Maintenance, Every 2000 Hours | 128-131 | Adjust Engine Valve Lash, Change Hydraulic Oil and Filter, Change Transmission Oil and Filter |
| Miscellaneous, Machine | 132-161 | Drain the Cooling System, Fill the Cooling System, Clean the Engine Air Precleaner Screen, Replace Engine Vibration Damper |
| Miscellaneous, Operational Checkout | 162-181 | Operational Checkout, Cooling System Checks, Fuel System Checks, Transmission Checks, Battery Disconnect Switch, Key Switch, Display Monitor, Battery |
| Miscellaneous, Troubleshooting | 182-196 | Troubleshooting Procedure, Engine, Electrical System, Hydraulic System, Hydrostatic Transmission, Gauges and Indicators, Transmission Controller Service Codes |
| Miscellaneous, Storage | 197 | Prepare Machine for Storage |
| Miscellaneous, Machine Numbers | 198 | General, Record Engine Serial Number, Keep Machines Secure, Keep Proof of Ownership |
| Miscellaneous, Specifications | 8 | 450H Crawler Dozer Dimensions, 450H Crawler Dozer Specifications, 450H Crawler Dozer Weights, 450H-Lt Crawler Dozer Dimensions, 450H-Lt Crawler Dozer Specifications |
| 1 | 9 | Safety, Safety Features, Section 1-1 |
| 2 | 10-15 | Safety, General Precautions, Recognize Safety Information, Follow Safety Instructions, Operate Only If Qualified, Wear Protective Equipment, Avoid Unauthorized Machine Modifications, Inspect Machine, Stay Clear of Moving Parts |
| 3 | 16-18 | Safety, Operating Precautions, Start Only From Operator's Seat, Prevent Unintended Machine Movement, Avoid Work Site Hazards, Keep Riders Off Machine, Avoid Backover Accidents, Avoid Machine Tip Over, Section 1-3 |
| 4 | 19-21 | Safety, Maintenance Precautions, Park and Prepare for Service Safely, Service Cooling System Safely, Remove Paint Before Welding or Heating, Make Welding Repairs Safely, Drive Metal Pins Safely, Section 1-4, 1 |
| 5 | 22 | Safety, Safety Signs, Section 1-5, 1 |

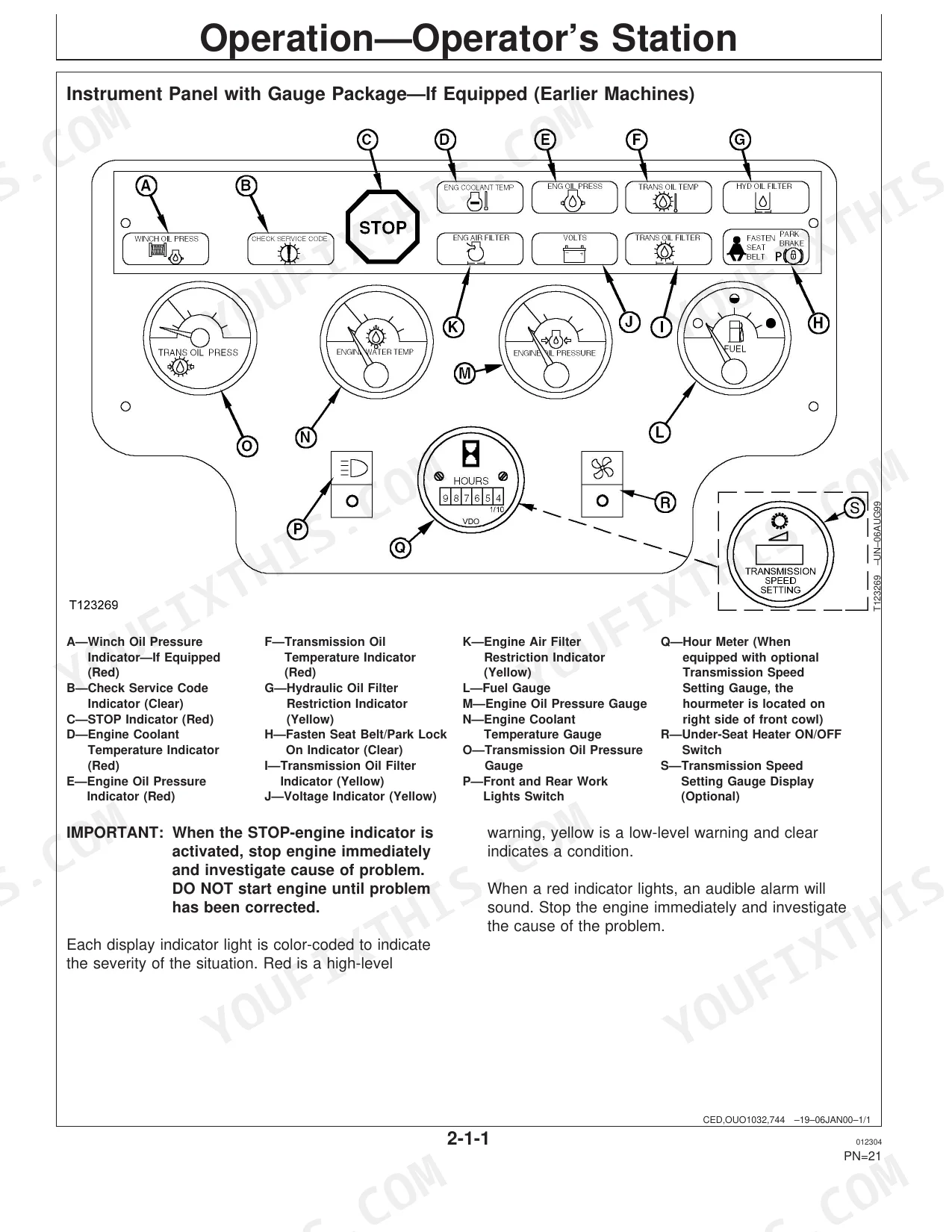

| 1 | 23-36 | Operation, Operator's Station, Instrument Panel Functions (Earlier Machines), Instrument Panel (Later Machines), Instrument Panel Functions (Later Machines), Transmission Controller Display Window, Air Conditioning and Cab Heater, If Equipped, Windshield Wiper and Washer Controls, Windshield Washer Reservoir |
| 2 | 37-82 | Operation, Operating the Machine, Inspect Machine Daily Before Starting, Starting the Engine (Earlier Machines), Starting the Engine (Later Machines), Using Coolant Heater, If Equipped, Using Booster Batteries, 12 Volt System, Engine Warm-Up, Cold Weather Warm-Up |

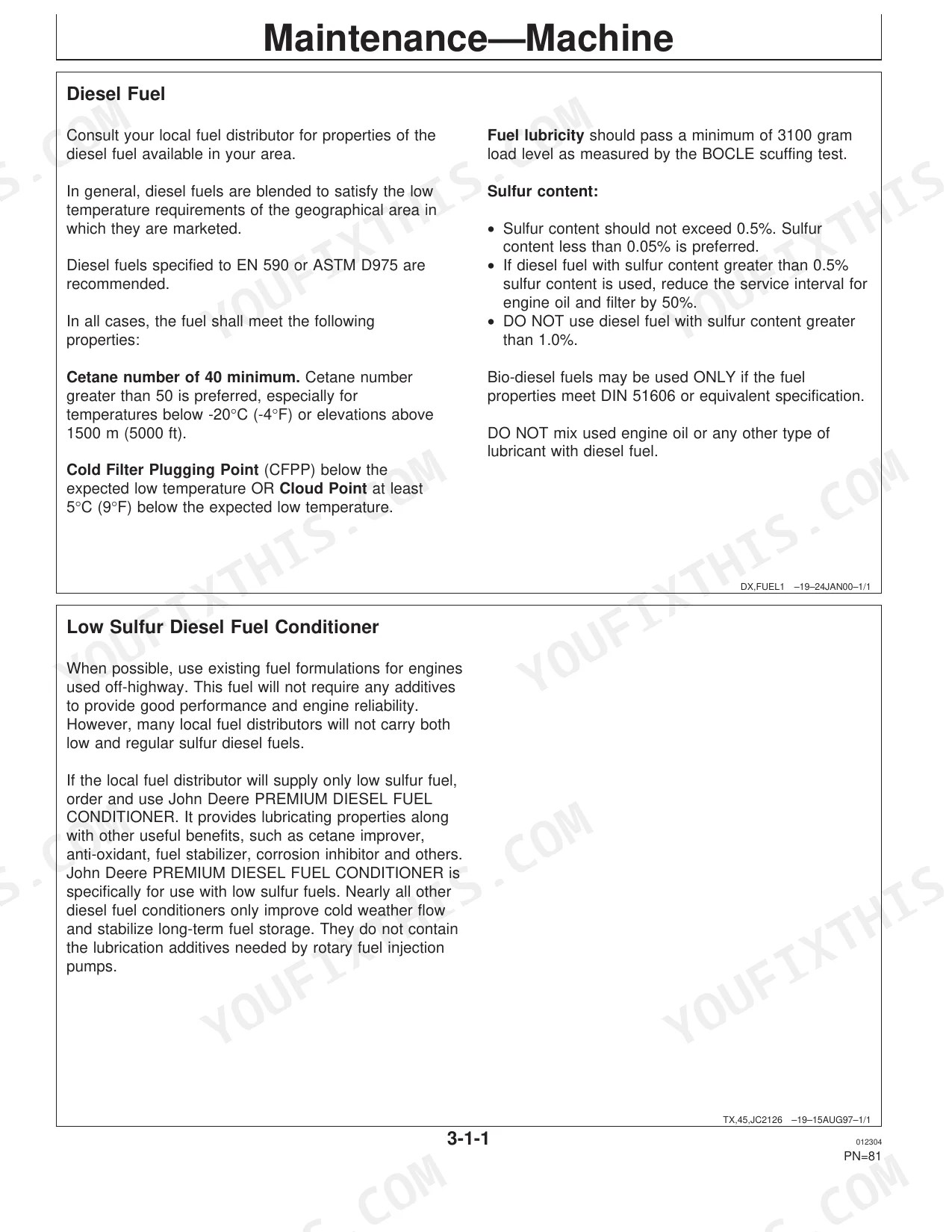

| 1 | 83-91 | Maintenance, Machine, Diesel Fuel, Low Sulfur Diesel Fuel Conditioner, Dieselscan Fuel Analysis, Handling and Storing Diesel Fuel, Alternative and Synthetic Lubricants, Diesel Engine Break-In Oil, Diesel Engine Oil |
| 2 | 92-98 | Maintenance, Periodic Maintenance, Service Your Machine at Specified Intervals, Check the Hour Meter Regularly, Prepare Machine for Maintenance, Fuel Tank, Maintenance and Repair Record Keeping System, Oilscan Plus®, Coolscan Plus® |
| 3 | 99-103 | Maintenance, As Required, Inspect Serpentine Belt, Check Track Sag, Adjust Track Sag, Operating in Mud or Snow, Check Blade Ball and Socket Joint, Section 3-3, 1 |
| 4 | 104-108 | Maintenance, Every 10 Hours or Daily, Check Coolant Level, Check Engine Oil Level, Drain Water Separator Sediment, Check Hydraulic Oil Level, Check Transmission Oil Level, Clean Dust Unloader Valve, Lubricate Dozer Linkage and Blade Socket |

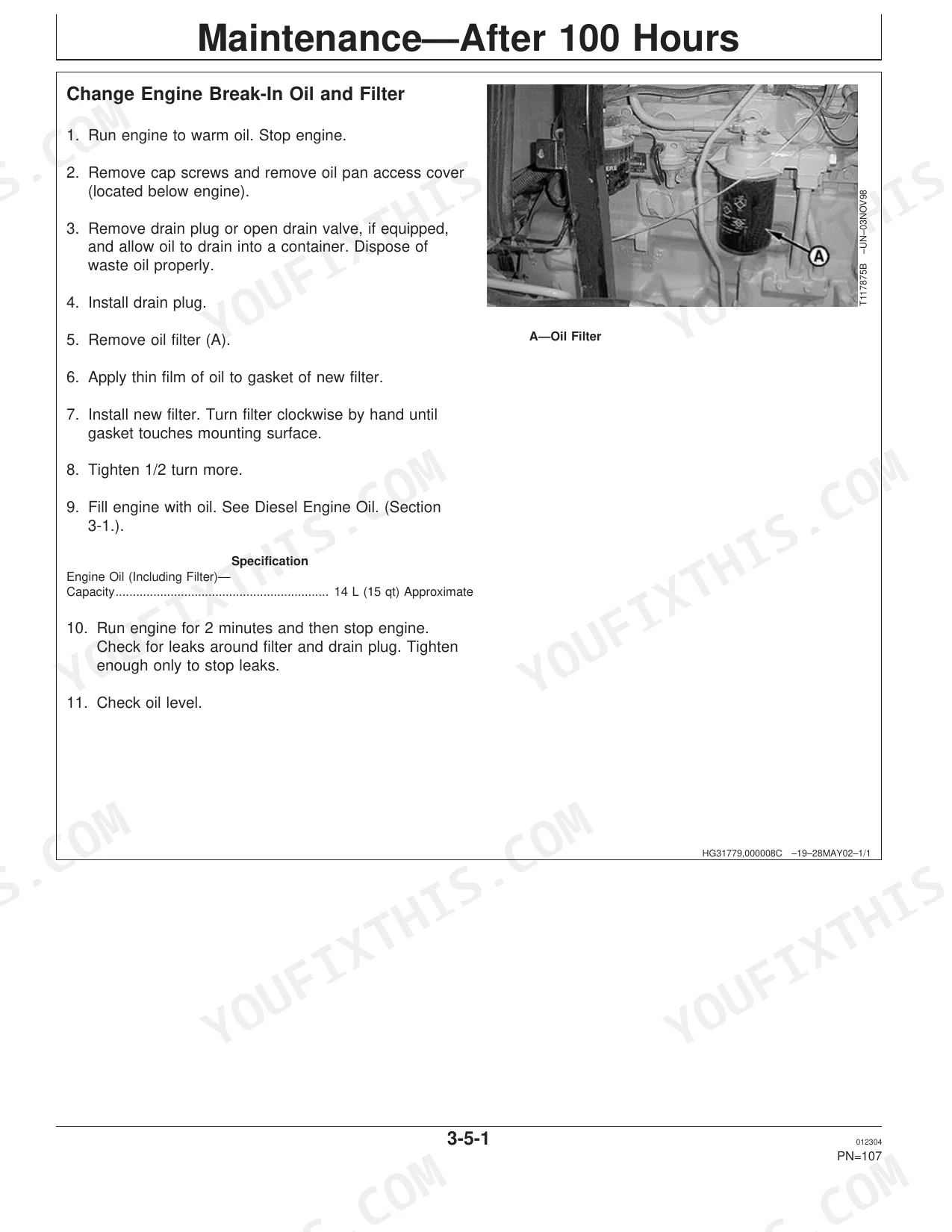

| 5 | 109 | Maintenance, After 100 Hours, Change Engine Break-In Oil and Filter, Section 3-5, 1 |
| 6 | 110-111 | Maintenance, Every 250 Hours, Drain Final Fuel Filter Sediment, Check Final Drives Oil Level, Change Engine Oil and Filter (450H, 550H Earlier Machines and All 650H Machines), Section 3-6, 1, 2 |
| 7 | 112-121 | Maintenance, Every 500 Hours, Change Engine Oil and Filter (450H, 550H Later Machines), Check Air Intake Hose, Replace Final Fuel Filter, Replace Primary Fuel Filter, Check Coolant Conditioner in Radiator, Check Battery Electrolyte Level and Terminals |
| 8 | 122-127 | Maintenance, Every 1000 Hours, Clean Engine Crankcase Ventilation Tube, Change Final Drives Oil, Replace Air Cleaner Elements, Replace Dust Unloader Valve, Change Winch Oil and Filter, If Equipped, Section 3-8, 1 |
| 9 | 128-131 | Maintenance, Every 2000 Hours, Adjust Engine Valve Lash (Clearance), Change Hydraulic Oil and Filter, Change Transmission Oil and Filter, Section 3-9, 1, 2, 3 |
| 1 | 132-161 | Miscellaneous, Machine, Drain the Cooling System, Fill the Cooling System, Clean the Engine Air Precleaner Screen, Replace Engine Vibration Damper, C-Frame Ball / Blade Socket Joint Adjustment, Precautions for Alternator and Regulator, Handling |
| 2 | 162-181 | Miscellaneous, Operational Checkout, Cooling System Checks, Fuel System Checks, Transmission Checks, Battery Disconnect Switch, Key Switch, Display Monitor |

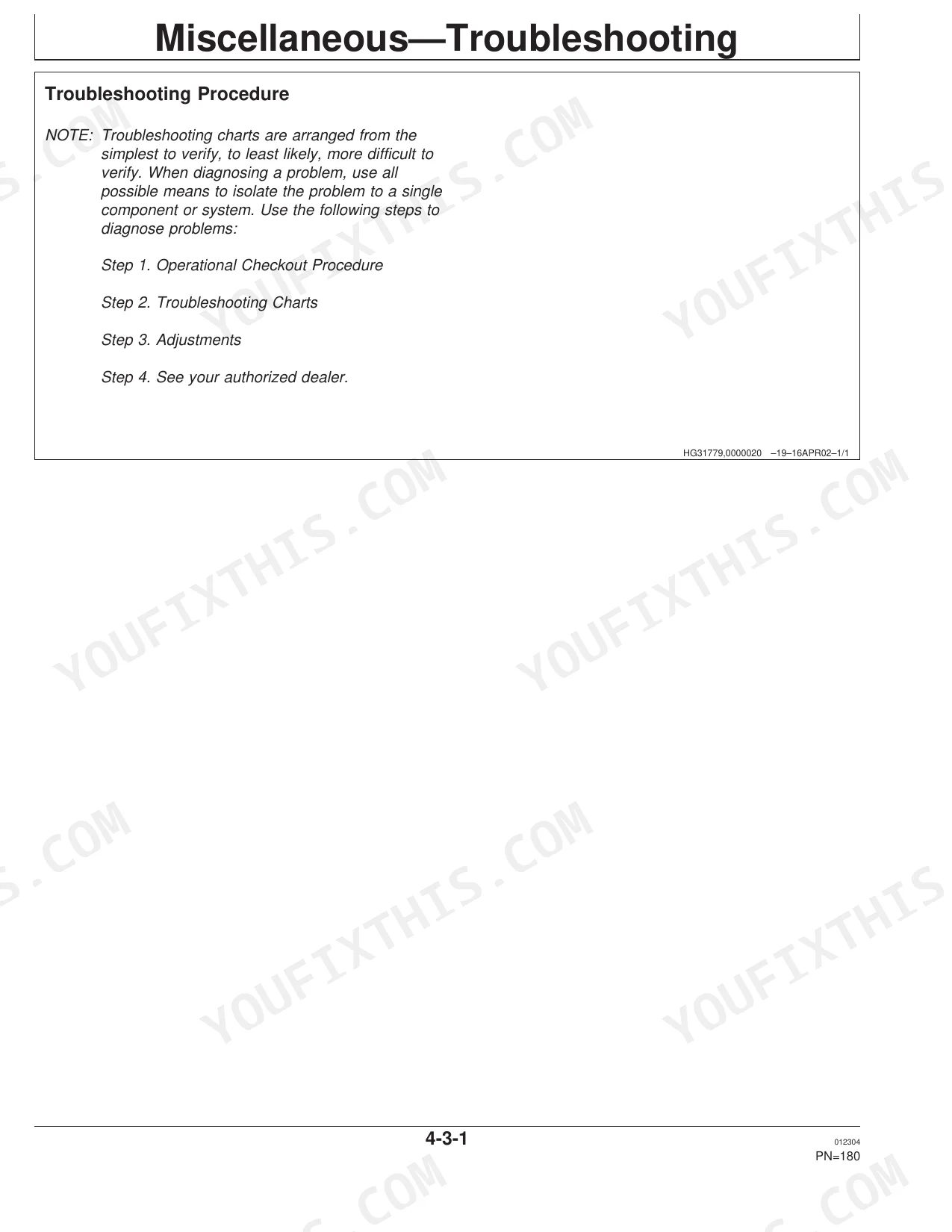

| 3 | 182-196 | Miscellaneous, Troubleshooting, Troubleshooting Procedure, Engine, Electrical System, Hydraulic System, Hydrostatic Transmission, Gauges and Indicators, Transmission Controller Service Codes |
| 4 | 197 | Miscellaneous, Storage, Prepare Machine for Storage, Section 4-4, 1 |

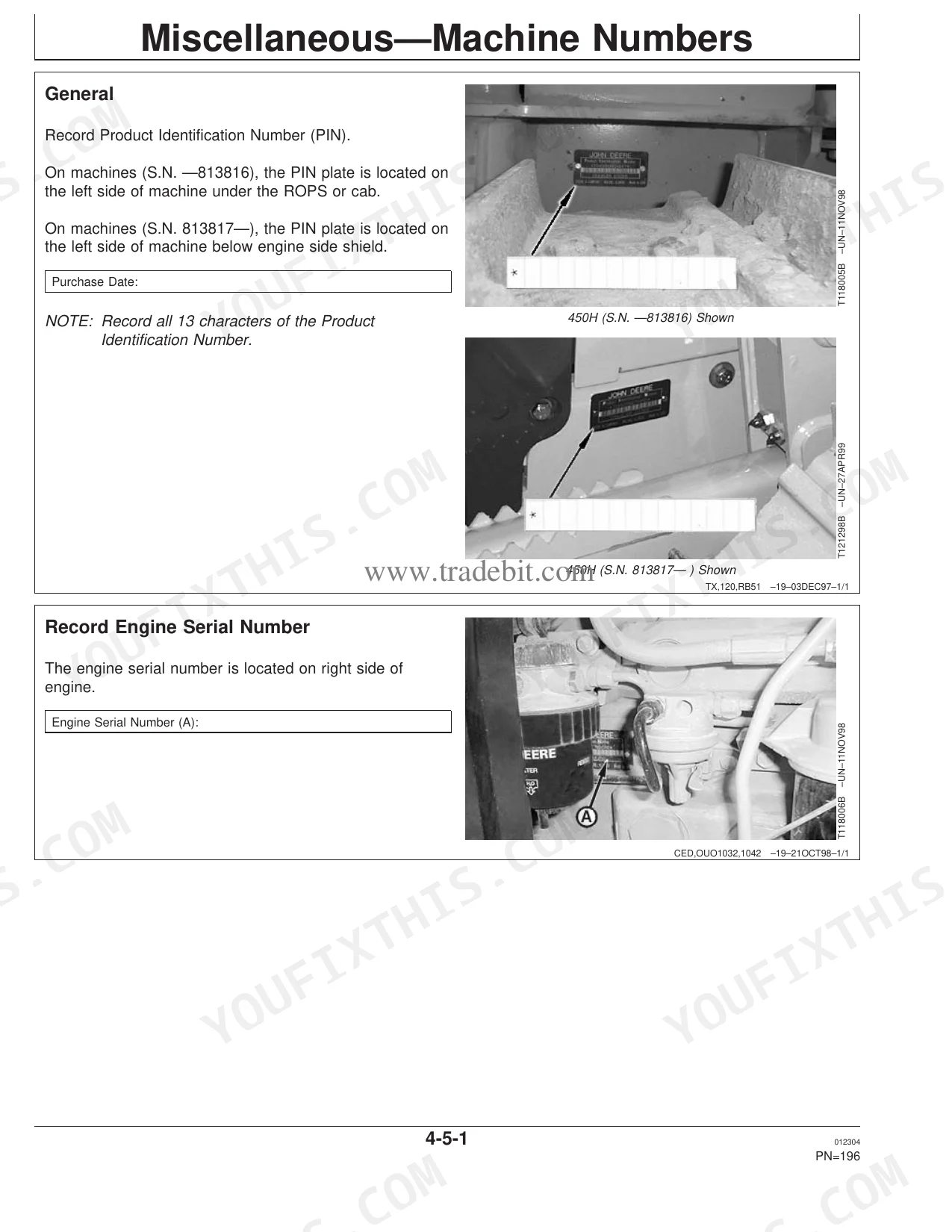

| 5 | 198-199 | Miscellaneous, Machine Numbers, Record Engine Serial Number, Keep Machines Secure, Keep Proof of Ownership, Section 4-5, 1, 2 |
| 6 | 200-240 | Miscellaneous, Specifications, 450H Crawler Dozer Dimensions, 450H Crawler Dozer Specifications, 450H Crawler Dozer Weights, 450H-Lt Crawler Dozer Dimensions, 450H-Lt Crawler Dozer Specifications, 450H-Lt Crawler Dozer Weights, 450H-Lgp Crawler Dozer Dimensions |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 650H | ||
| 650H Track Shoe Cap Screw (5/8 in.)—Torque | 163 N•m (120 lb-ft) Second Pass—Additional 1/3 (120° ) turn | p. 159 |
| 650H Master Split Link Cap Screw (5/8 in.)—Torque | 163 N•m (120 lb-ft) Second Pass—Additional 1/2 (180°) turn | p. 159 |
| All Models | ||
| Front Idler Oil specification | API Service Classification GL-5 gear oil (SAE 80W90) | p. 87 |
| Track Sag—Distance | 51 ± 6 mm (2 ± 0.250 in.) | p. 100 |
| Engine Oil (Including Filter) Capacity | 14 L (15 qt) | p. 109 |
| Hydraulic System Pressure | 20 685 kPa (3000 psi) | p. 202 |
| Track Sag Distance | 51 ± 6 mm (2 ± 0.250 in.) | p. 100 |
| Socket Retainer Cap Screws Torque | 350 N•m (255 lb-ft) | p. 135 |
| ROPS Mounting Bolts Torque | 624 N•m (460 lb-ft) | p. 157 |
| 450H, 550H | ||
| 450H and 550H Track Shoe Cap Screw (9/16 in.)—Torque | 88 N•m (65 lb-ft) Second Pass—Additional 1/3 (120° ) turn | p. 159 |
| 450H | ||
| Fuel Tank Capacity | 136 L (36 gal) | p. 93 |
| 550H, 650H | ||
| Fuel Tank Capacity | 178 L (47 gal) | p. 93 |
John Deere 450H, 550H, 650H Common Problems This Manual Covers
John Deere crawler dozer temperature gauge climbing into red during push cycles, overheating p. 104
Clean the grille and radiator screen every 10 hours to prevent trash from blocking airflow. Verify coolant level is at or between the MIN and MAX marks on the sight glass per the daily service checklist on page 104. If level is correct, inspect hoses and clamps for leaks using the cooling system checks on page 162.
Manual Section: Maintenance—Every 10 Hours or DailyTrack sag is off, dozer feels sluggish or pulling to one side on turns p. 99
Measure track sag at the center span between the front idler and rear sprocket; correct sag is 51 ± 6 mm (2 ± 0.250 in.) per page 100. Follow the adjustment procedure on page 99. In mud or snow, clean packed material from the undercarriage before measuring.
Manual Section: Maintenance—As RequiredHydraulic hose or tube shows visible damage, weeping fluid, or wet spot under machine p. 12
Inspect all hoses and tubes for fraying, cracks, or fluid seepage before each shift. Never use bare hands to locate a leak; hydraulic fluid at 20 685 kPa (3000 psi) can penetrate skin. Review the high-pressure fluid safety warnings on page 12, use cardboard to trace any spray pattern, and shut down immediately.
Manual Section: Safety—Maintenance PrecautionsEngine oil warning light on at startup, oil pressure indicator won't clear after warm-up p. 104
Check engine oil level before every start using the dipstick with the machine on level ground. Verify oil is between MIN and MAX marks; capacity including filter is 14 L (15 qt). If level is correct, follow the engine troubleshooting procedure on page 182 before continuing operation.
Manual Section: Maintenance—Every 10 Hours or DailyMachine won't move after startup, FNR lever not responding or crawler tracks dragging p. 182
Verify park brake is fully released and the FNR lever is in neutral before engaging the transmission. Check transmission oil level per the daily service steps on page 104; low fluid is the first thing to rule out. If oil level is correct, consult the hydrostatic transmission troubleshooting chart on page 182.
Manual Section: Hydrostatic Transmission TroubleshootingFrequently Asked Questions
How do I reset the transmission controller on a John Deere 450H?
There is no operator reset procedure in the manual. It explains that the transmission controller automatically shifts the machine into a mode that won't harm the engine, and that service codes exist to help your authorized dealer diagnose the fault quickly. Contact that dealer for any issues.
How do I clear fault codes on a John Deere 550H or 650H dozer?
No operator-level clearing procedure is given. The manual notes only that the service code indicator goes out once the machine is shut down. For persistent faults or diagnosis, contact your authorized dealer.
What do John Deere H-series error codes mean on a 450H/550H/650H?
A full list of Transmission Service Codes and their definitions is included. For instance, F311 means "No forward or reverse," F341 means "No steering," and F360 means "Will not reach max speed." These codes show up in the transmission controller display window.
How do I reset the ECU/TCU after replacing sensors on a John Deere dozer?
No operator reset routine for the ECU (Engine Control Unit) or TCU (Transmission Control Unit) after sensor replacement appears in the manual. Throughout, it points you to an authorized dealer for diagnosing and repairing problems tied to these systems and their service codes.
What are the torque specs for track rollers, final drives, or undercarriage bolts on a John Deere 650H?
On a John Deere 650H, the minimum checking torque for track shoe cap screws is 380 ± 14 N•m (280 ± 10 lb-ft). The master split link cap screw (5/8 in.) takes 163 N•m (120 lb-ft) on the second pass, plus an additional 1/2 (180°) turn. Torque the socket retainer cap screws for the C-Frame Ball / Blade Socket Joint to 350 N•m (255 lb-ft).
How will I receive this John Deere 450H, 550H, 650H Operator Manual?
Immediate download of the complete 240-page searchable Operator Manual. Access it on any device, whether that's the laptop at your desk or your phone in the field.
Is this John Deere 450H, 550H, 650H Operator Manual printable?
Yes, print as many copies as you want; there are no restrictions. Plenty of mechanics print just the section they need and carry it to the shop floor.
