This 130-page New Holland YT12.5–YT18H Yard Tractor Service Manual (OEM #620-289) covers every gear drive and hydro drive configuration built from 1984 to 1992, across all five models: YT12.5, YT14, YT16, YT16H and YT18H. Open it and you get full wiring diagrams for both drive systems, a complete troubleshooting section for no-start and no-stop faults, and page after page of torque specifications broken down by fastener type. You'll also find the Eaton hydrostatic transaxle repair procedures most yard tractor manuals skip entirely. Set your engine's no-load speed between 3500 and 3700 RPM, and confirm PTO clutch field coil resistance reads 2.31 to 3.12 ohms before you chase a phantom electrical gremlin. No more staring at a seized traction belt guessing which bolt comes out first. This PDF carries bookmarks for every section, so you jump straight from the table of contents to the exact procedure, torque table, or wiring page you need, right from your phone in the shop.
What's Inside This New Holland YT12.5, YT14, YT16, YT16H, YT18H Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Safety | 21 | Personal Considerations, Equipment Considerations, Operational Considerations |

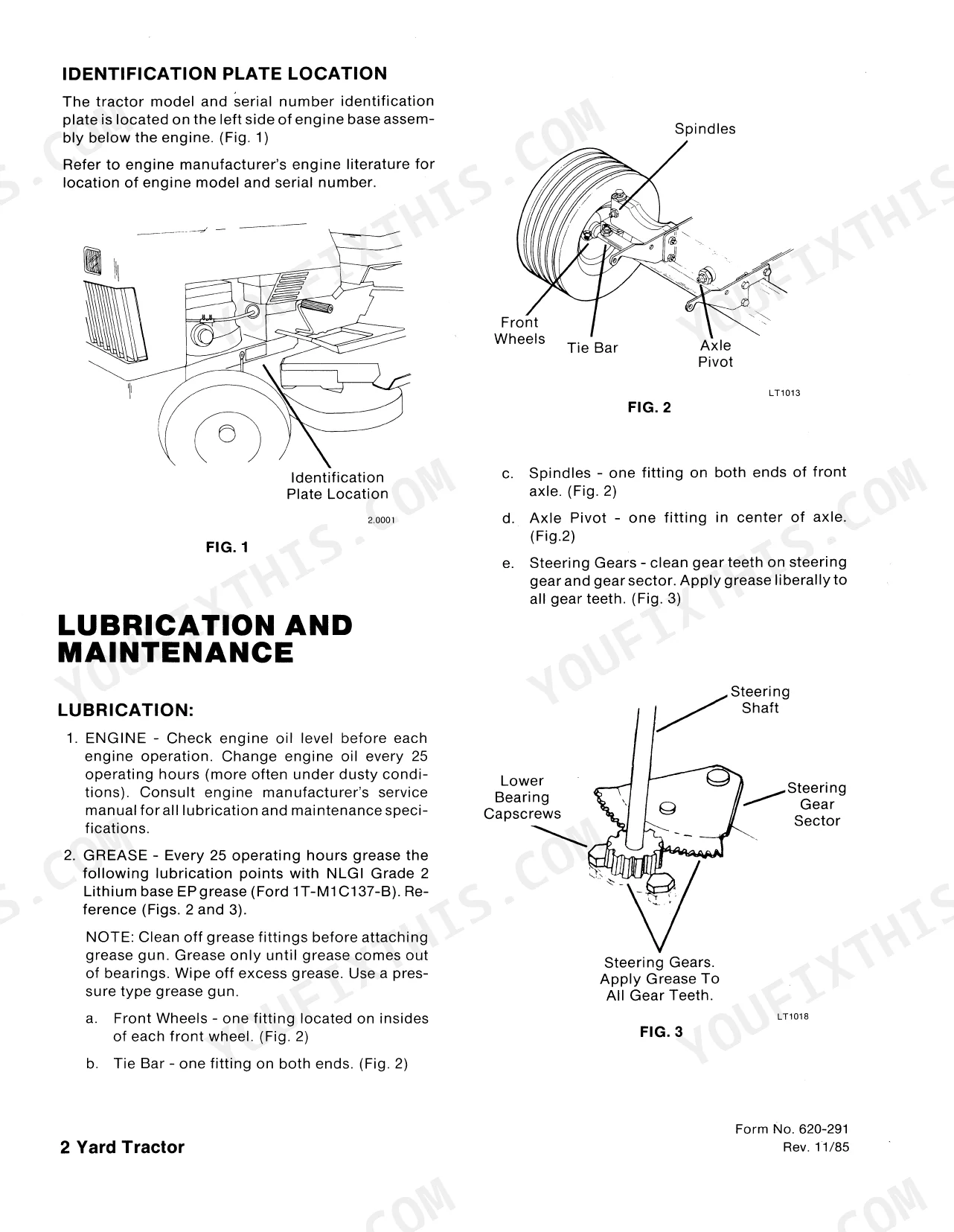

| Lubrication and Maintenance | 22 | Engine, Grease, All Other Pivot Points, Transaxle, Battery, Belt |
| Adjustments and Servicing - Gear Drive (Engine, Clutch & Transaxle) | 23-32 | Engine Removal, PTO Clutch/Brake Adjustment, Clutch Coil Check, Transaxle Removal, Brake Pad Replacement, Traction Drive Belt |
| Adjustments and Servicing - Gear Drive (Steering & Controls) | 33-41 | Front Axle Removal, Steering Shaft Removal, Steering Gear Adjustment, Foot Pedal Removal, Gear Shift Lever Adjustment, Throttle/Choke Cable Removal |
| Adjustments and Servicing - Gear Drive (Electrical System & Troubleshooting) | 42-54 | Electrical System Functions, Battery, Solenoid Check, Ignition Switch Check, Interlock Switch Check, Headlight Service, Fuse Replacement, PTO Warning Light |
| Adjustments and Servicing - Hydro Drive (Engine, Clutch & Transmission) | 60-71 | Engine Removal, PTO Clutch/Brake Adjustment, Clutch Coil Check, Hydrostatic Transmission Removal, Brake Pad Replacement, Hydro Drive Lever Adjustment, Traction Drive Belts |
| Adjustments and Servicing - Hydro Drive (Steering & Controls) | 72-79 | Front Axle Removal, Steering Shaft Removal, Steering Gear Adjustment, Foot Pedal Shaft Removal, Lift Lever Shaft Removal, Throttle/Choke Cable Removal |
| Adjustments and Servicing - Hydro Drive (Electrical System) | 80-88 | Electrical System Functions, Battery, Solenoid Check, Ammeter Check, Ignition Switch Check, Interlock Switch Check, Headlight Service, Fuse Replacement |

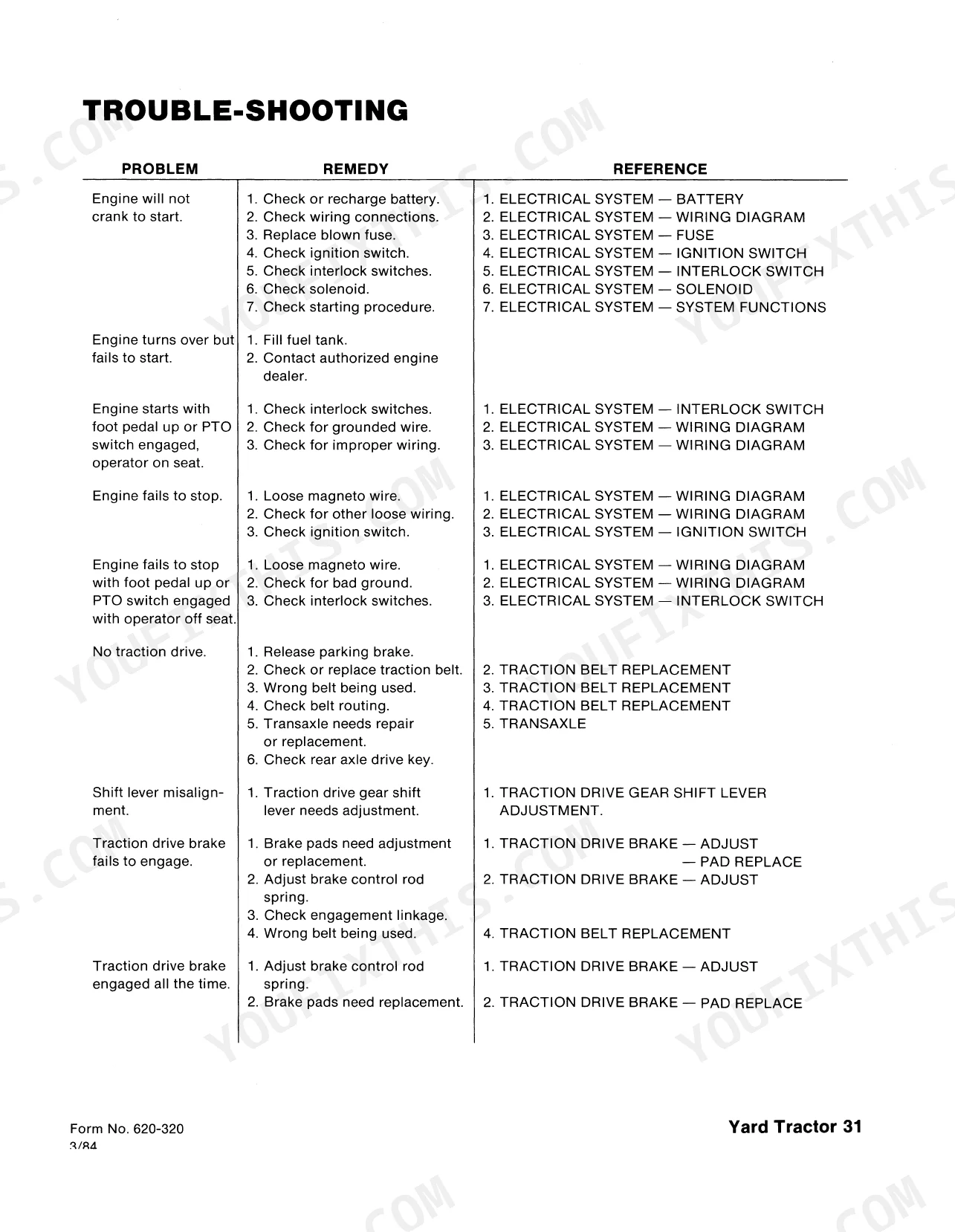

| Trouble-Shooting | 53 | Engine Will Not Crank to Start, Engine Turns Over But Fails to Start, Engine Starts with Foot Pedal Up or PTO Switch Engaged, Operator on Seat, Engine Fails to Stop |

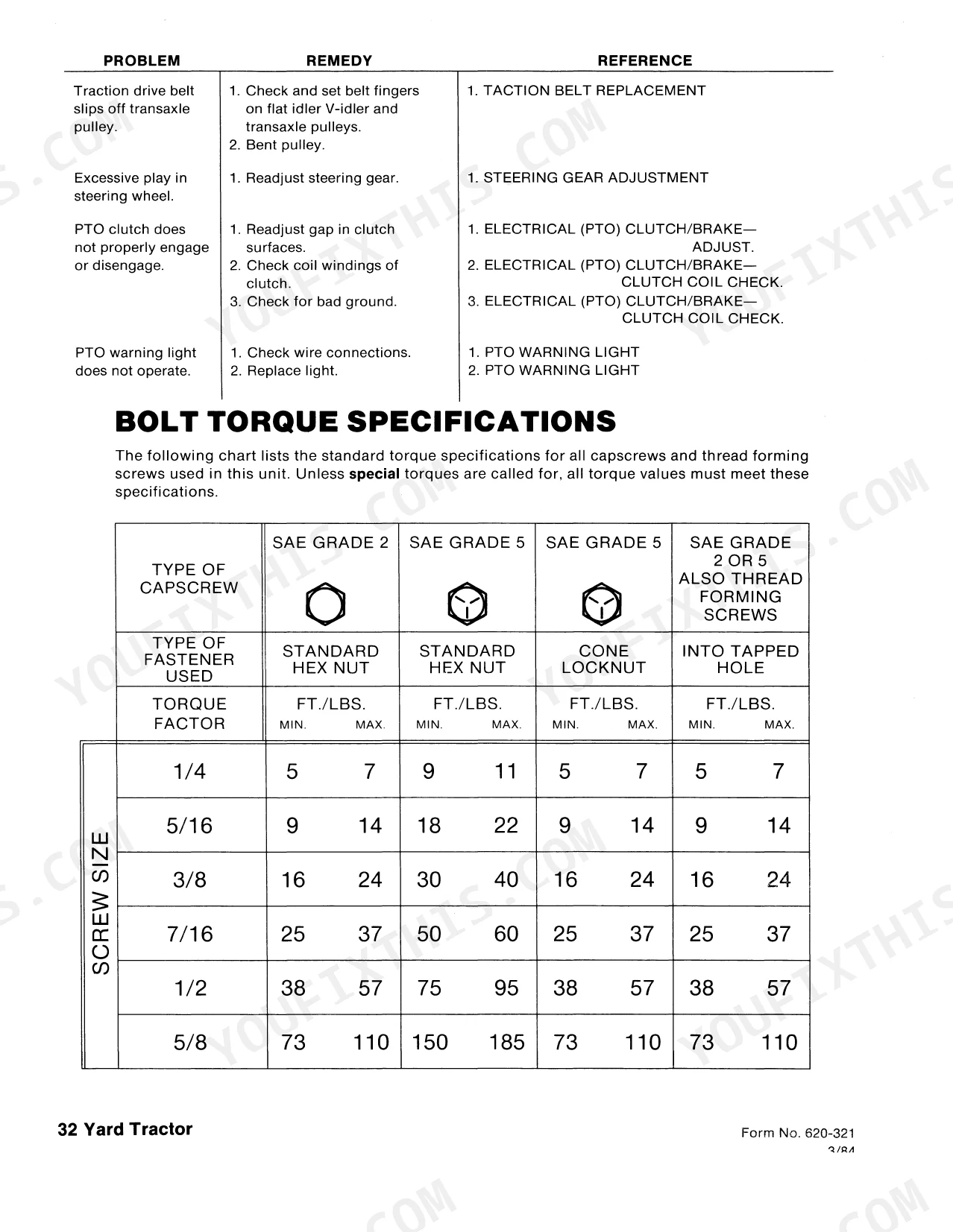

| Bolt Torque Specifications | 54-92 | Type of Capscrew, Type of Fastener Used, Torque Factor, Standard Hex Nut, Cone Locknut, Into Tapped Hole |

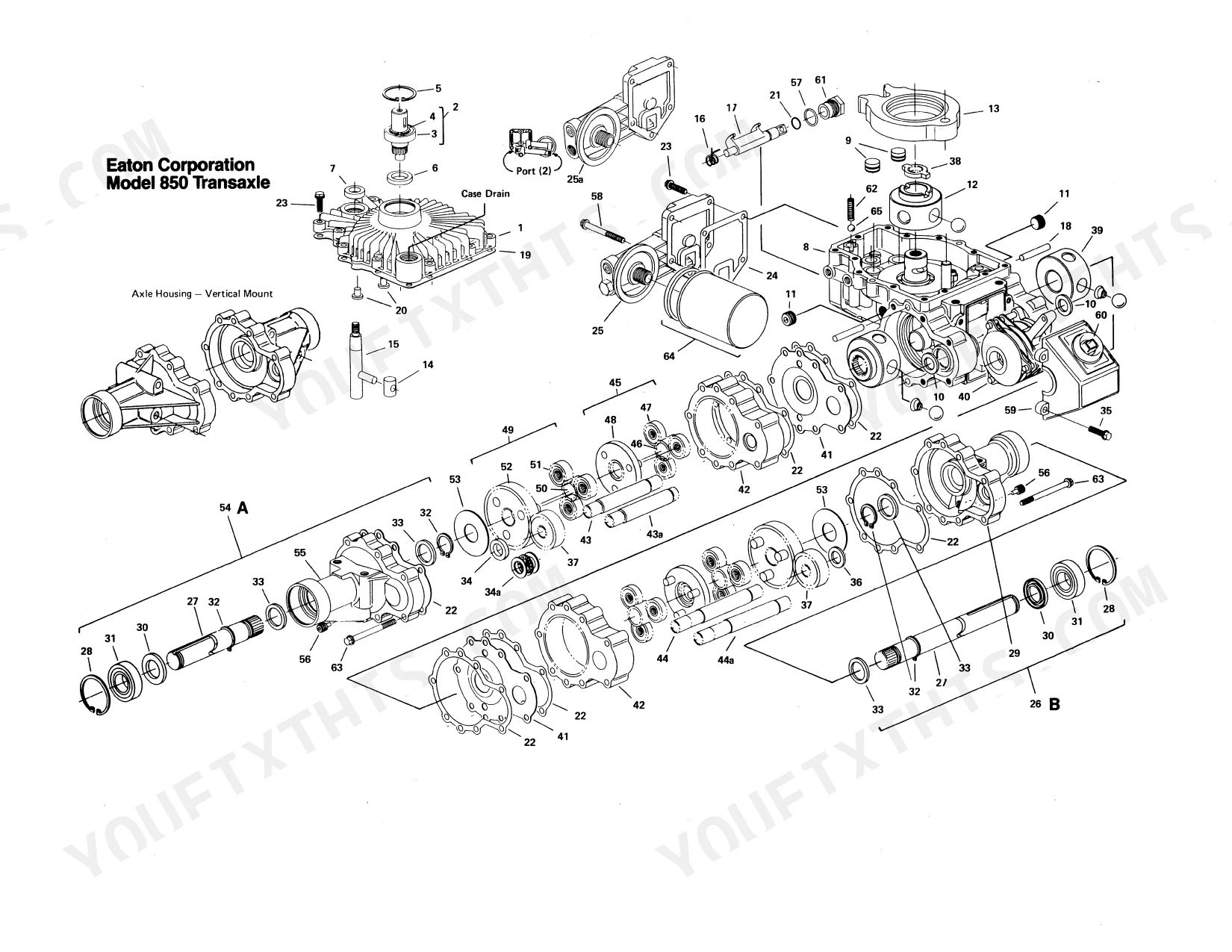

| Eaton Hydraulics Division Repair Information | 93-112 | Product Identification and Ordering Information, Complete Disassembly, Axle Disassembly Procedures, Housing Disassembly Procedures, Fluid Recommendations |
| Repair Information 751 & 851 Hydrostatic Transaxle | 113-130 | Transaxle Remove & Replace, Traction Drive Brake Adjustment, Brake Pad Replacement |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| HYDROSTATIC TRANSMISSION COOLING | When slipping occurs, stop the tractor and let transmission oil cool down. | p. 59 |
| Engine Max RPM (no load) | 3500-3700 RPM | p. 23 |
| Tire Pressure (front & rear) | 10 p.s.i. | p. 23 |
| PTO Clutch Field Coil Resistance | 2.31-3.12 ohms | p. 27 |
| 16 H.P. Yard Tractor (Hydro Drive) | ||
| Hydrostatic Transmission Oil Capacity | 22 ounces | p. 59 |
| Brake Pad Holder Screw Torque | 85-110 in-lbs | p. 68 |
| Eaton Corporation Model 850 Transaxle | ||
| Transaxle Series 850 Pump Plate Screw Torque | 44 lb-in | p. 105 |
| Transaxle Series 850 Cover Hex Flange Screw Torque | 125 lb-in | p. 105 |
New Holland YT12.5, YT14, YT16, YT16H, YT18H Common Problems This Manual Covers
New Holland YT16 traction drive belt slips off transaxle pulley, no forward or reverse movement p. 53
Check the troubleshooting chart on page 53 for traction drive faults first. Inspect belt tension and pulley alignment, and replace a worn or glazed belt following the procedures on page 23. Confirm the engine reaches its 3500-3700 RPM maximum at high speed under no load before testing under load, and verify the belt seats fully in the pulley groove.
Manual Section: Trouble-ShootingPTO clutch does not engage or disengage properly, mower deck fails to respond to switch p. 27

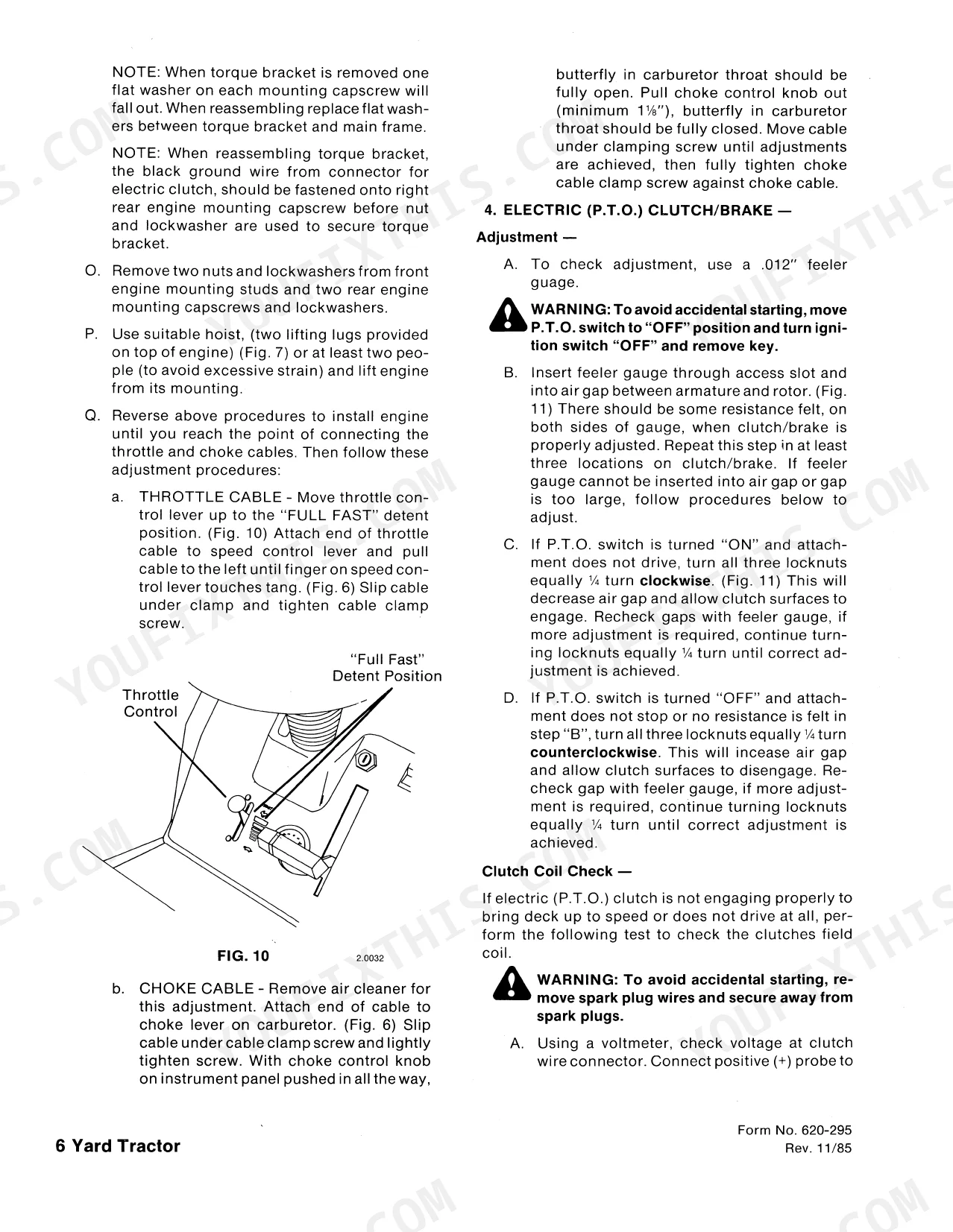

Disconnect the clutch lead and measure field coil resistance with an ohmmeter set to the low scale; a normal reading falls between 2.31 and 3.12 ohms per the spec on page 27. Replace the coil if resistance is out of range, then check and adjust the clutch air gap using the service procedures on page 26.
Manual Section: Adjustments and Servicing - Gear Drive (Engine, Clutch & Transaxle)Engine will not crank to start, or turns over slowly in cold weather p. 53
Work through the troubleshooting chart on page 53 first. Test battery voltage at the posts and clean any corroded terminals, since a weak or sulfated battery is the most common cause of slow cranking. Verify the interlock switch system, including seat and PTO switches, per the electrical checks starting on page 42; a faulty interlock blocks the starter circuit entirely.
Manual Section: Trouble-ShootingHydrostatic transmission runs hot, feels jerky at startup, or loses power on inclines
Stop the tractor and let the transmission oil cool down whenever slipping or overheating shows up; running hot usually points to low fluid or a restricted cooling path rather than internal wear. Drain and refill with the correct 22 ounces of hydrostatic transmission oil specified on page 59, and inspect for a kinked or collapsed cooling line.
Manual Section: Hydrostatic Transaxle Fault-LogicBrake pedal feels spongy, or traction drive brake fails to engage on hydro models p. 68
Remove the two thread-forming screws securing the brake pad holder to the differential case and inspect pad thickness for uneven wear. Replace pads that are glazed or worn thin, then retorque the holder screws to 85-110 in-lbs as specified on page 68 before adjusting the brake linkage and road-testing the pedal.
Manual Section: Adjustments and Servicing - Hydro Drive (Engine, Clutch & Transmission)Ammeter shows no charge, or headlights and instruments dim noticeably at idle speed p. 80
Work through the electrical system checks on page 80, starting with the battery and solenoid. Run the ammeter check procedure to confirm charging output; low or no charge at idle often traces back to a loose drive belt or a failing solenoid. Clean every ground connection and retest before replacing any charging component.
Manual Section: Adjustments and Servicing - Hydro Drive (Electrical System)Frequently Asked Questions
What are the torque specs for the engine bolts on a Ford New Holland YT14?
The manual provides a general bolt torque specification chart for capscrews used in the unit. For example, a 1/4 inch SAE Grade 2 capscrew should be torqued between 5 and 7 ft./lbs, while a 5/8 inch SAE Grade 2 capscrew should be torqued between 73 and 110 ft./lbs. Specific torque values for engine bolts are not listed, but general capscrew specifications apply based on their size and grade.
How often should the engine oil be changed on the yard tractor?
The engine oil should be changed every 25 operating hours, or more often if the tractor is used under dusty conditions. It is recommended to consult the engine manufacturer's service manual for specific lubrication and maintenance specifications.
What is the maximum engine RPM (high speed, no load) for the yard tractor?
The maximum engine RPM for high speed, no load operation, should be in the range of 3500 to 3700 RPM. This specification is important for proper engine performance.
What is the recommended tire pressure for both front and rear tires?
The recommended tire pressure for both the front and rear tires of the yard tractor is 10 p.s.i. Maintaining the correct tire pressure is part of routine maintenance.
What format is this New Holland YT12.5 & variants manual in?
Instant PDF download. You get the full 130-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this New Holland YT12.5 & variants manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Are there wiring harness diagrams in this New Holland YT12.5 & variants manual?

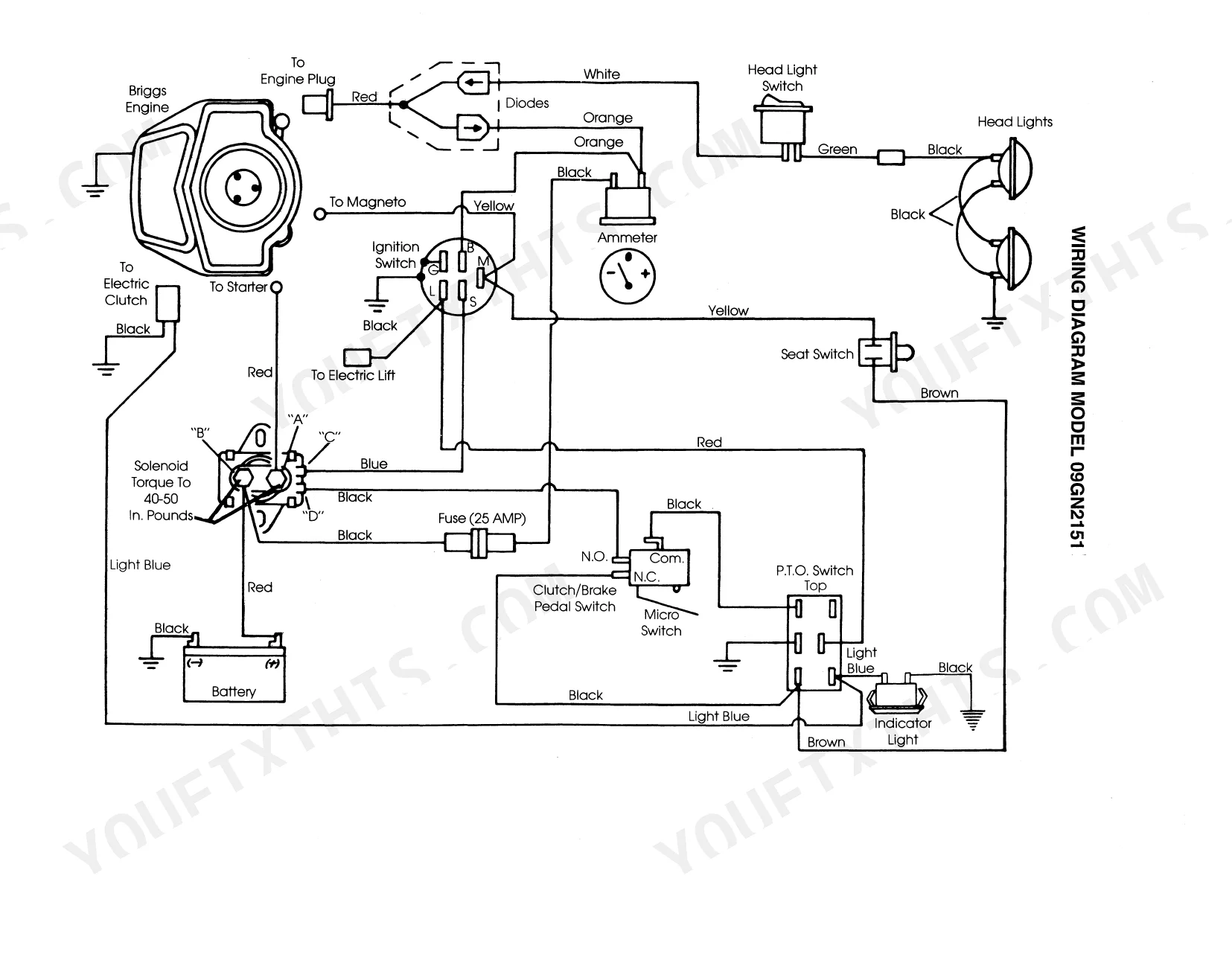

Included. The New Holland YT12.5 & variants Service Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
