Need the factory tear-down procedures for your New Holland 2450, 2550 Windrower? This 673-page New Holland 2450, 2550 repair manual pdf breaks down every hydrostatic drive component, electrical circuit, and engine assembly to get your machine cutting again. Inside, you get complete hydraulic schematics for the header drive, full wiring diagrams covering the Electronic Instrument Cluster, and step-by-step troubleshooting charts for the entire planetary final drive. Open up page after page of exploded view diagrams, engine overhaul procedures, and factory torque specifications. Dial in the charge pump relief setting to exactly 15.8 bar (230 PSI) and verify the A/C system is charged with 5.6 lbs of R134a refrigerant before heading back to the field. Your harvest window is too tight for guesswork. Download this bookmarked file right to your tablet, search for the exact spec you need, and fix it right the first time.
What's Inside This New Holland 2450, 2550 Repair Manual
| System | Pages | Key Topics |
|---|---|---|

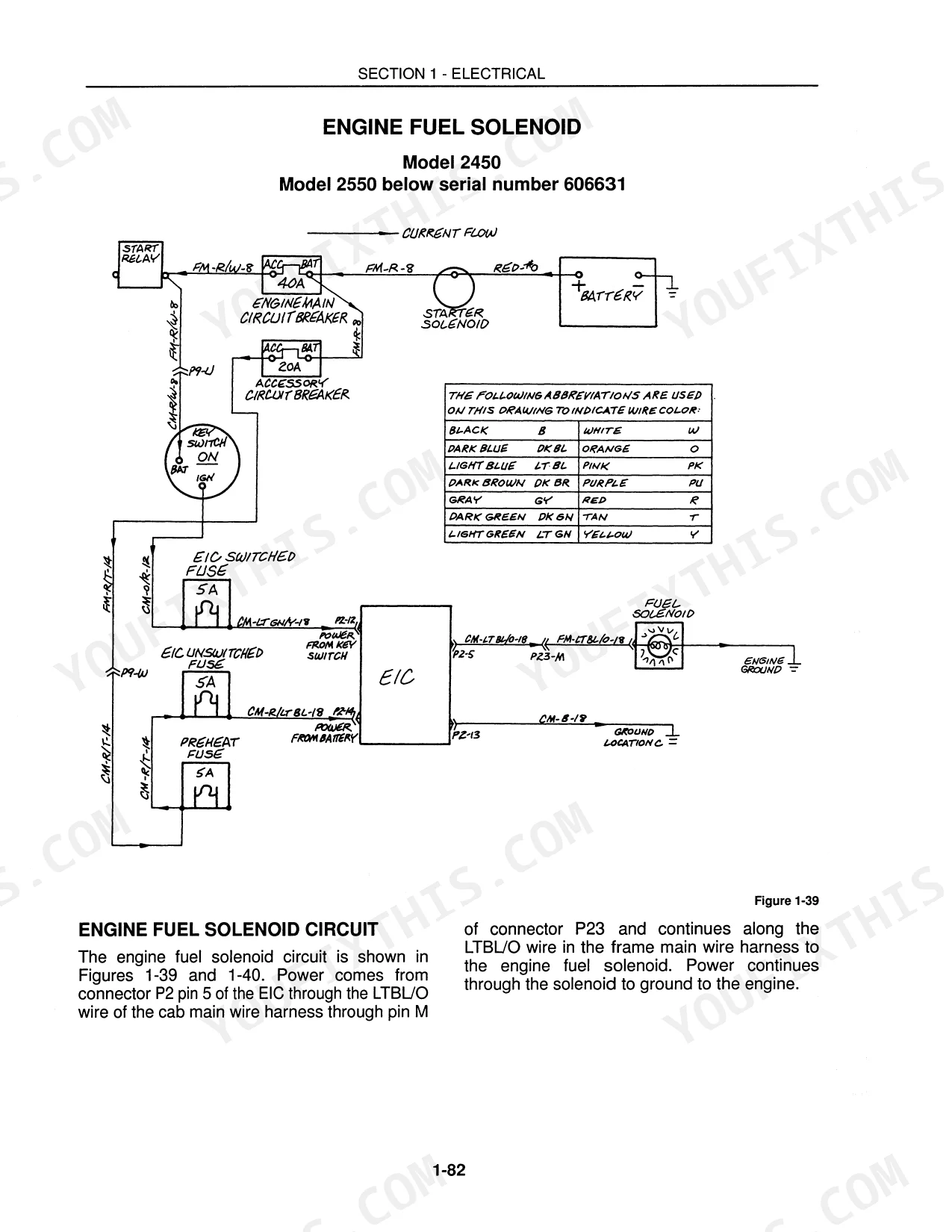

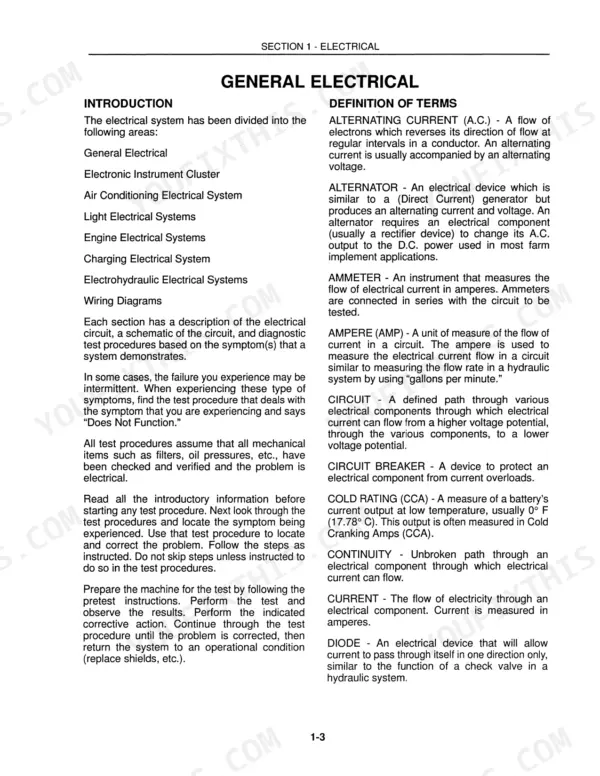

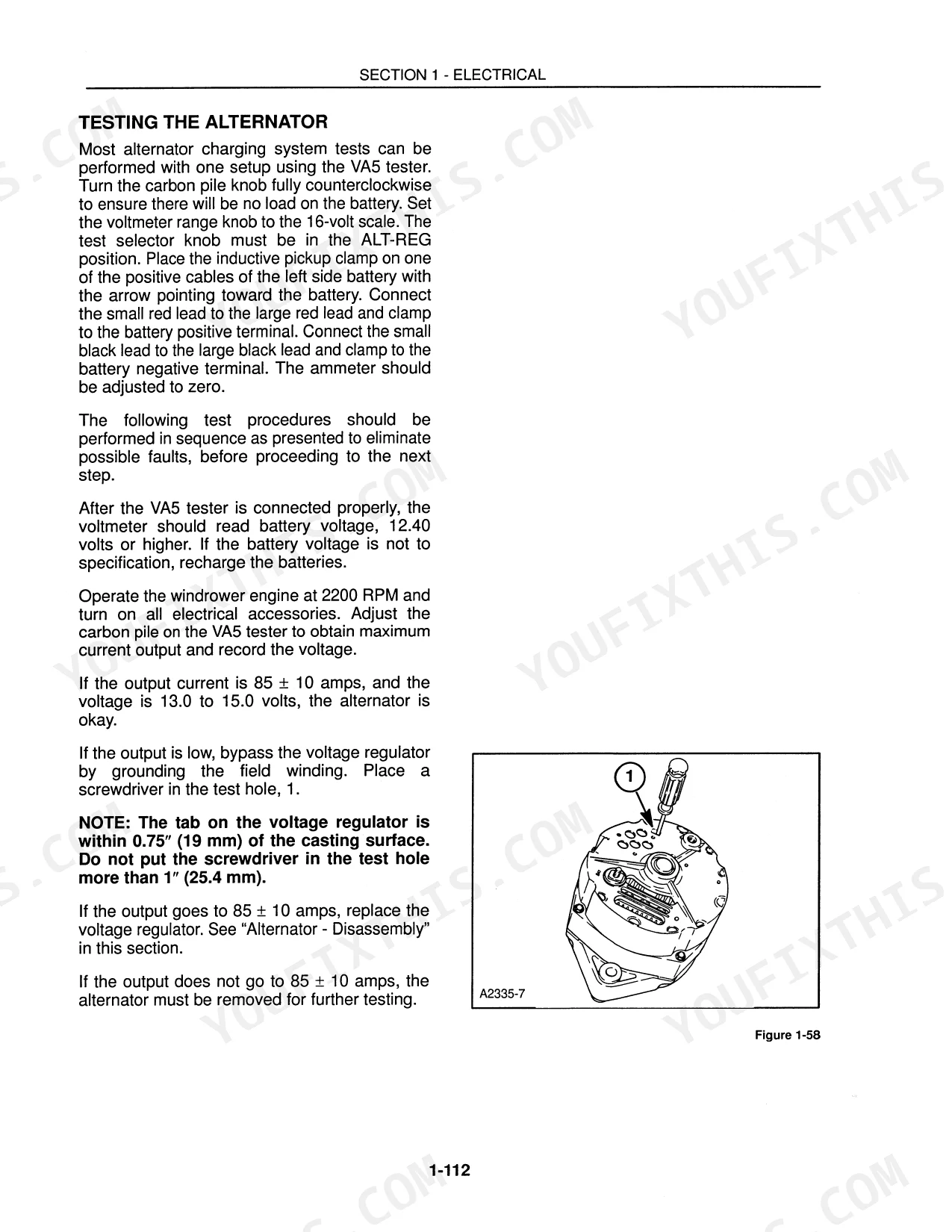

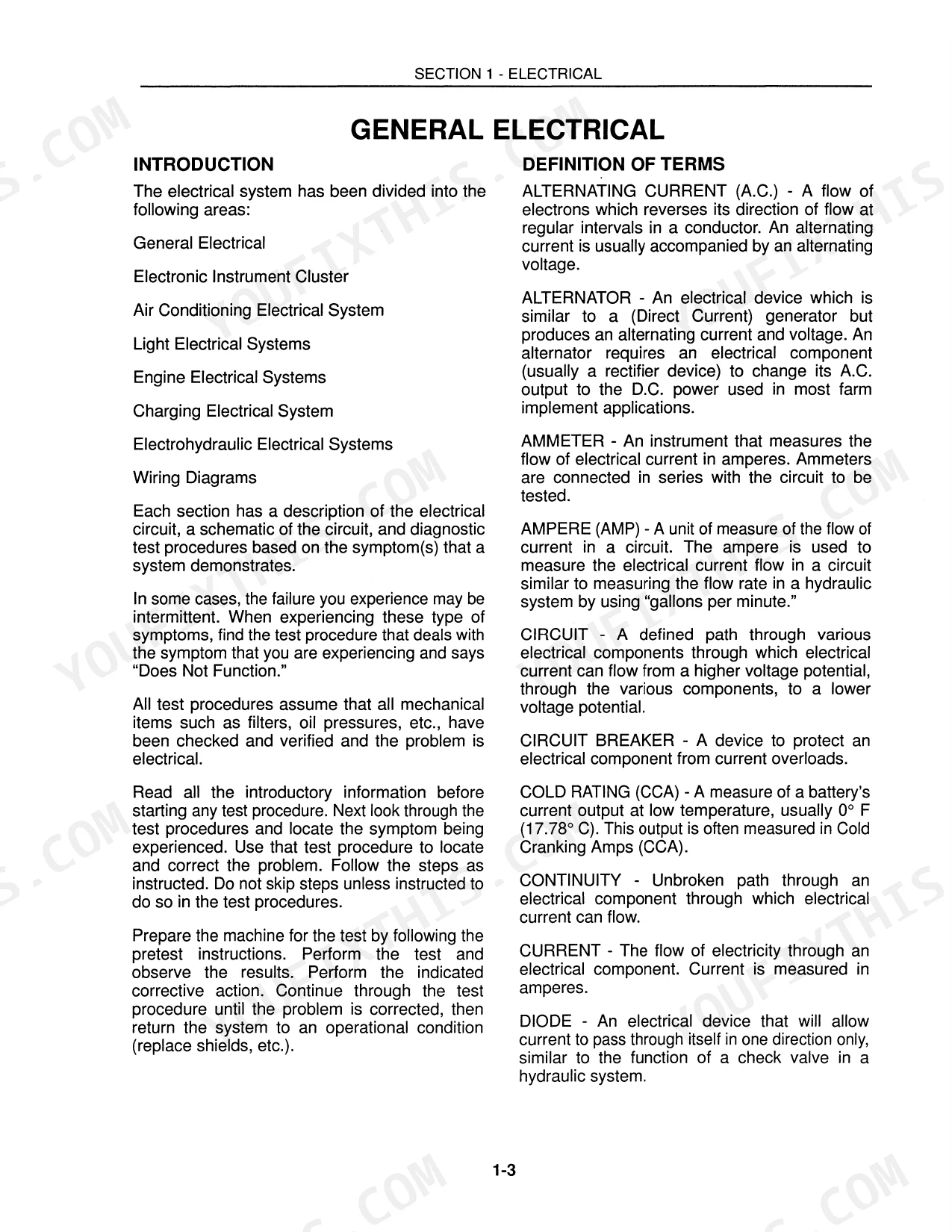

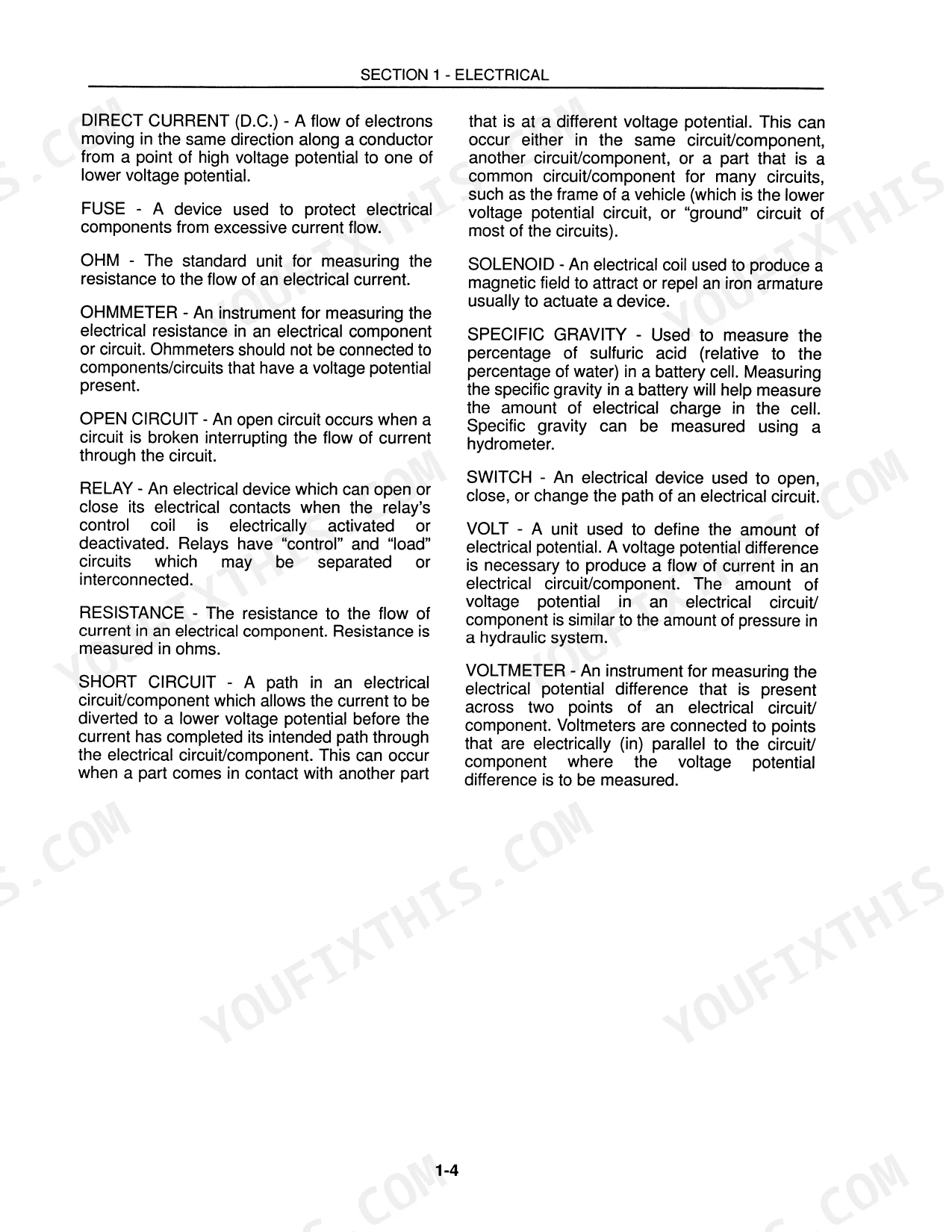

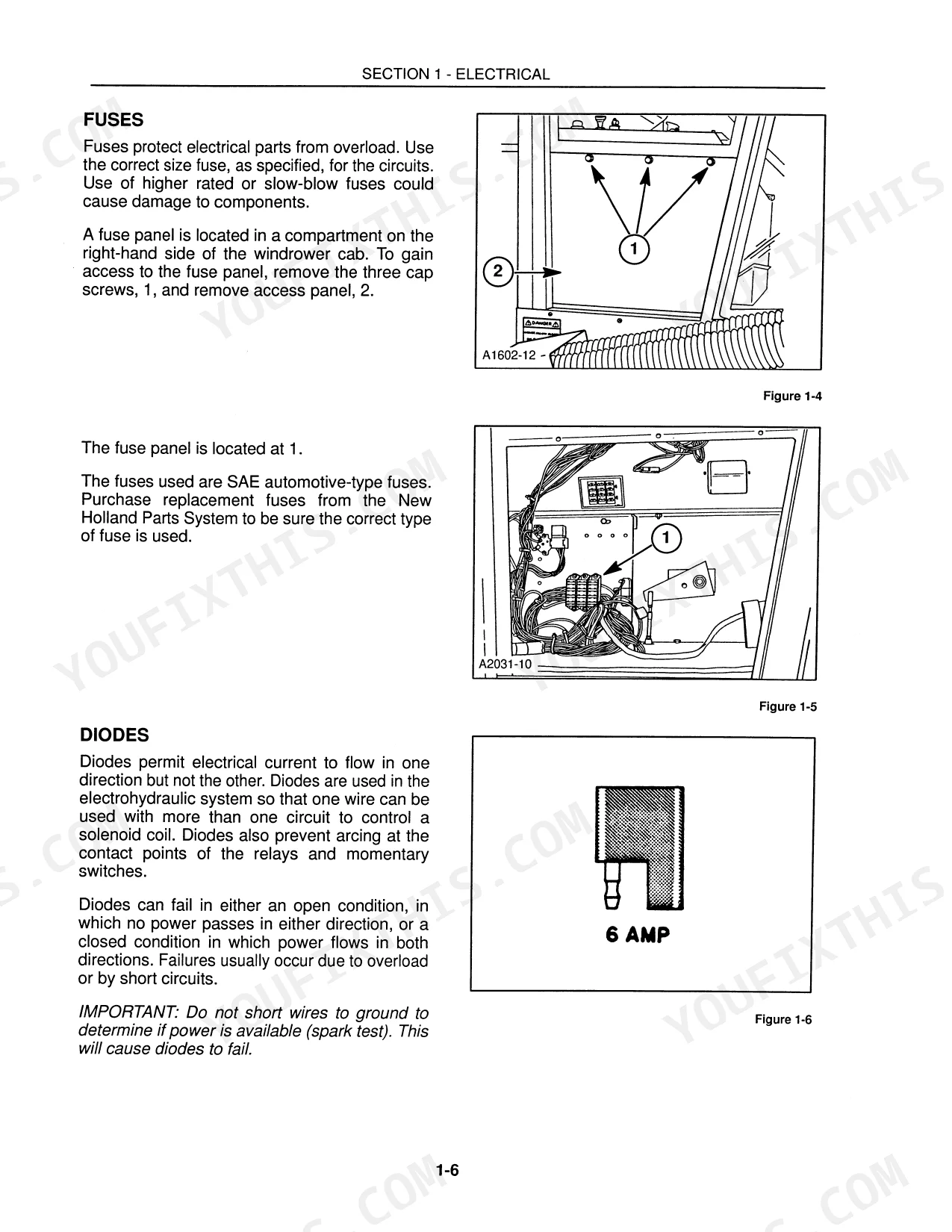

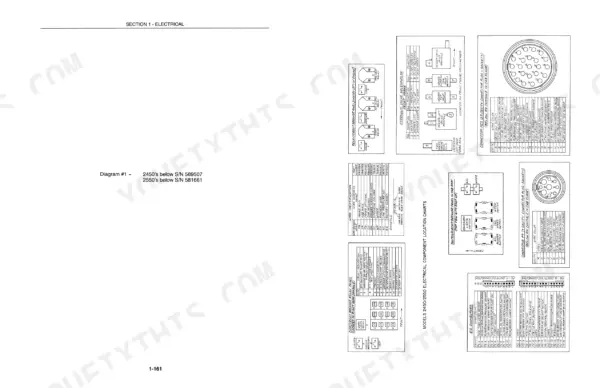

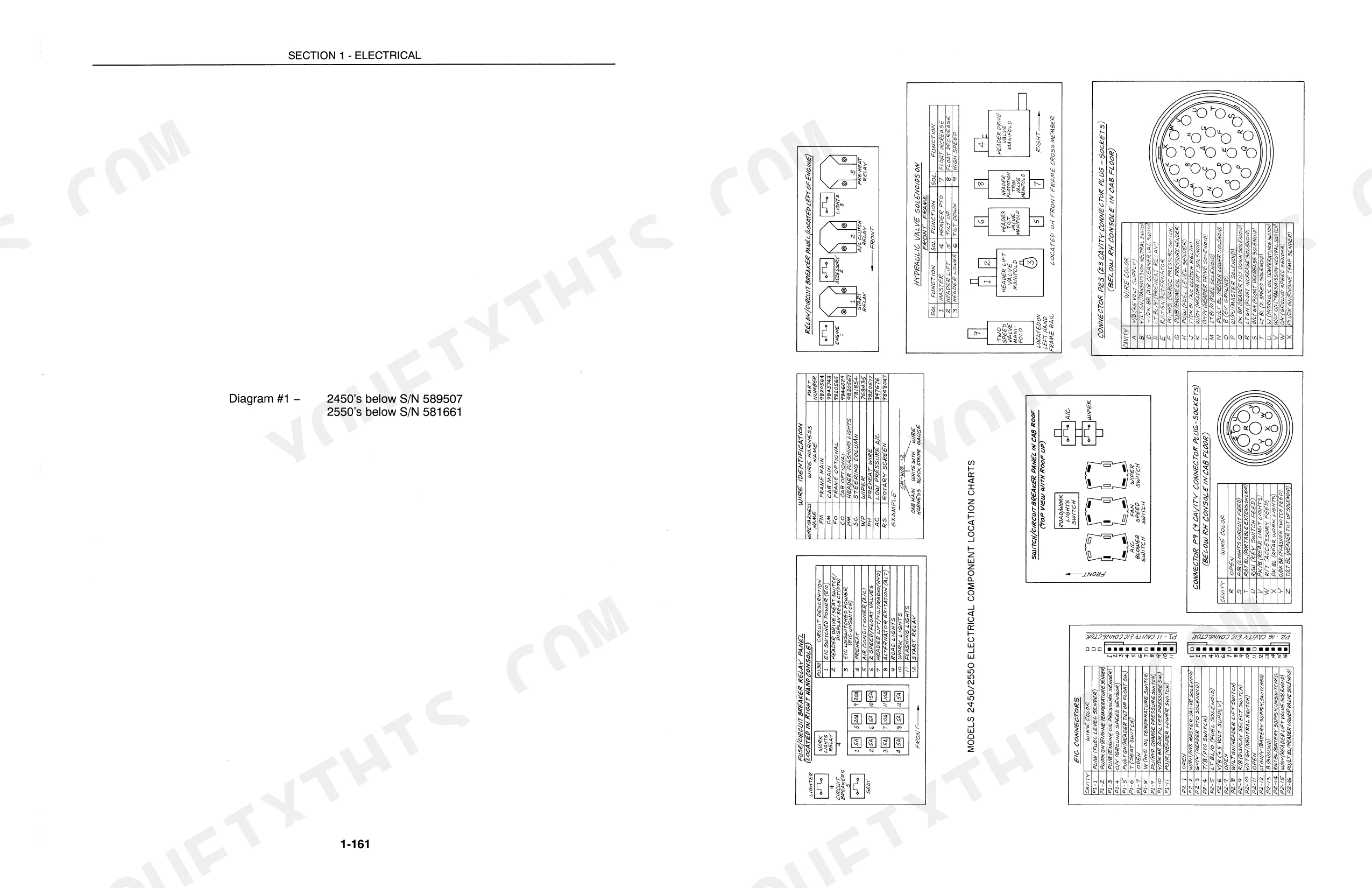

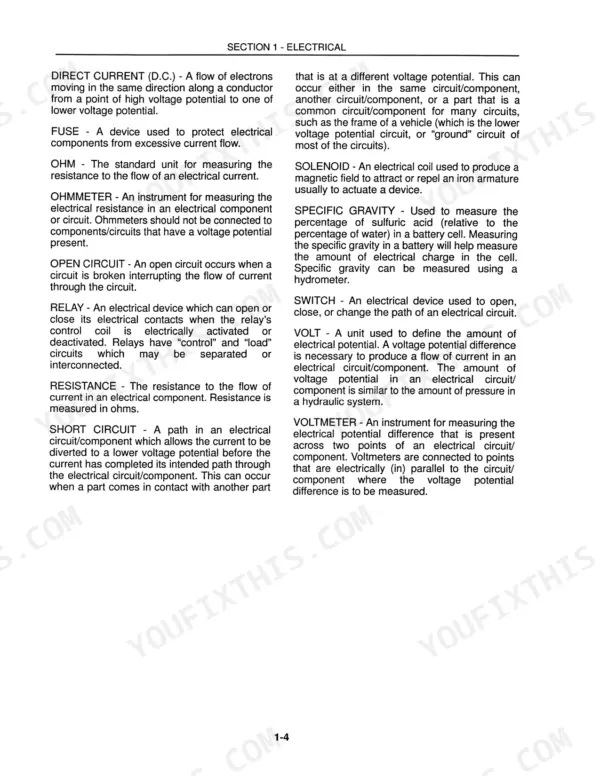

| Electrical | 1-180 | Electrical System Components, Electronic Instrument Cluster (Eic Main Power Circuit, Ground Speed, Eic Display Scroll Main Power Circuit) |
| Hydraulic System | 181-270 | Header Drive, Header Lift, Hydraulic Header Tilt and Flotation Trim |
| Hydrostatic System | 271-374 | Hydrostatic Transmission, Minor Repairs, Major Repairs, Start-Up and Maintenance, Specifications, Authorized Service Centers - North America, Operation |
| Final Drives | 375-406 | Planetary Final Drive |
| Brake System | 407-420 | Parking Brake, Brakes |
| Engine | 421-610 | Engine Removal and Installation, Disassembly and Overhaul (Cylinder Head, Valves, And Related Parts, Cylinder Block, Specifications), Special Tools, Fuel & Induction System |
| Air Conditioning | 611-670 | Introduction, Air Conditioning Process, System Components - Description and Operation |
Every system also includes an index and labor guide.
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Charge Pump Relief Setting | 15.8 bar (230 PSI) | p. 369 |
| Refrigerant Type and Quantity | 5.6 lbs R134a | p. 627 |
New Holland 2450, 2550 Common Problems This Manual Covers

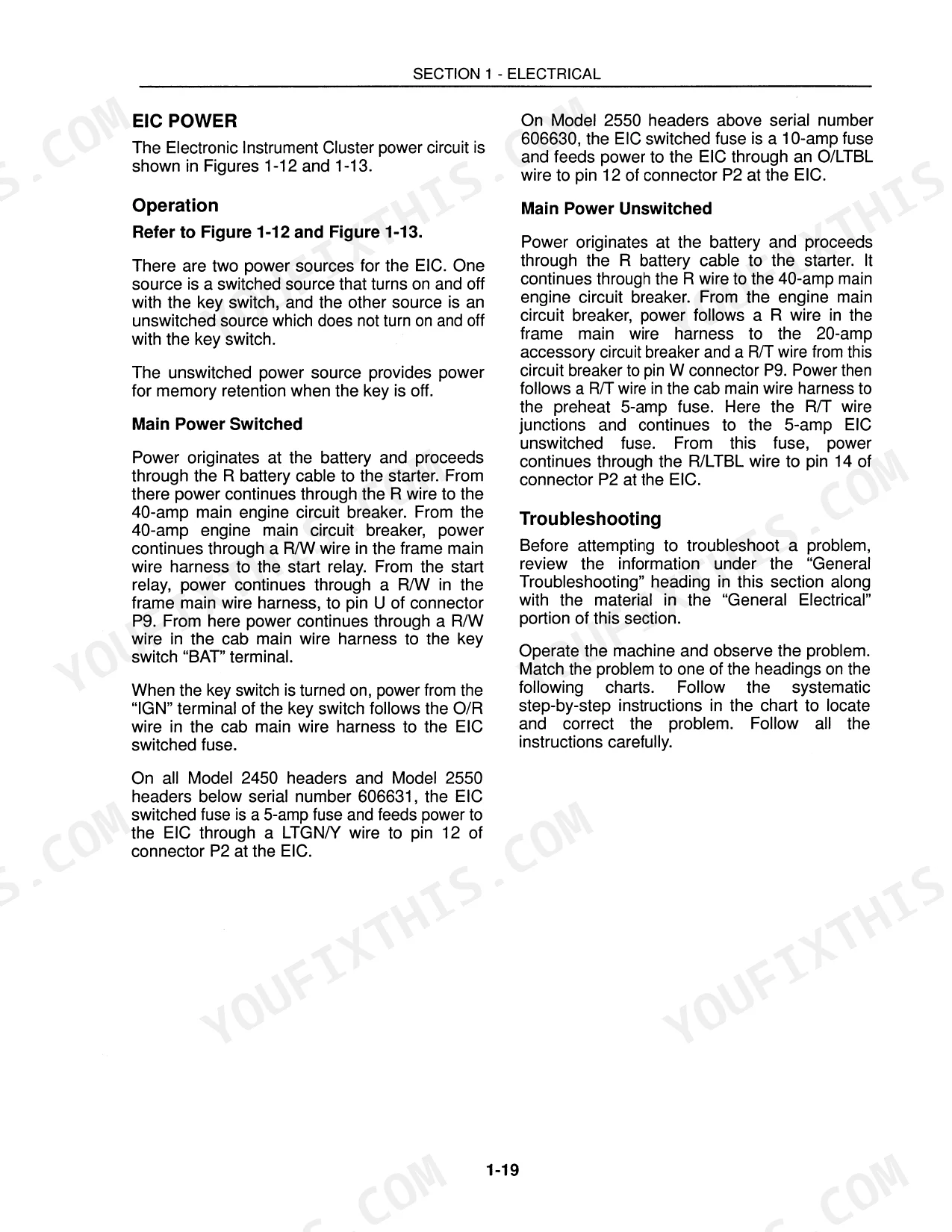

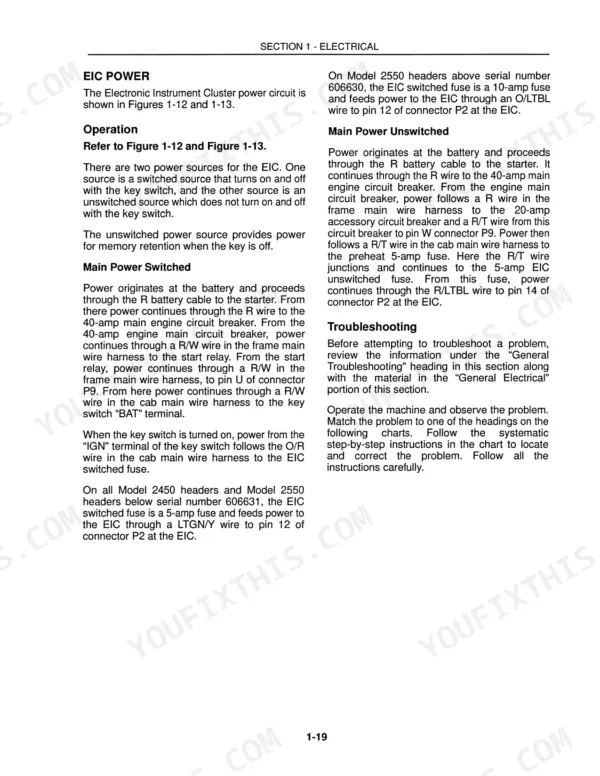

New Holland 2450 EIC display stays blank and instrument cluster won't power up on key-on
Check the EIC main power troubleshooting procedure. Verify battery voltage at the main power connector reads above 12 volts, then inspect the primary power fuse and ground strap for corrosion. Clean and reseat all EIC harness connectors before condemning the cluster itself.
Manual Section: EIC Does Not Power UpHydrostatic transmission overheats and machine gradually loses propulsion after a few hours in the field p. 369
Pull the charge pump relief valve and test it against the 15.8 bar (230 PSI) setting listed on page 369. A relief valve stuck open or set low starves the drive circuit and lets oil temperature climb, so replace the valve if it won't hold spec and recheck fluid level.
Manual Section: Hydrostatic SystemAir conditioner compressor clutch engages fine but cab blows warm air with no cooling p. 627
Recover the system and weigh in a fresh charge of 5.6 lbs of R134a as specified on page 627, since a low or overcharged system is the most common cause of warm airflow. Check the sight glass for bubbles and verify the high side pressure with gauges before condemning the compressor.
Manual Section: Air ConditioningInstrument cluster flickers and throws intermittent random fault codes while cutting hay
Cross-reference the fault codes against the error code reference to narrow down which circuit is dropping out. Wiggle-test the main harness connectors at the EIC and firewall bulkhead while watching for the code to reset. Measure battery voltage at the connector, confirm it reads above 12 volts, and torque loose ground lugs to spec.
Manual Section: General Electrical TroubleshootingFrequently Asked Questions
How to reset the error codes on New Holland 2450 and 2550 windrowers?
The manual states that error codes stored in the Electronic Instrument Cluster (EIC) memory are automatically erased when the EIC is taken out of diagnostic mode and powered up. To enter diagnostic mode, turn the ignition key to the off position, then depress and hold switch S2 while turning the ignition key to the on position. Release S2 after the software revision (e.g., R01.00) is displayed.
What are the torque specs for the drive motor on New Holland 2450 and 2550?
For the header drive motor, the manual specifies using two 1/2" x 1-1/2" cap screws and lock washers, torqued to standard specifications. The "INCH HARDWARE" table lists general torque values for 1/2-13 bolts as 88 N·m (65 ft. lbs.) and for 1/2-20 bolts as 102 N·m (75 ft. lbs.). The specific thread pitch for the cap screws is not provided.
How do I clear the hydraulic trim kit error on New Holland 2450 and 2550?
The manual indicates that error codes, including those related to the hydraulic trim kit, are erased from the Electronic Instrument Cluster (EIC) memory when the EIC is taken out of diagnostic mode and powered up. To enter diagnostic mode, turn the ignition key off, press and hold switch S2, then turn the key on and release S2 after the software revision (e.g., R01.00) appears.
How to reset the self-propelled windrower computer on New Holland 2450
To "reset" the self-propelled windrower computer (Electronic Instrument Cluster or EIC) in terms of clearing error codes, you need to enter and then exit diagnostic mode. This process involves turning the ignition key off, pressing and holding switch S2, turning the ignition key on, and releasing S2 after the software revision (e.g., R01.00) is displayed. Error codes are erased from memory when the EIC is taken out of diagnostics and powered up.
How will I receive this New Holland 2450, 2550 Repair Manual?
A 673-page Repair Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this New Holland 2450, 2550 Repair Manual printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Can I find hydraulic circuit diagrams in this New Holland 2450, 2550 manual?
Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the New Holland 2450, 2550.
