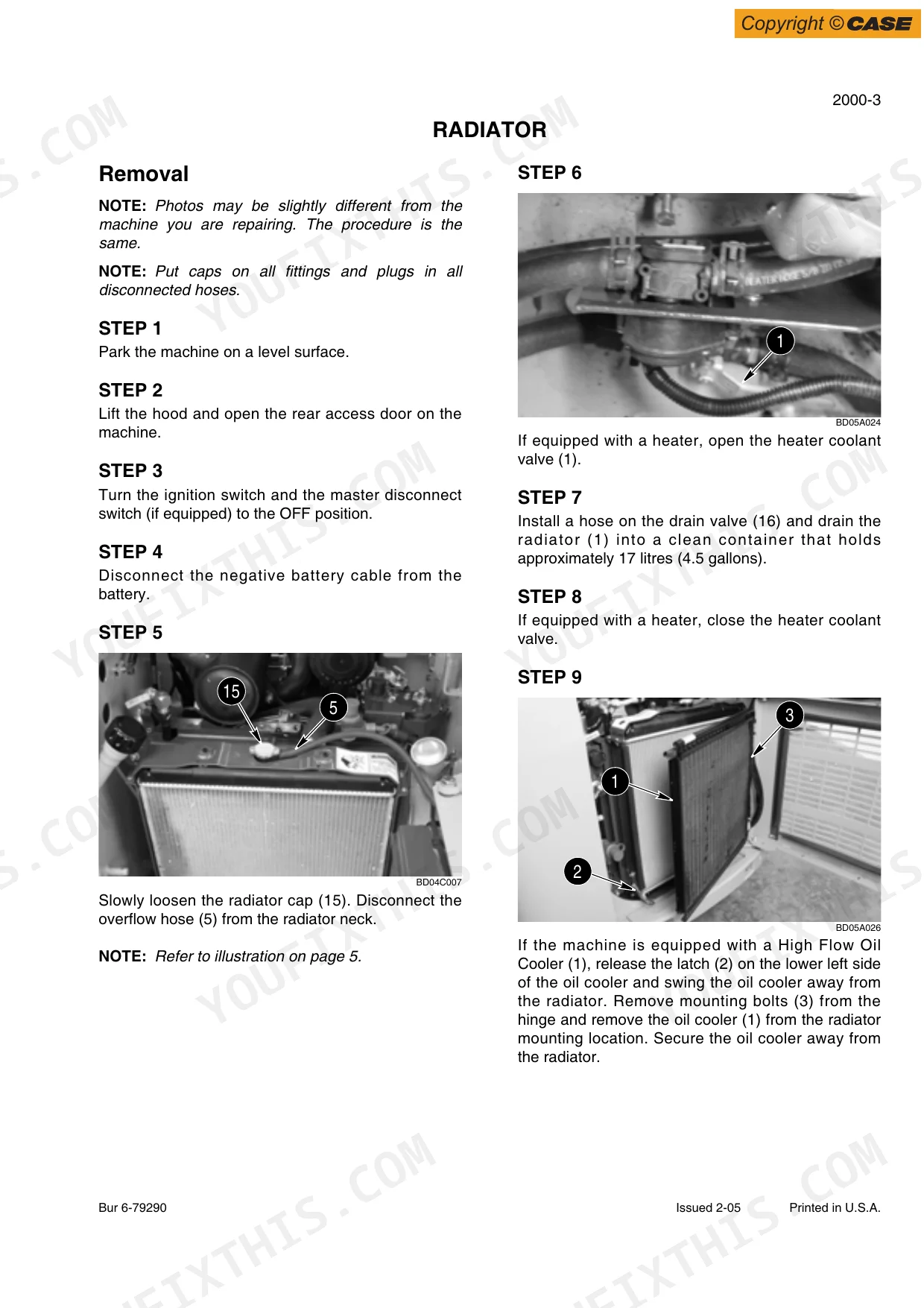

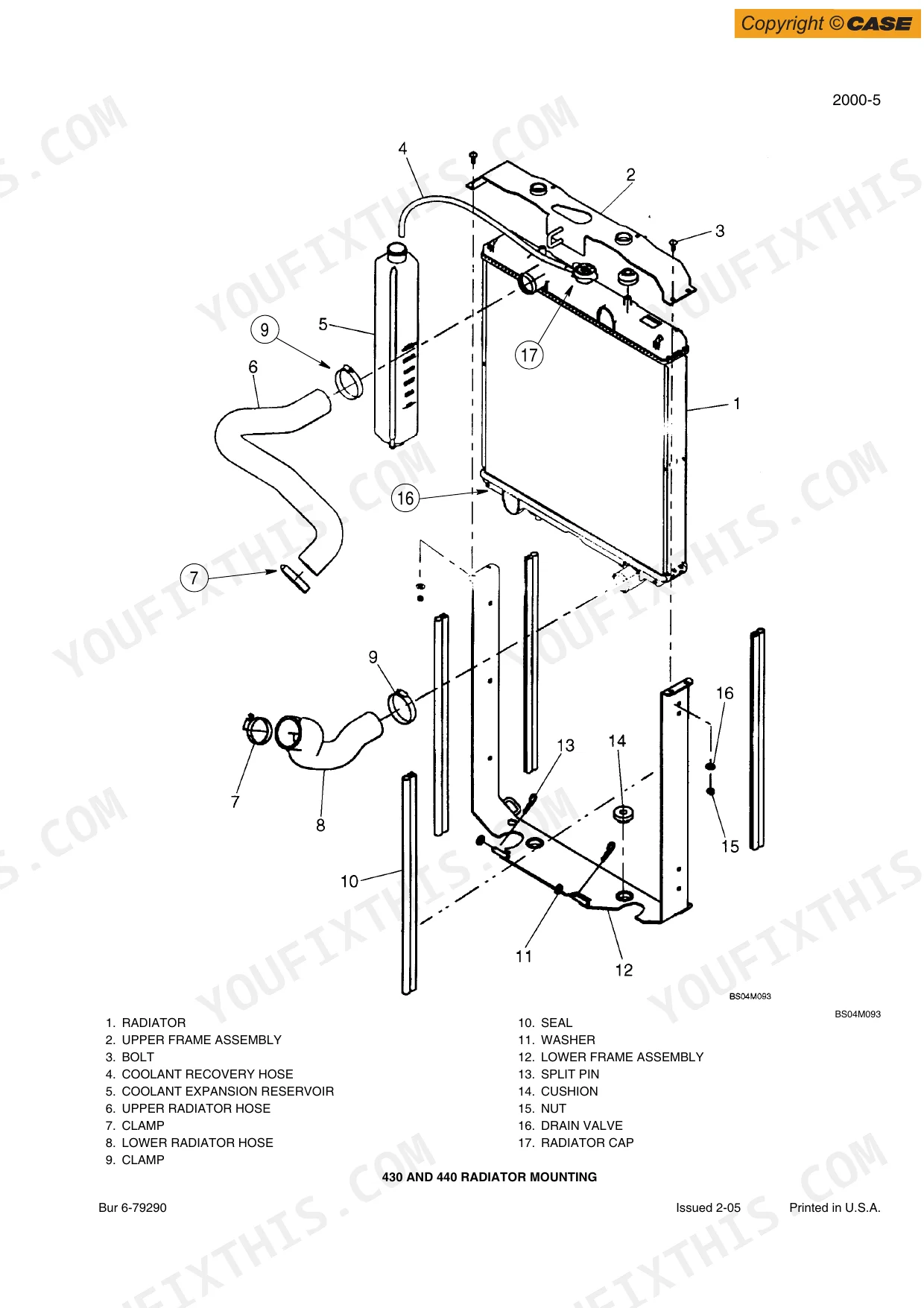

Looking for the factory specs behind your Case 410 repair manual? This 976-page OEM reference (Bur 87634767) covers nine machines: 410, 420, 420CT, 430, 440, 440CT, 450, 450CT, and 465 skid steers and compact track loaders. Inside: complete electrical schematics and troubleshooting charts for mechanical, pilot-control, and Tier 3 configurations; hydrostatic system theory and fault isolation; piston pump and drive motor rebuild procedures; plus hydraulic schematics with full fluid routing. You also get pinout tables, track tensioning steps, and a thorough HVAC section covering R-134A recovery, evacuation, and recharge. Fill the hydraulic system to 50.2 litres (13.3 gallons), then torque the high-pressure relief valve to 160 ± 10 Nm before startup. Every hour of downtime costs money. Bookmarked by system and keyword-searchable — open it on any device and get the right number on the first try.
What's Inside This Case 410–465 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 5-30 | Section Index - General, Fluids and Lubricants, Fluids and Lubricants Tier 3 Engines, Standard Torque Specifications, Metric Conversion Chart |
| Engine | 31-84 | Section Index - Engines, Engine and Radiator Removal and Installation, For Engine Repair - See Engine Service Manual, For 430 Tier 3 Engine Repair - See Tier 3 Engine Repair Manual |
| Fuel System | 85-86 | Section Index - Fuel Systems, For Fuel System Repair - See the Engine Service Manual, For 430 Tier 3 Fuel System Repair - See Tier 3 Engine Repair Manual |

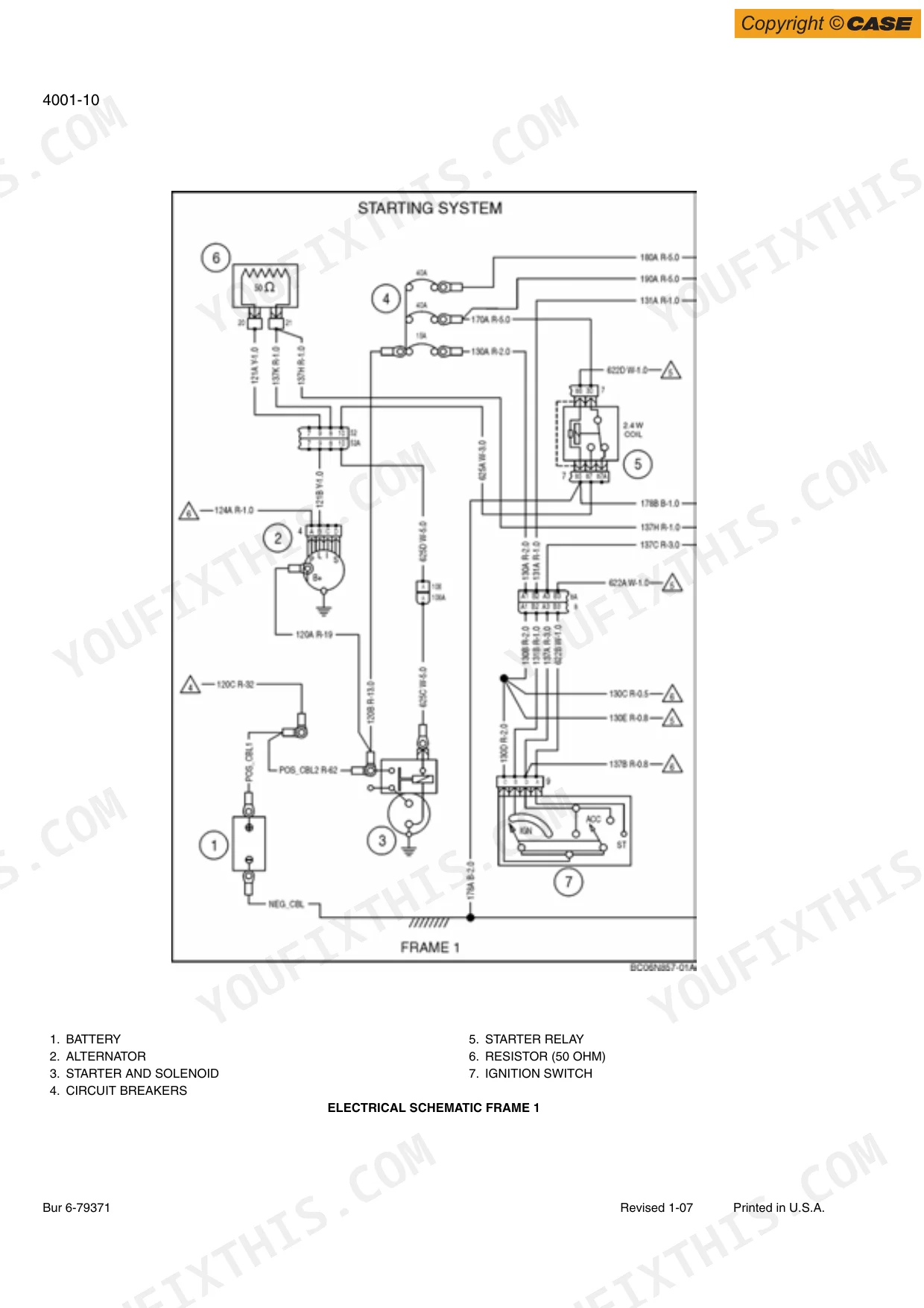

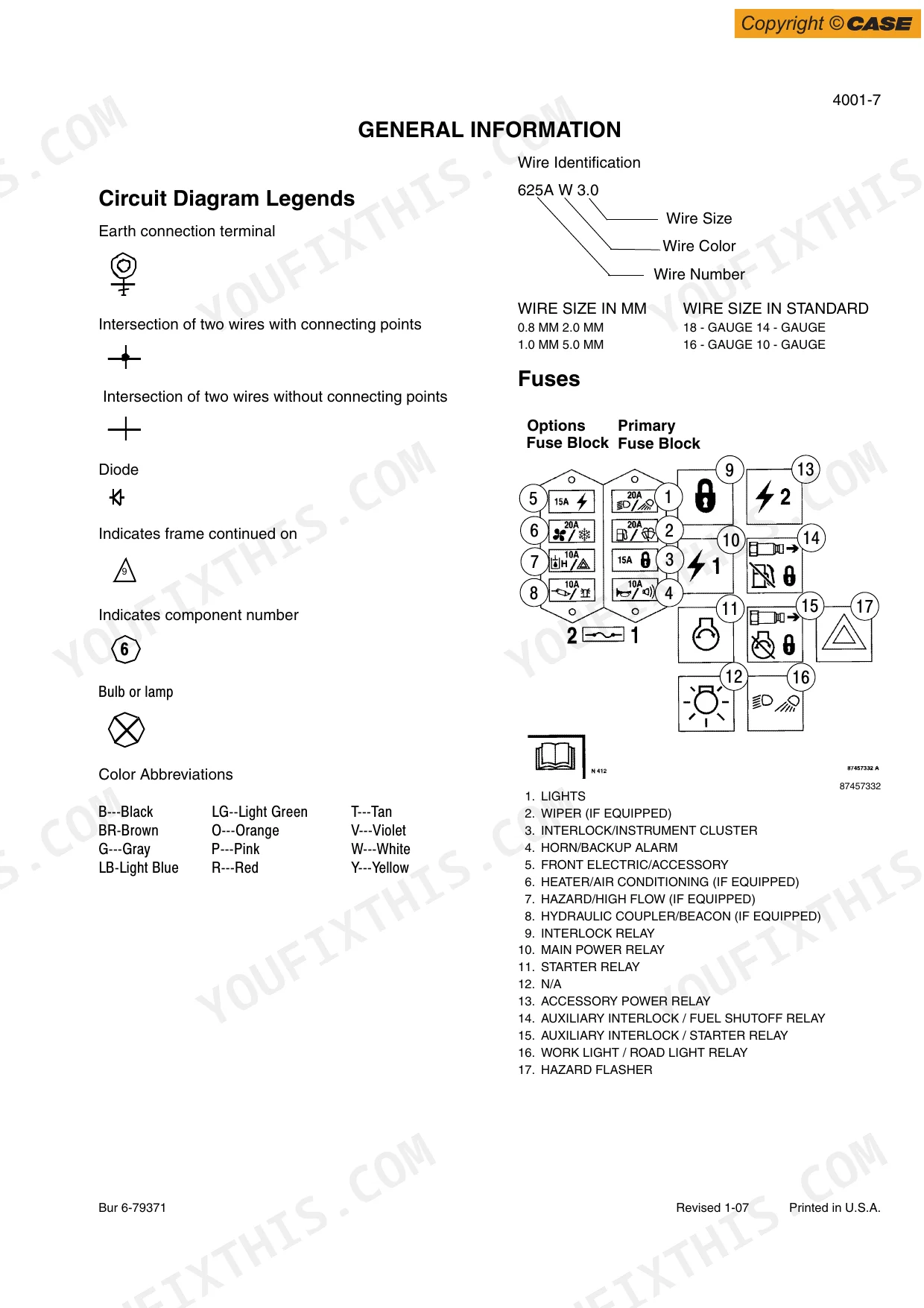

| Electrical System | 87-330 | Section Index - Electrical, Electrical System Specifications, Troubleshooting, And Schematics, Battery, Starter and Starter Solenoid |
| Tracks | 331-352 | Rubber Track, Adjusting the Rubber Track Tension, Track Tensioning Mechanism, Drive Sprocket, Idler Wheels, Rollers |
| Power Train | 353-570 | Section Index - Power Train, Hydrostatic System "How It Works", Hydrostatic System Troubleshooting, Removal and Installation of Hydrostatic Components, Drive Coupling |
| Brakes | 571-582 | Section Index - Brakes, Removal and Installation of Park Brake Components |

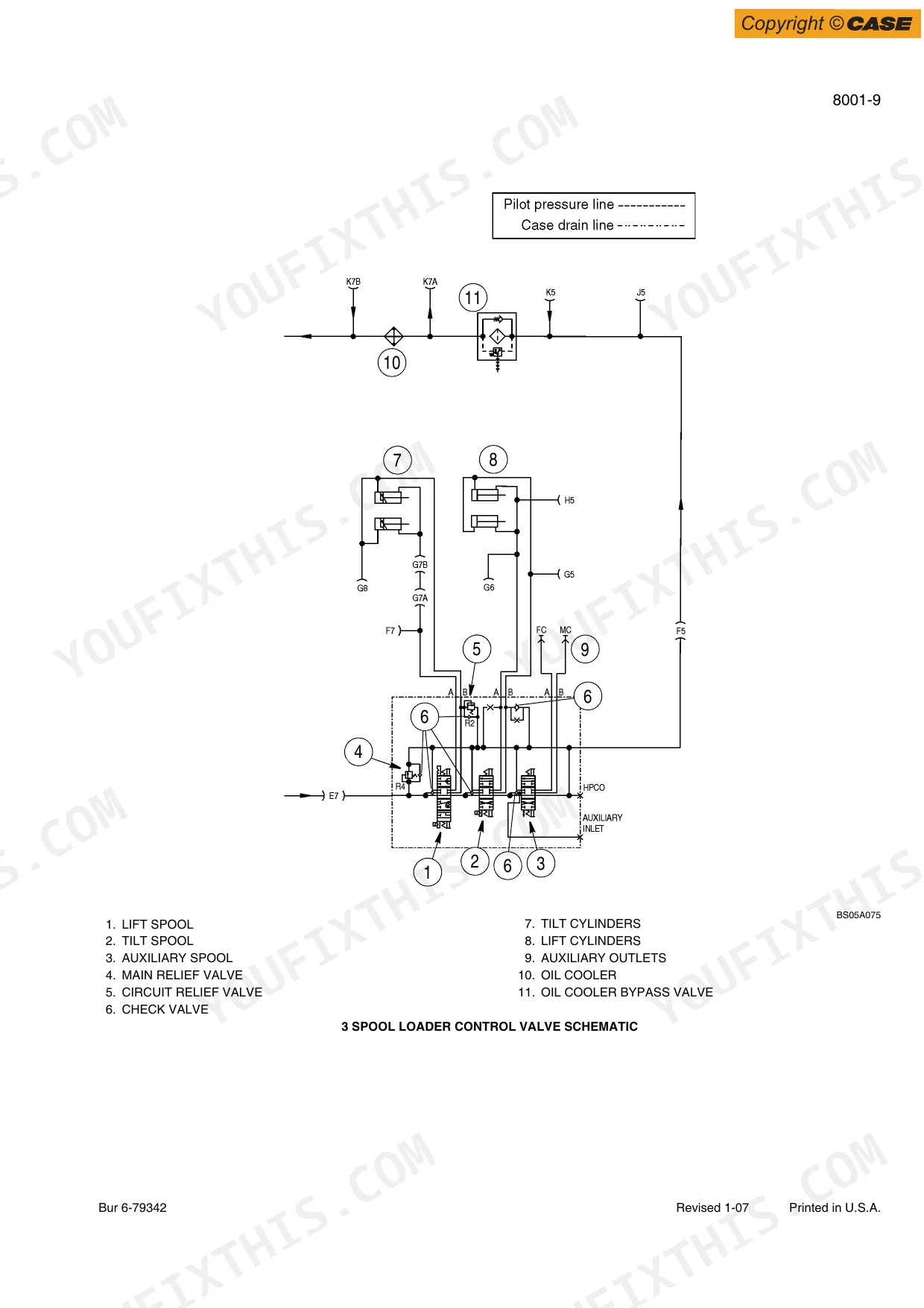

| Hydraulics | 583-706 | Section Index - Hydraulics, Hydraulic System Troubleshooting and Schematics, Cleaning the Hydraulic System and Hydrostatic System, Removal and Installation of Hydraulic Components |
| Mounted Equipment | 707-976 | Section Index - Mounted Equipment, Pedals and Levers, Loader, Attachment Coupler, ROPS Canopy, Seat, Seat Belts, And Operators Compartment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 430, 440, 440CT | ||
| High Pressure Relief Valve Torque | 160 ± 10 Nm (110-125 pound-feet) | p. 487 |
| Low Pressure Relief Valve Torque | 70 Nm (52 pound-feet) | p. 487 |
| Tier 3 Engines | ||
| Fuel Tank Capacity | 88.2 litres (23.3 U.S. gallons) | p. 15 |
| 430/440/440CT Tier 3 Engines | ||
| Cooling System Capacity | 11.4 litres (12.1 quarts) | p. 15 |
| All Models | ||
| Hydraulic System Total Capacity | 50.2 litres (13.3 gallons) | p. 9 |

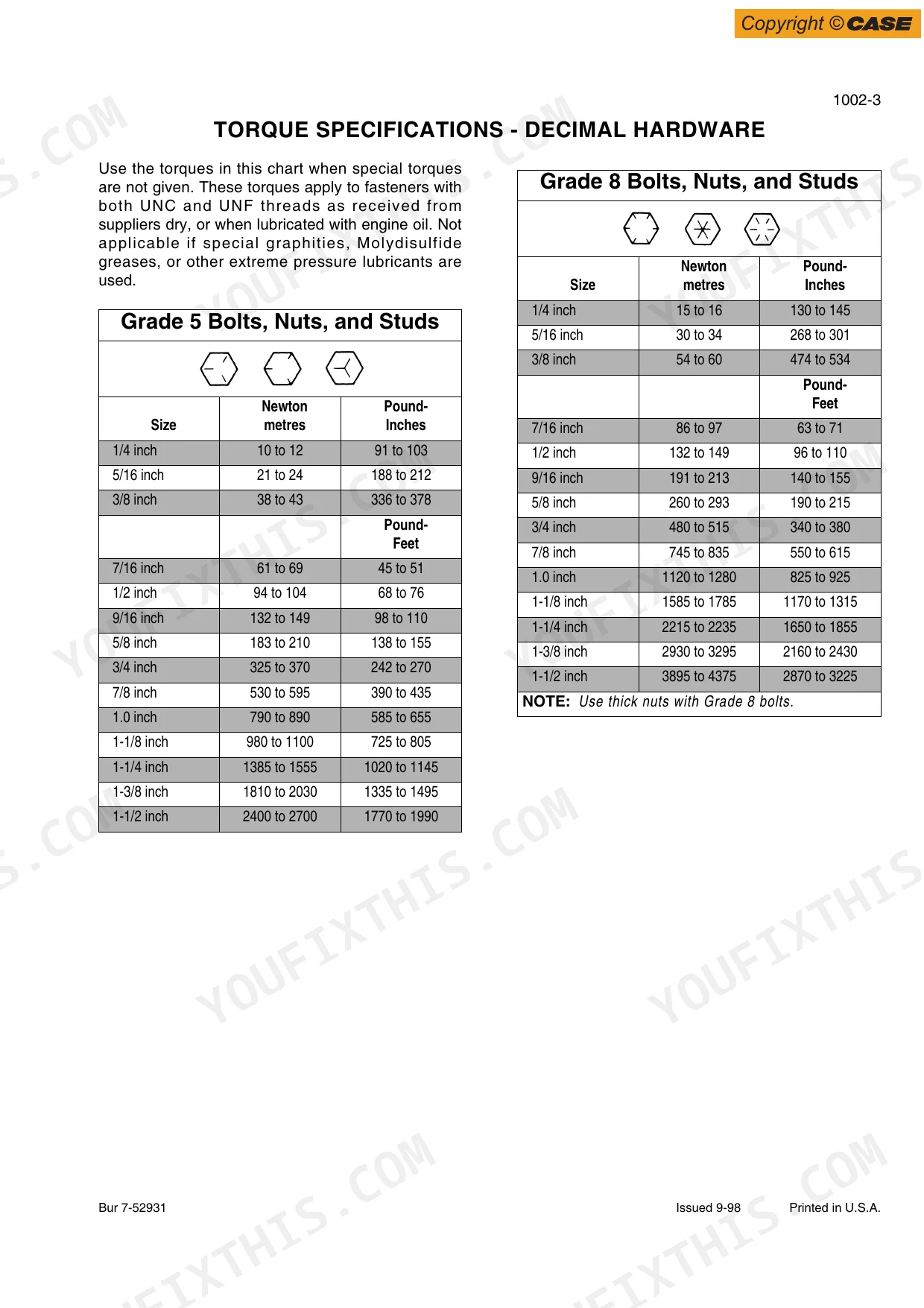

| Grade 8 Bolts, Nuts, and Studs (1/4 inch) Torque | 15 to 16 Newton metres (130 to 145 Pound Inches) | p. 21 |
| Starter No-Load Test Volts | 12 volts | p. 315 |
| Drive Sprockets Final Torque | 285 to 320 Nm (208 to 235 pound-feet) | p. 335 |
| Loader Control Valve Main Relief Pressure | 20,700 ± 345 kPa (207 ± 3.5 bar) (3000 ± 50 psi) | p. 587 |
| 430 Machines | ||
| Engine Crankcase Oil Capacity (with filter change) | 8.5 litres (9 quarts) | p. 15 |
| 440 and 440CT Machines | ||
| Engine Crankcase Oil Capacity (with filter change) | 12 litres (12.7 quarts) | p. 15 |
| 430,440 and 440CT Machines | ||
| Hydrostatic Pump Displacement | 46 cc (2.81 in3) | p. 397 |
Case 410–465 Common Problems This Manual Covers
Case 440 skid steer wiring harness ground failure, EIC dead, machine won't start

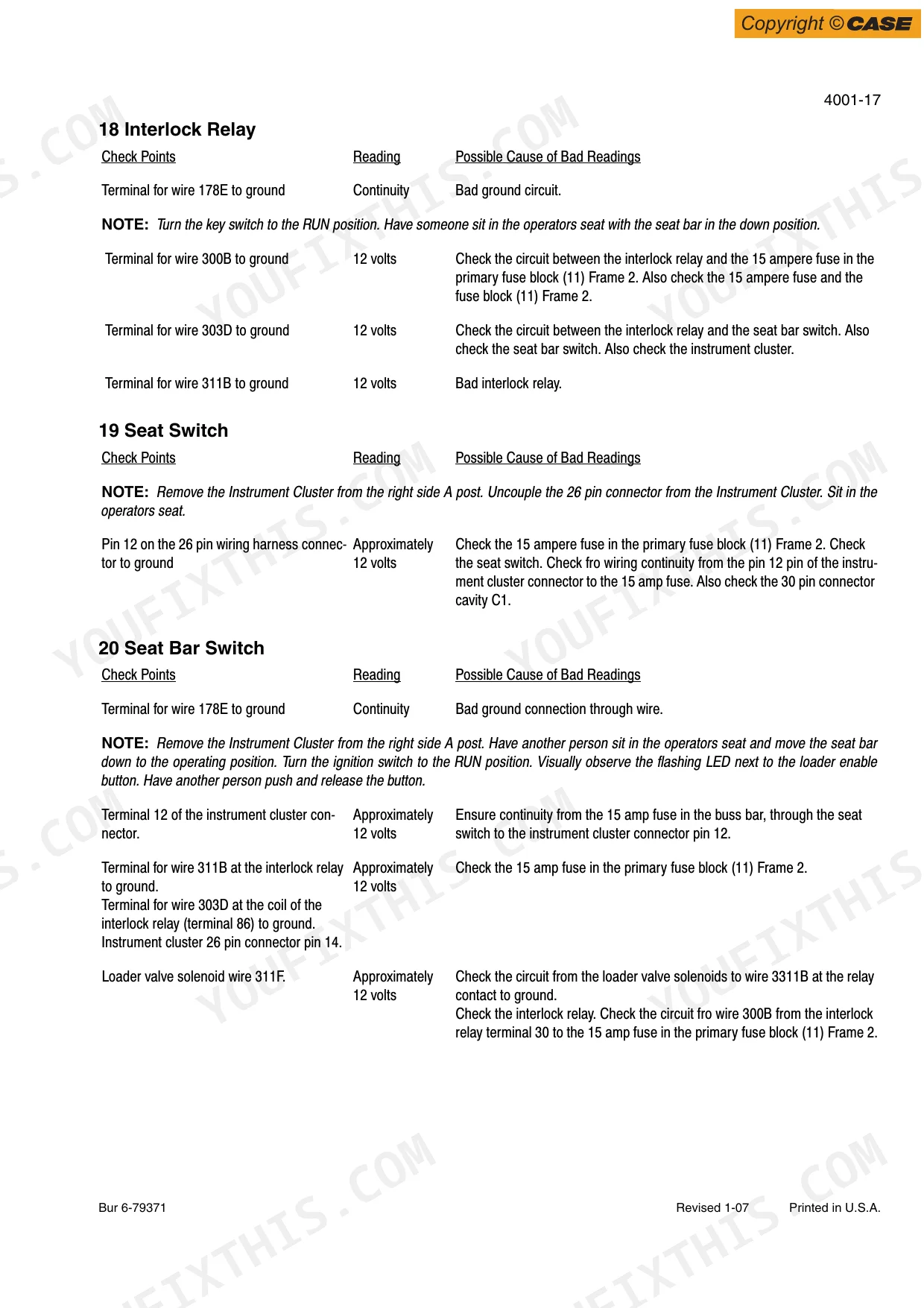

Inspect all chassis and battery ground connections before chasing wiring faults deeper. Pull the wiring diagram and compare terminal pins against the pinout diagram. Test the starter at 12 volts (page 315); a corroded ground often kills EIC power entirely. Work through EIC no-light conditions using the troubleshooting steps.
Manual Section: Electrical SystemHydraulic lift losing pressure mid-cycle, bucket won't hold position under load p. 587
Connect a gauge to the loader control valve test port and verify main relief pressure reads 3000 ± 50 psi (20,700 ± 345 kPa) per page 587. If pressure is low, remove and inspect the relief valve for contamination or internal bypass. Confirm total hydraulic fluid is at the 50.2-litre (13.3-gallon) capacity mark per page 9.
Manual Section: HydraulicsEngine overheating under sustained load, coolant disappearing, temperature warning light stays on p. 31
Remove the rear screen and blow out radiator fins; debris packs tight in skid steer enclosures fast. Check coolant level against the 11.4-litre (12.1-quart) spec on page 15 (430, 440, and 440CT Tier 3 engines). If level is correct, pressure-test the water pump and thermostat for failure. Engine and radiator removal procedures begin on page 31.
Manual Section: EngineHydrostatic transmission sluggish, machine loses drive power on grades or in soft ground p. 353
Check charge pressure at the hydrostatic circuit test port before pulling any components. On 430, 440, and 440CT machines, pump displacement is 46 cc (2.81 in3) per page 397; a worn pump won't sustain drive pressure under load. Inspect circuit relief valve settings and test per the hydrostatic troubleshooting procedures starting on page 353.
Manual Section: Power TrainRubber tracks walking off idlers or derailing from drive sprockets during operation p. 331
Adjust rubber track tension first using the tensioning mechanism procedure in the Tracks section starting on page 331. Torque all drive sprocket bolts to 285 to 320 Nm (208 to 235 pound-feet) per page 335. Inspect idler wheels and rollers for wear; flat spots or seized bearings create uneven load distribution and cause repeated derailment.
Manual Section: TracksFrequently Asked Questions
Does this instrument cluster fit Case 410, 420CT, 430, 440CT, 450, and 465 skid steer and track loaders?
The manual provides electrical schematics for the instrument cluster/console specifically for 430, 440, and 440CT skid steer and track loaders, including Tier 3 and Cab Up-Grade Machines. While it doesn't explicitly list 410, 420CT, 450, and 465, the schematics are titled for these ranges, suggesting a commonality for the instrument cluster across these models. For example, the electrical schematic on page 969 is titled "430, 440 SKID STEER and 440CT TRACK LOADER".
Is the control handle compatible with Case Skid Steer Loader(s) 410 through 465 including 440CT and 450CT?
The manual provides electrical schematics for throttle control levers, specifically for '430 FOOT AND HAND THROTTLE LEVER' (page 736) and '440/440CT FOOT AND HAND THROTTLE LEVER' (page 738). The overall electrical schematics on page 969 and 973 cover models 430, 440, 440CT, 450, 465, and 450CT, suggesting commonality for electrical components across these models. However, direct compatibility of all control handles across all models (410-465) is not explicitly stated for all types of control handles.
What is the OEM number for the spool lockout solenoid valve replacing models 410, 420CT, 430, 440CT, and 465?
The manual does not provide an OEM part number for the spool lockout solenoid valve. It is listed as component 6 in the "LOADER CONTROL VALVE" schematic on page 594, but no specific part number is given.
How to reset Case 430 Tier 3 track loader error codes after service
The Electronic Instrument Cluster (EIC) on the Case 430 Tier 3 track loader has a setup menu that allows for special machine setup features. To exit the setup menu, you can leave the loader, place the ignition key in either the ACC or ON position, or push and release the auxiliary override button. This action will power down the EIC and reset it without saving any changed information unless it was previously saved using the parking brake button.
What do I get after purchasing this Case 430 & variants manual?
You get a 976-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Are electrical wiring diagrams included in this Case 430 & variants manual?
Yes, this Case 430 & variants Repair Manual includes complete electrical wiring diagrams, wire routing, and connector pinouts.
