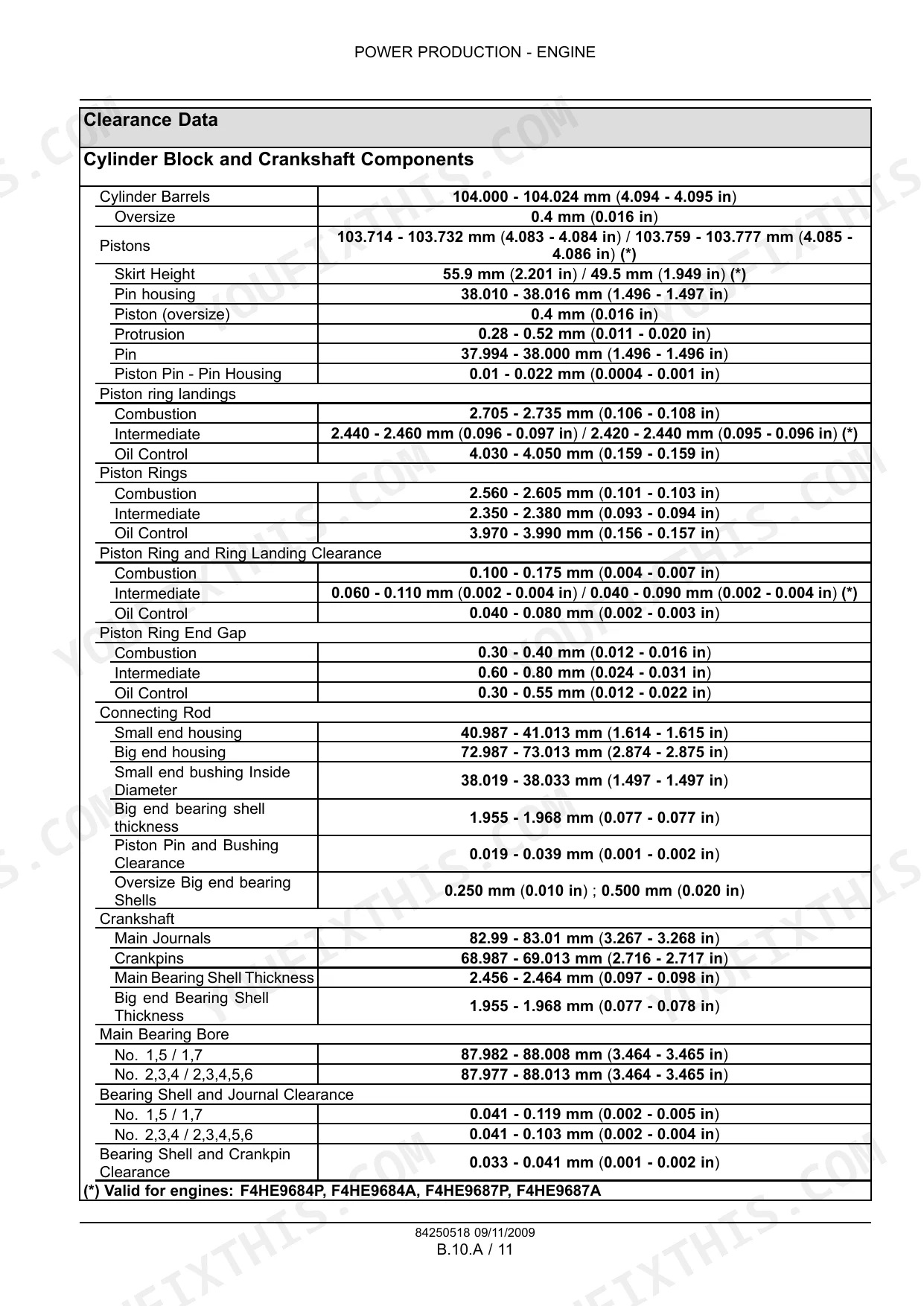

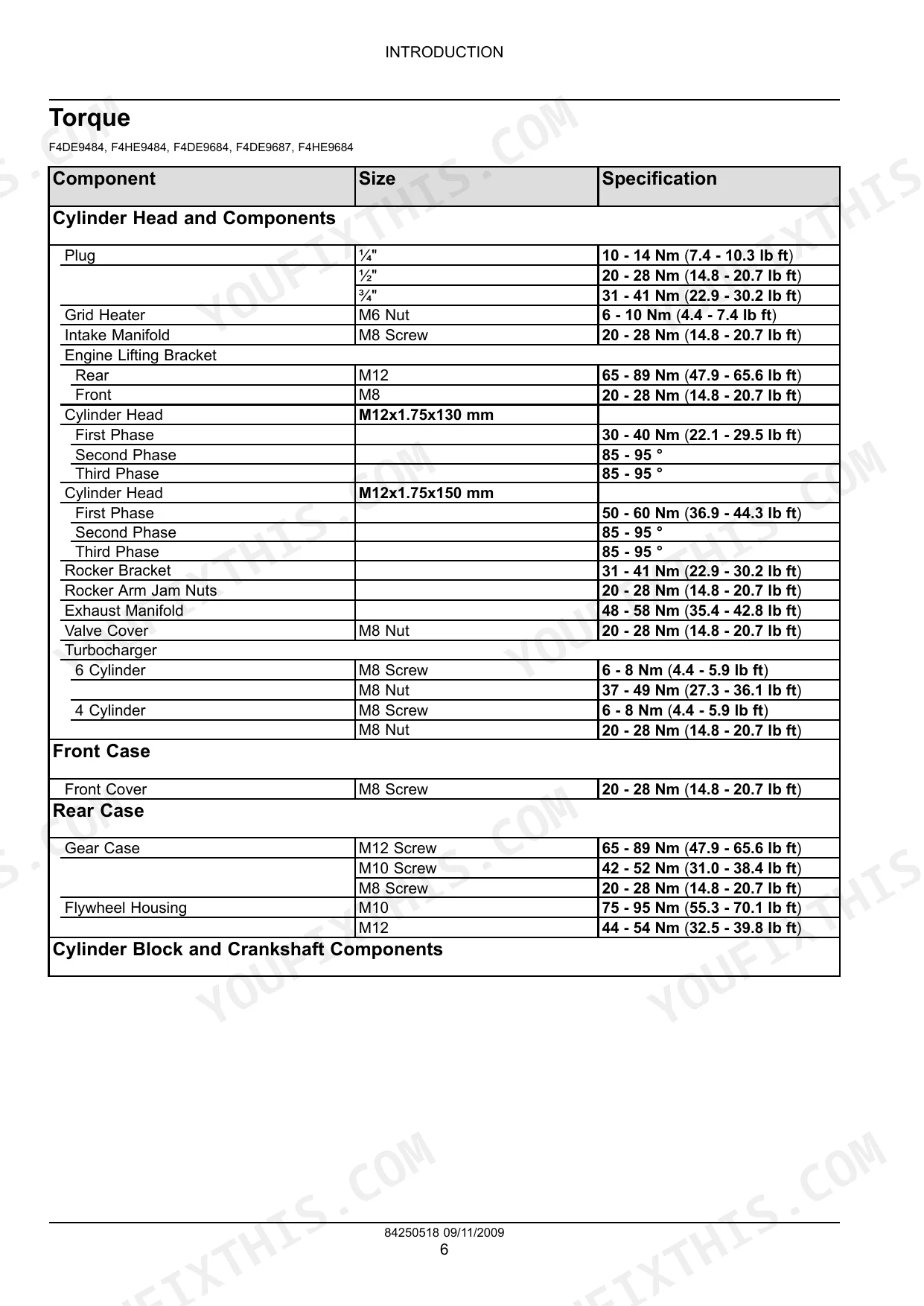

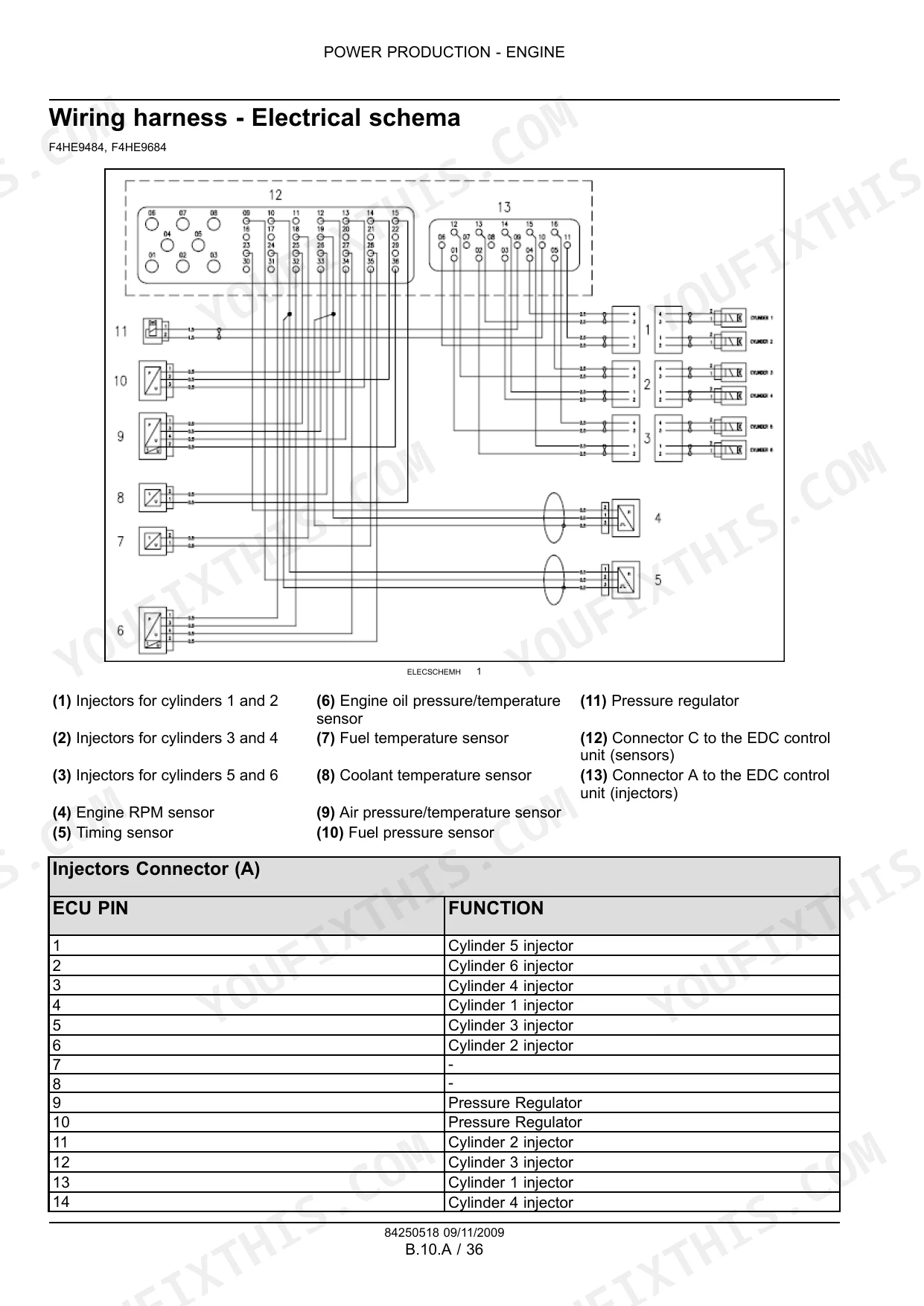

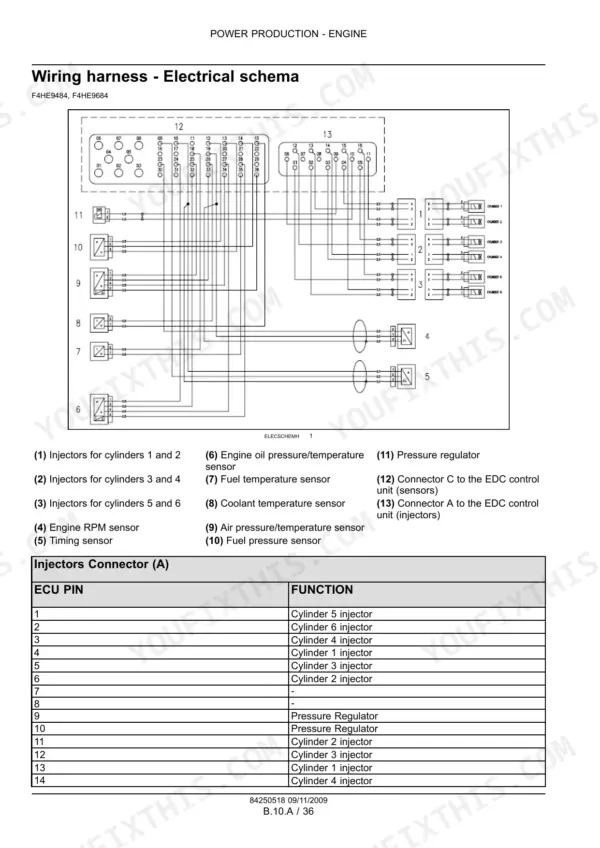

All 474 pages of this Case NEF Tier 3 Service Manual (OEM #84250518) cover the complete engine family: F4CE9484, F4CE9684, F4DE9484, F4DE9684, F4DE9687, F4GE9484, F4GE9684, F4HE9484, and F4HE9684. Inside you'll find wiring diagrams for the electrical power system, exploded views of the lubrication circuit and fuel injection assemblies, and system diagrams spanning the coolant, air intake, exhaust, and starting systems. You also get a dense procedures section walking through valve drive, crankshaft, cylinder head, and high-pressure common rail service, backed by a full torque table and special tool index right in the front matter. Torque the M10 belt tensioner to 37-49 Nm; replace the fuel filter with tool 380000670 at 10-15 Nm. No more chasing engine specs across three different sources. Bookmarked and keyword-searchable, pull it up on your phone or tablet right at the machine.
What's Inside This Case NEF Tier 3 (F4CE–F4HE) Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 4-29 | Foreword, Safety Rules, Torque Specifications, Special Tools |

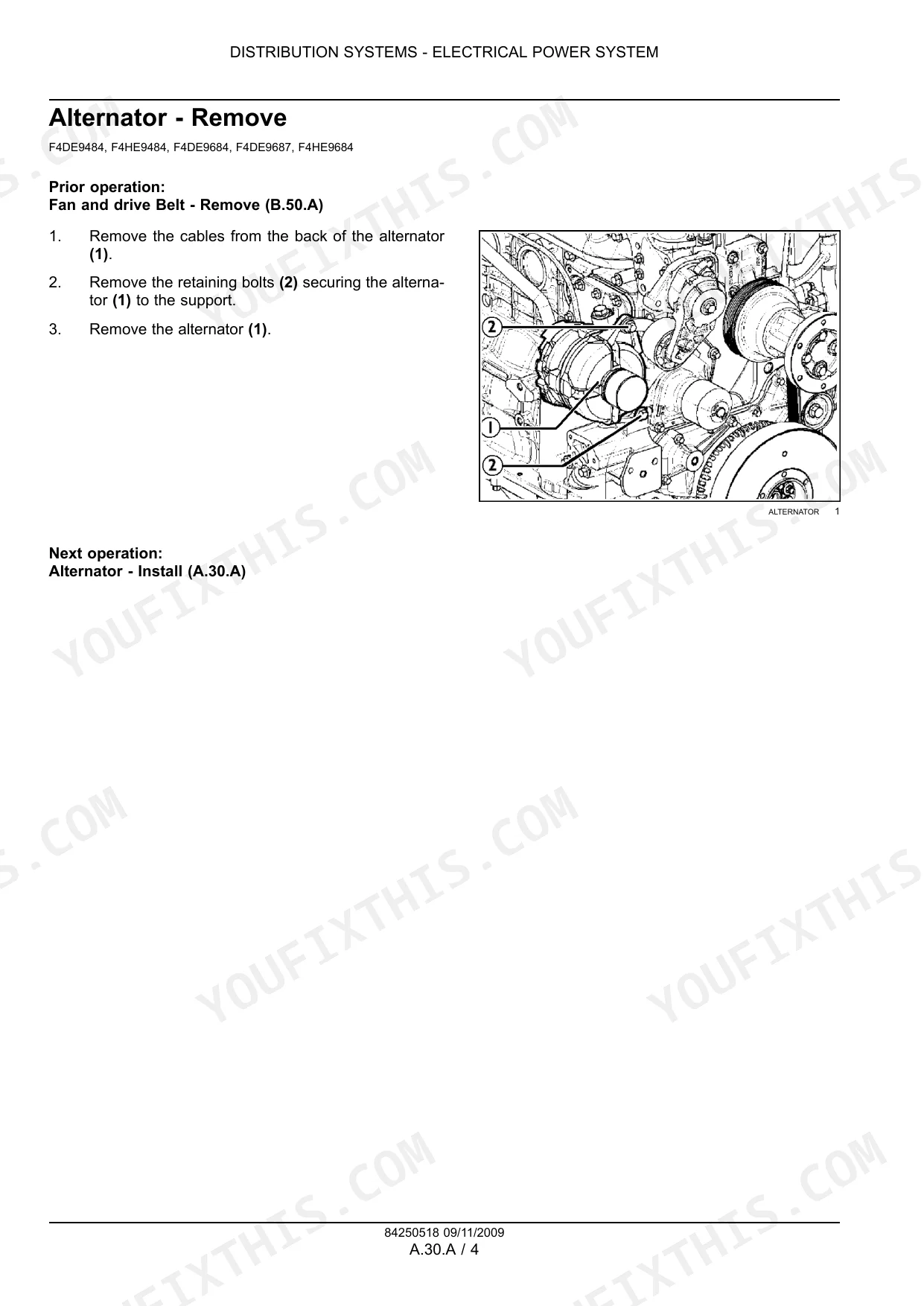

| Distribution Systems - Electrical Power System | 30-38 | Alternator Overview, Alternator Removal, Alternator Installation, Electrical System Index |
| Power Production - Engine Specifications & Controls | 40-100 | Cylinder Block, Crankshaft, Valve Drive, Connecting Rod and Piston, Wiring Harness, Electronic Control, Sensing System, Flywheel |

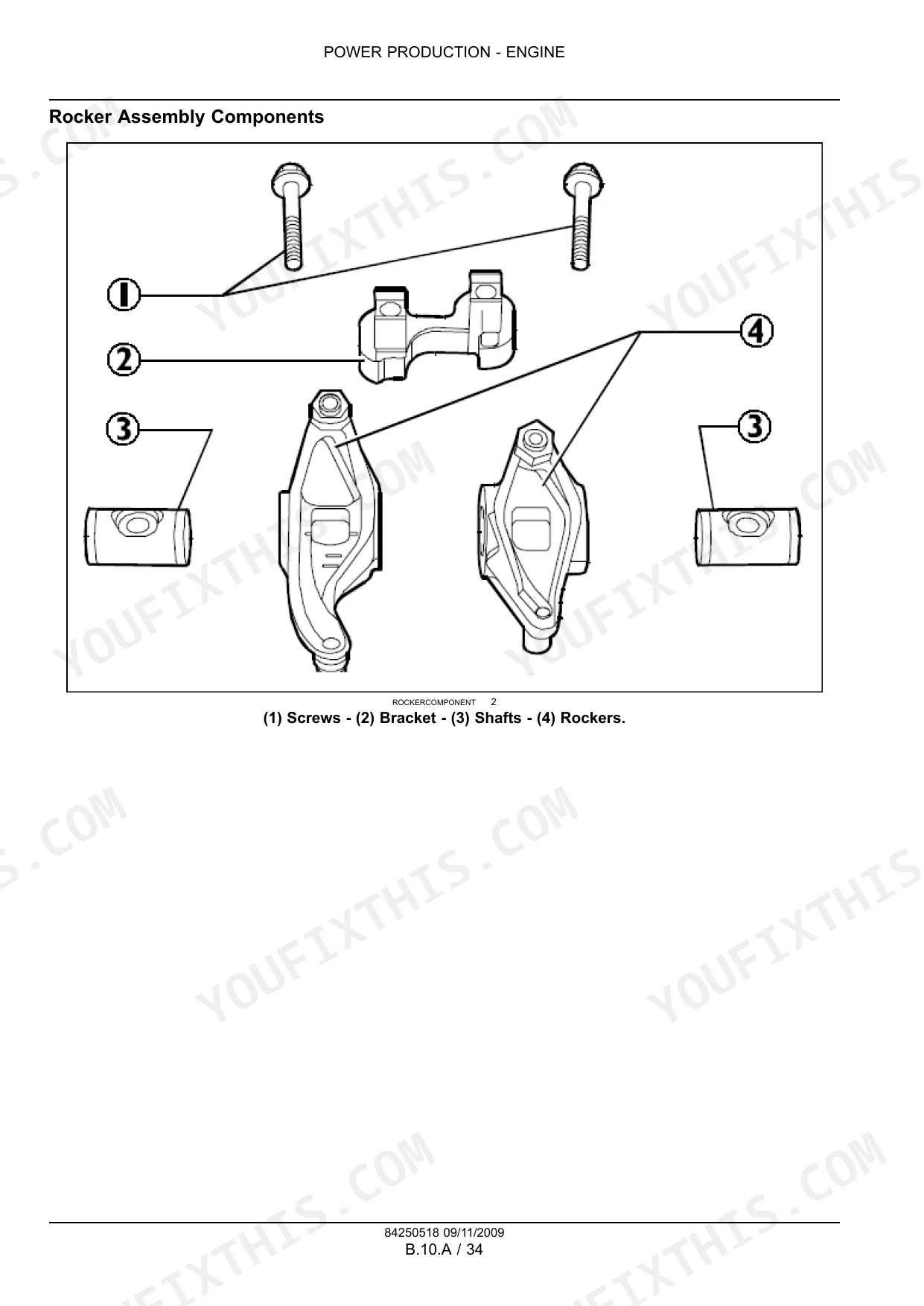

| Power Production - Engine Valve Train & Camshaft | 101-185 | Engine Oil, Fuel Filter, Alternator Belt, Rocker Assembly Housing, Valve Drive Rocker Assembly, Rocker Assembly Shaft, Camshaft Gear, Valve Drive Camshaft |
| Power Production - Engine Crankshaft & Piston Assembly | 186-271 | Connecting Rod and Piston, Connecting Rod Bushing, Piston Ring, Piston Pin, Connecting Rod Bearing, Flywheel, Vibration Damper |

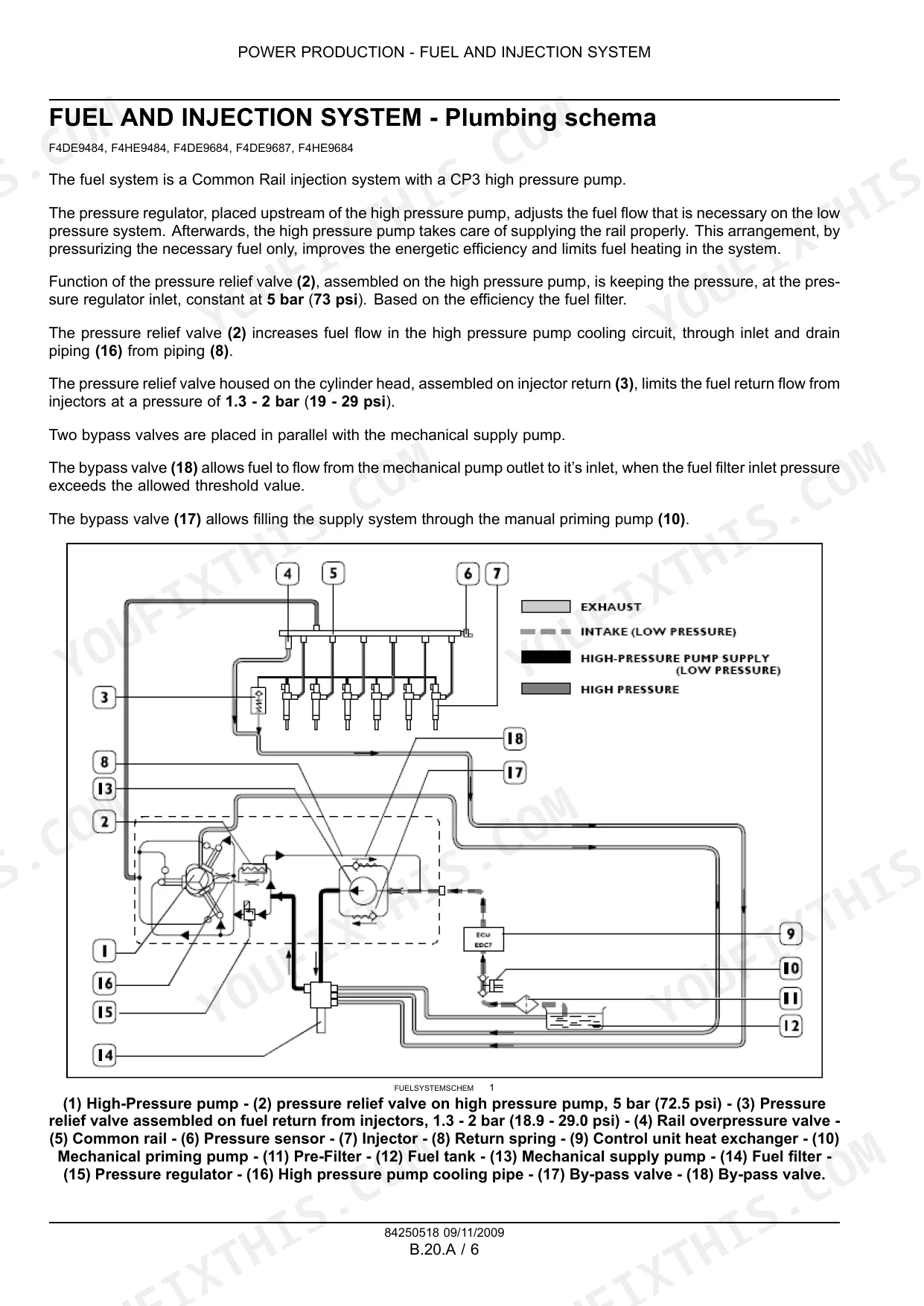

| Power Production - Fuel and Injection System | 272-357 | Dynamic Description, Plumbing Schema, Fuel Injection Pump, Fuel Filter System, Fuel Injector, High Pressure Common Rail, Sensing System |
| Power Production - Air Intake System | 358-373 | Turbocharger, Air Intake Manifold, Air Intake Heater, Air Filter, Radiator |
| Power Production - Exhaust System | 374-381 | Exhaust Manifold, Exhaust Gas Re-Circulation System (EGR), Turbocharger Turbine, Turbocharger |
| Power Production - Engine Coolant System | 382-419 | Thermostat, Water Pump, Water Manifold, Fan and Drive Belt, Belt Tensioner, Idler Pulley, Drive Pulley |
| Power Production - Lubrication System | 420-463 | Blowby Re-Circulation, Oil Temperature-Pressure Sensor, Oil Pump, Oil Pan, Oil Filter, Oil Cooler, Oil Line |
| Power Production - Starting System | 464-472 | Grid Heater, Temperature Sensor, Engine Starter, Electrical Cold-Start Accelerator (Kksb) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Oil Filter Torque | Contact + ¾ Turn | p. 10 |
| Fuel Filter Replacement Torque (with tool 380000670) | 10 - 15 Nm (7 - 11 lb ft) | p. 100 |
| Belt Tensioner Torque (M10) | 37 - 49 Nm (27.3 - 36.1 lb ft) | p. 10 |
| F4HE9484, F4HE9684, F4DE9484, F4DE9684, F4DE9687 | ||
| Oil Filter Capacity | 1 l (1.06 US qt) | p. 49 |
| F4CE9484, F4GE9484, F4CE9684, F4GE9684 | ||
| Fan Pulley Torque (M6) | 8 - 12 Nm (5.9 - 8.9 lb ft) | p. 13 |
Case NEF Tier 3 (F4CE–F4HE) Common Problems This Manual Covers
Case NEF Tier 3 engine torn or worn drive belt with heavy lubricant or fuel contamination p. 10
Inspect the front cover area for fluid leaks. Replace the damaged belt and verify the belt tensioner torque is 37 - 49 Nm (27.3 - 36.1 lb ft) as detailed on page 10. Clean all pulleys thoroughly before installing the new belt.
Manual Section: Power Production - EngineMomentary or complete engine stoppage with a low oil pressure warning or coolant temperature alarm p. 10
Drain the oil and replace the oil filter. Apply clean oil to the new gasket and tighten the filter to contact plus a 3/4 turn, referencing page 10. Refill the system with fresh oil and check the coolant expansion tank sensor for proper operation.
Manual Section: Power Production - Lubrication SystemFrequent leaks from fuel circuits and filter housings with low fluid levels or air ingestion p. 100
Remove the old fuel filter and clean the mounting base. Install the new filter using tool 380000670 and torque it to 10 - 15 Nm (7 - 11 lb ft) according to page 100. Bleed the fuel circuit completely before attempting to restart.
Manual Section: Power Production - Fuel and Injection SystemSquealing noise from the front accessory drive or loose alternator belt during cold engine starts p. 11
Check the idler pulleys for bearing play. If replacing the pulleys on F4CE or F4GE models, torque the M10 fasteners to 37 - 49 Nm (27.3 - 36.1 lb ft) as shown on page 11. Verify pulley alignment to prevent premature belt wear.
Manual Section: Power Production - EngineFrequently Asked Questions
What are the recommended service intervals?

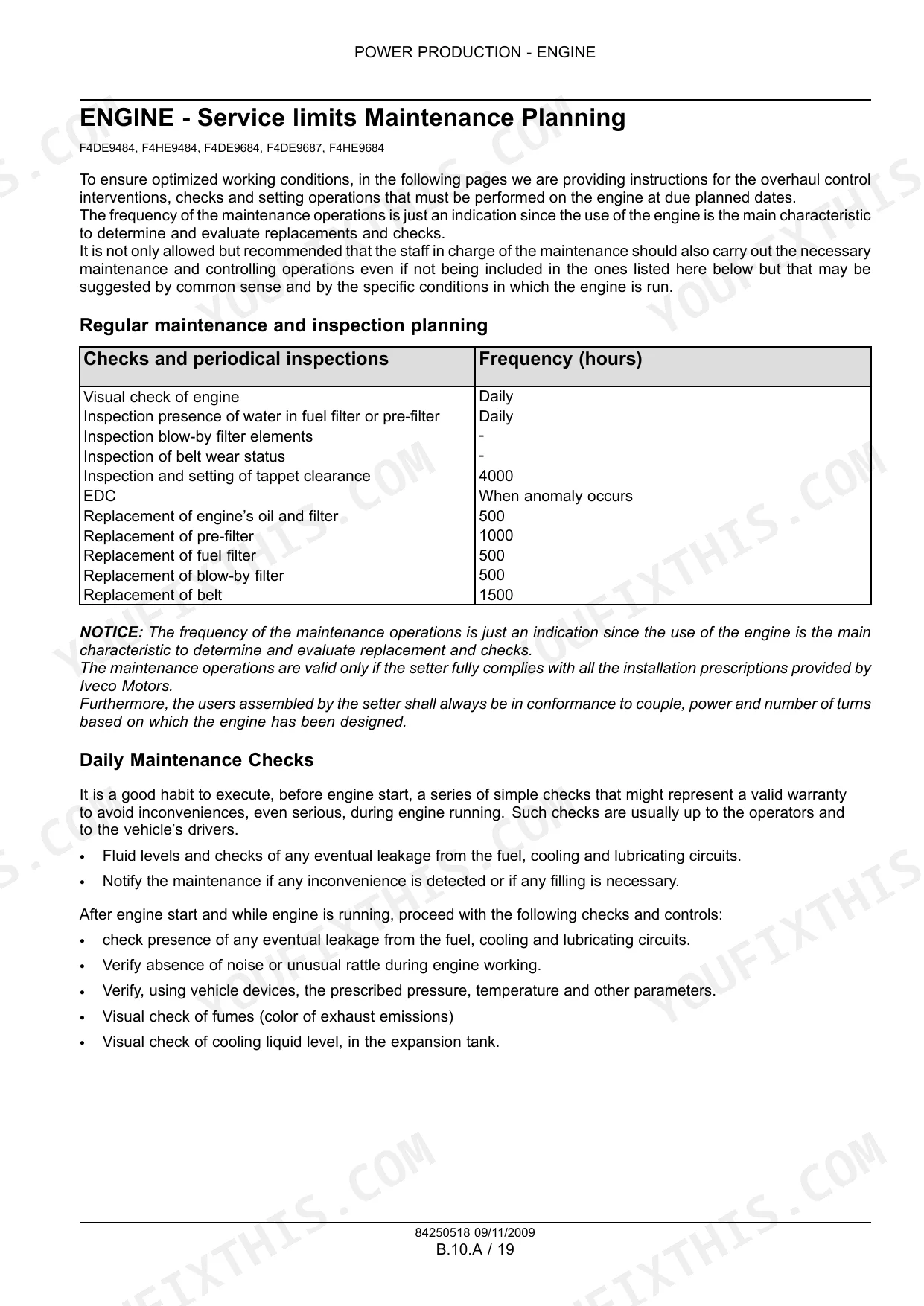

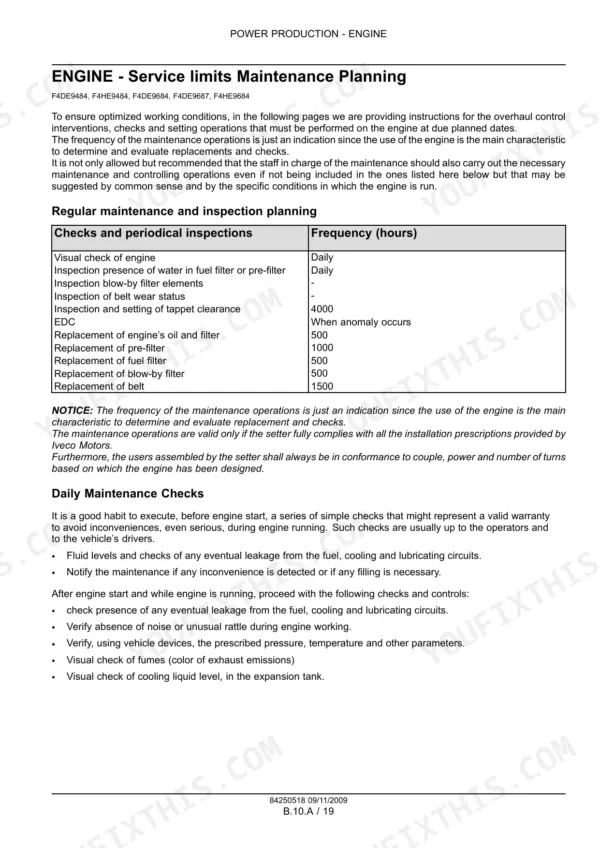

The manual provides a table for regular maintenance and inspection planning. For instance, the replacement of engine's oil and filter is recommended every 500 hours, while the replacement of the belt is every 1500 hours. Inspection and setting of tappet clearance should be done every 4000 hours.
What fluids and capacities does this machine require?
For 4-cylinder engines, the oil pan capacity is 13 l (13.7 US qt) and the oil filter capacity is 1 l (1.1 US qt). For 6-cylinder engines, the oil pan capacity is 15 l (15.9 US qt) and the oil filter capacity is 1 l (1.1 US qt).
What are the hydraulic system specifications?
The fuel injection system incorporates a hydraulic system with a rail delivery pressure modulated between 250 - 1600 bar (3625 - 23200 psi) by the electronic control unit. The pressure relief valve on the high pressure pump maintains a constant pressure of 5 bar (73 psi) at its inlet.
What torque specifications are listed?

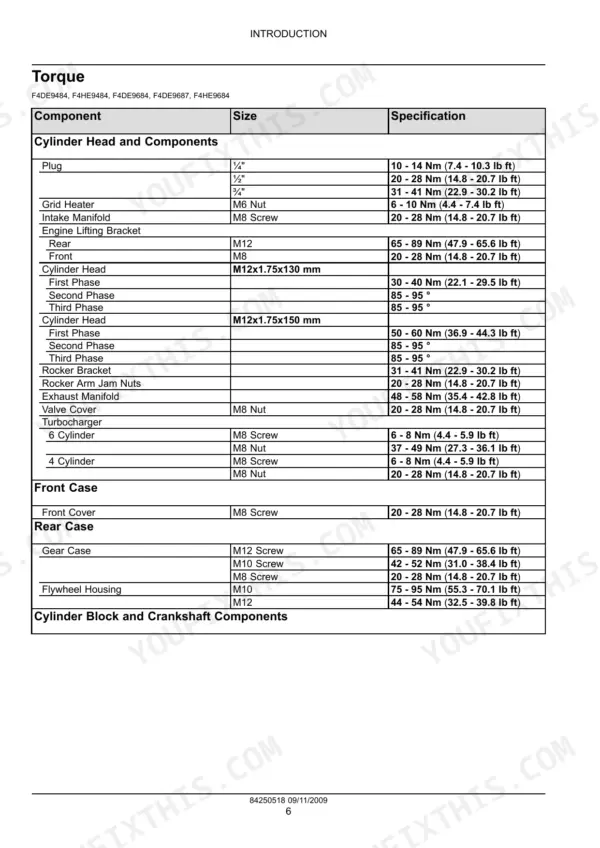

Various torque specifications are listed for engine components. For example, the Cylinder Head Plug (¼") requires 10 - 14 Nm (7.4 - 10.3 lb ft), and the Intake Manifold M8 Screw requires 20 - 28 Nm (14.8 - 20.7 lb ft). The Engine Lifting Bracket Rear M12 bolts should be tightened to 65 - 89 Nm (47.9 - 65.6 lb ft).
How quickly can I access this manual after buying?
Instant PDF download. You get the full 474-page searchable Service Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Are there any print restrictions on this manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Are there wiring harness diagrams in this Case NEF & variants manual?
Included. The Case NEF & variants Service Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
