All 480 pages of this Case Maxxum Operator Manual (OEM #84273434) put the factory answer in your hands for the Maxxum 110, 120, 125, 130, 140, and 140 Pro Tractors. Inside, you get the full ICU display walkthrough, Semi-Powershift 16x16 transmission operation, Electronic Hitch Control, Headland Management, Turn Assist, electro-hydraulic remote valve setup, and a complete Fault Codes section covering engine, transmission, hydraulics, 3-point hitch, brakes, and cab systems. The maintenance chapter runs 10-hour daily checks all the way out to 1,200-hour/24-month intervals, with a lubrication chart you can actually follow in the field. Fill the 4-cylinder engine to 10 litres, the 6-cylinder to 15 litres, and top the transmission/rear axle to 62 litres before you ever turn a key. Your Maxxum is parked and the dealer's not answering. Pull up the fault code, find the fluid spec, get back to work. Jump to any section by keyword; bookmarks are built in.
What's Inside This Case IH Maxxum 110–140 Operator Manual
| System | Pages | Key Topics |
|---|---|---|

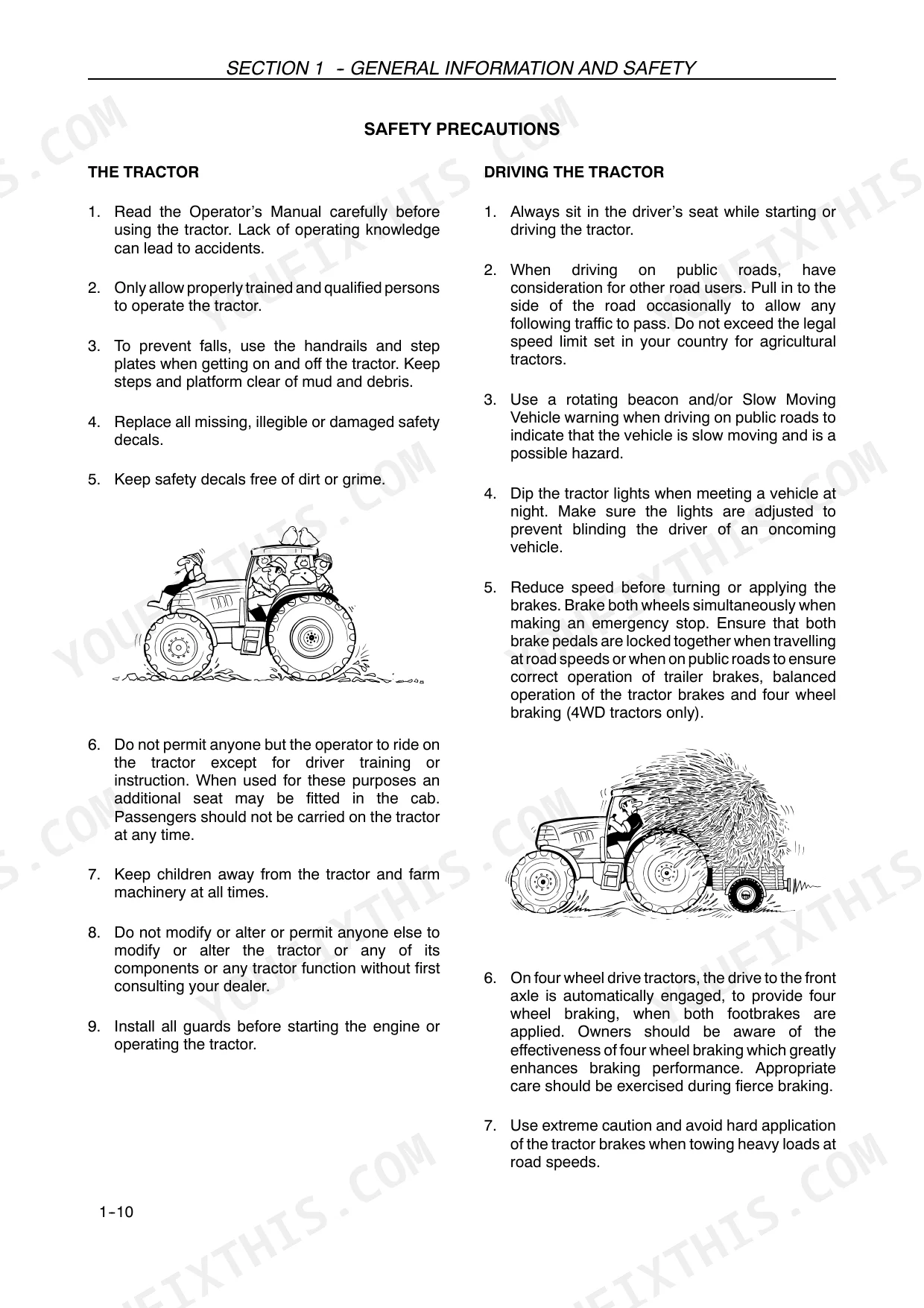

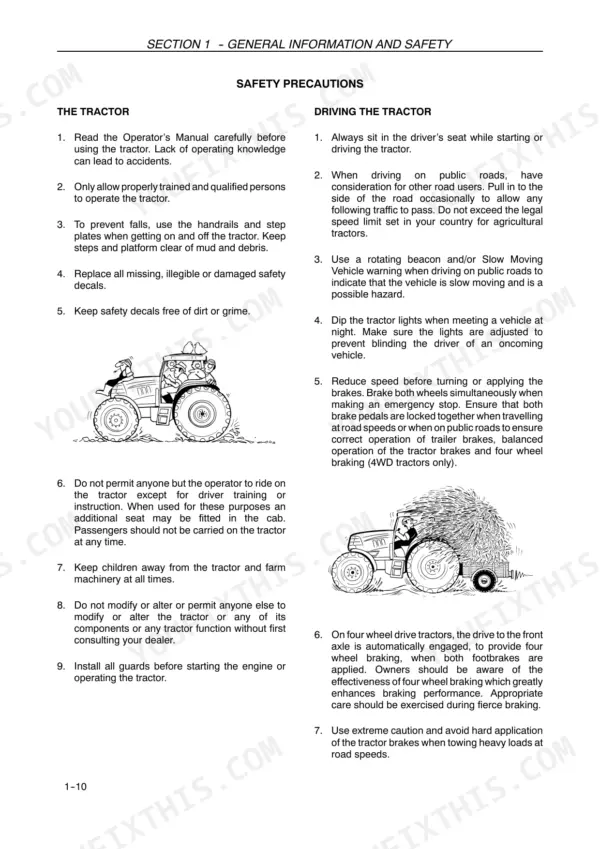

| General Information and Safety | 12-37 | To the Owner, Product Identification, Transporting Towed Equipment at Safe Speeds, Ecology and the Environment, Safety Precautions, Operator Protective Structure, Safety Decals |

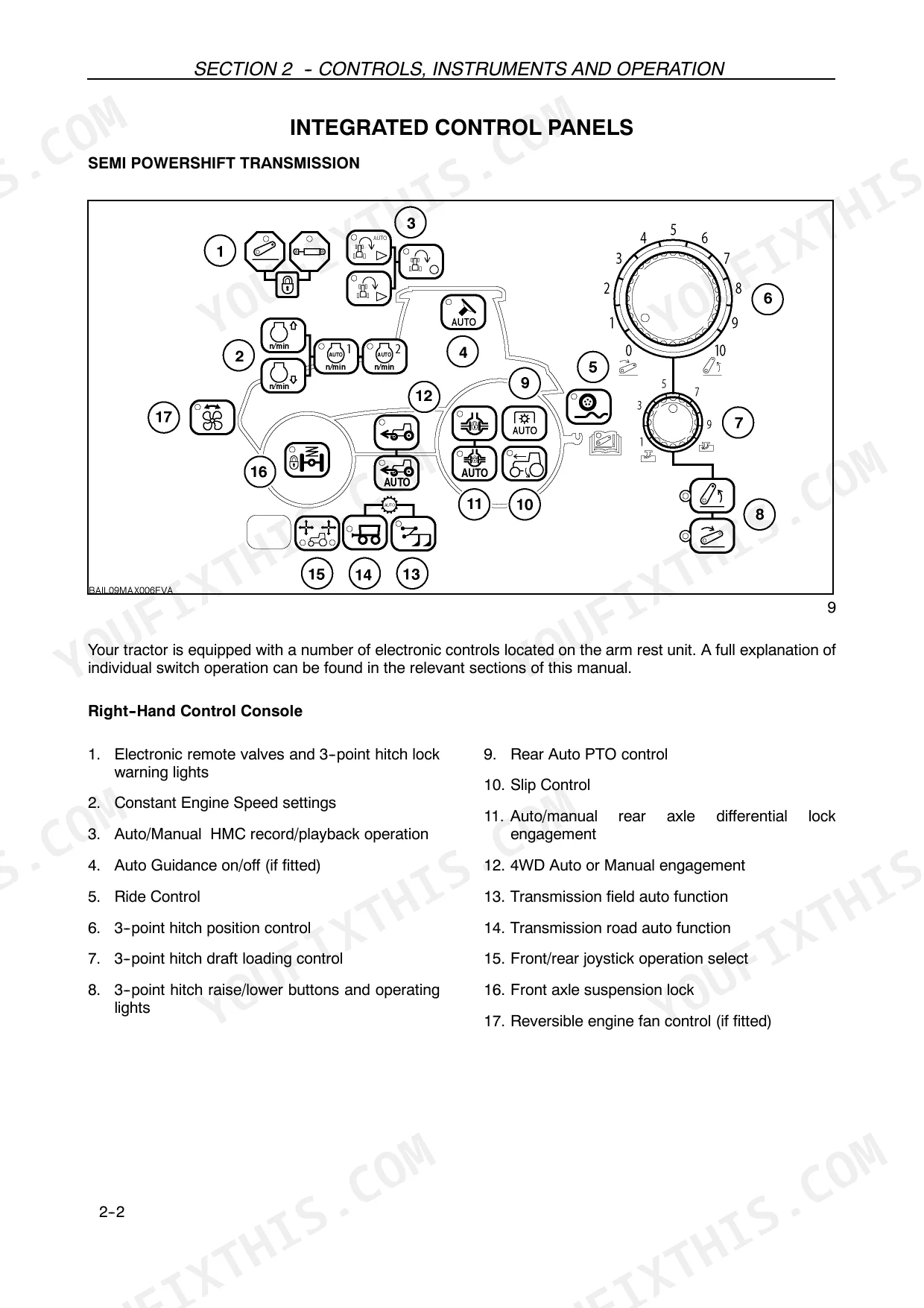

| Controls, Instruments and Operation | 38-159 | Before Operating the Tractor, Cab, Electrical Power Connections, Air Suspension Seat, Steering Column Controls, Integrated Control Unit, Icu Displays, Armrest Colour Display |
| Field Operation | 160-351 | Important Information, Operating in Cold Temperatures, Boosting the Tractor Battery, Starting the Engine, Stopping the Engine, Power Management, Constant Engine Speed Control |

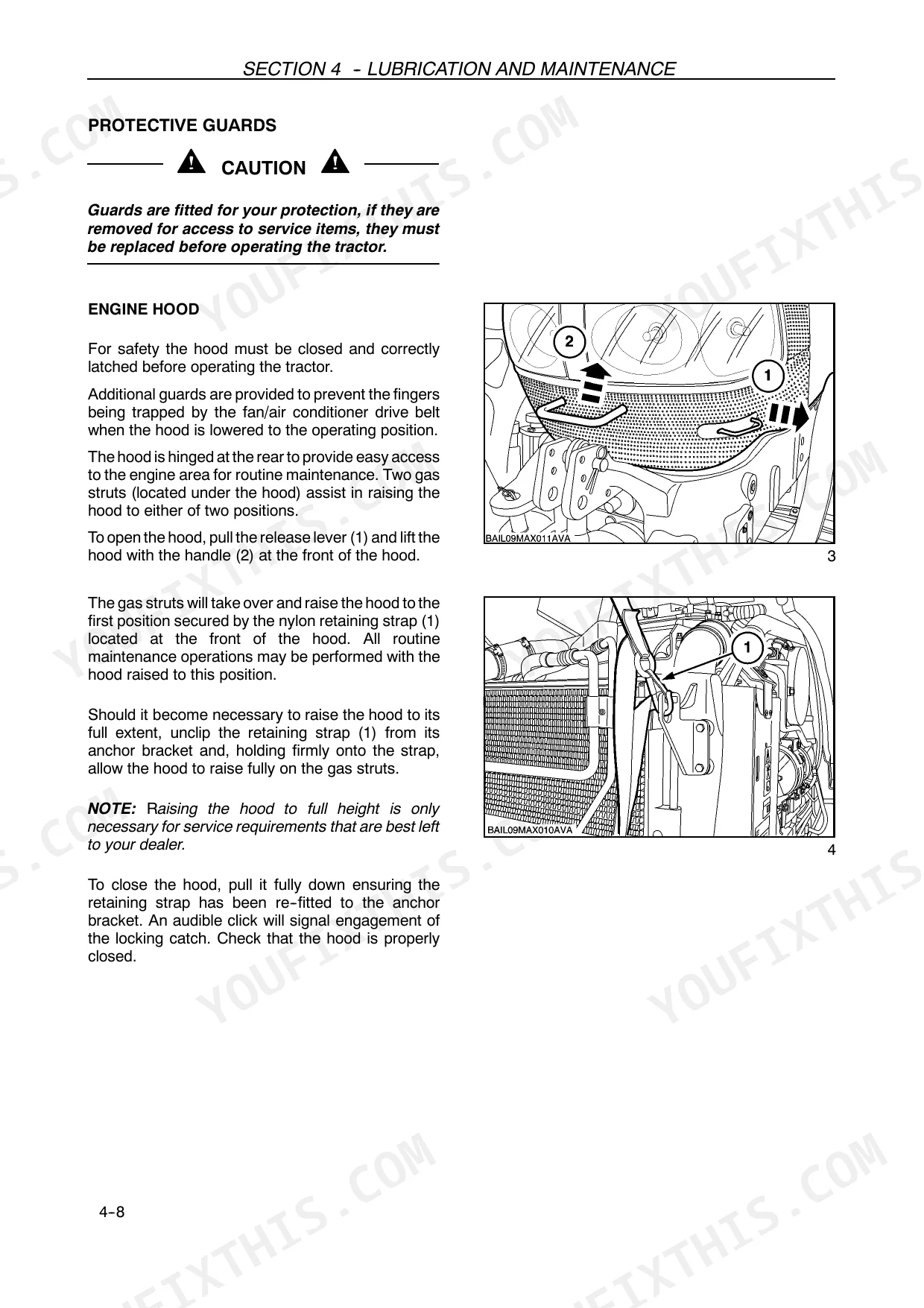

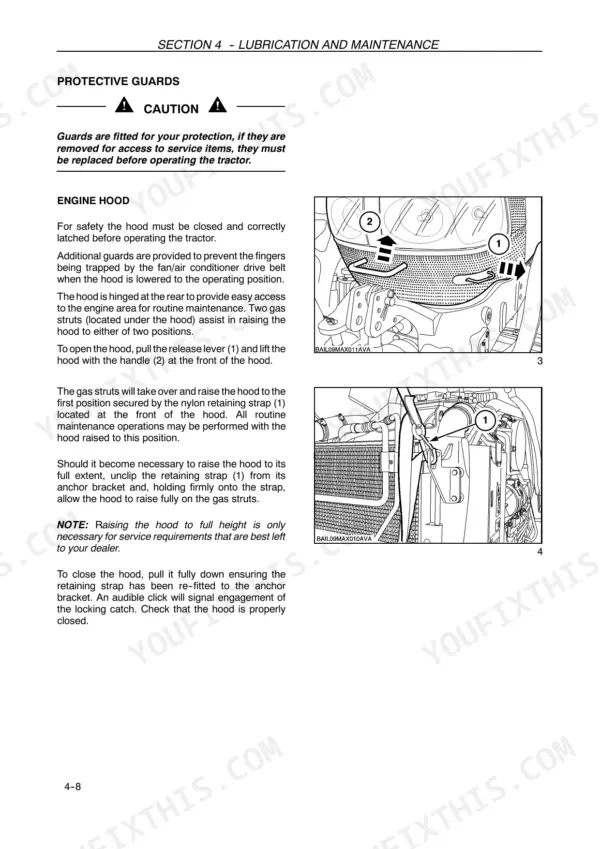

| Lubrication and Maintenance | 352-431 | First 50-Hour Service, Fuelling the Tractor, Protective Guards, Lubricants and Coolants, Lubrication and Maintenance Chart, When a Warning Symbol Appears, 10-Hour/Daily Service |
| Fault Finding | 432-443 | Introduction, Fault Codes and Symbols, Engine, Transmission - Semi-Powershift 16 X 16, Hydraulics, 3-Point Hitch, Brakes, Cab |
| Accessories | 444-447 | Rotating Beacon, Auxiliary Headlights, Battery Isolator Switch |

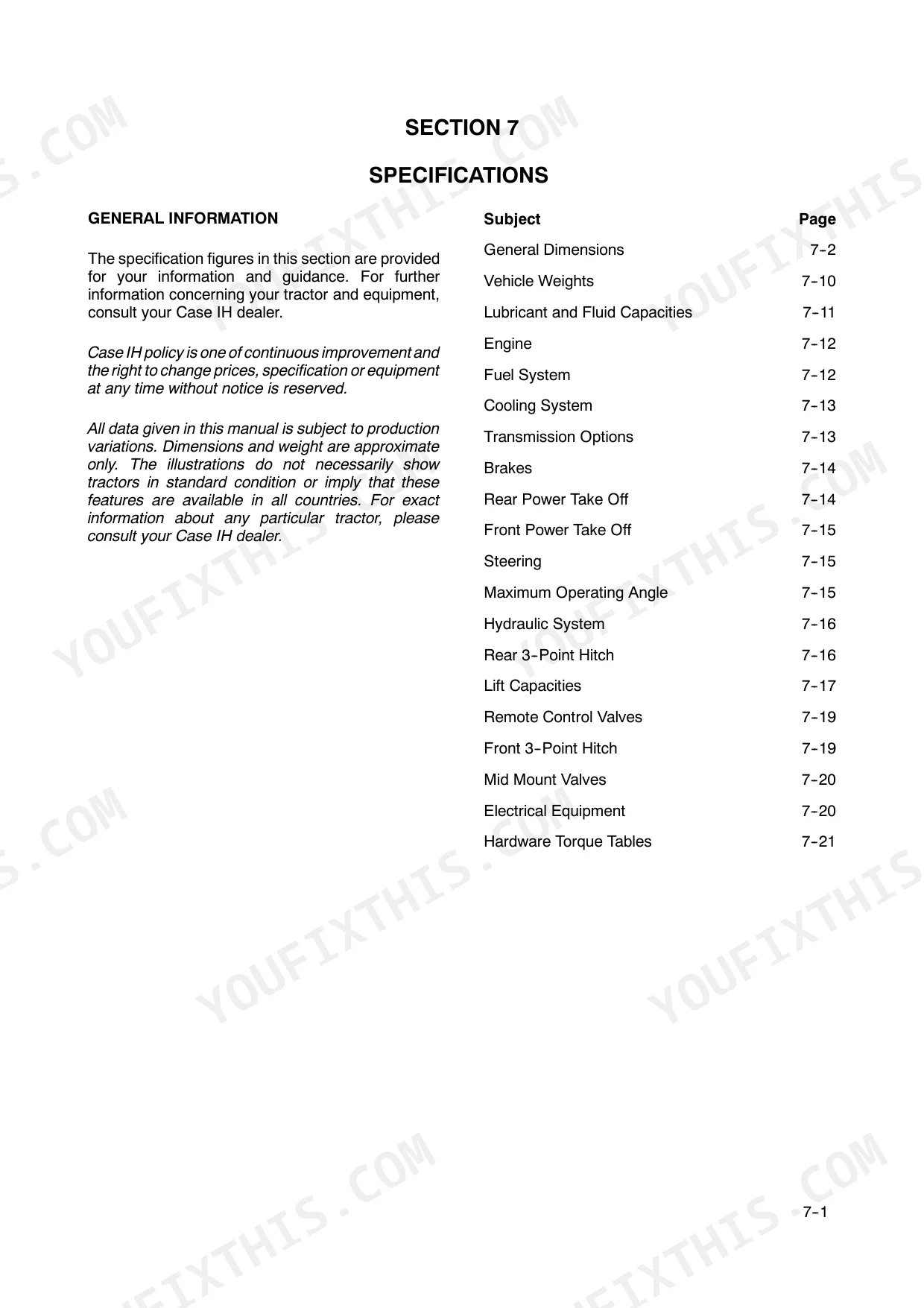

| Specification | 448-469 | Vehicle Weights, Lubricant and Fluid Capacities, Engine, Fuel System, Cooling System, Transmission Options, Brakes, Rear Power Take-Off |
| First 50--Hour Service Forms | 470-473 | Engine Oil Level, Tyre Pressures, hydraulic/transmission Filters, Front Axle Differential, Brake Pedal Equalization, Remote Control Valve Operation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fuel filter tightening torque | 15 Nm | p. 390 |
| Transmission/Rear Axle Oil Capacity | 62 Litres (16.3 U.S. gal) | p. 458 |
| 4WD Front Axle Differential Oil Capacity | 9.0 litres (9.5 U.S. qts) | p. 458 |
| Cooling System Capacity | 25 Litres (6.6 U.S. gal.) | p. 458 |
| Radiator Pressure Cap | 1.0 bar (14.5 lbf.in2) | p. 460 |
| Engine Rated Speed | 2200 rev/min | p. 459 |
| Engine Idle Speed | 850 rev/min | p. 459 |
| Main Filter Cartridge and Hydraulic Filter Replacement Interval | 600 hours | p. 388 |
| MAXXUM 110, 120, 130 | ||
| Engine Oil Capacity (4-Cylinder Models) | 10 litres (10.6 U.S qts.) | p. 386 |
| Fuel Tank Capacity (4-Cylinder Models) | 176 litres (46.4 U.S. galls) | p. 358 |
| MAXXUM 115, 125, 140 | ||
| Engine Oil Capacity (6-Cylinder Models) | 15 litres (15.9 U.S qts.) | p. 386 |
| Fuel Tank Capacity (6-Cylinder Models) | 250 litres (66.0 U.S. galls) | p. 358 |
Case IH Maxxum 110–140 Common Problems This Manual Covers
Case Maxxum warning light or fault symbol flashing on instrument cluster at startup p. 433
Check the error code reference on page 433 to identify the exact fault symbol. Note whether it is steady or flashing, as this indicates severity. Verify hydraulic oil level at the sight glass and engine coolant at the reservoir. If you are past 600 hours on the filter service interval (page 388), replace the hydraulic filter before further diagnosis.

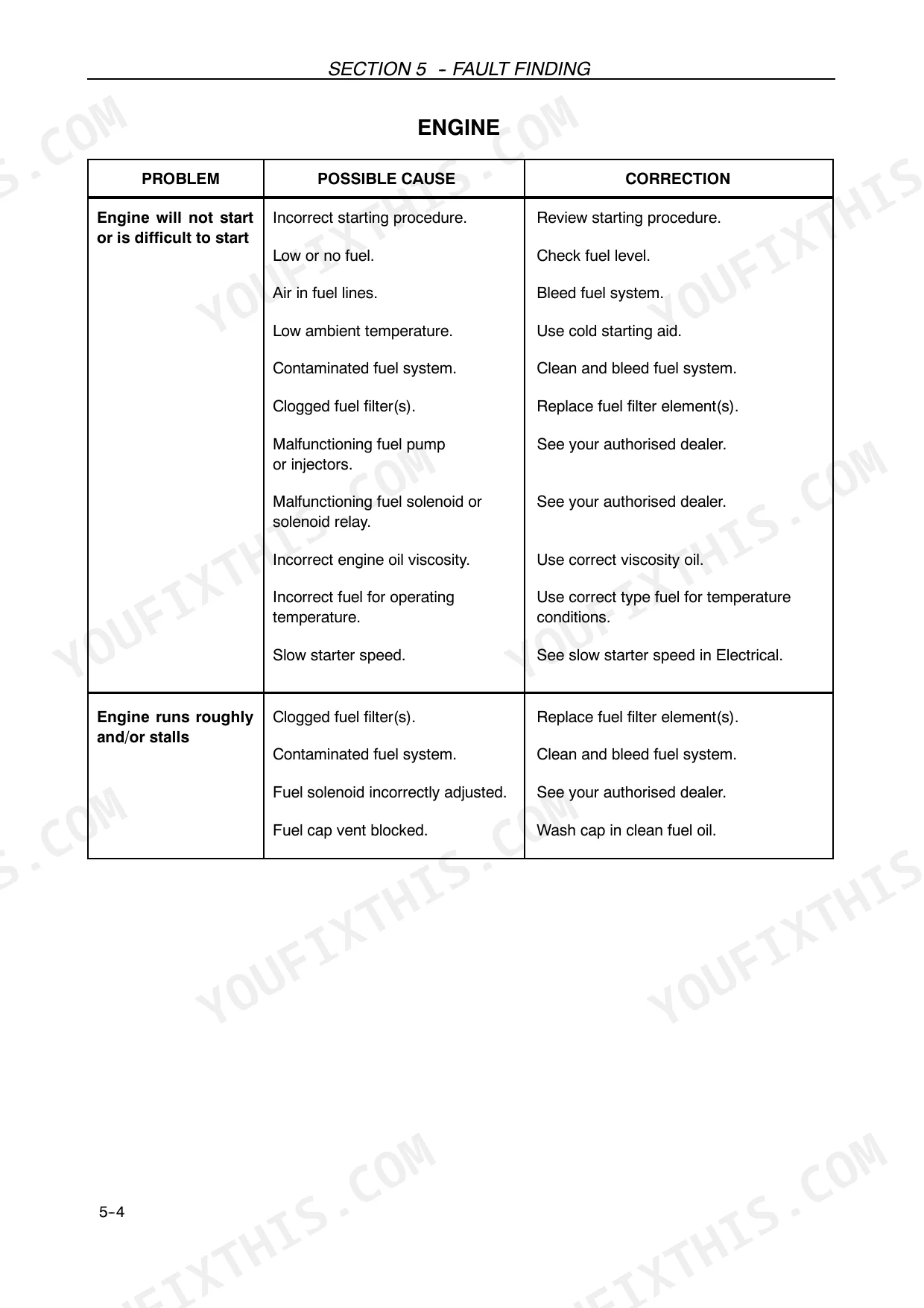

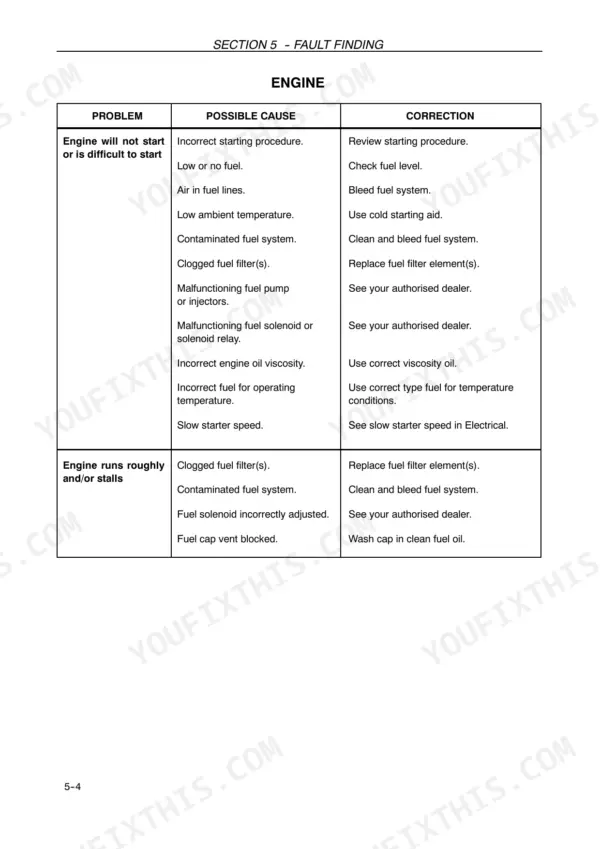

Manual Section: Fault Codes and SymbolsEngine cranks slowly or fails to start in cold weather, battery seems discharged p. 435
Check battery charge and cable connections before cranking. If boosting from another machine, follow the safe sequence in Field Operation at page 160. Verify engine oil grade suits the ambient temperature. Let the glow plug cycle complete fully before cranking; the indicator light extinguishes when ready. A healthy startup should reach idle speed of 850 rev/min.
Manual Section: Engine TroubleshootingRear hydraulic remote cylinder operates too slowly, implement barely moves under load p. 388
Check hydraulic oil level first; the system holds 62 litres (16.3 U.S. gal.) per page 458. If you are past the 600-hour service interval on page 388, replace the hydraulic filter before diagnosing flow issues. Verify the remote valve flow control knob is fully open. Inspect implement hoses for kinks or restrictions before assuming a system fault.
Manual Section: Hydraulics TroubleshootingThree-point hitch fails to raise fully or drifts down slowly when loaded p. 433
Verify hydraulic oil level at the sight glass; low oil is the most common cause of weak hitch lift. Check page 433 for active electronic hitch control fault codes. If you are past 600 hours, replace the hydraulic filter (page 388) before further diagnosis. Confirm the position and draft control settings on the armrest are not limiting raise travel.
Manual Section: 3-Point Hitch TroubleshootingTransmission temperature warning light on armrest display during extended heavy field work p. 458
Stop immediately and let the tractor idle to circulate oil before the temperature climbs further. Check transmission fluid level; total capacity is 62 litres (16.3 U.S. gal.) per page 458. Inspect the transmission cooler for mud or chaff blocking airflow. Verify the last fluid and filter service date against the maintenance schedule before returning to heavy work.
Manual Section: Transmission -- Semi-Powershift 16 x 16 and 17 x 16 TroubleshootingEngine loses power during heavy work, fuel filter approaching or past service interval p. 390
Replace the fuel filter and tighten to 15 Nm as specified on page 390. Check the maintenance schedule to confirm no other service items are overdue at the same time. After replacing the filter, bleed air from the fuel system before restarting. Inspect the primary fuel strainer for sediment and check the fuel tank for water contamination.
Manual Section: Lubrication and MaintenanceFrequently Asked Questions
How to clear error codes on Case IH Maxxum 120?
For non-active warnings, you can depress the reset key on the ICU keypad to clear them temporarily. If your tractor is equipped with a color display, you can access the 'Fault Archive' screen and touch 'Erase all' to clear stored error codes from memory. For critical fault codes, the manual advises consulting your authorized dealer.
How to reset diagnostic codes on Maxxum 140
You can reset fault warnings, program details, and diagnostic modes by depressing the reset key on the ICU keypad. For stored error codes, access the 'Fault Archive' screen on the color display and select 'Erase all' to clear the memory. For critical fault codes, the manual advises consulting your authorized dealer.
What are the replacement specifications for Fuel filter?
When installing a new fuel filter, apply a thin coat of oil to the new filter sealing ring and install the filter. Turn until the sealing ring contacts the mounting surface, then tighten an additional 3/4 to 1 full turn to a correct torque of 15 Nm. Do not overtighten.
How do you fix case Maxxum warning light or fault symbol flashing on instrument cluster at startup?
Check the error code reference on page 433 to identify the exact fault symbol. Note whether it is steady or flashing, as this indicates severity. Verify hydraulic oil level at the sight glass and engine coolant at the reservoir. If you are past 600 hours on the filter service interval (page 388), replace the hydraulic filter before further diagnosis.
What format is this Case Maxxum 110 & variants manual in?
Instant PDF download. You get the full 480-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this Case Maxxum 110 & variants manual?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
