Ballast and tread spacing are the fussiest work on a row crop tractor, and the Case 7230, 7240, 7250 operator manual PDF gives you the full procedure across 299 pages, printed under Rac 9-24692. Field Operation is one of the longest stretches in the book: drawbar preparation, three point hitch operation, and remote hydraulics setup before you ever hook an implement. Your daily and hourly service work sits in the lubrication chart, followed by cooling, fuel, filter, fuse and battery service, plus the digital instrument cluster and automatic shutdown system explained indicator by indicator. Fill the trans/hydraulic system with 45-1/2 gallons (172 litres), and torque MFD disc to rim nuts to 155 to 185 lb ft (210 to 250 Nm). Bookmarked and text searchable, so you check the number, order the right filter the first time, and be back in the field before the weather turns.
What's Inside This Case 7230, 7240, 7250 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety/Decals | 9-17 | Safety Rules, Decals |

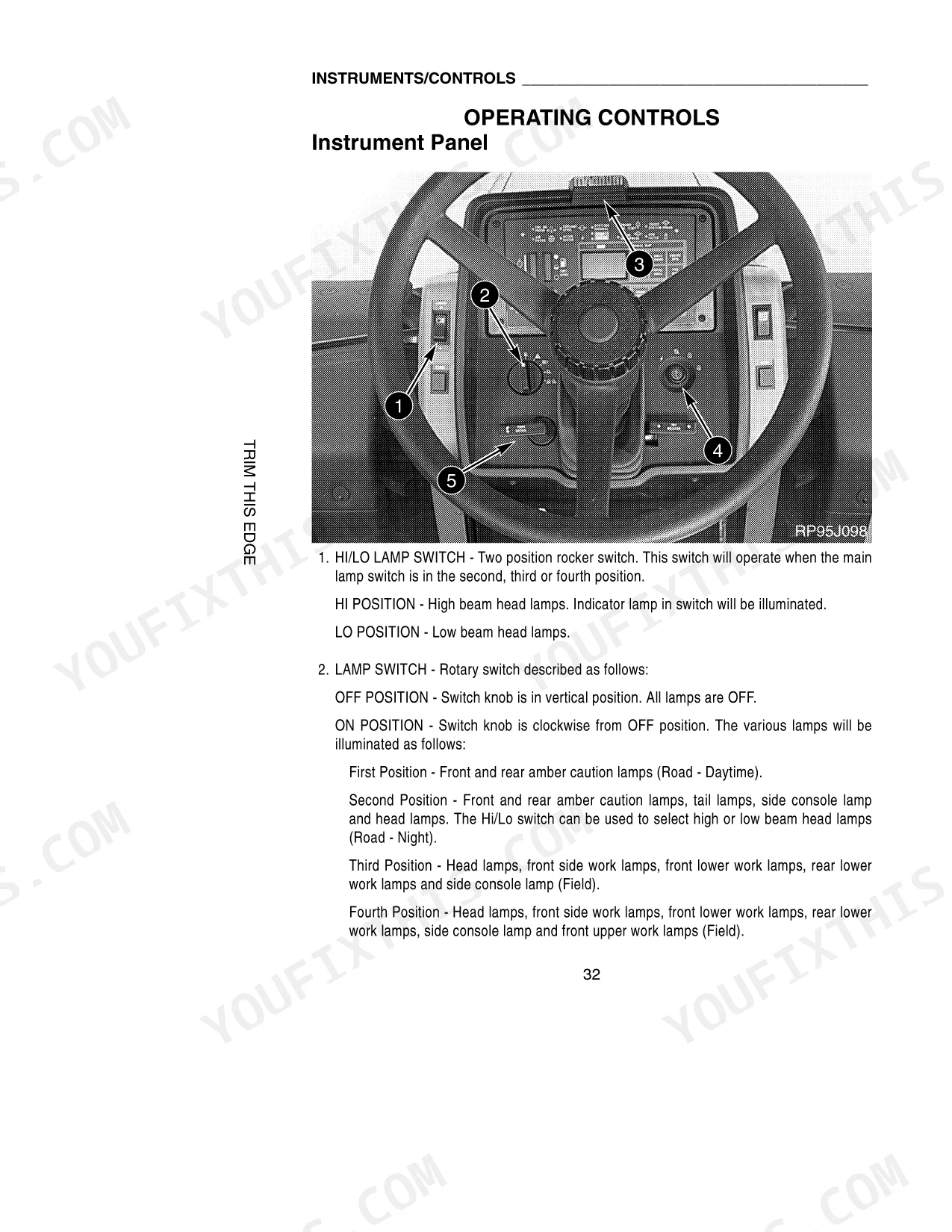

| Instruments/Controls | 18-52 | Automatic Shutdown System, Digital Instrument Cluster, Operating Controls |

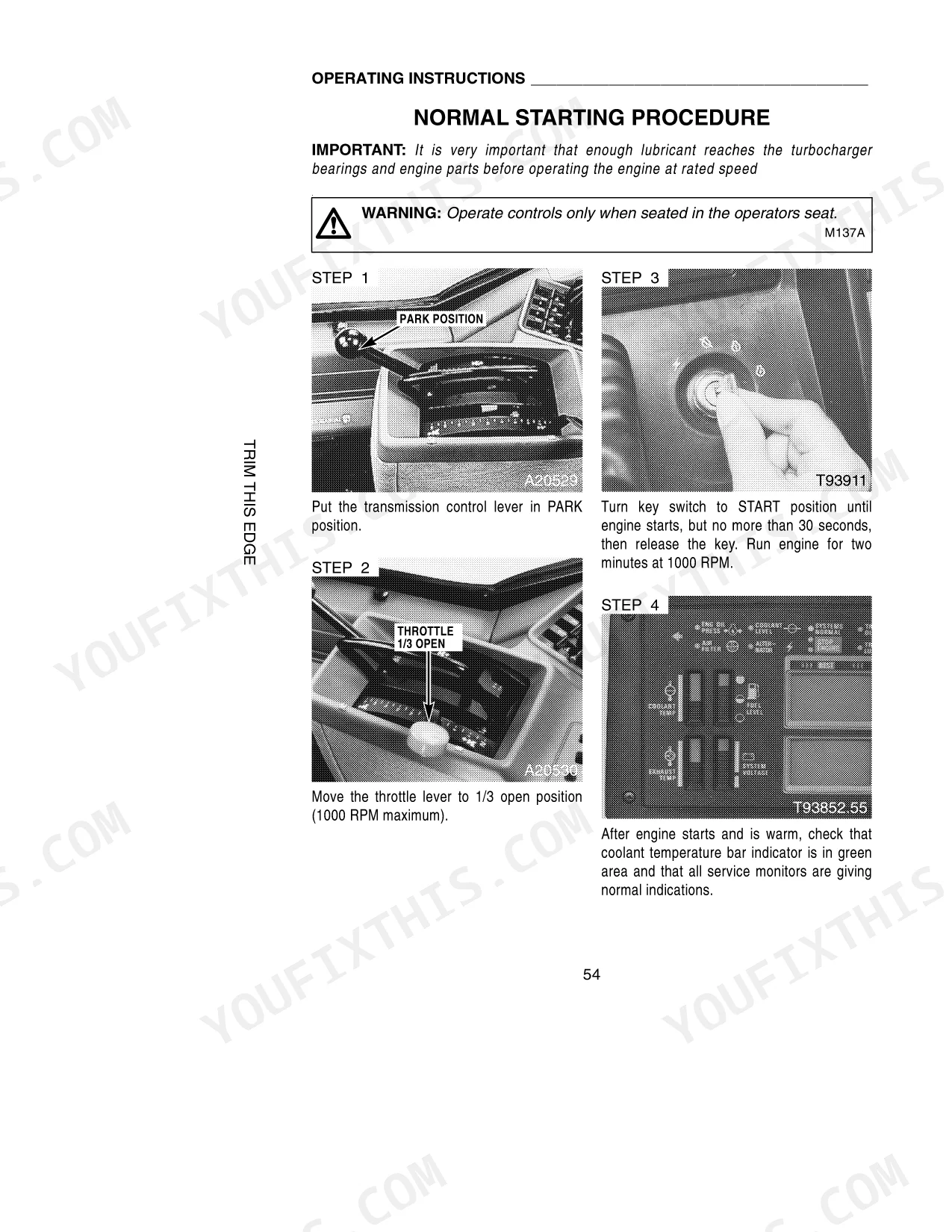

| Operating Instructions | 53-94 | Before Starting the Engine, Normal Starting Procedure, Cold Temperature Operation |

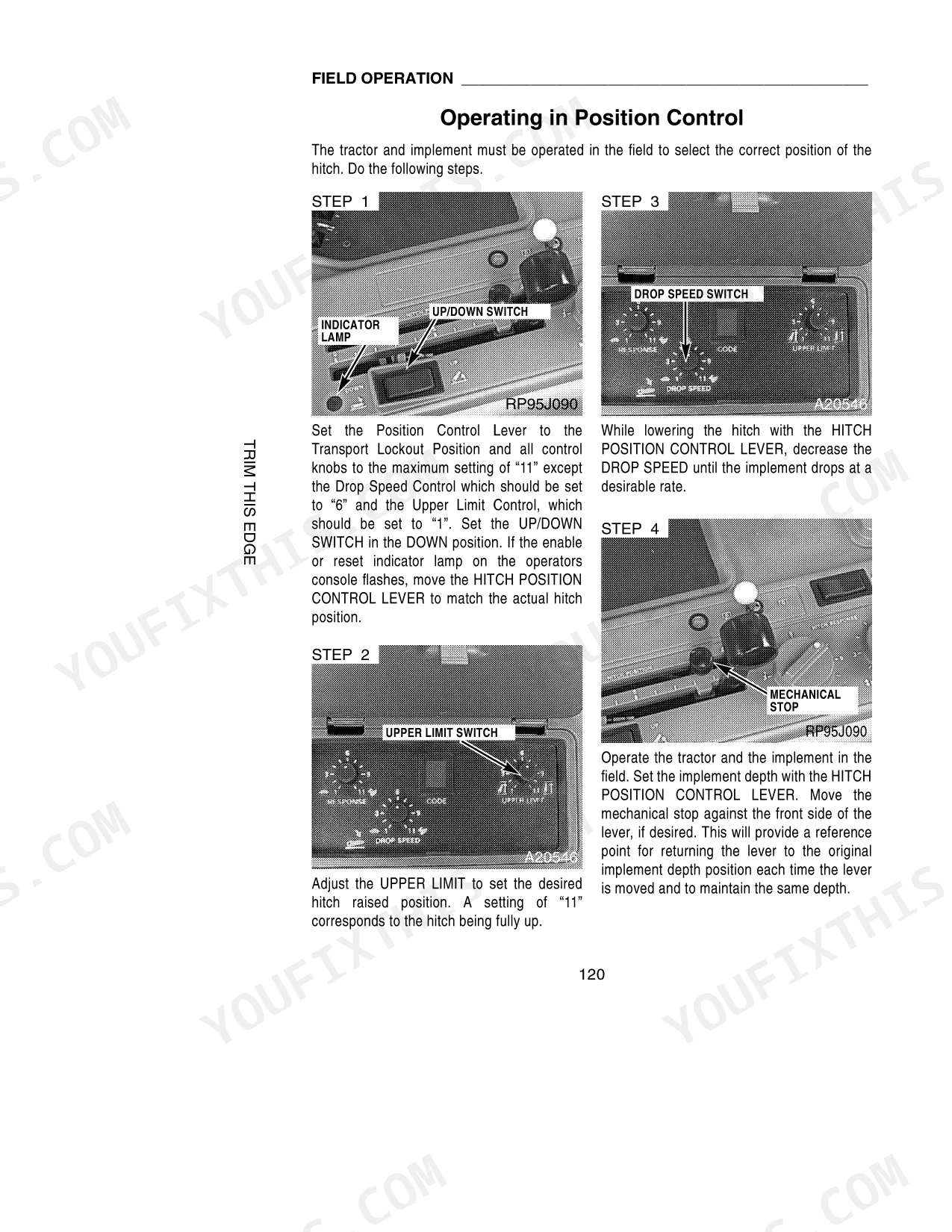

| Field Operation | 95-154 | Drawbar Preparation, Hitch Operation, Remote Hydraulics Preparation |
| Tires/Wheels/Spacing/Ballast | 155-207 | Tire and Rim Equipment, Tread Positions, Tractor Ballast |

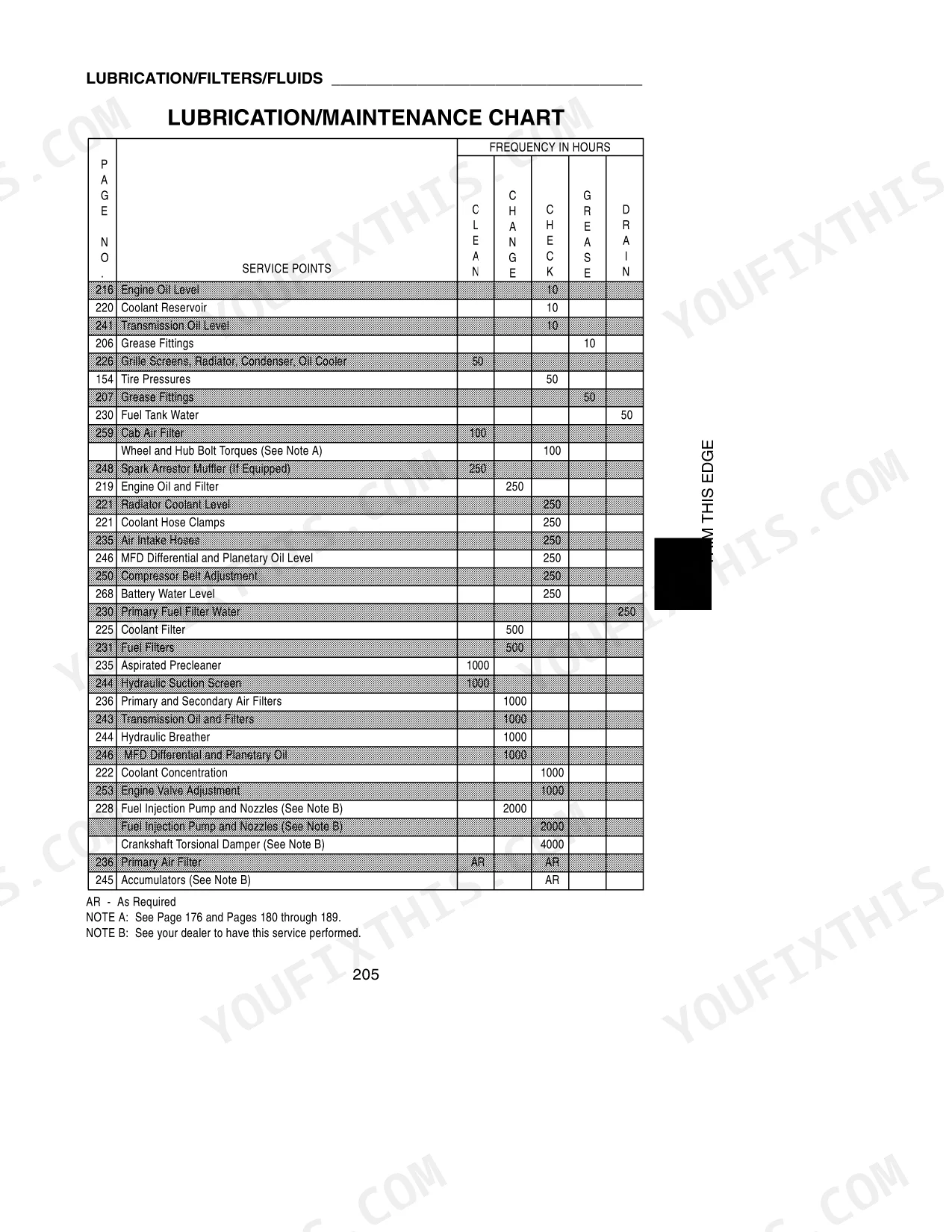

| Lubrication/Filters/Fluids | 208-250 | Lubrication/Maintenance Chart, Cooling System, Fuel System |
| Maintenance/Adjustments | 251-266 | Spark Arresting Muffler, Compressor Belt and Fan/Alternator Belt, Engine Valve Adjustment |
| Electrical System | 267-280 | Fuses and Circuit Breakers, Batteries |

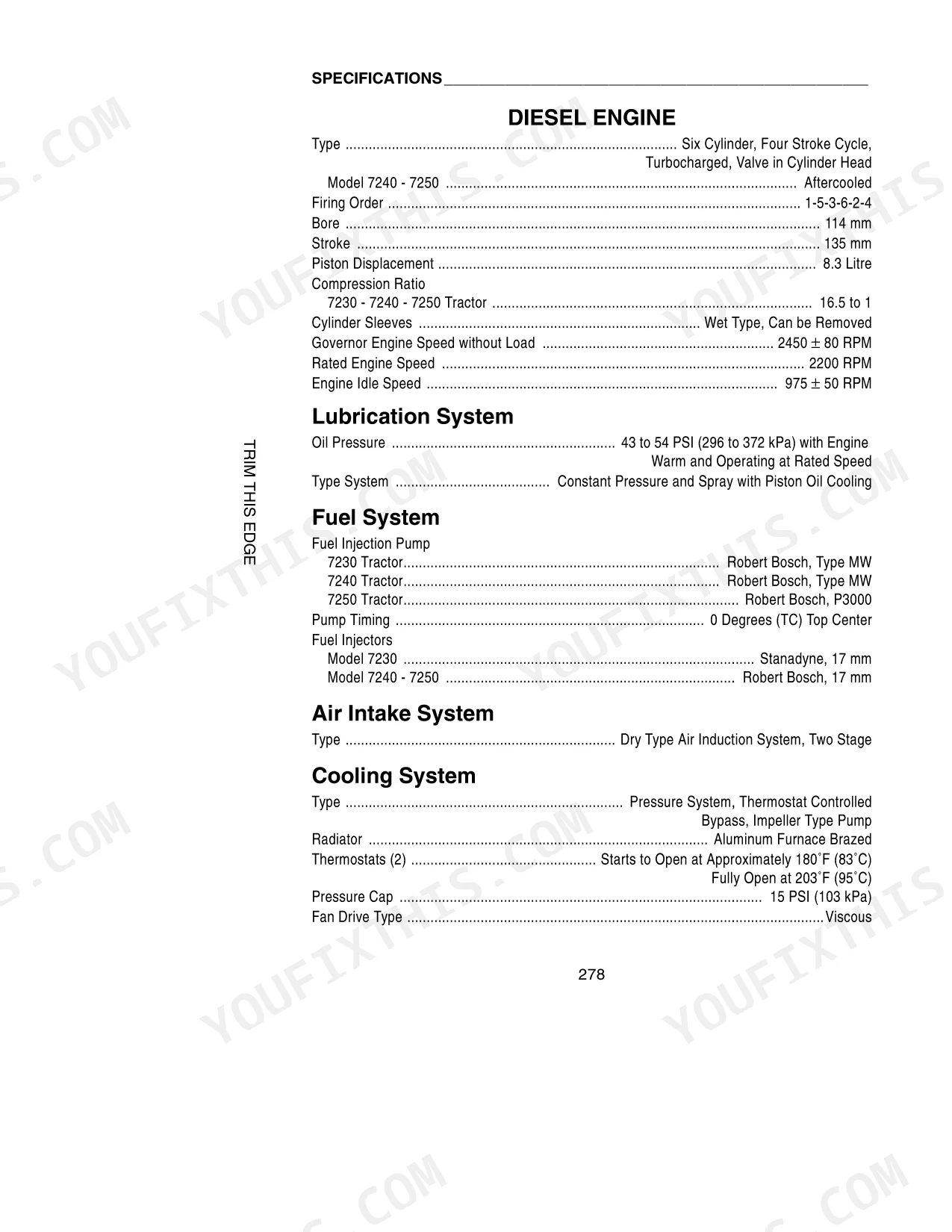

| Specifications | 281-292 | Diesel Engine, Power Train |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine Oil Capacity (with filter change) | 5-1/2 Gallons (21 Litres) | p. 213 |
| Trans/Hydraulic System Capacity | 45-1/2 Gallons (172 Litres) | p. 213 |
| Rear Wheel Bolt Torque (Initial) | Check after first 30 minutes of field use, every 10 hours until stable | p. 183 |
| Front Wheel Mounting Bolt Torque (2WD) | 140 to 160 lb ft (190 to 217 Nm) | p. 179 |
| MFD Disc to Rim Nut Torque | 155 to 185 lb ft (210 to 250 Nm) | p. 179 |
| MFD Disc to Front Axle Hub Nut Torque | 235 to 265 lb ft (319 to 359 Nm) | p. 179 |
| Engine Valve Clearance (Intake) | 0.30 mm (0.012 in) | p. 257 |
Case 7230, 7240, 7250 Common Problems This Manual Covers
Case 7230 stop engine light comes on and the tractor shuts down during field work
Stop where you are and check the automatic shutdown system table on page 18 before restarting. It trips on low engine oil pressure, high coolant temperature, or low transmission system pressure. Pull the dipstick and confirm engine oil is at the full mark, capacity being 5-1/2 gallons (21 litres) with a filter change per page 213.
Manual Section: Automatic Shutdown System p. 18Weak or slow remote hydraulics, loader and hitch lift lazy under load
Check the hydraulic filter service lamp in the indicator group on pages 21 through 25 first. Verify the trans/hydraulic dipstick on the right-hand side reads full; the system holds 45-1/2 gallons (172 litres) per page 213. Top off with the specified fluid, cycle the remotes to purge air, then recheck the level with the hitch down.
Manual Section: Service Indicator Lamps (LEDs) p. 21Engine cranks but will not start or stalls under load in the field
Bleed the fuel system following the air removal procedure on pages 236 and 237 before you suspect anything expensive. Check the fuel level bar graph on the cluster, then loosen the bleed points and work the primer until fuel runs clear of bubbles. Keep engine speed below the 2630 RPM overspeed threshold once it fires and warms up.
Manual Section: Fuel System Air Removal p. 236Coolant temperature bar graph climbing high or engine takes too long to warm up
Check the thermostat per the procedure on page 230 once the engine has cooled. Watch the coolant temperature bar graph described on pages 26 through 28 through a normal warm-up. Clean chaff off the radiator screen and grille, since a season of field trash will choke airflow faster than any thermostat fails on these tractors.
Manual Section: Thermostat Check p. 230Air filter warning lamp lighting up during tillage or in dusty conditions
Service the primary element following the air filter procedure on pages 240 through 242. Tap the dust out, never bang it on a tire, and replace the secondary element only when the manual calls for it. Check the maintenance schedule on page 208 for the service interval so you are not pulling the housing apart mid-season.
Manual Section: Air Filter Service p. 240Rear wheel bolts loosening or wheel wobble after changing tread spacing
Retorque the rear wheel bolts after the first 30 minutes of field use, then every 10 hours until they hold, per page 183. On MFD front ends, torque the disc to rim nuts to 155 to 185 lb ft (210 to 250 Nm) as listed on page 179. Recheck before the next field pass.
Manual Section: Tires/Wheels/Spacing/Ballast p. 183Frequently Asked Questions
How do I reset the service hour accumulation on the digital instrument cluster?
To reset the service hour accumulation to zero, turn the key switch to the ON position. Push the ENGINE RPM and RESET push buttons at the same time for four (4) seconds. p. 67
What is the correct intake and exhaust valve clearance on a Case 7230, 7240, 7250 tractor engine?
The intake valve clearance is 0.30 mm (0.012 in) and the exhaust valve clearance is 0.60 mm (0.024 in). These adjustments should be made when the engine is cold. p. 106
What is the torque spec for the front wheel mounting bolts on a 2WD Case 7230, 7240, 7250 tractor?
The front wheel mounting bolts on a 2WD tractor should be tightened to a torque of 140 to 160 lb ft (190 to 217 Nm). p. 179
What is the engine oil capacity with a filter change on a Case 7230, 7240, 7250 tractor?
The engine oil capacity with a filter change is 5-1/2 gallons (21 litres). p. 213
How do I calibrate the wheel slip bar graph for zero slip?
To calibrate for zero slip, drive the tractor across the field with the implement raised in a NO LOAD condition at normal working speeds for a minimum of four (4) seconds. Then, push and hold the CALIBRATE SLIP button for a minimum of three (3) seconds. p. 147
Will this Case 7230 Operator Manual download right away?
All 299 pages arrive as one searchable PDF at checkout. Read it at the desk, then take the phone out to the machine.
Is printing allowed for this Case 7230 Operator Manual?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
