Part of the Case Operator Manuals.

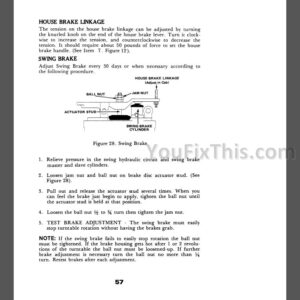

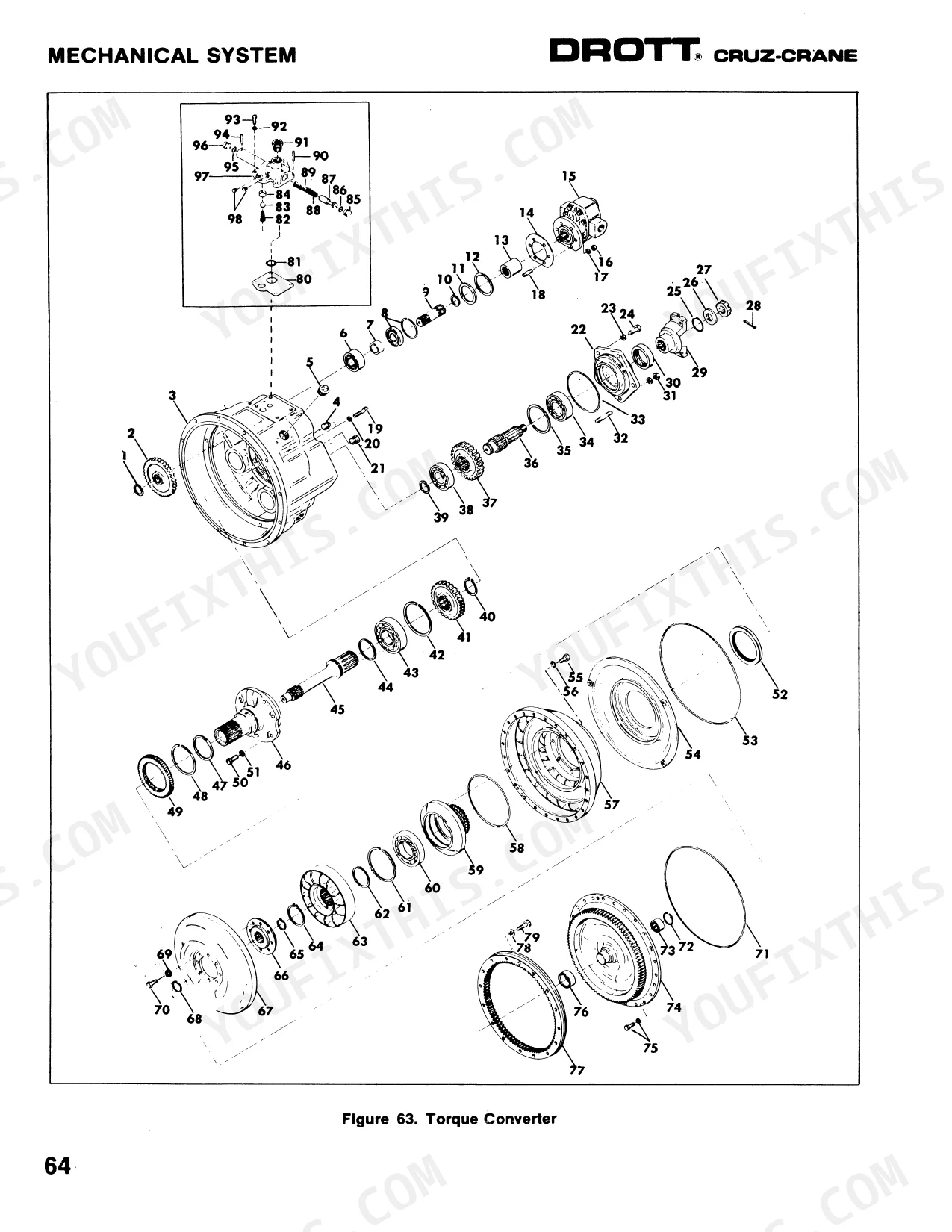

Every one of the 370 pages in this Drott 2500 Cruz-Crane service manual pdf (OEM #S406152M3) focuses on getting your crane back to factory condition. Inside, you get full electrical control circuit wiring diagrams, heavy-duty troubleshooting charts, and complete hydraulic schematics covering the outrigger, steering, and winch circuits. Open the mechanical systems section to find step-by-step teardown procedures for the torque converter, turntable swing, and center swivel module. Verify the massive 200-gallon hydraulic system is topped off, then lock down the 3/8-inch axle pinion bearing cage capscrews to exactly 30-40 lb-ft. Your machine is down, and guessing at specs wastes valuable shop time. Download this digital file directly to your tablet, jump straight to the exact procedure using the built-in bookmarks, and get back to work.
What's Inside This Case 2500 Cruz-Crane Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 3-10 | Safety Precautions, International Symbols, Introduction, Nomenclature, Parts Orders and Inquiries, Directional References |

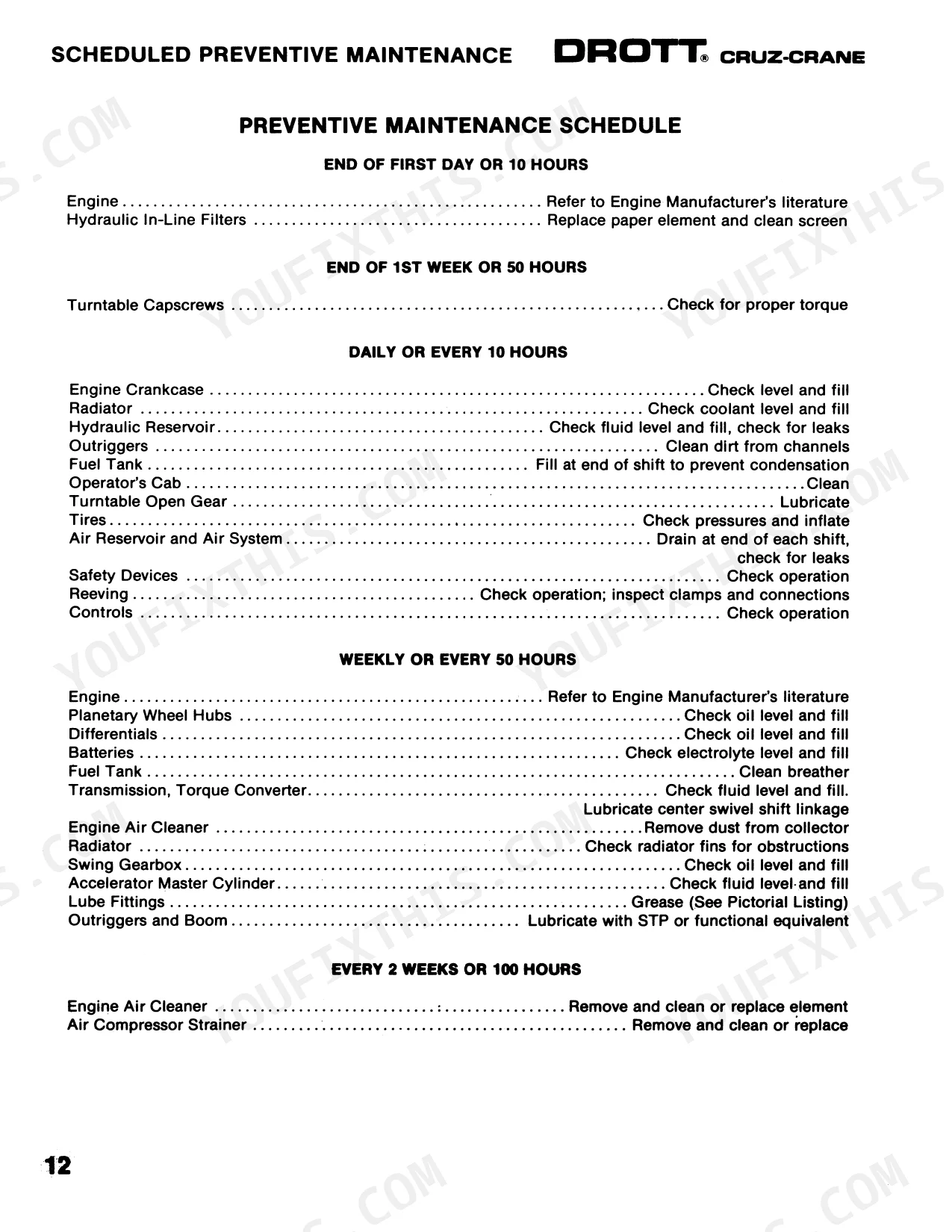

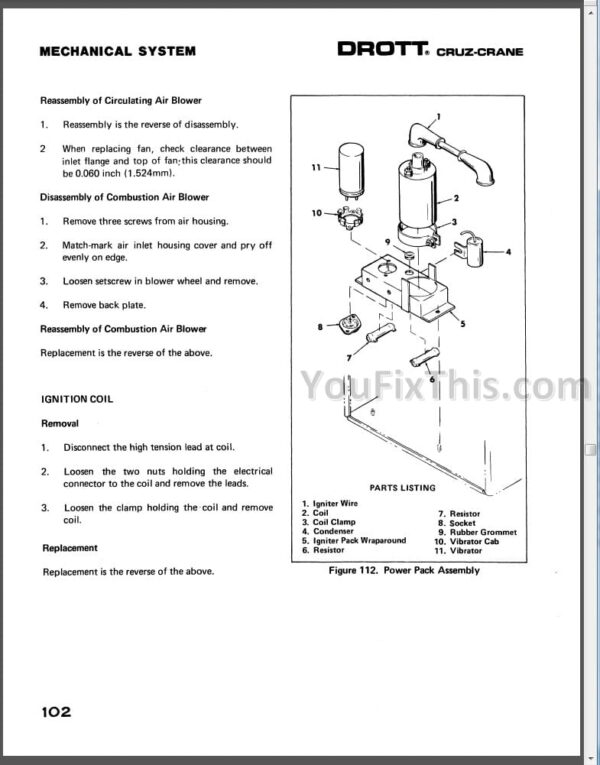

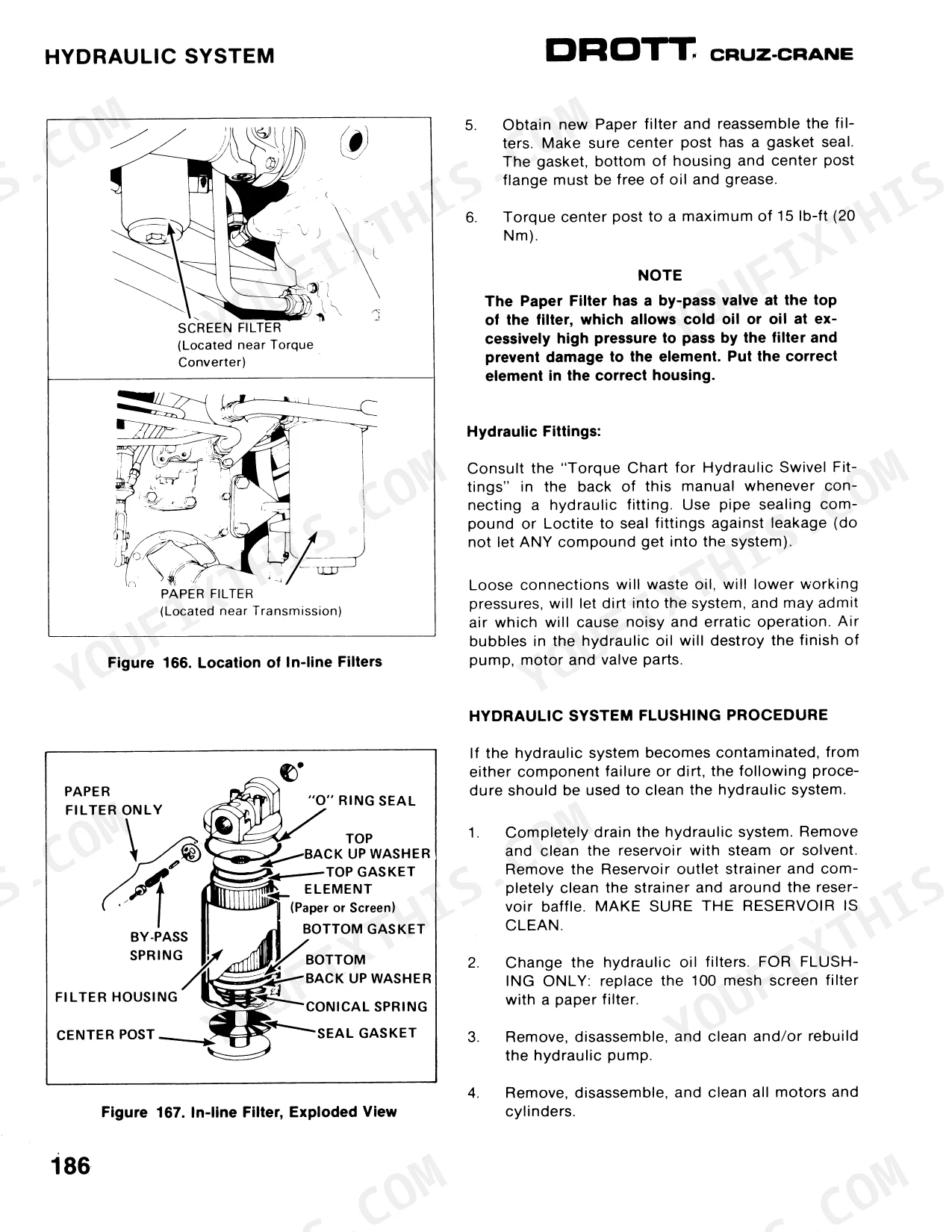

| Scheduled Preventive Maintenance | 11-22 | Hydraulic Oil Recommendations, Systems Pressure Chart, Engine Specification, Tire Pressures, Components, Lubricants and Fluid Chart, Preventive Maintenance Schedule, Service Chart |
| Crane Mechanical System | 23-158 | Description, Maintenance and Troubleshooting, Engine and Related Items, Torque Converter, Transmission and Shifting Linkage, Axles and Oscillation Lockout, Turntable Swing, Boom |
| Air System | 159-176 | Description, Maintenance and Troubleshooting, Air Supply, Brake System, Hi-Lo Range Shift, Disassembly and Repair, Compressor, Reservoir |
| Electrical System | 177-194 | Description, Maintenance and Troubleshooting, Basic Electrical Theory, 2500 Electrical System, 2500 Electrical Circuit, Charging Circuit, Control Circuits |
| Steering System Hydraulics | 197-201 | - |
| Outrigger Hydraulics | 202-204 | - |
| The Swing Circuit | 205-208 | - |
| The Hoist Circuit | 209-210 | - |
| The Crowd Circuit | 211-214 | - |
| The Winch Circuits | 215-218 | - |
| Oscillation Lockout Circuits | 219 | - |
| Disassembly and Repair | 220 | - |
| Main Pumps | 220-224 | Drive Shaft, Drive and Driven Gears, Bearing Carrier, Gear Housing, Thrust Plates, Pocket Seals |
| Center Swivel | 225-226 | Hydraulic Swivel, Air Swivel, Electrical Collector Ring, Accelerator Swivel, Shifting Linkage Tubes, Swivel Shaft |
| Main Control Valves | 227-229 | Valve Spools, Valve Housing, Seal Seats, Wiper Seals, Poppet Springs, Back-Up Rings |
| Main Reliefs | 230 | Relief Valve Plug, Spring, Piston, Sleeve, O-Rings, Back-Up Rings |
| Port Reliefs | 231 | Cartridge, Valve Housing, Piston, Poppets, Springs, O-Rings |
| Steering Pump | 232-233 | Tie Bolts, Front Plate, Back Plate, Drive Gear, Diaphragm, Shaft Seal |
| Orbitrol | 234 | Control End, O-Ring, Ball Compression Spring, Seal Check Plug Seat, Oil Seal, Quad Ring Seal |
| Steering Selector Valve | 235-236 | Solenoids, Control Valve, Valve Stops, Spool, Sleeve Assembly, O-Rings |
| Outrigger Control Valve | 237 | Plunger, Coil, Shell, Spool, Spring, Solenoid Valve Bank |
| Swing Motor | 238-240 | Drive Shaft, Gerotor, Thrust Bearing, Quad Seal, Mounting Plate, Oil Seal |
| Swing Cushion Valve and Sequencing Valve | 241 | Valve Housing, Valve Cartridge, Back-Up Rings, O-Rings |
| Proportionator | 242-370 | Gear Set, Thrust Plate, Gear Housing, Bearing Carrier, Connecting Shaft, Pocket Seals |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Axle Pinion Bearing Cage to Carrier Capscrews (3/8"-16) | 30-40 lb-ft | p. 89 |
| Transmission Bolts (Grade 8, 1/2" Coarse Threads) | 80-88 lb-ft | p. 83 |
| Engine Crankcase Capacity (Case Engine) | 10 qts. (9.5L) +3 w/filter | p. 13 |
| Hydraulic System Capacity | 200 gal. (760L) | p. 13 |
| Transmission and Torque Converter Capacity | 8-1/2 gal. (32L) | p. 13 |

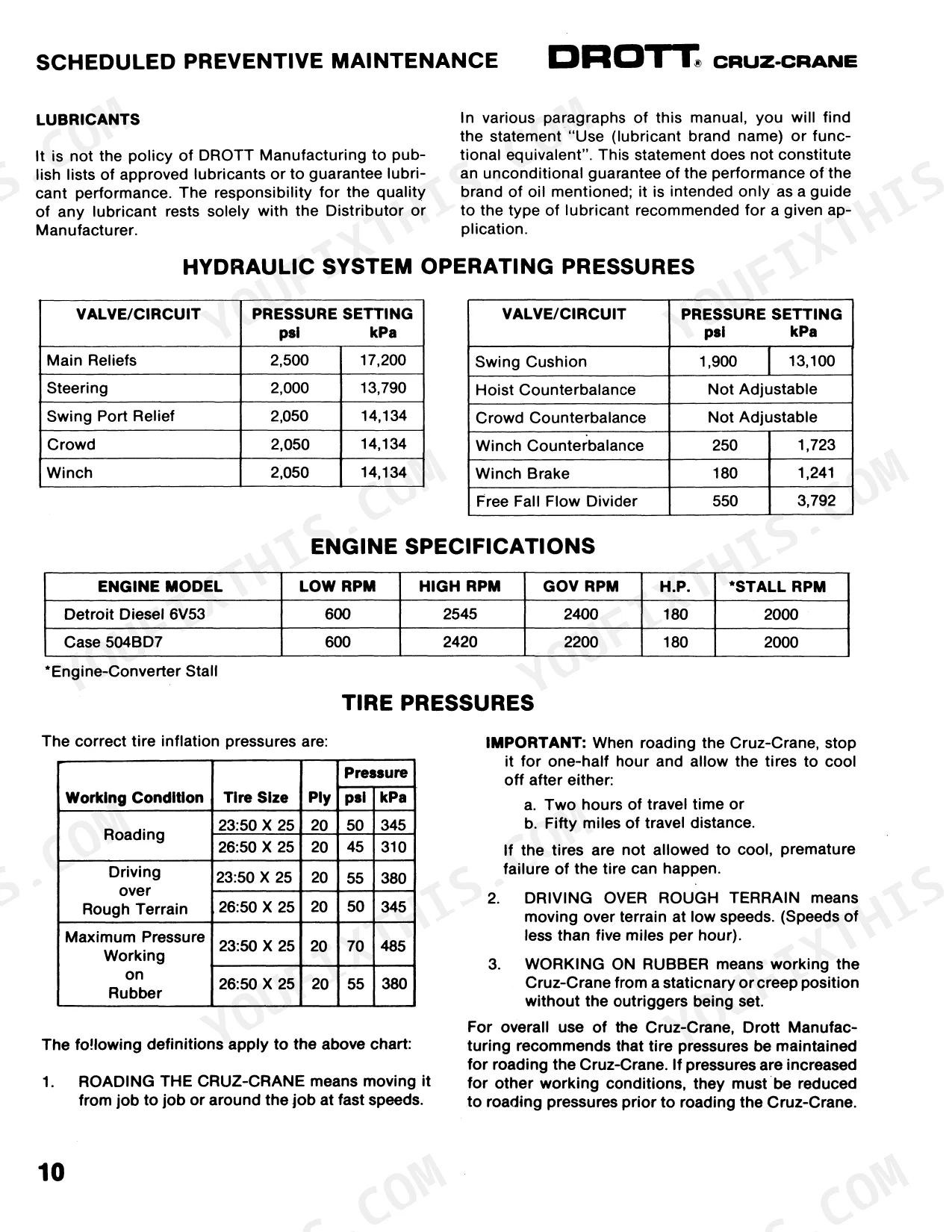

| Main Hydraulic Relief Pressure | 2,500 psi (17,200 kPa) | p. 12 |
| Steering Hydraulic Pressure | 2,000 psi (13,790 kPa) | p. 12 |
| Boom Max Allowable Side Deflection (3 Section) | 19 inches (482 mm) | p. 49 |
| Diesel Heater Glow Plug Voltage | 11-12 volts | p. 65 |
| Transmission Clutch Pressure | 240-280 psi (1650-1930 kPa) | p. 34 |
Case 2500 Cruz-Crane Common Problems This Manual Covers
Drott 2500 Cruz-Crane engine lacks power and responds sluggishly under load, won't reach full rpm

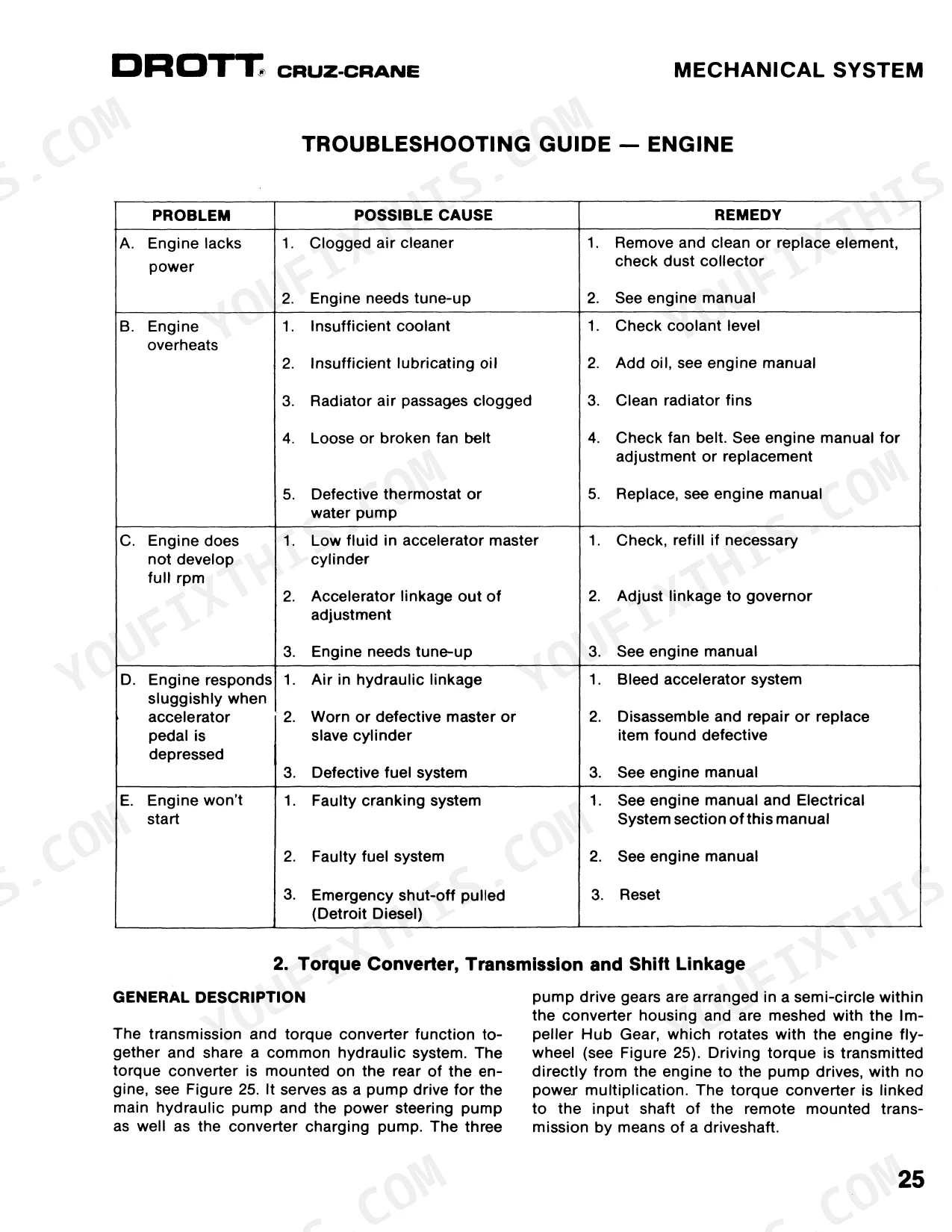

Work through the engine troubleshooting chart first. Check air filter restriction and fuel supply before anything else. Verify crankcase oil is filled to the correct 10 qt. (9.5L) capacity plus 3 qts. with a new filter per page 13, since low oil triggers protection modes that cut power on some setups.
Manual Section: Engine TroubleshootingTransmission won't shift and forward or reverse stays inoperative with low clutch pressure
Tee a gauge into the clutch pressure test port and compare against spec. covers low clutch pressure causes: worn pump, leaking seals, or a stuck regulator valve. Clutch pressure should read 240-280 psi (1650-1930 kPa) per page 34; anything below that means pull the regulator valve and inspect for scoring before replacing seals.
Manual Section: Transmission System TroubleshootingBoom extends and retracts with difficulty and shows excessive side deflection under load
Check wear pad clearance and boom section alignment per the troubleshooting steps. Measure side deflection on the 3-section boom; anything beyond the 19 inch (482 mm) max allowable deflection listed on page 49 means worn pads or bent sections need replacement. Also verify hydraulic extend/retract cylinder pressure isn't dropping under load.
Manual Section: Boom TroubleshootingAll outriggers fail to extend and retract, jacks won't hold the machine under load
Follow the outrigger hydraulics chart on page 216 to isolate the fault to the control valve, solenoid bank, or cylinder. Check for oil leakage between valves in the solenoid valve bank; a leaking spool lets pressure bleed off and drops the load. Verify system relief pressure holds at 2,500 psi (17,200 kPa) as specified on page 12 before condemning the pump.
Manual Section: Outrigger Hydraulics Troubleshooting p. 216Diesel cab heater fails to ignite and produces inadequate heating performance in cold weather
Check the diesel heater troubleshooting steps on page 65. Test glow plug voltage at the connector; it must read 11-12 volts per the spec on the same page, or the fuel won't atomize enough to light off. If voltage is correct, move on to checking the fuel metering pump and combustion air blower for restriction.
Manual Section: Diesel Heater Troubleshooting p. 65Main hydraulic system runs noisy with slow motion and overheating oil during operation
Run through the main hydraulic troubleshooting sequence on page 206. Drain and check oil condition first; foaming or overheating usually points to a low reservoir or a suction leak drawing air into the pump. Confirm main relief pressure holds at 2,500 psi (17,200 kPa) per page 12, and pull the pump for bearing wear if noise persists after the oil and pressure check out.
Manual Section: Main Hydraulic System Troubleshooting p. 206Frequently Asked Questions
How to find torque specs for DROTT 2500 Cruz-Crane?

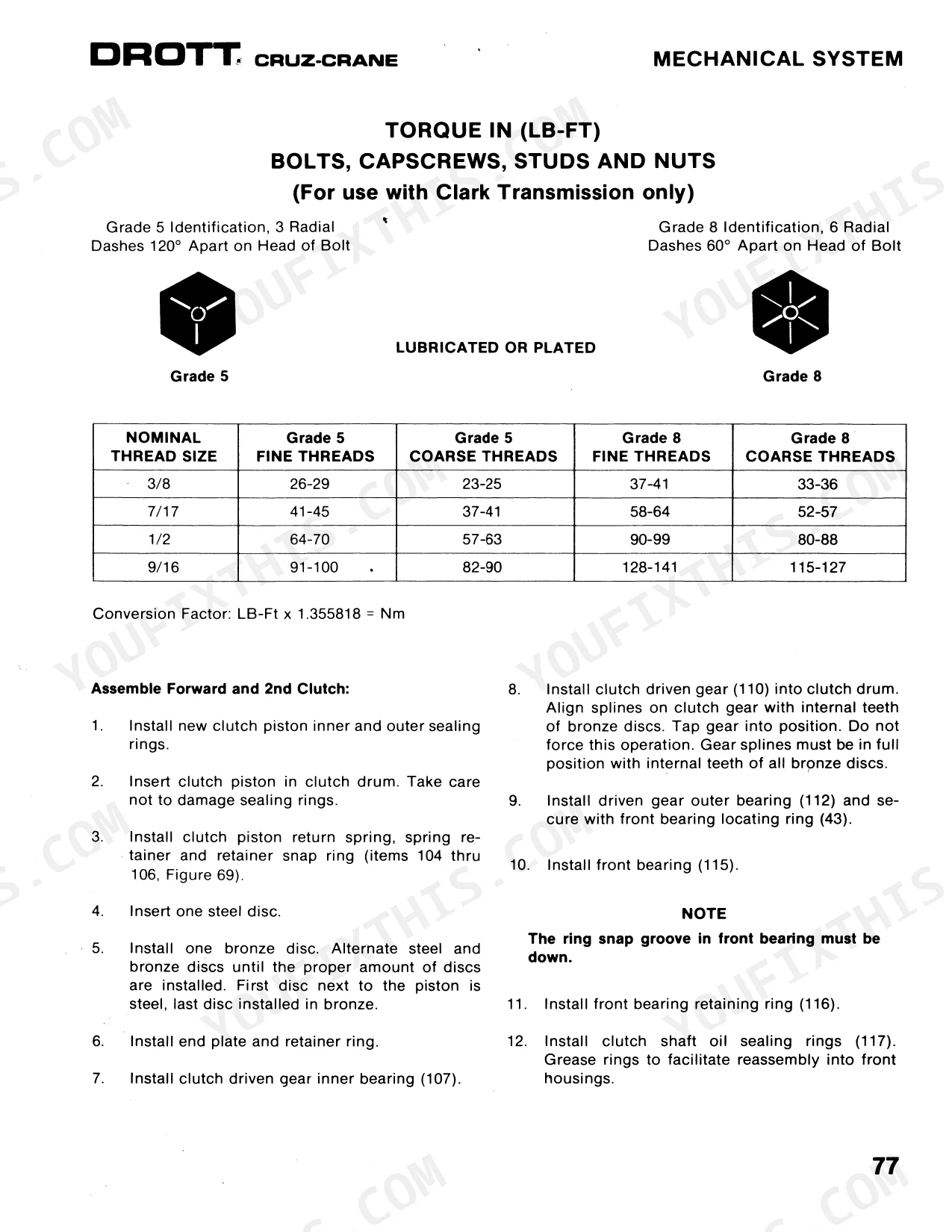

The manual provides several tables for torque specifications. General bolt, capscrew, stud, and nut torque values for Grade 5 and Grade 8 fasteners are listed on page 83. Specific torque limits for axle components (Rockwell Axles only) are on page 95, including pinion bearing cage, differential bearing cap, gear to differential case, planetary spider cover, steering arm, spindle to housing, tie rod clamp, and brake drum bolts. Additionally, maximum recommended torque values for JIC Swivel Nuts (37° Seat) are provided on page 263. p. 83
What is the recommended hydraulic oil for the DROTT 2500 Cruz-Crane and its operating temperature ranges?
DROTT DHF Fluid is recommended for year-round use. Alternatively, SAE 20-20W oil can be used for operating temperatures from 50° to 210° F (10° to 99° C), and SAE 10W for 0° to 180° F (-18° to 82° C). For Arctic Conditions, SAE 5W or 5W-20 oils may be necessary. The hydraulic system capacity is 200 gallons (760L), with the reservoir holding 116 gallons (440L). p. 11
What are the torque specifications for the turntable capscrews on the DROTT 2500 Cruz-Crane?
Turntable-to-Bearing (Upper) capscrews with 7/8" thread diameter and 3" (76.2mm) bolt length require a torque of 560 lb-ft (760 Nm) using a 36" torque wrench. Bearing-to-Carrier (Lower) capscrews with 7/8" thread diameter and 2-3/4" (69.8mm) bolt length also require 560 lb-ft (760 Nm). If a 30" Horizontal Extension is used with the 36" torque wrench, the torque is 305 lb-ft (410 Nm). p. 44
What is the recommended service interval for the engine air cleaner element on the DROTT 2500 Cruz-Crane?
The engine air cleaner dust collector tube should be removed and cleaned weekly or every 50 hours. The filter element itself should be removed and cleaned every 100 hours or every two weeks, or replaced after 5 cleanings or every 500 hours, whichever comes first. p. 24
What format is this Drott 2500 Cruz-Crane manual in?
This is a 370-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Are there any print restrictions on this Drott 2500 Cruz-Crane manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.

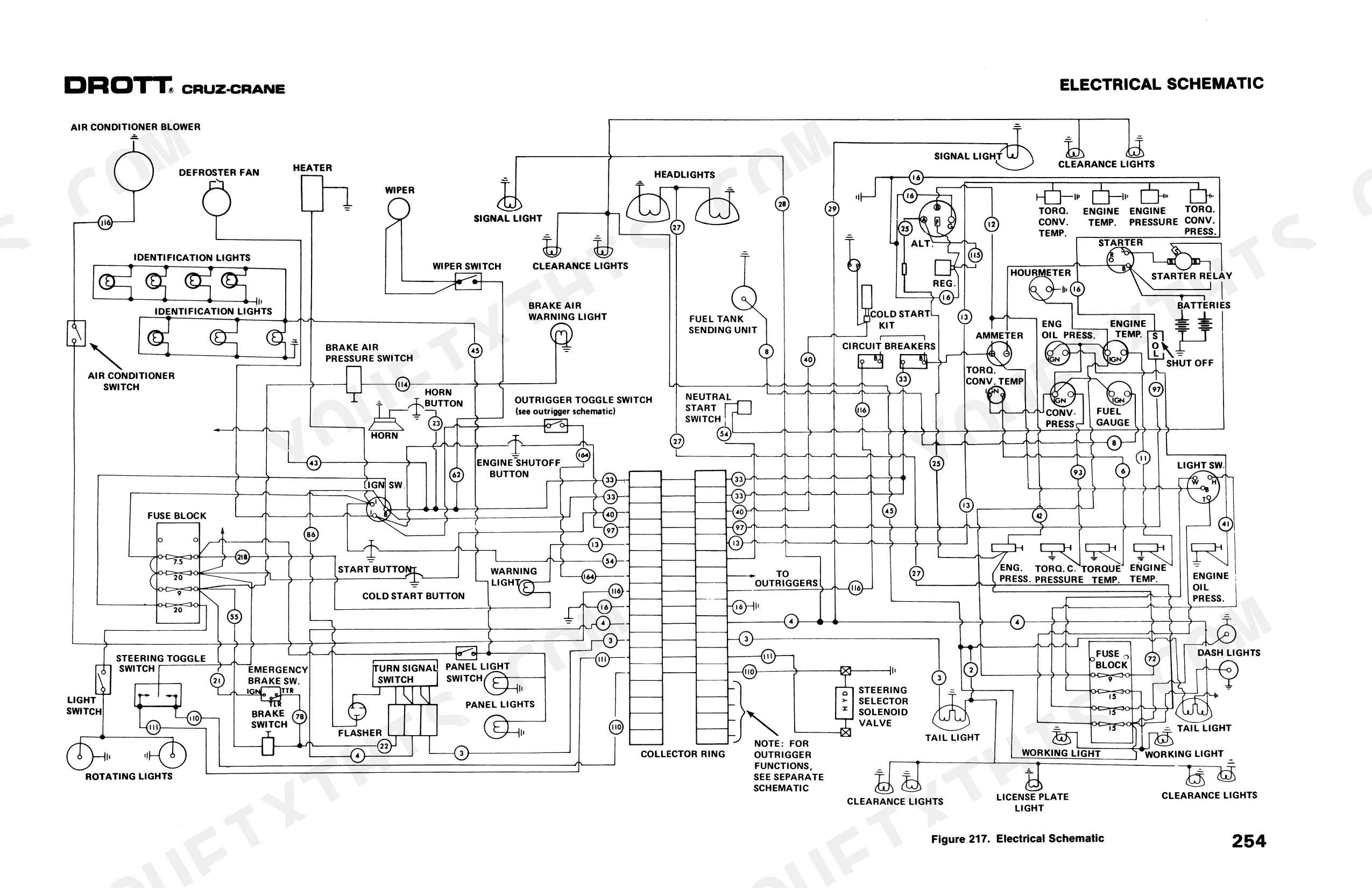

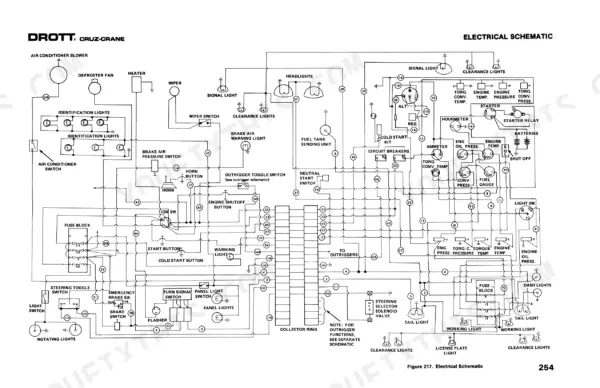

Can I find wiring schematics in this Drott 2500 Cruz-Crane manual?
Included. The Drott 2500 Cruz-Crane Service Manual covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
