Part of the Case Operator Manuals.
All 81 pages of this Case 4386, 4586, and 4786 Operator Manual (OEM #1096026R4) are built around one purpose: keeping your articulated four-wheel drive tractor running the way Case built it. Inside you get a full safety section covering pre-start checks, starting procedures, and dismounting rules, plus step-by-step operating instructions for the Data Center, exhaust gas temperature gauge, three-point hitch categories III and IV, auxiliary hydraulic outlets, and differential lock. Maintenance intervals run from daily 10-hour checks through 200-hour service cycles, and the lubrication table lays out every capacity in one place: the 4386 takes 19 qts (17.9L) of engine oil; the 4586 and 4786 need 22 qts (20.8L); the fuel tank holds 170 gals (644L). Your machine isn't going to fix itself while you're hunting specs on a forum. Download now; bookmarks take you straight to any section, and keyword search finds the number you need in seconds.
What's Inside This Case 4386/4586/4786 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| To the Owner | 3 | Attention! Symbol, Operation, Lubrication and Maintenance Instructions, Tractor Model and Serial Numbers, Four-Wheel Drive Tractors, Gauge Wheels, Universal Symbols |
| Serial Numbers | 6-8 | Diesel Engine Serial Number, Tractor Transfer Case Serial Number, Cab Model and Serial Number, Tractor Serial Number, Tractor Transmission Serial Number, Axle Serial Number |
| Work Safely - Follow These Rules | 9-11 | Operator Safety, Servicing and Before Starting, Starting Procedures, During Operation, Transporting Equipment, Dismounting Procedures |

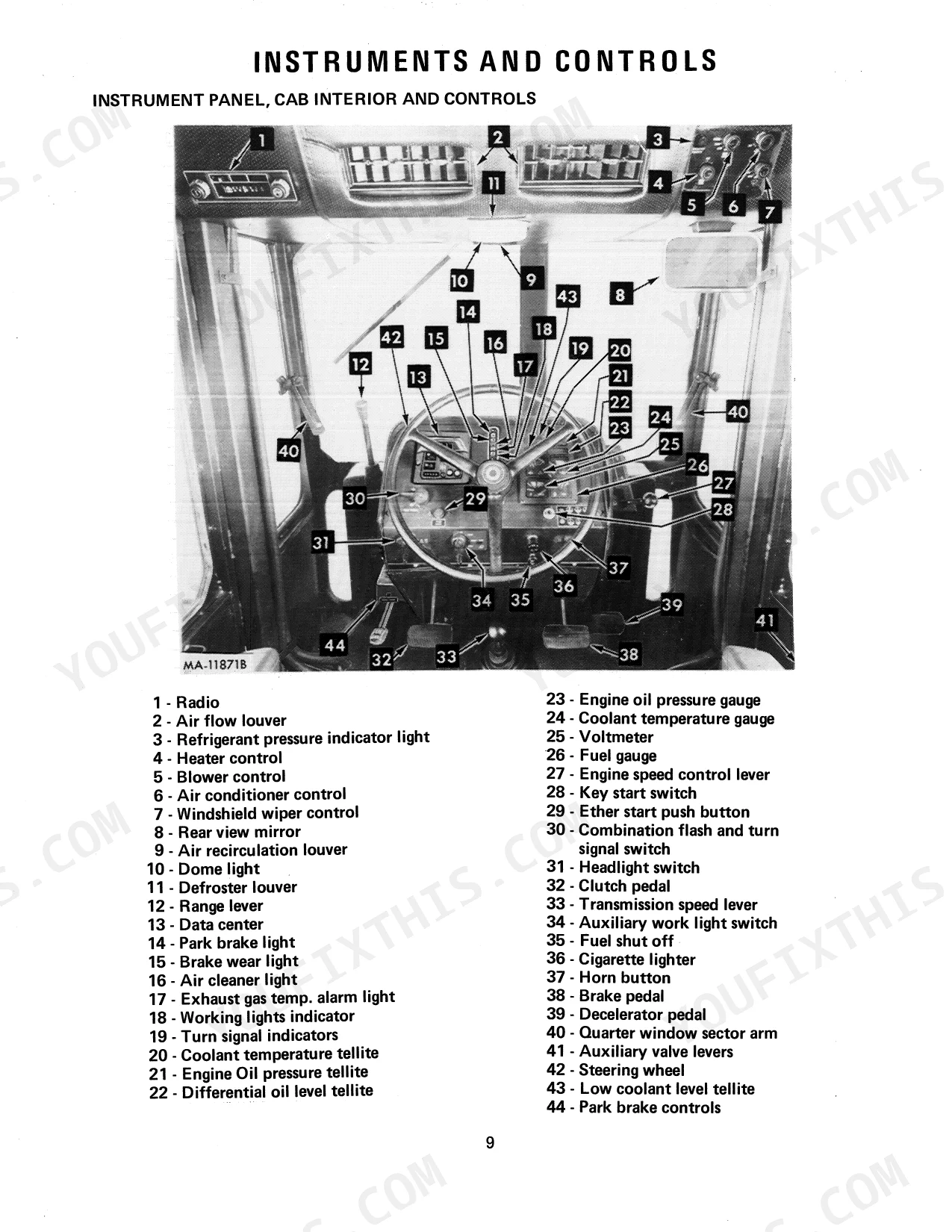

| Instruments and Controls | 12 | Instrument Panel, Swivel Seat Controls |
| Before Operating Your Tractor | 13 | Manual Study, Instruments and Controls Familiarization, Fuel Tank Filling, Turbocharger Priming, Engine and Transmission Oil Level Check, Tire Inflation Pressures |

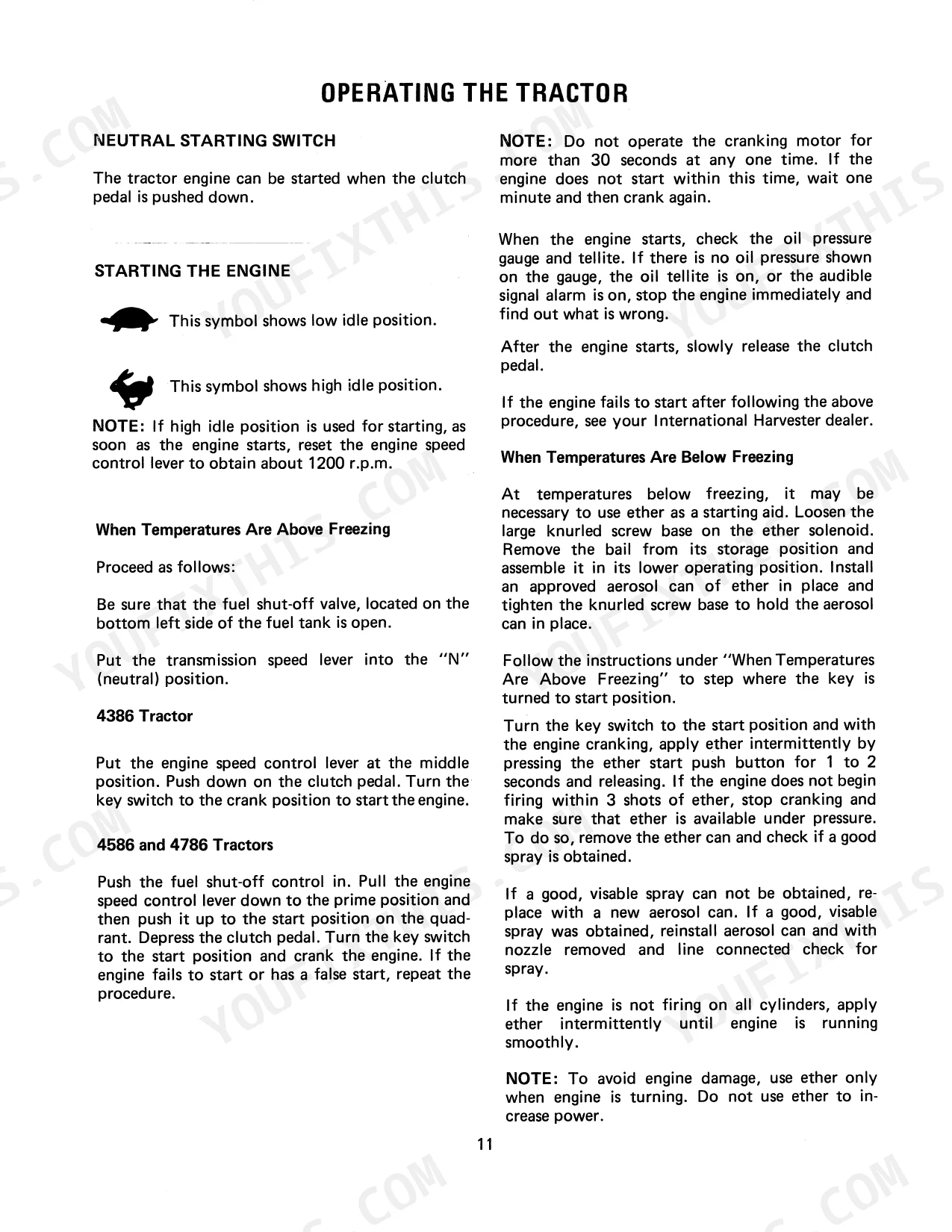

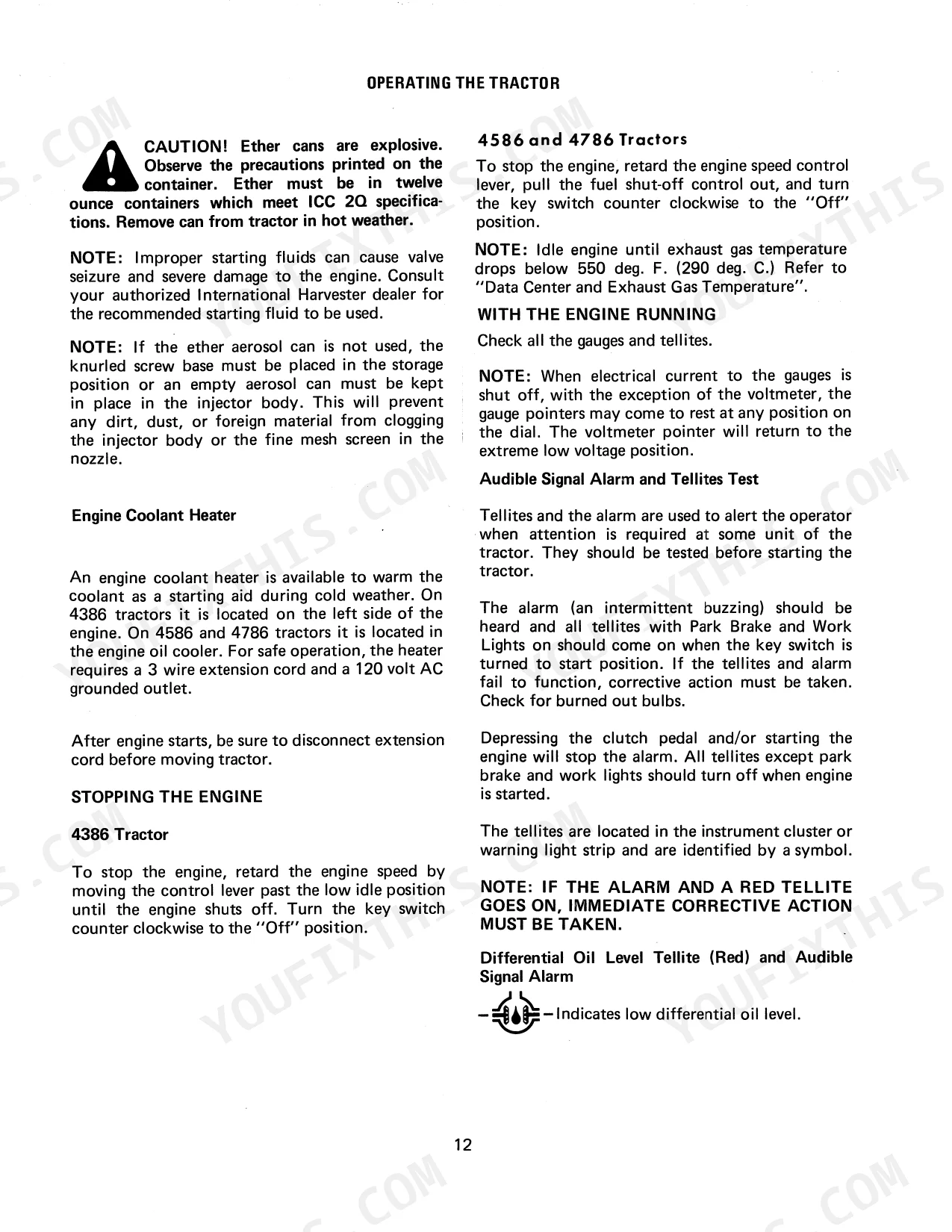

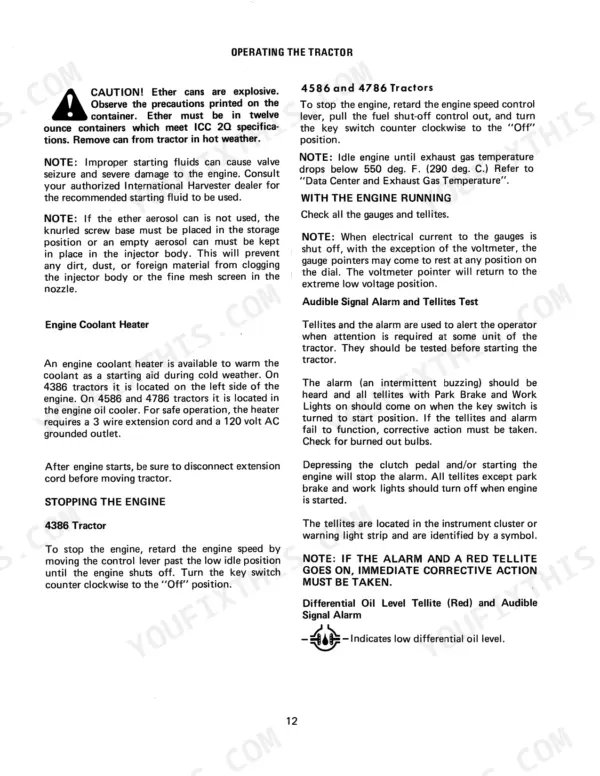

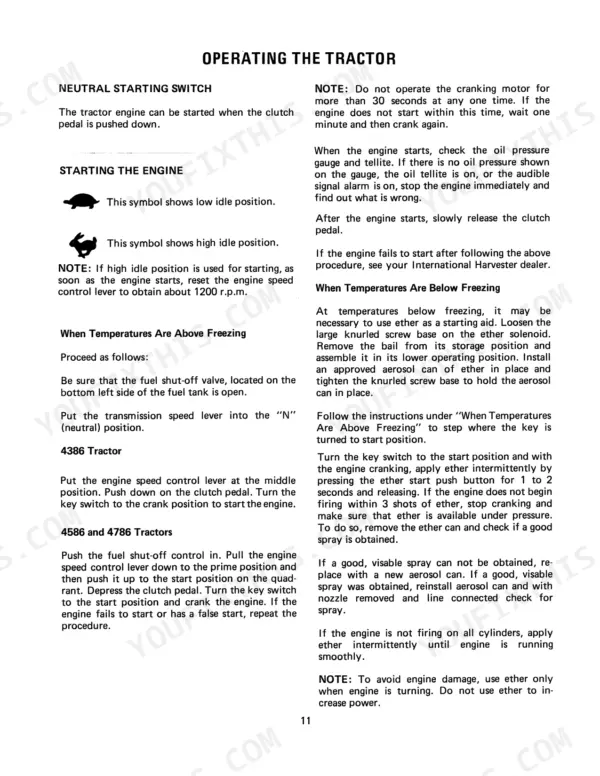

| Operating the Tractor | 14-22 | Neutral Starting Switch, Starting the Engine, Stopping the Engine, With the Engine Running, Data Center, Exhaust Gas Temperature, Steering the Tractor, Driving the Tractor |
| Cab Interior and Controls | 23-25 | Operating the Controls, Control Settings, Radio Units, Seat |
| Engine and Fuel System | 26-30 | Warranty Notice, Fuel System, Fuel Injection Pump and Nozzles, Priming the Turbocharger |
| Cooling System | 31-33 | Coolants and Conditioner, Coolant Level Checking, Draining and Filling, Radiator, Oil Cooler and Condenser Fins Cleaning, Coolant System Filter Conditioner, Water Pump |
| Air Cleaning System | 34-35 | Removing and Cleaning the Primary Filter Element, Inspection, Secondary Filter Element, Automatic Dust Unloader |
| Electrical System | 36-39 | Charging System for Alternator-Generator, Cranking System, Lighting System, Turn Signal Indicators, Combination Turn Signal and Warning Lights, Headlight Switch |
| Category Iii Three Point Hitch | 40-42 | Lift Link and Leveling Screws, Hitch Lower Links, Hitch Upper Link, Lateral Limiter, Rigid Hitch Position, Free to Float Position, Coupling the Equipment, Uncoupling the Equipment |
| Category Iv Three Point Hitch with Quick Coupler | 43-46 | Hitch Parts, Lift Links and Leveling Screws, Hitch Upper Link, Lateral Limiter, Coupling Equipment, Uncoupling Equipment |
| Hitching Trailing Equipment to the Tractor | 47 | Drawbar Bolts, Trailing-Type Equipment Hitches, Swinging Drawbar Support Bar, Swinging Drawbar, Lockout Pins, Towing Equipment |
| Hydraulic Controls | 48 | Control Levers, Implement Lowering, Equipment Parking, Hitch Mounted Heavy Tillage Equipment, Control Valve Operating Lever Positions |
| Auxiliary Valves, Remote Cylinders, and Hydraulic Outlets | 49-50 | Connecting Hoses to the Rear Hydraulic Outlets, Check Valves, Operating Double-Acting Cylinders, Operating Single-Acting Cylinders |
| Differential Lock and Wheels | 51-53 | Tread Widths, Wedge Hubs, Dual Wheels |
| Tires | 54-55 | Inflation, Load Capacity |
| Storing the Tractor | 57 | Storage, Removing From Storage |
| Lubrication | 58-59 | Engine Oil, Gear Lubricant, Lubrication Fitting Grease, Engine Oil Filter, Hydraulic Fluid Filter |
| Lubrication Table | 60 | Point of Lubrication, Capacity, Lowest Anticipated Air Temperature for Oil Change Intervals, Lubricants |

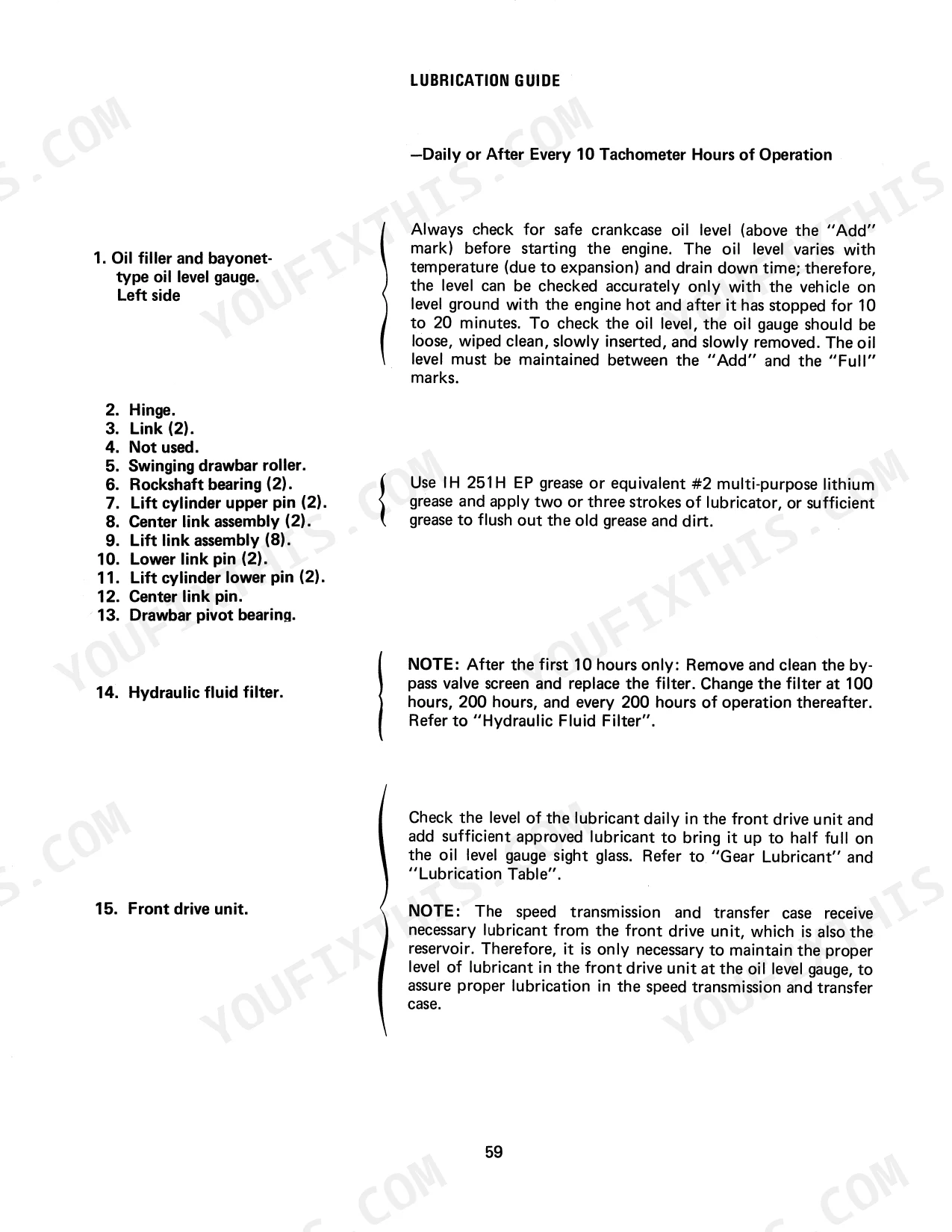

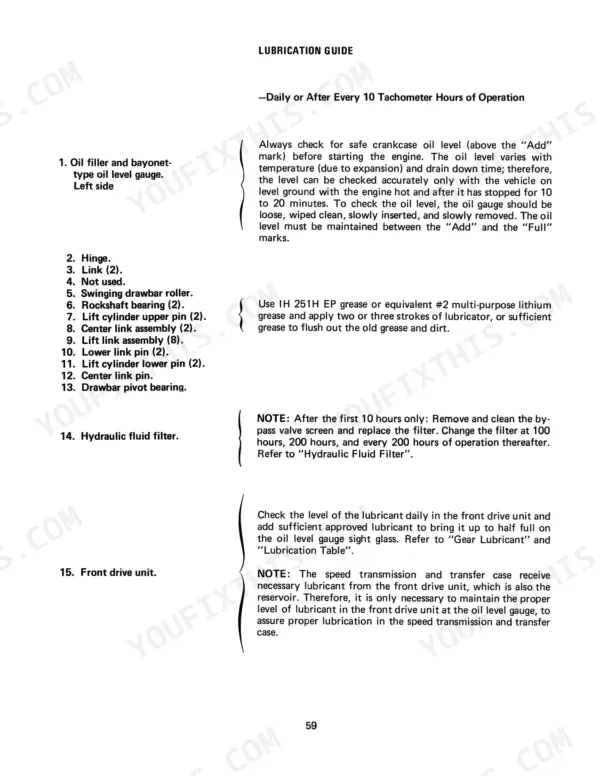

| Lubrication Guide | 61-64 | Daily or After Every 10 Tachometer Hours of Operation, After Every 100 Tachometer Hours of Operation, After Every 200 Tachometer Hours of Operation |
| Preventive Maintenance Guide | 65-67 | Before Operating the Tractor, After the First 10 Tachometer Hours of Operation, After Every 50 Tachometer Hours of Operation, After Every 100 Tachometer Hours of Operation |
| Cab Equipment Preventive Maintenance | 68-71 | Cab Air Filters, Air Conditioner Condenser, Refrigerant Sight Glass, Refrigeration System Pressures, Evaporator Drain Valves, Compressor Belt Tension, Compressor Pulley and Clutch |
| Specifications | 72-74 | Ground Speeds, Capacities, Engine, Clutch, Foot Brakes, Electrical System |
| Optional Equipment | 75-77 | Alternate Tires, Exhaust Muffler, Hydraulic Differential Lock, Quick Coupler, Radio, Three-Point Hitch |
| Metric (Si) Measurements | 78-81 | Area, Force, Length, Mass, Power, Pressure |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Battery cable clamp torque | 10 to 15 foot-pounds (13.6 to 20.3 N·m) | p. 38 |
| Transmission Fluid Capacity | 12.5 qts (11.8 L) | p. 60 |
| Cooling System Filter Conditioner Service Interval | First 100 hours, then every 400 hours | p. 32 |
| Wheel Wedge Bolt Torque | 400 to 500 foot-pounds (542 to 678 N·m) | p. 53 |
| Maximum Tire Inflation Pressure | 35 pounds per square inch (241 kPa) | p. 54 |
| Minimum Dual Tire Inflation Pressure | 12 pounds per square inch (83 kPa) | p. 54 |
| Minimum Turning Radius | 15 ft (4.57 m) | p. 74 |
| Cab Dome Light Fuse | 3 Amp | p. 74 |
| 4386 | ||
| Engine Oil Capacity (4386, DTI-466, S.N. 77300 and above) | 19 qts (17.9L) | p. 60 |
| 4586, 4786 | ||
| Engine Oil Capacity (4586, 4786, V-800, S.N. 77300 and above) | 22 qts (20.8L) | p. 60 |
| 4386, 4586 | ||
| Fuel Tank Capacity | 170 gals (644 L) | p. 73 |
Case 4386/4586/4786 Common Problems This Manual Covers
Case 4386 engine cranks slowly or fails to start, battery warning light on p. 36
Check battery cable clamps first — loose connections are the leading cause of slow cranking on these tractors. Torque both positive and negative clamps to 10 to 15 foot-pounds (13.6 to 20.3 N·m) as shown on page 38. Inspect terminals for corrosion and clean with a wire brush. Verify electrolyte level in each cell and test voltage under load before condemning the battery.
Manual Section: Electrical SystemEngine temperature gauge climbing into red zone during heavy tillage work p. 31
Stop the tractor and let it idle before shutting down. Check coolant level at the recovery tank — it should be between MIN and MAX marks when cold. Inspect the radiator and oil cooler fins for packed debris and clean with compressed air or water. Verify the coolant filter conditioner has been replaced at 100 hours initially, then every 400 hours of operation. Full coolant service procedure is on page 31.
Manual Section: Cooling SystemAir cleaner service indicator showing red, engine running rough under load p. 34
Pull the primary filter element and tap it gently against a flat surface to dislodge loose dust — never wash with water or blow air from inside out. Inspect the element for tears or holes; replace if damaged. Check that the automatic dust unloader valve at the bottom of the bowl is not clogged or stuck closed. Full air cleaner service steps are on page 34.
Manual Section: Air Cleaning SystemRear tires visibly low or uneven, tractor pulling to one side during field work p. 54
Inflate tires with a calibrated gauge before each shift. Never exceed 35 pounds per square inch (241 kPa) on any tire. If running dual wheels, maintain a minimum of 12 pounds per square inch (83 kPa) — below that the tire can unseat from the rim under load. Check inflation cold, before field operation. Tire inflation and load capacity guidelines are on page 54.
Manual Section: TiresWedge hub loose after tread width adjustment, wheel shifting under heavy draft p. 53
After repositioning wheels on the wedge hubs, torque the wedge bolts alternately in sequence to 400 to 500 foot-pounds (542 to 678 N·m). Do not tighten one wedge fully before moving to the next — alternate passes until both reach full torque. Recheck after the first few hours of field operation following any adjustment. See page 53 for the correct tightening procedure.
Manual Section: Differential Lock and WheelsHydraulic remote cylinder moving sluggishly or not extending after hose reconnection p. 49
After connecting any remote hose, trapped air in the cylinder circuit causes slow or erratic movement. Cycle the control lever through full extension and retraction several times with no load on the implement to purge air. Check hydraulic fluid level at the sight glass and top up if low. Fluid type and capacity are on page 60; hose connection procedure is on page 49.
Manual Section: Auxiliary Valves, Remote Cylinders, and Hydraulic OutletsFrequently Asked Questions
How to reset the error code on the tractor?
The manual describes how to reset the Exhaust Gas Temperature (EGT) alarm. To reset it, turn the key on, press the EGT switch pad to display the alarm temperature, and then turn the alarm "set" to the desired temperature, ensuring it is not set above 1420° F. (770° C.).
Why does the Case 4386 engine crank slowly or fail to start?
Check battery cable clamps first — loose connections are the leading cause of slow cranking on these tractors. Torque both positive and negative clamps to 10 to 15 foot-pounds (13.6 to 20.3 N·m) as shown on page 38. Inspect terminals for corrosion and clean with a wire brush. Verify electrolyte level in each cell and test voltage under load before condemning the battery.
What is the engine oil capacity for the Case 4386, 4586, and 4786?
Engine oil capacity differs by model: the 4386 takes 19 quarts (17.9 litres); the 4586 and 4786 each need 22 quarts (20.8 litres). The fuel tank capacity is 170 gallons (644 litres) across all three models. Full capacity table is on page 60 of the manual.
What is the wedge hub bolt torque on the Case 4386, 4586, or 4786?
After repositioning wheels on the wedge hubs, torque the wedge bolts alternately in sequence to 400 to 500 foot-pounds (542 to 678 N·m). Do not tighten one wedge fully before moving to the next — alternate passes until both reach full torque. Recheck after the first few hours of field operation following any adjustment. See page 53 for the correct tightening procedure.
What format is this Case 4386, 4586, 4786 Operator Manual in?
Instant PDF download. You get the complete, searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print sections of this Case 4386, 4586, 4786 Operator Manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need.
