All 1,212 pages of this Case JX70–JX100 series Service Manual (OEM #Mod 6-61030) are factory-written for one job: tearing down and rebuilding the JX70U, JX80U, JX90U, and JX100U tractors to spec. Inside, you get a full electrical section with wiring diagrams and connector pinouts, hydraulic schematics covering hydrostatic steering and the complete hydraulic system, 64 error codes with a calibration section, and page after page of exploded views across every major assembly. Torque the main bearing cap bolts to 80 Nm plus 90 degrees of rotation; set valve-rocker arm clearance to 0.30 plus or minus 0.05 mm on a cold engine before you button anything up. Your machine is down and the clock is running. Get the factory answer on the first try. Bookmarked and keyword-searchable: pull it up on any device, jump straight to the section you need, and get back to work.
What's Inside This Case JX70U, JX80U, JX90U, JX100U Manual
| System | Pages | Key Topics |
|---|---|---|
| 1 -- General Guidelines | 5-10 | Shimming, Rotating Shaft Seals, Sealing Compounds, Bearings, Tools, Consumables |
| 2 -- Engine | 11-114 | Main Data, Diagrams |
| 3 -- Fuel Injection System | 115-140 | General Specifications, Fuel System Data, Injector Sleeve, Engine Injectors, Bosch Injection Pump, Bosch Injection Pump Timing |
| 4 -- Electrical Systems | 141-458 | Instruments (Control Panel, Sensors and Switches), Components (Internal and External Electrical Controls), Starting System (Starter Motor) |
| 5 -- Steering | 459-518 | Hydrostatic Steering, Hydrostatic Steering Hydraulic Pump, Hydrostatic Steering Control Valve |
| 6 -- Transmission | 519-978 | - |
| 7 -- Brakes | 979-998 | - |
| 8 -- Hydraulic Systems | 999-1156 | - |
| 9 -- Bodywork and Driving Position | 1157-1212 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

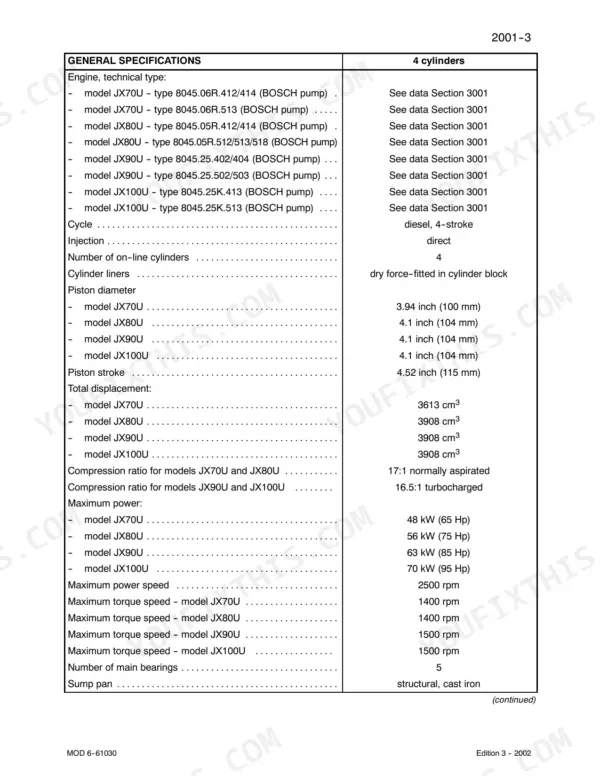

| Piston stroke | 4.52 inch (115 mm) | p. 13 |
| Maximum power | 70 kW (95 Hp) | p. 13 |

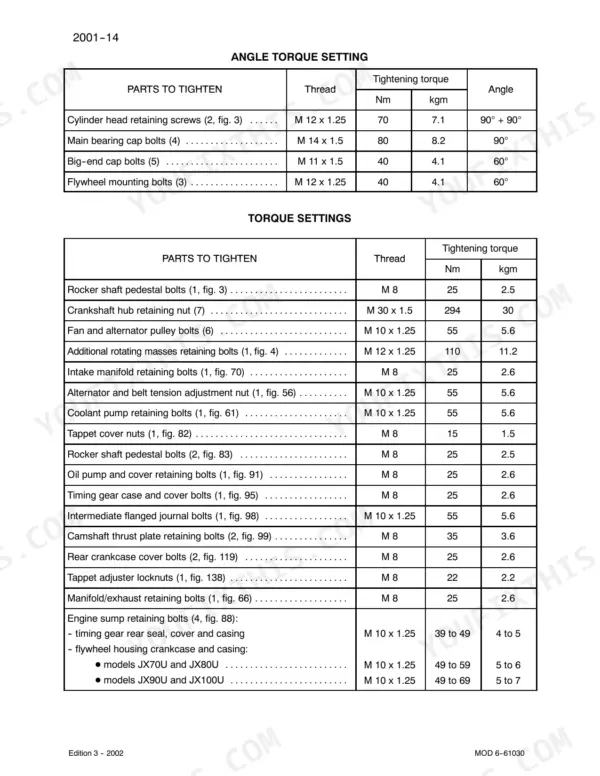

| Main bearing cap bolts torque | 80 Nm (8.2 kgm) + 90° | p. 24 |
| Alternator rated voltage | 14 V | p. 22 |
| Valve-rocker arm clearance (engine cold, intake) | 0.02 ± 0.002 inch (0.30 ± 0.05 mm) | p. 15 |
Case JX70U, JX80U, JX90U, JX100U Common Problems This Manual Covers
Case JX70U-JX100U engine won't start or cranks slowly in cold morning conditions
Check battery terminals for corrosion and verify cable connections are tight. Test starter draw against specifications in the starting system troubleshooting procedures on . Inspect the fuel injection pump timing per pages 115-140. If the engine cranks but won't fire, set valve-rocker arm clearance to 0.02 ± 0.002 inch (0.30 ± 0.05 mm) on a cold engine before suspecting injectors.
Manual Section: Starting System TroubleshootingEngine overheats or loses power under load, exhaust blows black or white smoke
Start with the engine troubleshooting chart on . Check air cleaner restriction first, then inspect the fuel injection system for fouled injectors or incorrect pump timing per Section 3 starting on page 115. Verify valve-rocker arm clearance is within 0.30 ± 0.05 mm cold; tight valves cause misfires that show as smoke and power loss. Confirm coolant level and fan belt tension before pulling the head.
Manual Section: Engine TroubleshootingHydraulic lift won't raise implement or raises too slowly at full engine speed
Work through the hydraulic lift troubleshooting sequence beginning. Verify the hydraulic filter is clean and sump level is correct. Check for external leaks at lift cylinder fittings and hose connections. If the lift jerks or drifts down, inspect the control valve for contamination. If ECU fault codes are active, reference the code table before disassembling any hydraulic components.
Manual Section: Hydraulic Lift TroubleshootingSteering wheel stiff or requires excessive effort during field turns
Check hydraulic steering fluid level and inspect all steering hose connections for leaks or kinking using the hydraulic schematic. Work through stiff-steering-wheel procedures on . Inspect the hydrostatic steering pump for worn seals and verify there is no air in the circuit by bleeding at the highest fitting. Stiff steering that worsens as oil warms typically points to a worn pump; steering stiff only when cold usually means contaminated fluid.
Manual Section: Hydrostatic Steering TroubleshootingClutch slips under load or pedal feels spongy and won't fully disengage
Follow the clutch diagnostic sequence. First adjust pedal free play to factory spec before assuming wear. A clutch that slips under load but releases cleanly usually needs adjustment or has oil contamination from a rear crank seal leak. A clutch that sticks and drags when pedal is floored points to a warped pressure plate or broken return spring. Remove and inspect friction disc thickness before condemning the pressure plate assembly.
Manual Section: Clutch TroubleshootingAlternator warning light stays on, battery discharges after a full day of work
Check alternator wire connections first, then test charging output per . Regulated voltage should read 14 V at the alternator with engine at mid-throttle; readings below 13.5 V or above 15 V indicate regulator failure. Test voltage drop across the main charging cable. If output is within spec but battery still discharges, check for parasitic drain by pulling fuses one at a time with a test light across the battery negative.
Manual Section: Charging System TroubleshootingFrequently Asked Questions
How to reset the error code on Case IH JX70U?
To reset error codes, access the H8 menu for deleting data from the Non-Volatile Memory (NVM). Press and hold key B (4) for 5 seconds until "ERASED" is displayed. Then, move switch (1) to A (OFF) for at least 2 seconds to save the calibration values, which will result in ECU auto-reconfiguration at the next start-up. This procedure deletes all saved configuration information.
What are the torque specs for the engine bolts on Case IH JX80U?
For the Case IH JX80U, the torque specifications for engine bolts are as follows: Cylinder head retaining screws (M 12 x 1.25) require 70 Nm (7.1 kgm) plus two 90° turns. Main bearing cap bolts (M 14 x 1.5) require 80 Nm (8.2 kgm) plus a 90° turn. Big-end cap bolts (M 11 x 1.5) require 40 Nm (4.1 kgm) plus a 60° turn. Flywheel mounting bolts (M 12 x 1.25) require 40 Nm (4.1 kgm) plus a 60° turn. Engine sump retaining bolts (M 10 x 1.25) for JX70U and JX80U models require 39 to 49 Nm (4 to 5 kgm).
How to reset the injector timing on Case IH JX90U?
To reset the injector timing on a Case IH JX90U, use dial gauge 380000228 and tool 380000229. Check that the plunger has completed a stroke of 0.04 in. (1 mm); if not, slacken the pump mounting bolts. Adjust the pump by turning it counter-clockwise if the plunger stroke is less than 0.04 in. (1 mm), or clockwise if greater, repeating the test until the correct stroke is obtained.
What do error code E10 and E20 mean on Case IH JX70U?
The provided manual sections for fault codes, including 'U ERROR CODES XX' (pages 660, 668) and specific fault codes (e.g., FAULT CODE 11 on page 677, FAULT CODE 24 on page 698), do not list error codes E10 or E20. The codes listed are either prefixed with 'U' (U19-U37) or are numerical (11-78).
How will I receive this Service Manual?
You get a 1212-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Is this Case JX70–JX100 Series Service Manual printable?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Case JX70–JX100 Series manual cover the hydraulic system?
Yes, this Case JX70–JX100 Series Service Manual includes hydraulic system diagrams, circuit schematics, and component specifications.
