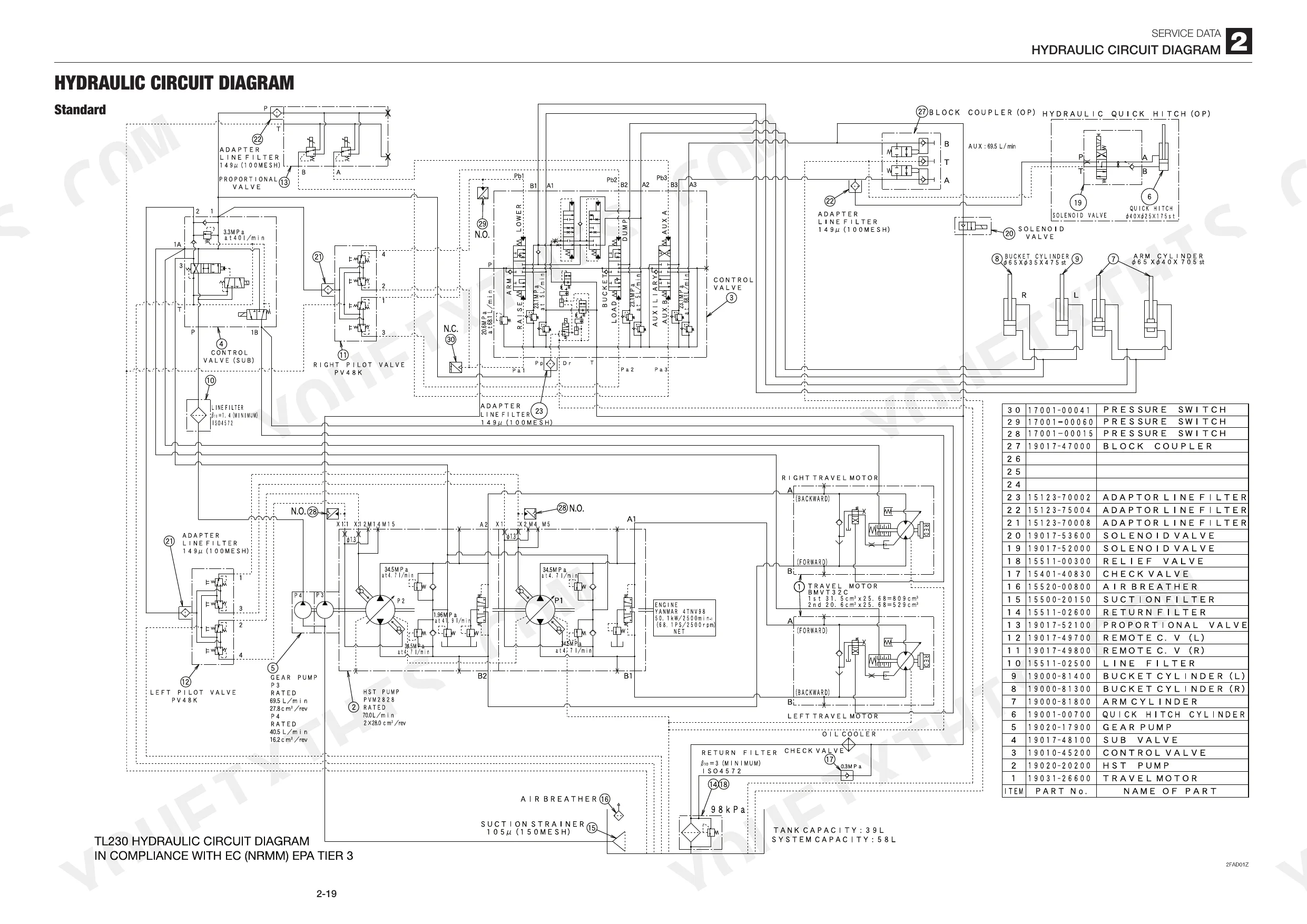

The Gehl CTL65 service manual PDF (OEM #917337) runs 309 pages of factory service data for the CTL65 Compact Track Loader, from electrical harness routing to travel motor overhaul. Electrical coverage fills 25 pages of wiring and wire harness diagrams, backed by hydraulic schematics that trace full fluid routing. Troubleshooting takes 71 pages across the overall machine, traveling, lift arm, bucket, auxiliary hydraulics, and HST pump faults. The Disassembly and Assembly section walks the gear pump, control valve, sub valve, pilot valve, proportional solenoid valve, cylinders, and travel motor over 120 pages of step-by-step factory procedure. Set crawler tension to 25-50 mm, then torque the roller A bolts to 241 N·m and roller B bolts to 156 N·m. When your CTL65 is down and the clock is running, search any keyword, jump to the bookmark, and get back to work on any device.
What's Inside This Gehl CTL65 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 3-12 | Safety Alert Symbol, Safety Precautions, Cautions When Working |

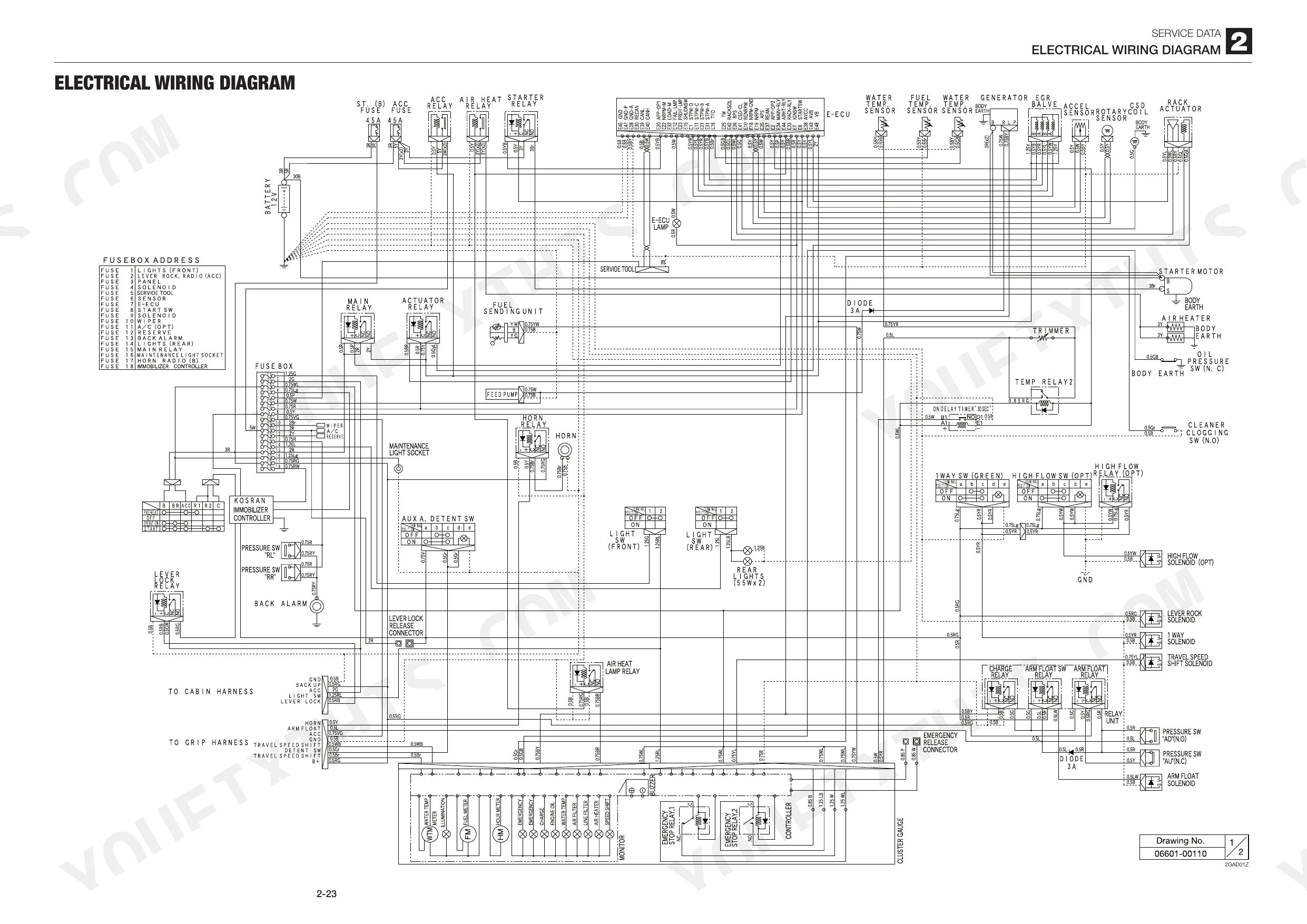

| Service Data | 13-66 | Electrical Wiring Diagram, Wire Harness Diagram |
| Function | 67-116 | Air Conditioner System |

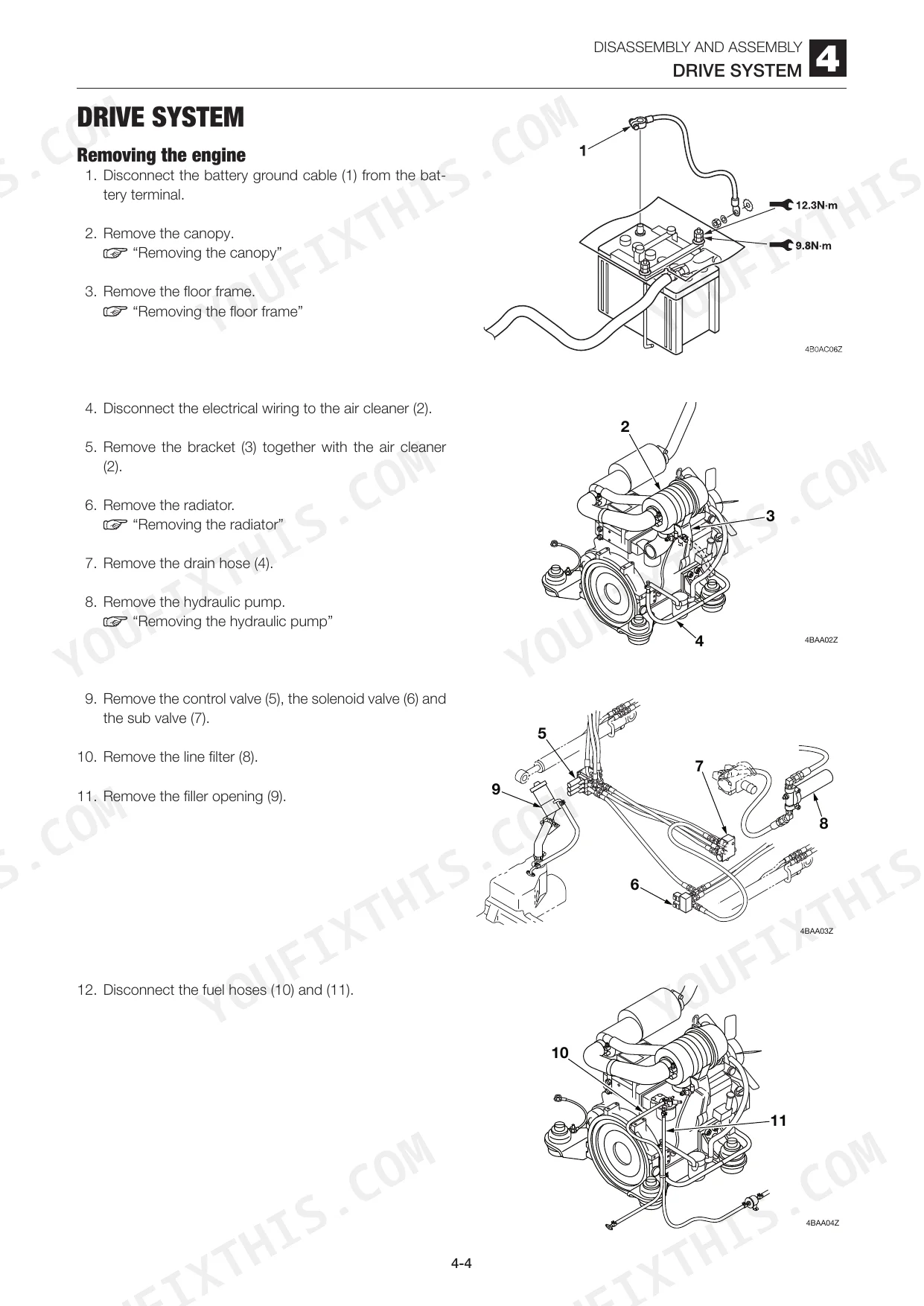

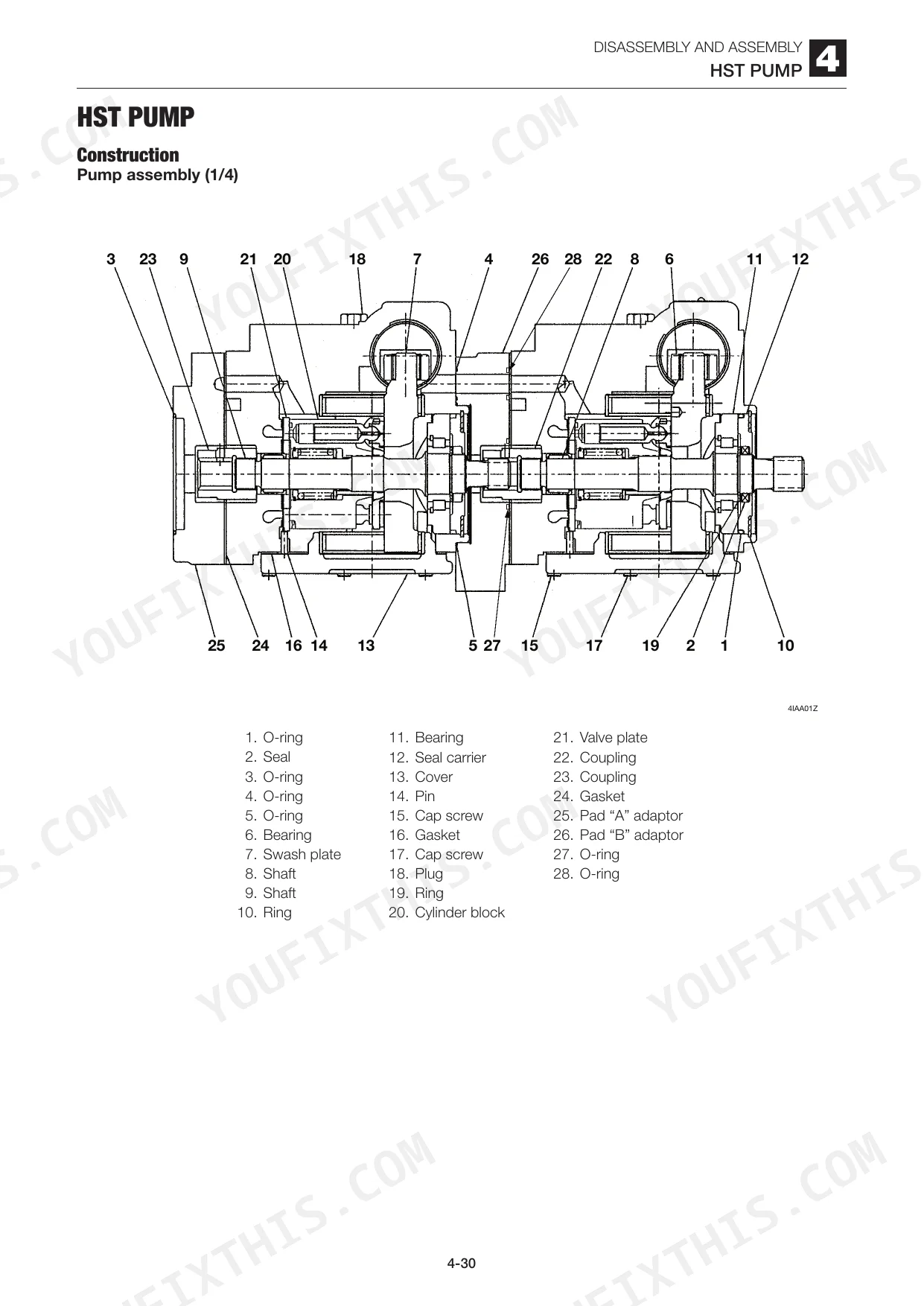

| Disassembly and Assembly | 117-236 | Gear Pump, Control Valve, Sub Valve, Pilot Valve, Proportional Control Solenoid Valve, Cylinders, Travel Motor |

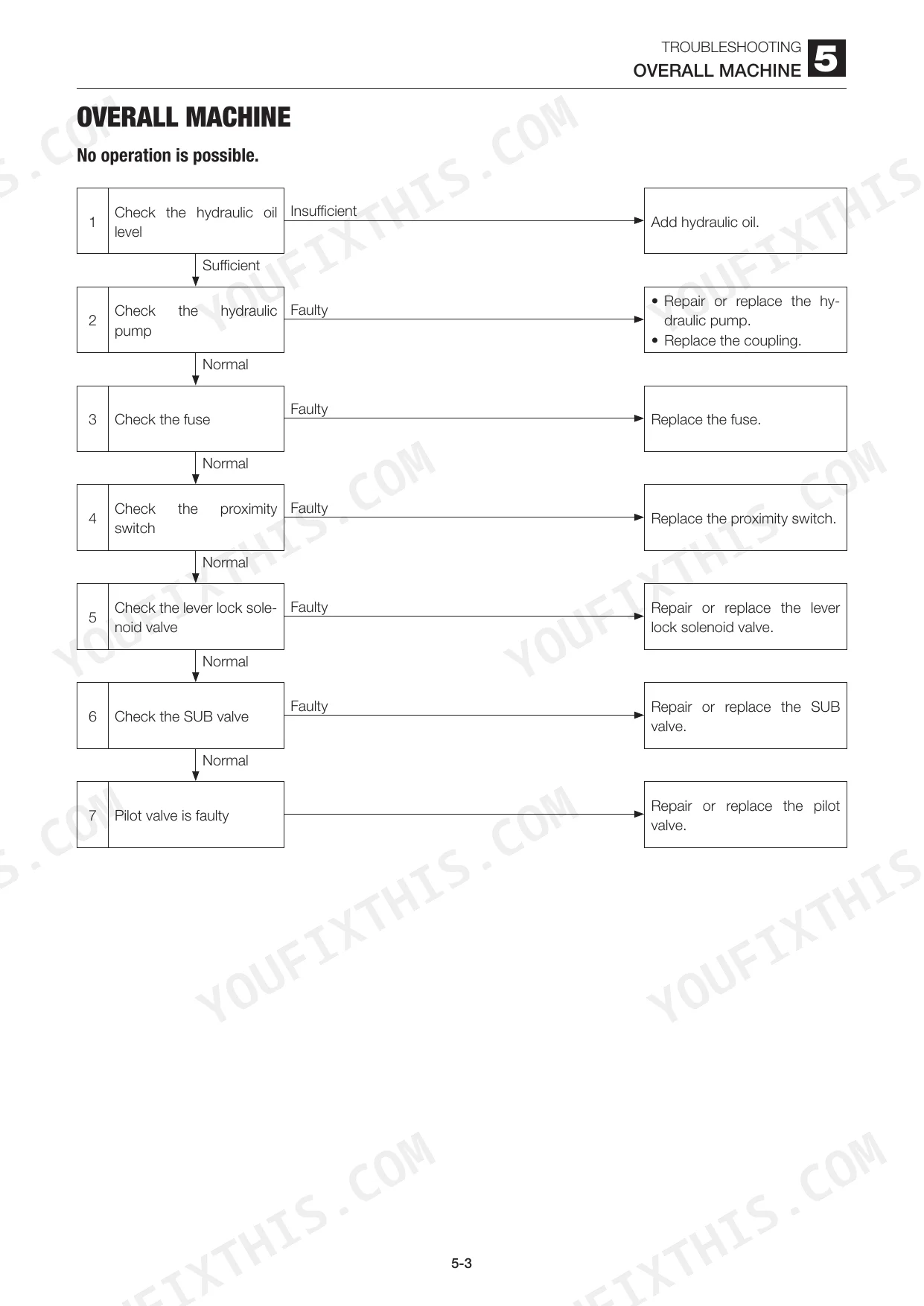

| Troubleshooting | 237-309 | Overall Machine, Traveling, Lift Arm, Bucket, Auxiliary Hydraulics, HST Pump |

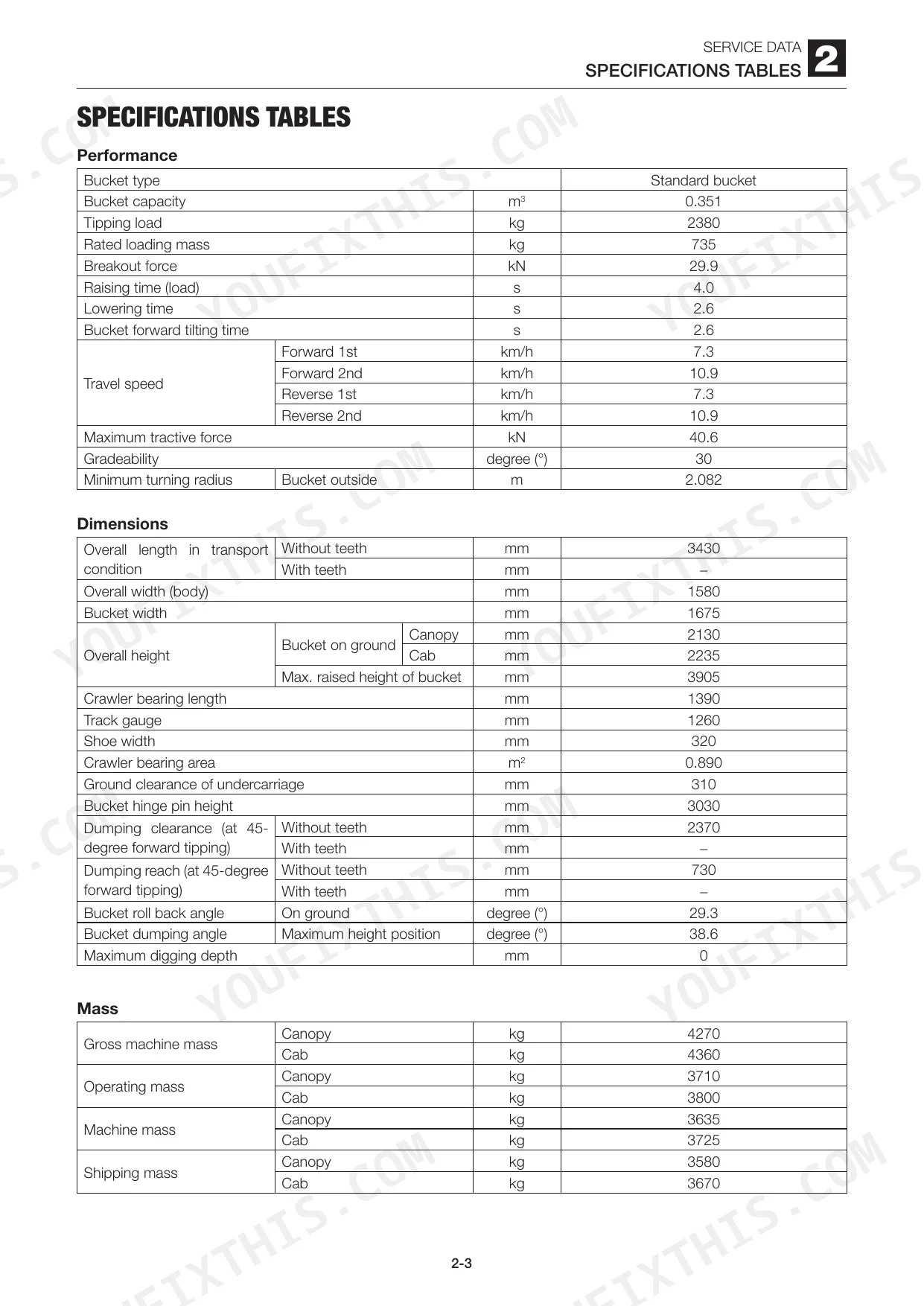

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Track roller A bolt torque | 241 N·m | p. 128 |
| Track roller B bolt torque | 156 N·m | p. 128 |
| Crawler tension | 25 to 50 mm | p. 20 |
| Crawler belt weight | 157 kg | p. 127 |
| Track roller (one side) quantity | 5 | p. 16 |
| Track roller A standard dimension (A) | 200 mm | p. 118 |
| Drive sprocket standard dimension (A) | 414 mm | p. 118 |
| Drive sprocket allowable value (A) | 406 mm | p. 118 |
| Idler lubricant type | Diesel engine oil API: CD class SAE 30 | p. 18 |
| Idler lubricant capacity | 0.12 L | p. 18 |

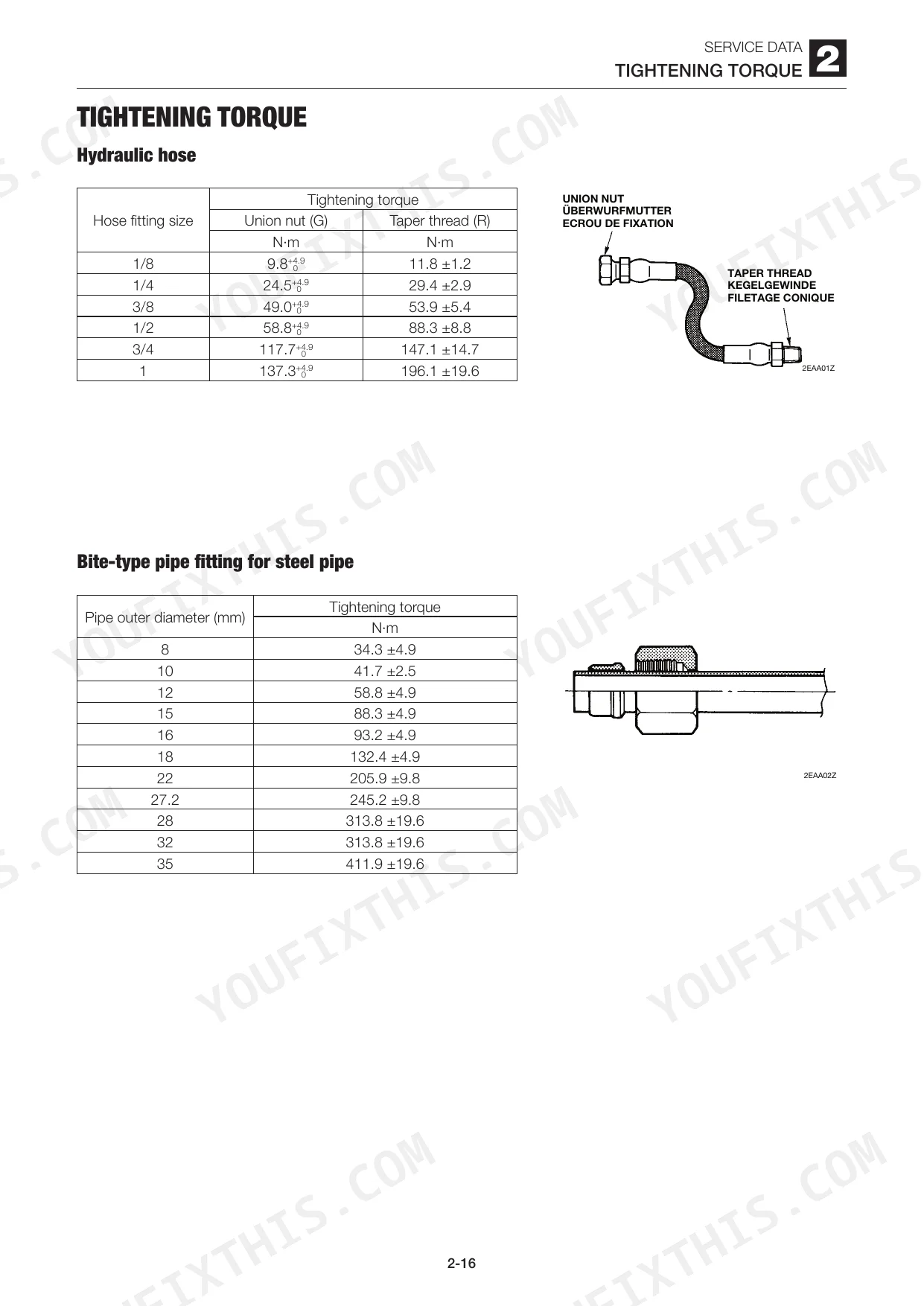

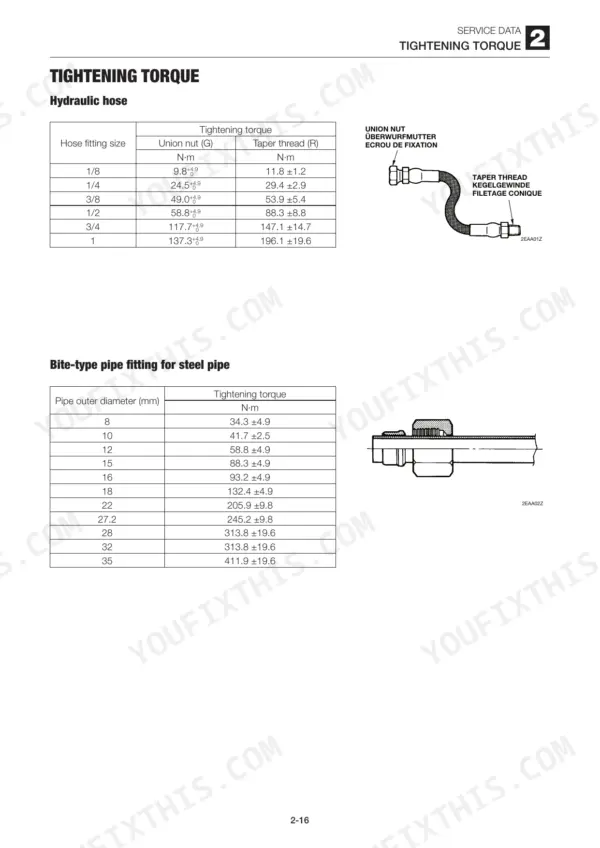

| Hydraulic hose 1/8 Union nut (G) torque | 9.8+4.9 N·m | p. 28 |
| Hydraulic hose 1/8 Taper thread (R) torque | 11.8 ±1.2 N·m | p. 28 |
Gehl CTL65 Common Problems This Manual Covers
Gehl CTL65 track derails frequently on side hills or pushes poorly under heavy load p. 128
Inspect the undercarriage for excessive wear, then torque the track roller A bolts to 241 N·m per page 128. Confirm track roller A still meets its 200 mm standard dimension on page 118, and tighten the crawler belt check valve to 59 N·m following page 127.
Manual Section: Disassembly and AssemblyRight travel motor fails to start or speed decelerates and machine veers to one side
Measure the right and left travel hydraulic pressure; it should reach 34.3 MPa as outlined on page 20. Inspect the travel motor for leaks against the hydraulic schematic, then torque any loose 1/8 steel pipe joints to 11.8 ±1.2 N·m per page 29.
Manual Section: Travel motorLift arm cylinder slow with insufficient power or spontaneous drop is too large
Confirm the lift arm-to-frame clearance falls between 0.044 and 0.162 mm on page 119. Check the hydraulic cylinders for oil leaks at the piston rod and welded seams. Work through the troubleshooting steps if the arm still lacks power or keeps dropping.
Manual Section: Lift armEngine operating temperature too high during normal operation or experiences severe coolant loss
Drain the cooling system and refill with fresh coolant to the 16.5 L capacity on page 18. Check the engine compartment for leaks, then torque the engine suspension bolts to 256 N·m per page 121 to curb the vibration that can damage cooling lines.
Manual Section: Overall machineFrequently Asked Questions
How do I reset a Gehl CTL65 fault code?
Fix the underlying fault first. The detection function holds the code until you power-cycle the machine, so a reset only takes once the error is gone. Take the '1 blink' code, for example: it flags a proportional voltage input outside the 2.25 to 2.75 V range. Correct that, then restart the machine and the fault clears.
What do Gehl CTL65 error codes mean?
Error codes show up as LED blink patterns on the proportional controller. A single blink means the proportional voltage input sits outside the 2.25 to 2.75 V range. Button A ON blinks three times; Button B ON blinks four. Solenoid faults read out by current: 5 blinks when solenoid A draws 2.0 A or more, 6 blinks for solenoid B at the same threshold.
How do I calibrate the controls on a Gehl CTL65?
Calibration on the CTL65 runs across a few subsystems. For the throttle lever, loosen nut (2) and turn rod (3) to set the throttle lever (1) and sensor lever (4) to their idle positions; retighten nut (2), then screw in bolt (6) until it pushes against the throttle lever (1) and lock it with nut (7). Aim for a control force of 44.1 N. On the HST pump, bring the servo piston's rotational torque to at least 1.13 N·m by tightening nut (34) to 20 to 27 N·m. For neutral, turn tie bolt (6) until the pressure readings match, then set the adjusting seal nut (17) to 20 to 26 N·m. The displacement limiter changes travel speed via setscrew (1), where one full turn yields 6.2 cm³/min⁻¹.
How to reset Gehl CTL65 fault code
Clear the error condition before anything else. The CTL65 keeps the stored code active until the next power-up, so cycling the key is what actually resets it. If the controller threw a '1 blink' code, that points to proportional voltage input drifting outside 2.25 to 2.75 V. Resolve that, power the machine back on, and the code drops.
How quickly can I access this Gehl CTL65 manual after buying?
Checkout triggers an instant download of the full 309-page searchable PDF. Open it on a laptop, tablet, or phone and take it straight to the shop floor.
Are there any print restrictions on this Gehl CTL65 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

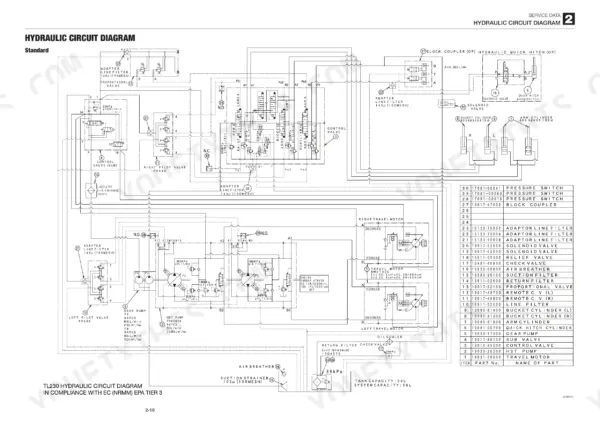

Does this Gehl CTL65 Service Manual cover the hydraulic system?
Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the Gehl CTL65.
Document Quality
This is a high-quality digital PDF document, not a scanned copy, allowing you to easily search and copy all text. The text throughout is consistently crisp and clear, ensuring excellent readability. Diagrams and illustrations, including hydraulic circuits and wiring diagrams, are sharp and appear to be vector-based, so labels remain perfectly readable even when zoomed in. The pages are clean with no visible scan artifacts, stains, or skewed content. Note that there are numerous blank pages, particularly in the "Service Data" and "Disassembly and Assembly" sections, which serve as placeholders.
