This Gehl CTL75 Service Manual (OEM #917342) sticks to one machine across its 343 pages: your Compact Track Loader, from the first safety check to the final torque spec. The electrical section maps full wiring diagrams and wire harness routing, while the hydraulic schematics trace the complete HST pump circuit. Disassembly and assembly procedures fill 150 pages and cover the HST pump, gear pump, control valve, pilot valve, proportional control solenoid valve, travel motor, and cylinders. Troubleshooting adds another 73 pages of diagnostic paths for overall machine faults, travel, lift arm, bucket, and auxiliary hydraulics. Before you close up the undercarriage, torque the track roller A bolts to 241 N·m and roller B bolts to 156 N·m. Download it, search by keyword, and keep it on your tablet at the workbench.
What's Inside This Gehl CTL75 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 3-12 | Safety Alert Symbol, Safety Precautions, Cautions When Working |

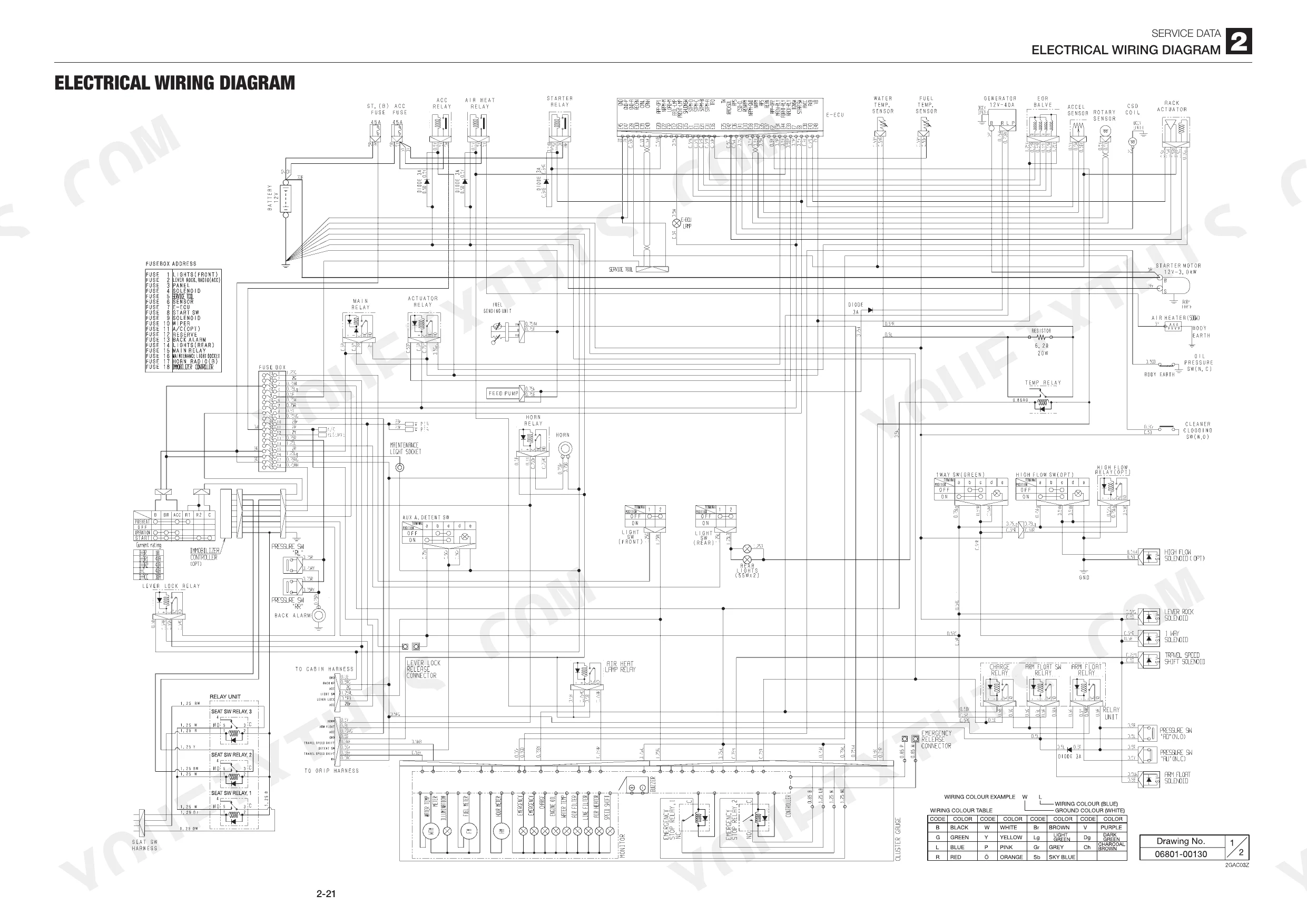

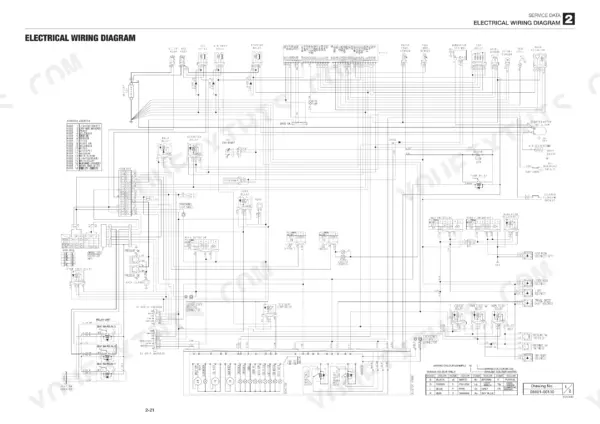

| Service Data | 13-70 | Electrical Wiring Diagram, Wire Harness Diagram |
| Function | 71-120 | Air Conditioner System |

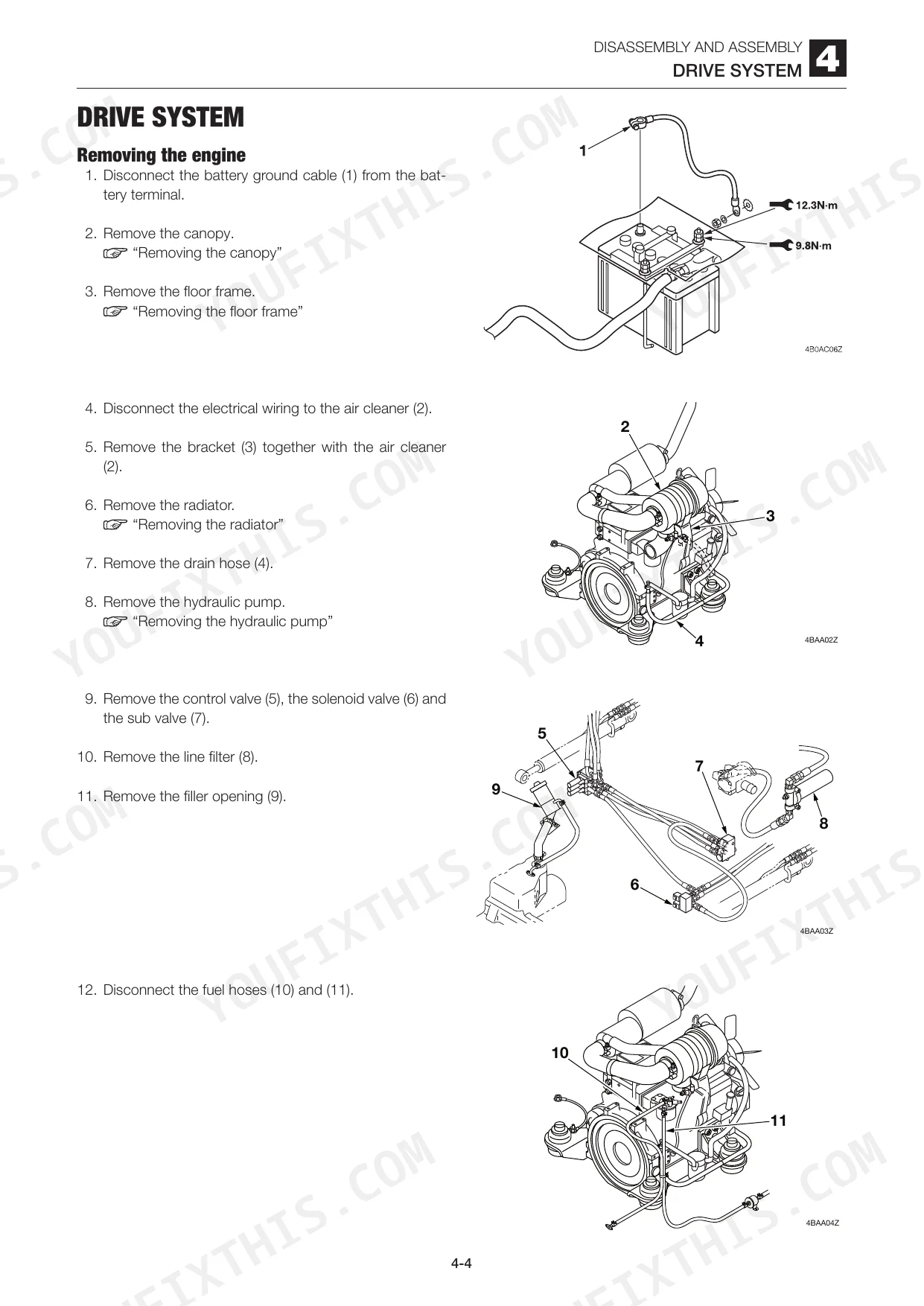

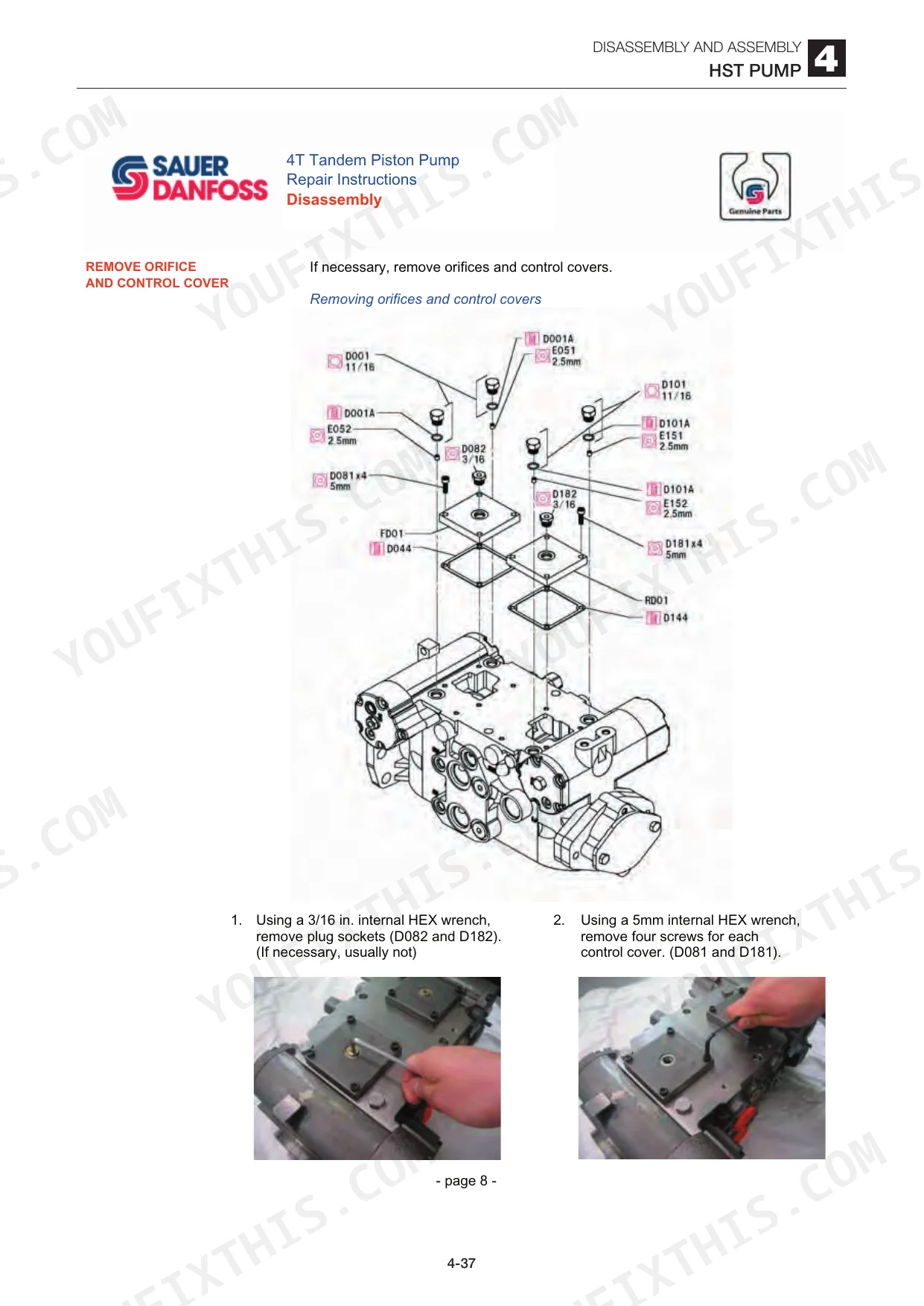

| Disassembly and Assembly | 121-270 | HST Pump, Gear Pump, Control Valve, Sub Valve, Pilot Valve, Proportional Control Solenoid Valve, Cylinders, Travel Motor |

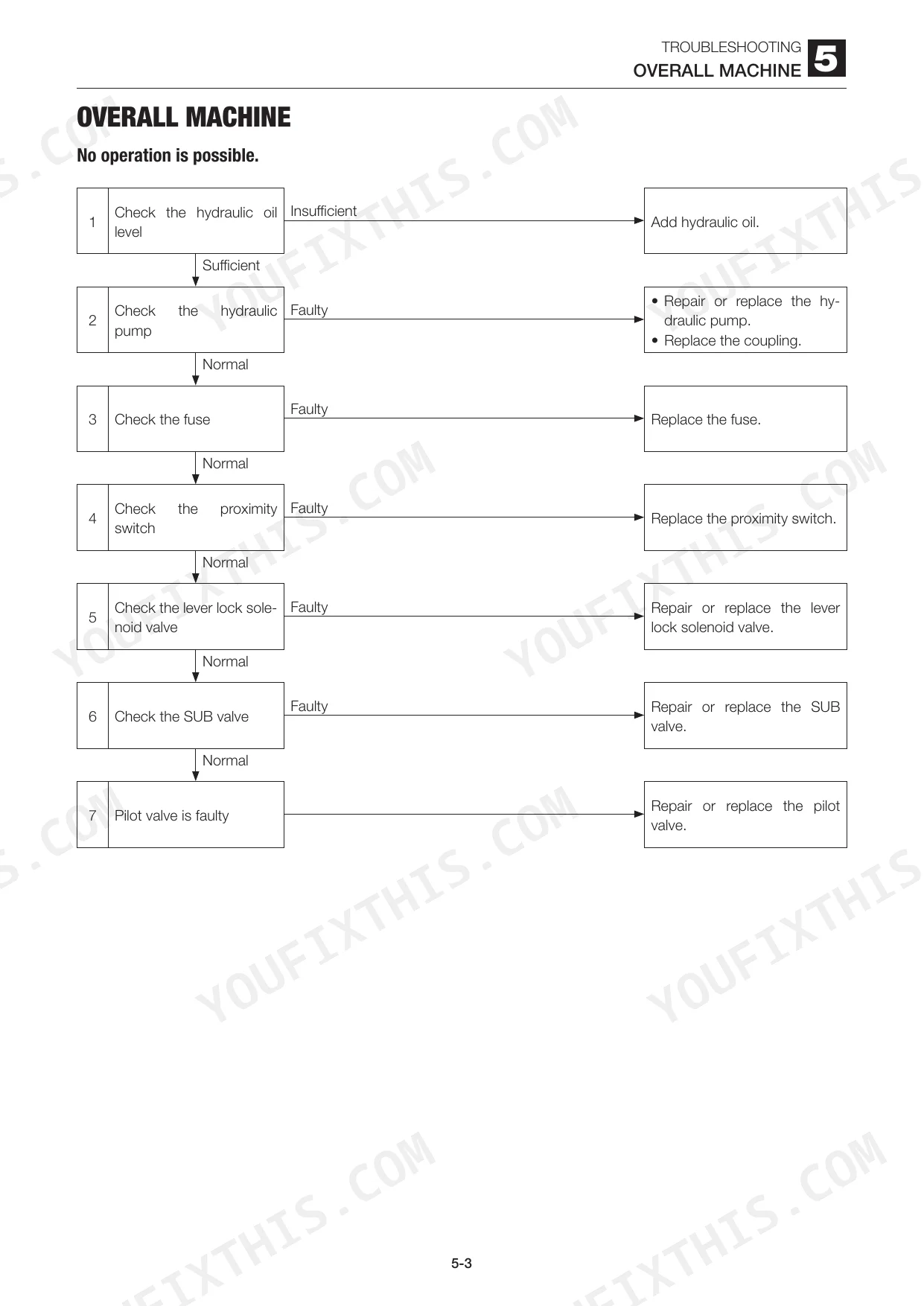

| Troubleshooting | 271-343 | Overall Machine, Traveling, Lift Arm, Bucket, Auxiliary Hydraulics, HST Pump |

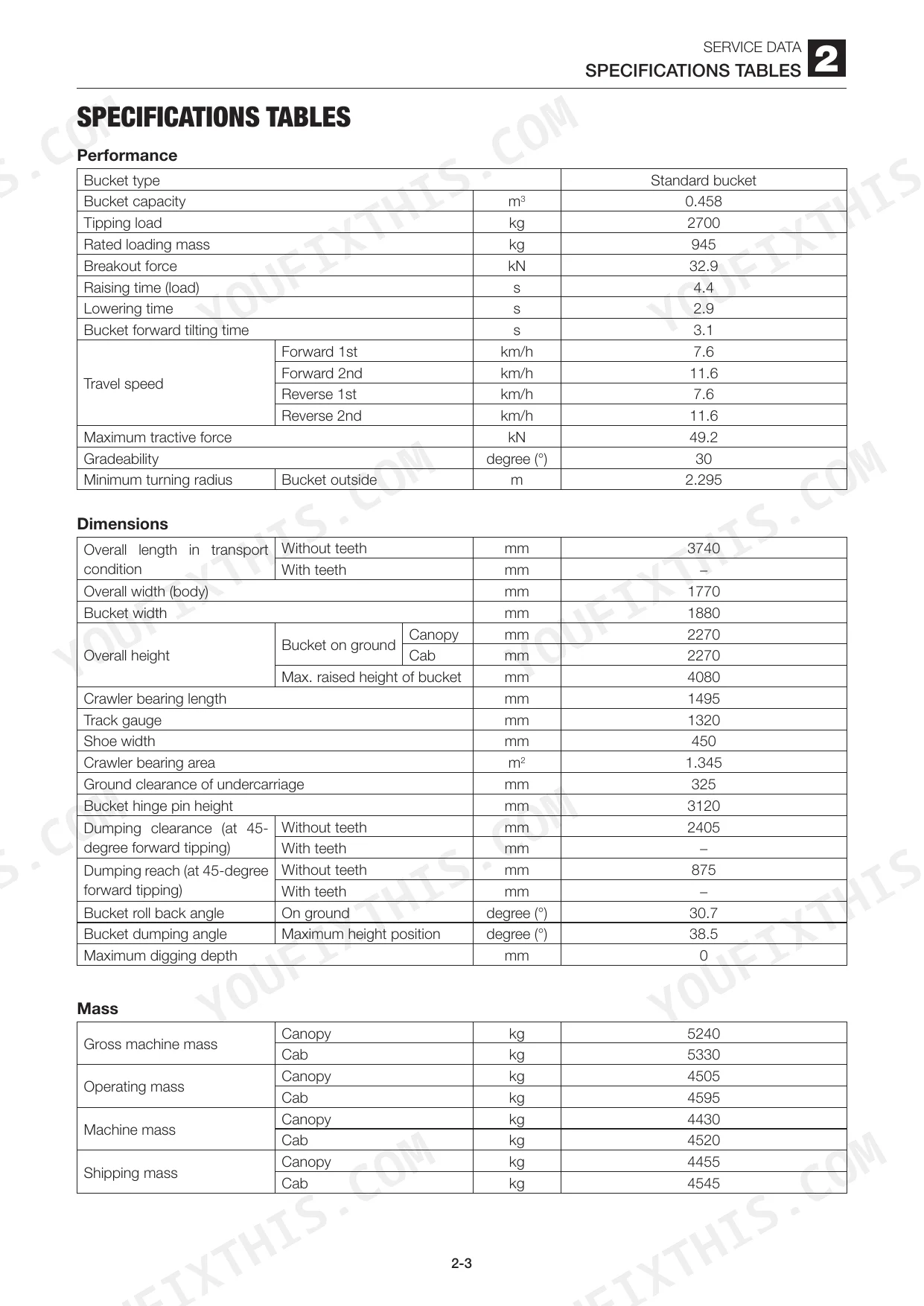

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Track roller A bolt torque | 241 N·m | p. 132 |
| Track roller B bolt torque | 156 N·m | p. 132 |
| Rubber crawler type | One-piece design, single groucer, rubber crawler | p. 16 |
| Rubber crawler grouser height | 32 mm | p. 16 |

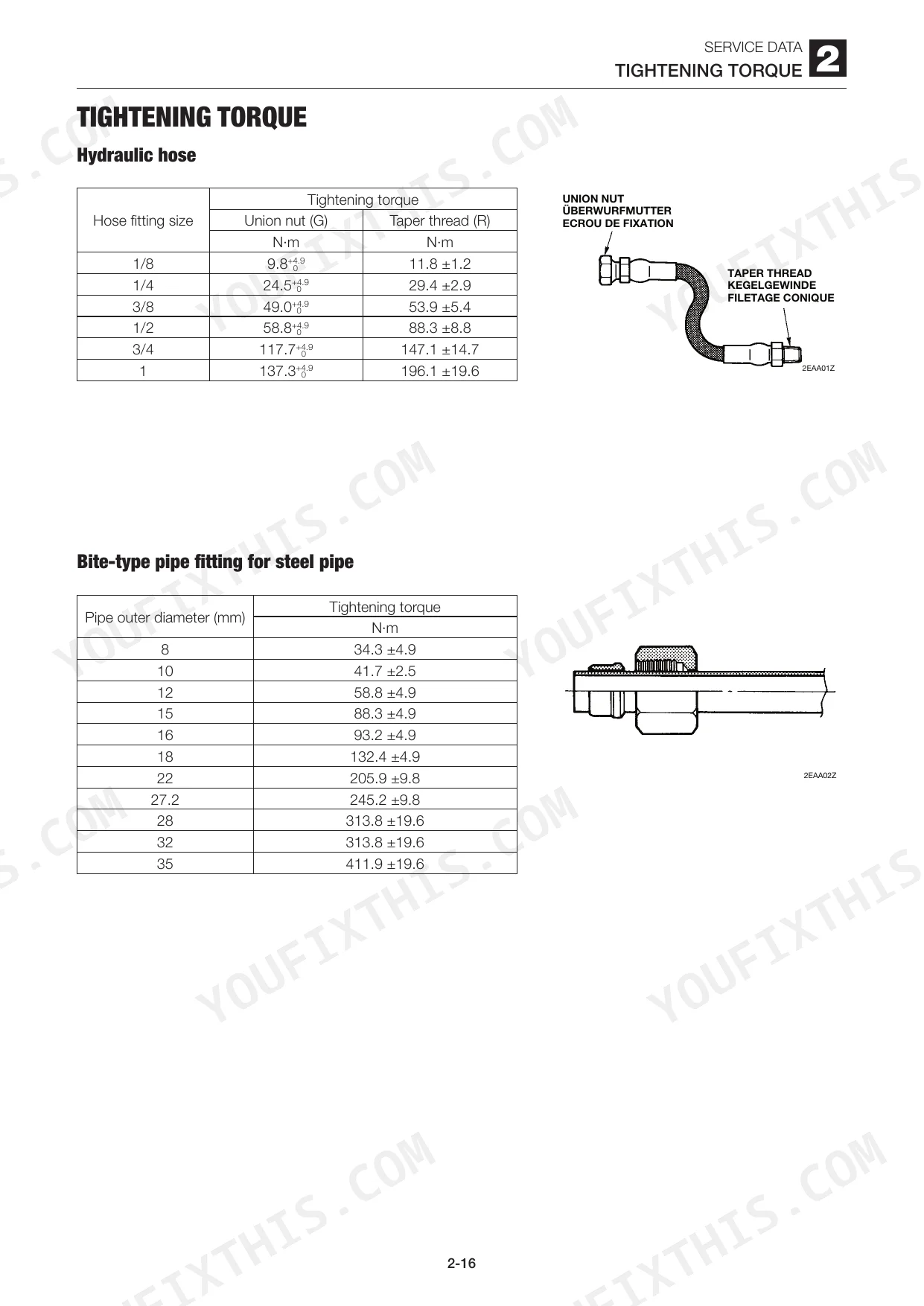

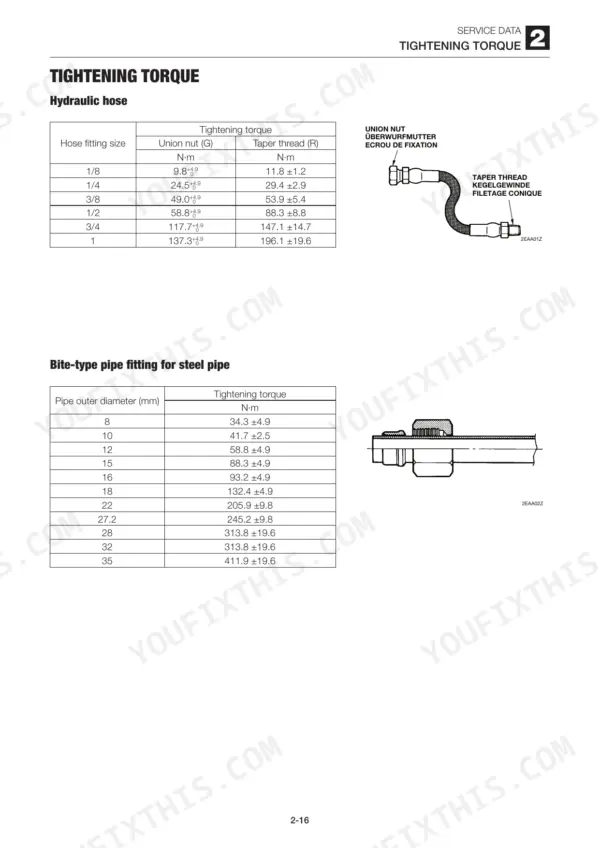

| Hydraulic hose 1/8 inch union nut (G) torque | 9.8+4.9 N·m | p. 28 |
| Hydraulic hose 1/8 inch taper thread (R) torque | 11.8 ±1.2 N·m | p. 28 |
| Bite-type pipe fitting 8 mm outer diameter torque | 34.3 ±4.9 N·m | p. 28 |
| Bite-type pipe fitting 10 mm outer diameter torque | 41.7 ±2.5 N·m | p. 28 |
| Air cleaner type | Cyclone filter | p. 16 |
| Lubrication system filter type | Filter paper | p. 16 |
| Fuse rating (example) | 10A | p. 47 |
| Track roller A standard dimension (A) | 216 mm | p. 122 |
Gehl CTL75 Common Problems This Manual Covers
Hydraulic pump slow to respond, bucket lift weak or won't raise
Check hydraulic fluid level at the tank; capacity is 49 L (page 18). Inspect all hoses and fittings for visible leaks; torque 1/4-inch taper thread fittings to 29.4 ±2.9 N·m (page 28). Verify control valve set pressure reaches 3.3 MPa (page 17). If pressure stays low after a recheck, follow the pump and valve diagnostic tree from there.
Manual Section: Hydraulic Pump & Valve SystemRubber tracks loosen or crack after rough terrain, machine starts drifting off line p. 20
Measure sag at the midpoint of the lower track run; correct tension is 25 to 50 mm (page 20). Adjust by adding grease through the tension check valve, torqued to 59 N·m (page 131). Inspect the 450 mm wide single-grouser rubber crawler for cracking or missing grouser blocks; replace if grouser height has worn past the limit shown on page 16.
Manual Section: Disassembly and AssemblyEngine cranks slowly or loses power under load, exhaust blows black smoke
Confirm engine oil level; capacity is 10.2 L (page 18). Inspect the cyclone air filter for clogging, the most common cause of power loss and black smoke on these machines. Verify the engine reaches its rated speed of 2500 min-1 at full throttle (page 16). If power is still down, work through the overall machine operation checklist.
Manual Section: Overall Machine Operation IssuesUndercarriage rollers and sprockets worn, ride feels rough, track slips off alignment p. 122
Inspect track roller A and B for dimensional wear against the specs on page 122; replace any roller that measures below the allowable values listed there. When replacing, torque roller A bolts to 241 N·m and roller B bolts to 156 N·m (page 132). After any roller swap, recheck track tension; target sag is 25 to 50 mm (page 20).
Manual Section: Disassembly and AssemblyStarter motor cranks slowly or won't engage, and cab controls respond inconsistently
Test battery voltage and inspect terminals for corrosion; battery capacity is 92 A·h (page 16), so a weak charge after cleaning the terminals means a load test comes next. Pull the fuse panel and match all fuse ratings against the wiring diagram. Replace any blown fuse using the ratings shown on page 47 before chasing deeper electrical faults.
Manual Section: Service DataJoystick response lags or machine veers consistently to one side during travel
Start the diagnosis at the travel troubleshooting tree; veering usually points to unequal HST pump output or a sticking pilot valve. Check all hydraulic hose connections at the travel motor; 1/8-inch taper thread fittings torque to 11.8 ±1.2 N·m (page 28). If joystick response stays erratic, verify wiring continuity against the harness diagram.
Manual Section: Travel System MalfunctionsFrequently Asked Questions
What do the GEHL CTL75 error codes mean?
The proportional controller reports faults as LED blink patterns. For example, 1 blink means the proportional voltage input is not within the range of 2.25 to 2.75 V. Button A ON blinks 3 times; Button B ON blinks 4 times. A solenoid current of 2.0 A or more gives 5 blinks for solenoid A and 6 for solenoid B. A current of 0.1A or less gives 7 blinks for solenoid A and 8 for solenoid B.
How to find torque specs for GEHL CTL75 track rollers
Temporarily tighten the roller fixing bolt, then lower the machine to the ground and tighten it fully. Track roller A torques to 241 N·m and Track roller B to 156 N·m, with ThreeBond #1324 applied to the threads.
What are the replacement specifications for rubber tracks?
The rubber crawler for the GEHL CTL75 is a one-piece, single-grouser design. Its key dimensions are a grouser height of 32 mm, a pitch of 100 mm, and a shoe width of 450 mm. Those figures set the replacement spec for the tracks.
What do I get after purchasing this Gehl CTL75 manual?
Immediate download of the complete 343-page searchable Service Manual. Access it on any device, from the laptop at your desk to the phone in the field.
Can I print this Gehl CTL75 manual?
Yes. The PDF carries no DRM restrictions, so you can print any page or section you need for the shop. It works with any standard printer.
Are hydraulic system diagrams in this Gehl CTL75 Service Manual?
Included. The hydraulic schematics map every circuit, the control valves, and component specs for the Gehl CTL75.
Document Quality
This document is a scanned PDF with an OCR text layer, allowing you to search and copy text. The text quality is generally crisp and easy to read throughout. Diagrams and illustrations are primarily raster images, but their labels are clear and readable, even when zoomed in. Pages are clean with no significant scan artifacts or marks, though some have a faint background tint. Be aware that there are several blank pages, particularly at the end of sections, which serve as filler.
