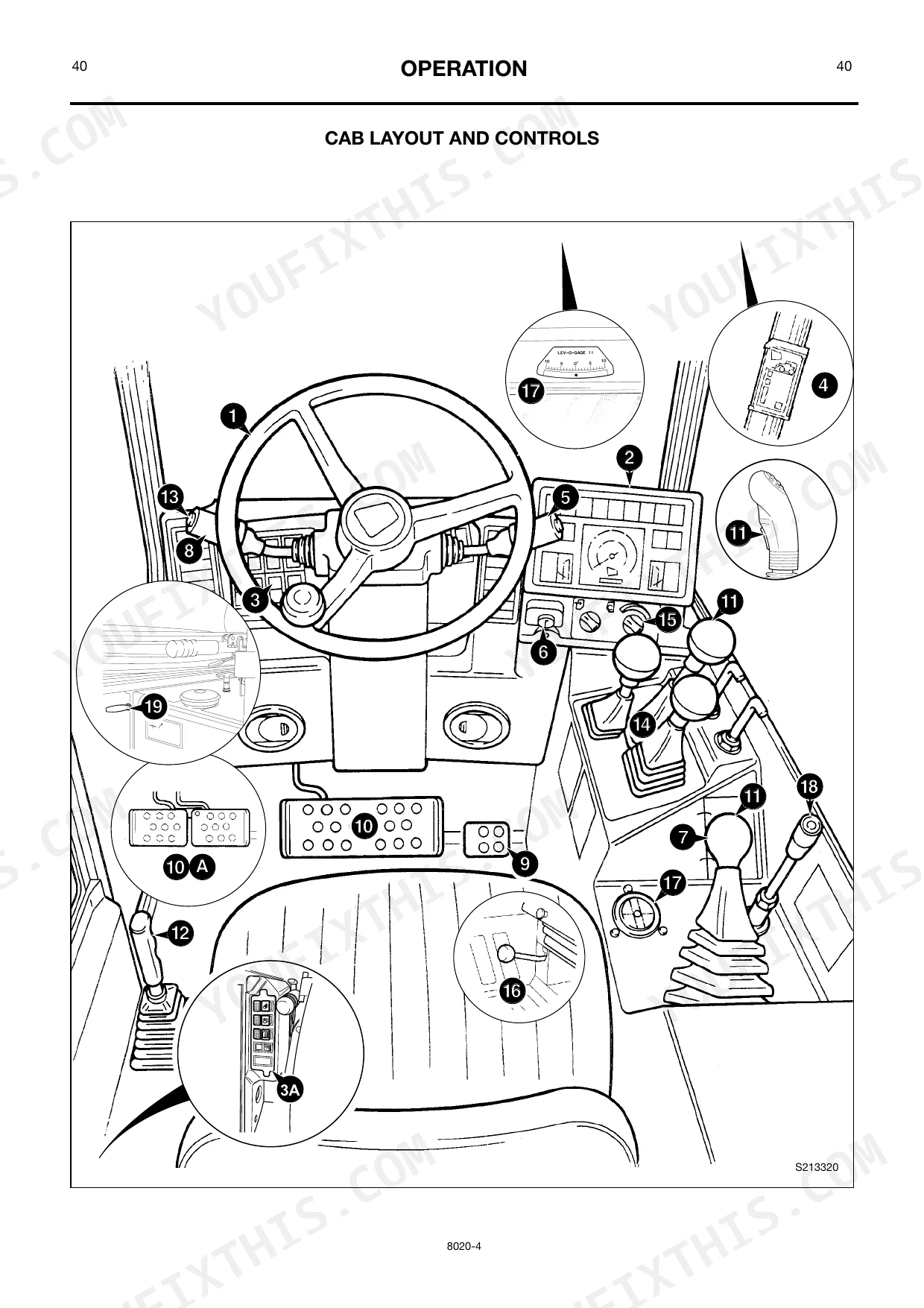

Searching for a reliable JCB 526s operator manual pdf? All 162 pages of this official JCB Loadall reference (OEM #9801/8020) focus on proper daily maintenance and operating procedures for the 520-55 RS, 520-55 AWS, 520S, 526-55, 526, and 526S variants. Open this guide to find complete dashboard indicator breakdowns, strict service schedules, and accurate load charts for safe lifting. You also get step-by-step cab control layouts, daily inspection checklists, and factory fluid capacities to keep your machine running smoothly. Lock down the engine oil drain plug to exactly 34 Nm and secure the hydraulic filter cover plate screws at 11 Nm during your next service. A flashing warning light shouldn't ruin your shift. Grab this bookmarked download, jump straight to the error codes on your tablet, and get right back to work.
What's Inside This JCB 520–526 Operator Manual
| System | Pages | Key Topics |
|---|---|---|

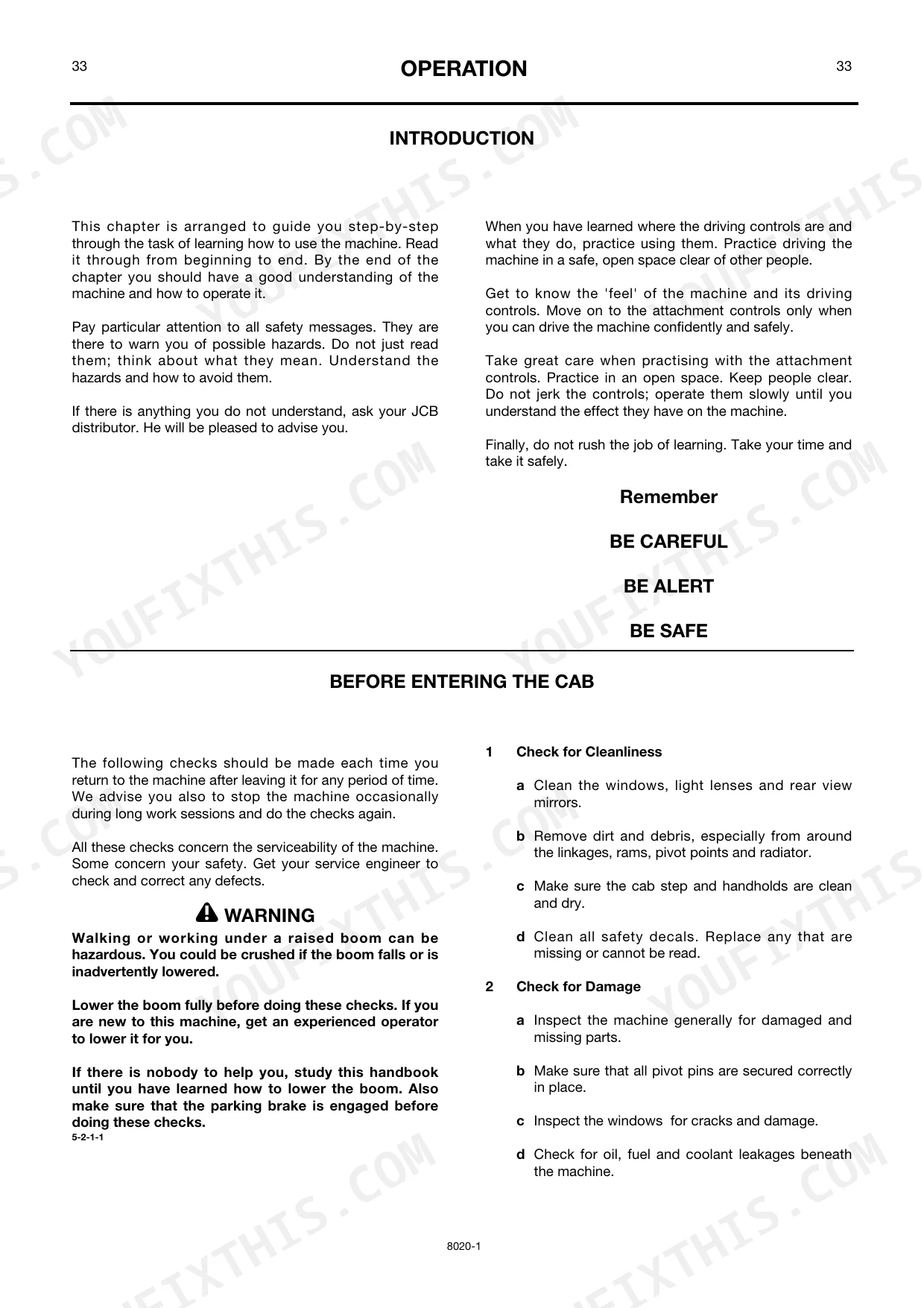

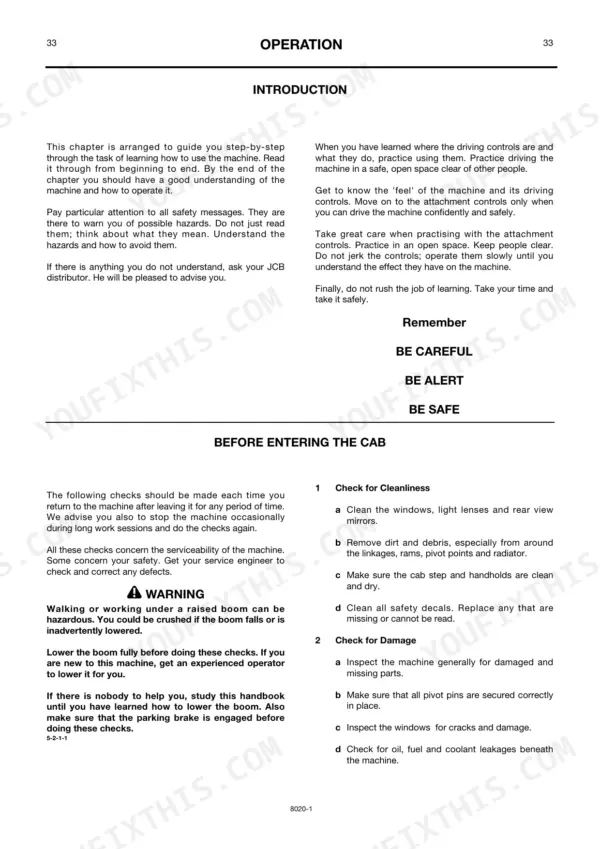

| Operation | 15-54 | Introduction, Before Entering the Cab, Entering & Leaving the Cab |
| Working with the Machine | 55-78 | Introduction, Risk Assessment, Lifting and Loading Operations, Safety Warnings, Fork Ratings, Handling Palleted Loads, Uneven Loads, Lifting Bales |

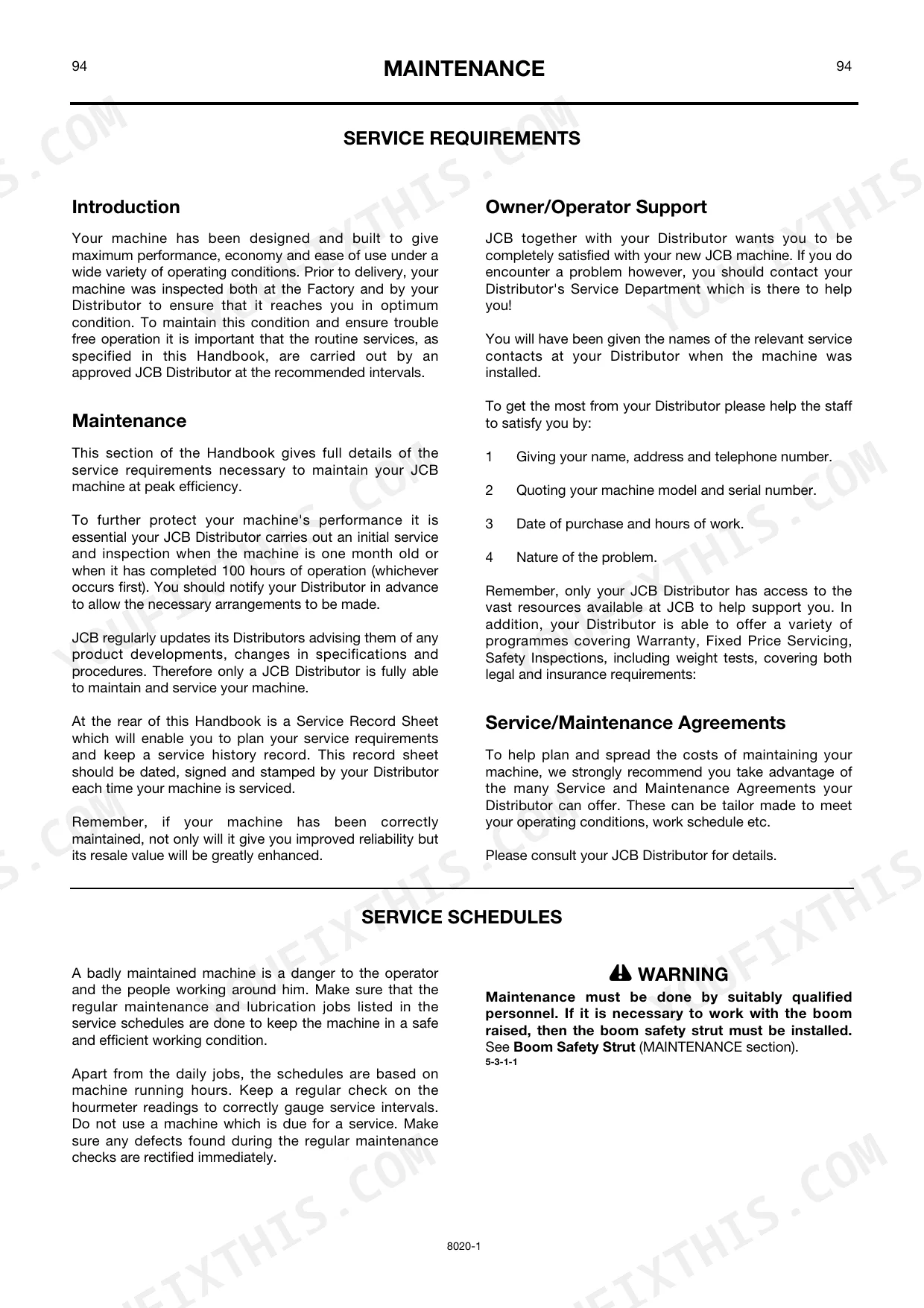

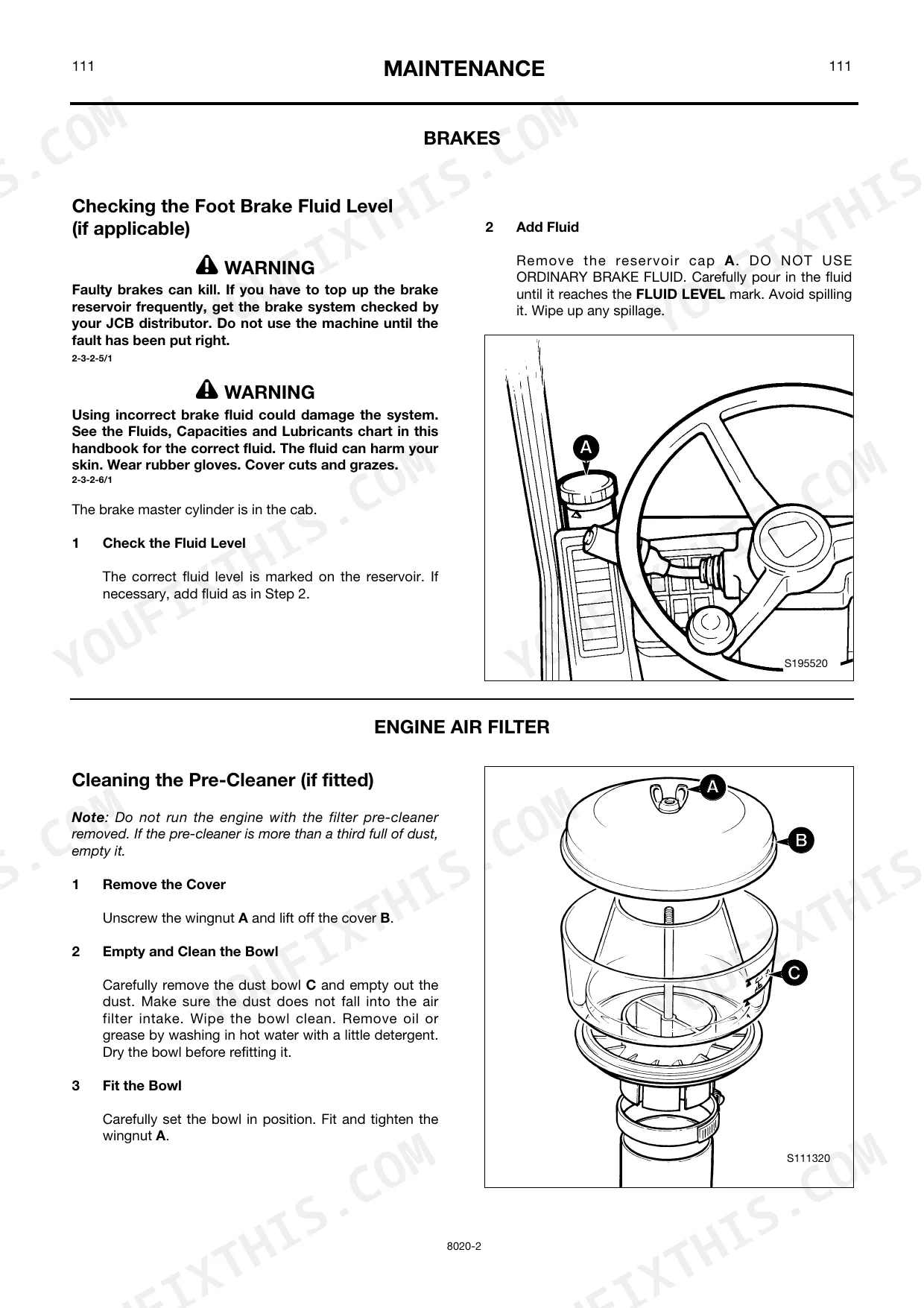

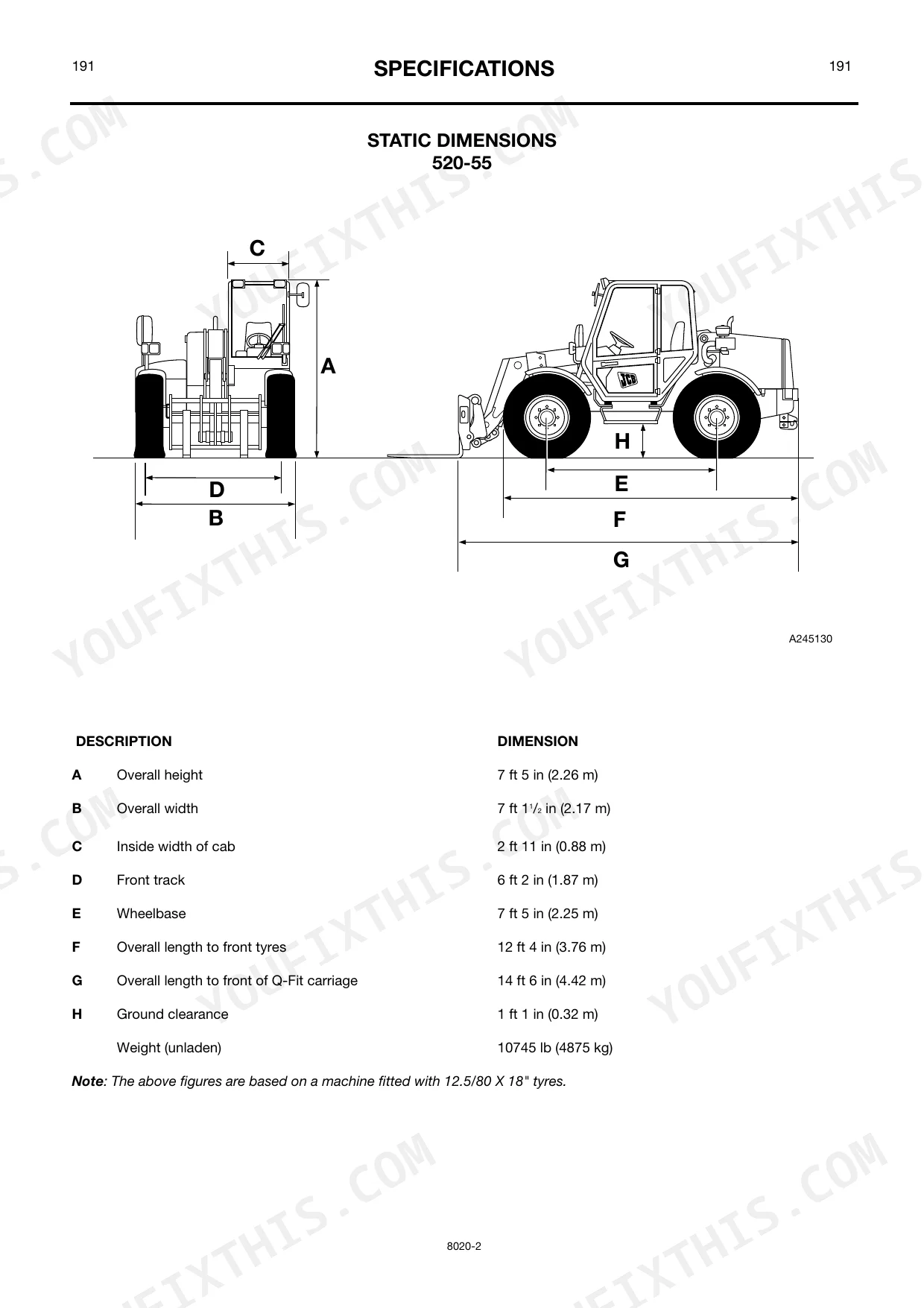

| Maintenance | 79-111 | Lubricants - Health and Safety, Service Requirements, Service Schedules, Boom Safety Strut, Removing, Engine Cover, Checking for Damage, ROPS/FOPS Structure |
| Transmission | 112 | Checking the Oil Level |
| Front and Rear Axle | 113 | Checking the Axle Oil Level |
| Front and Rear Hub | 114 | Checking the Hub Oil Levels |
| Hydraulic System | 115-116 | Checking the Fluid Level, Changing the Filter Element |
| Hose Burst Protection Valves | 117-118 | Checking the Hose Burst Protection Valves |
| Battery | 119-122 | Warning Symbols, Checking the Electrolyte Level, Battery Isolator, Jump-Starting the Engine |
| Electrical System | 123-126 | Fuse Identification, Adjusting the Alternator Drive Belt |
| Windscreen Washer | 127 | Windscreen Washer Bottle, De-Icing Fluid, Fluid Level, Wipers |
| Fluids, Lubricants, Capacities and Specifications | 128-134 | Rear Steer Machines, Aws Machines (Build Codes Aa and Ab), 526 & 526S Machines (Build Codes Aa and Ab), Aws Machines - Low Emission Engine (Build Codes Ar and Ak) |
| Optional Attachments | 135-146 | Introduction, Quick Release Couplings, Installing and Removing Q-Fit Attachments, Removing Attachments, Hydraulic Pin Locking Option, Extension Jib |
| Specifications | 147-156 | Static Dimensions, 526 & 526S, Performance Dimensions, Noise and Vibration Data, Load Charts, 520 Machines, 526 Machines |
| Service Record Sheet | 157-158 | - |
| Registration Information | 159-162 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Fault Code Clearing Procedure | Switch the starter key off and on again. Contact your JCB distributor if the fault does not clear. | p. 53 |
| Hydraulic Filter Cover Plate Screws Torque | 11 Nm (8lbf ft) | p. 116 |
| Hydraulic Pilot Filter Bowl Torque | hand tight only | p. 115 |
| Hydraulic Oil Filter Replacement Interval | every 500 Hr/6 Monthly, 1000 Hr/Yearly, 2000 Hr/2 Yearly | p. 82 |
| Engine Oil Drain Plug Torque | 34 Nm (25 lbf ft) | p. 101 |
| Engine Oil Filter Canister Torque | hand tight only | p. 101 |
| Work Lights Bulb Wattage | 55W Halogen | p. 126 |
| ROPS/FOPS Mounting Bolts Torque | 244 Nm (180 lbf ft) | p. 89 |
| Hub Drain/Fill Plug Torque | 35-40 Nm (26-30 lbf ft) | p. 114 |
| A Series engines | ||
| Fuel Filter Element Torque (A Series Engine) | hand tight only | p. 108 |
| R Series engines | ||
| Fuel Filter Assembly Torque (R Series Engine) | hand tight until it contacts the filter head, then a further 1/4 of a turn by hand | p. 109 |
| 520-55, 526-55, 520-55RS (504B) | ||
| Fuse Rating for R.H. sidelights, number plate light, working light | 15 | p. 123 |
JCB 520–526 Common Problems This Manual Covers
JCB 520-55 RS boom and implement functions become slow or stop working during heavy lifting p. 116
Check the hydraulic fluid level on the sight glass before operation. Inspect the hydraulic system components for external leaks. Replace the hydraulic oil filter element every 500 Hr/6 Monthly. Torque the filter cover plate screws to exactly 11 Nm (8lbf ft) as shown on page 116.
Manual Section: Hydraulic SystemMachine will not move or shows weak transmission response when shifted into forward or reverse p. 128
Verify the transmission oil level is full using the dipstick. Inspect the driveline and undercarriage for visible leaks. If topping up is required, do not exceed the 17 L (3.7 Gal) total transmission oil capacity listed on page 128. Drain and refill if fluid appears burnt.
Manual Section: TransmissionWork lights and switches fail to operate during nighttime or low visibility yard movement p. 126
Check the fuse link rating for the road and working lights. Inspect the bulbs and replace any blown units with 55W Halogen bulbs as specified on page 126. Verify the wiring harness connectors are fully seated and free of corrosion. Test the switch operation.
Manual Section: Electrical SystemVisible oil dripping from the front or rear wheel hubs during daily walkaround inspection p. 114
Inspect the front and rear hub assemblies for damaged seals. Check the axle oil level and top up if necessary. Tighten the hub drain and fill plugs to 35-40 Nm (26-30 lbf ft) as specified on page 114. Clean the area to monitor for further leaks.
Manual Section: Front and Rear HubVisible oil dripping under the engine block or low oil level on the dipstick p. 101
Inspect the engine oil drain plug and filter canister for leaks. Tighten the engine oil drain plug to 34 Nm (25 lbf ft) as detailed on page 101. Verify the oil level is correct and does not exceed the 10 L (2.2 Gal) capacity.
Manual Section: MaintenanceFrequently Asked Questions
What do error codes mean on a JCB 526-55?
The Load Moment Indicator on a JCB 526-55 can display several error codes. Error Code 1 indicates a transducer signal fault (disconnected or damaged wiring). Error Code 2 means calibration is out of range, indicating incorrect system calibration. Error Code 3 signifies that calibration is required, while Error Code 4 points to a faulty display unit with an internal error. Lastly, Error Code 5 indicates a low battery voltage, specifically below 9 Volts.
What are the torque specs for a JCB 520-55 RS wheel nut?
For a JCB 520-55 with 8 stud wheels, the front and rear wheel nut torque is 325 Nm (240 lbf ft). For a 520-55 with 5 stud wheels, the front and rear wheel nut torque is 680 Nm (500 lbf ft). It is important to check wheel nut torques every two hours on new machines or after a wheel has been removed until they remain correct.
How do you fix JCB 520-55 RS boom and implement functions become slow or stop working during heavy lifting?
Check the hydraulic fluid level on the sight glass before operation. Inspect the hydraulic system components for external leaks. Replace the hydraulic oil filter element every 500 Hr/6 Monthly. Torque the filter cover plate screws to exactly 11 Nm (8lbf ft) as shown on page 116.
How do you fix machine will not move or shows weak transmission response when shifted into forward or reverse?
Verify the transmission oil level is full using the dipstick. Inspect the driveline and undercarriage for visible leaks. If topping up is required, do not exceed the 17 L (3.7 Gal) total transmission oil capacity listed on page 128. Drain and refill if fluid appears burnt.
How will I receive this JCB 520-55 RS Construction & variants Operator Manual?
This is a 162-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this JCB 520-55 RS Construction & variants?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy text, which is generally crisp and readable. Diagrams and illustrations are raster images, meaning they may appear slightly pixelated when zoomed in, but labels and details are clear. The pages are clean with no notable scan artifacts or marks, and there are no significant blank or filler pages.
