Looking for the exact factory procedures for your 2016-2018 rough terrain variable reach truck? This 328-page JCB 540-v140, 540-v180 operator manual pdf (OEM #9831/4000) outlines every daily check, control function, and safety protocol for the Loadall series. You get a complete breakdown of dashboard error codes, full fluid capacity charts, and precise maintenance intervals to keep your machine moving safely. Open to the attachments section to find safe working loads, boom performance data, and step-by-step walk-around inspection procedures. Lock down those front and rear wheel nuts to exactly 680 N·m, and secure the battery compartment cover mounting bolts at 25 N·m before heading out to the site. A missed daily service check ruins the entire work schedule. Download this bookmarked file right to your tablet, find your spec, and get your crew back to lifting.
What's Inside This JCB 540-v140, 540-v180 Operator Manual

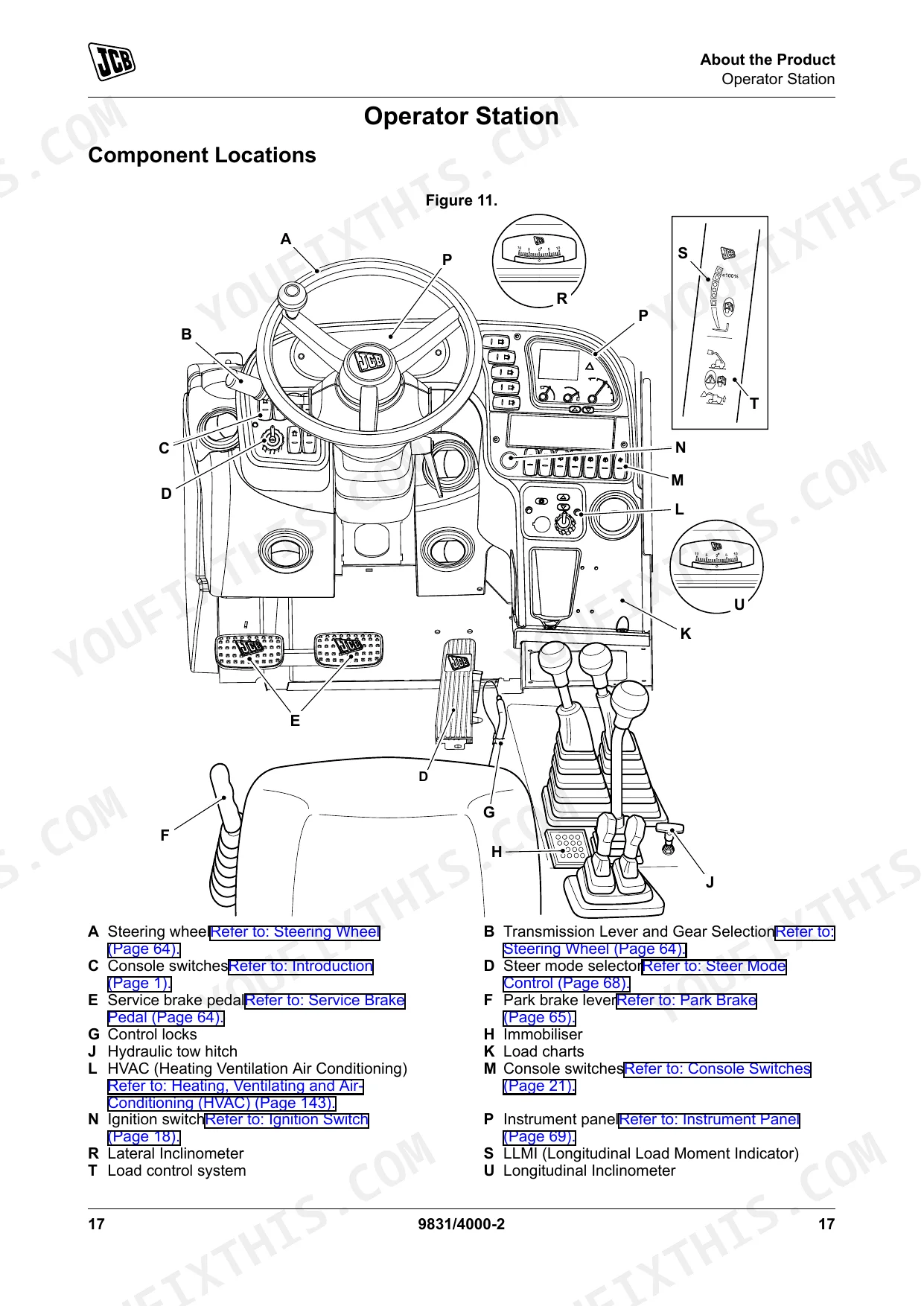

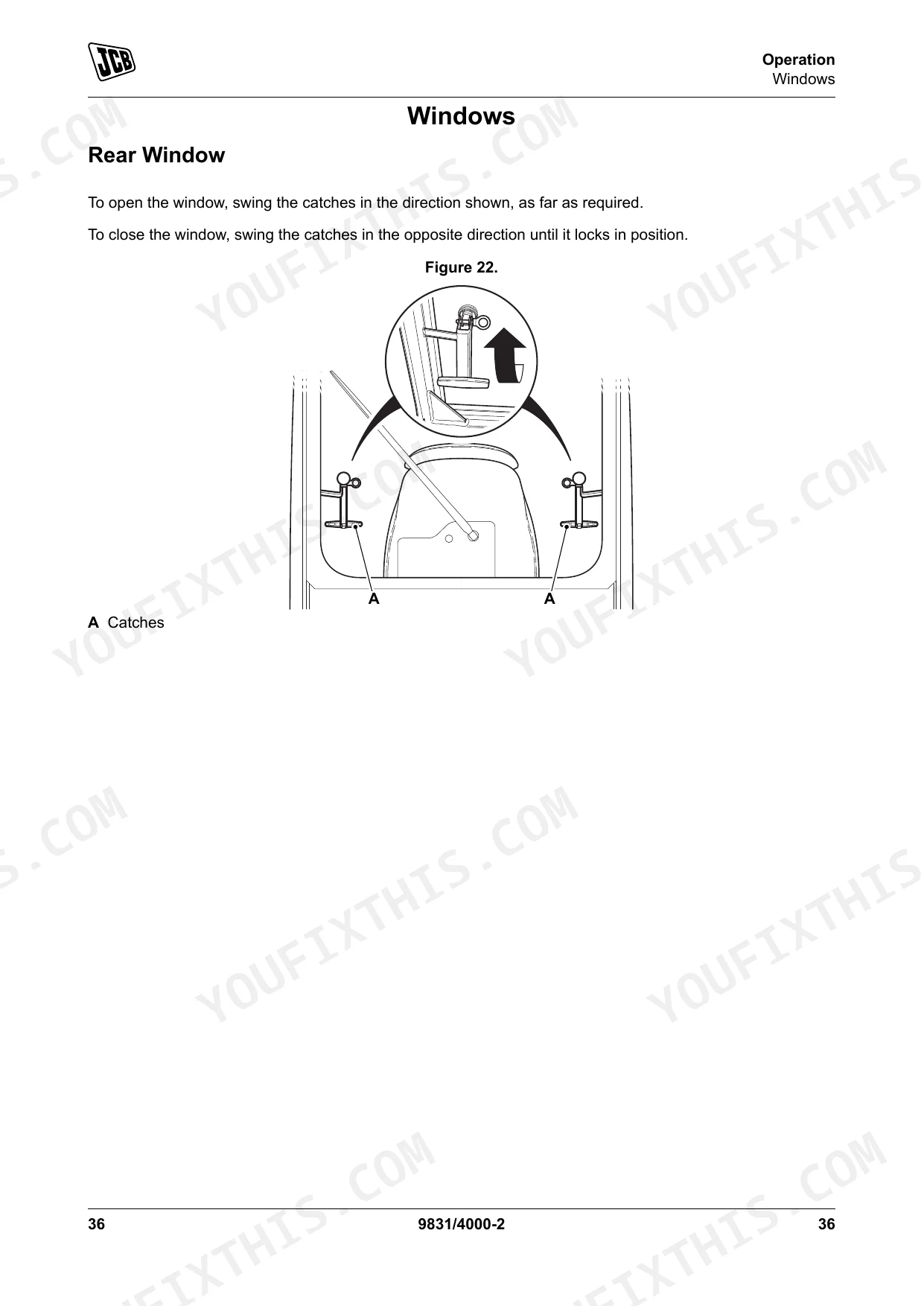

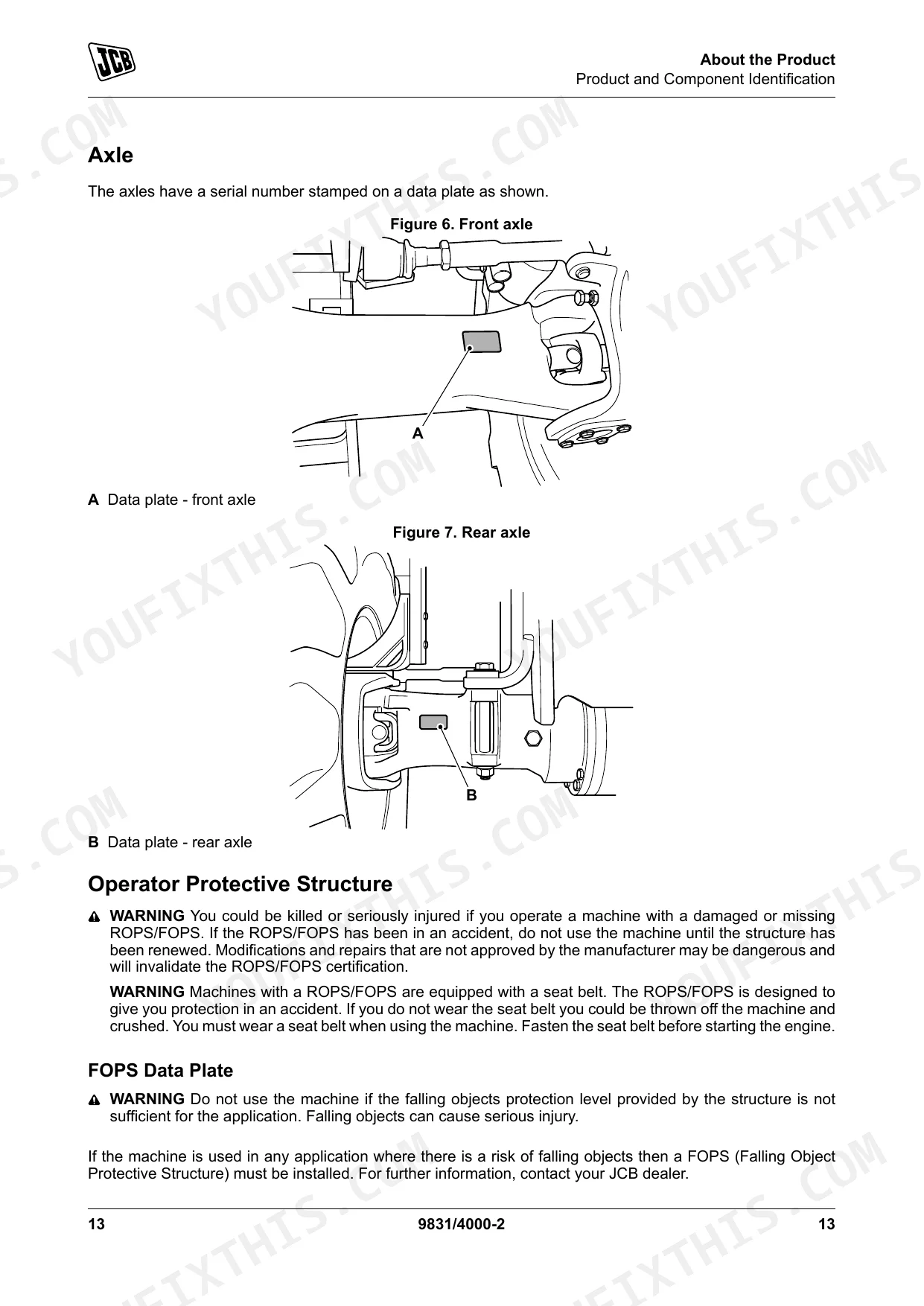

| System | Pages | Key Topics |
|---|---|---|
| Acronyms Glossary | 12 | Two Wheel Drive, Construction Equipment Security and Registration, Diesel Exhaust Fluid, Electronic Control Unit, Front End Accessory Drive, Falling Object Protective Structure |
| About the Product | 19-36 | Introduction (General, Name and Address of the Manufacturer, Product Compliance) |
| Operation | 37-156 | Introduction (General, Axle, Operator Protective Structure, Fops Data Plate), Operating Safety (General, ROPS Data Plate) |
| Attachments | 157-192 | Fire Extinguisher, Moving a Disabled Machine, Lifting the Machine, Transporting the Machine, Operating Environment, Refuelling, Working with Attachments, Quick-Fit Carriage |
| Preservation and Storage | 193-198 | Cleaning (General, Preparation), Checking for Damage (General), Storage (General, Put Into Storage, During Storage, Take Out of Storage) |
| Maintenance | 199-270 | Introduction (General, Owner/Operator Support, Service/Maintenance Agreements, Initial Service and Inspection, Obtaining Spare Parts) |
| Technical Data | 271-321 | Static Dimensions (Weights, Visibility Diagrams), Performance Dimensions (General, Boom Dimensions and Performance, Towing Weights), Noise Emissions (General, Noise Data) |
| Warranty Information | 322-328 | Service Record Sheet (Signature and Stamp, Annual Insurance, Installation Checklist), 1st 100h/1 Month, 500h/6 Month, 1000h/12 Month, 1500h/18 Month, 2000h/24 Month, 2500h/30 Month |
Quick Reference Specifications

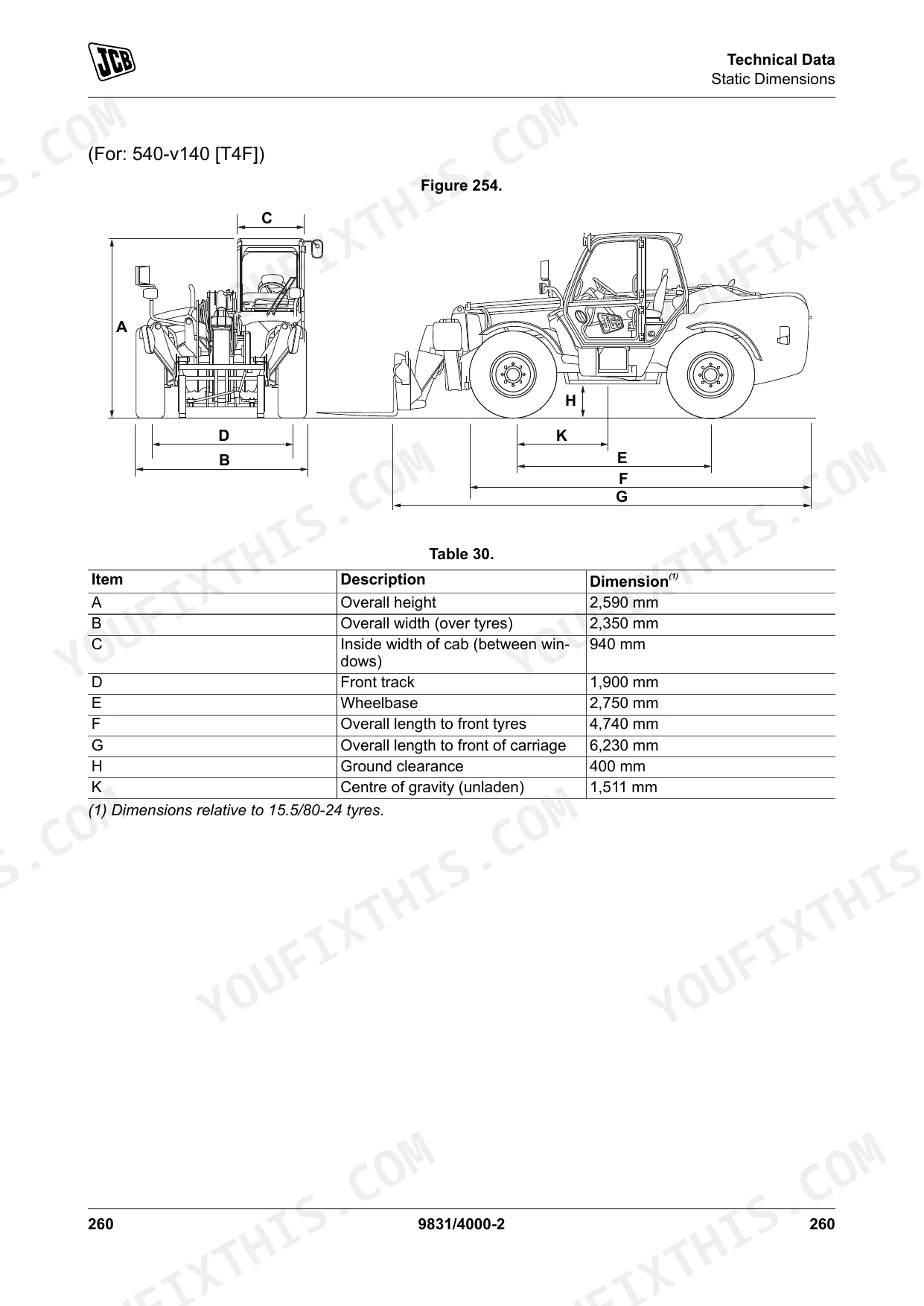

| Specification | Value | Page |
|---|---|---|
| Front Wheel Nut Torque | 680 N·m | p. 302 |
| Rear Wheel Nut Torque | 680 N·m | p. 302 |
| ROPS/FOPS Mounting bolts torque | 205 N·m | p. 302 |
| Step/Battery Compartment Cover Mounting bolt torque | 25 N·m | p. 302 |
| Axles Fill/level plug torque | 79 N·m | p. 302 |
| Battery voltage/system voltage | 12 V | p. 303 |
| Fuel Tank Capacity | 146 L | p. 294 |
| DEF (Diesel Exhaust Fluid) Tank Capacity | 13 L | p. 294 |
| Axle Fill/Level Plug Torque | 79 N·m | p. 302 |
| Overall Height | 2,590 mm | p. 272 |
| Ground Clearance | 400 mm | p. 272 |
| Maximum Lift Capacity | 4,000 kg | p. 286 |
JCB 540-v140, 540-v180 Common Problems This Manual Covers
JCB 540-v140 and 540-v180 boom will not lift, extend, or retract normally during heavy loads p. 286
Inspect the load placement to verify you are not exceeding the 4,000 kg maximum lift capacity listed on page 286. Check the boom components for visible leaks. Lower the carriage to the ground and verify hydraulic fluid level before attempting further lifts.
Manual Section: Technical DataMachine starts then stalls or exhibits reduced engine power after extended rough terrain work p. 294
Drain the water separator and verify the primary fuel tank is filled to its 146 L capacity as shown on page 294. Inspect the cooling pack for dust buildup and clean it thoroughly. Review the dash display for any derate warnings or interlock faults.
Manual Section: Technical DataEngine will not crank or dashboard warning lights flash erratically during the morning startup sequence p. 303
Verify the main battery voltage reads at least 12 V using a multimeter. Check the battery condition and terminals for corrosion as instructed on page 303. Inspect the primary wiring harnesses for damage and replace any blown fuses in the relay panel.
Manual Section: Technical DataTelehandler loses traction, creeps, or exhibits excessive tyre deflection on hard surfaces p. 316
Measure the tyre pressure using a calibrated gauge. Inflate Michelin 15.5 R25 XHA L3 tyres to exactly 4.5 bar on the 540-v140 model as detailed on page 316. Inspect the sidewalls for deep cuts or damage from rough terrain operations.
Manual Section: Technical DataFrequently Asked Questions
How do I reset the JCB 540-v140?
If a fault code is displayed, switch the ignition key off and on again. If the fault clears, the display will return to normal. This procedure is applicable for both the machine's general fault log and the Longitudinal Load Moment Indicator (LLMI) system.
What do JCB 540-v140 error codes mean?
The fault log display screen shows the fault code, time, date, engine hours, and the number of times the fault has been active. Faults are displayed in colors indicating severity: critical (red), warning (yellow), or trivial (gray). Table 19 on page 97 provides warning/fault icons with general descriptions such as 'Transmission', 'Stabilizer', and 'Brake'.
What are the torque specs for JCB 540-v140 wheel nuts / boom pins / hydraulic fittings?
The torque for both Front Wheel Nuts and Rear Wheel Nuts is specified as 680 N·m (Table 51, page 302). The fill/level plug torque for axles is 79 N·m (Table 53, page 302). Specific torque values for boom pins and hydraulic fittings are not explicitly provided in the manual.
How to clear JCB 540-v140 error codes
To clear a fault code, switch the ignition key off and on again; if the fault clears, the display will return to normal. For the LLMI system, the audible alarm and fault code display cancel after 10 seconds, but all LEDs will flash continuously as long as the fault remains; pressing the display button will show the fault code for a further 10 seconds.
What are the replacement specifications for hydraulic filters?

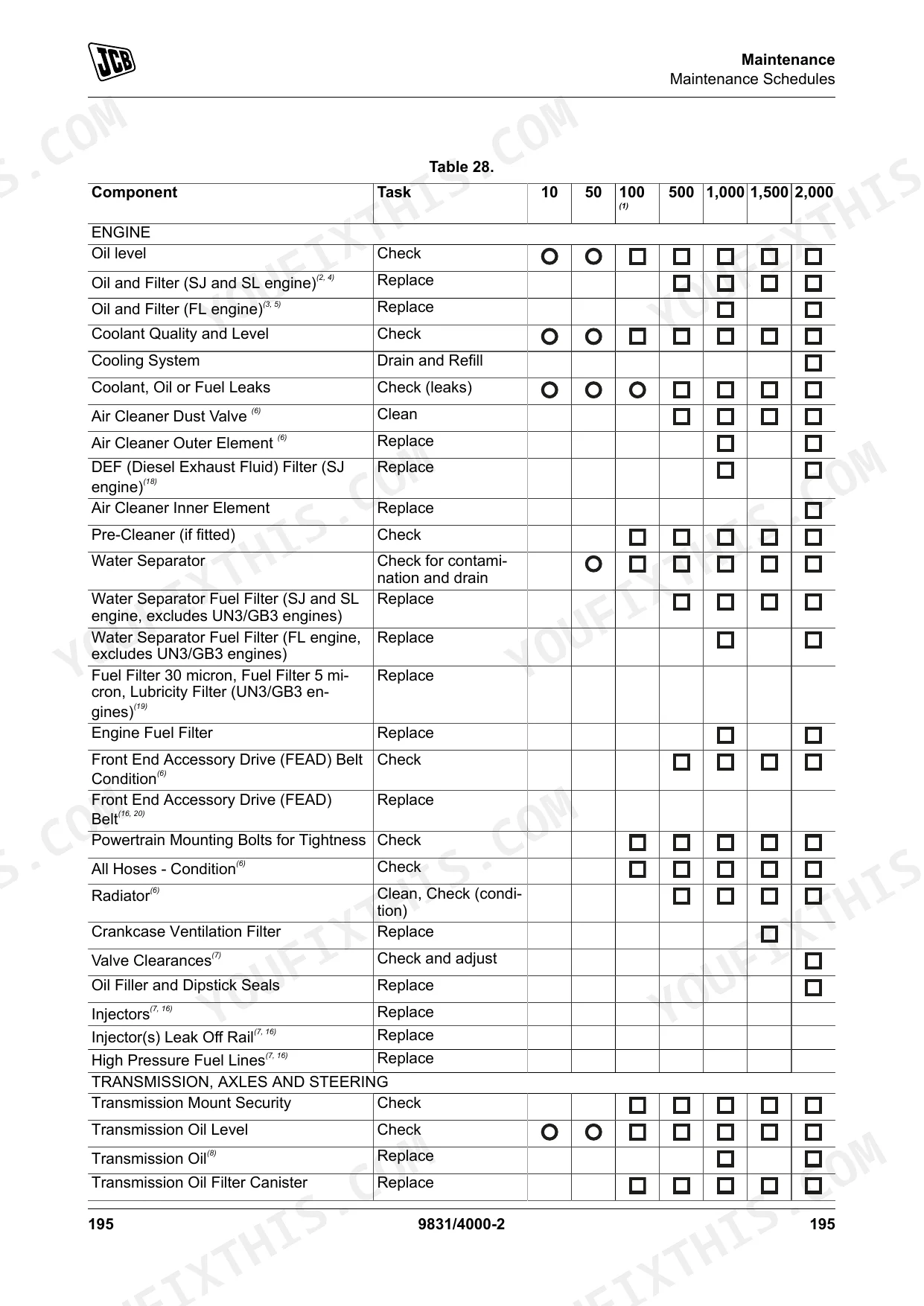

The manual specifies that hydraulic oil filters, including the Canister Type and Hydraulic Oil Tank, Top Mounting filters, should be replaced at various intervals such as 500, 1000, 1500, or 2000 hours, depending on the specific filter and operating conditions (Table 28, page 196). However, specific part numbers or micron ratings for these filters are not provided.
Is this JCB 540-v140, 540-v180 Operator Manual a digital download?
You get a 328-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This is a native digital PDF, allowing you to search and copy the full text. The text throughout is crisp and easy to read, ensuring all information is clearly presented. Diagrams and illustrations are sharp, appearing to be vector graphics, with all labels clearly legible. The pages are clean, free from any scan artifacts, stains, or skewed content. You will find several blank "Notes:" pages interspersed, which serve as filler within the document.
